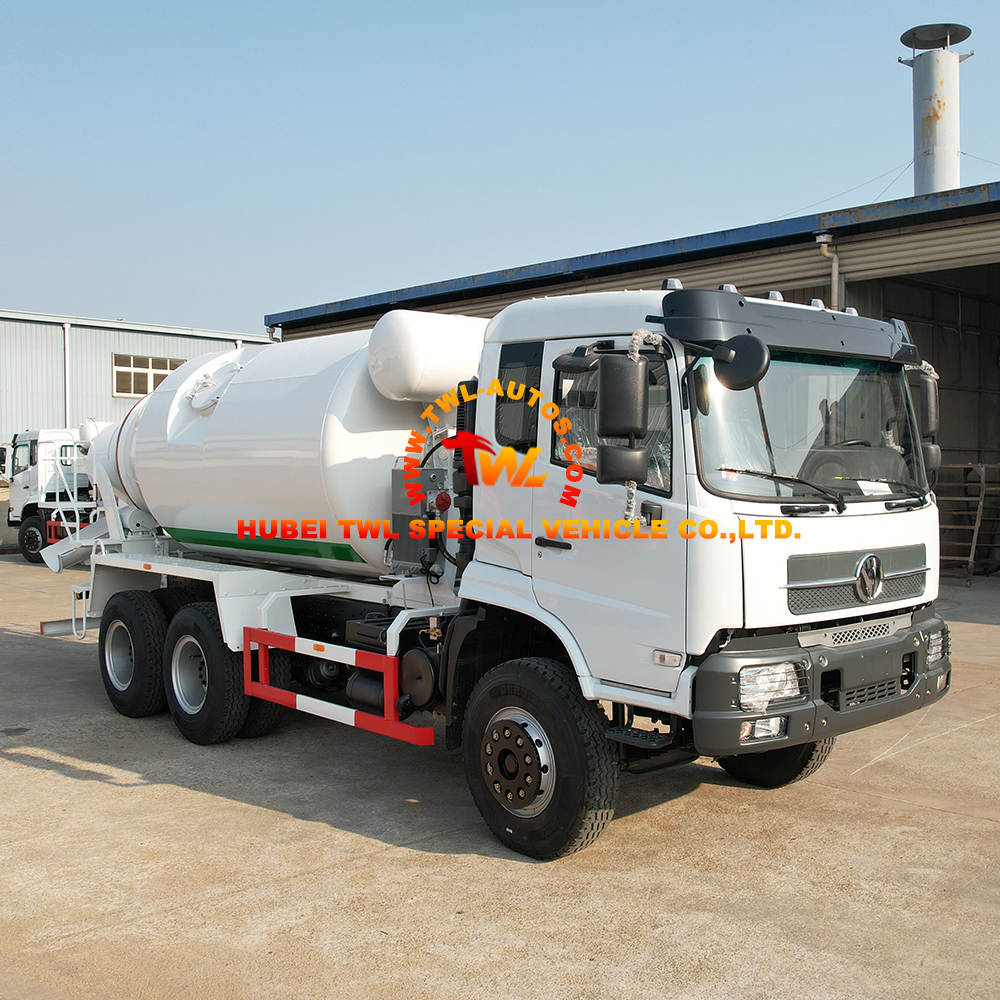

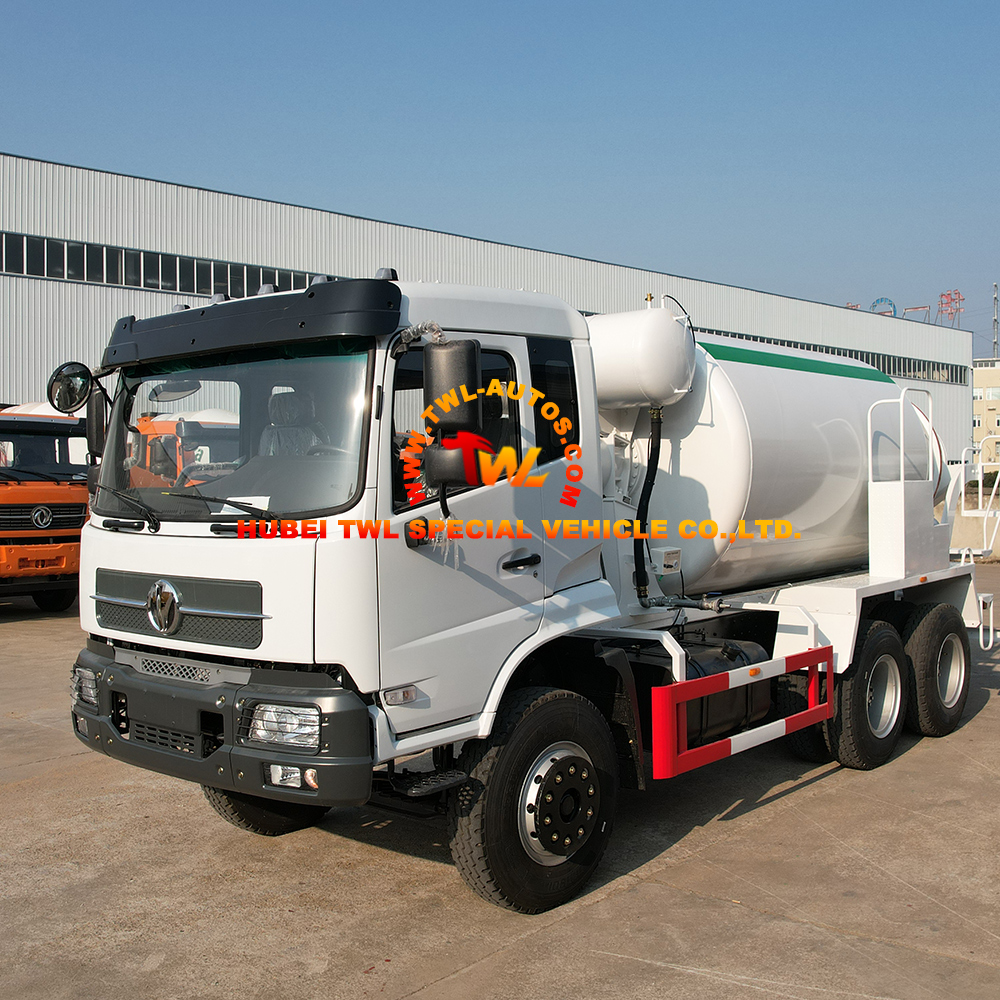

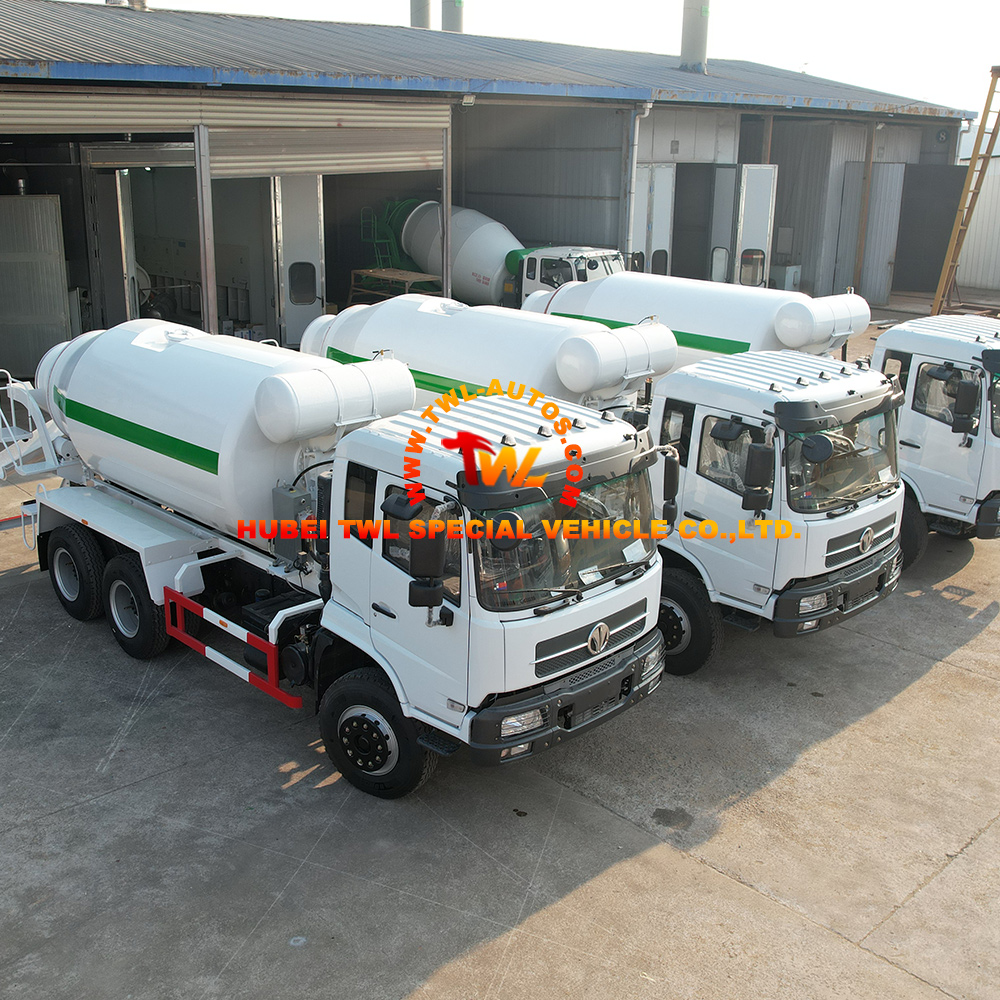

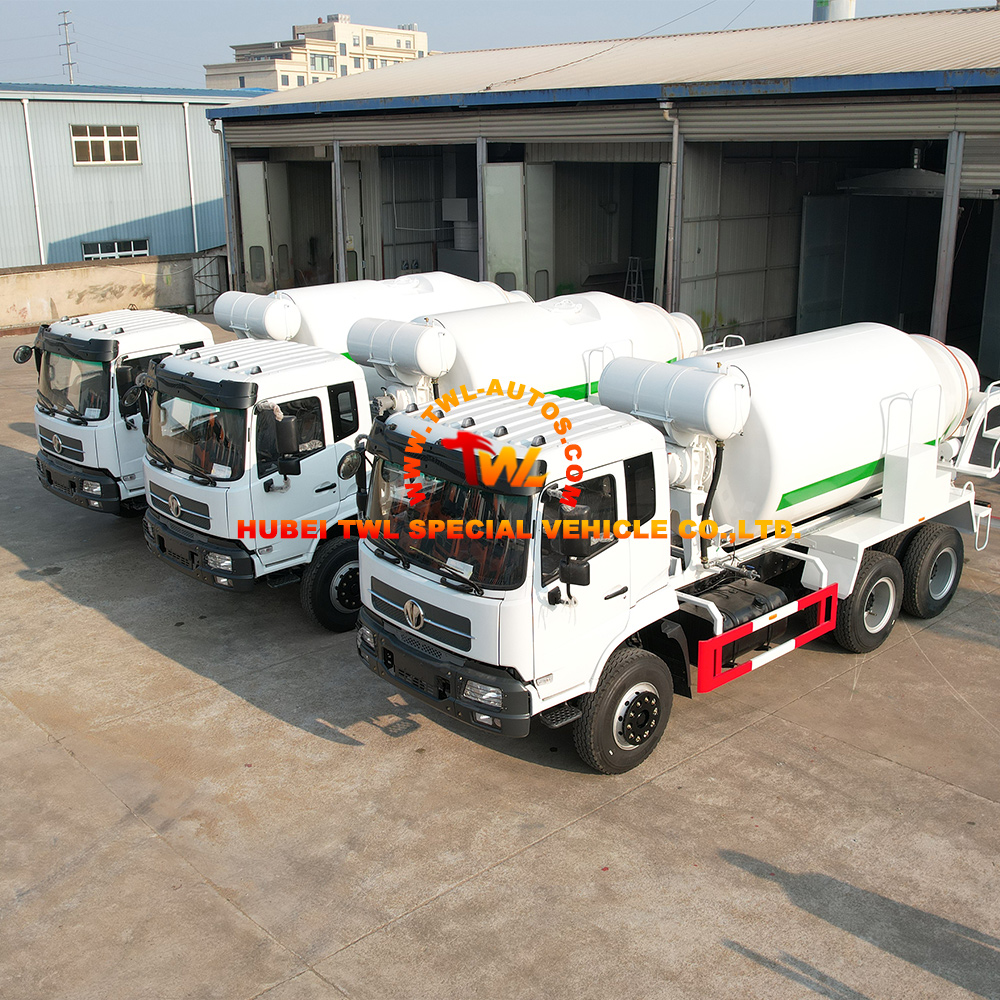

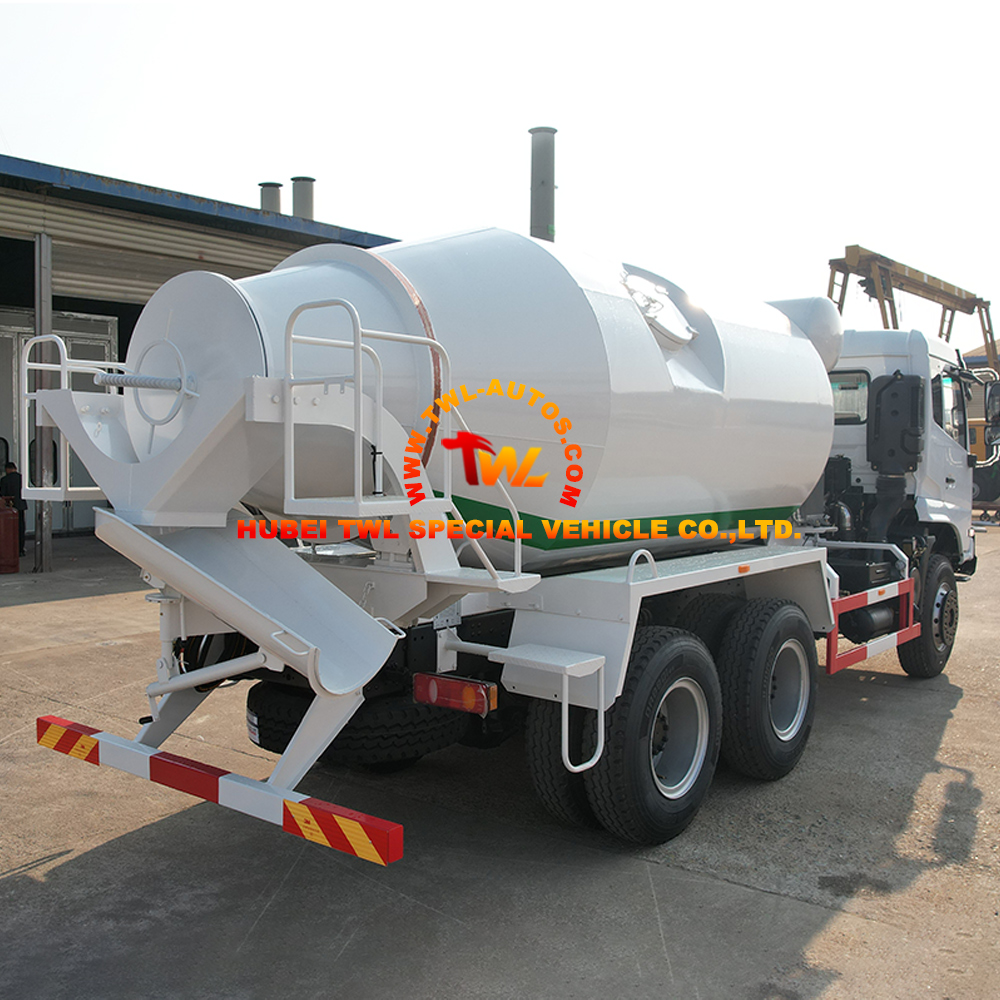

Zhongzheng Brand 6x4 9-cubic meter Concrete Mixer Truck
The Zhongzheng Brand 6x4 9-cubic meter Concrete Mixer Truck is a highly efficient and reliable mobile concrete mixing and transport vehicle designed and manufactured by Hubei TWL Special Vehicle Co., Ltd. Built on a robust 6x4 heavy-duty chassis, this truck is equipped with a durable rotating drum capable of transporting, mixing, and discharging ready-mix concrete with precision. Ideal for construction sites, infrastructure projects, and concrete batching plants, it delivers consistent performance and operational reliability.
Zhongzheng Brand 6x4 9-cubic meter Concrete Mixer Truck
As a leading manufacturer of specialized construction vehicles, Hubei TWL Special Vehicle Co., Ltd. delivers engineered solutions that meet the rigorous demands of the concrete industry. The Zhongzheng 6×4 9m³ Mixer Truck integrates advanced drum technology, a powerful hydraulic drive system, and a rugged chassis to ensure efficient concrete delivery and placement. TWL’s design emphasizes durability, safety, and ease of operation, making it a trusted choice for concrete suppliers and construction contractors.
Key Advantages
1. Robust Chassis & Powertrain
-
6×4 chassis provides excellent traction and stability on construction sites and rough roads.
-
High-torque engine ensures reliable performance under full load and steep gradients.
-
Durable transmission and axle system designed for continuous heavy-duty operation.

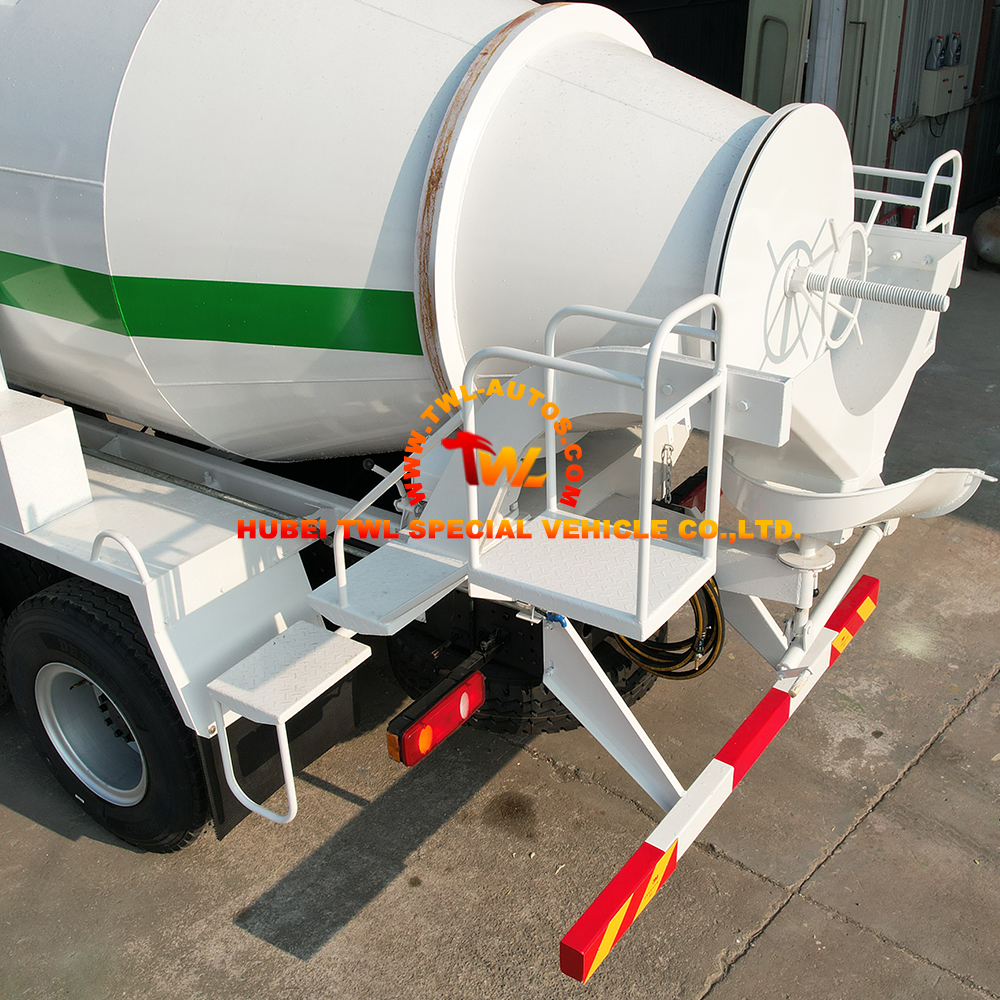

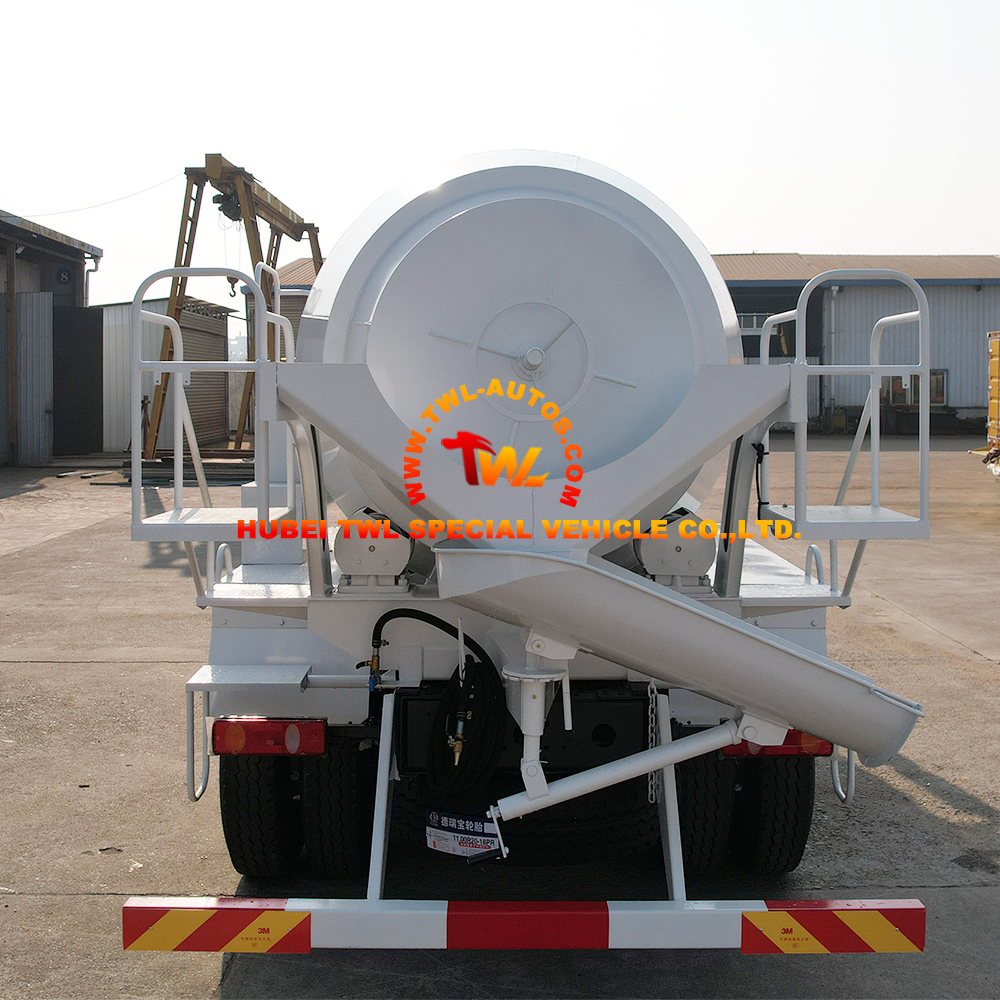

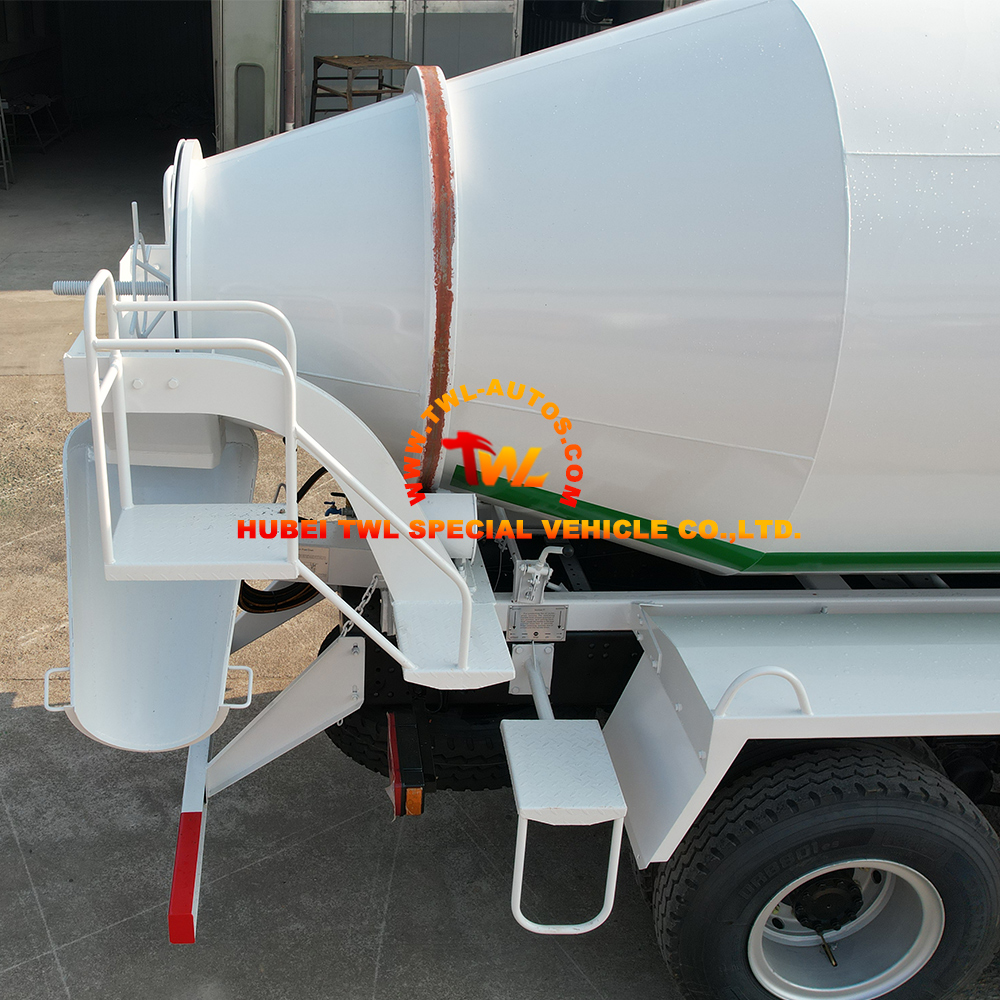

2. Efficient & Durable Mixing Drum
-
High-strength steel drum with wear-resistant lining for extended service life.
-
Optimized blade design ensures thorough mixing, minimal segregation, and clean discharge.
-
Smooth and adjustable rotation speed for precise control during mixing, transport, and discharging.
3. Reliable Hydraulic System
-
Powerful and stable hydraulic drive system ensures consistent drum rotation.
-
Low maintenance design with easy access to pumps, motors, and valves.
-
Safety features include pressure relief valves and overload protection.

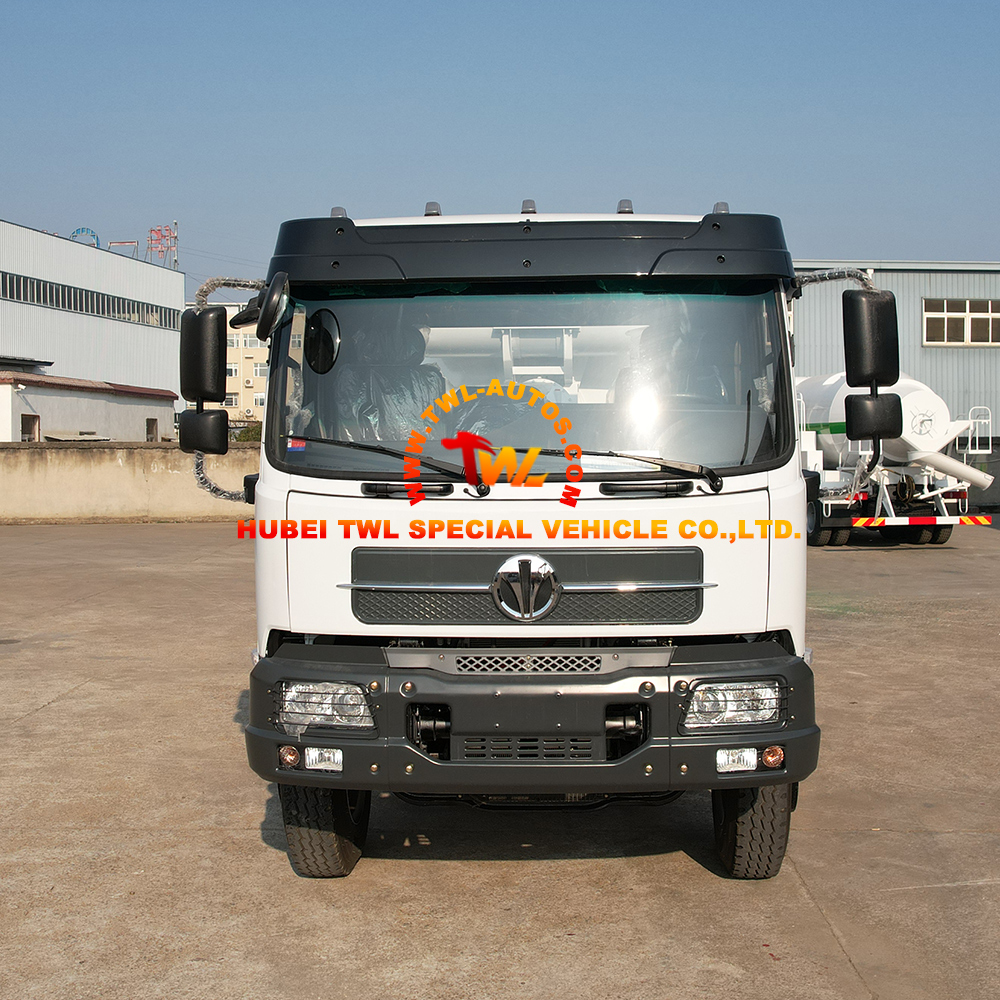

4. Operator-friendly Design
-
Intuitive controls in the cab and at the rear for safe and efficient operation.
-
Comfortable and ergonomic cab with good visibility for urban and site maneuvering.
-
Integrated water system for drum cleaning and concrete consistency adjustment.
5. Versatile & Customizable
-
Can be matched with various chassis brands (Sinotruk, Dongfeng, FAW, etc.).
-
Optional features: front-mounted water pump, automatic lubrication system, GPS tracking.
-
Compliant with national and regional transport and safety regulations.
Applications
This Zhongzheng 6×4 9m³ Concrete Mixer Truck is suitable for a wide range of concrete delivery and construction applications:
-
Ready-mix Concrete Plants: Transport of mixed concrete to construction sites.
-
Construction Projects: Supply of concrete for buildings, bridges, roads, and dams.
-
Infrastructure Development: Support for large-scale public works and urban development.
-
Precast Concrete Factories: Transport of concrete to molding and casting facilities.
-
Rural & Remote Construction: Reliable delivery of concrete to less accessible areas.
-
Commercial & Residential Building: Supply for housing complexes, commercial towers, and industrial buildings.
-
Emergency & Repair Works: Quick concrete supply for road repairs and structural maintenance.
Product Specification
| Category | Parameter | Specification |
| CHASSIS SYSTEM | Model | Heavy-duty 6×4 Truck Chassis (e.g., Sinotruk, Dongfeng, FAW compatible) |
| Engine | Diesel, approx. 280-350 HP, Euro III/IV/V compliant | |
| Transmission | Manual, 9-10 forward gears, 2 reverse gears | |
| Drive Type | 6×4 Rear-wheel Drive | |
| Wheelbase | 3,800mm – 4,500mm (optimized for stability) | |
| Max. Speed | 80-90 km/h | |
| Fuel Tank Capacity | 300-400 liters | |
| Tire Specification | 11.00R20 / 12.00R20 radial tires | |
| Brake System | Dual-circuit air brake system, ABS optional | |
| Cab | Comfort cab, air-conditioned, seating for 2-3 | |
| MIXER DRUM SYSTEM | Drum Capacity | 9 cubic meters (theoretical) / 6-7 m³ (loadable) |
| Drum Material | High-strength wear-resistant steel (BH350 or higher) | |
| Drum Rotation Speed | 0-16 rpm (mixing), 0-10 rpm (discharging) | |
| Mixing Blades | Spiral-type, optimized for homogeneous mixing and clean discharge | |
| Water Tank | Integrated 300-500 liter water tank for cleaning and mixing adjustment | |
| Inclination Angle | 13°-16° (optimal for loading and discharging) | |
| HYDRAULIC SYSTEM | Hydraulic Pump | High-torque piston pump or gear pump |
| Drive System | Engine PTO-driven hydraulic system | |
| Control | Manual/Automatic control in cab and rear operation panel | |
| Oil Capacity | 120-200 liters (hydraulic oil reservoir) | |
| GENERAL VEHICLE | Overall Dimensions | Length: 9.0-10.5m, Width: 2.5m, Height: 3.8-4.0m |
| Gross Vehicle Weight (GVW) | 25-31 tons | |
| Curb Weight | Approx. 12-15 tons | |
| Payload Capacity | 10-14 tons (concrete) | |
| Min. Ground Clearance | ≥280mm | |
| Electrical System | 24V, dual batteries, centralized control panel | |
| Lighting | LED headlights, working lights, turn signals, beacon optional | |
| Certification | Meets GB/T 26408, CCC, and industry standards |
Zhongzheng Brand 6x4 9-cubic meter Concrete Mixer Truck
- +86 199 4767 5585
- [email protected]
- Industry Park, Suizhou City,Hubei Province, China
Company Profile
Aout TWL
HUBEI TWL SPECIAL VEHICLE CO., LTD (hereinafter referred to as TWL), one of important member of CLW Group, is located in Suizhou City, Hubei Province, the capital of China’s Special Vehicles. TWL Truck has a first-class management, design, R&D, manufacturing, and sales professional team, as well as “special, new, high and sophisticated” facilities and equipment, complete manufacturing technology, and strict testing methods to ensure the production of high-quality and high-value-added products for the market. At present, we has strategic partnership with a number of well-known Chinese truck brand, including Dongfeng, Sinotruk, FAW, Foton, Shacman, ISUZU, JAC, JMC, Kama, etc. TWL Truck always adheres to the corporate philosophy of “people-oriented, customer-oriented, honesty and win-win”, and adheres to the business tenet of “development by innovation, survival by quality; integrity by service, and market by brand”.
After-Sales Service
Warranty
– The buyers can get a minimum warranty period of 12 months or 25000KM-50000KM, whichever comes first from the arrival date of shipment.
– During this period, we will send replacement parts and components to buyers by DHL, UPS, FEDEX or by air and by sea free of charge, easy-wearing spare parts are excluded.
– After warranty time, buyers can get all of spare parts of their truck at factory cost.
– This warranty does not cover any possible damage due to improper operaton, accident or misuse or damage due to any unauthorized services.
Technical Support
– The buyers can forever enioy technical support anytime and anywhere, overseas technical training before operaton is available at buyers cost or our cost.
Daily Mainteance Suggestion
– We strongly sugest you to buy some amount of basic spare pats along with your truck, the cost will be approximately 500 USD-800 USD/unit, no shipping cost.
