Sinotruk HOWO TX 22,000L Water Sprinkler Truck

The Sinotruk HOWO TX Water Sprinkler Truck is a professional-grade watering vehicle designed for municipalities, construction companies, and mining operations that require large-volume water transport and efficient road watering capabilities. Built on the proven HOWO 6×4 rear-eight-wheel drive chassis with a 371HP WD615.47 turbocharged diesel engine (Euro II), this vehicle delivers exceptional power and reliability for demanding operating conditions. The 22,000-liter Q235 carbon steel tank features an elliptical cross-section with built-in baffles to reduce water surge, 4-5mm wall thickness for durability, and epoxy anti-corrosion coating on the inner wall to prevent rust and extend service life. The high-efficiency water pump delivers 90m³/h flow with ≥7m self-priming depth, supporting multiple operation modes: front flushing (≥14m width) for road washing, rear spraying (≥16m width) for even water distribution, side spraying for curb and gutter cleaning, and a 360° rotating high-pressure water cannon (≥35m range) with adjustable columnar or fog pattern for long-range watering or firefighting support. Dual operation modes allow control from the cab or manually at the rear. The HOWO TX-F flat-top cab features hydraulic tilting for easy maintenance, air conditioning for operator comfort, central locking, electric windows, and an air suspension driver’s seat to reduce fatigue during long shifts. With a GVW of 20,000 kg and a top speed of 85 km/h, this truck balances load capacity and road performance.

Key Features:

· Proven HOWO 6×4 Heavy-Duty Chassis: The HOWO 6×4 rear-eight-wheel drive chassis is renowned for its durability and load-carrying capacity. The 9.5-ton front axle and 16-ton dual rear axles provide excellent stability for the 22,000-liter tank. The 4,600+1,350 mm wheelbase and 10 12.00R20 steel radial tires ensure stable handling on paved and unpaved roads.

· 371HP Turbocharged Diesel Engine: The WD615.47 inline six-cylinder diesel engine delivers 371 horsepower (273kW) with turbocharging and intercooling technology. This Euro II engine is specifically chosen for its proven reliability in African and other overseas markets where fuel quality and operating conditions are challenging.

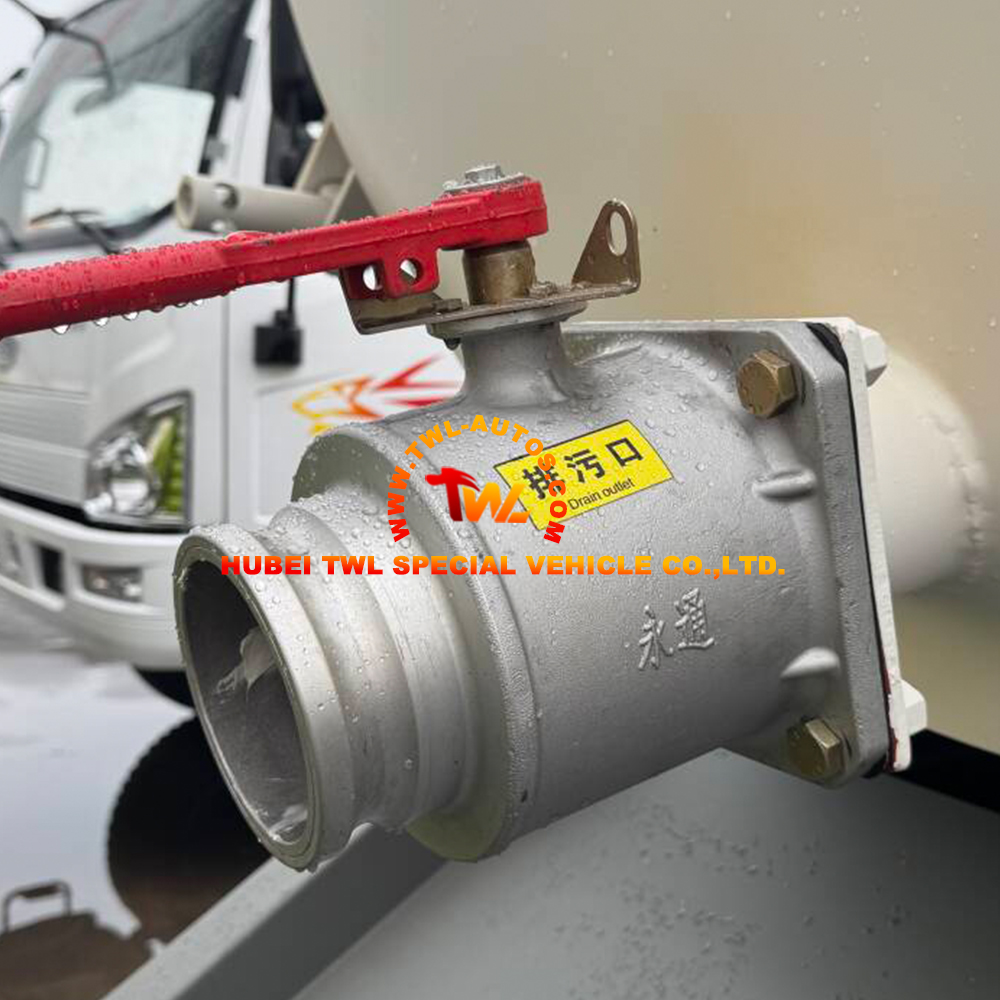

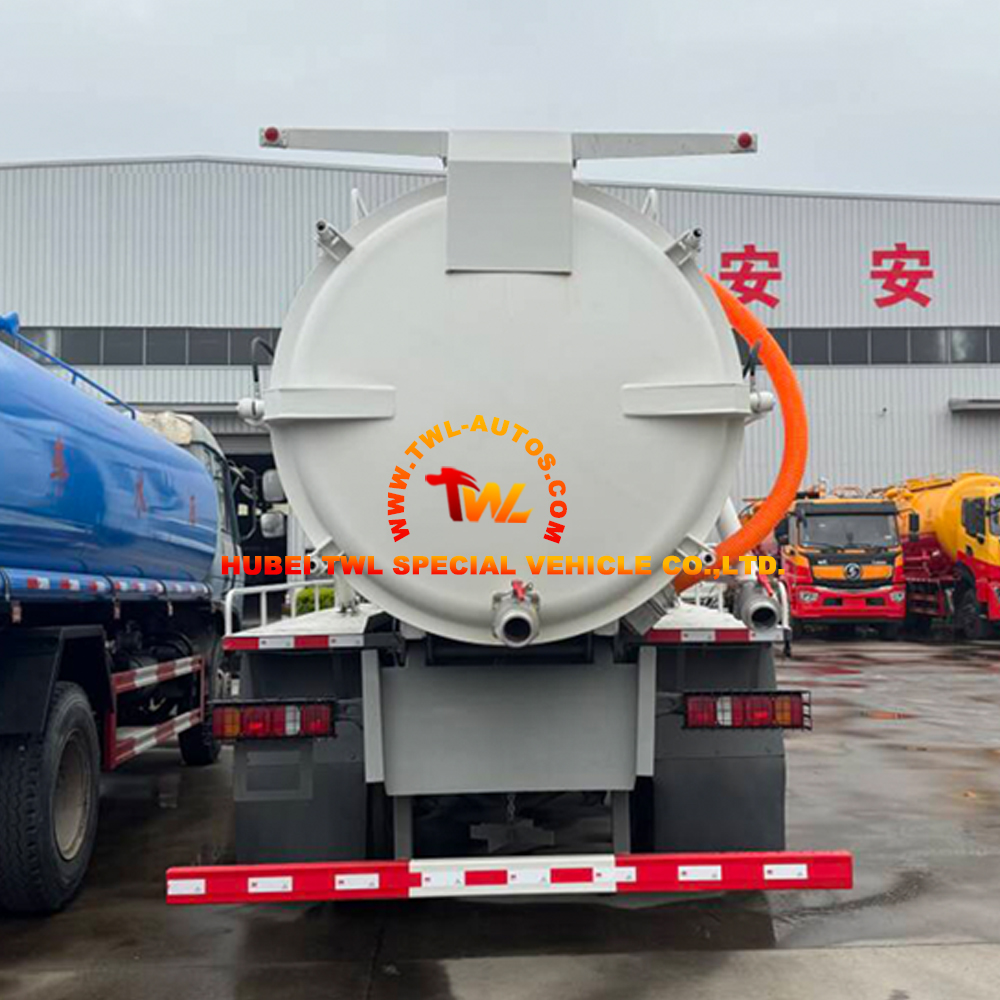

· 22,000-Liter Durable Carbon Steel Tank: The tank is constructed from Q235 carbon steel with 4-5mm wall thickness, providing excellent impact resistance. The elliptical cylindrical design with built-in baffles reduces water surge during acceleration, braking, and cornering, improving driving stability. The inner wall features epoxy anti-corrosion coating to prevent rust and contamination, while the outer wall has a durable spray coating. Includes manhole for inspection and drain valve for complete emptying.

· High-Performance Water Pump & Sprinkler System: The 90m³/h high-power water pump features ≥7m self-priming depth, allowing the truck to draw water from ponds, rivers, or open water sources. The multi-mode sprinkler system includes front flushing (≥14m width) for road washing, rear spraying (≥16m width) for even water distribution, and side spraying for curb cleaning. The 360° rotating high-pressure water cannon delivers a range of ≥35m with adjustable columnar or fog patterns, suitable for long-range watering, dust suppression, or emergency firefighting.

· Dual Operation Control for Flexibility: Operators can control all sprinkler functions from the cab using the centralized control panel, or manually at the rear of the vehicle for precise positioning during watering operations. This dual-mode design improves operational efficiency and adaptability to different job site conditions.

· Comfortable HOWO TX-F Cab: The flat-top cab features hydraulic tilting for easy engine access and maintenance. ECE R29 safety certification ensures crash protection. Standard equipment includes air conditioning for operator comfort in hot climates, central locking, electric windows, and an air suspension driver’s seat that reduces fatigue during long driving shifts. A driving recorder is included for compliance with operational regulations.

· Comprehensive Braking Safety: The dual-circuit air brake system with drum brakes provides reliable stopping power under full load conditions. The engine exhaust auxiliary brake provides additional braking assistance on long descents, reducing brake wear and improving safety.

Application:

· Municipal Road Flushing & Dust Suppression: Keep city streets clean and reduce airborne dust with front flushing and rear spraying operations.

· Construction Site Dust Control: Suppress dust on active construction sites, improving worker safety and neighborhood relations.

· Landscaping & Green Belt Irrigation: Water roadside green belts, parks, and landscaped areas efficiently with the rear spray system.

· Mining Site Dust Suppression: Control dust on haul roads and processing areas at mining and quarry operations.

· Emergency Water Supply: Transport large volumes of water for emergency supply during drought, fire, or infrastructure failure.

· Agricultural Irrigation: Support irrigation for large farms, orchards, and plantations in areas without fixed irrigation infrastructure.
