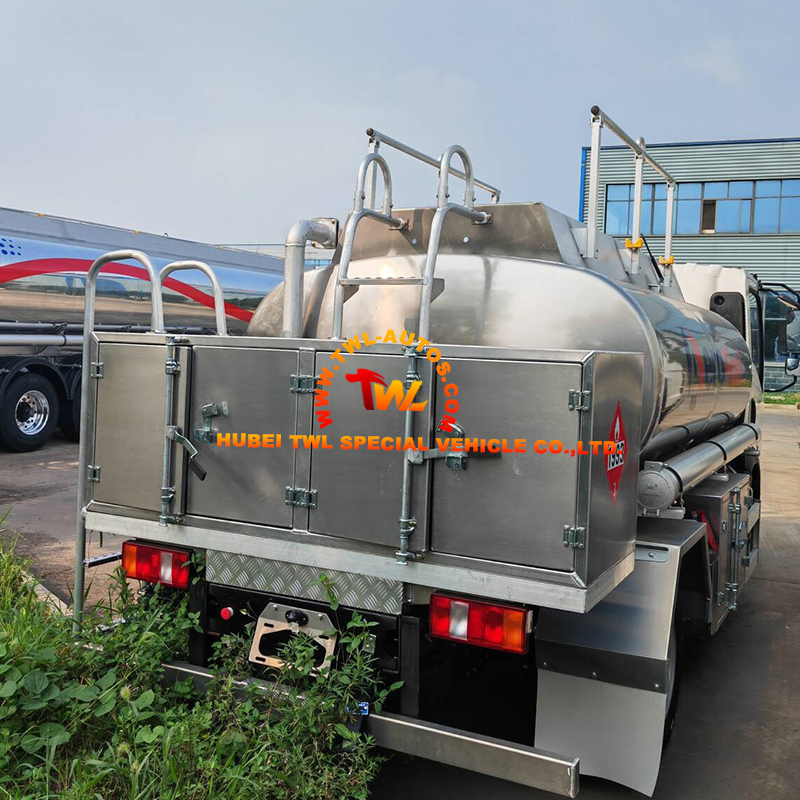

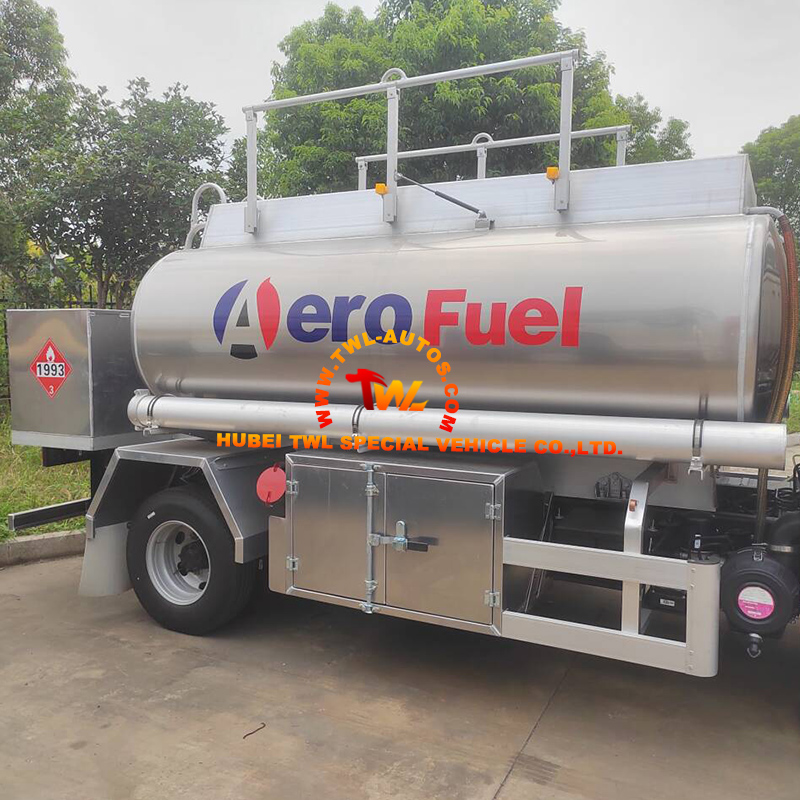

SINOTRUK HOWO Aluminum Alloy 4m³ Dual-System Refueling Truck

The SINOTRUK HOWO Light Truck Aluminum Alloy 4m³ Dual-System Refueling Truck is a compact, versatile, and highly efficient mobile fueling solution designed and manufactured by Hubei TWL Special Vehicle Co., Ltd. This specialized vehicle is built on the reliable SINOTRUK HOWO light-duty chassis and features a lightweight, corrosion-resistant 4-cubic-meter aluminum alloy tank. Its innovative dual-system design allows for the simultaneous or independent handling of two different types of fuel (e.g., diesel and gasoline), making it an ideal asset for fleet management, construction sites, agricultural operations, and remote fuel supply.

SINOTRUK HOWO Aluminum Alloy 4m³ Dual-System Refueling Truck

Key Advantages

1. Dual-system Operational Flexibility

Two independent fueling systems allow for carrying and dispensing two different fuels (e.g., Diesel & Gasoline, or two grades of diesel) simultaneously, serving a wider range of equipment without contamination risk.
Ideal for mixed fleets, reducing the need for multiple dedicated fuel trucks.

2. Lightweight & Durable Aluminum Tank

Aluminum alloy construction offers a superior strength-to-weight ratio, increasing payload capacity and improving fuel economy compared to steel tanks.
Highly resistant to corrosion from fuels and atmospheric conditions, ensuring long tank life and fuel purity.
Lower vehicle curb weight allows for better performance and reduced wear on chassis components.

3. Precision & Accountability

Dual precision flow meters provide accurate measurement of fuel dispensed from each compartment, essential for fleet management, cost control, and client billing.
Digital preset function allows for dispensing a specific quantity automatically.
High-quality filtration protects sensitive engine fuel systems from contaminants.

4. Enhanced Safety & Reliability

Comprehensive static electricity control and grounding system is critical for safe fuel handling.
Independent overfill protection for each compartment prevents spills and environmental hazards.
Robust chassis and reliable pumping systems ensure consistent performance in field conditions.

5. Cost-effective & Maneuverable

Based on the economical and reliable SINOTRUK HOWO light truck platform, offering low acquisition and operating costs.
Compact size and good maneuverability make it perfect for navigating construction sites, farms, mining camps, and urban depots.
The dual-system capability maximizes the utility of a single vehicle, offering an excellent return on investment.

Applications

This HOWO Light Truck Aluminum Alloy 4m³ Dual-System Refueling Truck is perfectly suited for:

Construction & Mining Fleets: On-site refueling of mixed equipment (excavators, generators, light vehicles) requiring both diesel and gasoline.
Agricultural Operations: Fueling farm machinery (tractors, harvesters) and support vehicles across large properties.
Logistics & Transport Companies: Refueling a mixed fleet of trucks and vans at a central depot or remote location.
Municipal & Utility Fleets: Servicing diverse municipal vehicles (trucks, mowers, emergency generators).
Military & Government Bases: Supporting mixed vehicle fleets in remote or temporary bases.
Event Management & Film Production: Providing fuel support for generators and vehicles at temporary sites.
Fuel Distributors: Small-scale commercial delivery of two fuel products to remote clients or stations.

Product Specification

Category	Parameter	Specification
CHASSIS SYSTEM	Model	SINOTRUK HOWO Light Truck Chassis (e.g., HOWO N5G or similar)
	Engine	Diesel, approx. 160 – 220 HP, Euro V/VI compliant
	Transmission	Manual, 6-8 forward gears, 1 reverse gear
	Drive Type	4×2 Rear-wheel drive
	Wheelbase	3,800mm – 4,500mm (customizable)
	Max. Speed	100-120 km/h
	Fuel Tank Capacity (Vehicle)	150-200 liters
	Tire Specification	8.25R16 or 9.00R20 radial tires
	Brake System	Air-over-hydraulic or full air brake system
	Cab	Standard comfort cab, air-conditioned, seating for 2-3
TANK SYSTEM	Tank Material	Marine-grade aluminum alloy (lightweight, corrosion-resistant)
	Tank Capacity	4 cubic meters (4,000 liters total)
	Compartment Configuration	Dual compartments (e.g., 2x2m³ or customizable like 2.5m³ + 1.5m³)
	Design Pressure	Atmospheric
	Manholes	Separate manholes for each compartment with breather valves
	Insulation	Optional polyurethane foam insulation for temperature stability

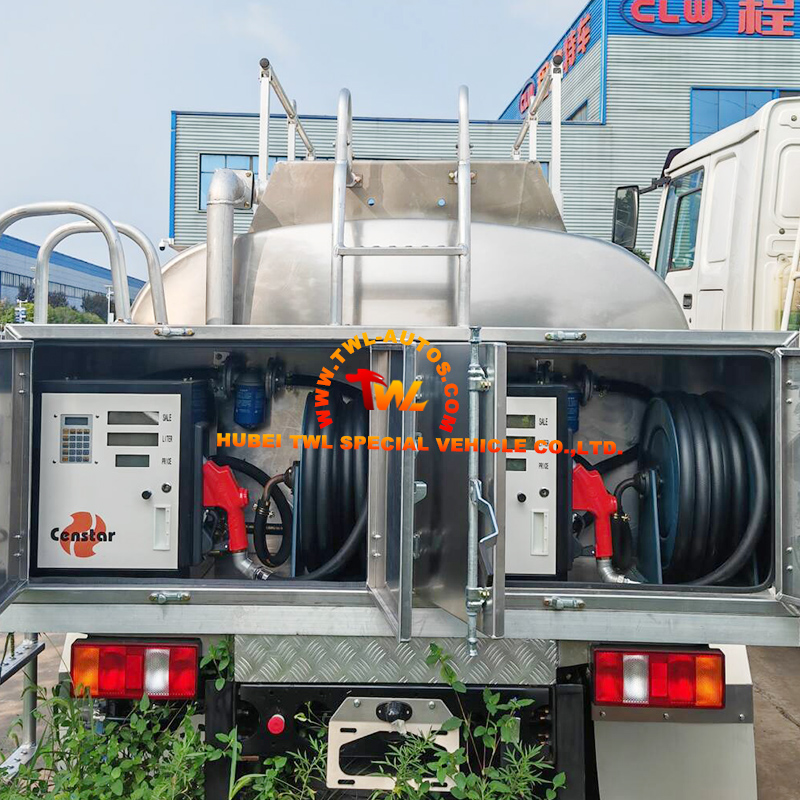

DUAL FUEL DISPENSING SYSTEM	System Type	Two independent fuel delivery systems (one per compartment)
	Pumps	Two self-priming gear pumps (one for each system), PTO or independent engine driven
	Metering	Two positive displacement flow meters with digital displays and preset functions
	Hose & Reel	Two static-conductive refueling hoses (length: 20-30m each) on manual or powered reels
	Nozzles	Two automatic shut-off nozzles (diesel and gasoline types as required)
	Control Panel	Centralized panel with separate controls, counters, and emergency stop for each system
	Filtration	In-line fuel filters and water separators for each system
SAFETY SYSTEMS	Static Control	Grounding cable and static discharge system for safe refueling
	Overfill Protection	Mechanical or electronic overfill prevention devices for each compartment
	Fire Safety	Fire extinguishers, optional fire suppression system in engine compartment
	Electrical	Explosion-proof wiring and lighting in rear operation area
	Vents	Flame arrestors on tank vents
GENERAL VEHICLE	Overall Dimensions	Length: 7.0 – 8.5m, Width: 2.4 – 2.5m, Height: 3.0 – 3.3m
	Gross Vehicle Weight (GVW)	10 – 16 tons
	Curb Weight	Approx. 5.5 – 7 tons (advantageously low due to aluminum tank)
	Payload Capacity	4 – 9 tons (fuel weight, approx. 3.2 – 3.5 tons for 4m³ of fuel)
	Min. Ground Clearance	≥220mm
	Electrical System	24V, dual battery system
	Lighting	LED headlights, work lights, warning beacons, and operation area lights
	Certification	Meets GB standards for mobile refuelers; can be designed to NFPA, AS or other regional standards.

SINOTRUK HOWO Aluminum Alloy 4m³ Dual-System Refueling Truck
