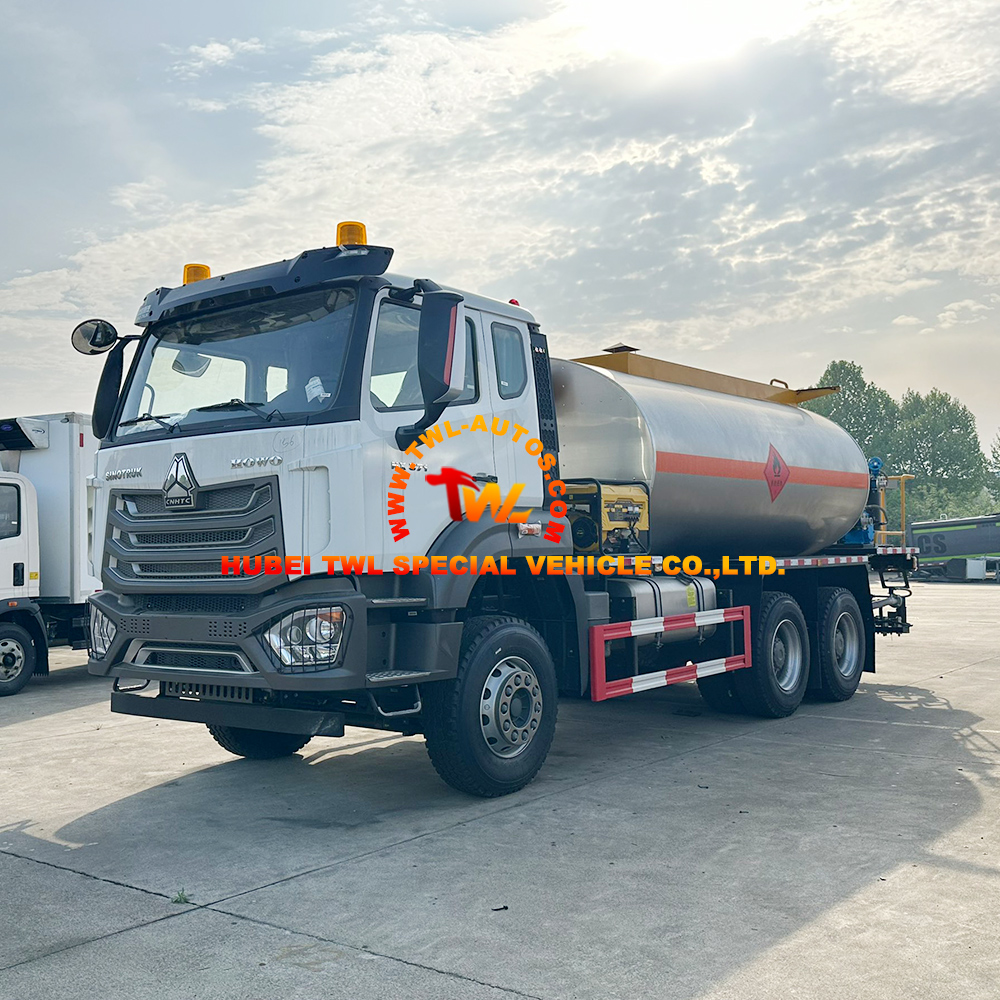

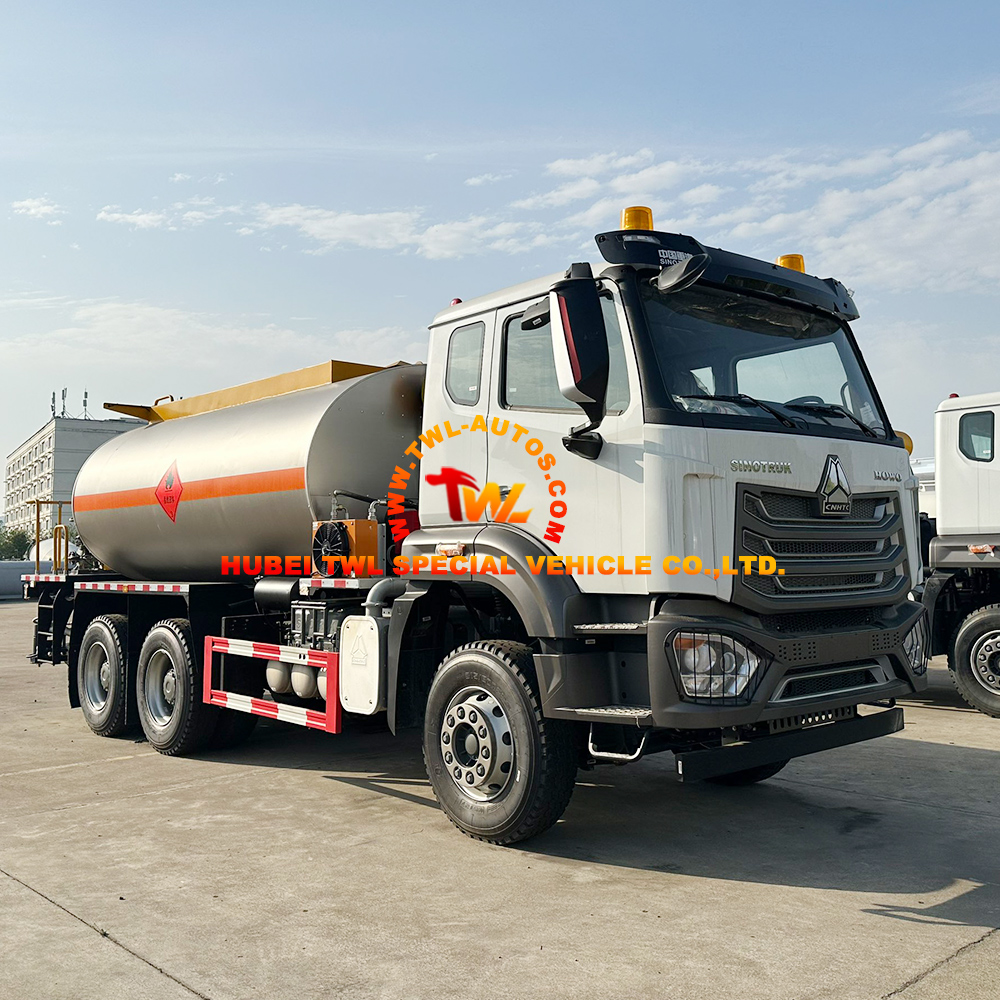

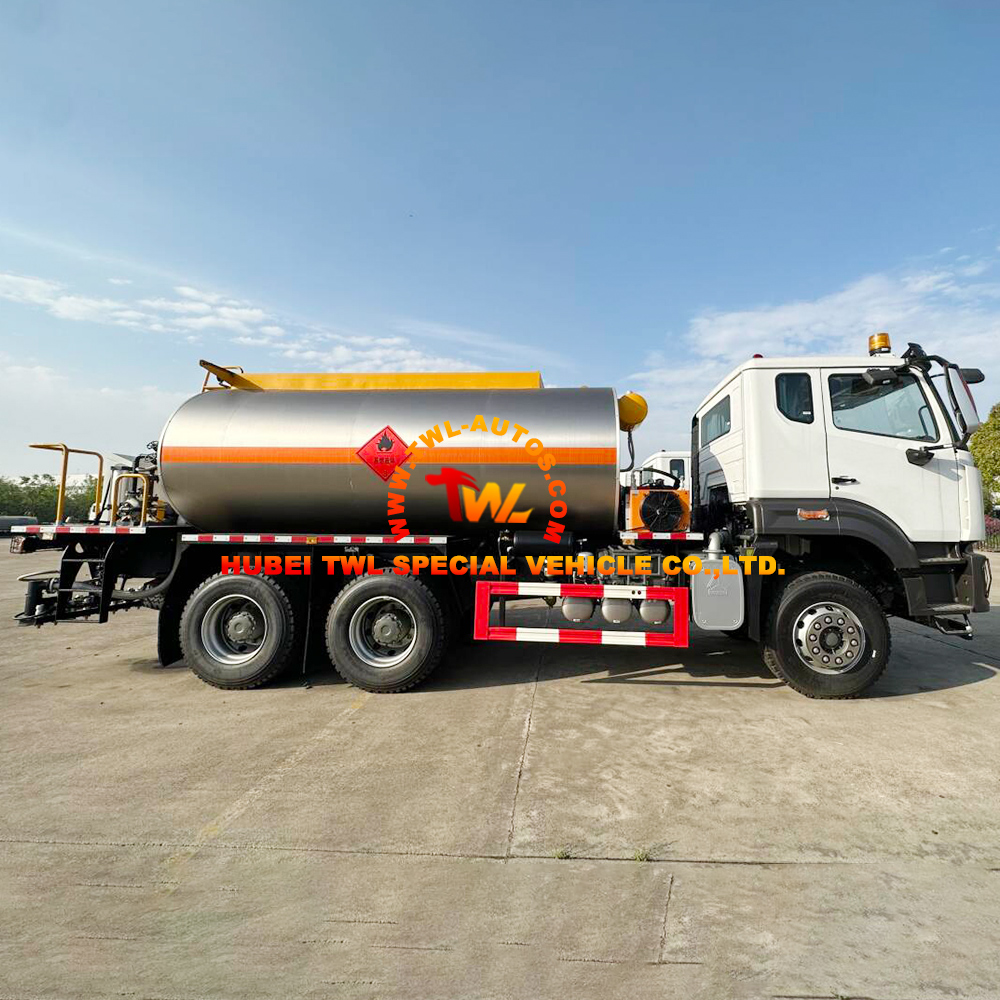

Sinotruk HOWO 6x4 NX 15m³ Asphalt Distributor Truck
Engineered for professional road construction and pavement maintenance, the Sinotruk HOWO 6x4 NX Asphalt Distributor Truck is a high-performance spraying vehicle designed for uniform application of liquid asphalt, emulsified asphalt, and modified asphalt. Built on the proven HOWO 6x4 heavy-duty chassis with a 371HP WD615.47 diesel engine (Euro II), this 15,000-liter asphalt distributor features an integrated heating system, intelligent control devices, and precise adjustment of spraying temperature, pressure, and flow rate. Ideal for highway construction, asphalt overlay tack coats, chip sealing, and pavement preservation projects.
Sinotruk HOWO 6x4 NX 15m³ Asphalt Distributor Truck
The Sinotruk HOWO 6×4 NX Asphalt Distributor Truck is a purpose-built professional spraying vehicle designed for modern road engineering applications requiring precise, uniform asphalt application. Built on the reliable HOWO 6×4 left-hand drive chassis with a 4,325+1,350 mm wheelbase, this vehicle features a powerful WD615.47 inline six-cylinder turbocharged diesel engine delivering 371 horsepower (273kW) with 9,726 ml displacement, meeting Euro II emission standards. The 15,000-liter (15 cubic meter) tank is constructed from high-quality carbon steel with an integrated heating system that maintains optimal asphalt temperature for proper flow and adhesion. The intelligent control system allows operators to precisely adjust spraying temperature, pressure, and flow rate, ensuring uniform application across the working width. The vehicle is equipped with a 12-forward, 2-reverse transmission (HW19710), 7-ton front axle, dual 13-ton rear axles, and 12.00R20 tires. The HOWO NX371 cab provides operator comfort with air conditioning and ergonomic controls. This asphalt distributor delivers high construction efficiency, convenient operation, and energy-saving environmental protection, making it essential equipment for highway construction, asphalt overlay tack coats, chip sealing, and pavement preservation.
Key Features:
· Sinotruk HOWO 6×4 Heavy-Duty Chassis: 6×4 left-hand drive with 4,325+1,350 mm wheelbase. 7-ton front axle, dual 13-ton rear axles. 12.00R20 tires. Proven reliability for demanding road construction applications.
· 371HP Powerful Euro II Engine: WD615.47 inline six-cylinder, turbocharged intercooled diesel engine. 371HP (273kW) power, 9,726 ml displacement. HW19710 manual transmission (12 forward + 2 reverse).
· 15,000L High-Quality Carbon Steel Tank: 15 cubic meter capacity. Integrated heating system maintains optimal asphalt temperature. Suitable for liquid asphalt, emulsified asphalt, and modified asphalt.

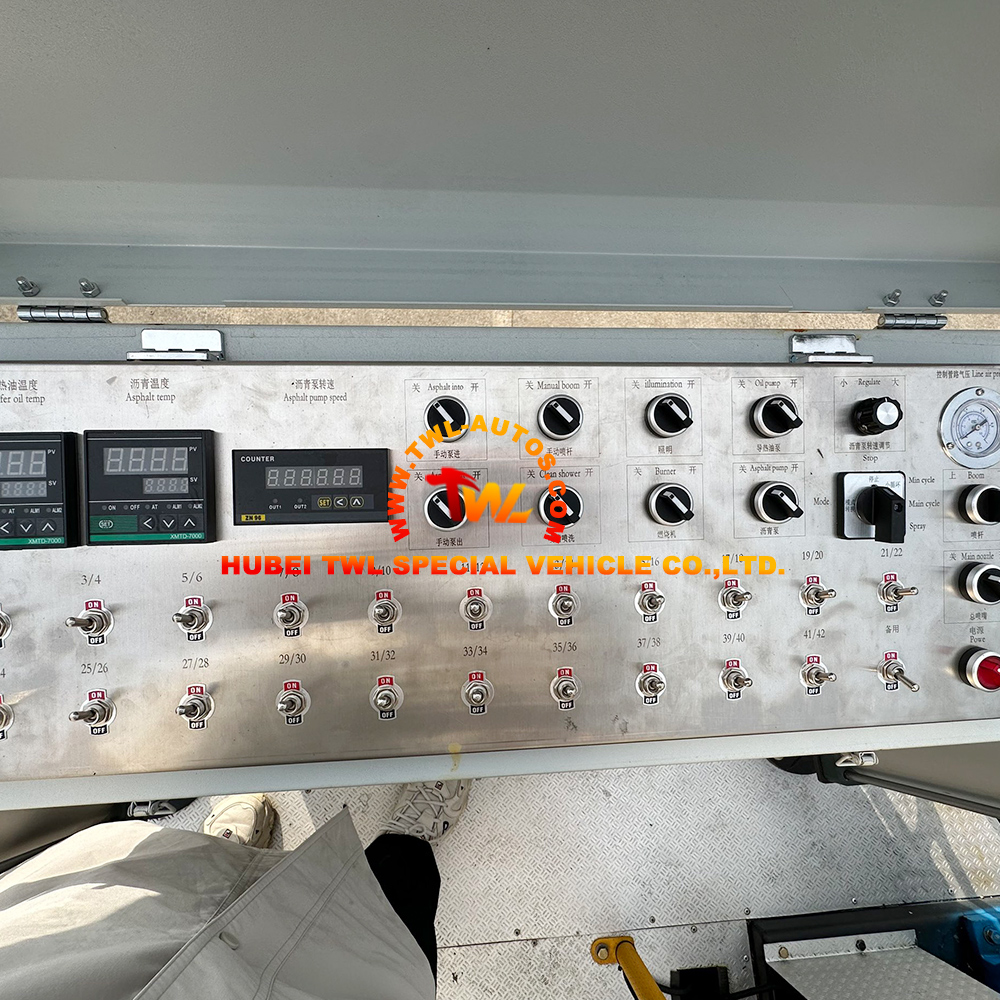

· Intelligent Control System: Precise adjustment of spraying temperature, pressure, and flow rate. Ensures uniform application across working width. User-friendly interface for efficient operation.

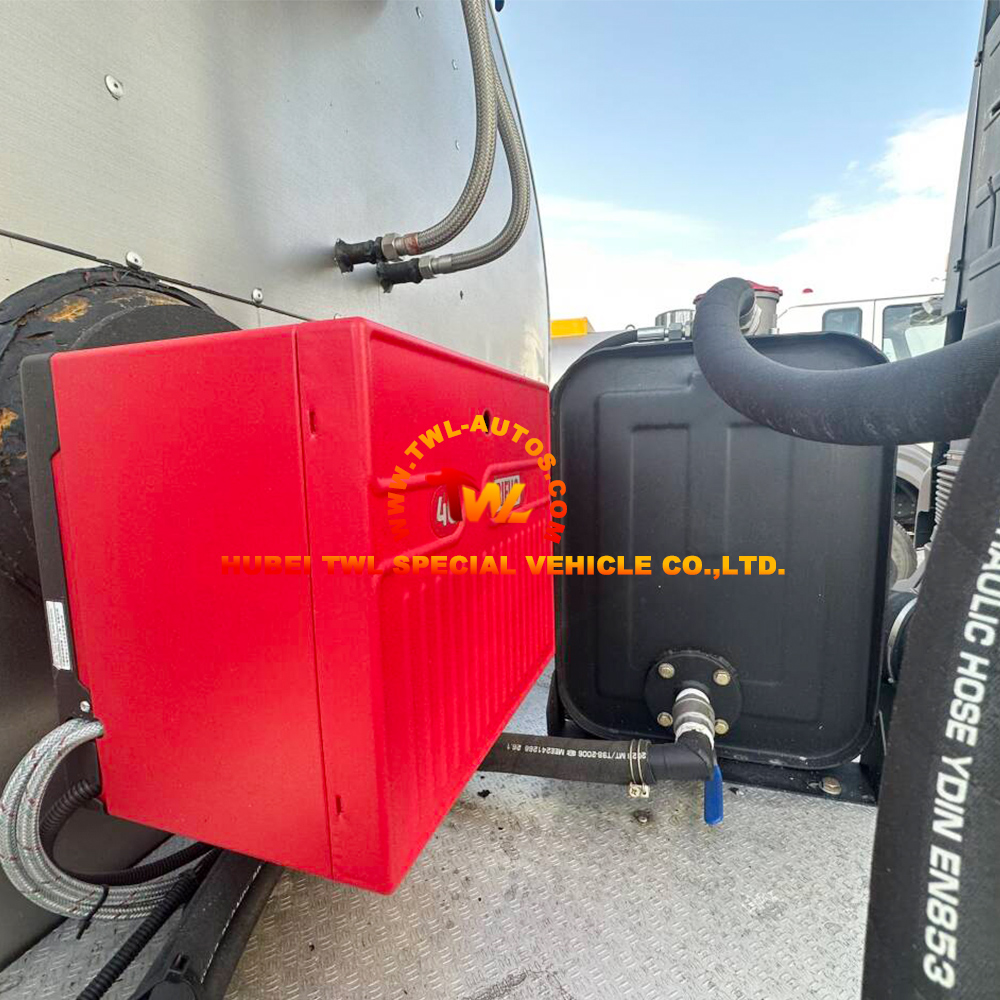

· Efficient Heating System: Maintains asphalt at optimal temperature for proper flow and adhesion. Prevents material solidification during operation.
· High Construction Efficiency: Uniform spraying coverage reduces material waste. Quick setup and operation for improved productivity.
· Energy Saving & Environmental Protection: Optimized system design reduces fuel consumption. Lower emissions compared to conventional equipment.
· Comfortable HOWO NX371 Cab: Air conditioning for operator comfort. Ergonomic controls for reduced fatigue. Good visibility for precise spraying operation.
Application:
· Highway construction and pavement laying
· Asphalt overlay tack coat application
· Chip seal and surface treatment
· Pavement preservation and maintenance
· Bridge deck waterproofing
· Modified asphalt and emulsified asphalt spraying
Product Specification
| Specification | Details |
| Model | HOWO 6×4 NX Asphalt Distributor |
| Drive Configuration | 6×4 Left-Hand Drive |
| Engine Model | WD615.47 |
| Engine Power | 371 HP (273 kW) |
| Displacement | 9,726 ml |
| Emission Standard | Euro II |
| Transmission | HW19710, 12 forward + 2 reverse |
| Wheelbase | 4,325 + 1,350 mm |
| Front Axle | 7 tons |
| Rear Axle | 13 tons x 2 |
| Tire Specification | 12.00R20 |
| Cab | HOWO NX371 |
| Tank Capacity | 15,000 L (15 m³) |
| Tank Material | High-quality carbon steel |
| Heating System | Integrated |
| Spraying Control | Intelligent, adjustable temperature/pressure/flow rate |
| Asphalt Types | Liquid asphalt, emulsified asphalt, modified asphalt |
| Applications | Highway construction, tack coat, chip seal, pavement preservation |
Sinotruk HOWO 6x4 NX 15m³ Asphalt Distributor Truck
- +86 199 4767 5585
- [email protected]
- Industry Park, Suizhou City,Hubei Province, China
Company Profile
Aout TWL
HUBEI TWL SPECIAL VEHICLE CO., LTD (hereinafter referred to as TWL), one of important member of CLW Group, is located in Suizhou City, Hubei Province, the capital of China’s Special Vehicles. TWL Truck has a first-class management, design, R&D, manufacturing, and sales professional team, as well as “special, new, high and sophisticated” facilities and equipment, complete manufacturing technology, and strict testing methods to ensure the production of high-quality and high-value-added products for the market. At present, we has strategic partnership with a number of well-known Chinese truck brand, including Dongfeng, Sinotruk, FAW, Foton, Shacman, ISUZU, JAC, JMC, Kama, etc. TWL Truck always adheres to the corporate philosophy of “people-oriented, customer-oriented, honesty and win-win”, and adheres to the business tenet of “development by innovation, survival by quality; integrity by service, and market by brand”.
After-Sales Service
Warranty
– The buyers can get a minimum warranty period of 12 months or 25000KM-50000KM, whichever comes first from the arrival date of shipment.
– During this period, we will send replacement parts and components to buyers by DHL, UPS, FEDEX or by air and by sea free of charge, easy-wearing spare parts are excluded.
– After warranty time, buyers can get all of spare parts of their truck at factory cost.
– This warranty does not cover any possible damage due to improper operaton, accident or misuse or damage due to any unauthorized services.
Technical Support
– The buyers can forever enioy technical support anytime and anywhere, overseas technical training before operaton is available at buyers cost or our cost.
Daily Mainteance Suggestion
– We strongly sugest you to buy some amount of basic spare pats along with your truck, the cost will be approximately 500 USD-800 USD/unit, no shipping cost.
