SINOTRUK HOWO 6000L CAFU Fuel Truck
This SINOTRUK HOWO 6000L CAFU fuel refueling truck, supplied by TWL, is a reliable and efficient solution for mobile fuel delivery and on-site refueling. Designed and manufactured entirely in China, the vehicle is engineered to handle both diesel and gasoline transportation safely and efficiently. Built on the proven HOWO 2080 chassis and equipped with a dual-compartment fuel system, this truck is ideal for fuel distribution companies, mining sites, logistics fleets, construction projects, and emergency fuel support operations.
SINOTRUK HOWO 6000L CAFU Fuel Truck
The SINOTRUK HOWO CAFU 6000L fuel truck, offered by TWL, is a purpose-built mobile refueling vehicle designed for safe and efficient transportation and dispensing of both diesel and gasoline. Fully manufactured in China, this model integrates a proven HOWO chassis with a professional CAFU-style refueling system, making it suitable for demanding overseas markets.
Key Feature
1. Cabin & Driving Experience

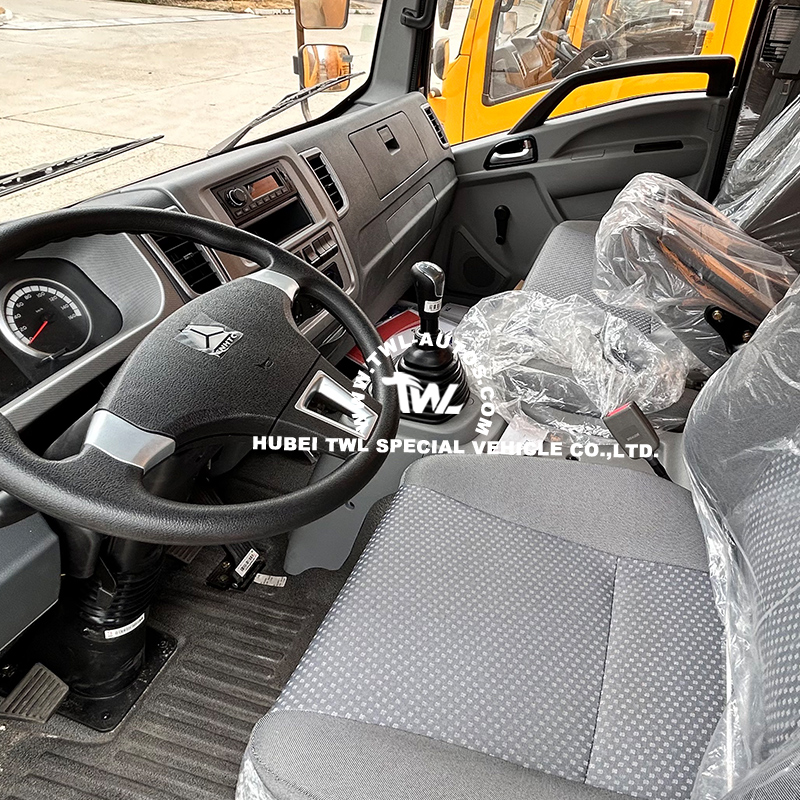

The HOWO 2080 wide cabin is designed with a strong focus on driver comfort, visibility, and operational safety.
· Available in Left-Hand Drive (LHD) or Right-Hand Drive (RHD) to suit different markets
· Air conditioning for long working hours in hot climates
· 360-degree camera system (front, rear, left, right) with in-cabin LED monitor to reduce blind spots
· Roof-mounted warning lights improve visibility in hazardous or low-light environments
This setup ensures safer maneuvering during refueling operations, especially in confined or busy worksites.
2. Powertrain & Chassis Performance
Powered by the YUNNEI YN4102 diesel engine (116 HP), the truck delivers stable performance with excellent fuel economy.
· Manual transmission with multiple forward gears and one reverse for flexible operation
· Strong axle configuration (2.4T front axle, 7.2T rear axle) ensures stability under full load
· 7.50R16 tires with spare provide durability on both highways and rough terrain
This drivetrain configuration makes the truck suitable for long-distance fuel transport as well as frequent stop-and-go refueling tasks.
3. Fuel Tank & Refueling System
The truck features a 6,000-liter fuel tank, divided into two independent compartments, allowing diesel and gasoline to be transported and dispensed separately without cross-contamination.
· Tank material: Q235B carbon steel, 4mm thickness
· Tank configuration: 3,000L + 3,000L (optional 2,500L + 2,500L)
· Two independent PTO-driven oil pumps (one per compartment)

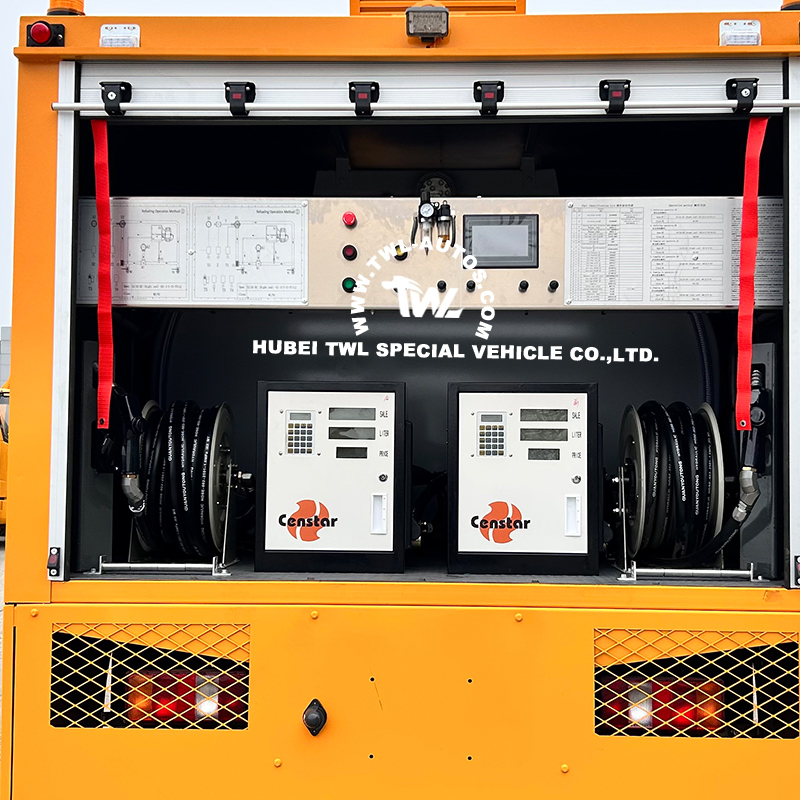

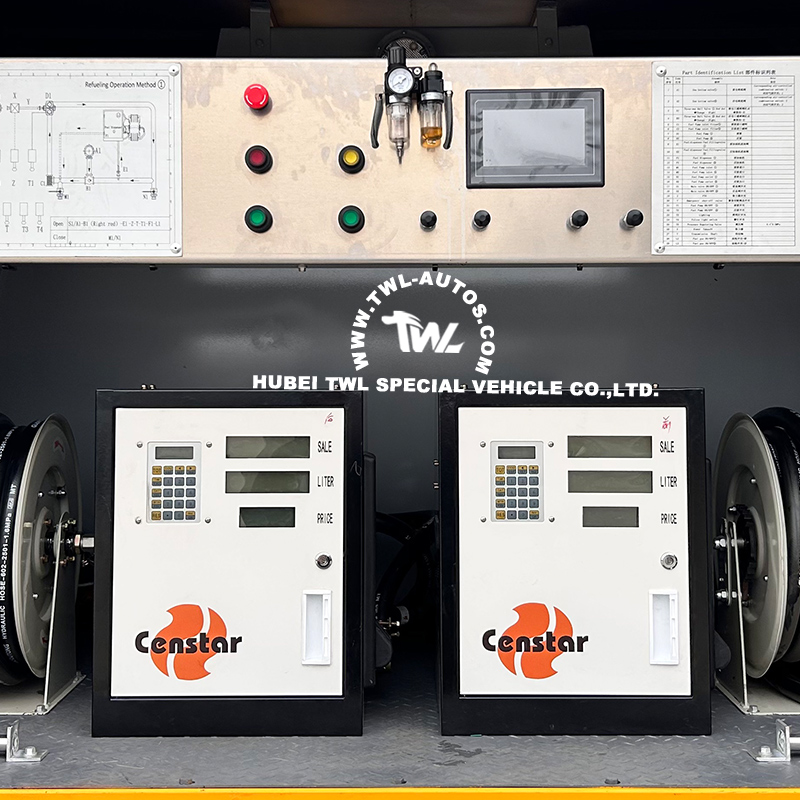

· Two large-flow fuel dispensers (TOKHEIM or CENSTAR, English interface)
· 15-meter fueling hose reels with fueling guns for flexible on-site operation
Each compartment operates independently, improving efficiency and safety during simultaneous refueling.
4. Smart Control & Safety Systems
Safety is a core design priority of this CAFU fuel truck.
· Electronic liquid level meters on each tank
· Pneumatic bottom valves and European-standard aluminum manholes

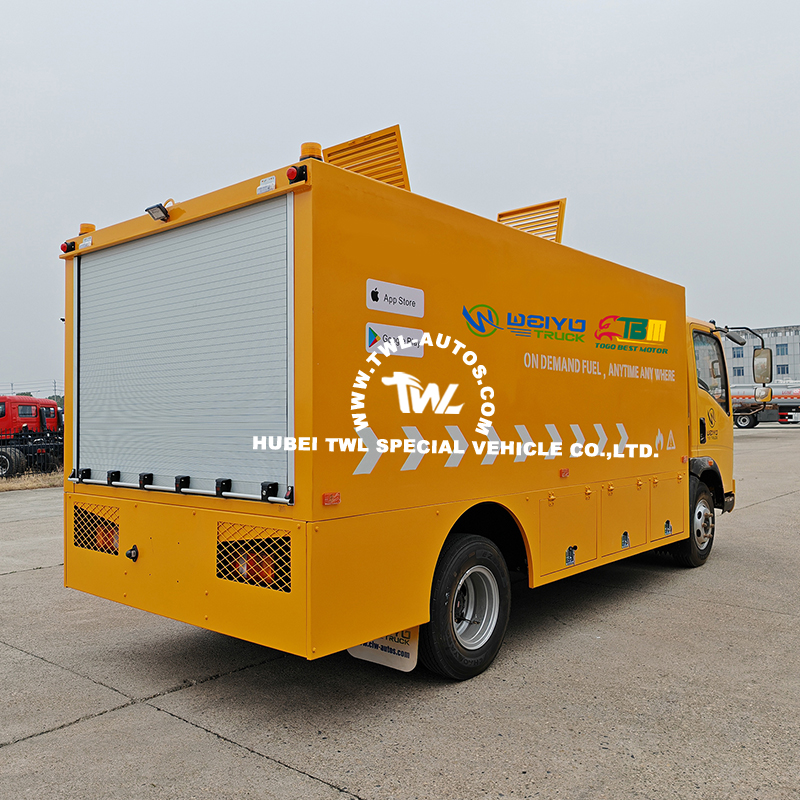

· Rear operation cabinet with aluminum rolling door and internal lighting
· Static grounding belt and dual fire extinguishers included
· Carbon steel tank cover (aluminum alloy optional) enhances protection and durability
These systems help meet international fuel transport safety standards and reduce operational risk.
5. Key Advantages Provided by TWL
· One-stop solution: vehicle chassis, tank body, refueling system, and safety equipment
· Flexible configuration to match different fuel standards and market requirements
· Cost-effective CAFU-style design, optimized for overseas markets
· Proven export experience for Africa, Middle East, Southeast Asia, and the Caribbean
TWL ensures strict quality control from production to delivery, helping customers deploy fuel trucks quickly and reliably.
Typical Applications
· Mobile fuel delivery for diesel and gasoline
· Mining sites and construction projects
· Logistics fleets and fleet fueling stations
· Emergency fuel supply and disaster response
· Airports, ports, and industrial zones
Product Specification
| CAFU Design Fuel Tank | ||
| Fuel tank | Capacity(cbm/liters) | 6,000 liters (3000 liters+3000 liters) |
| Tank material | Tank material:Q235B | |
| Thickness(mm) | 4mm of tank and 5mm of end plate | |
| Compartment No. | 2 | |
| Fuel Dispenser | 2 sets of Censtar brand,flow rate at 70L/min, | |
| English operation panel | ||
| Showing unit price/filling volume/total price | ||
| Oil Pump | 2 Nos of 2.5″ Oil Pumps,Driven by PTO; | |
| Independent Pump in and Pump out for each compartment; | ||
| Filling hose | 1 inch and 15 meters | |
| 2 Sets for diesel and petrol separately | ||
| Filling hose reel | 2 Nos | |
| Filling Nozzle | 2 Nos | |
| Manhole cover | ∮500mm 2 sets with breather valves | |
| Bottom Valve | 2 set of API aluminum Pneumatic Bottom Valves | |
| Discharging valve | 2 set ∮100 discharging valves | |
| Level Gauge | Each tank top is equipped with an electronic level meter | |
| Operation compartment | Located at rear of truck with aluminum alloy door | |
| Control System | Power ON/OFF | |
| LIGHTING | ||
| FUEL PUMP ON/OFF | ||
| FUEL DISPENSER ON/OFF | ||
| MAIN VALVE ON/OFF | ||
| FUEL LEVEL DIGITAL DISPLAY | ||
| Others | 2 Nos of 4KG extinguishers; | |
| 1 No of static belt | ||
| Painting | Color and design as customer’s requirement | |
| Special design | Tank body is covered by carbon steel van | |
