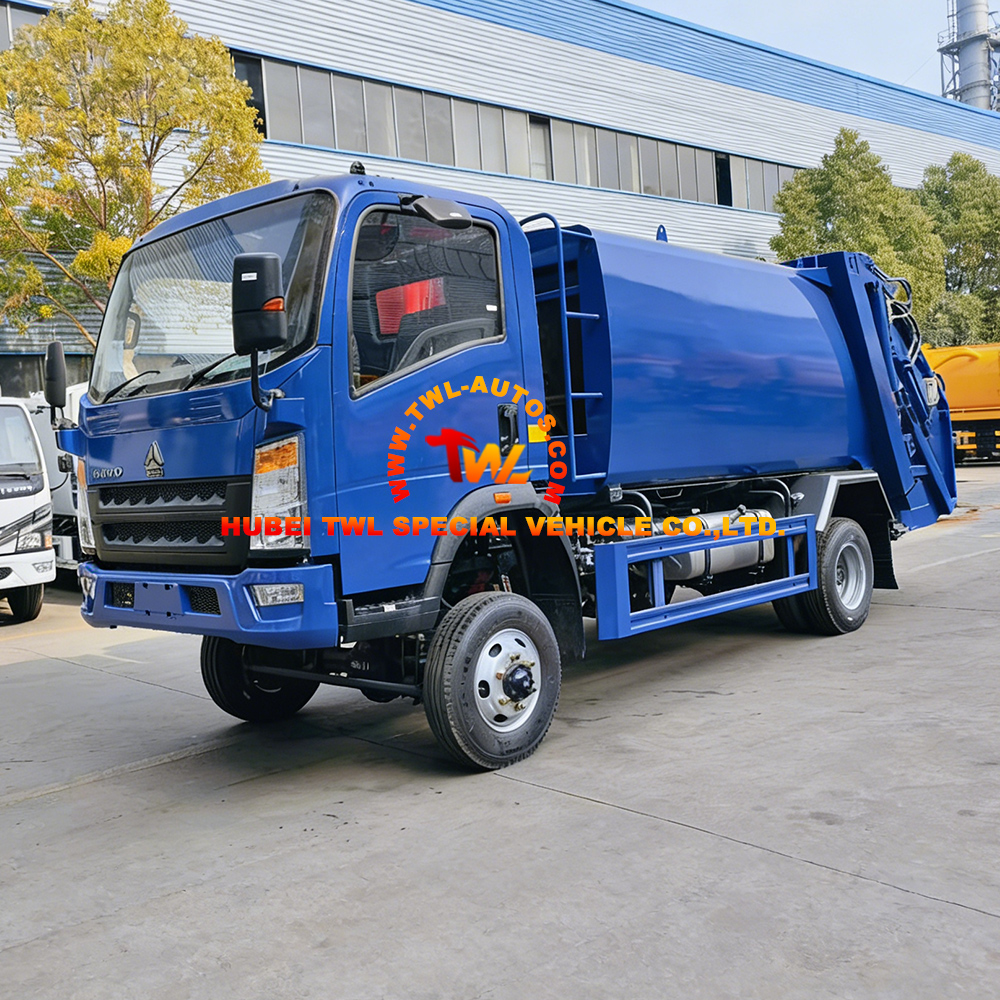

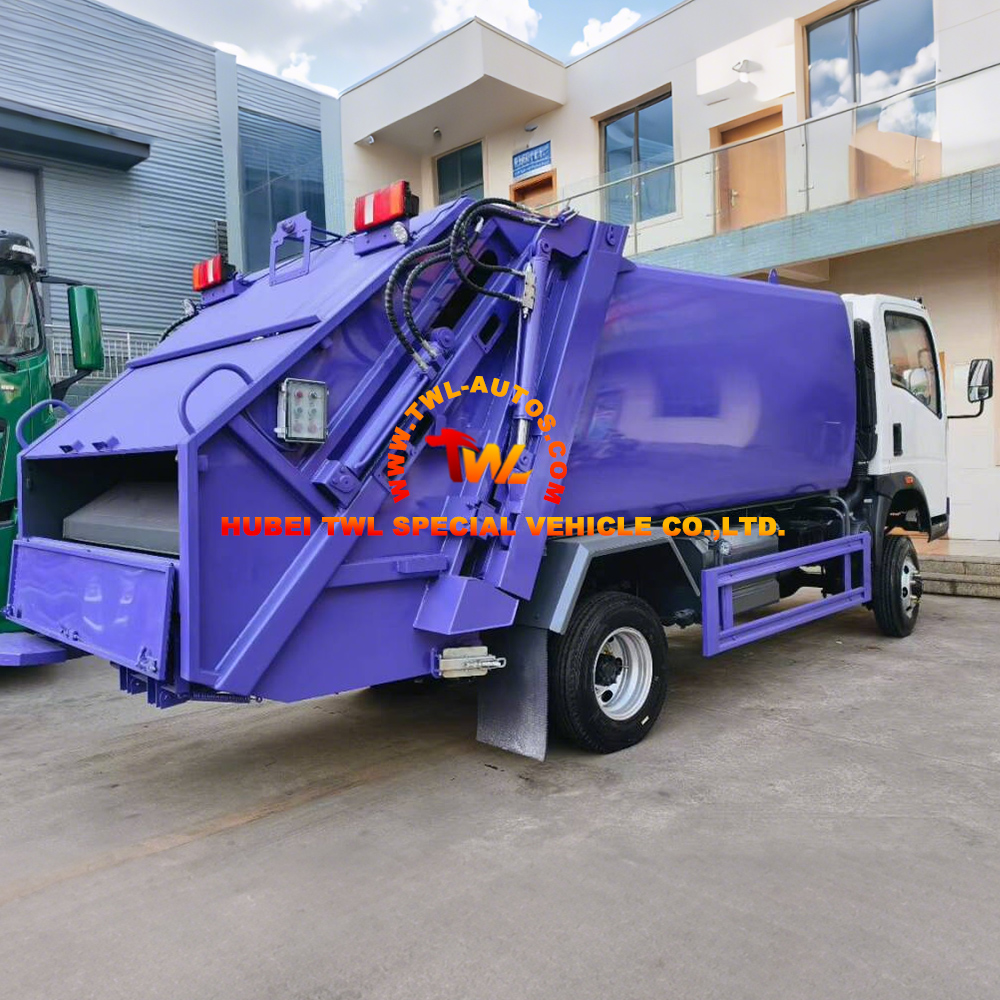

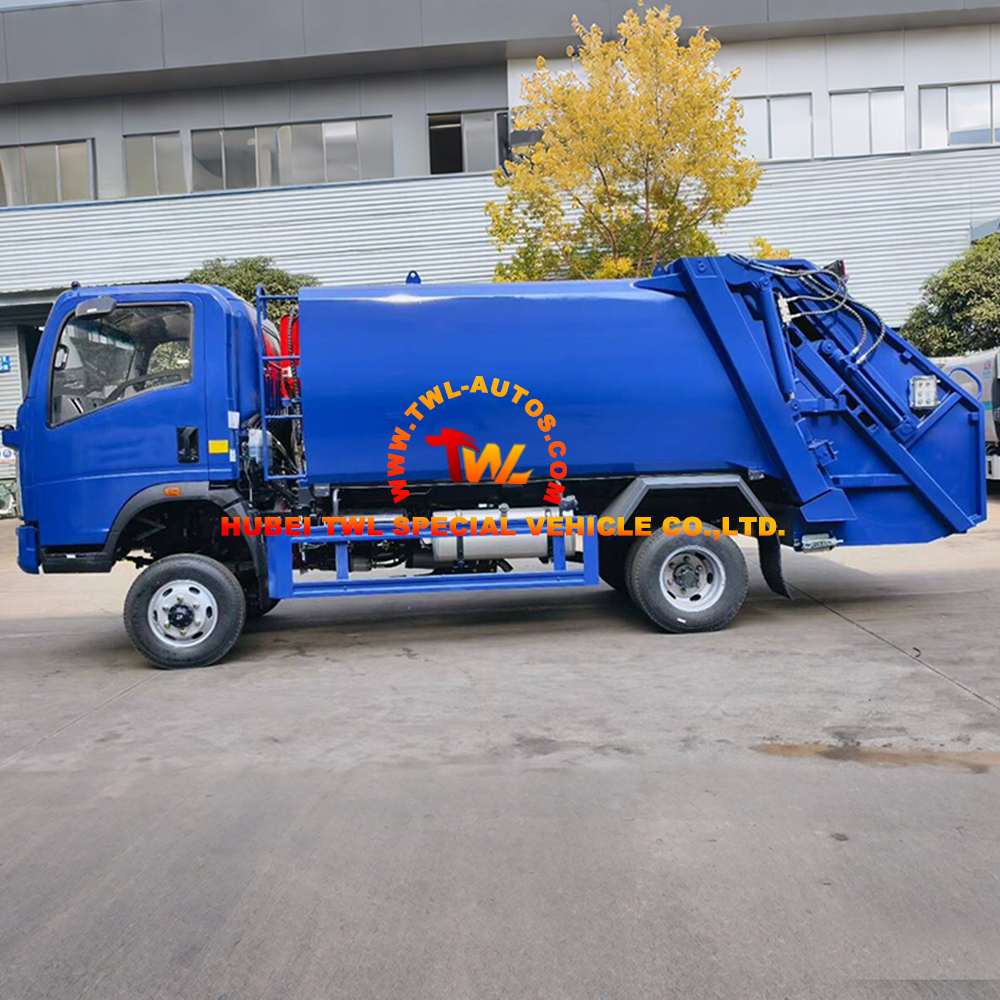

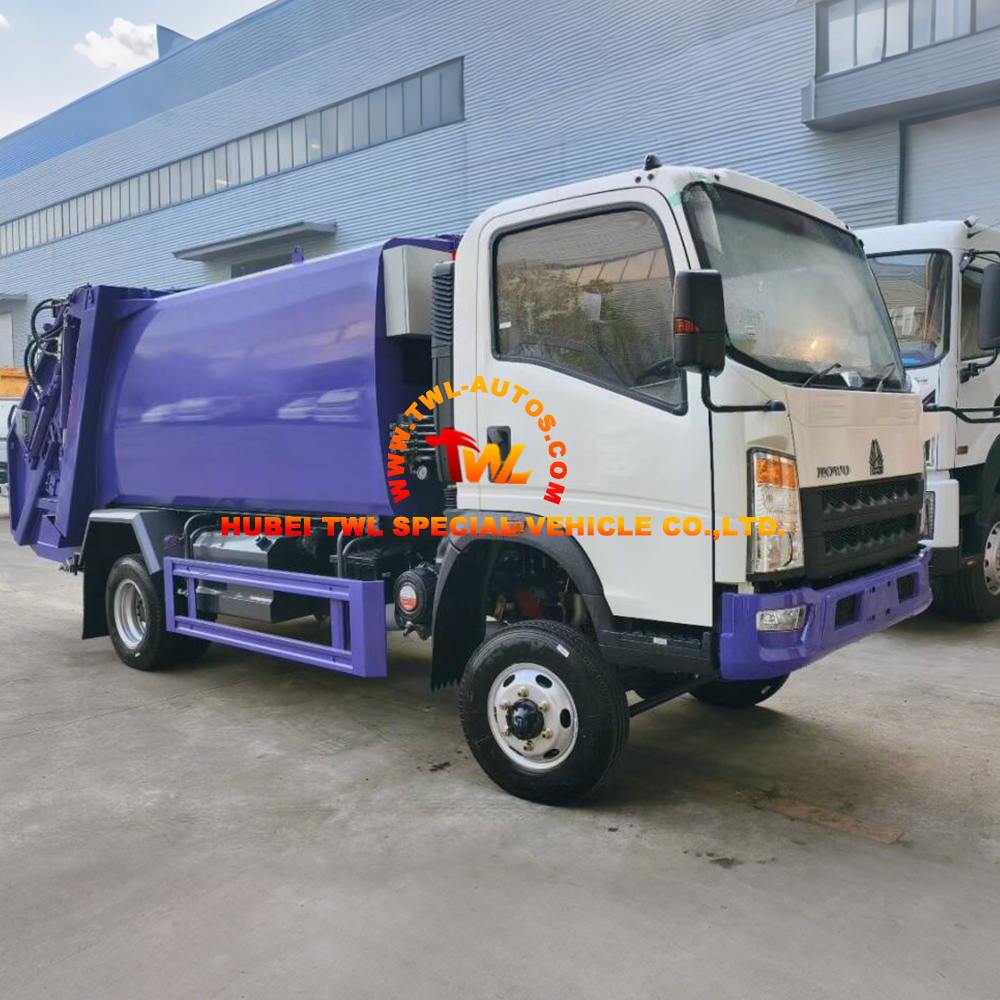

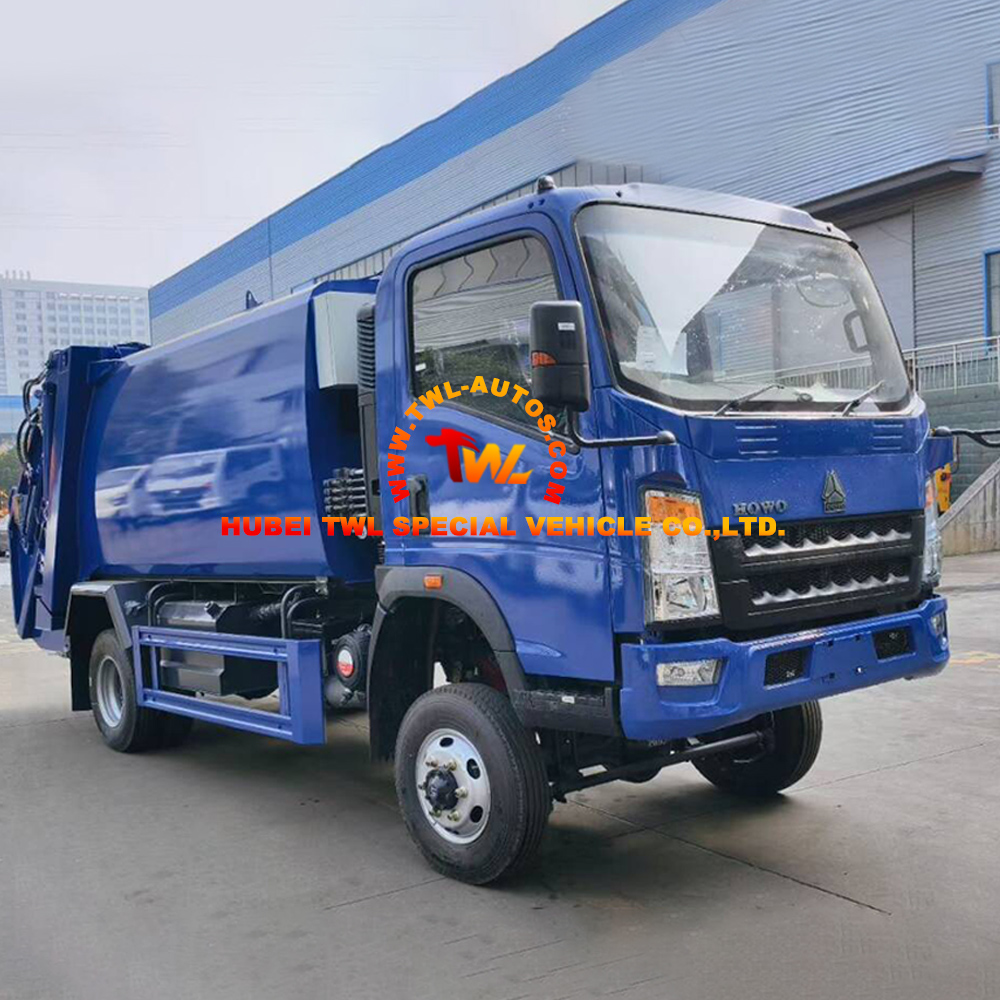

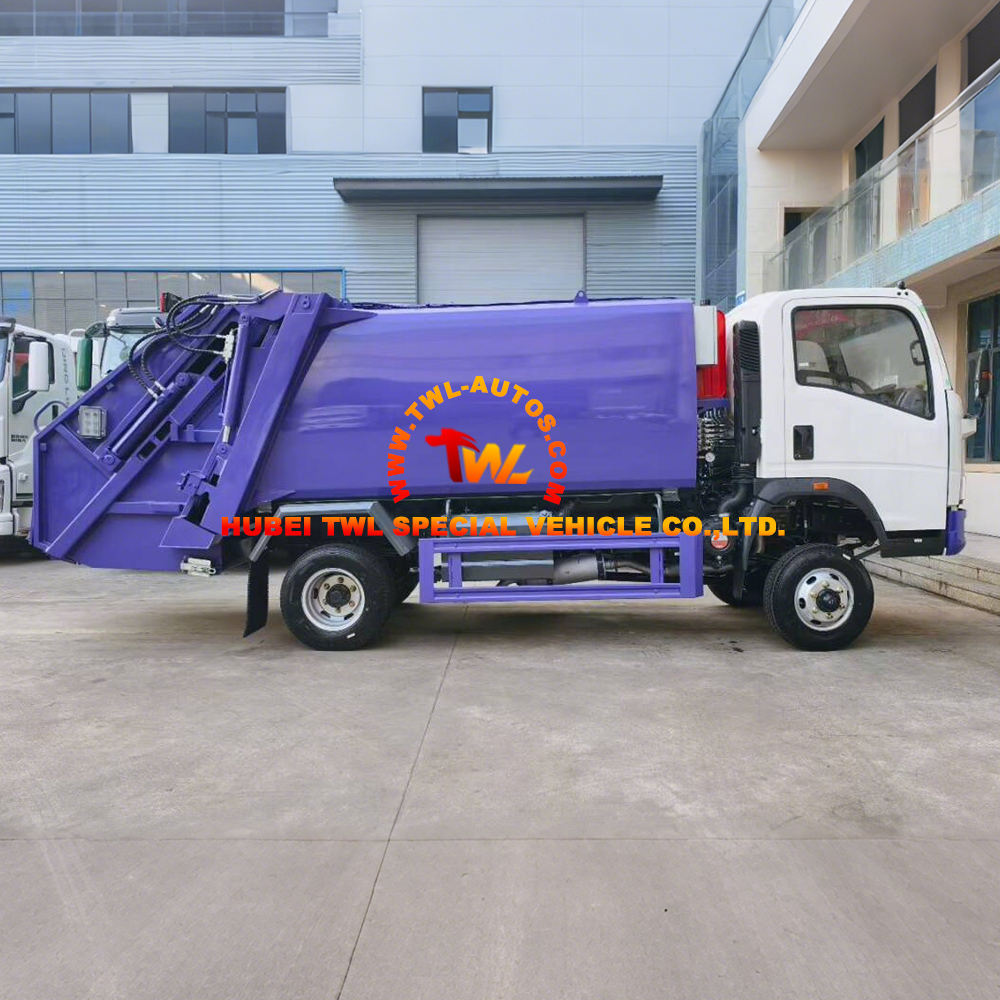

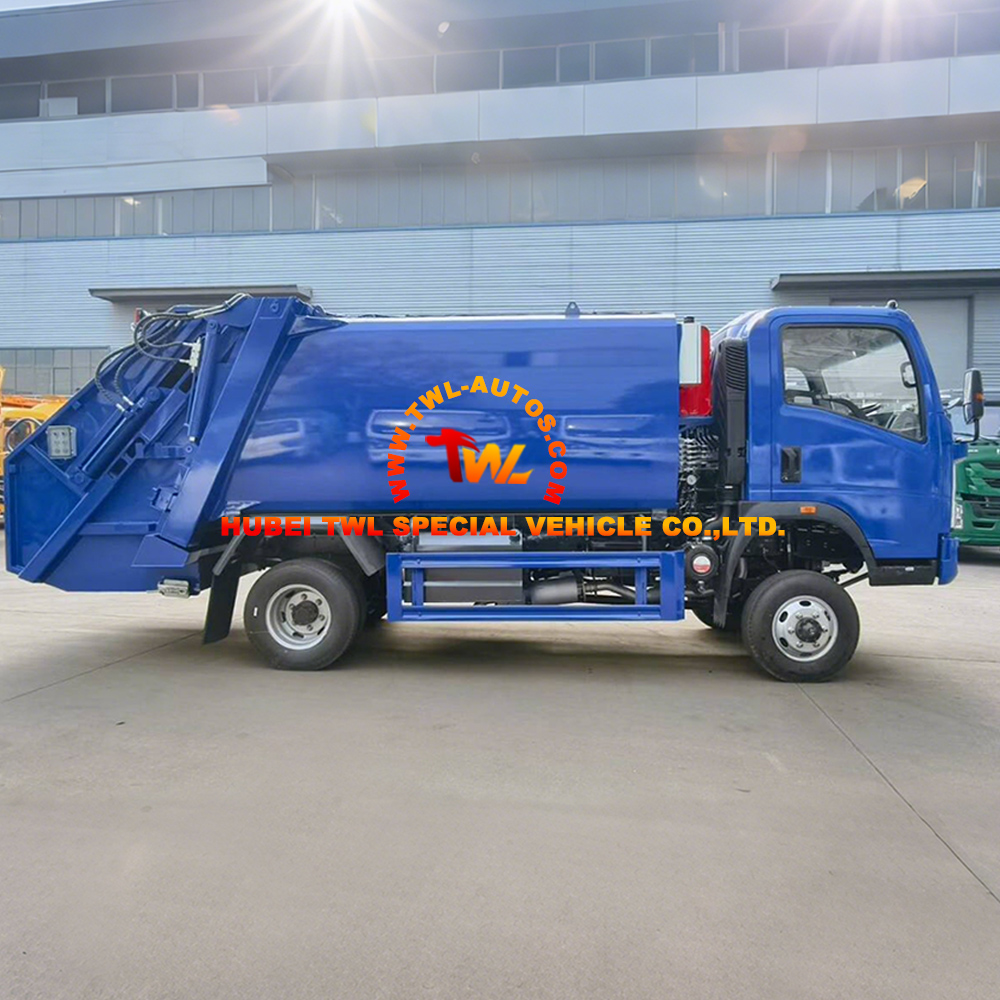

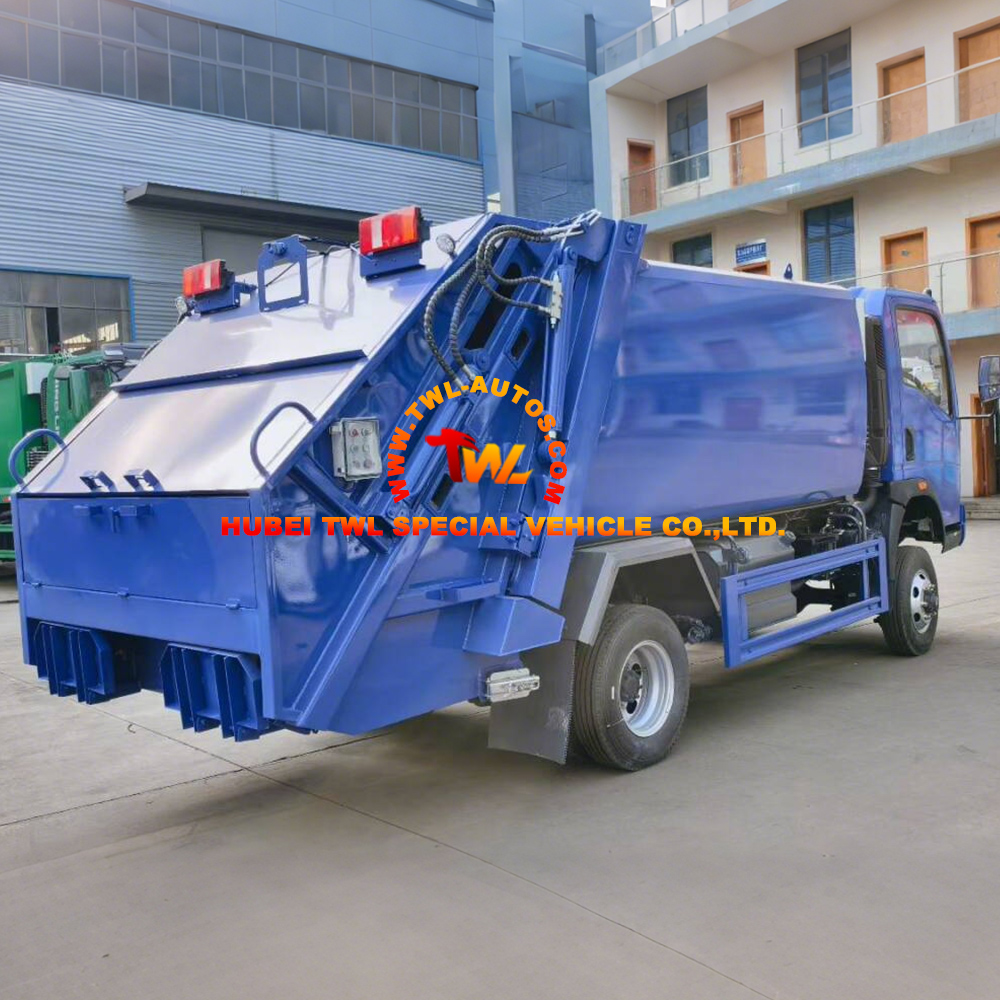

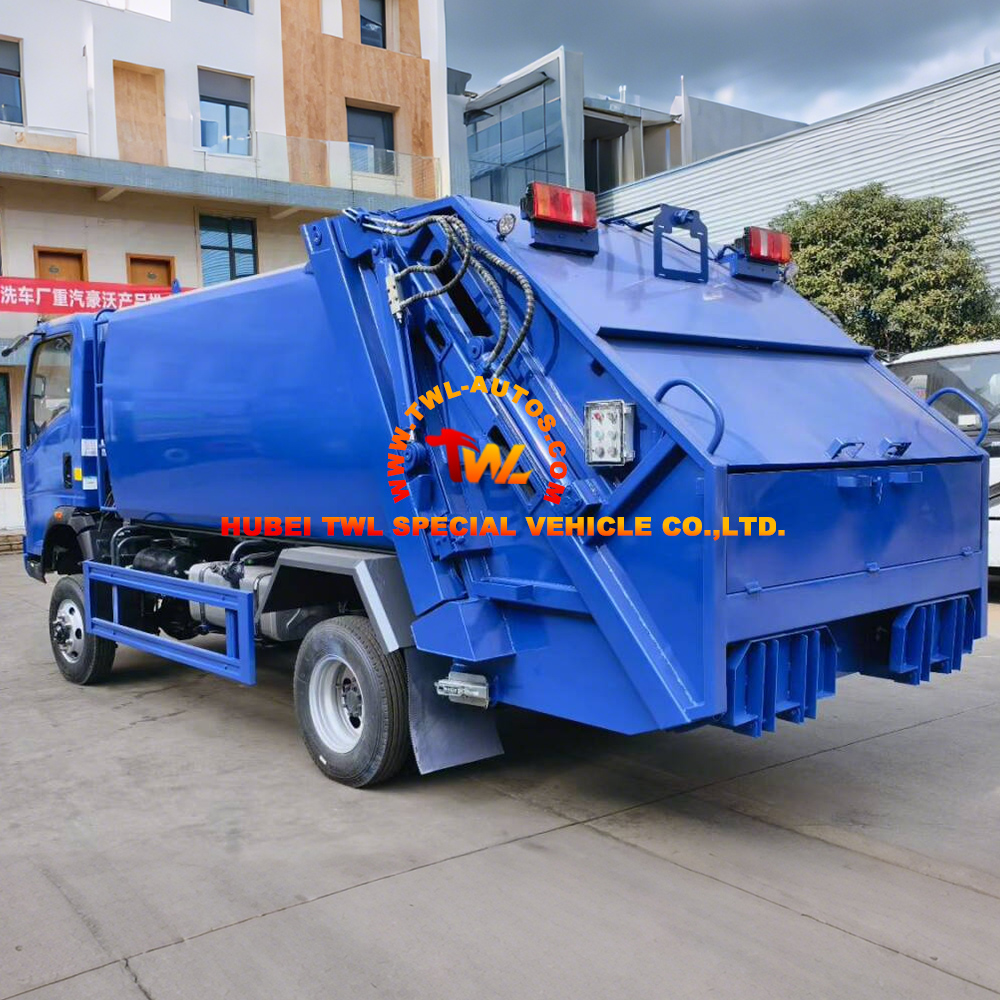

Sinotruk Howo 4x4 8m³ Compressed Garbage Truck
Introducing the Sinotruk Howo 4x4 8m³ Compressed Garbage Truck, a robust and efficient waste management solution designed for challenging urban and suburban environments. Built on the reliable Howo chassis, this 4x4 model offers superior traction and maneuverability, making it ideal for areas with rough roads or hilly terrain. With an 8 cubic meter capacity and a high-performance compression system, it maximizes load capacity and operational efficiency.
Sinotruk Howo 4x4 8m³ Compressed Garbage Truck
This vehicle combines the rugged durability of the Sinotruk Howo brand with specialized sanitation functionality. The “4×4” drive ensures reliable performance in all weather conditions and on construction sites, while the “8m³” sealed compression body prevents leakage and odor, ensuring clean and hygienic transportation. The entire unit is manufactured by Hubei TWL Special Vehicle Co., Ltd., ensuring high-quality assembly and after-sales support.
Key Features
· Robust 4×4 Chassis: Based on the Sinotruk Howo off-road chassis, providing excellent driving stability and gradeability on unpaved roads and muddy job sites.
· High Compression Ratio: Equipped with a powerful push plate and compaction mechanism, significantly increasing waste capacity and reducing the number of trips to the disposal site.
· Leak-Proof Sealing: The garbage bin is fully sealed to prevent leachate from dripping during transport, complying with strict environmental hygiene standards.
· Durable Material: The cargo box is constructed from high-strength, wear-resistant steel, ensuring a long service life even under heavy use.
· Easy Operation: Hydraulic control system with user-friendly manual or optional PLC automatic control, allowing the operator to complete loading and unloading cycles quickly from the cab or a remote station.
· Customizable Loading: Compatible with standard Chinese garbage bins (240L/660L) or can be customized for direct dumping from tricycles or small collection vehicles.
Application
This model is specifically designed for municipal sanitation departments, large residential communities, and industrial parks located in developing areas or mountainous regions. Its compact size (8m³) allows it to navigate narrow streets, while its 4×4 capability ensures it can handle dump sites and landfills with poor road conditions. It is also excellent for airport logistics and large-scale construction site waste removal.
Product Specification
| Brand Name | Sinotruk Howo 4×4 | |
| Overall Dimension | 8500×2500×3000 mm（option） | |
| Curb Weight | 6095 kg | |
| Wheel Base | 3815 mm(option) | |
| Gross Vehicle Weight | 16000 kg | |
| Loading Weight | 6700 kg | |
| Front / Rear Axle | 2500/4800 kg | |
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | |
| Engine horsepower | 120HP, EUR II（option） | |
| Max Driving Speed | 90 km/h | |
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | |
| Tire | 7.00R16, steel wire tire, 6pc with 1 spare tire | |
| Garbage Bin | Capacity | 7cbm or 8CBM（option） |
| Material | 4mm Carbon Steel for Garbage Bin Body | |
| Design | Whole unit with Leakage Proof Design | |
| Ways of Loading | Rear Loading with optional Bucket Lifting System | |
| Garbage Compact Ratio | 1/3 – 1/4 | |
| Control System | One control Panel on the back, One Control system in back of Cabin | |
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | |
| 2. Automatic loading, compressing and discharging, all handled by 1 person | ||
| 3. Sewage water collection tank to avoid any pollution during handling. | ||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | ||
| Dependable Security | ||
| 5. Electrical Control Panel for compacting system. | ||
| 6. Cycling time<14~18s | ||
| Remarks | 1. Color is optional | |
| 2. Customized LOGO painting as per customer request | ||
Sinotruk Howo 4x4 8m³ Compressed Garbage Truck
- +86 199 4767 5585
- [email protected]
- Industry Park, Suizhou City,Hubei Province, China
Company Profile
Aout TWL
HUBEI TWL SPECIAL VEHICLE CO., LTD (hereinafter referred to as TWL), one of important member of CLW Group, is located in Suizhou City, Hubei Province, the capital of China’s Special Vehicles. TWL Truck has a first-class management, design, R&D, manufacturing, and sales professional team, as well as “special, new, high and sophisticated” facilities and equipment, complete manufacturing technology, and strict testing methods to ensure the production of high-quality and high-value-added products for the market. At present, we has strategic partnership with a number of well-known Chinese truck brand, including Dongfeng, Sinotruk, FAW, Foton, Shacman, ISUZU, JAC, JMC, Kama, etc. TWL Truck always adheres to the corporate philosophy of “people-oriented, customer-oriented, honesty and win-win”, and adheres to the business tenet of “development by innovation, survival by quality; integrity by service, and market by brand”.
After-Sales Service
Warranty
– The buyers can get a minimum warranty period of 12 months or 25000KM-50000KM, whichever comes first from the arrival date of shipment.
– During this period, we will send replacement parts and components to buyers by DHL, UPS, FEDEX or by air and by sea free of charge, easy-wearing spare parts are excluded.
– After warranty time, buyers can get all of spare parts of their truck at factory cost.
– This warranty does not cover any possible damage due to improper operaton, accident or misuse or damage due to any unauthorized services.
Technical Support
– The buyers can forever enioy technical support anytime and anywhere, overseas technical training before operaton is available at buyers cost or our cost.
Daily Mainteance Suggestion
– We strongly sugest you to buy some amount of basic spare pats along with your truck, the cost will be approximately 500 USD-800 USD/unit, no shipping cost.
