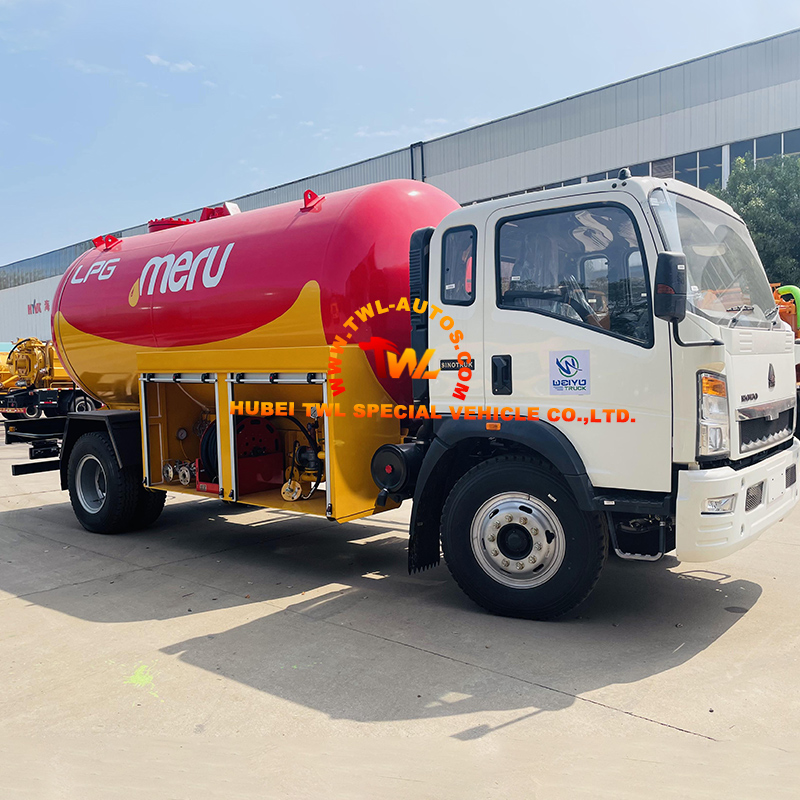

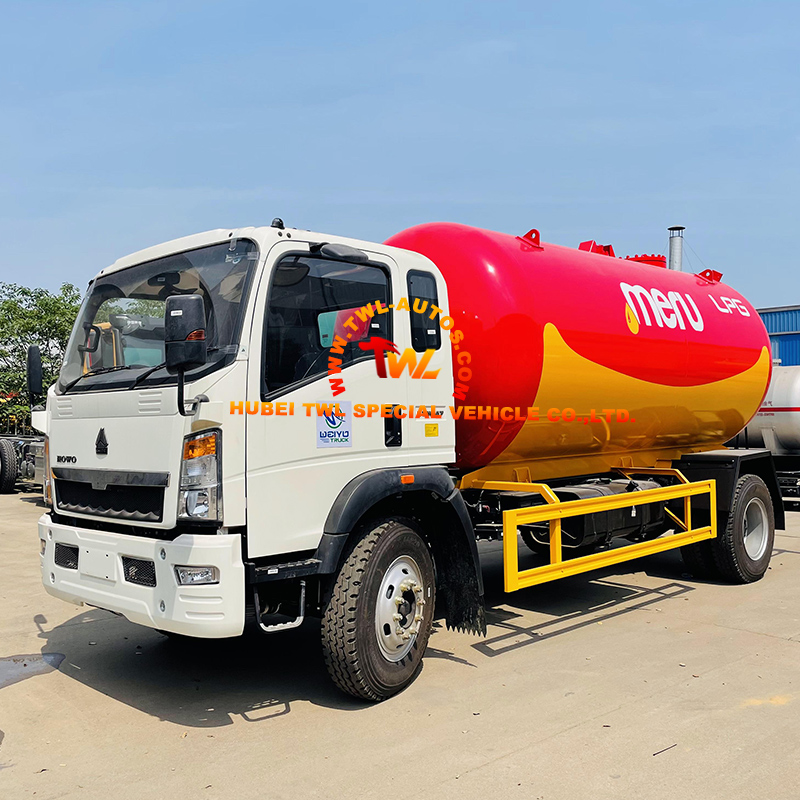

Sinotruk HOWO 4x2 LPG Bobtail Truck

The Sinotruk HOWO 4×2 LPG Bobtail Truck is a specialized commercial vehicle designed for safe and efficient transportation and on-site refueling of liquefied petroleum gas (LPG). With a 15-cubic-meter (15,000-liter) storage capacity and 7-ton payload capacity, this vehicle integrates a high-pressure LPG tank, pumping system, and metered dispensing equipment into a single mobile unit, making it ideal for bulk LPG logistics and direct-to-consumer delivery. The HOWO 2080-type cabin (one row and one half with A/C) provides driver comfort. The YUCHAI YC4E160-33 engine delivers 160hp (118kW) with Euro III compliance. The Q345R steel tank features 10mm thickness, 1.61MPa design pressure, and working temperature range of -20~50°C. The CORKEN Z2000 LPG pump is driven by PTO, paired with a single-nozzle dispenser (English remarks) and 15m filling hose for fast-fill technology with precision meters and auto-cutoff nozzles. The emergency shutoff valve (ESV) automatically triggers on leak detection. Float-type level gauge provides real-time LPG volume tracking with ±2% accuracy, resistant to sloshing effects. The vehicle supports liquid-phase dispensing for high-volume refueling and vapor-phase recovery to minimize gas loss during transfers.

Key Features:

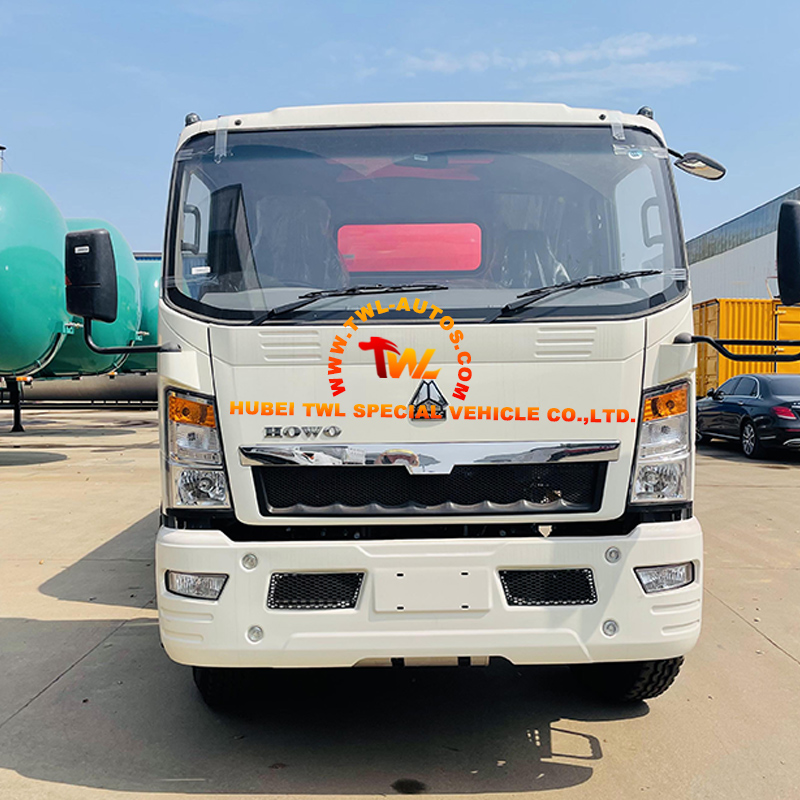

· Sinotruk HOWO 4×2 Chassis – Reliable & Maneuverable: The HOWO 4×2 chassis with 4,700mm wheelbase provides excellent stability for the 15,000L LPG tank. GVW 16,000kg, payload 7,000kg, max speed 95 km/h. HOWO 2080-type cabin with A/C for driver comfort.

· YUCHAI 160hp Euro III Engine – Fuel-Efficient & Reliable: YC4E160-33 engine delivers 160hp (118kW) with 4,260ml displacement, Euro III compliance. Reliable power for LPG distribution operations in urban and rural areas.

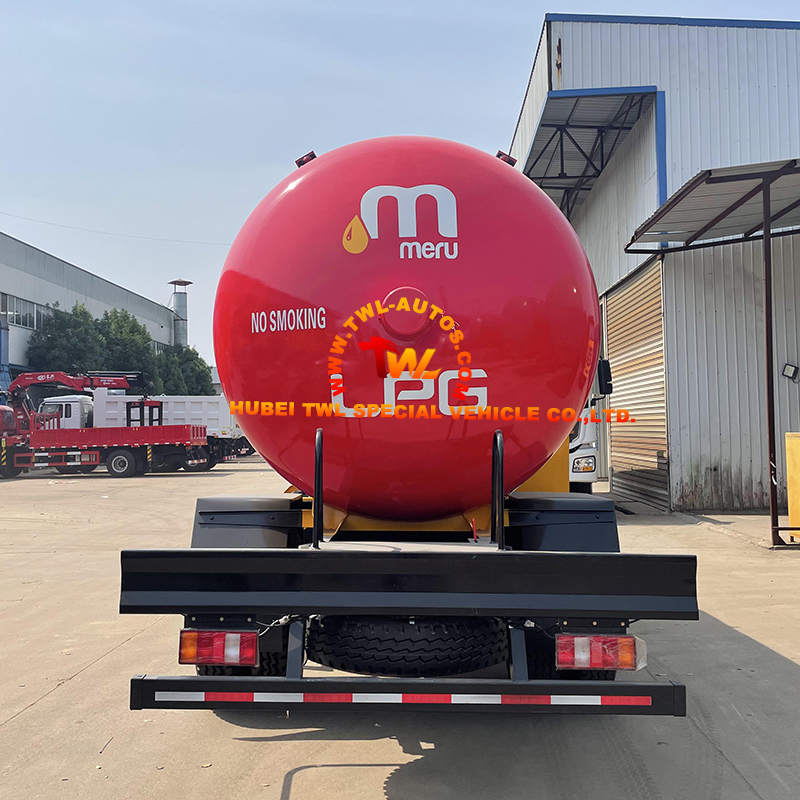

· 15,000L Q345R Steel LPG Tank – High-Strength Construction: 15m³ capacity (15,000 liters). Q345R steel with 10mm thickness, 2,000mm diameter. Design pressure 1.61MPa, hydraulic test pressure 2.21MPa. Working temperature -20~50°C. Compliant with GB150.1-2011 design code.

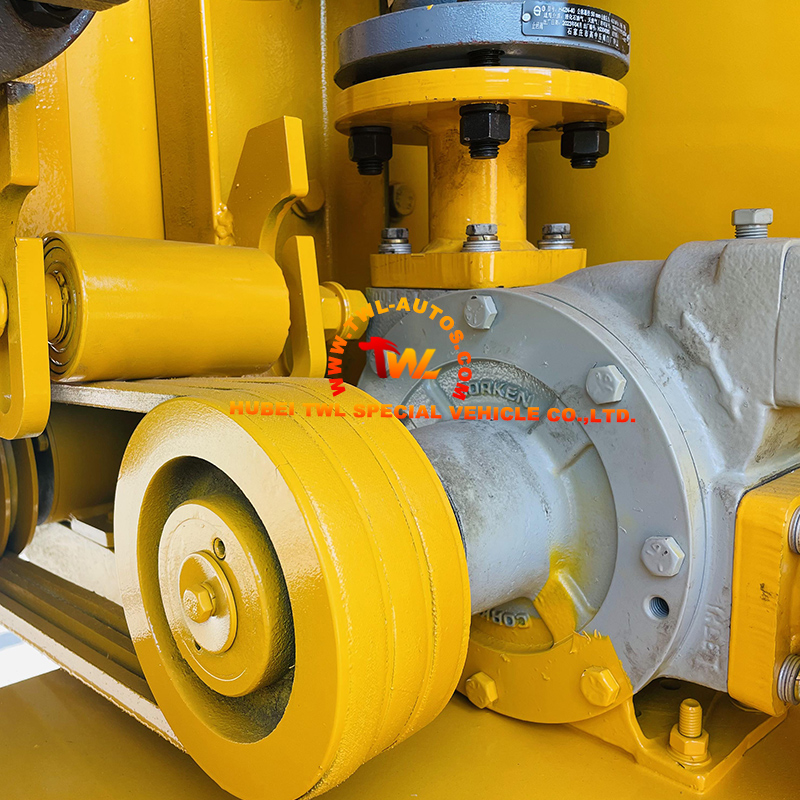

· CORKEN Z2000 LPG Pump – PTO-Driven High Flow: CORKEN Z2000 pump driven by truck engine through PTO. Provides high-flow dispensing for fast refueling. Reliable for bulk LPG transfer and direct-to-customer delivery.

· Single-Nozzle Dispenser with English Remarks: Accurate metering for retail or fleet refueling. English display for international operators. Fast-fill technology with precision meters and auto-cutoff nozzles. 15m filling hose for flexible reach.

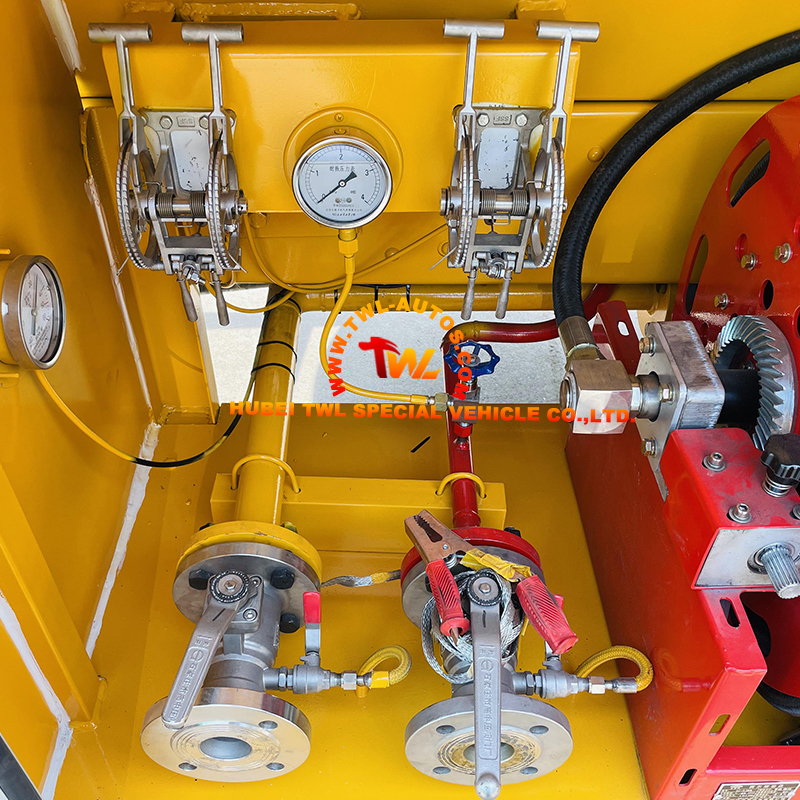

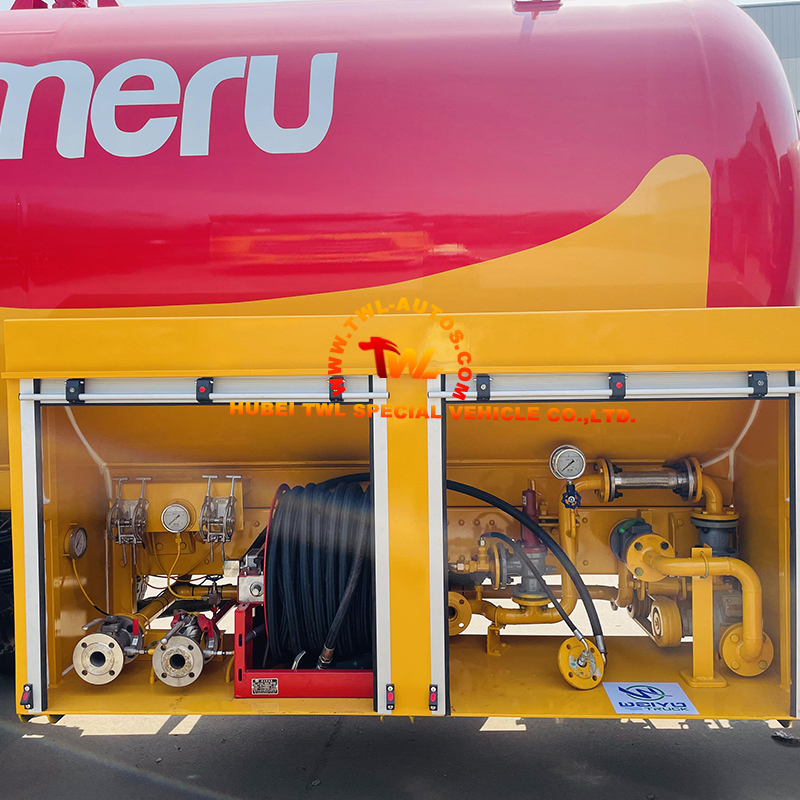

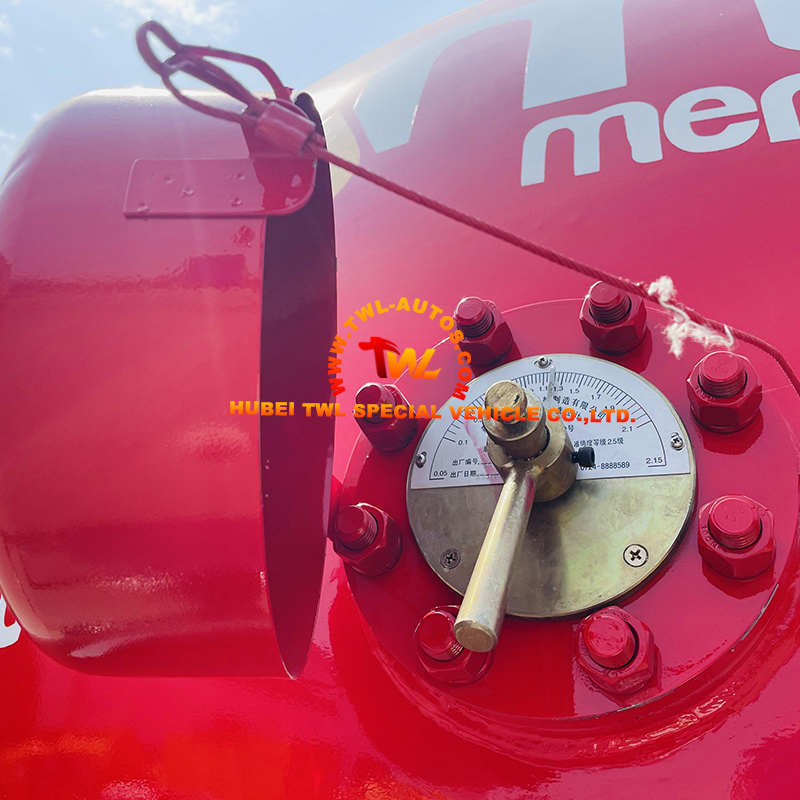

· Comprehensive Safety Systems – NFPA 58/ASME Compliant: Emergency shutoff valve (ESV) automatically triggers on leak detection. DN80 safety valve for overpressure protection. Check valves prevent backflow. Float ball level gauge (rear of tank) provides real-time LPG volume tracking with ±2% accuracy. Emergency valves in controlled valve box at rear. Pressure gauge and thermometer for real-time monitoring. Dual fire extinguishers (left and right sides). Exhaust shaft at front of cabin for safety.

· Dual-Phase Operation – Liquid & Vapor: Supports liquid-phase dispensing for high-volume refueling. Vapor-phase recovery to minimize gas loss during transfers. Vapor return line recovers excess gas to maintain tank pressure equilibrium.

· Quick-Connect Couplings: Enable 90-second nozzle attachment/detachment, minimizing downtime for refueling operations.

· Anti-Corrosion Coating: Tank interiors use epoxy-phenolic linings to withstand H₂S contaminants in low-grade LPG.

Application:

· Industrial Zones: Supply LPG to factories, welding shops, or forklift fleets. Reduces logistics costs by eliminating intermediate transfers.

· Agricultural Support: Fuel crop dryers, irrigation pumps, and greenhouse heating systems. Operates as a “gas station on wheels” without fixed infrastructure.

· Remote Communities: Act as a mobile refueling station for off-grid households. Deployable in disaster zones or areas lacking fixed infrastructure.

· Emergency Response: Rapid deployment during pipeline outages or natural disasters. Meets DOT/TPED certifications for cross-border operations.

· Bulk Transport & Direct Delivery: Safely moves LPG from terminals to storage facilities or retail stations. Enables doorstep refueling for residential/commercial tanks.

· Fleet Management: Services LPG-powered vehicles (e.g., taxis, buses) at depots. IoT-enabled telematics for fuel consumption tracking (optional).
