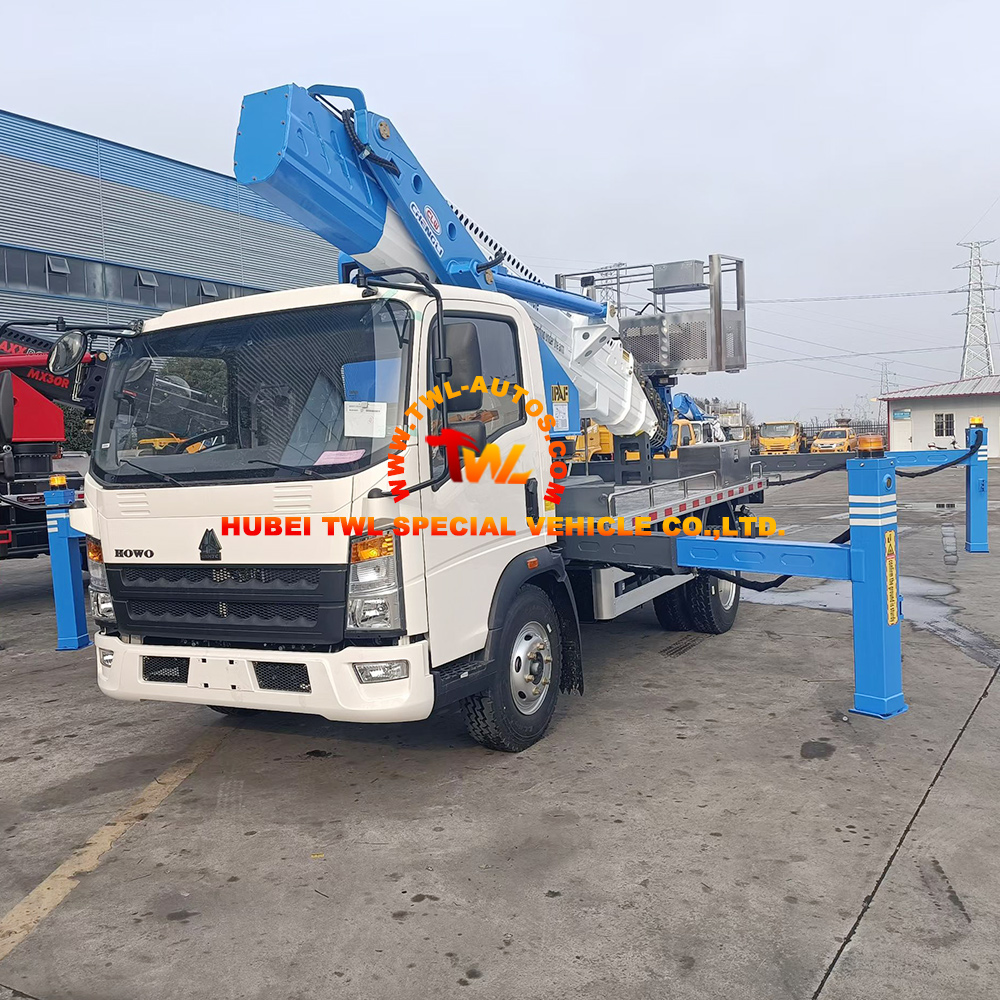

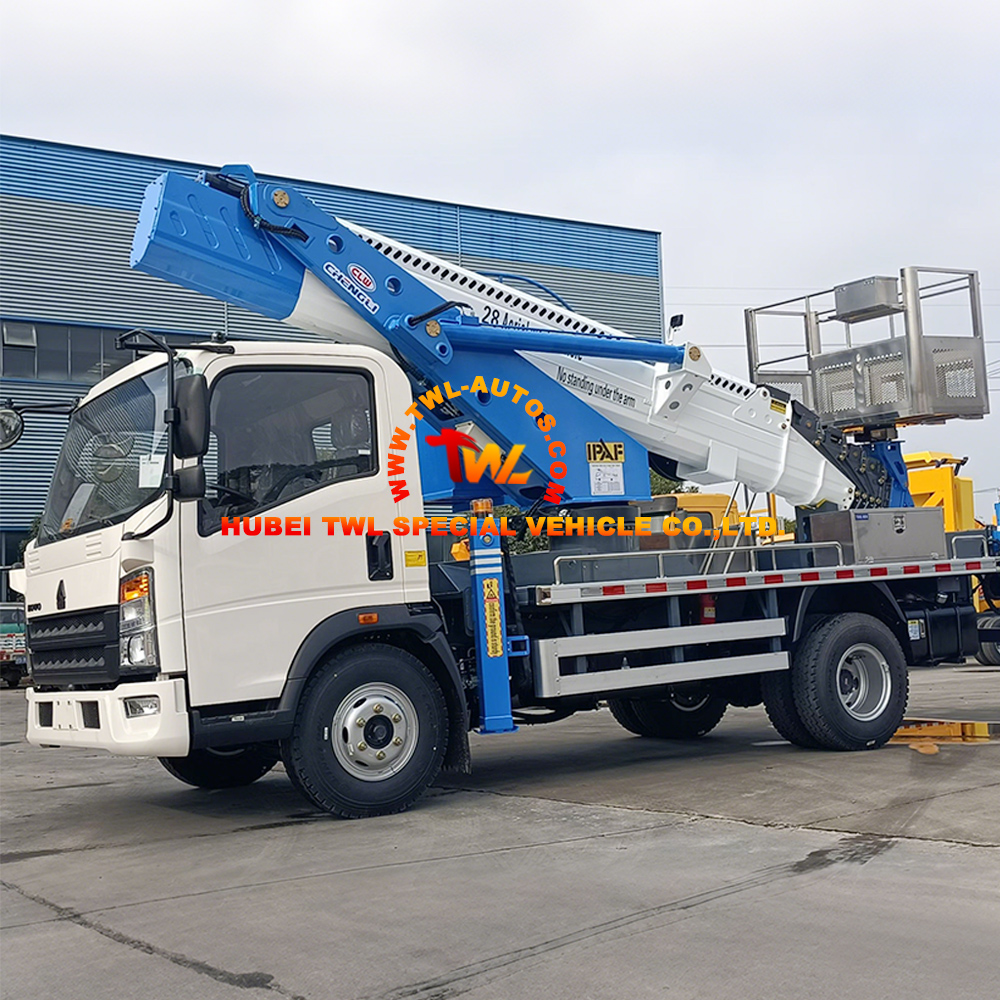

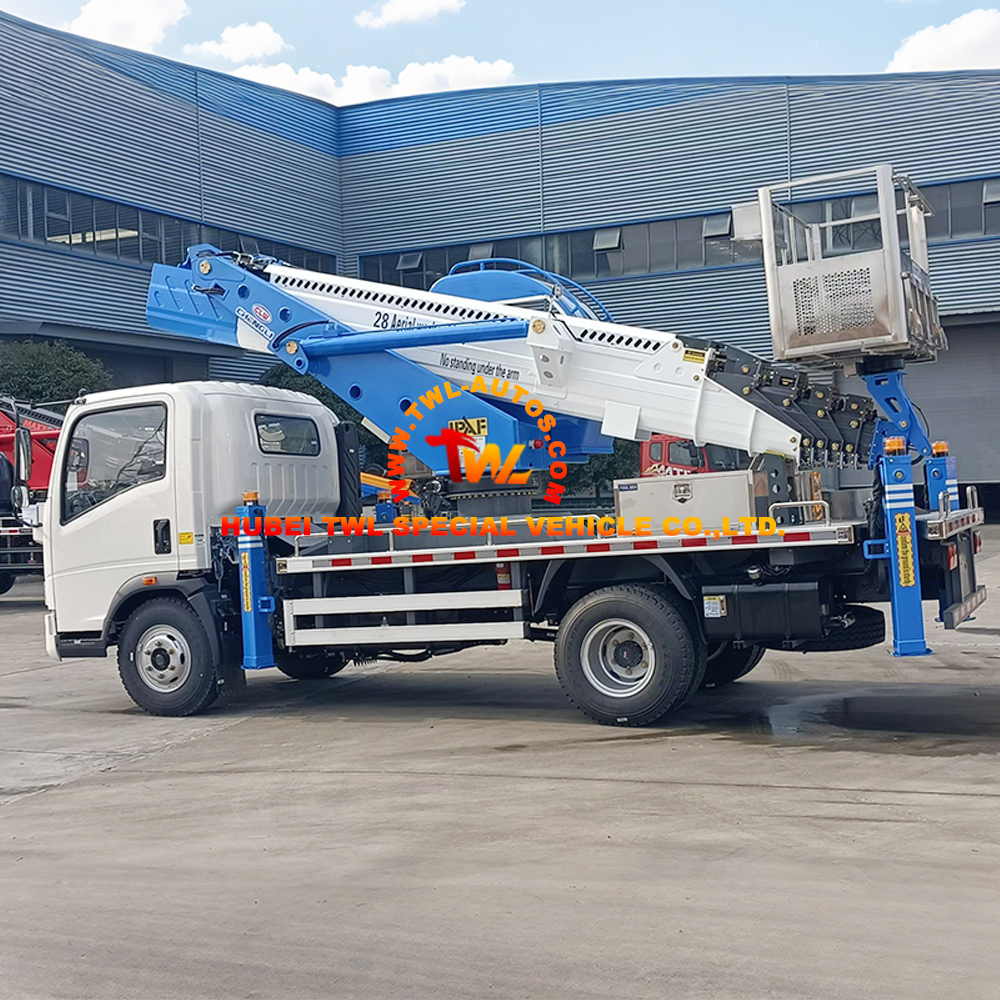

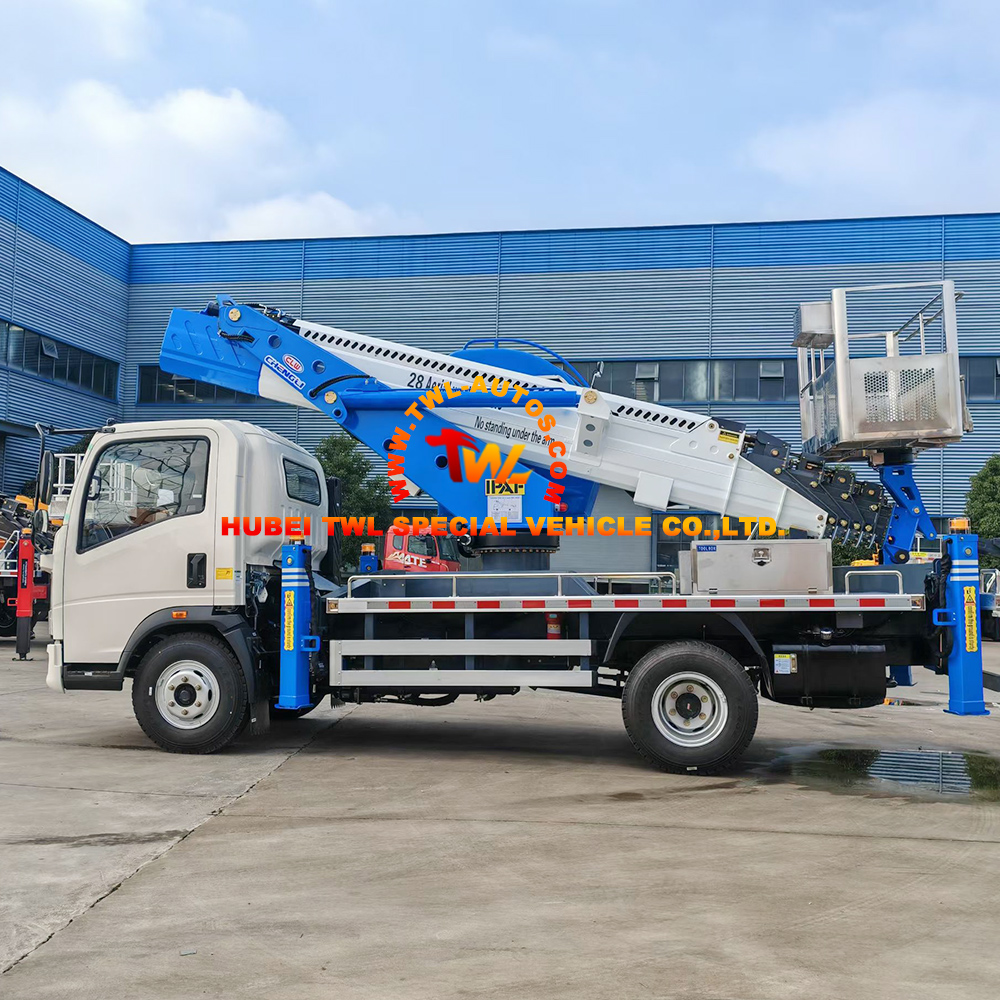

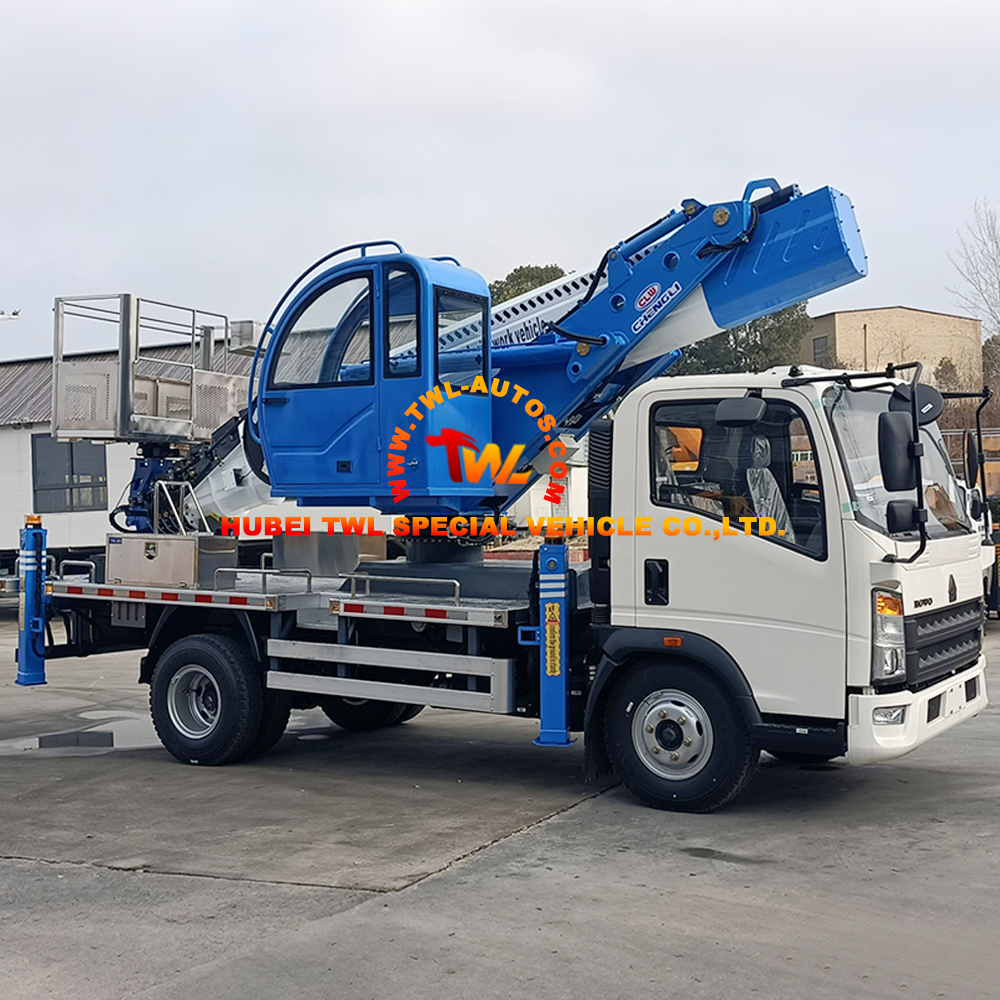

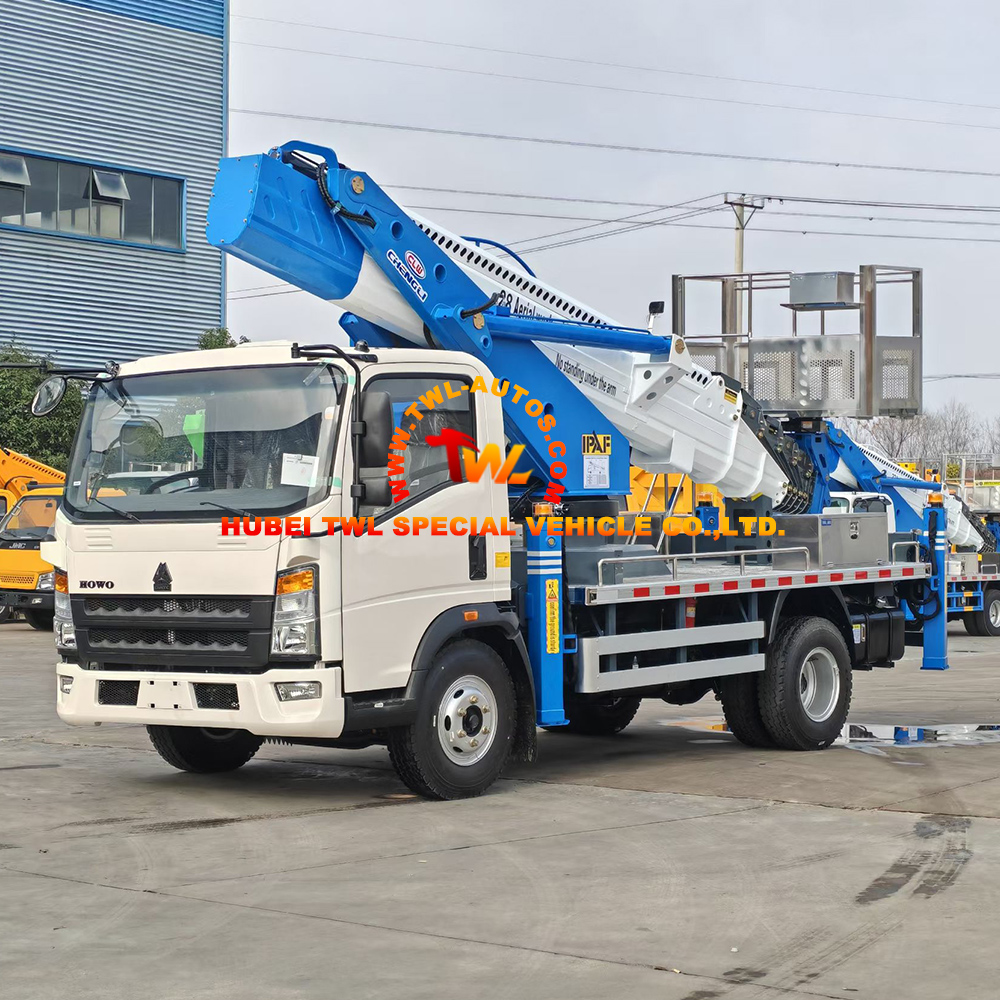

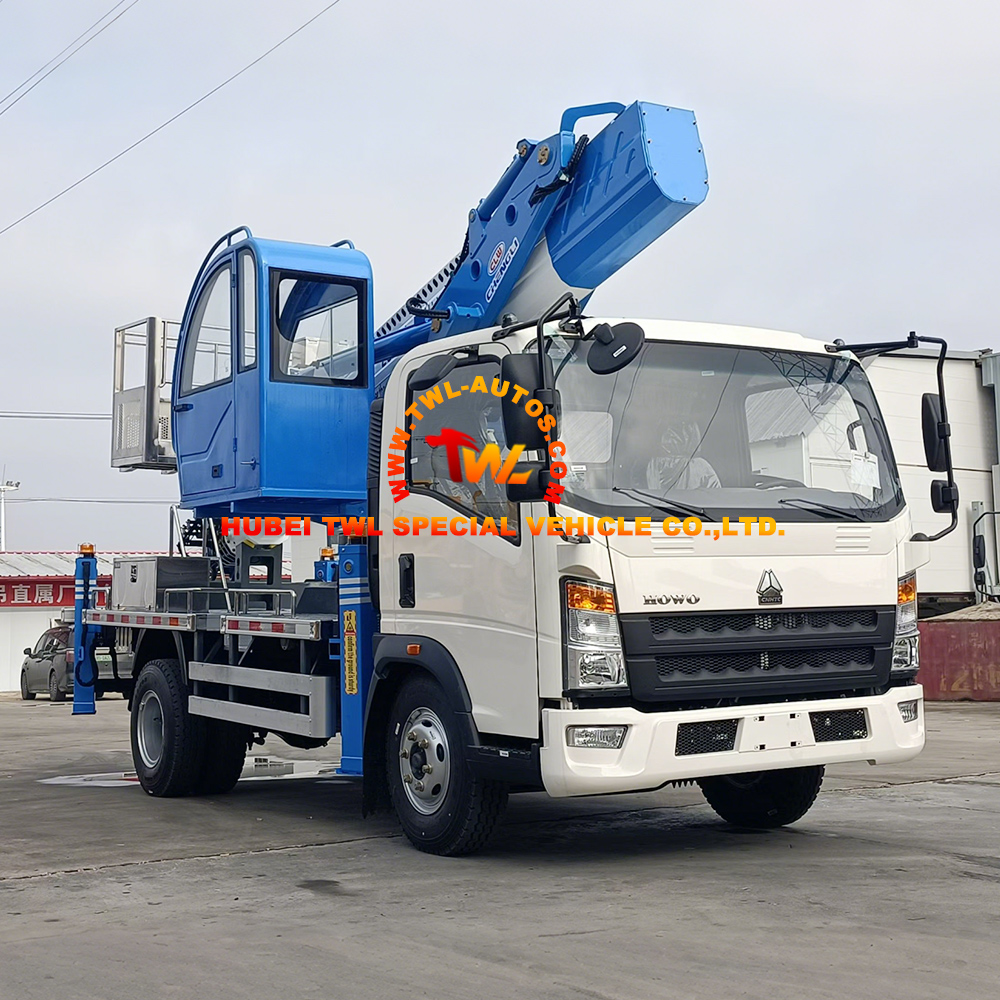

Sinotruk HOWO 28m Aerial Platform Truck
The Sinotruk HOWO 28m Aerial Platform Truck is a reliable and efficient truck-mounted aerial work platform designed for high-altitude operations. Built on the durable HOWO 4×2 chassis and equipped with a 7-section telescopic boom, it offers a maximum working height of 28 meters and a 14-meter working radius, making it ideal for construction, municipal maintenance, and utility services.
Sinotruk HOWO 28m Aerial Platform Truck
The Sinotruk HOWO 28m Aerial Platform Truck, also known as a cherry picker truck or mobile boom lift truck, is engineered to provide safe and efficient elevated working solutions. Manufactured by TWL Group, this vehicle combines the strength and durability of the Sinotruk HOWO chassis with an advanced hydraulic telescopic boom system.
With a maximum working height of 28 meters and a lateral working reach of 14 meters, the truck allows operators to perform high-altitude tasks with excellent stability and flexibility. The 360° continuous rotation system enables smooth and uninterrupted operation around the vehicle.
The truck is equipped with a powerful Yunnei diesel engine and a robust manual transmission system, ensuring reliable performance under demanding working conditions. Meanwhile, multiple safety protection systems, intelligent monitoring, and hydraulic stabilizers guarantee secure and precise operation.
This aerial platform truck is widely used in construction projects, municipal engineering, street lighting maintenance, tree trimming, billboard installation, and other high-altitude maintenance tasks.
Key Features
1. Durable Sinotruk HOWO Chassis
Built on a reliable Sinotruk HOWO 4×2 truck chassis, this aerial platform vehicle ensures excellent durability, stability, and long service life, even in demanding working environments.
2. Powerful Diesel Engine
Powered by a Yunnei YN4100QBZL diesel engine producing 110 HP, the vehicle delivers stable performance for both driving and aerial platform operation. The engine complies with Euro II emission standards and features a water-cooled inline 4-cylinder design.
3. 7-Section Telescopic Boom
The truck features a high-strength octagonal telescopic boom with a synchronized extension system. This design provides smooth movement, reduced vibration, and enhanced stability when operating at full height.
4. 360° Continuous Rotation
The aerial platform supports full 360-degree rotation, allowing operators to reach different working positions without repositioning the vehicle.

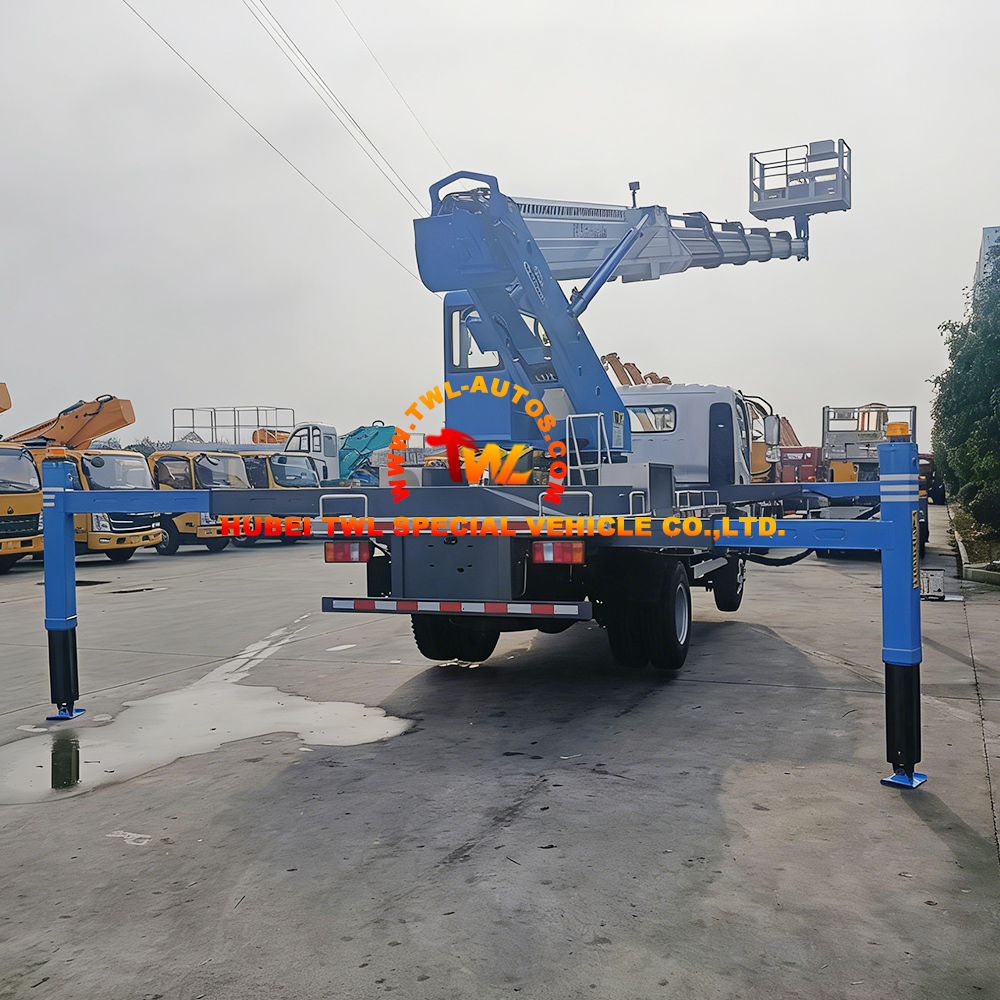

5. Stable Hydraulic Outrigger System
A V-type hydraulic outrigger configuration (front V + rear V) ensures excellent stability during operation. The outriggers can be individually adjusted to adapt to uneven ground conditions.
6. Intelligent Monitoring System
The remote control system with LCD display provides real-time working data, including arm length, working height, working radius, and tilt angle, ensuring precise operation and improved safety.
7. Multi-Layer Safety Protection
Equipped with overload sensors, emergency stop devices, wind speed alarm systems, and hydraulic safety locks, the truck guarantees maximum safety for operators working at height.
Applications
The 28m aerial platform truck is widely used in various industries that require safe and efficient high-altitude operations, including:
· Construction and building maintenance
· Municipal engineering and street light repair
· Tree pruning and landscaping work
· Billboard and signage installation
· Bridge and infrastructure maintenance
· Electrical power line inspection and repair
Why Choose Our Aerial Platform Truck
Professional special vehicle manufacturer since 2004
Factory direct price with strict quality control
Advanced hydraulic and safety systems
Reliable chassis and long service life
Custom configurations available for different markets
Product Specification
| Overall Dimension(LxWxH) | 5998x2100x2950mm | Cab | Sinotruk HOWO, Single row cab, LHD, A/C |
| Engine | Diesel, Yunnei YN4100QBZL,110HP, Euro 2 | Transmission | Manual type, WLY6TS40, 6F&1R gear |
| Axle Loading | Front axle 2000kgs; Rear axle 3500kgs | Tire | 7.00R16, 6+1pcs |
| Boom Type | Seven-section octagonal working arm with synchronous extension and retraction | Max. Working Height | 28m |
| Max. Working Radius | 7.00R16, 6+1pcs | Basket Material | High-strength stainless steel |
| Basket Size | 1600x700x1000mm | Basket Max. Loading Capacity | 200kgs |
| Safety Configurations | Automatic Upper/Lower Vehicle Interlock: Prevents misoperation and overturning by interlocking controls during transitions. | ||
| Manual Emergency Pump: Provides backup power to return personnel to ground if the chassis engine or main hydraulic pump fails. | |||
| Platform Emergency Stop: Enables emergency stop and restricts boom operation. (Includes function on emergency hydraulic pump) | |||
| Automatic Working Range Limitation: Restricts operation in hazardous directions upon reaching set limits. | |||
| Engine Ignition/Shutdown Control: Controller allows remote engine start and stop. | |||
| Leveling System: Hydraulic automatic leveling system. | |||
Sinotruk HOWO 28m Aerial Platform Truck
- +86 199 4767 5585
- [email protected]
- Industry Park, Suizhou City,Hubei Province, China
Company Profile
Aout TWL
HUBEI TWL SPECIAL VEHICLE CO., LTD (hereinafter referred to as TWL), one of important member of CLW Group, is located in Suizhou City, Hubei Province, the capital of China’s Special Vehicles. TWL Truck has a first-class management, design, R&D, manufacturing, and sales professional team, as well as “special, new, high and sophisticated” facilities and equipment, complete manufacturing technology, and strict testing methods to ensure the production of high-quality and high-value-added products for the market. At present, we has strategic partnership with a number of well-known Chinese truck brand, including Dongfeng, Sinotruk, FAW, Foton, Shacman, ISUZU, JAC, JMC, Kama, etc. TWL Truck always adheres to the corporate philosophy of “people-oriented, customer-oriented, honesty and win-win”, and adheres to the business tenet of “development by innovation, survival by quality; integrity by service, and market by brand”.
After-Sales Service
Warranty
– The buyers can get a minimum warranty period of 12 months or 25000KM-50000KM, whichever comes first from the arrival date of shipment.
– During this period, we will send replacement parts and components to buyers by DHL, UPS, FEDEX or by air and by sea free of charge, easy-wearing spare parts are excluded.
– After warranty time, buyers can get all of spare parts of their truck at factory cost.
– This warranty does not cover any possible damage due to improper operaton, accident or misuse or damage due to any unauthorized services.
Technical Support
– The buyers can forever enioy technical support anytime and anywhere, overseas technical training before operaton is available at buyers cost or our cost.
Daily Mainteance Suggestion
– We strongly sugest you to buy some amount of basic spare pats along with your truck, the cost will be approximately 500 USD-800 USD/unit, no shipping cost.
