Sinotruk 16T Flatbed Tow Truck with 12T Straight Crane
The Sinotruk 16T Flatbed Tow Truck with 12T Straight Crane is a versatile and powerful recovery vehicle designed for professional towing and lifting operations. Equipped with a robust 16-ton flatbed and a 12-ton straight boom crane, it provides towing companies, rescue operators, and transport fleets with a reliable solution for handling a wide range of vehicles and equipment.
Its flatbed design allows for secure and efficient transportation of cars, trucks, machinery, and even delicate or high-value vehicles. The integrated crane expands its functionality, enabling operators to lift and recover immobilized or overturned vehicles with ease. Built on Sinotruk’s durable chassis, this tow truck ensures high performance, stability, and long service life, making it an essential asset for modern towing and rescue fleets.
Sinotruk 16T Flatbed Tow Truck with 12T Straight Crane Advantage
1. Dual Functionality – Towing & Lifting
Combines a 16-ton flatbed with a 12-ton straight crane, enabling both transportation and lifting operations in one vehicle.
2. Damage Prevention
Flatbed towing minimizes the risk of secondary damage compared to traditional hook-and-chain methods, ensuring safer handling of vehicles, even those already damaged.
3. Mileage Protection
Ideal for car dealerships and logistics companies, as vehicles transported on the flatbed do not accumulate unnecessary mileage.
4. Enhanced Efficiency
Simplifies the recovery process by eliminating tasks like disconnecting drive shafts or attaching chains, allowing for faster and more efficient vehicle transport.
5. Wide Application Range
Suitable for transporting standard cars, luxury vehicles, heavy machinery, and specialized equipment, providing maximum flexibility for towing operators.
6. Reliable Sinotruk Performance
Built on a proven Sinotruk chassis with strong powertrain and durable structure, ensuring long-term reliability and lower operating costs.
Product Specification
| General Technical Parameters | ||
| Overall Dimension | 12500x2550x3800mm | |
| Gross Vehicle Weight | 25000kg | |
| Curb Weight | 21890kg | |
| Chassis Specification | ||
| Chassis Brand | Sinotruk HOHAN | |
| Driving type | 6×4 | |
| Cabin | 3 seats with one sleeper bed | |
| Left Hand Driving | ||
| Air Conditioned | ||
| Engine | Brand | Weichai |
| Model | WP12.400E201 | |
| Horse Power | 400HP | |
| Emission Standard | EURO II | |
| Displacement | 11.59L | |
| Fuel Type | Diesel | |
| Gearbox | Manual, HOWO 10 Forward 8 2 Reverse Gear | |
| Front and Rear Axle Loading | 9.5T/16T/16T | |
| Steering Gear | Power Assistant | |
| Tire | 12.00R20,10 pieces+1 spare tire | |
| Fuel tank | 400L | |
| Superstructure Specification | ||
| Flatbed | Dimensions(LxW) | 8500×2550 (mm) |
| Max. Loading Weight | 16,000(kg) | |
| Platform Height from the Ground | 1070(mm) | |
| Winch | Quantity | 1pc |
| Winch Rating Pulling Capacity | 15,000 (kg) | |
| Length of Steel Cable | 50(m) | |
| Hoisting Organ | Rating Under-Pulling Capacity | 16,000 (kg) |
| Crane | Brand & Model | XCMG G505300-4,straight crane |
| Max. lifting capacity | 12,000kgs | |
| Max. lifting moment | 330kN·m | |
| Remarks | A set of police lights and loudspeakers,A set of fork support Two pairs of Y-shaped steel plate forks A set of tire holding device Double Side Hydraulic Operation Handle with Your LanguageOne truck can Tow 2 Cars | |

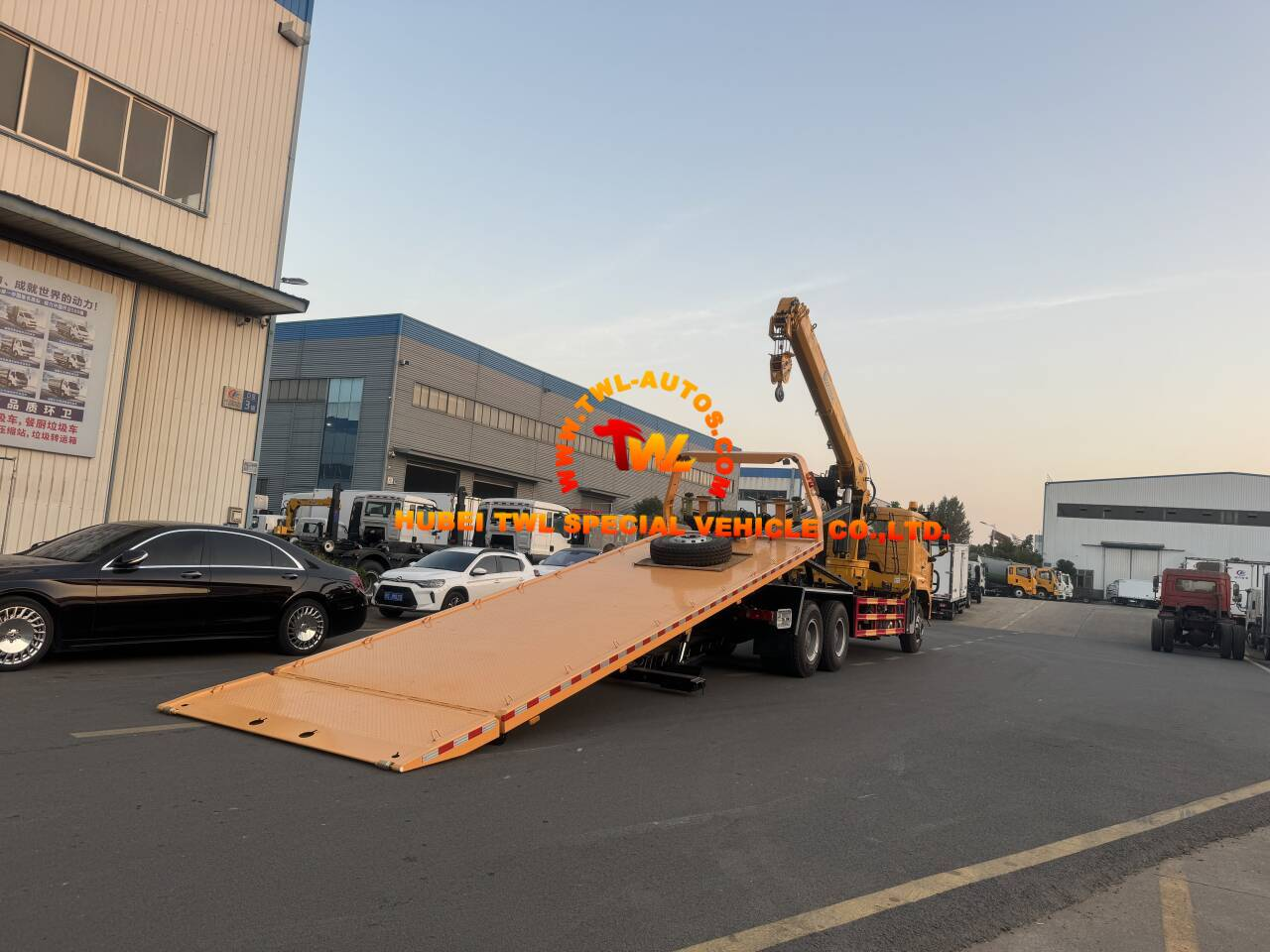

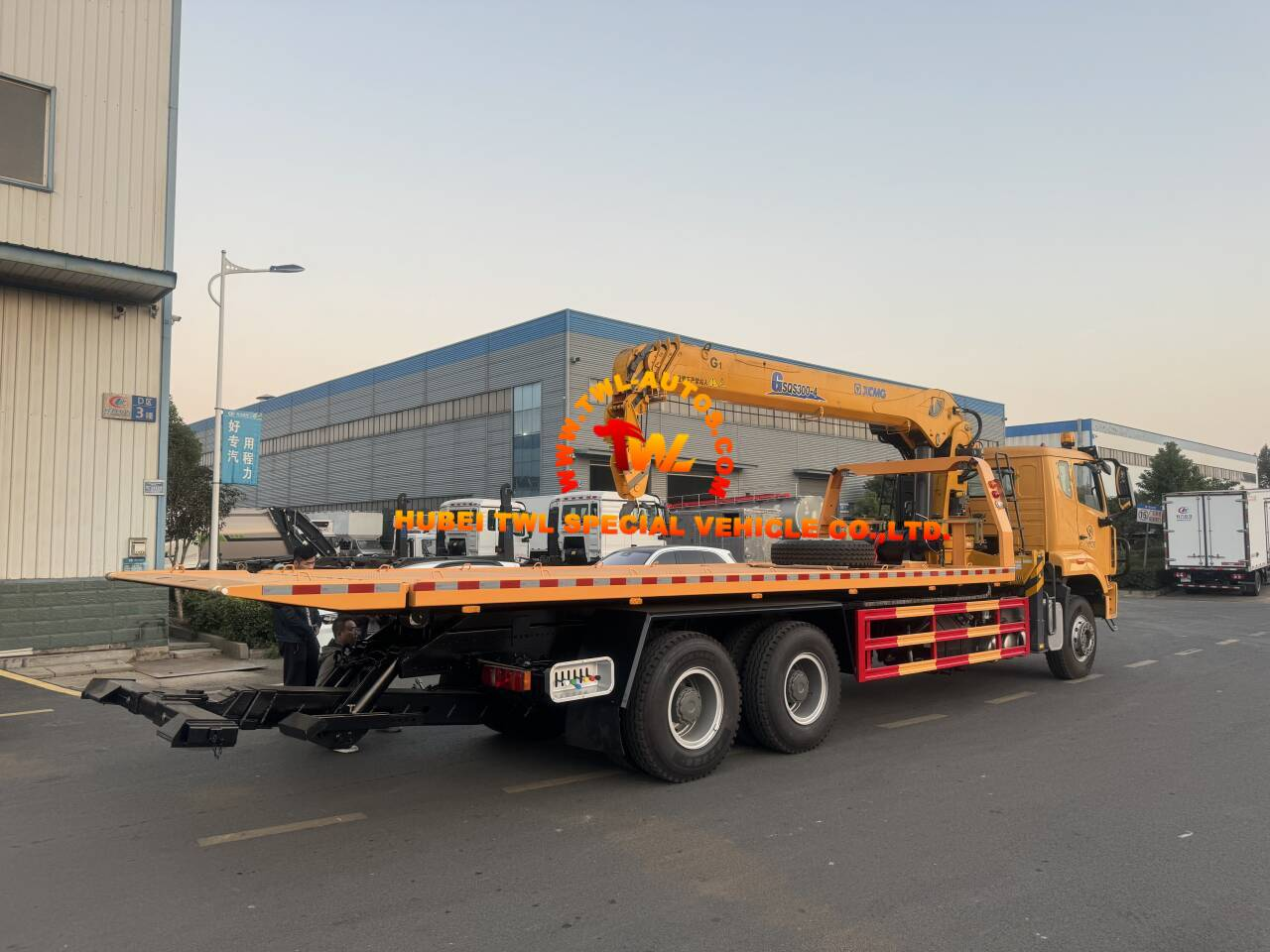

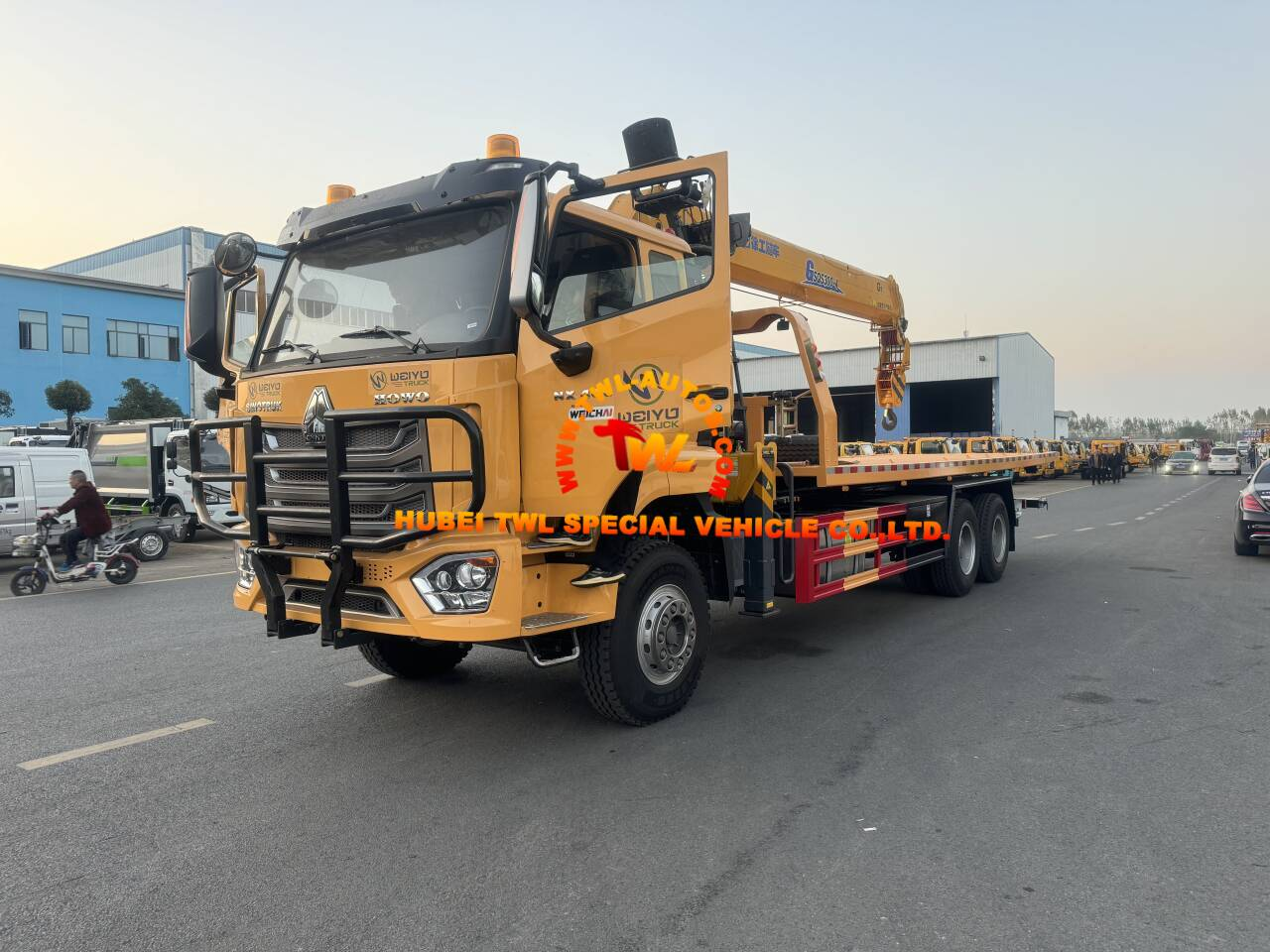

Sinotruk 16T Flatbed Tow Truck with 12T Straight Crane Gallery
