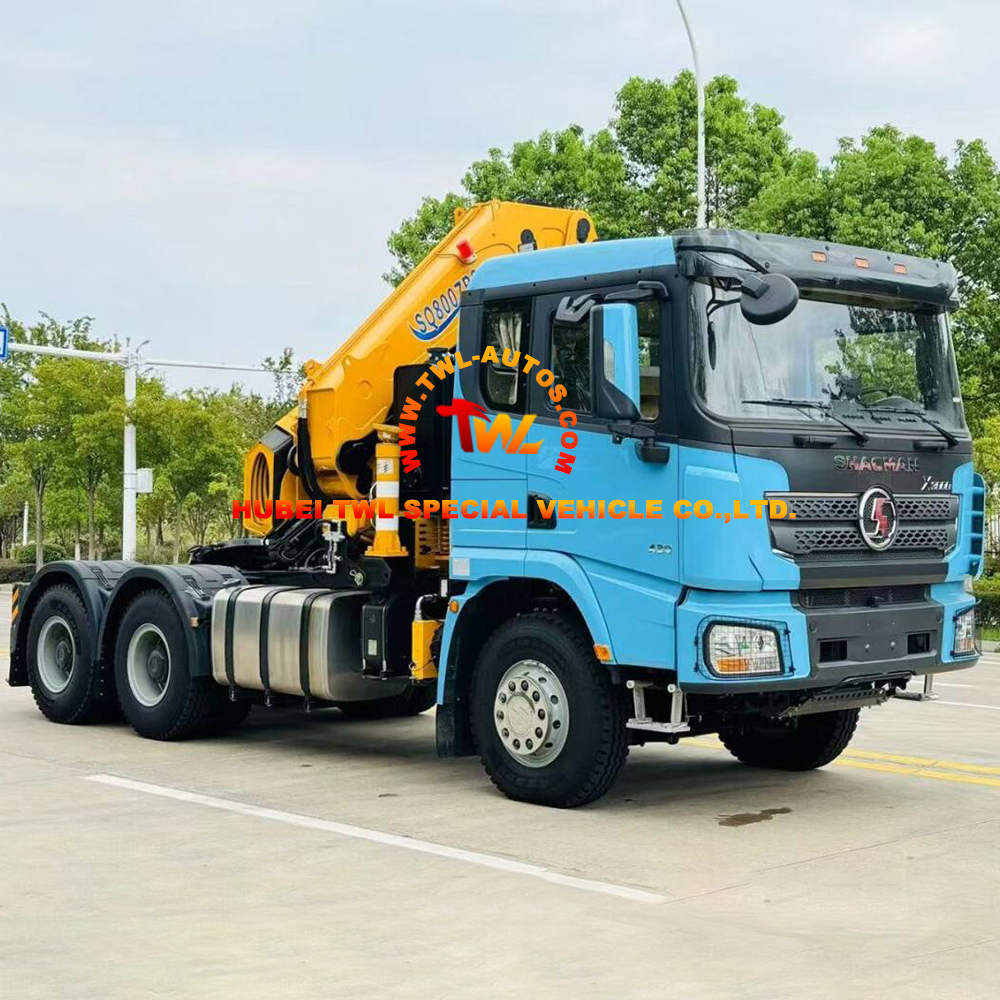

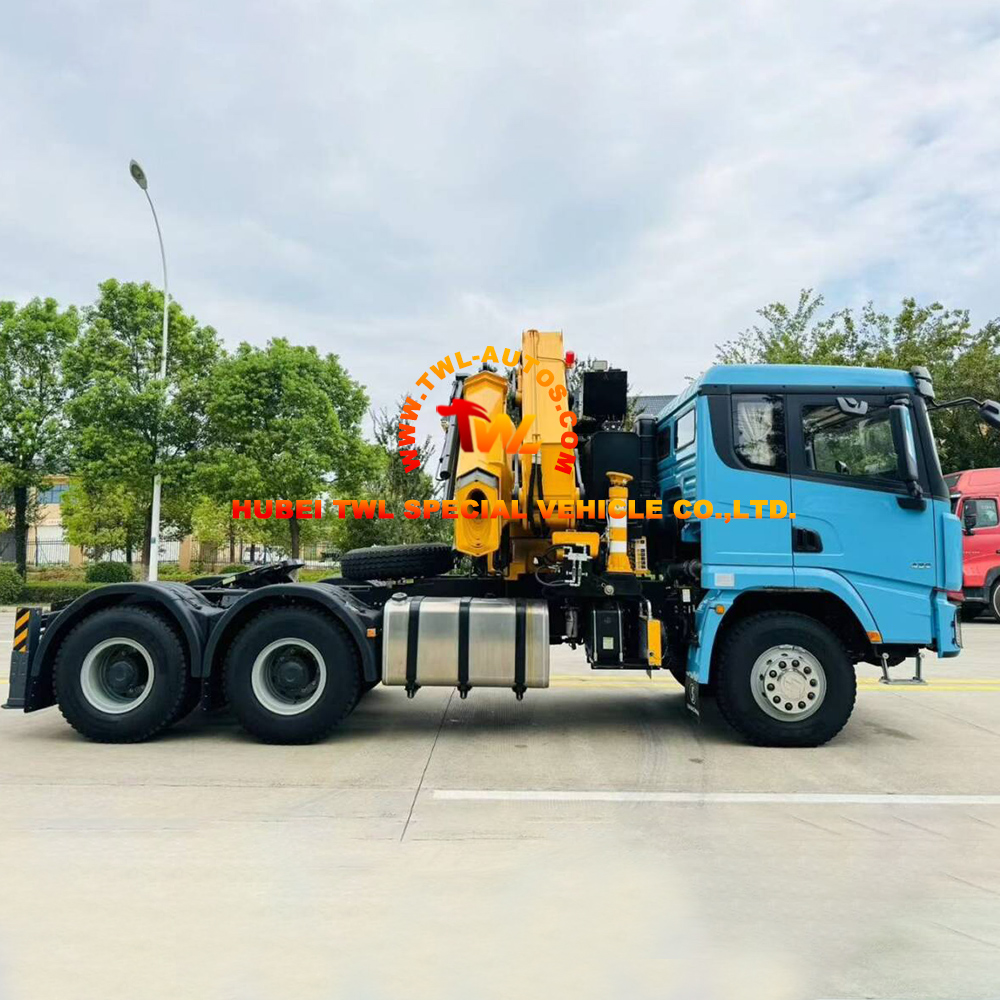

SHACMAN X3000 6×4 Tractor Truck with 8-Ton Knuckle Boom Crane
SHACMAN X3000 6×4 Tractor Truck with 8-Ton Knuckle Boom Crane is a powerful integrated lifting and transport solution designed for heavy-duty construction and logistics operations. Built on the robust SHACMAN X3000 chassis and equipped with an 8-ton knuckle boom crane, it delivers excellent lifting precision, stability, and long-term reliability in demanding working environments.
SHACMAN X3000 6×4 Tractor Truck with 8-Ton Knuckle Boom Crane
The SHACMAN X3000 6×4 Tractor Truck with Knuckle Boom Crane combines high-performance hauling with efficient on-board lifting capabilities. Powered by a Weichai 430 HP diesel engine and matched with a FAST 12-speed manual transmission, the vehicle offers strong torque output, smooth gear shifting, and dependable performance under heavy loads.
The rear-mounted 8-ton knuckle boom crane enables flexible and precise lifting operations, especially in confined or complex workspaces. Hydraulic stabilizer outriggers at the rear significantly enhance operational stability and safety during lifting. With a reinforced chassis and high-strength steel structure, this truck is engineered for durability, versatility, and continuous heavy-duty use across multiple industries.
Key Advantages
1. High-Performance Heavy-Duty Chassis
Built on the SHACMAN X3000 6×4 chassis, this vehicle is known for its excellent load-bearing capacity, structural strength, and long service life. The chassis adopts world-class manufacturing standards, ensuring high reliability, reduced downtime, and strong adaptability to harsh road and site conditions.
2. Powerful and Efficient Drivetrain
Equipped with a Weichai 430 HP engine, the truck delivers high torque output ideal for lifting, hauling, and long-distance transportation. The FAST 12-speed manual gearbox ensures efficient power transmission, smooth shifting, and optimized fuel economy, making it suitable for both urban and off-road operations.
3. Flexible and Precise Knuckle Boom Crane
The 8-ton knuckle boom crane offers superior maneuverability compared to straight boom cranes. Its articulated design allows precise lifting, folding, and positioning in tight spaces, significantly improving work efficiency at construction sites, warehouses, and infrastructure projects.
Optional crane configurations are available, including capacities from 2 tons up to 25 tons, as well as telescopic or knuckle boom types from trusted brands such as XCMG.
4. Enhanced Safety and Stability
Rear-mounted hydraulic stabilizer outriggers provide excellent stability during lifting operations, even under heavy or uneven loads. The use of high-strength steel in all structural components further improves safety, durability, and resistance to deformation during long-term use.
5. High Customization and Versatility
The vehicle supports multiple configuration options, including 4×2, 6×4, and 8×4 chassis layouts, various engine power ratings, remote radio control for the crane, and different crane brands and models. This flexibility allows the truck to be tailored to specific operational requirements and regional regulations.
Applications
The SHACMAN X3000 6×4 Knuckle Boom Crane Truck is widely used in industries that require integrated lifting and transportation capabilities, including:
· Construction Projects: Lifting and transporting building materials, steel structures, precast components, and construction equipment on-site.
· Infrastructure & Utilities: Ideal for road maintenance, bridge construction, power line installation, and municipal engineering works where precise lifting is required.
· Logistics & Equipment Transport: Efficient loading, unloading, and delivery of heavy machinery, containers, and industrial equipment without the need for additional cranes.
· Industrial & Mining Operations: Suitable for handling heavy tools, spare parts, and materials in industrial plants and mining areas.
· Multi-Functional Lifting & Hauling Operations: A practical solution for companies seeking to reduce equipment costs by combining crane and transport functions in a single vehicle.
Product Specification
| Truck Chassis | ||
| Cabin | Driving type 6×4 LHD, Extended cab with flat top Passenger capacity: 3 people | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 6850×2550×3980 |
| Wheel base (mm) | 3175+1350 | |
| Weight in KGS | Tare Weight | 9100 |
| Hauling Capacity | 40 Tons | |
| Front /Rear axles loading capacity | MAN7.5T/ 2x13T STR | |
| Max. driving speed(km/h) | 109 km/h | |
| Engine | Brand | WEICHAI |
| Model | WP12.430E201 | |
| Type | 6-cylinder in-line with water cooling | |
| Horse Power(HP) | 430 HP | |
| Displacement | 11.596L | |
| Maximum torque | 2060 | |
| Emission standard | Euro III | |
| Gearbox | FAST 12JSD200TA, Manual, 12-speed forward, 2 reverse gears | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400L | |
| Tire | 12.00R20 tire 10 pcs including one spare tire | |
| Color & LOGO | According to wish | |
| Superstructure | ||
| Crane | item(Unit) | SQ800ZB8 |
| Max. lifting moment(kN·m) | 160 | |
| Max. lifting capacity(kg) | 8000 | |
| Max. hydraulic outreach(m) | 9.755 | |
| Slewing angle(°) | 360° Continuous | |
| Stabilizer spread(mm) | 5210 | |
| Max. operating pressure(MPa) | 28 | |
| Recommended pump capacity(L/min) | 40 | |
| Oil tank capacity(L) | 160 | |
