SHACMAN L3000 RHD 15m³ LPG Bobtail Truck
Deliver LPG safely and efficiently across Africa's rough roads with the SHACMAN L3000 RHD 15m³ LPG Bobtail Truck – a 7-ton propane delivery tanker featuring a Weichai 210HP Euro III engine, FAST 8-speed transmission, 15,000L Q345R steel tank (1.71MPa design pressure), PTO-driven LPG pump with flow meter, comprehensive safety systems (safety valve, emergency shut-off valves, level gauge, pressure/temperature gauges), and RHD L3000 cab with sleeper and A/C. Customized for Zimbabwe, this vehicle is ideal for transporting, delivering, and refueling propane/LPG into smaller tanks and home-use cylinders.
SHACMAN L3000 RHD 15m³ LPG Bobtail Truck

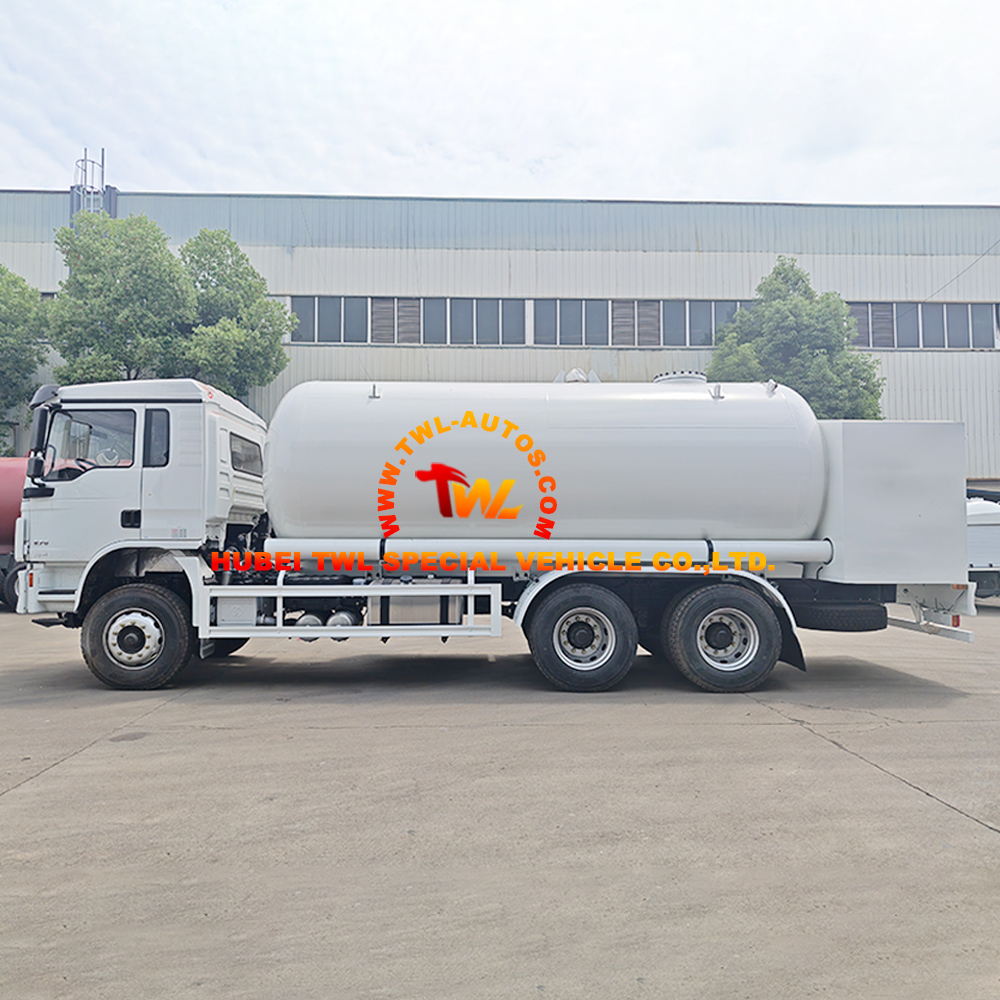

The SHACMAN L3000 RHD 15m³ LPG Bobtail Truck is a meticulously engineered gas delivery vehicle specifically customized for Zimbabwe and other right-hand drive African markets. Built on the robust SHACMAN L3000 6×4 chassis with a 4,500mm wheelbase, this vehicle features the L3000 RHD cab with sleeper, air conditioning, central lock, and electric windows – providing driver comfort for long-distance transport across African terrain. The Weichai WP6.210E32 diesel engine delivers 210HP (155kW) with Euro III compliance, paired with a FAST JSJS8STM 8-speed manual transmission (8 forward + 2 reverse) for smooth gear shifts under heavy loads. The 15,000-liter tank is constructed from Q345R steel with 10mm thickness, design pressure of 1.71MPa, working pressure of 1.61MPa, and test pressure of 2.21MPa – ensuring safe storage and transportation of propane/LPG. Safety is paramount with a built-in safety valve (A412F-25-16), two emergency shut-off valves (with switches in valve box and at rear), float ball level gauge (YWJ-25 showing percentage), pressure gauges (YN-100T), thermometer (WTQ-280), and static conductive tape. The PTO-driven LPG pump (VQ15-5, 15.5M³/H) and flow meter (TSC-50 with ticket printer) ensure precise LPG transfer. The 15m retractable filling hose with REGO adapter enables easy refueling of smaller tanks and home-use cylinders.
Key Features:
1. SHACMAN L3000 6×4 RHD Chassis – Built for African Roads: The SHACMAN L3000 6×4 chassis is specifically engineered for demanding African road conditions. The 4,500mm wheelbase provides excellent stability for the 15m³ tank. RHD configuration is customized for Zimbabwe and other RHD African markets. GVW 18,000kg, curb 10,500kg, payload 7,500kg.
2. Weichai 210HP Euro III Engine – Fuel-Efficient & High-Torque: The WP6.210E32 diesel engine delivers 210HP (155kW) with 6,230ml displacement and Euro III compliance. Max torque at 1,400-1,600 RPM provides strong pulling power for African terrain.
3. FAST 8-Speed Synchronized Transmission – Smooth Shifting: The JSJS8STM transmission with 8 forward and 2 reverse gears ensures smooth gear shifts and optimal power transfer even under heavy loads on rough roads.
4. 15m³ Q345R LPG Tank – High-Strength Construction: 15,000-liter capacity with Q345R steel construction. 10mm body and head thickness. Design pressure 1.71MPa, working pressure 1.61MPa, test pressure 2.21MPa. Corrosion allowance 1.0mm. Working temperature -40~50°C. DN450 manhole for easy access.
5. Comprehensive Safety Systems for LPG Transport:
· Safety Valve: A412F-25-16 built-in, 2.5MPa nominal pressure.
· Emergency Shut-Off Valves: 2 pcs with switches in valve box and at rear for rapid isolation.
· Level Gauge: YWJ-25 float ball type, showing percentage at rear of tank, 2.5MPa nominal pressure.
· Pressure Gauges: YN-100T (2 pcs) for continuous monitoring.
· Thermometer: WTQ-280 for cargo temperature tracking.
· Static Conductive Tape: 1 pc for electrostatic discharge prevention.
· Safety Return Valve & Pipeline Safety Valve: Additional protection layers.

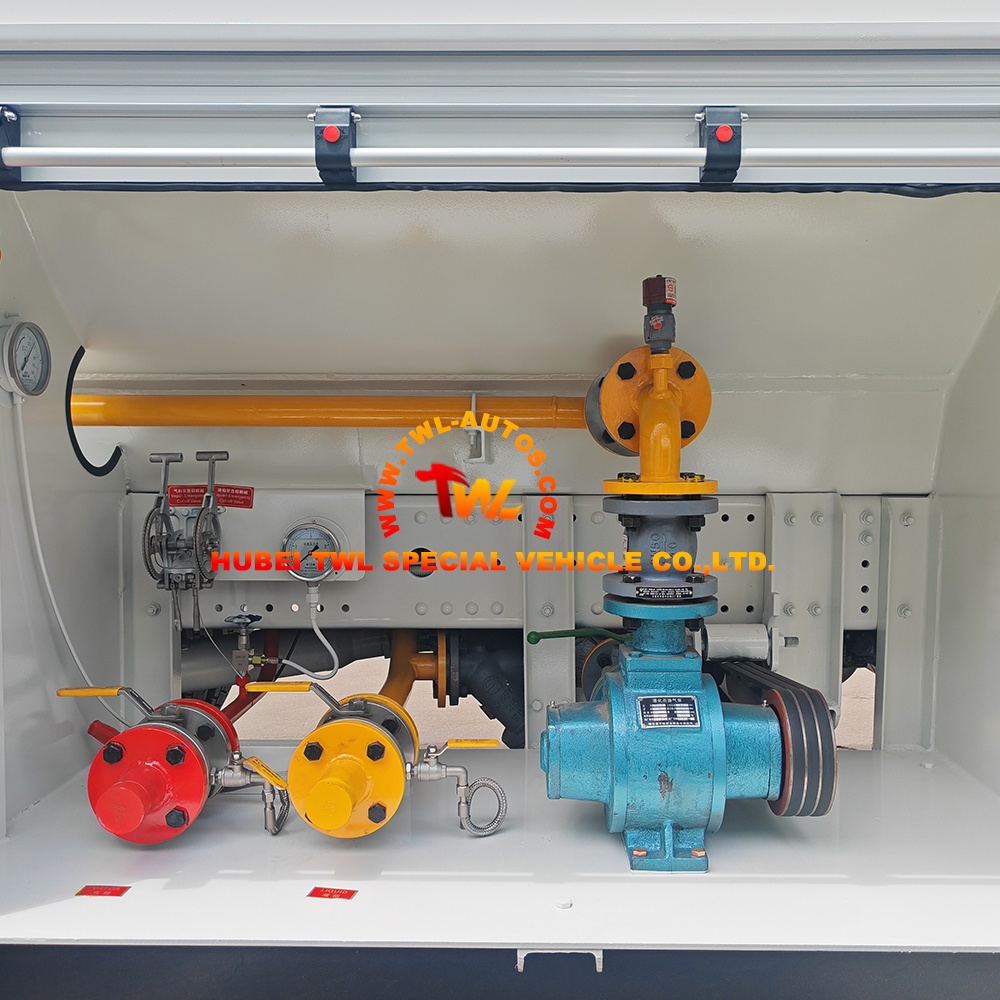

6. PTO-Driven LPG Pump & Flow Meter – Precise Transfer:
· Pump: VQ15-5 Chinese brand, 15.5M³/H flow, 10MPa inlet pressure, 780 r/min rotation speed.

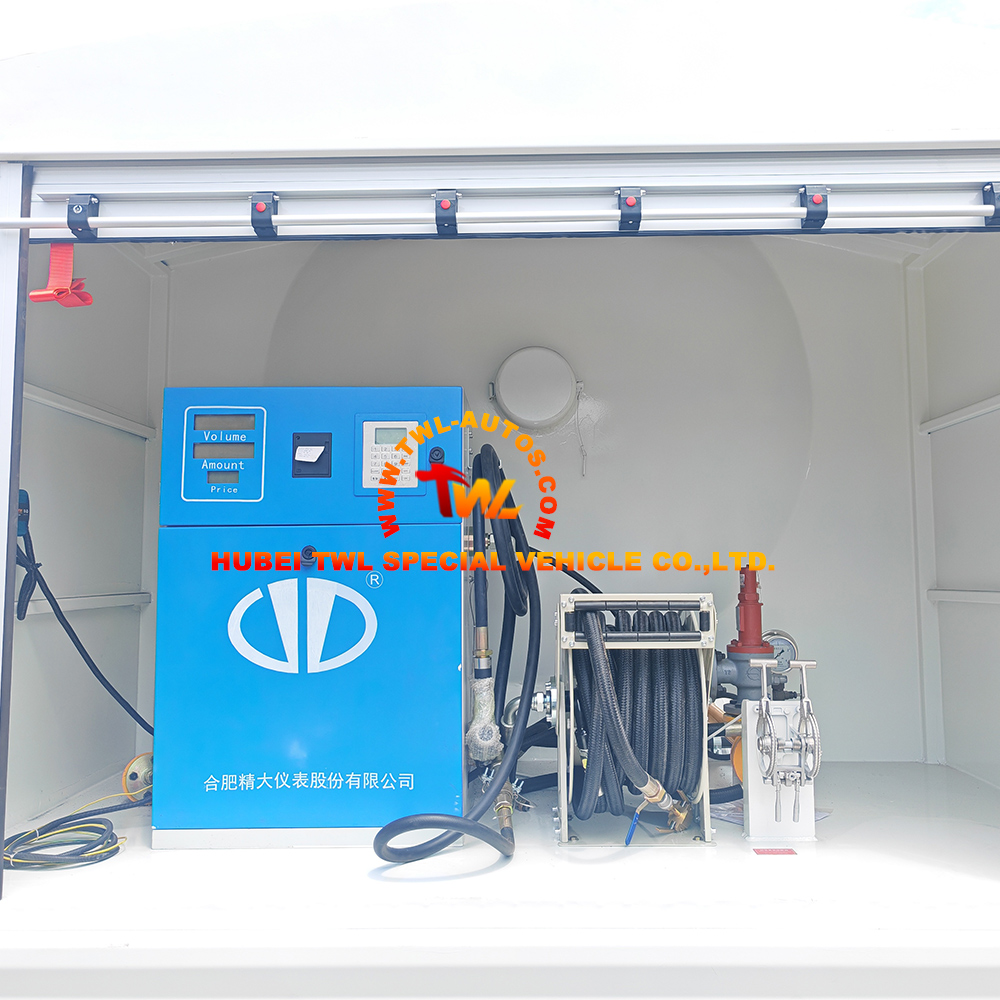

· Flow Meter: TSC-50 model showing filling volume, 2″/DN50 connections, 76-380 LPM capacity. With mechanical register, strainer, air eliminator, differential valve, back check valve, and ticket printer.
7. Operational Convenience Features:
· Filling Hose: 15m retractable with REGO adapter.

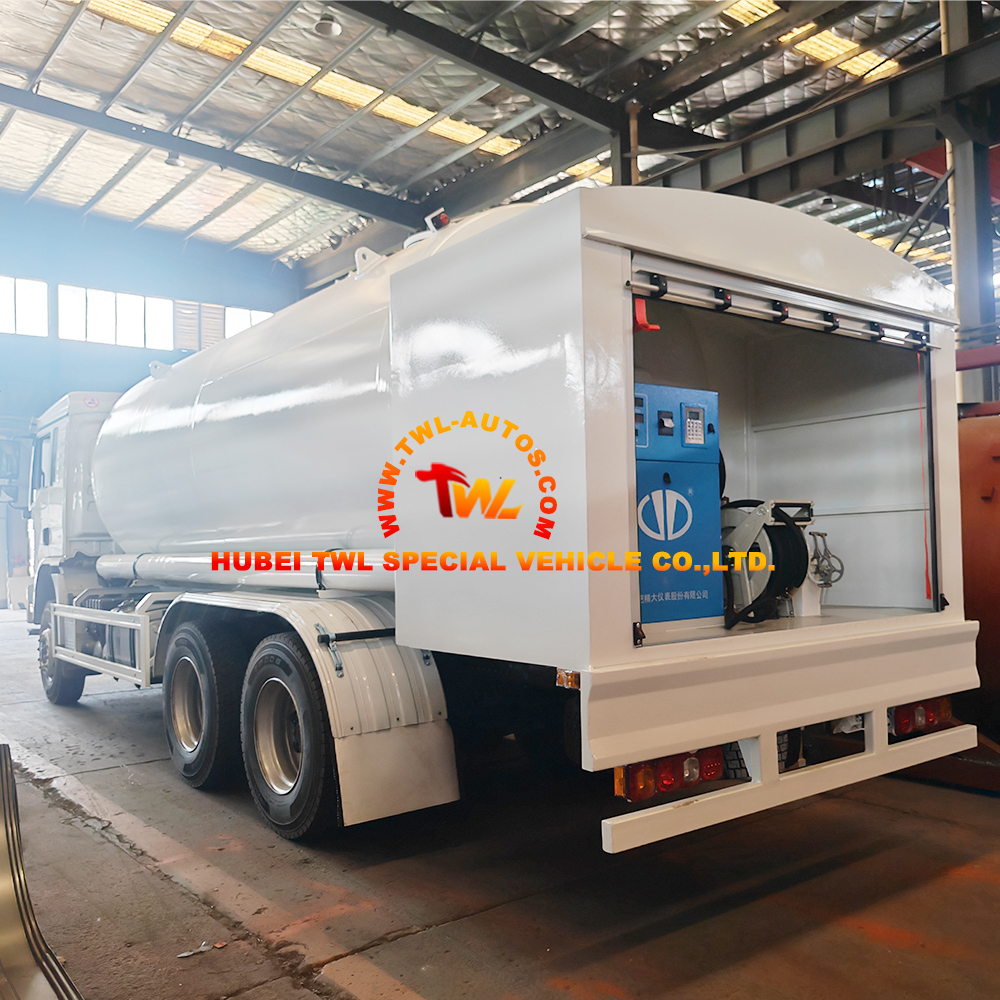

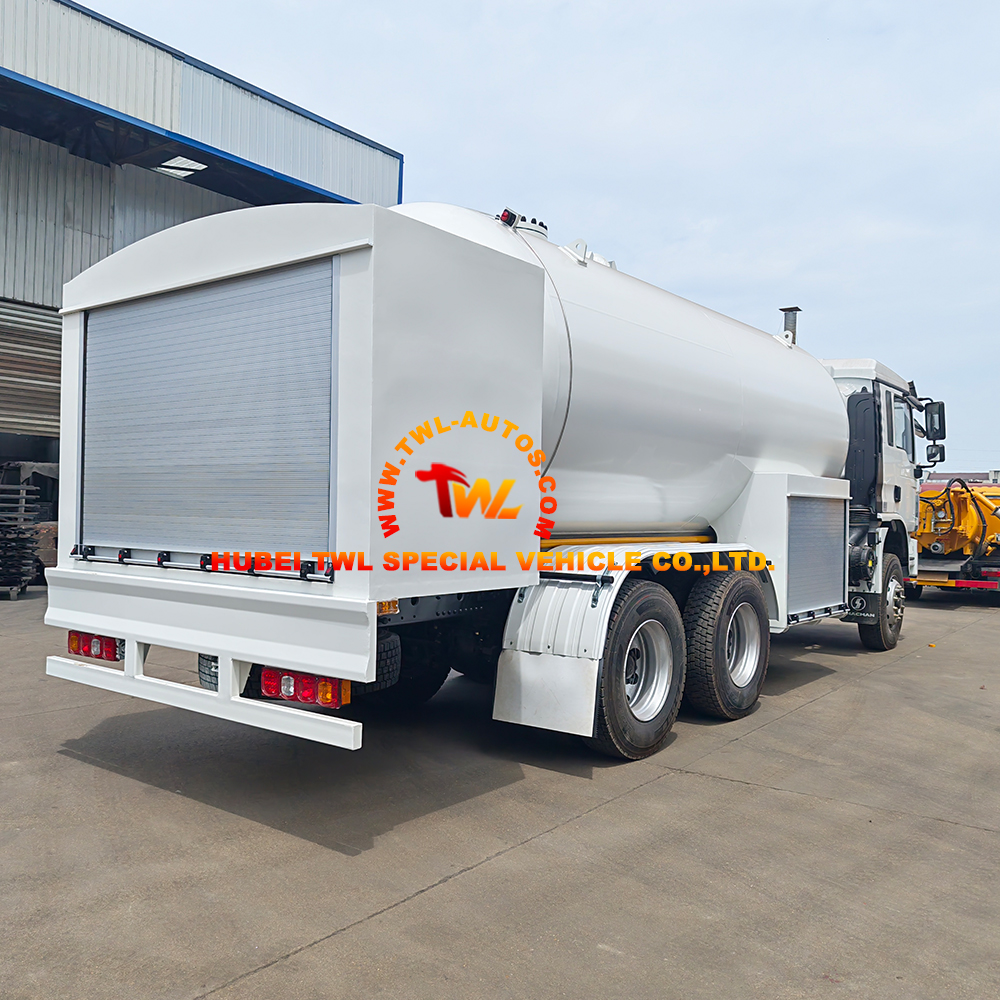

· Equipment and Valve Box: Located on side opposite driver, strong design with rolling cabinet.
· Fuel Tank: 200L steel material.
· Exhaust Pipe: At front of cab for safety.
· Clutch: Reinforced diaphragm clutch.
· Durable Components for African Conditions: 10.00R20 tires (6 + 1 spare), steel fenders, fire extinguisher holder, and static conductive tape.
Application:
· LPG Distribution: Transporting propane/LPG from refineries to gas stations and industrial users across Zimbabwe and other African countries.
· Gas Station Cylinder Refilling: Fast refilling for residential LPG cylinders at urban and rural gas stations.
· Home LPG Refueling: Direct delivery and refueling of smaller LPG tanks and home-use cylinders.
· Industrial Facility Gas Supply: Supplying LPG to factories, warehouses, mines, and construction camps.
· Remote Area LPG Delivery: Providing LPG to rural and remote locations where pipeline infrastructure is unavailable.
· Rough Road Transport: Specifically engineered for African rough road conditions with robust chassis and suspension.
Product Specification
| Item No. | Parameters | |
| Overall Dimension | 8000x2500x3450 mm | |
| Driving Model | Right hand drive for Zimbabwe | |
| Gross Vehicle Weight | 18,000 kg | |
| Curb Weight | 10,500 kg | |
| Payload | 7,500 kg | |
| Wheel Base | 4500 mm | |
| Front Axle | 4,800kg | |
| Rear Axle | 10,000kg | |
| Engine | Model | WP6.210E32 |
| Type | WEICHAI diesel engine,6-cylinders in a line,Water cooled,turbocharged,after cooled , cold start. | |
| Horse Power | 210Hp | |
| Max output power | 155kW | |
| Emission standard | Euro III | |
| Displacement | 6230ml | |
| Rated Speed | 1400~1600 rpm | |
| Gearbox | Manual type, | |
| FAST 8JS85TM, | ||
| 8 forward gears & 2 reverse | ||

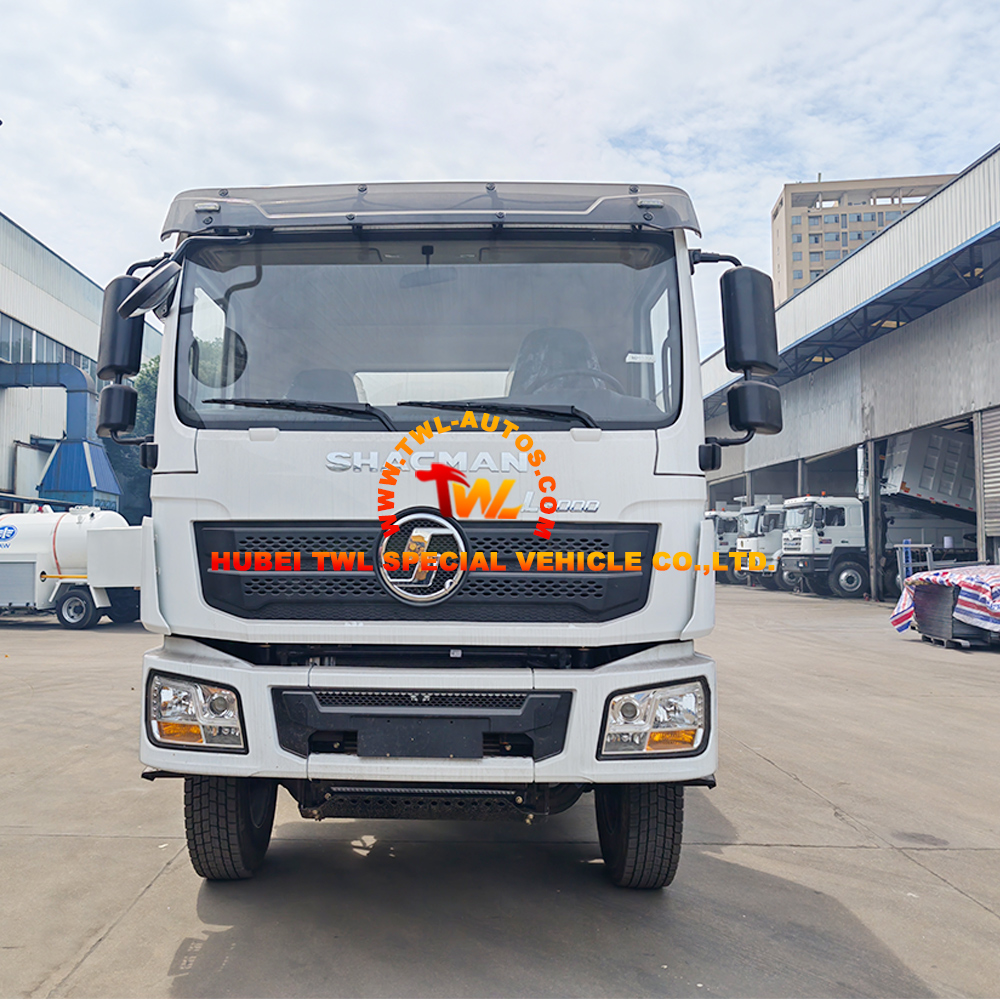

| Cabin | Original SHACMAN L3000 cabin with one sleeper | |
| Right Hand Driving for Zimbabwe | ||
| with air conditioner | ||
| Central lock | ||
| Electric window | ||
| Clutch | Reinforced diaphragm clutch | |
| Tire | 10.00R20, 6 pieces with 1 spare tire. | |
| Fuel box | 200L /steel material | |
| Exhaust Pipe | At front of Cabin for safety | |
| LPG tank | ||
| Filling Medium | Liquefied Petroleum Gas | |
| Working temperature | -40~50 ℃ | |
| Volume: | 15,000Liters | |
| Tank material: | Q345R | |
| Tank diameter: | 1900mm | |
| Tank thickness: | 10mm | |
| End plate thickness: | 10mm | |
| Tank length: | As designed | |
| Gas phase | Flange type,DN50/2” or according to customer request | |
| Liquid Phase | Flange type,DN50/2” or according to customer request | |
| Filling gas | Propane(LPG) | |
| Working Pressure: | 1.61Mpa | |
| Design Pressure | 1.71 Mpa | |
| Testing pressure | 2.21Mpa | |
| Corrosion Allowance | 1.0 mm | |
| Refilling Accessory | ||
| Directly driven by PTO(easy for future maintenance) | ||
| LPG Pump | Chinese brand YQ15-5 | |
| Flow rate:15.5M3/H | ||
| 10 Mpa inlet pressure | ||
| 780 r/min for rotation speed | ||
| LPG Flow meter | TSC-50 model | |
| Showing filling volume | ||
| Inlet/Outlet 2”/DN50 | ||
| Maximum Capacity:76~380lpm | ||
| With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve | ||
| with Ticket Printer. | ||
| Filling hose | 15M,retractable with REGO adapter | |
| Level Gauge | Chinese brand YWJ-25 | |
| Float Ball type | ||
| at the rear of tank | ||
| Nominal Pressure 2.5 mpa | ||
| Showing in percentage | ||
| Safety Valve | Model No. | A412F-25-16 |
| Type | Built-in | |
| Nominal Pressure | 2.5 Mpa | |
| Safety return valve | 1 PC | |
| Pipeline safety valve | 1 PC | |
| Equipment and Valve Box | Located at side of LPG bobtail (opposite driver’s side) | |
| Strong design with rolling off cabinet | ||
| Manhole | DN450 | |
| Thermometer | 1 pc | |
| WTQ-280 | ||
| Pressure Gauge | 2 pc | |
| YN-100T | ||
| Emergency shut off Valve | 2 pcs with switch inside valve box and at rear of truck | |
| Fender | Steel | |
| Fire Extinguisher Holder | 1 set | |
| Static conductive tape | 1 pc | |
