SHACMAN 6x4 25m³ Fuel Tank Truck
Engineered for bulk fuel transport and on-site refueling, the SHACMAN 6x4 25m³ Fuel Tank Truck combines a reliable SHACMAN X3000 chassis with a Weichai powerful engine and a professional-grade fuel dispensing system. Featuring a 25,000-liter single-compartment tank, Censtar fuel dispenser with automatic hose reel, and comprehensive safety protection including emergency shut-off valve alarm, this vehicle delivers efficient, safe fuel delivery for construction sites, mining operations, and depot-to-station transport.
SHACMAN 6x4 25m³ Fuel Tank Truck

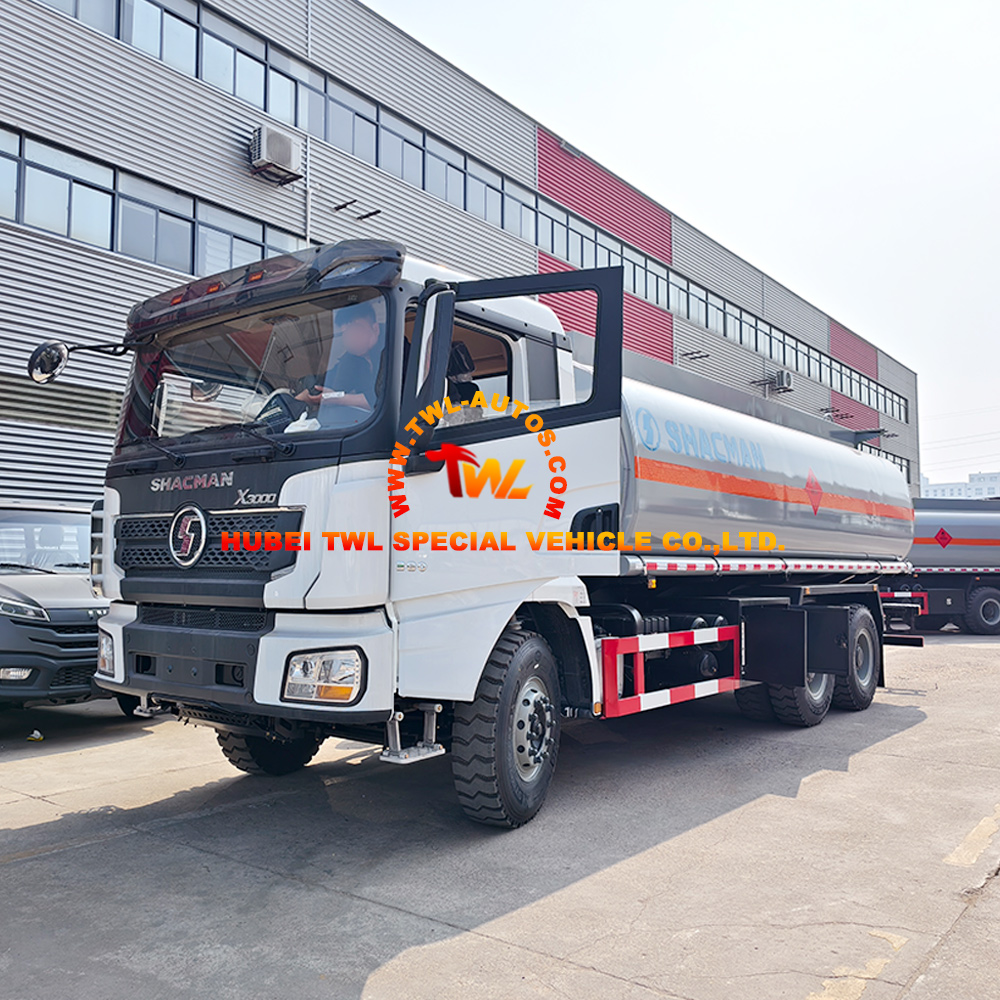

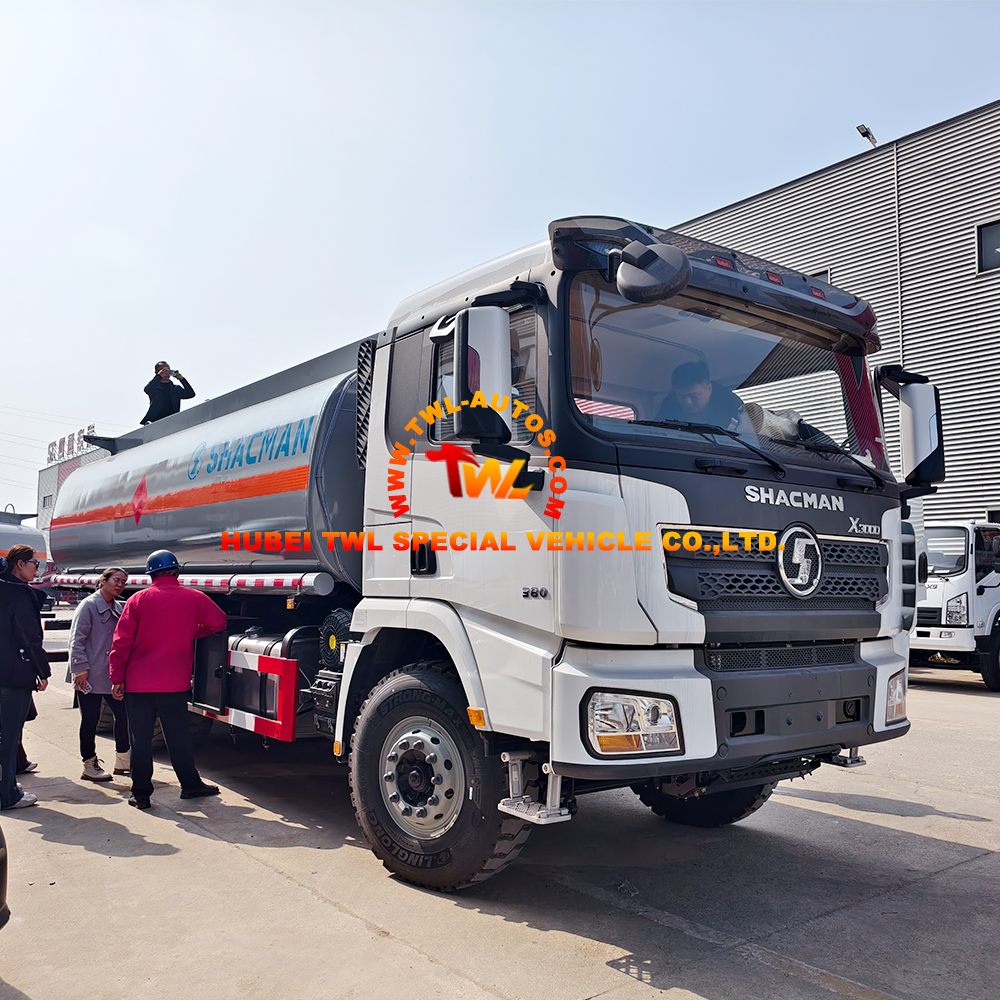

The SHACMAN 6×4 Fuel Tank Truck is a purpose-built fuel transport and dispensing vehicle designed for demanding applications requiring bulk capacity and on-site refueling capability. Built on the proven SHACMAN X3000 6×4 chassis with a high-roof sleeper cab, this vehicle features a powerful Weichai engine meeting Euro II emission standards. The 25,000-liter single-compartment tank features no internal partitions, ensuring smooth liquid flow and easy cleaning, with anti-static and explosion-proof treatment for flammable petroleum product transport. The integrated Censtar fuel dispenser with automatic hose reel provides accurate metering and fast refueling with real-time display of sales amount, liter count, and unit price. Advanced safety features include an emergency shut-off valve automatic alarm device (HAKJ-19A) that triggers alarms and cuts off pipelines during abnormal pressure or accidents, preventing leakage and ensuring compliance with GB 7258-2017 safety standards.
Key Features:

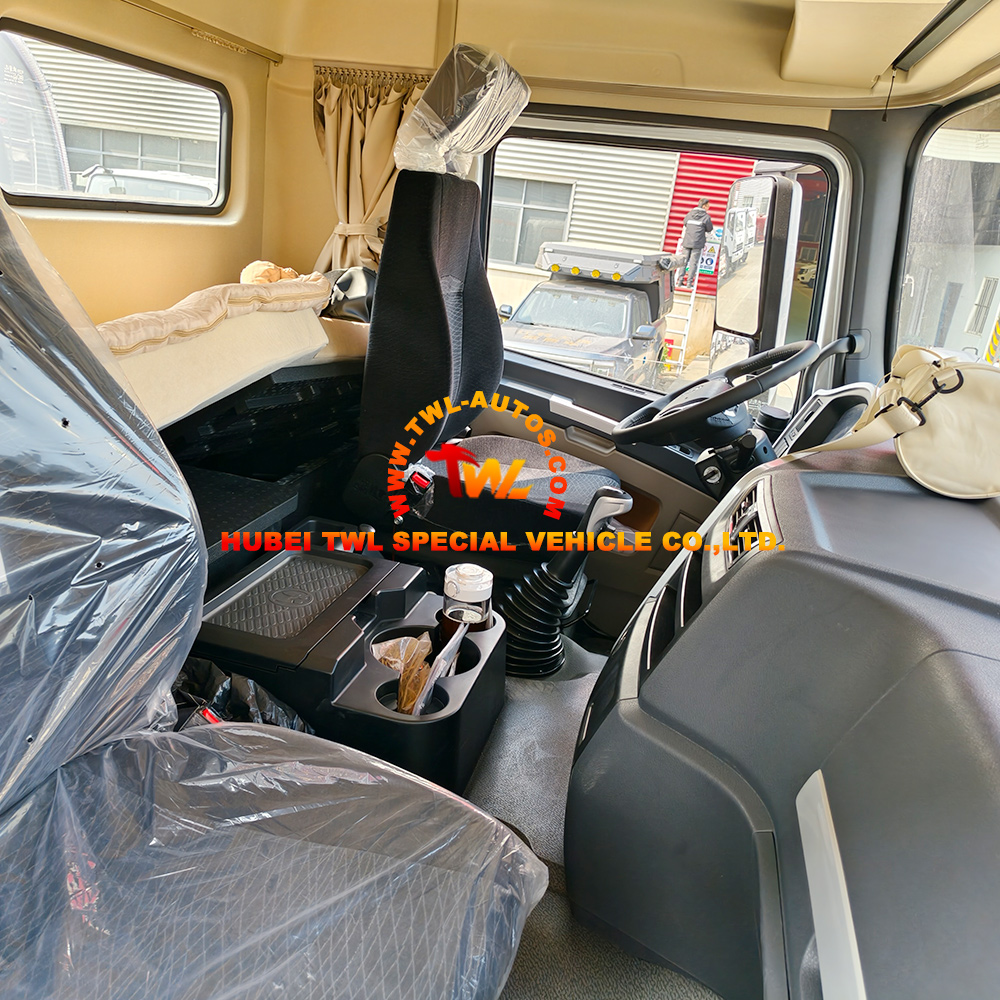

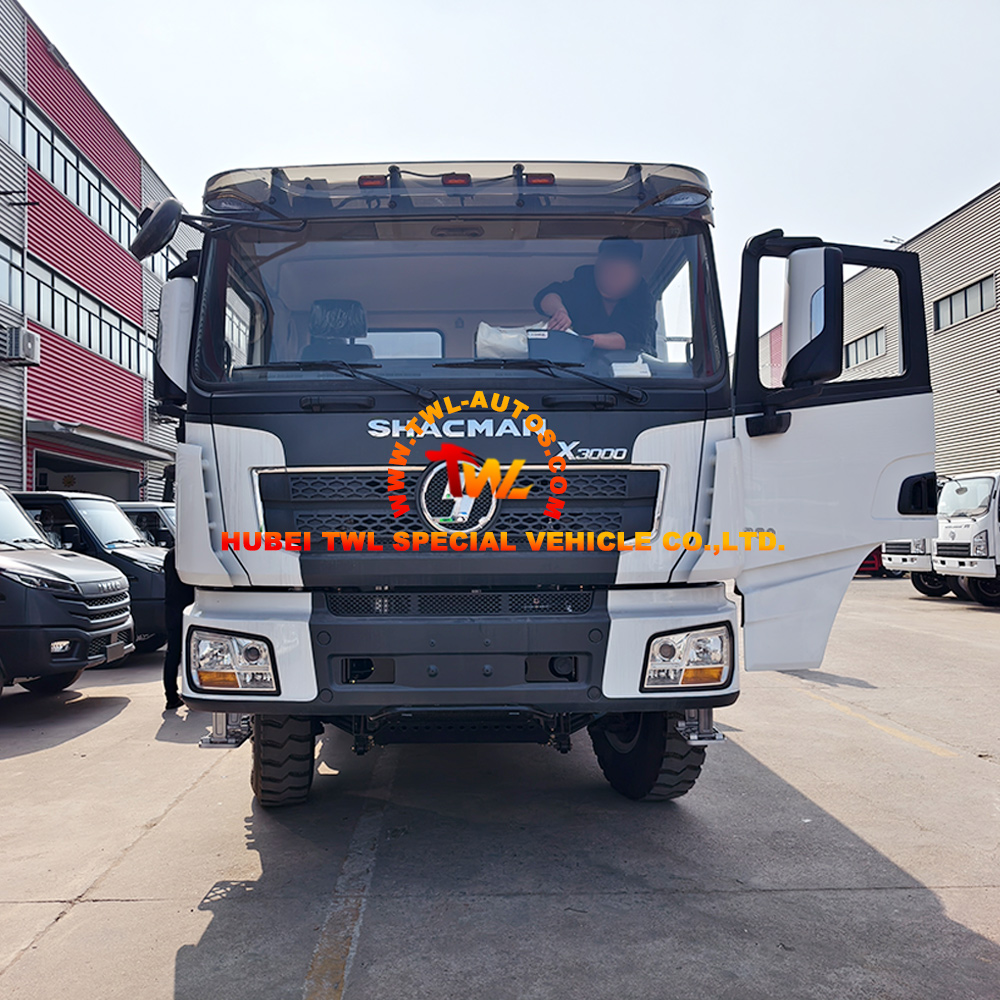

· SHACMAN X3000 Heavy-Duty Chassis: 6×4 drive configuration with high-roof sleeper cab. Air suspension driver seat with 2 seats and 1 sleeper. Air conditioning, electric windows, and Euro II emission compliance.

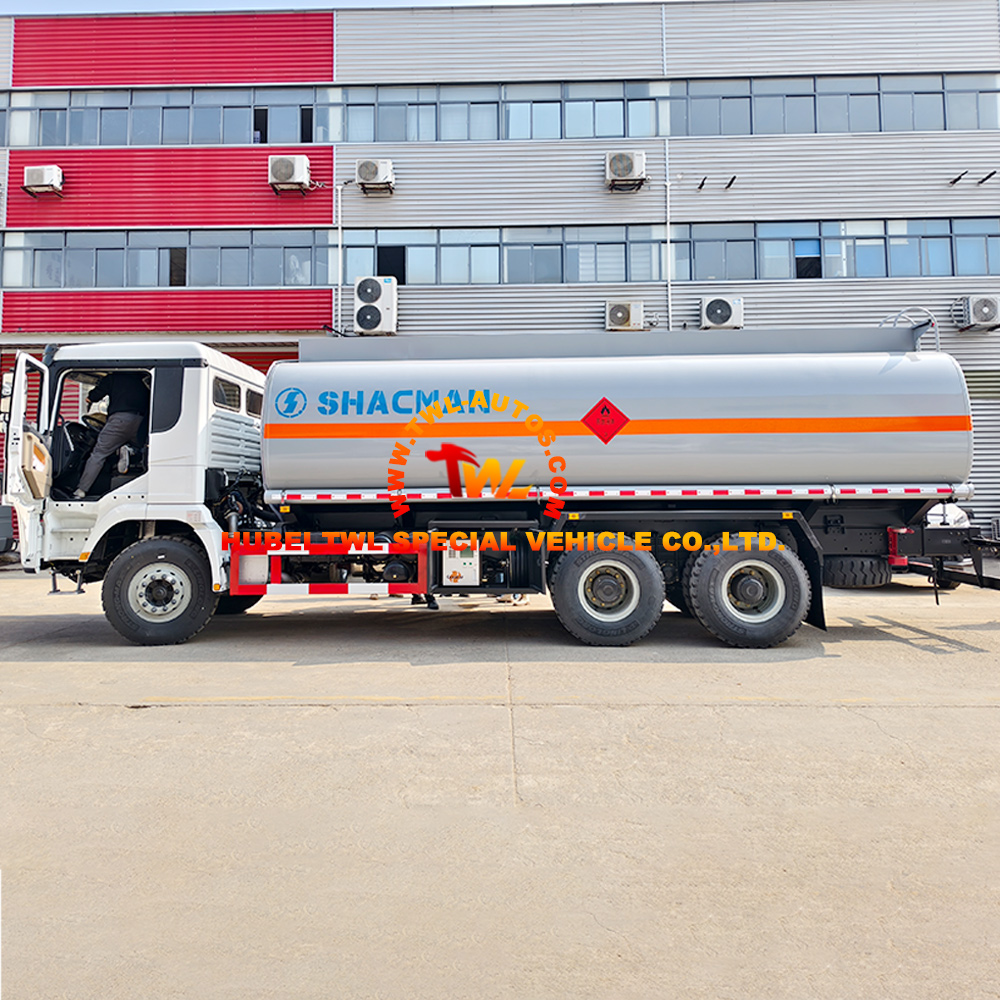

· 25,000-Liter Single-Compartment Tank: Large-volume single tank design with no internal partitions. Smooth liquid flow and easy cleaning. Anti-static and explosion-proof treatment for flammable petroleum product transport safety.

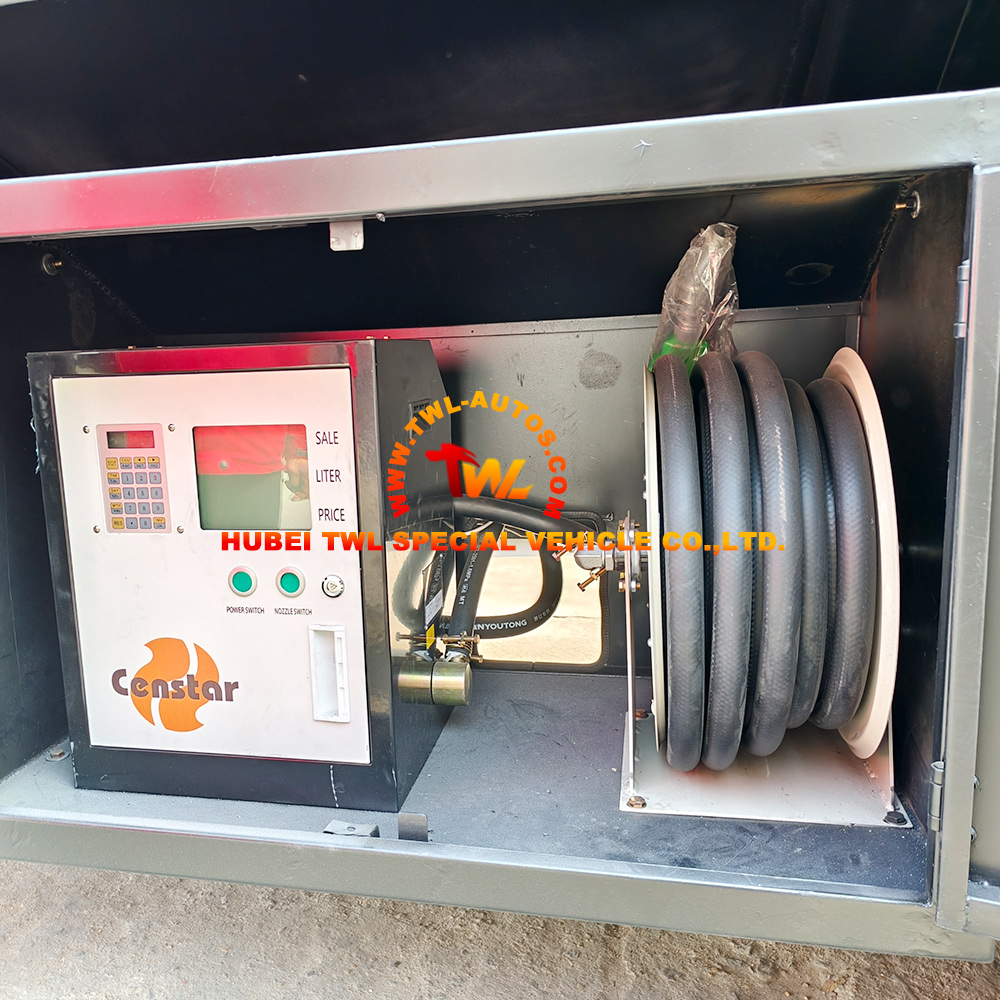

· Censtar Fuel Dispensing System: Integrated fuel dispenser with automatic hose reel. Accurate metering and fast refueling capability. Real-time display of sales amount, liter count, and unit price with data recording for management.

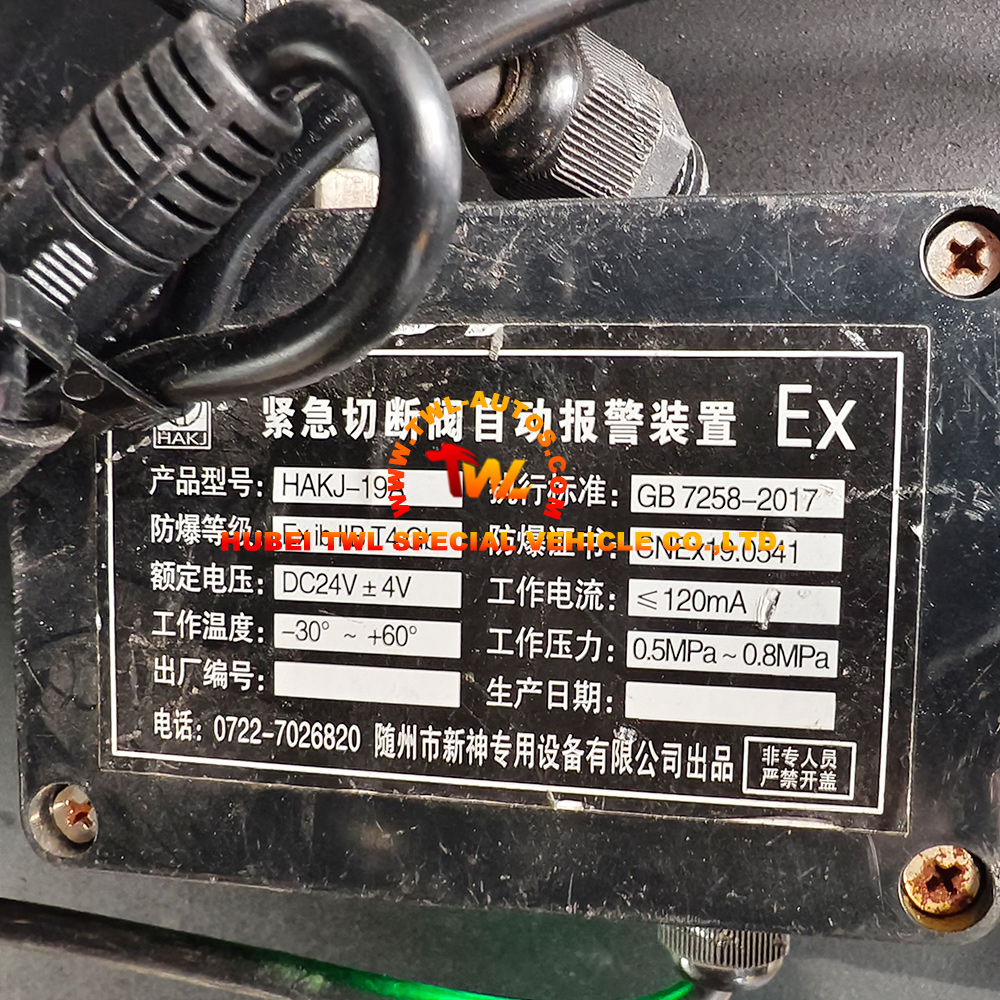

· Emergency Shut-Off Valve Alarm (HAKJ-19A): Automatic alarm device triggers alert and cuts off pipeline during abnormal pressure or accident. Prevents leakage and enhances operational safety. Operating voltage DC24V±4V, temperature range -30°C to +60°C, pressure range 0.5-0.8MPa.
· Comprehensive Safety Protection: Explosion-proof electrical components and anti-overflow valves. Fully compliant with national safety standards (GB 7258-2017). Flame-resistant tank material and emergency exhaust system minimize risk in hazardous scenarios.

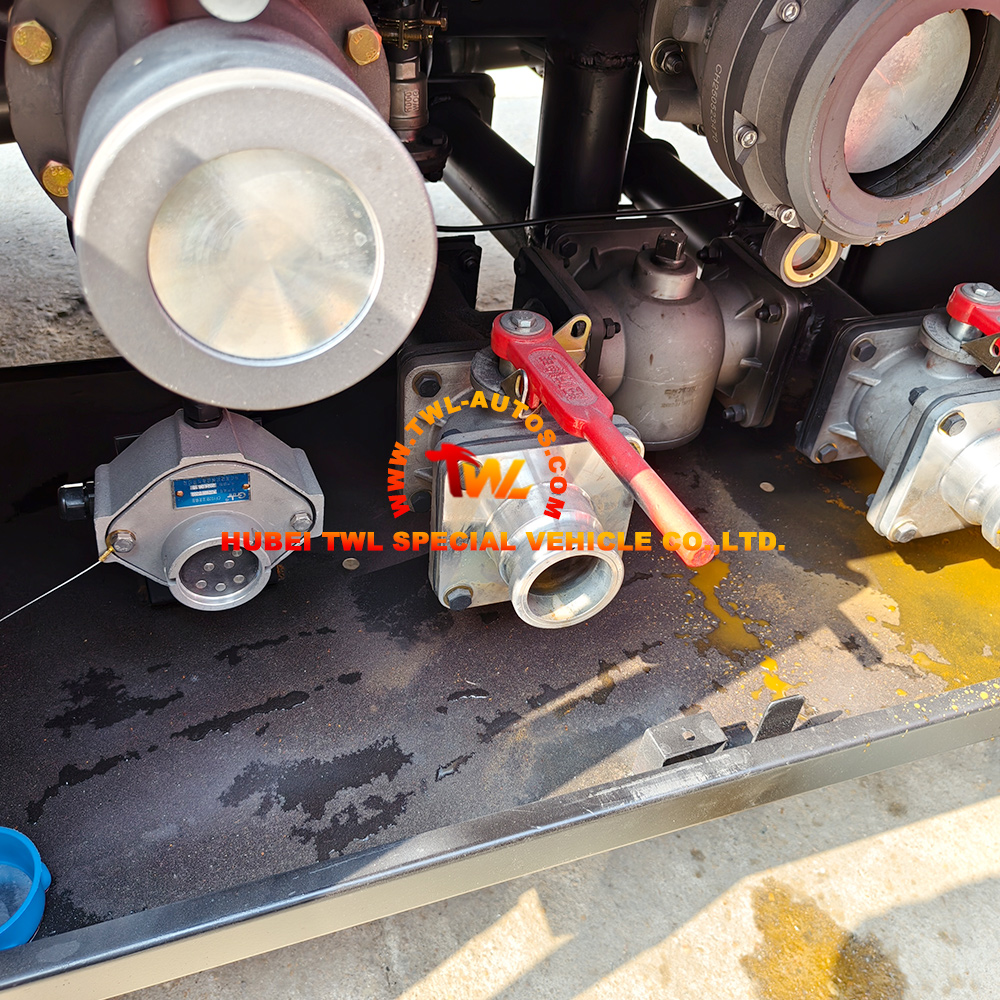

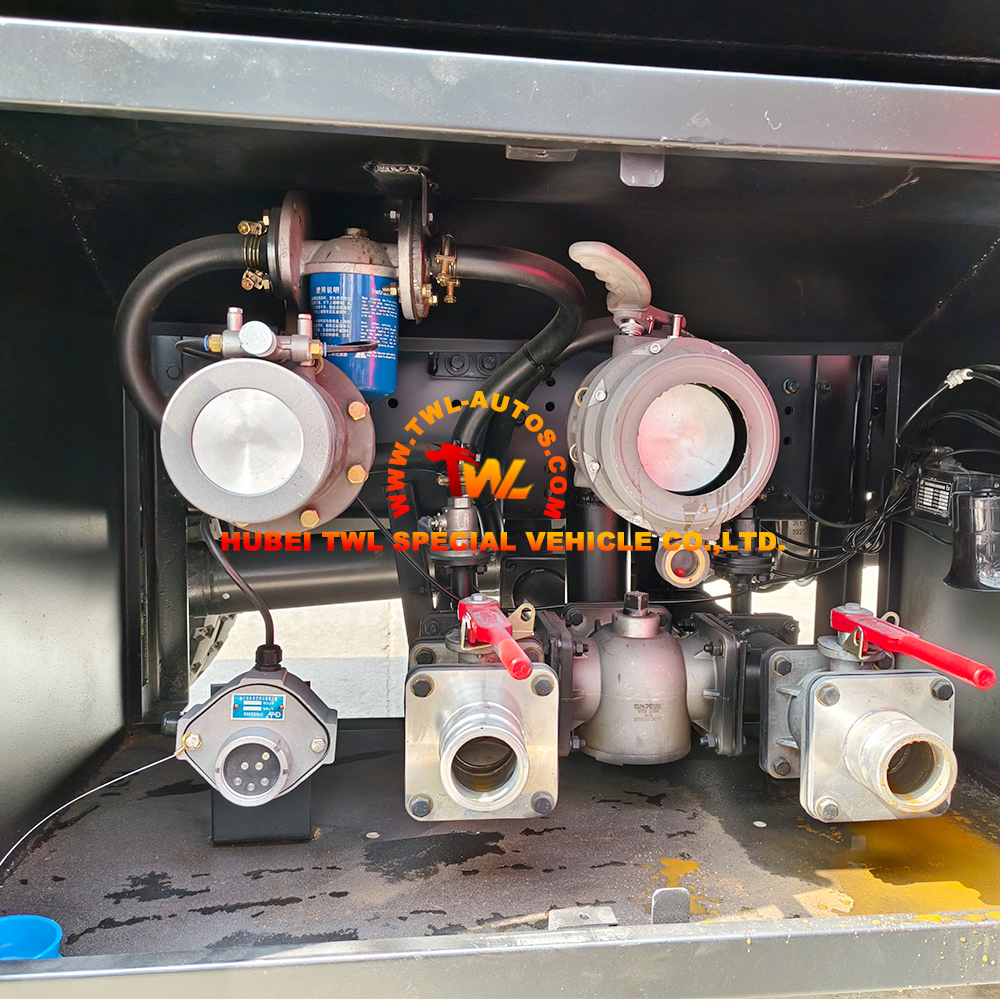

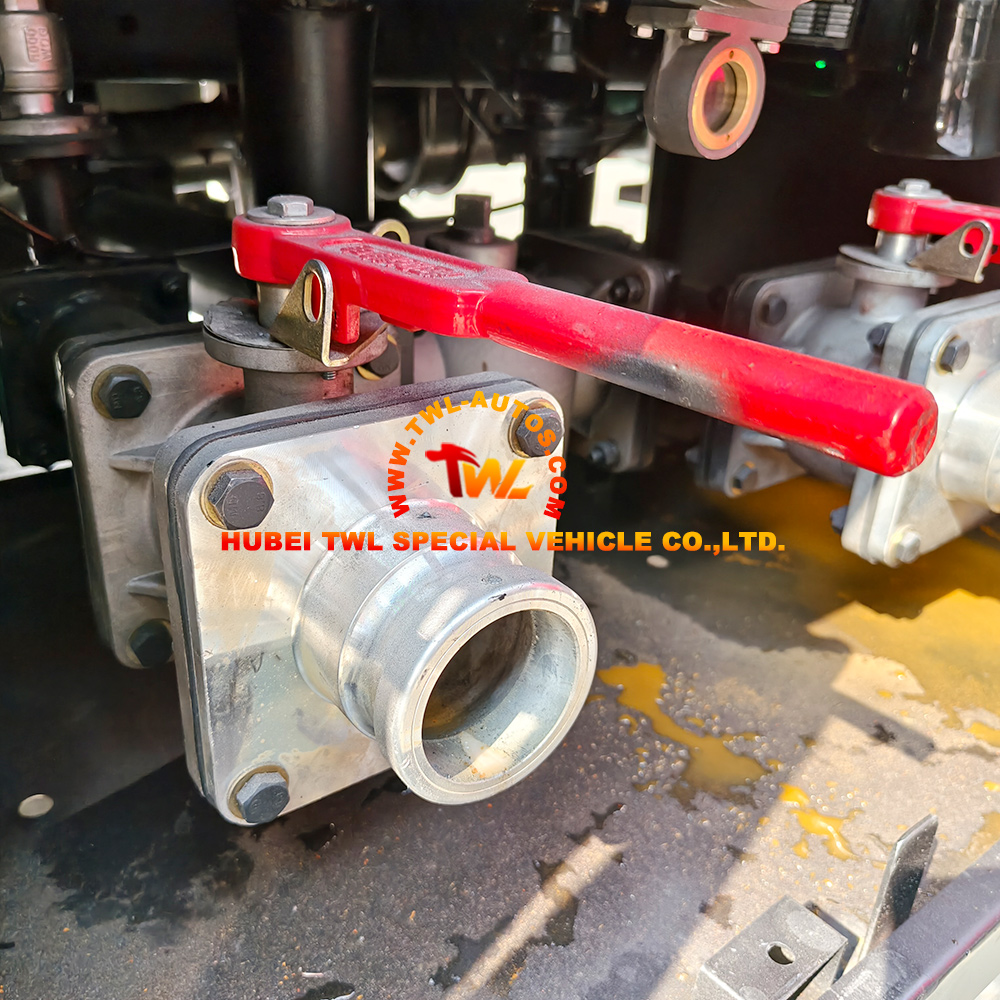

· API Compliant Valve System: API valve (American Petroleum Institute) for secure fuel transfer. Complete explosion-proof and leakage prevention design. Optional multi-compartment configurations available.
· Complete Standard Equipment: Rear ladder, 1 spare tire, anti-static wire, 2 fire extinguishers, and 2 fuel discharge hoses included.
Application:
· Construction on-site refueling for heavy machinery
· Refined oil transport between depots and service stations
· Mining and remote area central fuel supply
· Factory private oil storage and supply for industrial parks
Product Specification
| Super Structure Specification | |
| Fuel Tank | |
| Tank volume | 25m³/ 25000L Fuel tank |
| Compartment No | Single compartment ( Or customized multi compartment) |
| Tank material | Q235 High-strength carbon steel |
| Tank thinkness | 5mm of tank and 5 mm of end plate |
| Tank shape | Square or as request |
| Manhole cover | 1 pc of European Aluminum alloy manhole covers, ∮500mm 1 set with breather valve |
| Fuel Dispenser | |
| Dispenser brand | Top brands of China-Censtar |
| Dispenser position | 1pc dispenser built-in left side of the truck |
| Hose reel | 15 meters |
| Nozzle type | High Flow Rate Nozzle |
| Flow rate | 5 – 80 L/min |
| Dispenser fuction | Volume metering, price calculation, sales record |
| Oil Pump | |
| Brand | Chinese Brand |
| Type | 80-60 carbon steel pump |
| Flow rate | 80-60m³/h |
| Drive Mode | PTO-Driven |
| Pumpline system | 2.5 inches |
| Other configurations | |
| Walkway at top of tanker | Color and design as customer’s requirement |
| Handrail | Pneumatic controlled at two sides of truck |

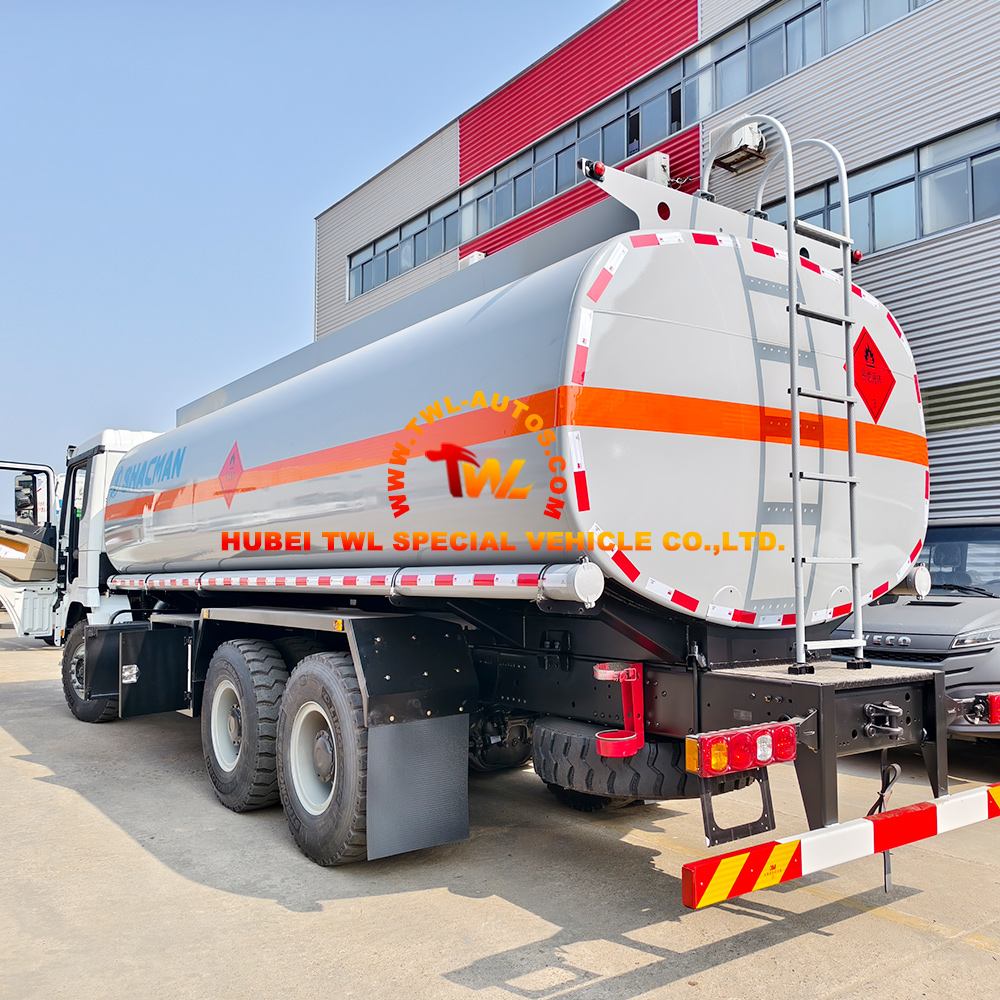

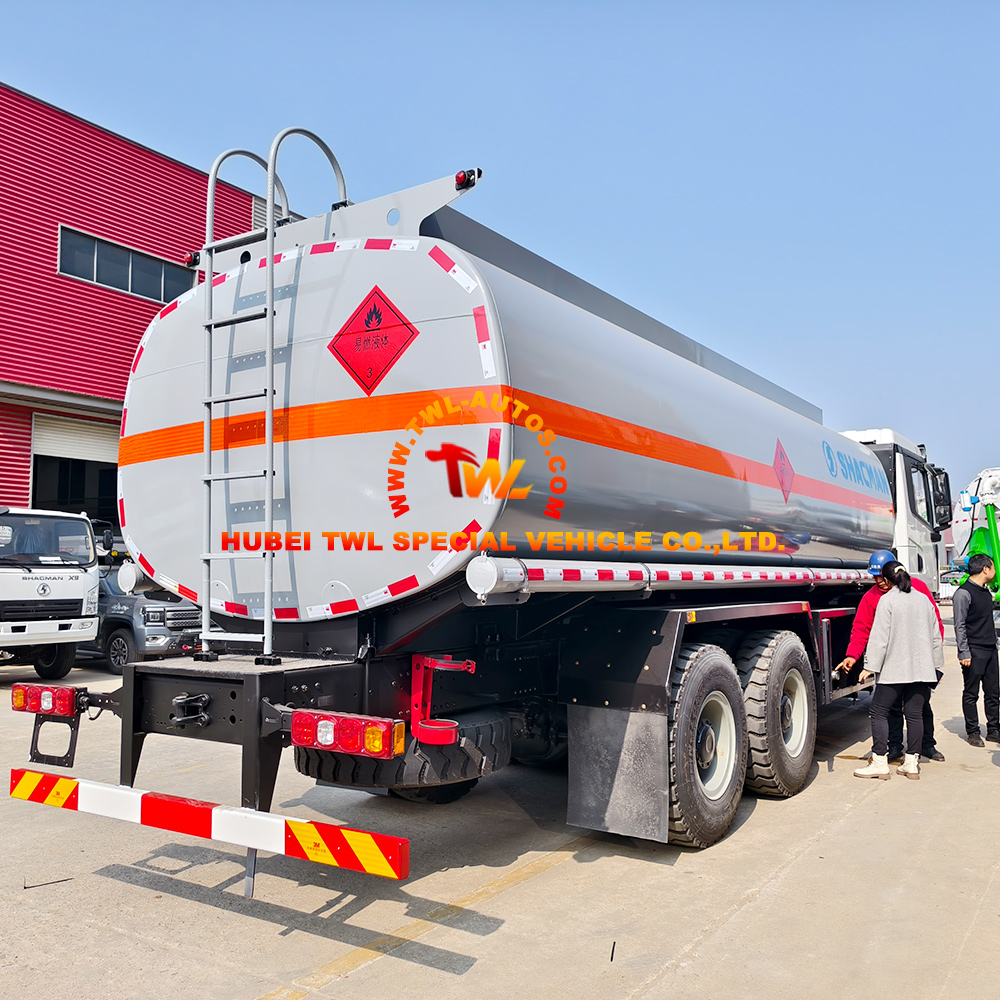

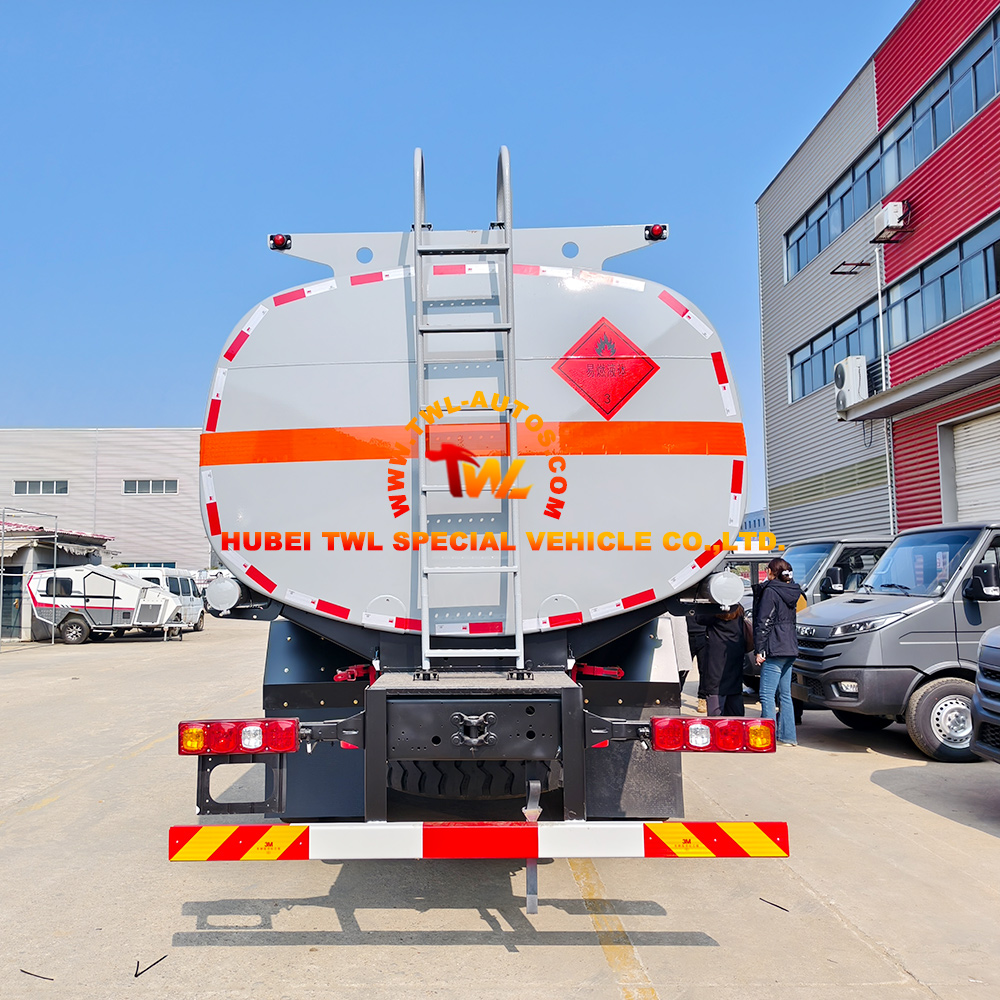

| Ladder | At rear of tank |
| Accessories | Fire Cap(1 pc); |
| Fire extinguisher(2 pcs); | |
| Anti-static wire; | |
| Fuel Discharge Hoses(2 pcs); | |
| Truck will be waxed before shipment; | |
