SHACMAN 430HP 50Tons Rotator Recovery Truck
50Tons Rotator Wrecker Recovery Truck designed for the most demanding recovery and towing operations of large trucks, semi trailers and buses.
This SHACMAN H3000 is a top-tier recovery Tow vehicle built for extreme-duty towing and rescue operations. Powered by a robust 430HP Cummins engine and built on a stable 8x4 chassis, it is equipped with a advanced 50-ton capacity rotator Telescopic Extendable Boom crane and a comprehensive underlift system. It is designed to safely and efficiently recover overturned, wrecked, or disabled heavy commercial vehicles.
SHACMAN 430HP 50Tons Rotator Recovery Truck
SHACMAN 430HP 50Tons Rotator Recovery Truck Key Specifications
1. Chassis Model: SHACMAN H3000
2. Drive Configuration: 8×4 (providing superior stability and weight distribution,12-wheels, four-axle drive for exceptional off-road traction and on-road stability under heavy load)
3. Engine: Cummins, 430 Horsepower (HP)
4. Recovery Capacity: 50 Metric Tons (50,000 kg)
5. Main Equipment: Rotator Telescopic Boom Crane (360-degree continuous rotation) with integrated underlift/wrecker system.
6. Integrated Systems: The rotator is typically combined with:
- A heavy-duty underlift (wrecker arm) for lifting and towing.
- Multiple powerful winches (e.g., front and rear) with massive pulling capacity.
- Outrigger/stabilizer legs to secure the vehicle during lifting operations.
- Tool and storage boxes for recovery equipment.
7. Application: Heavy-duty road rescue, accident recovery, highway patrol and rescue and towing of trucks, heavy-duty semitrailers, buses, and construction equipment.
Product Specification
| Condition | New condition/Left hand drive/8×4 | ||
| Chassis | Brand | SHACMAN | |
| Model | H3000 | ||
| Curb weight (kg) | 31750 kg | ||
| Wheelbase (mm) | 1800+4575+1400 mm | ||
| Dimensions (mm) | 11560*2500*3270 mm | ||
| Overhang (front/rear) (mm) | 1370/2120 mm | ||
| Approach/Departure angle (°) | 17/27° | ||
| Axle Load (kg) | 7500/7500/16000/16000 kg | ||
| Max. driving speed (km/h) | 80 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Number | 12pcs with one spare tire | |
| Specifications | 12.00R20 | ||
| Transmission | FAST12JSD200T-B, 12 Forwards and 2 Reverses | ||
| Cabin | It can accommodate three people, With Air conditioner, Central locking, electric windows | ||
| Engine | Brand | CUMMINS | |
| Model | ISME430 30 | ||
| Displacement (ml) | 10.8 L | ||
| Power (kw)/Horsepower/(HP) | 316 kw/430 HP | ||
| Emission standard | Euro III | ||
| Upper Wrecker Equipment | |||
| Underlifting System | Max. Towing Weight (kg) | 150,000 | |
| Max. Lifting Weight (kg) | 28000 | ||
| Max. Lifting Weight under all extension (kg) | 8300 | ||
| Effective Length of Corbeling Arm (mm) | 3650 | ||
| Extend-retract of Corbeling Arm (mm) | 1750 | ||
| Folding angle under no load (°) | -7~12 | ||
| Folding angle under load (°) | -7~16 | ||
| Max. Ground Distance under all extension (mm) | 1835 | ||
| Hydraulic Hose | Tianhe,Guangdong Province | ||
| Hydraulic control Valve | Imported from Italia, Hydro Control brand | ||
| Hydraulic Seals for all hydraulic cylinder | Imported from Italia, Hydro Control brand | ||
| Balance Valves | Imported from Italia, Hydro Control brand | ||
| All key steel structure | One-step Modeling by Germany 3P2A 1000T punching machine made by H70 high tensile steel from Shanghai Bao Steel | ||
| Make of Lifting System | Design and made by CLW Group | ||
| Boom Crane System | Max. Hoisting Weight (kg) | 50,000 | |
| Max. Hoisting Weight under all extension with 30°Hoisting Angle (kg) | 7800 | ||
| Max. Hoisting Weight under all retraction with 30°Hoisting Angle (kg) | 18000 | ||
| Extension Distance of Oil Cylinder (mm) | 6000 | ||
| Length of Crane Arm (mm) | 5880 | ||
| Section No. Of Crane Arm | 3 | ||
| Max. Hoisting Height (mm) | 12300 | ||
| Max. Working radius (mm) | 10710 | ||
| Rotate Angle (°) | 360 | ||
| Make of Hoisting System (crane) | Design and made by CLW Group | ||
| Winch | No. | 2 | |
| Capacity | 25,000 | ||
| Curb Traction/Per (KN) | 250 | ||
| DN of Steel Rope (mm) | Φ26 | ||
| Length of Steel Rope (m) | 50*2 | ||
| Min. Line Speed (m/min) | 5 | ||
| Make of Winch | Shandong Taian Yiqun Machinery Co,,ltd | ||
| Front Outrigger Type | “H” type 6600mm | ||
| Rear Outrigger Type | “L” type 4080mm | ||
| Jump-start cables | 12~24 Volts | ||
| Electric system | Rear working lamp (stop,tail,turning) | 3 | |
| Revolving beacon | 1 | ||
| Lamps for license plate | 1 set | ||
| Pneumatic hoses | 1 set | ||
| Key Parts | Control Valve | Italy Hydro control | |
| Balance Valve | Italy Hydro control | ||
| Pump | Wuxi Oil Hydraulic Pneumatic Equipment Co., Ltd | ||
| Hydraulic cylinder | CLW Group | ||
| Hydraulic Winch | Shandong Taian Yiqun Machinery Co,,ltd | ||
| Hydraulic Hose | Tianhe,Guangdong Province | ||
| Hydaulic Cylinder Seals | Italy Hydro control | ||
| Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. | ||
| Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.,Ltd. | ||
| Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | ||
| Other Equipment | Four sets of steel fork, a set of tow-fork sleeve, a set of steel plate hanging lug fork, a set of ABS device. A long warning light. Auxiliary light set, auxiliary pipe assembly | ||

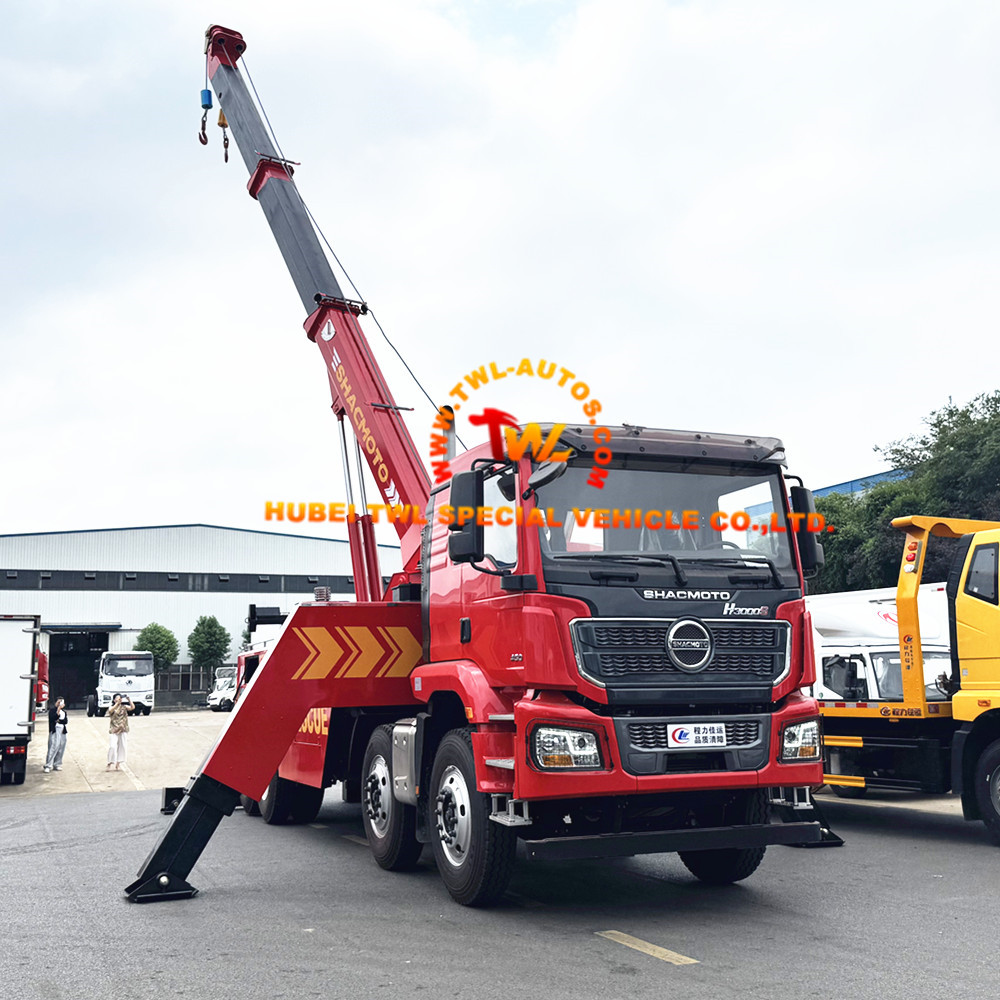

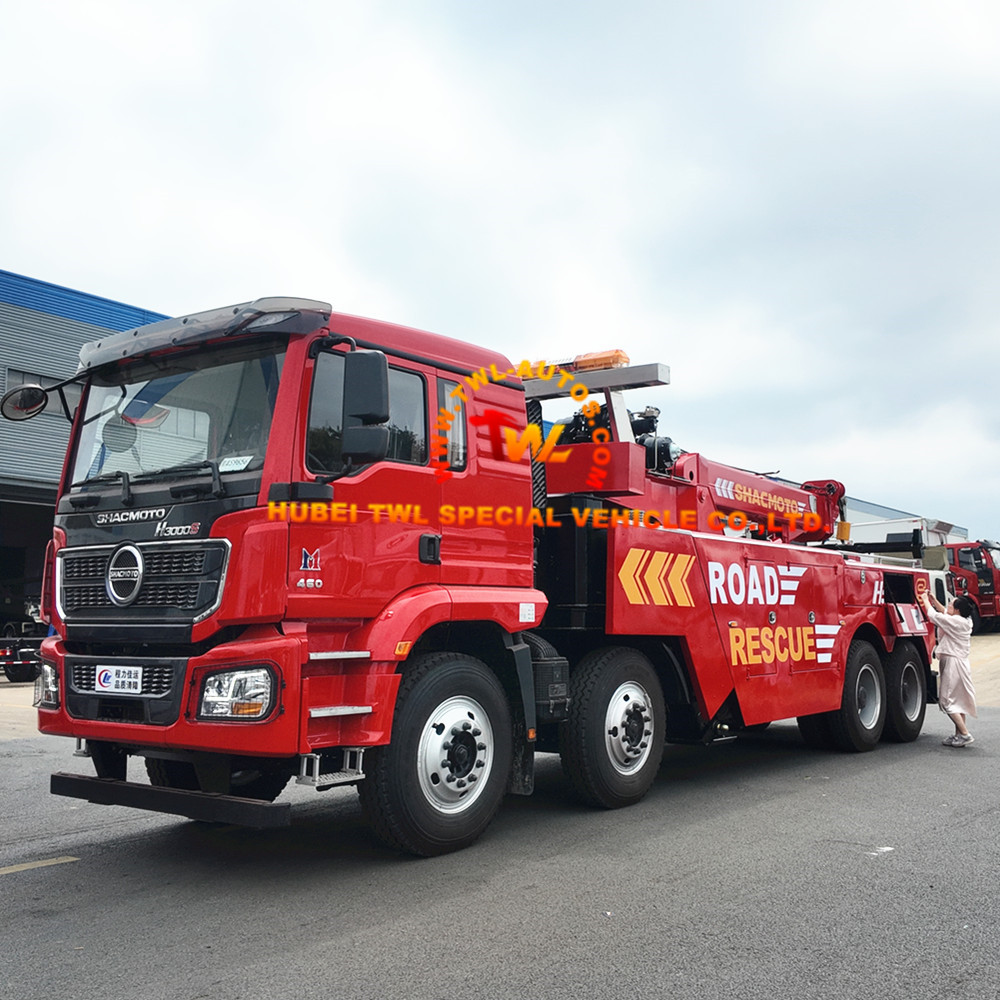

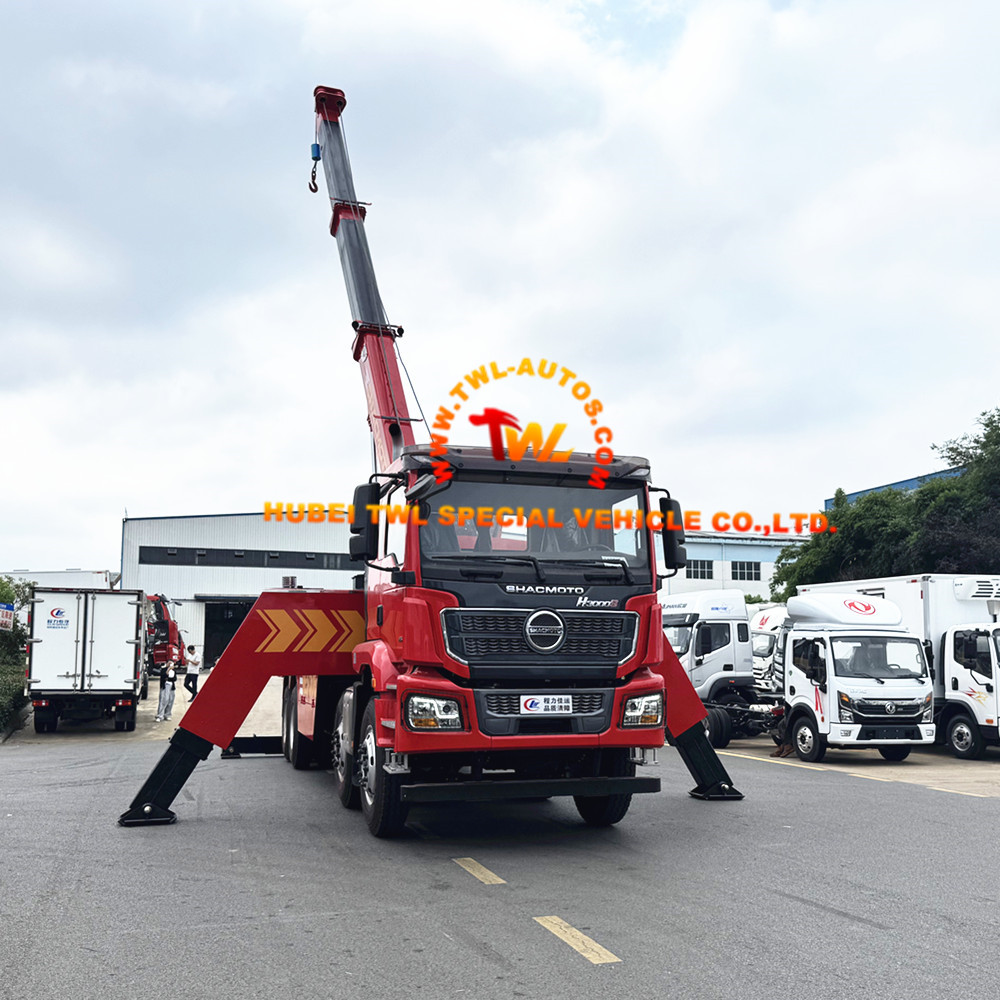

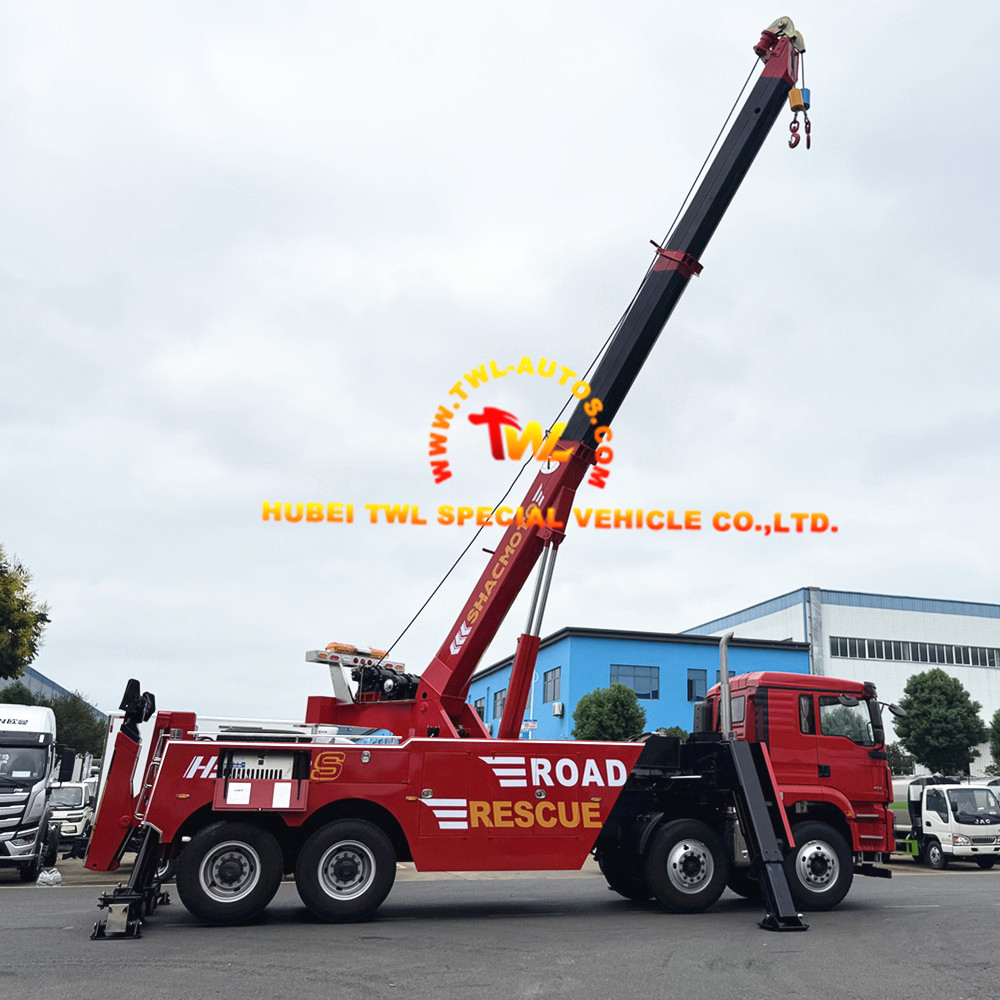

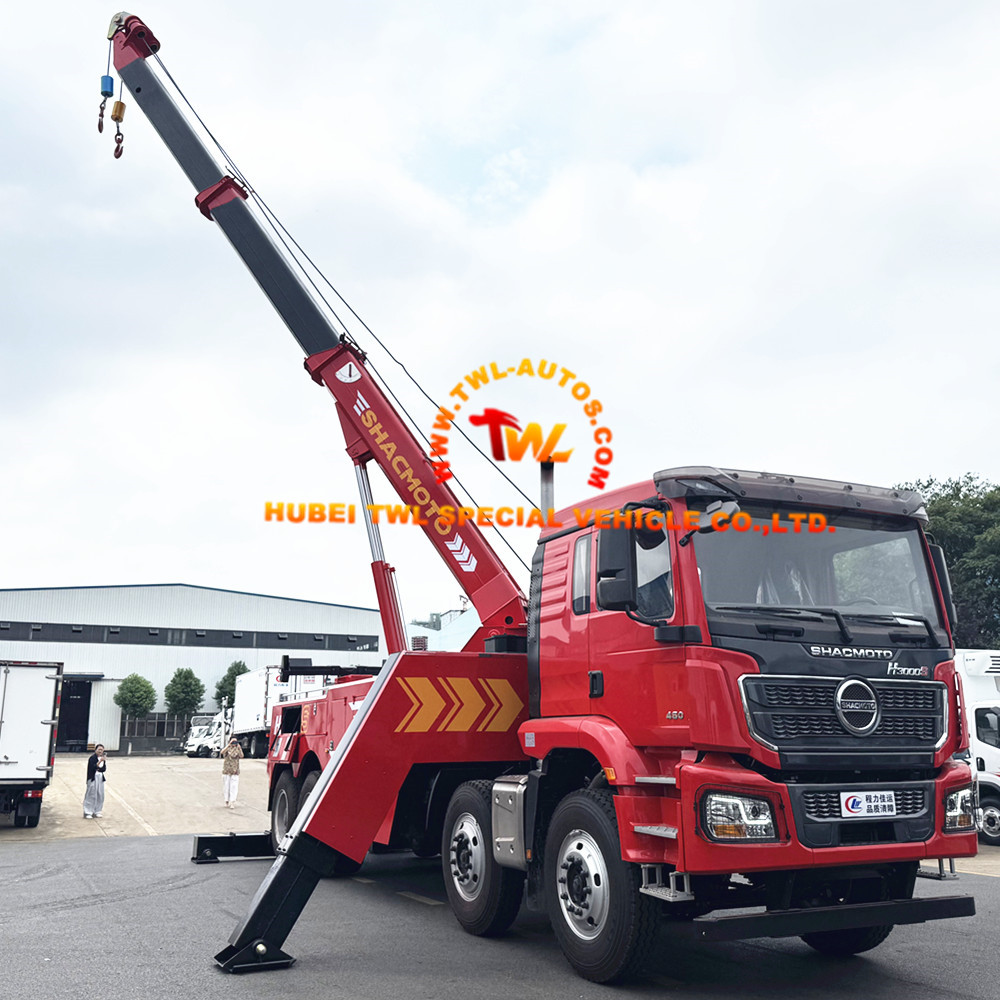

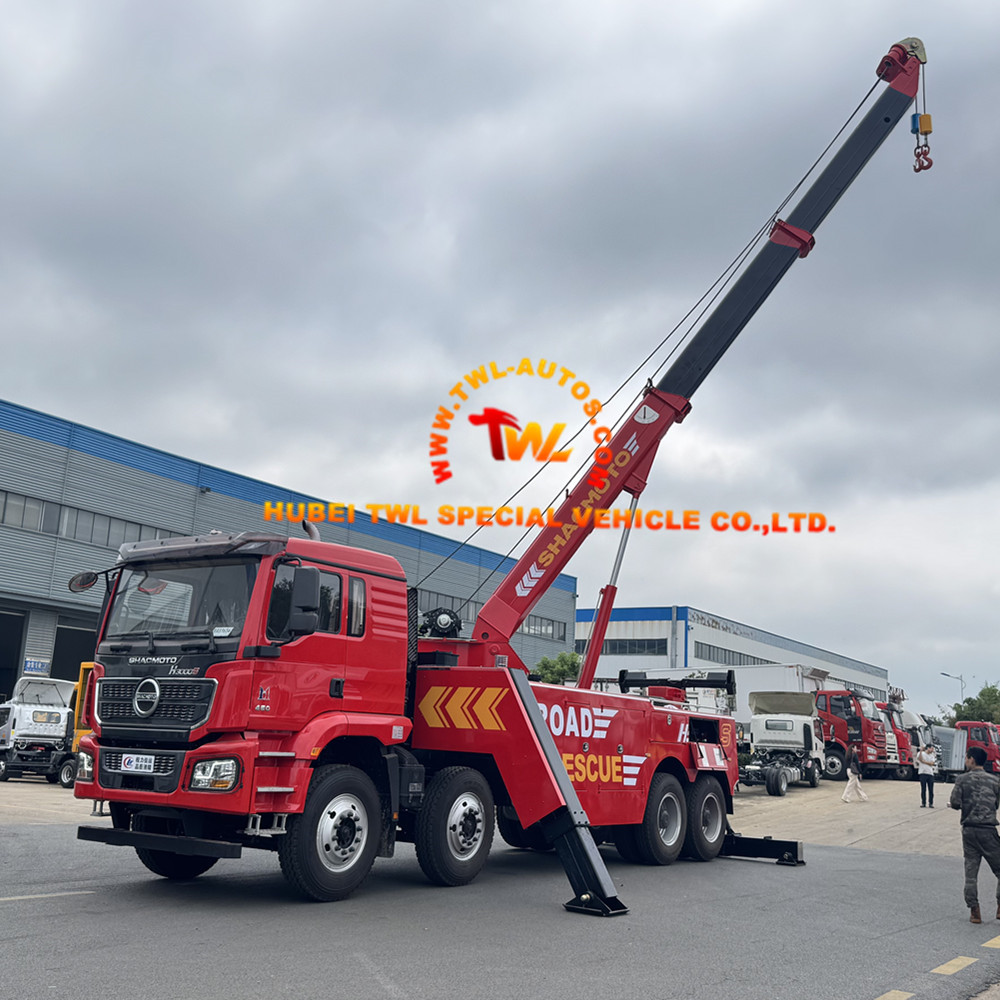

SHACMAN 430HP 50Tons Rotator Recovery Truck Gallery
