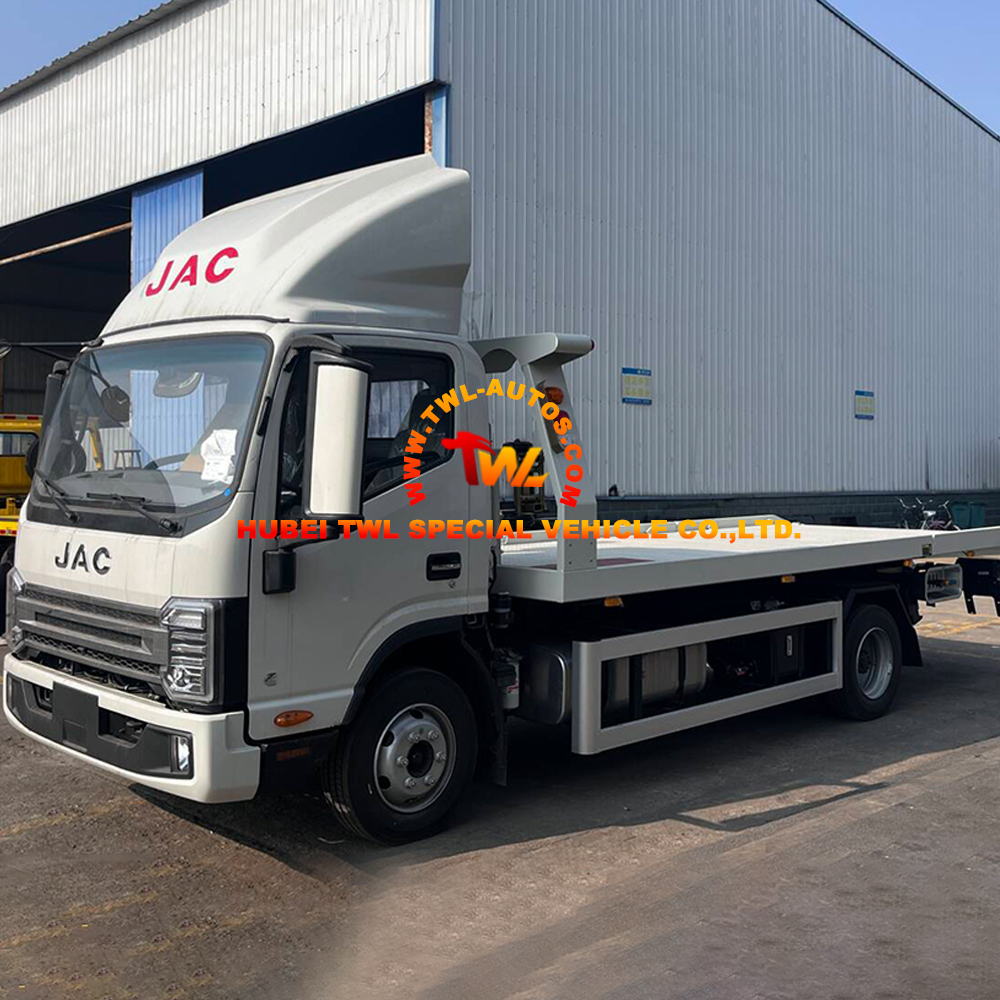

JAC 4-Ton Flatbed Recovery Truck
This JAC 4-ton flatbed recovery truck provided by TWL is built on a dependable JAC chassis with a 3.8-meter wheelbase and is designed for professional vehicle recovery, roadside assistance, and light-duty towing operations. The one-to-two flatbed superstructure allows flexible handling of different vehicle types, making it a practical solution for urban and intercity rescue tasks.
JAC 4-Ton Flatbed Recovery Truck
This semi-land-mounted recovery truck complies with China National VI emission standards, delivering low emissions and fuel efficiency while maintaining reliable power output. The optimized chassis layout, reinforced suspension system, and high-quality hydraulic components ensure smooth operation even under demanding working conditions.
Equipped with a 4-ton electric winch, 2.5-ton towing arm, and a heavy-duty patterned steel flatbed measuring approximately 5.5 × 2.3 meters, the vehicle ensures stable loading, secure transport, and efficient recovery performance. The entire truck undergoes electrophoretic coating treatment, significantly enhancing corrosion resistance and long-term durability.
Designed with both performance and operator comfort in mind, the cab is well-equipped to support long working hours and frequent recovery tasks.
Key Advantages
Strong and Reliable Recovery Capability

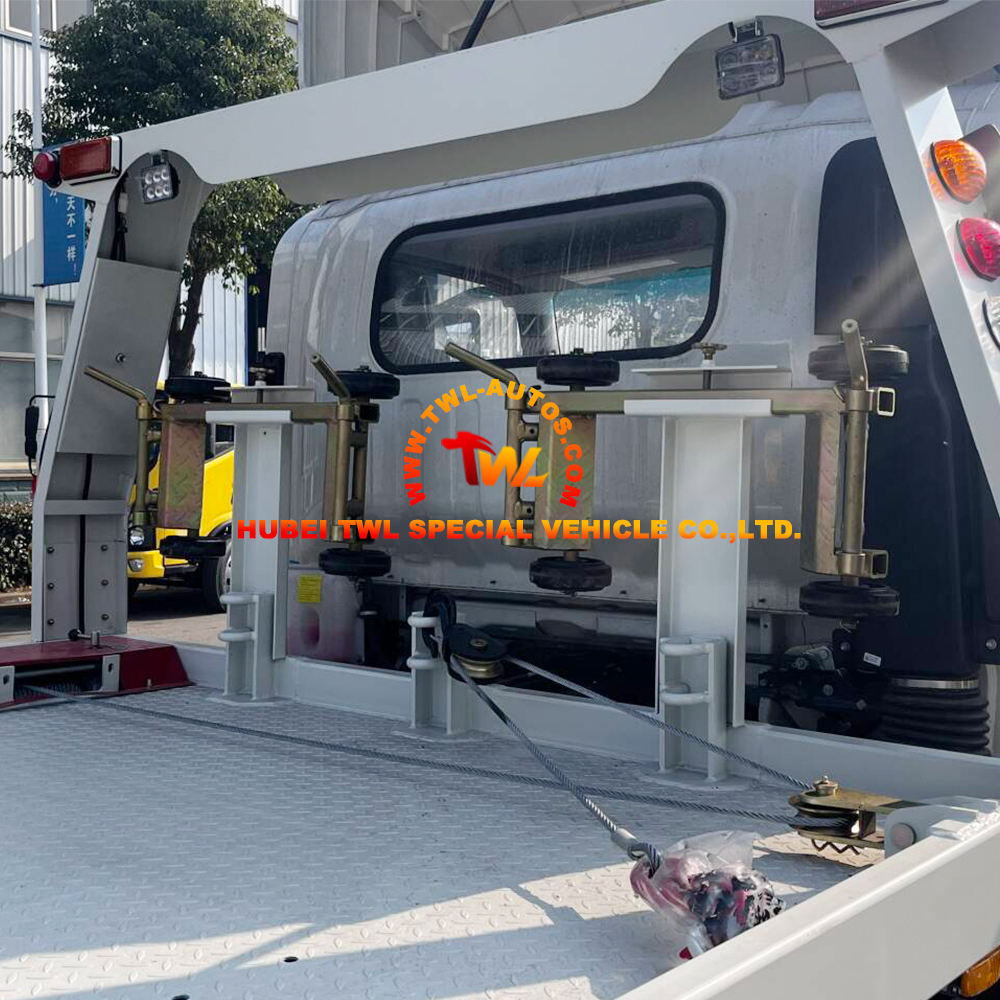

Reinforced hydraulic cylinders, imported hydraulic valves, and a gantry frame aligned flush with the cab provide stable lifting, towing, and winching performance.
Durable Flatbed Structure
The 4 mm thick patterned steel flatbed offers excellent load-bearing capacity, anti-slip performance, and long service life.
Superior Anti-Corrosion Protection
Full-vehicle electrophoresis coating effectively protects against rust and harsh environmental conditions, reducing maintenance costs.
Driver-Focused Design
Features such as air conditioning, cruise control, hydraulic power steering, power windows and doors, and central locking enhance comfort and ease of operation.
Operational Reliability
Dual 80Ah batteries, a 200L aluminum alloy fuel tank, and an integrated warning light system ensure dependable performance during continuous rescue operations.
Applications
This JAC semi-land-mounted flatbed recovery truck supplied by TWL is ideal for:
· Roadside assistance and emergency vehicle recovery
· Urban towing and breakdown services
· Logistics fleets and transport companies
· Municipal rescue units and highway maintenance teams
Its balanced combination of towing strength, maneuverability, and durability makes it well-suited for both city environments and medium-distance transport tasks.
Product Specification
| Truck Chassis | ||
| Condition | JAC | |
| Overall size(L*W*H) | 6995X2300X2430 mm | |
| Gross Vehicle Weight (kg) | 8840 | |
| Curb weight(kg) | 3650 | |
| Loading Weight (kg) | 4995 | |
| Approach/Departure angle(°) | 27/13 | |
| Front/Rear overhang(mm) | 1110/2110 | |
| Cabin | Left hand drive | |
| 4X2/2 axles in total | ||
| JAC cabin,SINGLE | ||
| Air conditioned | ||
| Electric doors and windows | ||
| Engine | Model | CA4DB1-13E6 |
| Type | 4 cylinders | |
| Power | 95KW/130HP | |
| Emission standard | EURO VI | |
| Displacement | 2200 (ml) | |
| Fuel type | Diesel | |
| Wheelbase | 3800 mm | |
| Transmission | Manual type,6 forward gears & 1 reverse | |
| Front Axle load and rear Axle load | 2500 /5000kg | |
| Steering system | power assistance | |
| Brake System | Air brake | |
| Tire | 215/75R17.5, 6pcs with one spare | |
| Fuel Tank Capacity | 200L | |
| Upper Structure Body | ||
| Flatbed | Dimension | 5500*2300mm |
| Plate thickness | 4mm | |
| Winch | Quantity | 1pcs |
| Winch rating pulling capacity | 4tons | |
| remarks | 1.Imported valves | |
| 2.with warning lights | ||
| 3.full vehicle electrophoresis | ||
| 4.With fairing | ||
