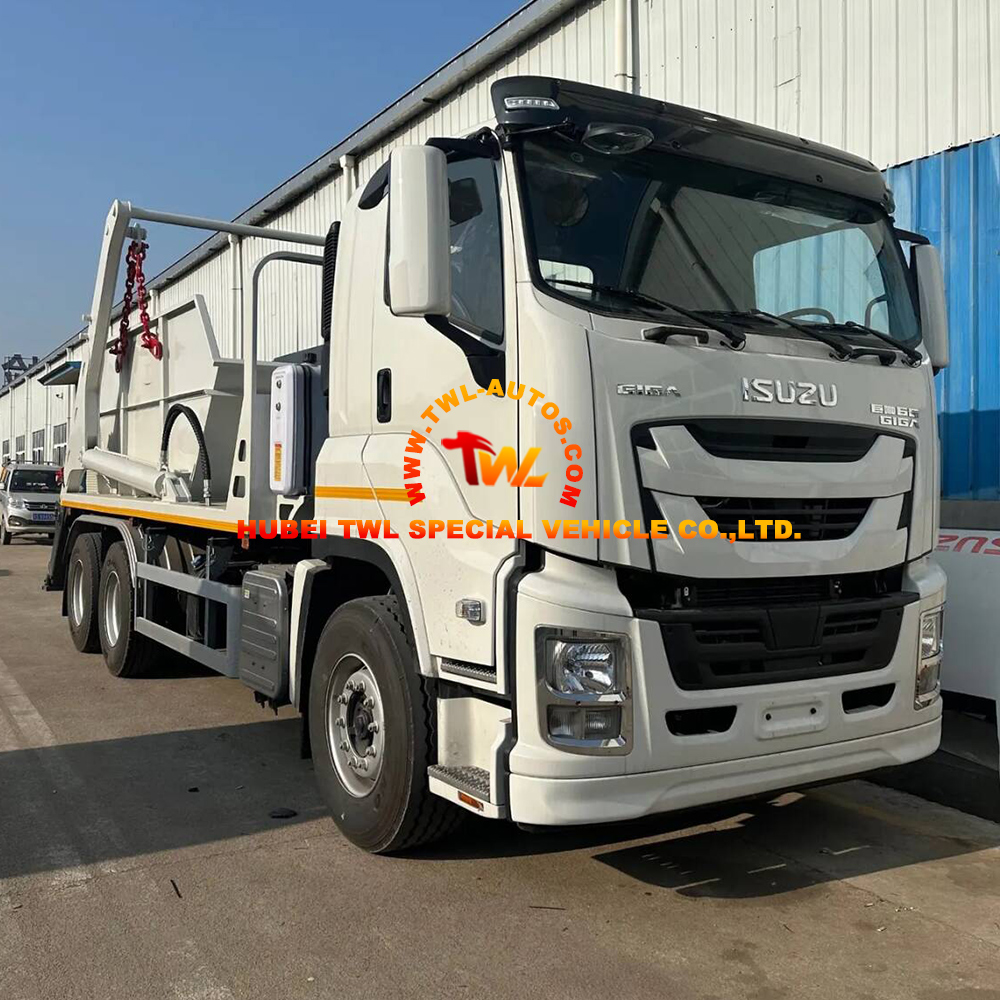

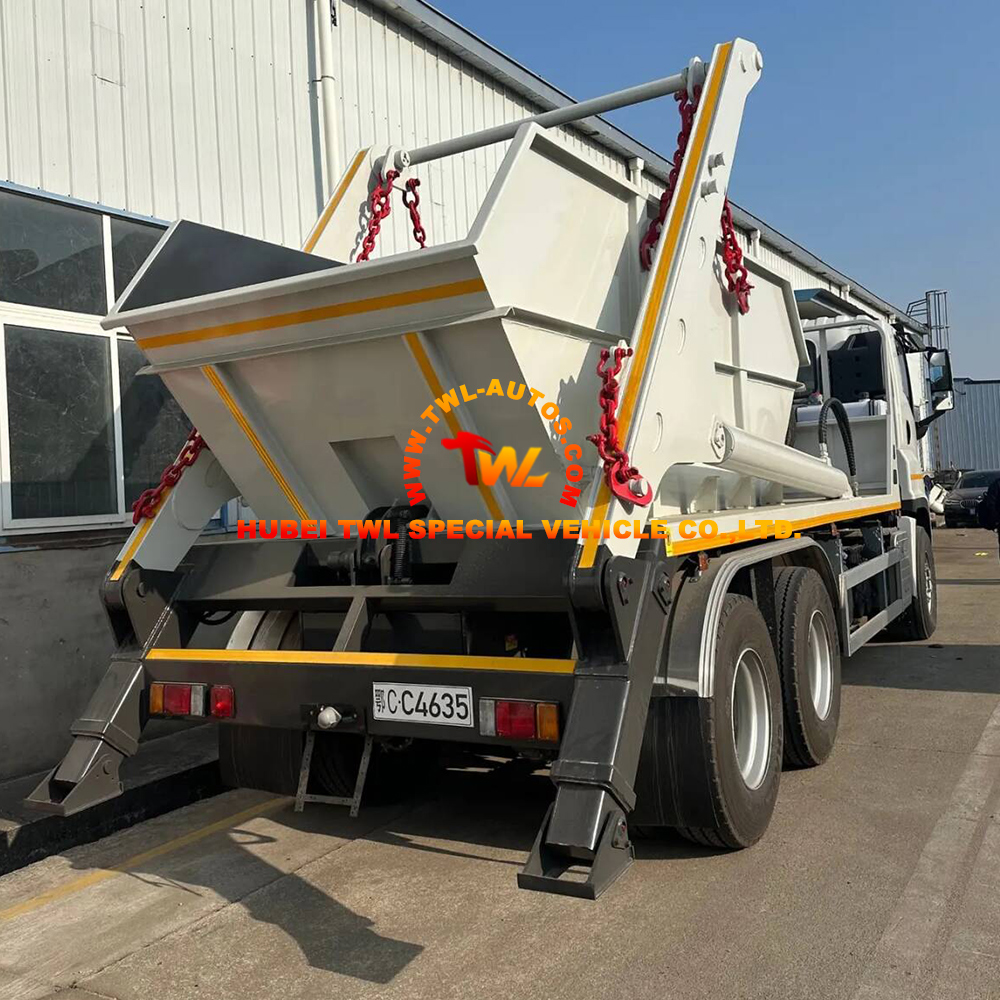

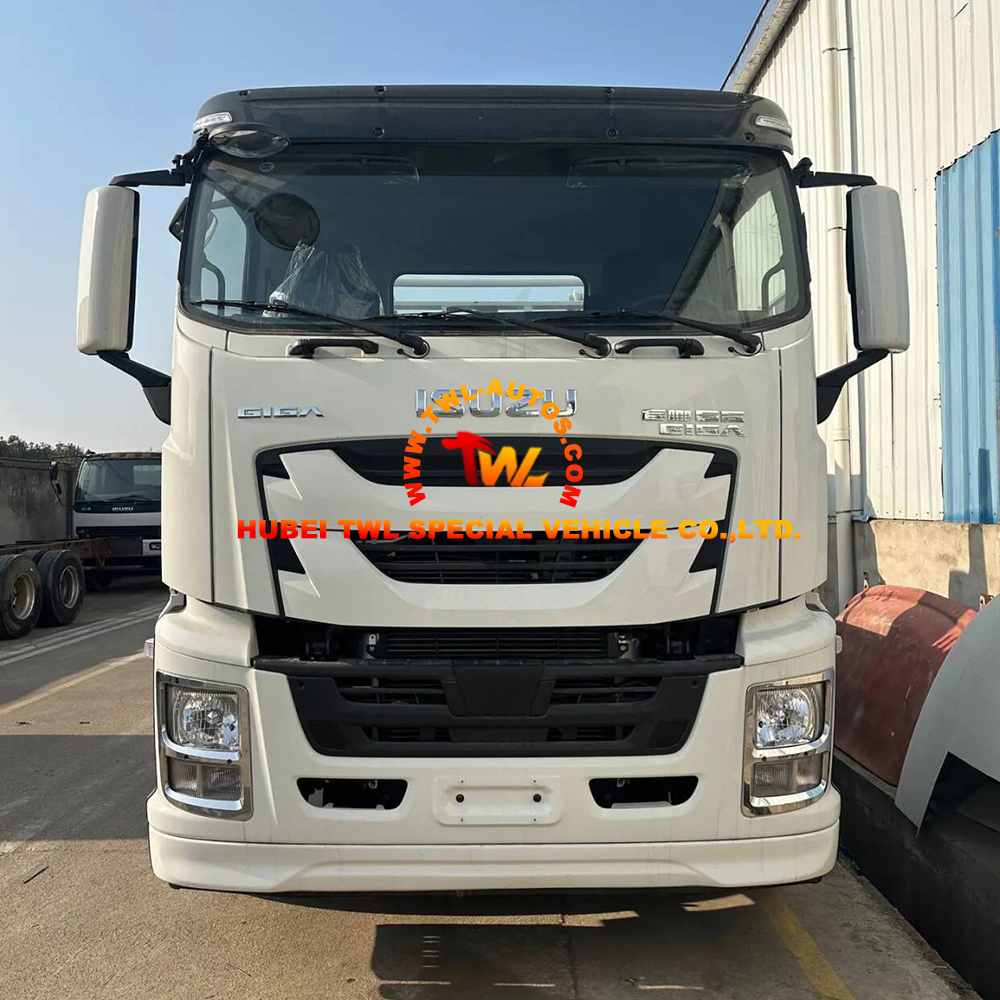

ISUZU Swinging Arm Garbage Truck

The ISUZU Swinging Arm Garbage Truck is a highly efficient and versatile waste collection vehicle designed and manufactured by Hubei TWL Special Vehicle Co., Ltd. Built on the reliable and fuel-efficient ISUZU chassis, this specialized truck integrates a robust swinging arm mechanism for the rapid and safe handling of bulk waste containers. Engineered for durability, operational efficiency, and ease of use, it is an ideal solution for municipal solid waste collection, industrial waste management, and commercial sanitation services.

ISUZU Swinging Arm Garbage Truck

As a leading manufacturer of specialized sanitation and municipal vehicles, Hubei TWL Special Vehicle Co., Ltd. delivers intelligent and reliable waste management solutions. The ISUZU Swinging Arm Garbage Truck is meticulously designed with a focus on mechanical robustness, hydraulic precision, and operator safety. TWL’s engineering ensures seamless integration between the chassis and the waste handling system, providing a dependable vehicle that enhances collection efficiency and reduces operational costs.

Key Advantages

1. Reliable & Efficient Chassis

ISUZU chassis offers excellent fuel efficiency, low maintenance, and high reliability.
Powerful yet economical engine meets modern emission standards.
Maneuverable design suitable for urban and residential waste collection routes.

2. Robust Swinging Arm Mechanism

High-capacity hydraulic arm enables quick and safe lifting of large waste containers.
Wide swing range and lifting height allow flexible container placement and collection.
Simple and intuitive controls reduce operator training time and fatigue.

3. Durable & Hygienic Waste Body

Reinforced steel body with anti-corrosion treatment for long service life.
Optional compaction system increases waste capacity and reduces collection frequency.
Sealed tailgate design prevents leakage and odor during transport.

4. Operator Safety & Convenience

Ergonomic control layout with safety interlocks and overload protection.
Good visibility from cab and rear operation area.
Low noise operation suitable for residential areas.

5. Customizable & Sustainable

Configurable body size, arm capacity, compaction, and container compatibility.
Can be equipped with various waste container types (660L, 1100L, roll-on/roll-off, etc.).
Designed to support efficient and environmentally responsible waste management.

Applications

This ISUZU Swinging Arm Garbage Truck is suitable for a wide range of waste collection and management scenarios:

Municipal Solid Waste Collection: Efficient collection of household waste from centralized container points.
Commercial & Industrial Waste: Handling of bulk waste from factories, markets, shopping malls, and office complexes.
Community & Residential Services: Waste collection in housing estates, townships, and public areas.
Recycling Centers: Transport of sorted recyclable materials in large containers.
Construction & Demolition Sites: Collection of non-hazardous construction waste.
Public Sanitation Projects: Support for city cleanliness programs and environmental initiatives.
Ports & Airports: Waste management within large transport facilities.

Product Specification

Category	Parameter	Specification
CHASSIS SYSTEM	Model	ISUZU Heavy-duty Truck Chassis (e.g., FVR, GVR series)
	Engine	Diesel, approx. 190-250 HP, Euro V/VI compliant
	Transmission	Manual, 6-7 forward gears, 1 reverse gear
	Drive Type	4×2 Rear-wheel Drive
	Wheelbase	3,800mm – 5,000mm (customizable)
	Max. Speed	90-110 km/h
	Fuel Tank Capacity	200-300 liters
	Tire Specification	10.00R20 / 275/80R22.5 radial tires
	Brake System	Dual-circuit air brake system
	Cab	Comfort cab, air-conditioned, seating for 2-3
SWINGING ARM SYSTEM	Arm Type	Hydraulic swinging arm (crane-type)
	Lifting Capacity	2,000 – 5,000 kg (depending on configuration)
	Max. Lifting Height	3.0 – 4.5 meters (from ground)
	Reach	2.0 – 3.5 meters (horizontal extension)
	Control	Hydraulic lever control from rear operation panel
	Rotation	180° – 220° (left-right swing)
	Safety Features	Overload protection, hydraulic lock, emergency stop
WASTE BODY SYSTEM	Body Material	High-strength steel, corrosion-resistant paint
	Body Capacity	8 – 16 cubic meters (compacted or standard)
	Loading Method	Top loading via swinging arm
	Tailgate	Rear hydraulic tailgate with seal
	Compaction System	Optional hydraulic compactor (for increased capacity)
	Operating Pressure	16 – 22 MPa (hydraulic system)
GENERAL VEHICLE	Overall Dimensions	Length: 7.5m – 9.5m, Width: 2.4m – 2.5m, Height: 3.0m – 3.5m
	Gross Vehicle Weight (GVW)	16 – 25 tons
	Curb Weight	Approx. 7 – 10 tons
	Payload Capacity	8 – 15 tons
	Min. Ground Clearance	≥240mm
	Electrical System	24V, dual batteries with isolator
	Lighting	LED work lights, warning beacons, turn signals
	Certification	Meets GB, CE, and local waste vehicle standards
