ISUZU KV600 Refrigerated Truck

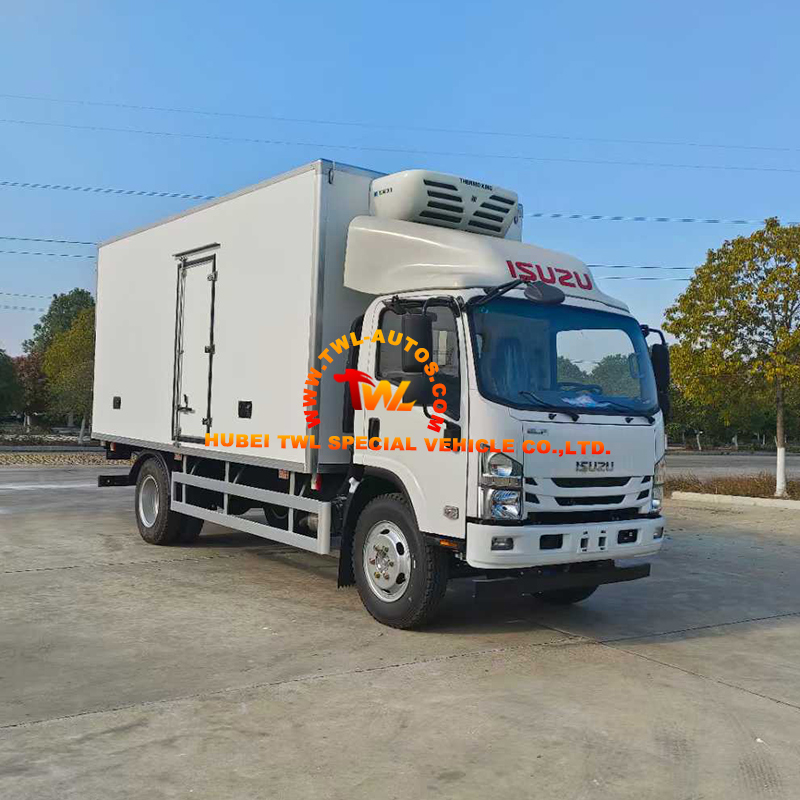

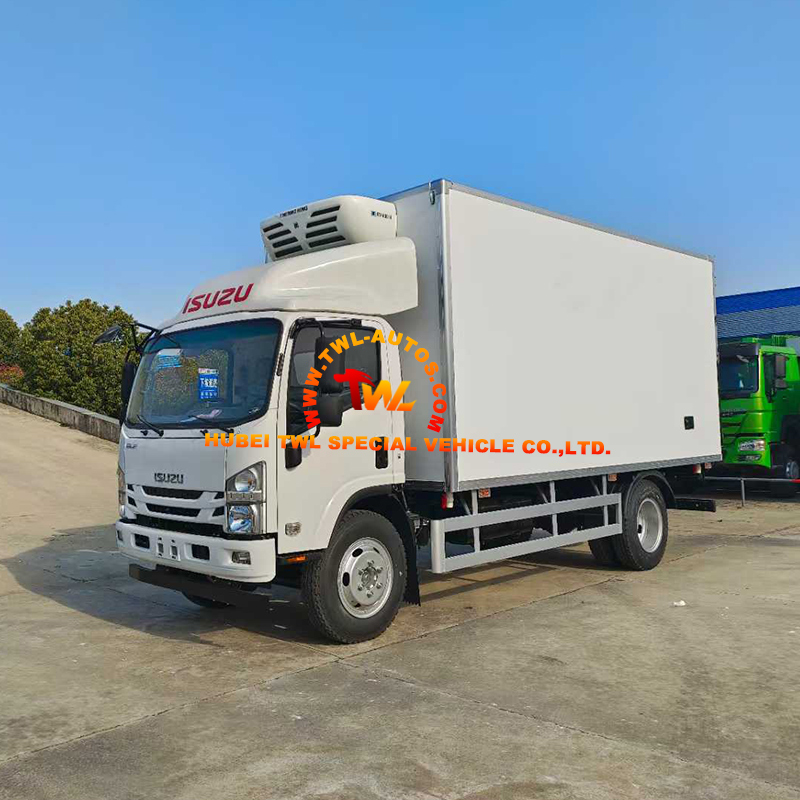

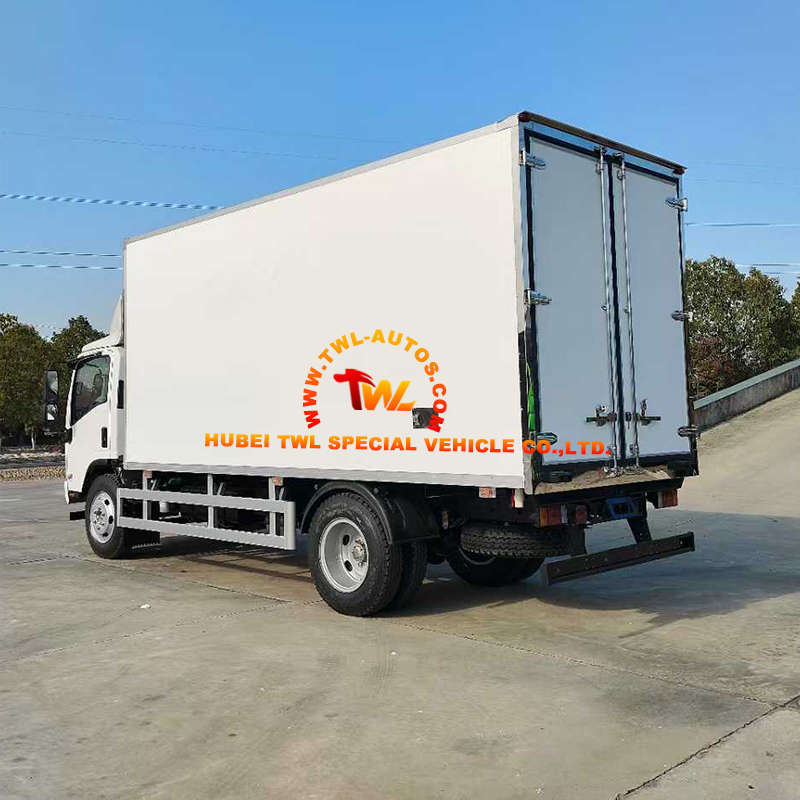

The ISUZU KV600 Refrigerated Truck is a compact, reliable, and efficient cold chain logistics vehicle designed and manufactured by Hubei TWL Special Vehicle Co., Ltd. Built on the proven ISUZU KV600 light-duty chassis, this truck features an insulated refrigerated van body paired with a high-performance refrigeration unit. Engineered for precision temperature control, fuel efficiency, and urban maneuverability, it is the ideal solution for the distribution of perishable goods, pharmaceuticals, and temperature-sensitive products in city and regional delivery networks.
ISUZU KV600 Refrigerated Truck
Key Advantages
1. Reliable & Economical Chassis
-
ISUZU KV600 chassis is globally recognized for its exceptional reliability, low maintenance costs, and excellent fuel economy.
-
Compact size and tight turning radius provide superior maneuverability in congested urban areas and narrow streets.
-
Comfortable cab and good driver ergonomics reduce fatigue on multi-stop delivery routes.
2. Superior Thermal Performance & Hygiene
-
High-density PU foam insulation provides excellent thermal efficiency, minimizing temperature fluctuations and reducing energy consumption.
-
Seamless, non-porous FRP interior is easy to clean and disinfect, ensuring compliance with food safety and pharmaceutical transport hygiene standards.
-
Tight-sealing doors and robust construction prevent cool air loss and protect cargo integrity.
3. Precise & Dependable Temperature Control
-
Powerful refrigeration unit offers a wide operational range, suitable for frozen, chilled, and fresh goods.
-
Digital controller allows for precise temperature setting, monitoring, and recording (optional) to meet HACCP and GDP guidelines.
-
Automatic defrost system ensures consistent performance and prevents ice buildup.
4. Operational Flexibility & Low TCO
-
Available in a range of body sizes to match specific payload and route requirements.
-
Choice of refrigeration unit brands and power sources (diesel/electric) allows for optimization based on operational patterns and local fuel/energy costs.
-
The proven ISUZU platform ensures high resale value and low total cost of ownership.
5. Built for Compliance & Safety
-
Designed and built to meet international cold chain transport standards (e.g., ATP for certain configurations).
-
High-visibility markings, effective lighting, and reliable brakes contribute to overall road safety.
-
Durable construction withstands the rigors of daily commercial use.
Applications
The ISUZU KV600 Refrigerated Truck is perfectly suited for a wide array of temperature-controlled delivery services:
-
Food & Beverage Distribution: Delivery of frozen meats, seafood, dairy products, ice cream, fruits, vegetables, and beverages to supermarkets, restaurants, and hotels.
-
Pharmaceutical & Healthcare Logistics: Transport of vaccines, medicines, blood plasma, and other temperature-sensitive medical supplies to clinics, pharmacies, and hospitals.
-
Catering & Event Services: Mobile cold storage for catering companies and large-event food service.
-
Floral & Specialty Goods: Transport of fresh flowers, plants, and other perishable specialty items.
-
E-commerce & Last-Mile Delivery: Fulfillment of online grocery and meal kit deliveries requiring temperature assurance.
-
Laboratory & Industrial Samples: Secure transport of samples that require controlled temperatures.
Product Specification
| Category | Parameter | Specification |
| CHASSIS SYSTEM | Model | ISUZU KV600 Light-duty Truck Chassis |
| Engine | Diesel, ISUZU 4JJ1 series, approx. 130 – 150 HP, Euro V/VI compliant | |
| Transmission | Manual, 5-6 forward gears, 1 reverse gear | |
| Drive Type | 4×2 Rear-wheel drive | |
| Wheelbase | 3,365 mm (standard) / Customizable options available | |
| Max. Speed | 100-120 km/h | |
| Fuel Tank Capacity | 100 liters (standard) | |
| Tire Specification | 7.50R16 or 8.25R16 radial tires | |
| Brake System | Hydraulic brake system (Disc front / Drum rear) | |
| Cab | Standard cab, air-conditioned, seating for 2-3 | |

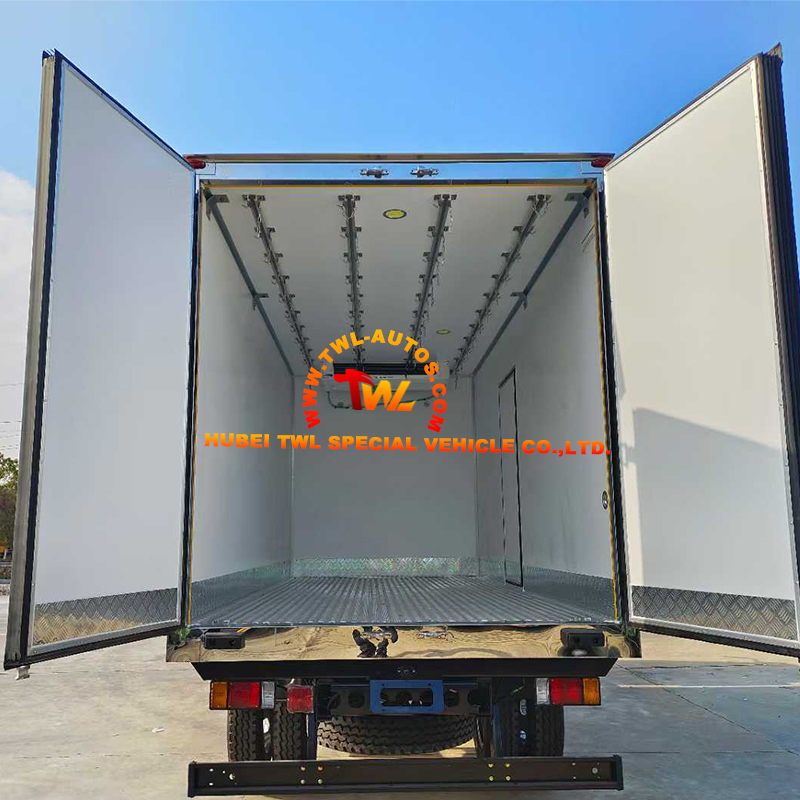

| REFRIGERATED BODY | Body Construction | Sandwich panels with Polyurethane (PU) foam insulation |
| Insulation Thickness | 80 – 100 mm | |
| Inner/Outer Skin | FRP (Fiberglass Reinforced Plastic) or food-grade GRP | |
| Internal Dimensions | Length: 4.2 – 5.8m, Width: 2.1 – 2.3m, Height: 2.1 – 2.3m (customizable) | |
| Internal Volume | 12 – 25 cubic meters (depending on body length) | |
| Floor | Marine plywood or aluminum alloy with anti-slip surface and drainage | |

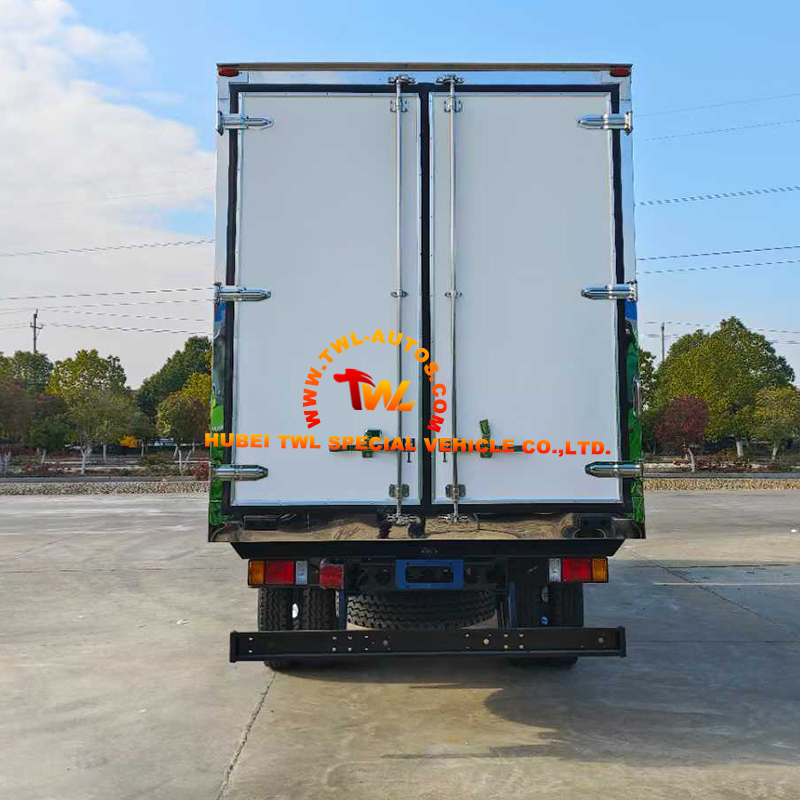

| Door | Rear roll-up door (single or double) with tight-seal gaskets and locks | |
| REFRIGERATION UNIT | Unit Type | Non-ducted or ducted top-mounted refrigeration unit |
| Temperature Range | -20°C to +25°C (adjustable) | |
| Refrigeration Capacity | Approx. 3,500 – 6,000 kcal/h (depending on model and ambient conditions) | |
| Compressor | Hermetically sealed, powered by independent diesel engine or electric standby | |
| Control System | Digital microprocessor controller with display, data logging optional | |
| Defrost System | Automatic electric or hot gas defrost | |
| Brand Options | Carrier, Thermo King, Zanotti, or Chinese premium brands (e.g., Songling, KAIXUE) | |
| GENERAL VEHICLE | Overall Dimensions | Length: 7.0 – 9.0m, Width: 2.3 – 2.5m, Height: 3.4 – 3.7m |
| Gross Vehicle Weight (GVW) | 7,490 kg (standard) | |
| Curb Weight | Approx. 3.5 – 4.5 tons | |
| Payload Capacity | 3.0 – 4.0 tons | |
| Min. Ground Clearance | ≥180mm | |
| Electrical System | 12V/24V, dual battery system optional for unit | |
| Interior Features | LED lighting, side guards, tie-down points, optional partition | |
| Certification | Meets ATP (Agreement on Transport of Perishable Foodstuffs) standards for certain temperature classes; GB standards |
