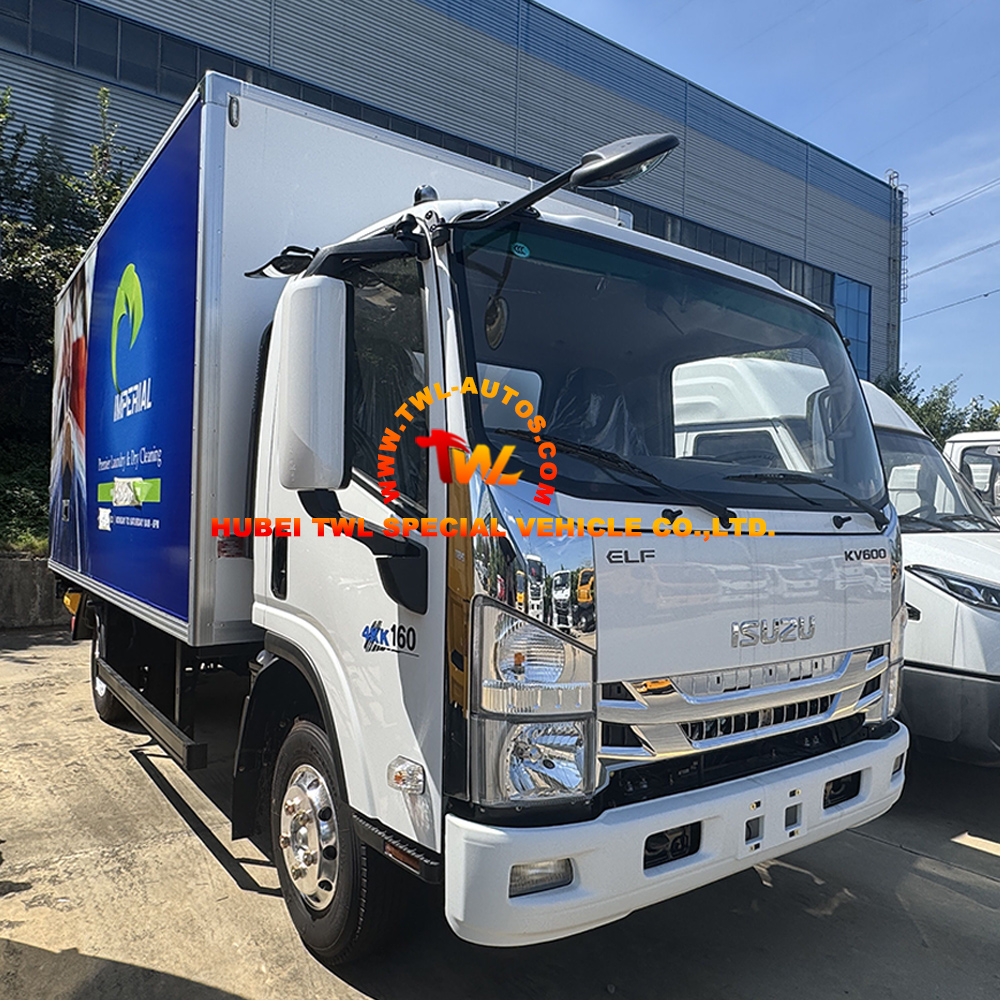

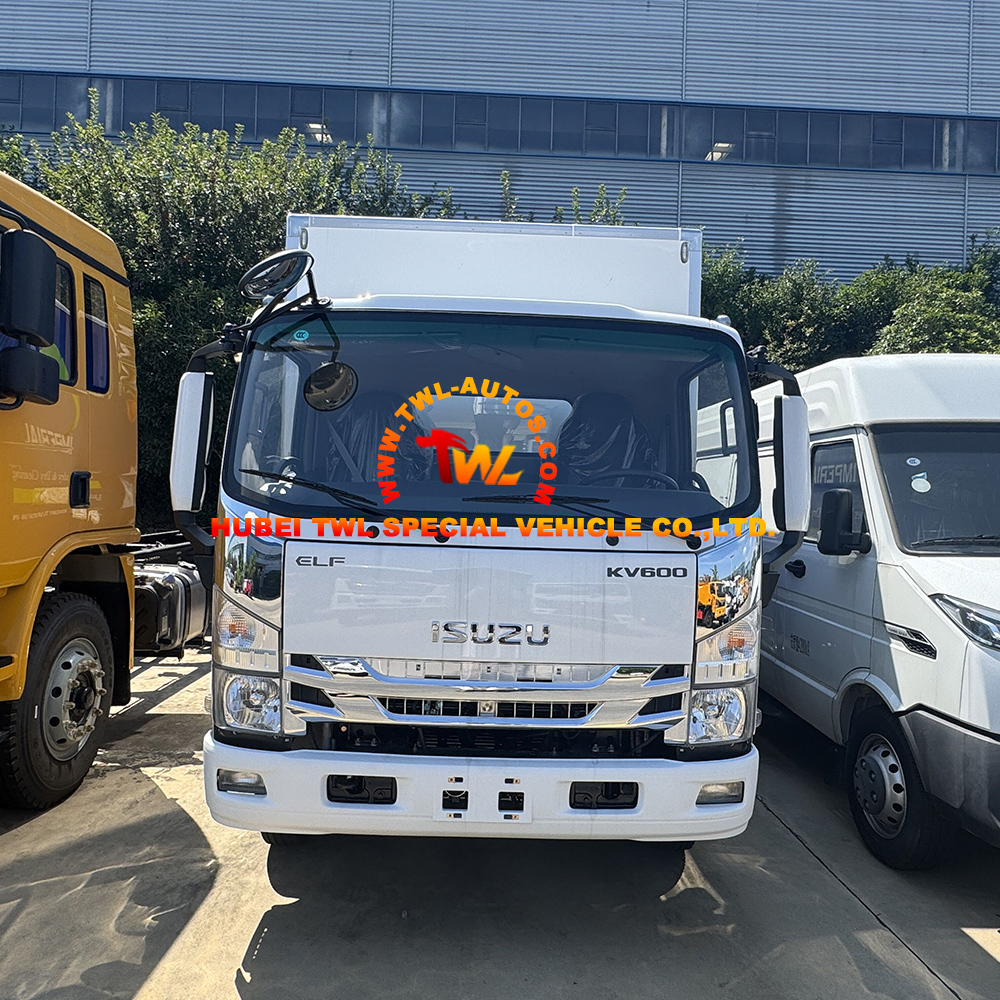

ISUZU KV600 5-Ton Insulated Delivery Truck
Optimize your dry cleaning and linen delivery operations with the ISUZU KV600 Delivery Truck – a 5-ton insulated box van featuring a 160HP ISUZU Euro VI engine, 4.2m insulated cargo box, 2-ton hydraulic tailgate, and double-row cab with A/C. Built on the reliable ISUZU KV600 4x2 chassis with 3,360mm wheelbase, this vehicle delivers gentle, protected transport for garments, linens, curtains, and delicate fabrics. The hydraulic tailgate compensates for loading dock shortages common across Caribbean islands, enabling efficient curbside loading and unloading.
ISUZU KV600 5-Ton Insulated Delivery Truck
The ISUZU KV600 Dry Cleaning Delivery Truck is a professional-grade logistics vehicle specifically designed for dry cleaning businesses, hotel linen services, and commercial laundry operations in Caribbean and Latin American markets. Built on the proven ISUZU KV600 4×2 chassis with 3,360mm wheelbase and double-row cab (LHD with A/C), this vehicle features an ISUZU 4KK1 diesel engine delivering 160HP with Euro VI compliance, paired with a 6-speed manual transmission. The 4.2m cargo box (4,200×2,400×2,400mm) is constructed with high-density insulation – no refrigeration unit required – protecting garments from heat buildup, condensation, and damage. The 2-ton hydraulic tailgate is essential for Caribbean operations, compensating for the lack of standard loading docks at hotels, B&Bs, and shops. The anti-slip tailgate surface ensures stable loading even on rainy days. Large side panels are customizable with dry-cleaning logos for mobile branding. The flat floor interior adapts with hanging rods and shelving for wrinkle-free transport of suits, gowns, and linens.
Key Features:
1. ISUZU KV600 4×2 Chassis – Reliable & Maneuverable: The ISUZU KV600 chassis is highly reliable, resistant to high temperatures and dust, and well-suited to Caribbean tropical climates. The compact Japanese light-truck body with small turning radius is agile in narrow old-town streets. Suspension tuned for comfort and load-bearing, cushioning bumps on gravel or potholed roads.
2. ISUZU 160HP Euro VI Engine – Tropical Climate Adaptability: The ISUZU 4KK1 diesel engine is tuned for low-end torque – strong starts on frequent stop-and-go city driving and rural dirt roads. Diesel model tolerates varying fuel quality across Caribbean countries, resisting clogging and power loss. Heat- and humidity-resistant, reliable under year-round tropical heat.
3. 4.2m Insulated Cargo Box – Passive Protection: High-density insulation walls – no refrigeration unit needed. Daytime blocks solar radiation to stabilize interior temperature, preventing heat buildup, sour odors, and leather/fabric damage. Nighttime reduces temperature differential to eliminate condensation drips, preventing bedding and cashmere from dampness and mildew.

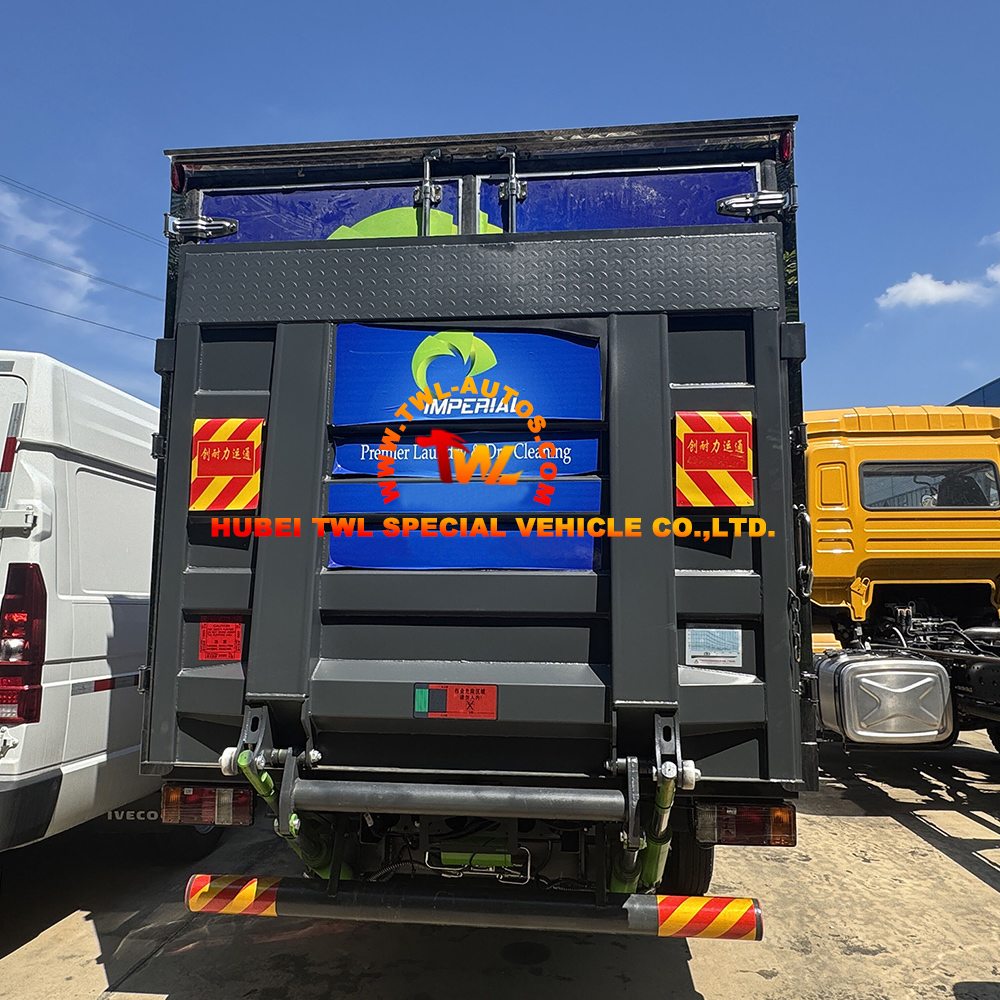

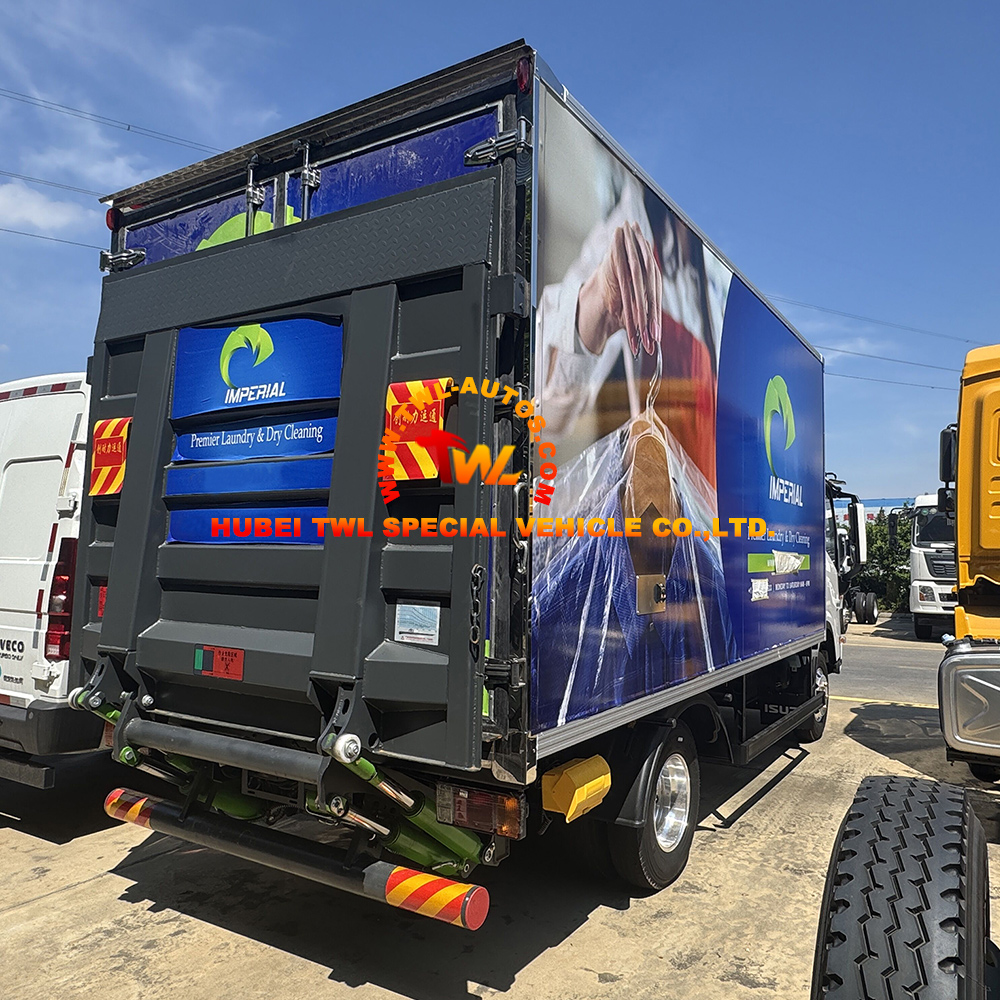

4. 2-Ton Hydraulic Tailgate – Essential Value: Compensates for lack of loading docks – hotels, B&Bs, and shops across Dominican Republic and Caribbean islands rarely have standard unloading platforms; curbside loading is the norm. Adjusts height to match ground level, functioning as a mobile loading platform. One person handles bulk linen loading/unloading easily.
5. Garment Quality Protection: Bulky items like curtains, carpets, duvets, and wedding gowns are prone to wrinkling, abrasion, and damage from dragging. Tailgate ensures smooth, gentle lifting, preserving cleaned items and reducing after-sales rework.
6. Commercial Branding: Large side panels customizable with dry-cleaning logos and promotional graphics. Daily city-wide routes serve as mobile billboards, ideal for small-to-medium island chains to expand customer reach.
7. Interior User-Friendly: Flat floor adaptable with hanging rods and shelving – suits and gowns hang wrinkle-free; linens stack neatly. Optimized space accommodates mixed loads of individual items and bulk hotel textiles.
8. Sealed & Corrosion-Resistant: Waterproof sealing and seam caulking withstand Caribbean rainstorms and salty sea breezes. Anti-corrosion exterior coating prevents rust and leakage. Enclosed design keeps out sand, dust, and road grime – cleaned garments stay pristine during transit.
Application:
· Dry Cleaning Collection & Delivery: Daily city-wide routes for garment collection and delivery. The insulated box protects cleaned items from heat and dust.
· Hotel Linen Transport: Bulk linen, towels, and uniform transport for hotels, resorts, and B&Bs. The 5-ton capacity handles high-volume hotel contracts.
· Commercial Laundry Logistics: Transport between laundry facilities and customer locations. The hydraulic tailgate enables efficient curbside loading.
· Delicate Garment Transport: Suits, gowns, curtains, carpets, and duvets transport without wrinkling, abrasion, or damage.
· Caribbean Island Logistics: Multi-stop delivery routes across island chains. Compact maneuverability for narrow streets and rural roads.
Product Specification
| ISUZU kv600 4×2 5Ton Van Truck | |
| Chassis Specification | |
| Chassis Model | QL104 |
| Driving Model | 4×2 |
| Dimension | 6000×2000×2300 mm |
| Cab | · Original ISUZU kv600 double row cabin |
| · Left Hand Driving | |
| · With air conditioner | |
| Wheelbase | 3360 mm |
| Gross vehicle Weight | 4000 kg |
| Curb Weight | 2295 kg |
| Front Axle Loading Capacity | 2500 kg |
| Rear Axle Loading Capacity | 4800 kg |
| Axle Number | 2 |
| Engine | ISUZU diesel engine |
| 4 cylinders in a line, | |
| Water cooled, turbocharged, after cooled, cold start. | |
| Model:4KK1 | |
| Horse power: 160HP | |
| Displacement: 2999ml | |
| Emission standard: Euro 6 | |
| Transmission | ISUZU |
| 6 Forward & 1 Reverse | |
| Tire | 7.00R16 |
| 6pcs with 1 spare tire | |
| Upper Parameters | |
| Cargo Box | |
| Size (L*W*H) | 4200 X 2400 X 2400 mm |
| Max. Loading Capacity | 5 Ton |
| Material | Insulation |
| Hydraulic Board Max. Loading Capacity | 2Ton |
