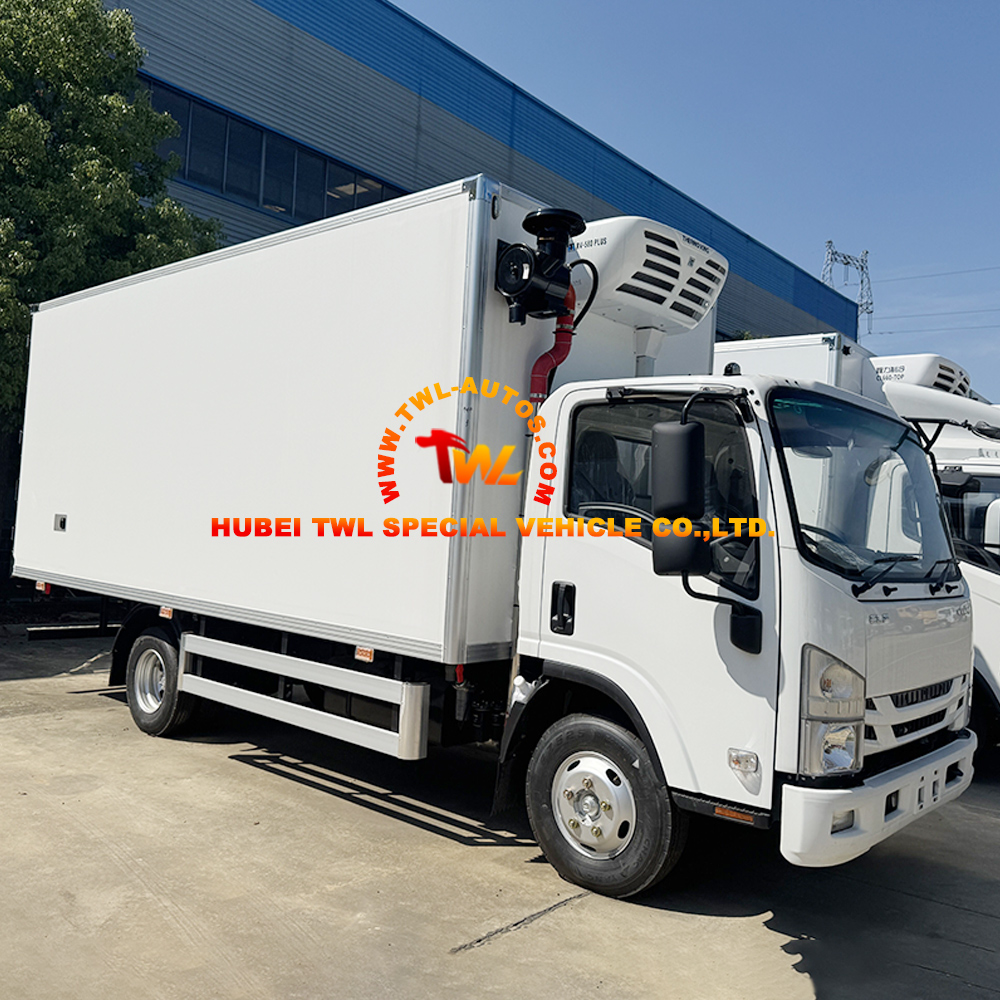

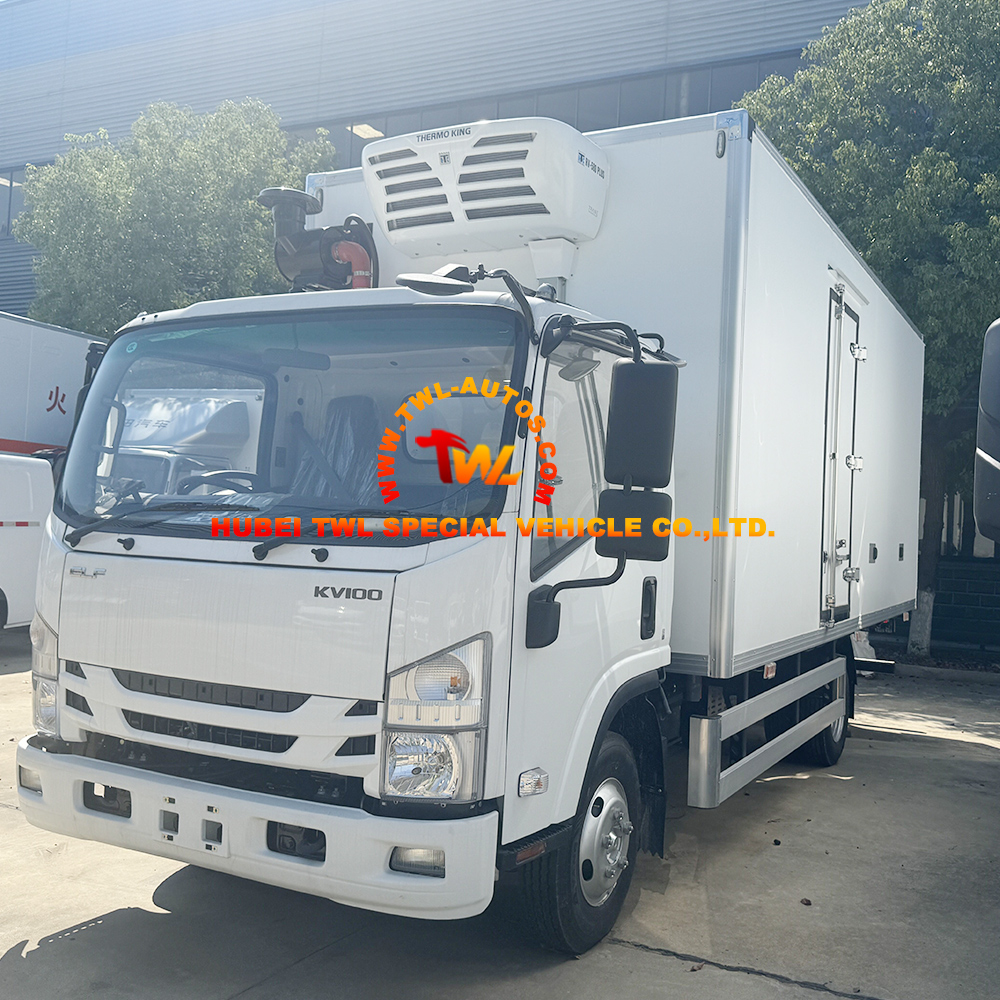

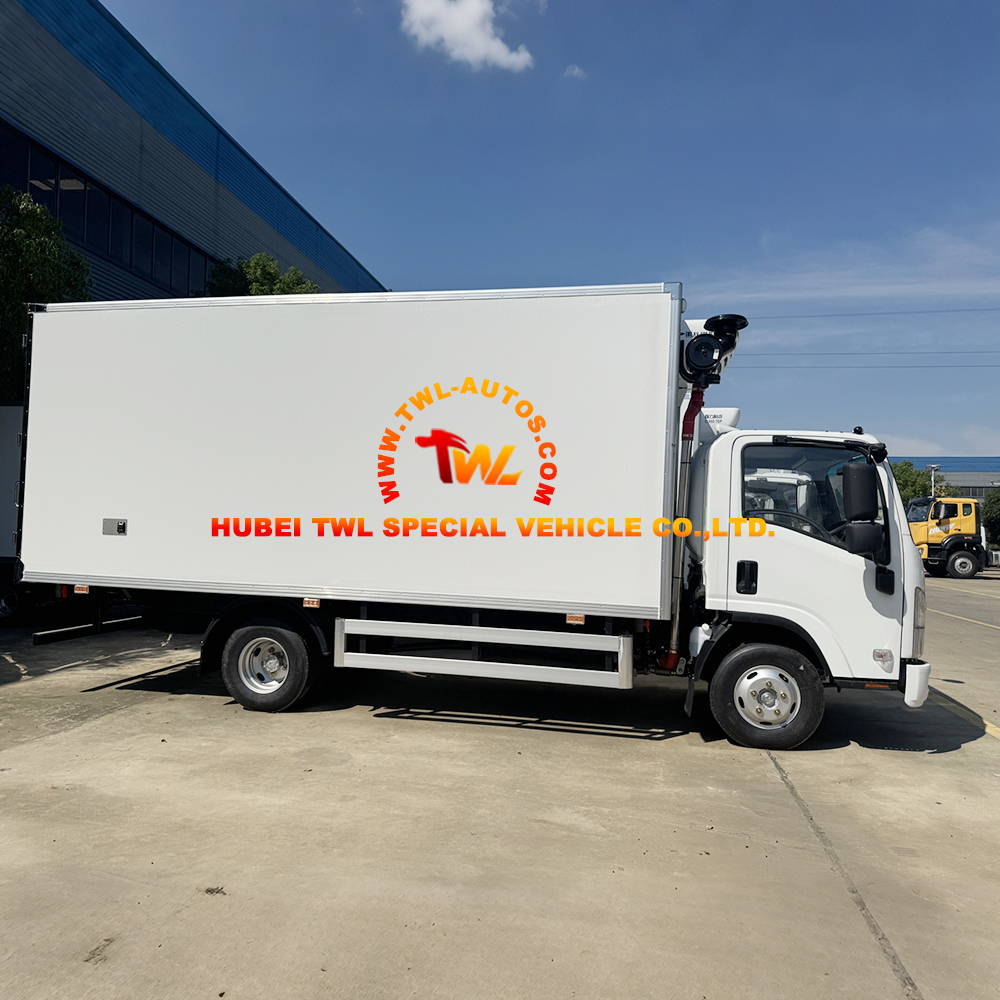

ISUZU KV100 RHD 5-Ton Refrigerated Truck

The ISUZU KV100 RHD Refrigerated Truck is a professional-grade cold chain solution specifically designed for severe cold, high-altitude, and frost-prone right-hand drive markets. Based on the mature ISUZU ELF right-hand drive chassis with a 3,360mm wheelbase and original KV100 single-row cab (RHD with A/C, power assistance, central lock, electric windows and doors, rear camera), this vehicle features an ISUZU 4KH1CN6LB diesel engine delivering 120HP with Euro IV compliance, paired with an MSB 5-speed manual transmission. The 4,100×2,100×2,100mm refrigerated box (18.1m³) is constructed with a steel-wood structure, 2mm FRP inner/outer skins, 80mm XPS insulation, and aluminum check plate floor. The Thermo King RV-580 refrigeration unit provides stable cooling with a temperature range of -20°C to +30°C. The core innovation is the engine exhaust waste heat heating system, which utilizes engine exhaust gas to heat the box body’s interlayer through heat exchange using high-temperature-resistant reversing valves and red exhaust hoses. This system addresses the common shortcoming of conventional refrigeration units that lack sufficient heating capacity in low temperatures. Ordinary refrigerated trucks can only cool, and in extremely cold conditions, cargo is prone to freezing damage. This vehicle comes with built-in exhaust heating, eliminating the need for an additional independent heater. By relying on the engine’s waste heat, it maintains the interior temperature, offering high overall reliability and simple maintenance.

Key Features:

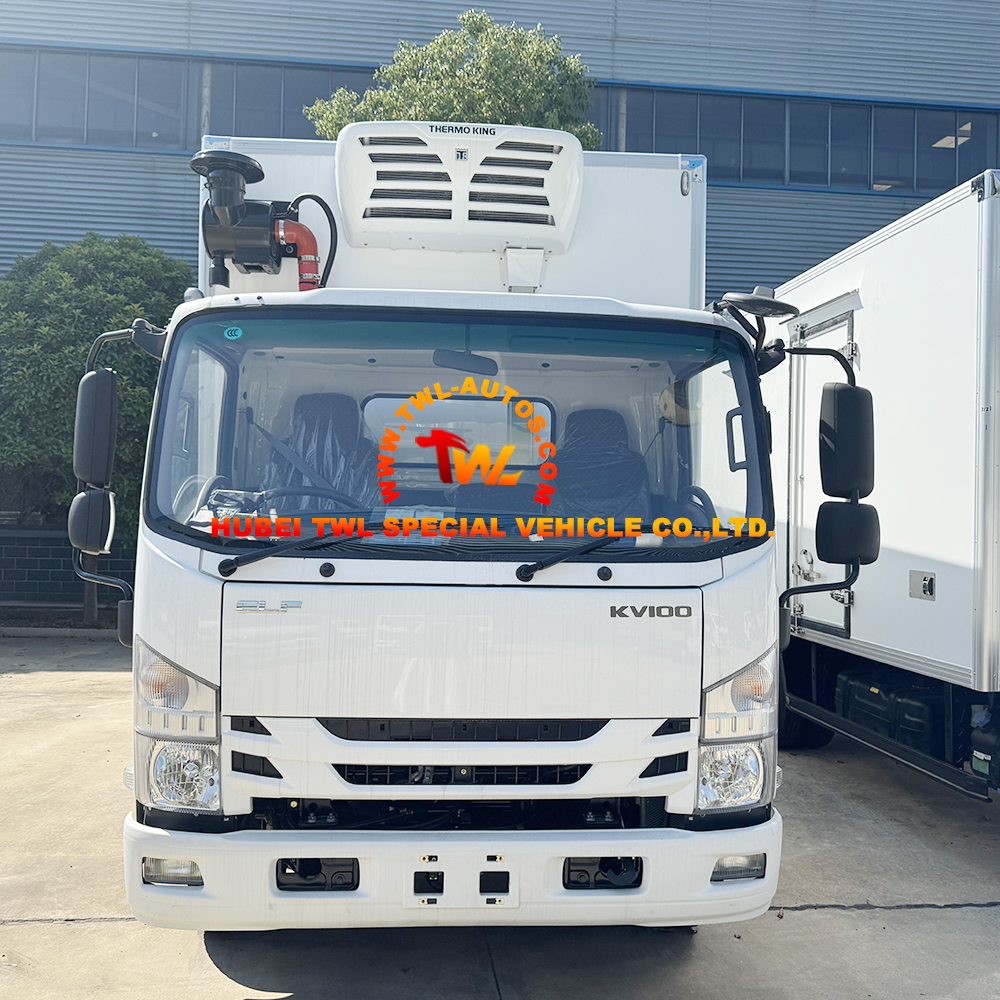

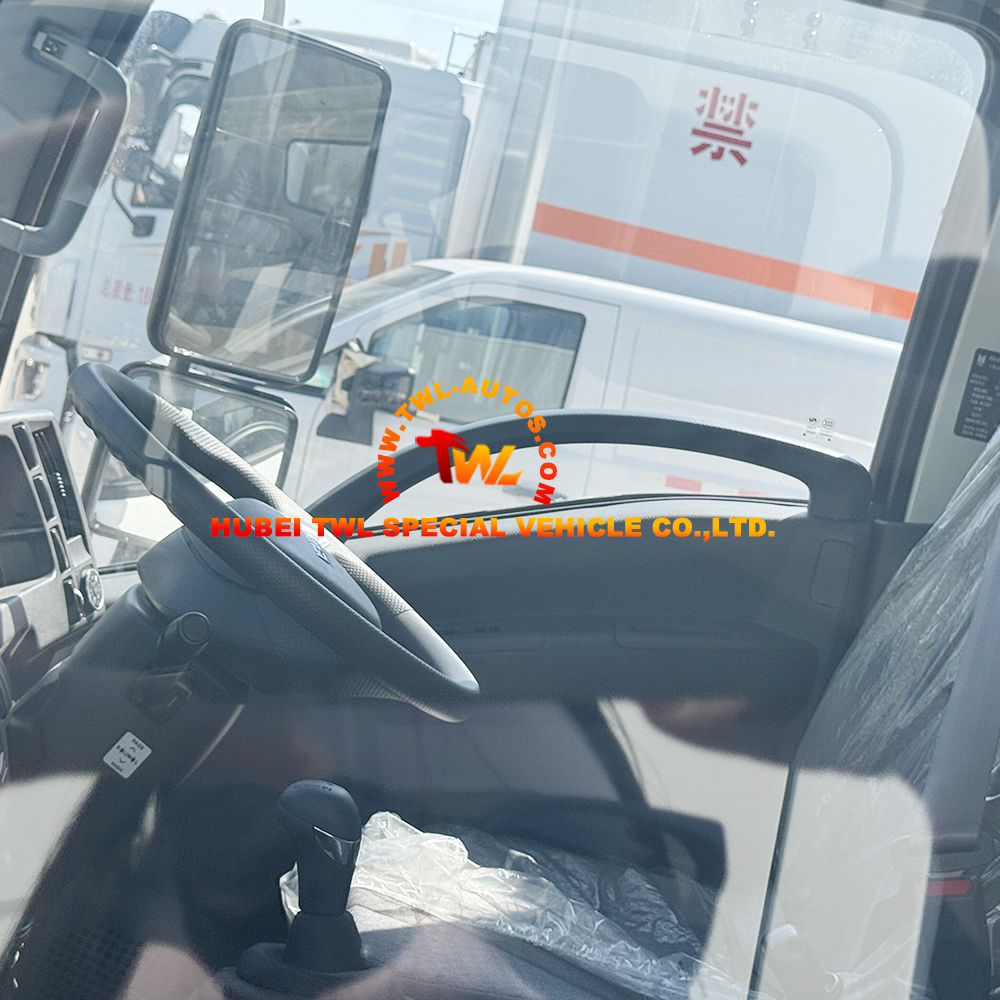

1. ISUZU ELF RHD Chassis – Mature & Reliable: 3,360mm wheelbase, original ISUZU KV100 single-row cab with RHD, A/C, power assistance, central lock, electric windows and doors, and rear camera. The light-duty chassis offers moderate load capacity, making it suitable for urban and intercity cold-chain transportation. With high reliability, it is well-suited to Africa’s poorer road conditions, and its strong parts interchangeability facilitates local maintenance and repairs.

2. ISUZU 120HP Euro IV Engine – Efficient & Durable: 4KH1CN6LB, 120HP (88kW), 2,999ml. 4-cylinder inline, water-cooled, turbocharged. MSB 5-speed manual transmission (5F+1R). Reinforced diaphragm clutch. The powertrain is capable of matching exhaust heat recovery requirements.

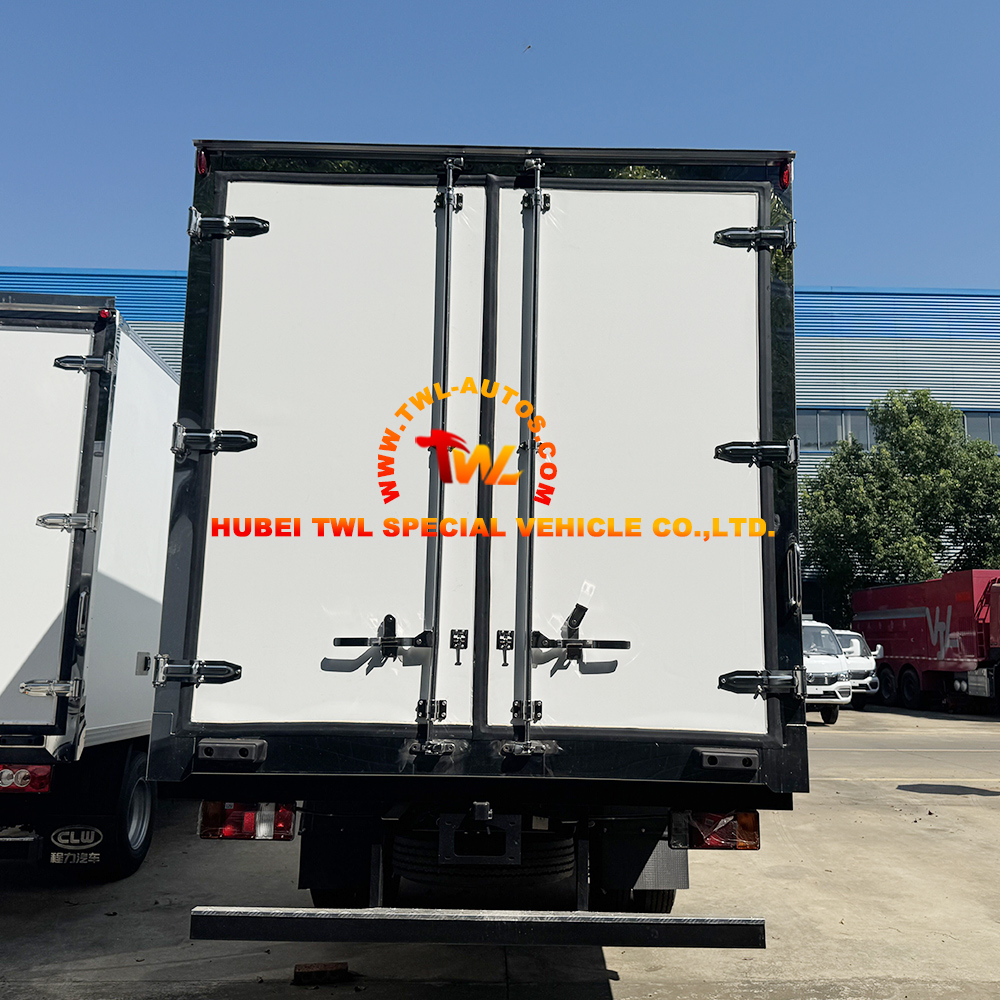

3. 18.1m³ Insulated Box – Superior Thermal Performance: 4,100×2,100×2,100mm. Steel-wood structure with galvanized pipe skeleton. 2mm high-quality FRP inner and outer skins. 80mm thickness XPS polyfoam. Aluminum alloy check plate floor. Positive press hot press forming. The insulated panels provide excellent thermal insulation performance, ensuring stable temperature retention inside the compartment. The body structure is robust and resistant to jolts and vibrations. Pre-installed interfaces for the exhaust heating piping are reserved.

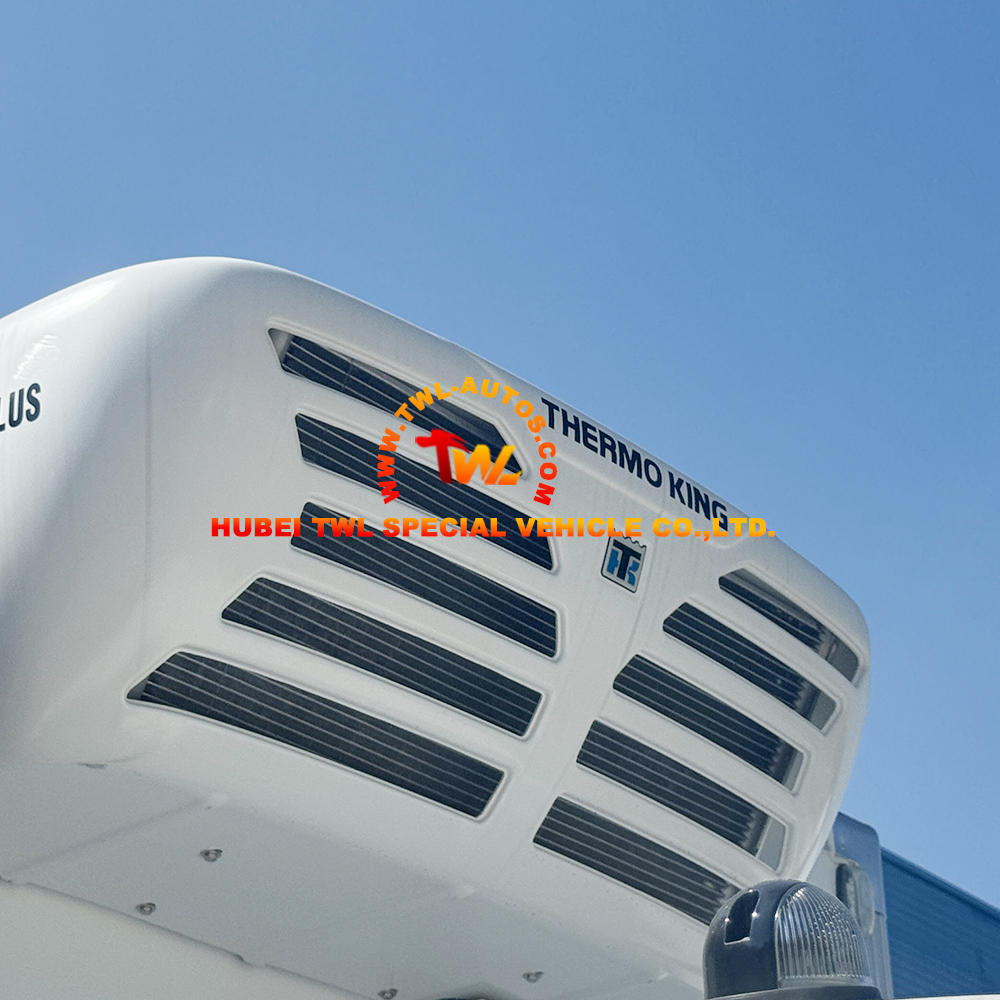

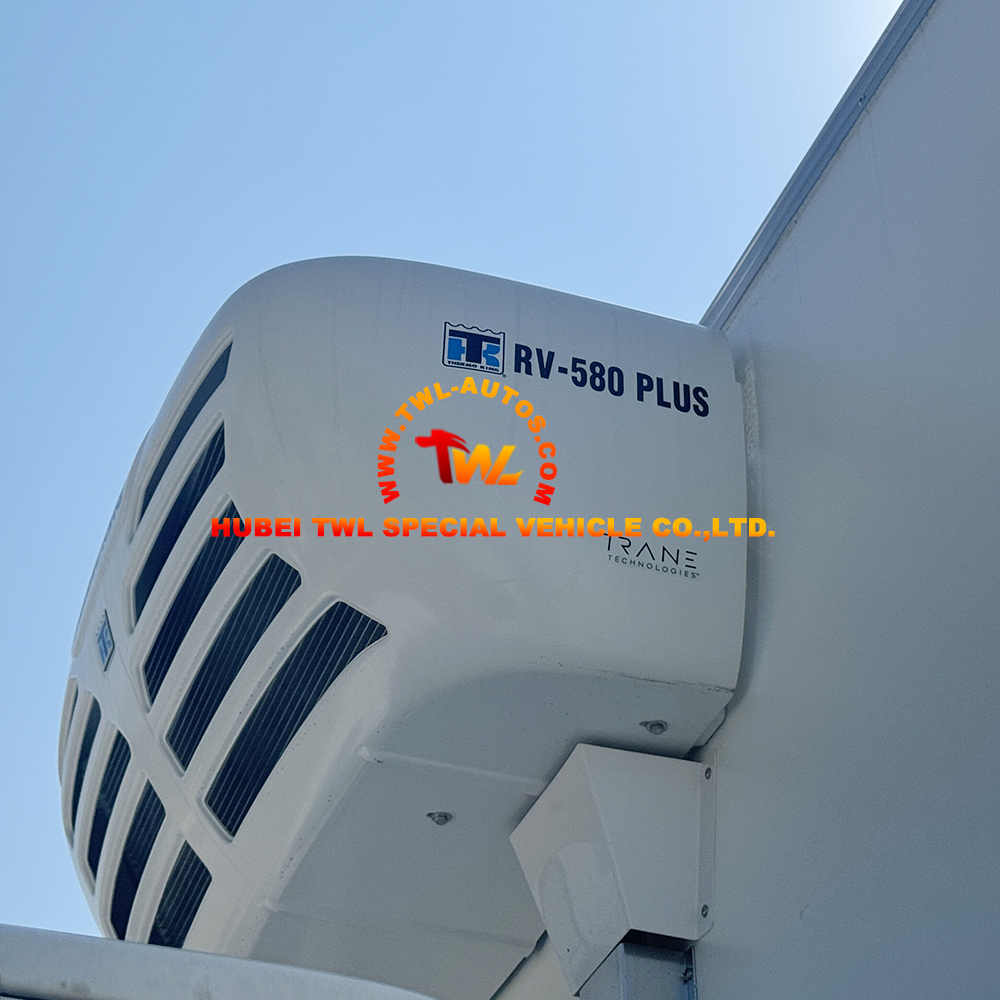

4. Thermo King RV-580 Refrigeration Unit – Stable Cooling: Working temperature range -20°C to +30°C. Delivers stable cooling performance, precise temperature control, high reliability, and strong resistance to environmental fluctuations. Supports independent temperature regulation, enabling both active cooling in high-temperature environments and coordination with the heating system to maintain suitable compartment temperatures. Well-established overseas parts channels for convenient after-sales maintenance and repairs.

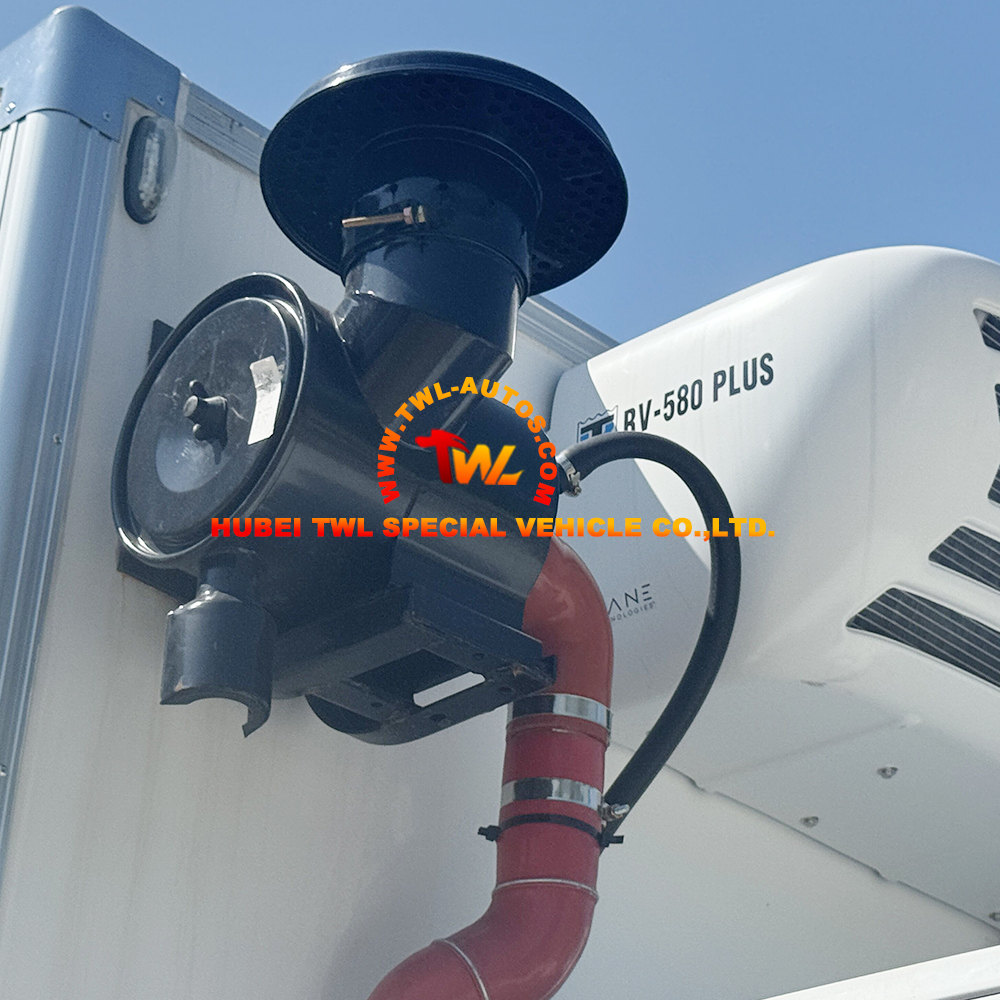

5. Engine Exhaust Waste Heat Heating System – Core Innovation: Utilizes waste heat from the engine exhaust to warm the cargo compartment through heat exchange. High-temperature-resistant reversing valves and red high-temperature exhaust hoses. Eliminates the need for an additional fuel-fired heater, keeping energy consumption low. Under severe cold conditions and nighttime low temperatures, it effectively prevents cargo from freezing, addressing the key challenge of large diurnal temperature variations on plateaus. Ideal for Africa’s cold high-altitude regions and areas with low nighttime temperatures.

6. Versatile Cargo Applications: Transports perishable fresh fruits and vegetables, vaccines and pharmaceuticals, live poultry and chicks, and temperature-controlled food products susceptible to freezing. Not only provides cooling and freshness preservation in summer but also prevents cargo from freezing in winter and during frosty nights, combining refrigeration with freeze protection.

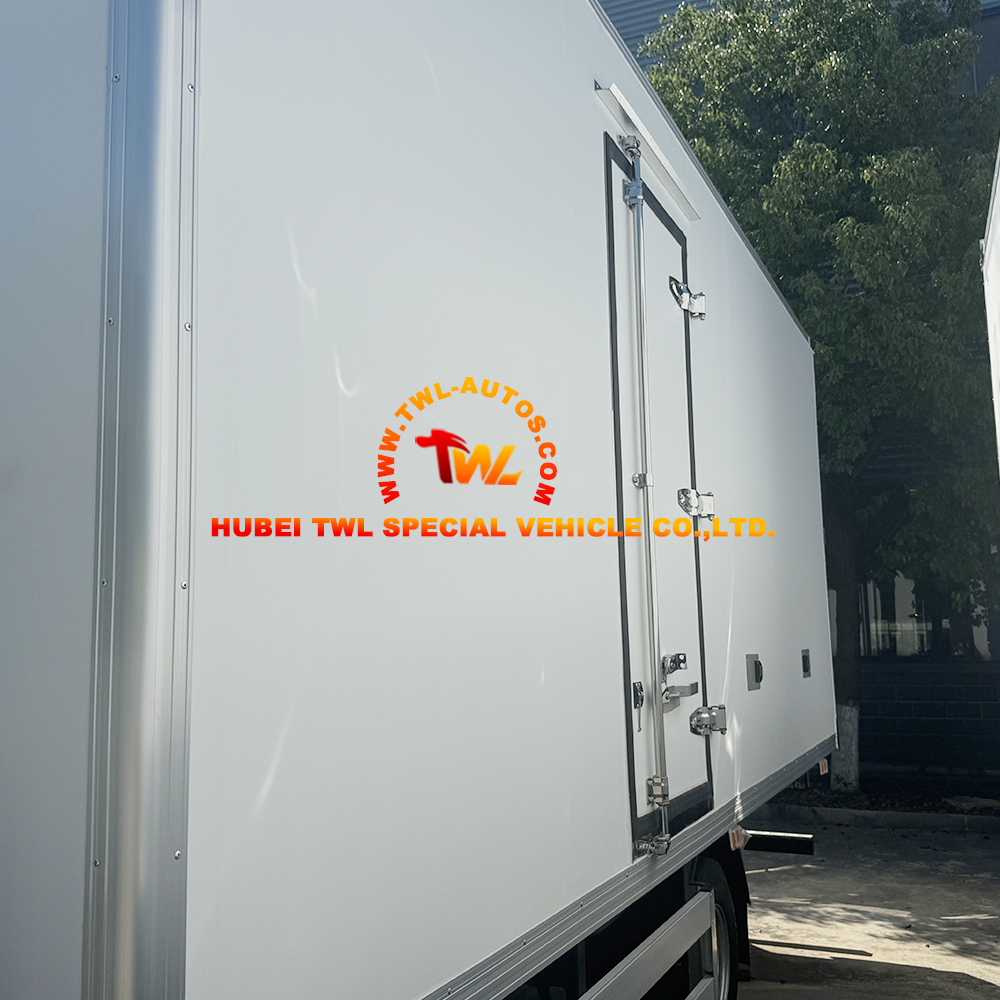

7. Standard Equipment: Ladder between cabin and box. Side door at side of box. First aid kit, fire extinguisher, warning triangle, tire repair kit, thermometer. Reinforced construction. Customizable cabin color and company logo poster on both sides of van body.

Application:

· Cold High-Altitude Regions: Ideal for high-latitude and plateau frost-prone areas, coping with sub-zero winters and nighttime frost conditions.

· New Zealand South Island, Lesotho, South African Highveld: Well-adapted to these regions’ severe cold climates.

· Perishable Fresh Fruits and Vegetables: Prevents freezing damage during winter transport.

· Vaccines and Pharmaceuticals: Precise temperature control for sensitive medical products.

· Live Poultry and Chicks: Maintains suitable temperatures for young poultry transport.

· Temperature-Controlled Food Products: Prevents freezing of temperature-sensitive goods.
