ISUZU KV100 5m³ Hook Arm Garbage Truck
TWL supplies the ISUZU KV100 5m³ Hook Arm Garbage Truck — a compact, highly efficient solution for municipal and commercial waste collection. Built on the proven ISUZU KV100 chassis and equipped with a durable hydraulic hook loader system, it allows quick container loading, swapping, and unloading, greatly improving operational efficiency for city sanitation fleets.
ISUZU KV100 5m³ Hook Arm Garbage Truck
The ISUZU KV100 5m³ Hook Arm Garbage Truck from TWL is engineered for flexible and efficient waste handling across urban and industrial environments. Powered by a fuel-saving and emissions-compliant ISUZU 120 HP 4KH1CN6LB National VI engine, it delivers strong performance with low running costs. The 3360 mm wheelbase structure and 700 mm reinforced sub-frame ensure excellent stability under heavy waste loads.
The advanced hydraulic hook arm system enables a single operator to lift, transport, unload, and exchange standardized 5m³ waste containers securely — dramatically reducing downtime and improving route efficiency. The operator can control all actions from inside the cab or via optional remote control, enhancing convenience and workplace safety.
This vehicle is widely used for municipal solid waste collection, industrial waste management, construction debris transport, and recycling operations. With reliable components, durable build quality, and optimized container transport capability, it is an ideal choice for city sanitation, property services, parks, and waste transfer stations.
Key Featrues
Strong Hydraulic Hook Arm System
• Made with manganese steel for higher strength and crack resistance
• Extended equipment lifespan, reduced maintenance and downtime
Stable & Safe Waste Handling
• Reinforced rear stabilizers enhance lifting stability
• Prevents container tilting during loading and unloading

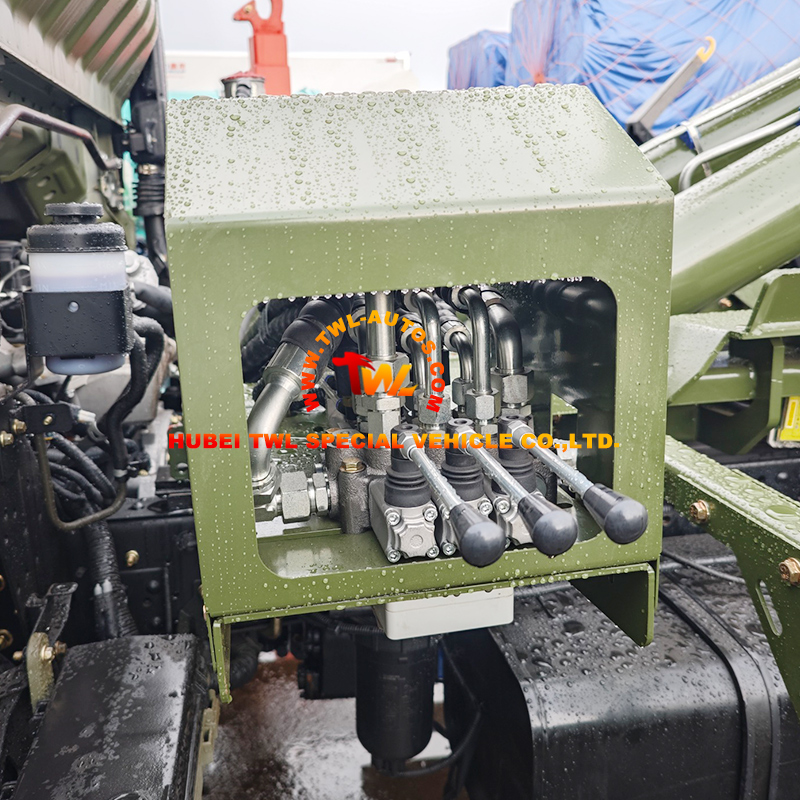

Flexible Dual Control Operation
• In-cab manual + electric controls
• Optional wireless remote with lateral locking for safer positioning
High-Quality ISUZU Chassis Performance
• 120 HP high-efficiency engine meets National VI standards
• Robust front/rear axles and 7.00R16 commercial tires
• 120L aluminum fuel tank — lightweight and corrosion-resistant
Fast Container Exchange for High Efficiency
• Quick swap of empty and full bins reduces operational turnaround
• Perfect for frequent collection routes and multiple waste stations
Wide Application Coverage
• Residential & municipal waste collection
• Industrial and commercial waste transport
• Construction debris removal and recycling logistics
• Event cleanup and emergency waste assistance
Product Specification
| Chassis Technical Specification | ||
| Driving model | 4X2 ISUZU KV100 | |
| Cab | ISUZU 3X cabin | |
| Left hand driving | ||
| With 2-3 passengers | ||
| Wheelbase | 3360mm | |
| Engine | Model | ISUZU 4KH1CN6LB |
| Type | Diesel, 4 stroke, 4 cylinders in line | |
| Horsepower | 120hp | |
| Max output power | 88kw | |
| Emission standard | Euro Ⅵ | |
| Gear box | Manual type, 5 forward gears and 1 reverse | |
| Axle loading (front and rear) | 2.5-3T ; 4.8-5.5T | |
| Tyre | 7.00R16 | |
| Garbage truck body | ||
| Garbage bin volume | 5 m³ | |
| Tanker body material | Quality high tensile Q345 carbon steel | |
| Shape | Rectangular box, boat-shaped box or customized | |
| Remarks | Manganese steel alloy boom construction | |
| Reinforced rear stabilizers | ||
| Wireless remote control system with lateral locking mechanism | ||
| Optional device | Hydraulic outriggers installation | |
| Underslung waste tank installation | ||
| In-cab operation controls | ||
| Manual-electric dual control system | ||
| Remotely operated boom sleeve kit | ||

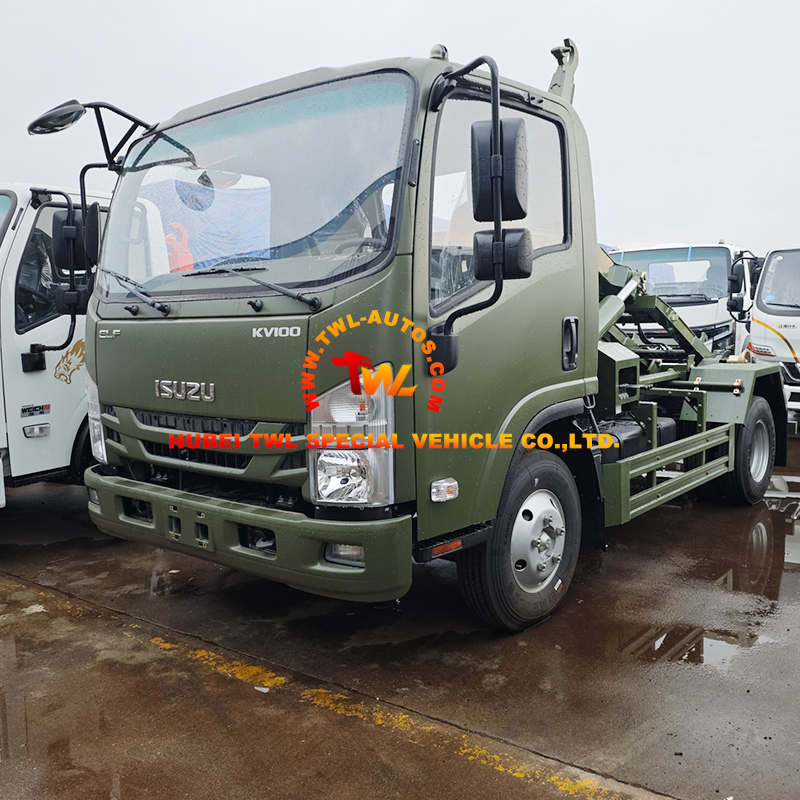

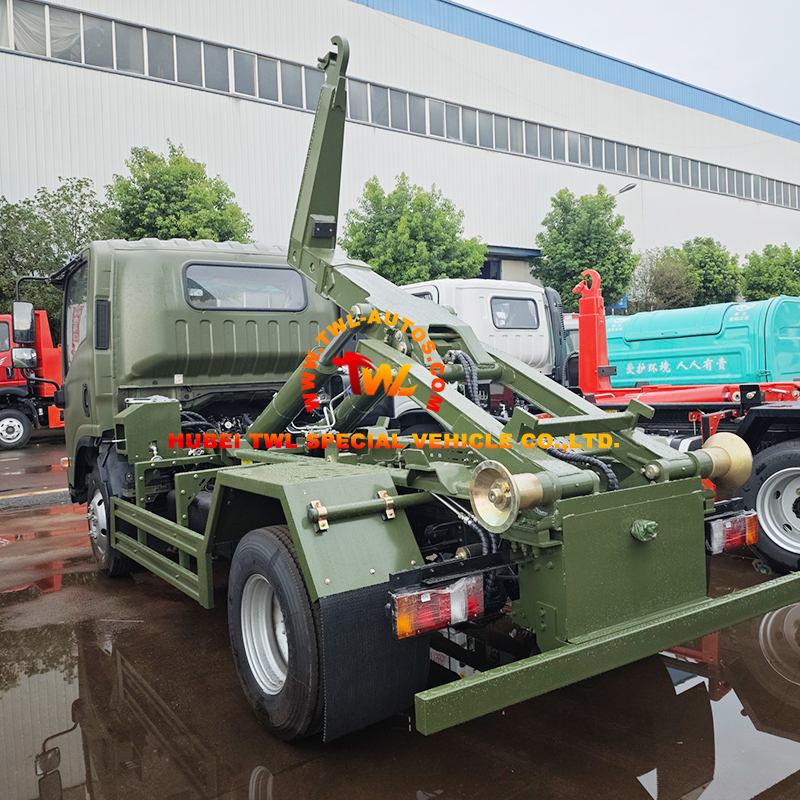

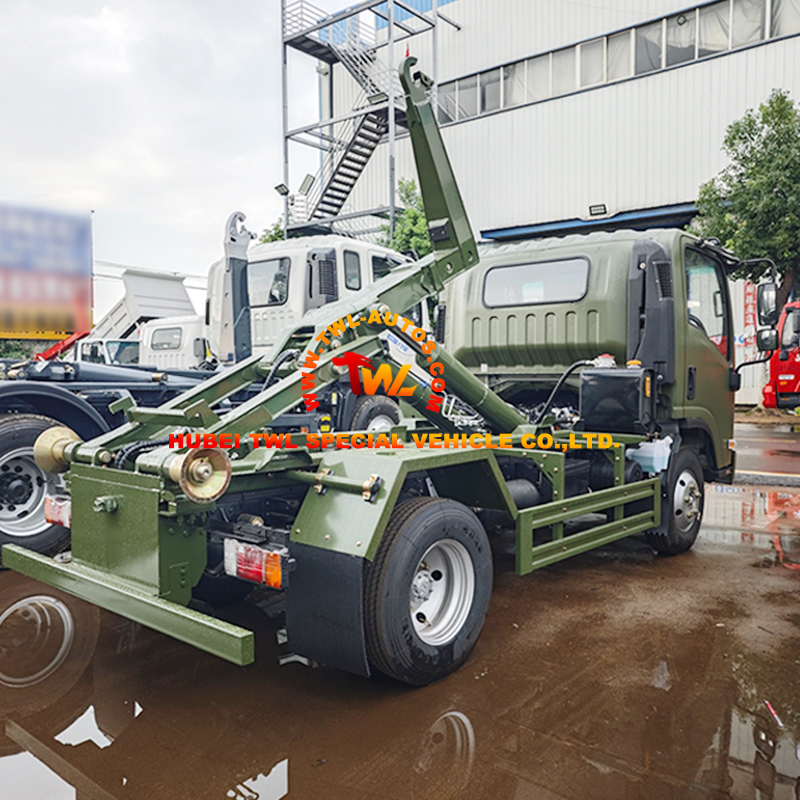

ISUZU KV100 5m³ Hook Arm Garbage Truck Gallery
