ISUZU KV100 4x2 6CBM Swing Arm Garbage Truck
Swing Arm Garbage Truck, Optional Chassis like DONGFENG, FOTON, FAW, ISU ZU, etc brands, It is equipped with a unified supporting hydraulic lifting assembly and can be transported to the unified swing arm garbage hopper of the whole country through the left and right arms. The garbage hopper car body is divided into two types of garbage hoppers, namely, swinging arm type and ground pit dual-purpose. It can be equipped with a sealing cap to prevent leakage and flying pollution, so as to meet the requirements of different environments and use domestic leading technology and mi litary enterprise accessories, reliable quality.
Product Specification
| Chassis Specification | ||
| Main Dimensions | (L x W x H)mm | 6500×2500×3350 |
| Wheel base (mm) | 3815mm | |
| F/R Axle-Load | 6000/10000 kg | |
| Curb weight | 4500 kg | |
| GVW | 8000 kg | |
| Max. driving speed(km/h) | 90km/h | |
| Engine | Brand | Yuchai,Brand,Diesel Engine |
| Type | 6 cylinders in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 132HP | |
| Displacement(L) | 2.9L | |
| Emission standard | Euro 5 | |
| Gearbox | DF6S900, 6 forwards& 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Tire | 750R16,7 pcs including 1 spare tire | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Upper Body Specification | ||
| Garbage Box Material | Carbon Steel Q235 | |
| Garbage Box Volume | 6 CBM | |
| Hydraulic System | Two Hydraulic cylinders with lifting arm; Two Hydraulic cylinders with landing leg | |
| Others | Hoisting time: 30-40S | |
| Unloading time: 40-50S | ||
| Discharging model: Self-discharging | ||
| Swing arm maximum pivot angle 145° | ||
| Remarks | 1. Color is optional | |
| 2.Customized LOGO painting as per customer request | ||
ISUZU KV100 4x2 6CBM Swing Arm Garbage Truck Advantage
The swing arm garbage truck is compatible with various types of hoppers—including trapezoidal, boat-shaped, and square designs—making it suitable for diverse urban and rural waste collection needs. Built with high-strength carbon steel, the truck is corrosion-resistant and highly durable, ensuring reliable performance in demanding environments. Its hydraulic system features dual lifting cylinders and heavy-duty chains, combined with rear hydraulic landing legs to ensure stable and efficient dumping operations. The multi-way valve system allows for easy, centralized control, with optional PLC one-touch automation to further enhance operational efficiency and user convenience.
 |  |  |

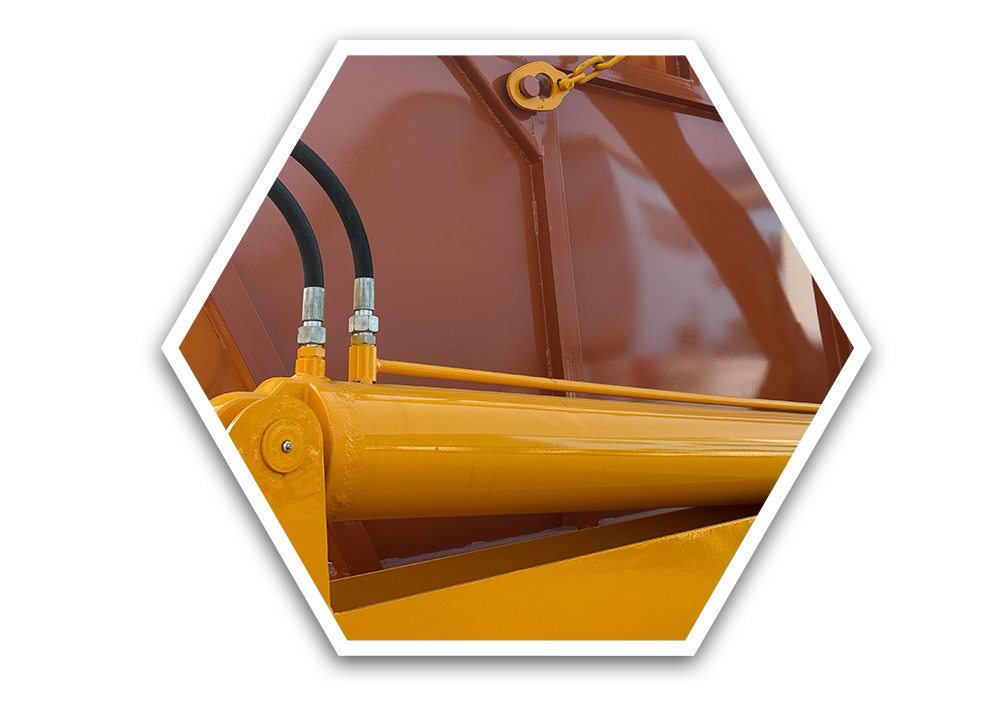

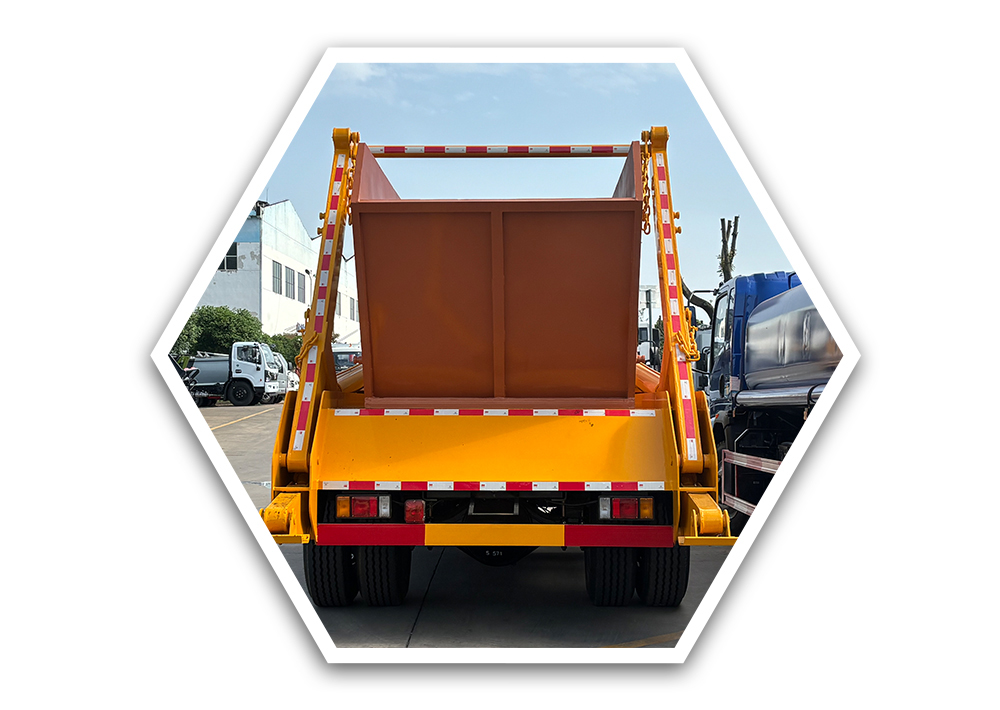

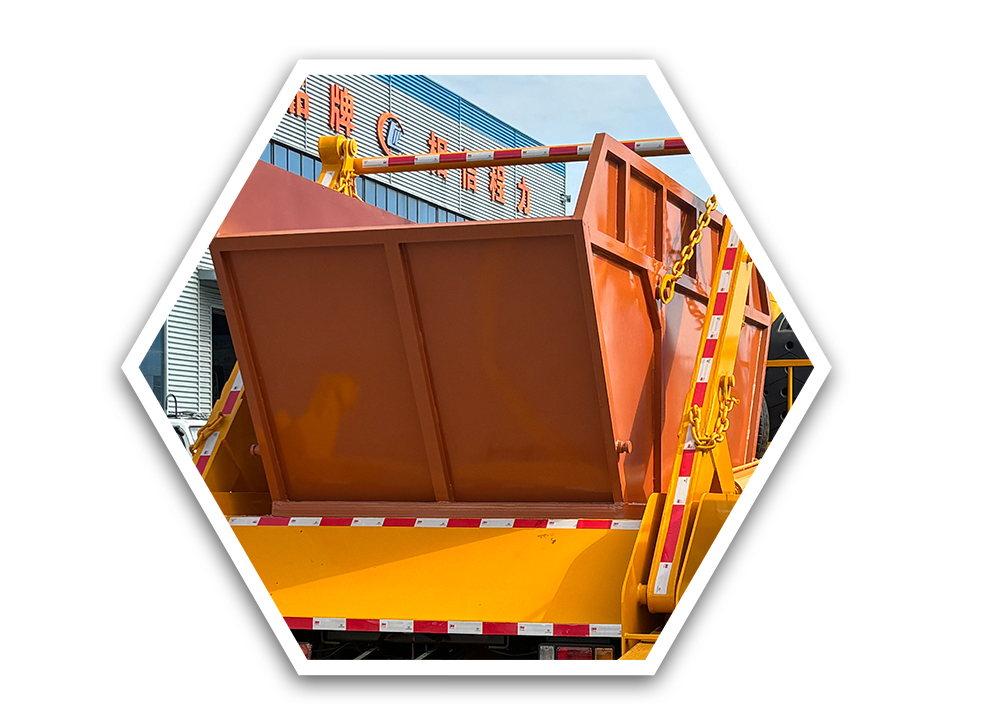

| GARBAGE HOPPER The shapes include trapezoidal hopper,boat-shaped hopper, square hopper and sealed hopper. They are made of high-quality carbon steel, which is anti-corrosion and rust-proof. | LIFTING CYLINDER At the bottom of the main box body are special double cylinders, which can lift and dump the box body. lt saves labor. | HIGH-STRENGTH CHAIN Fix the box body and complete the dumping task with the hydraulic cylinder. |
 |  |  |

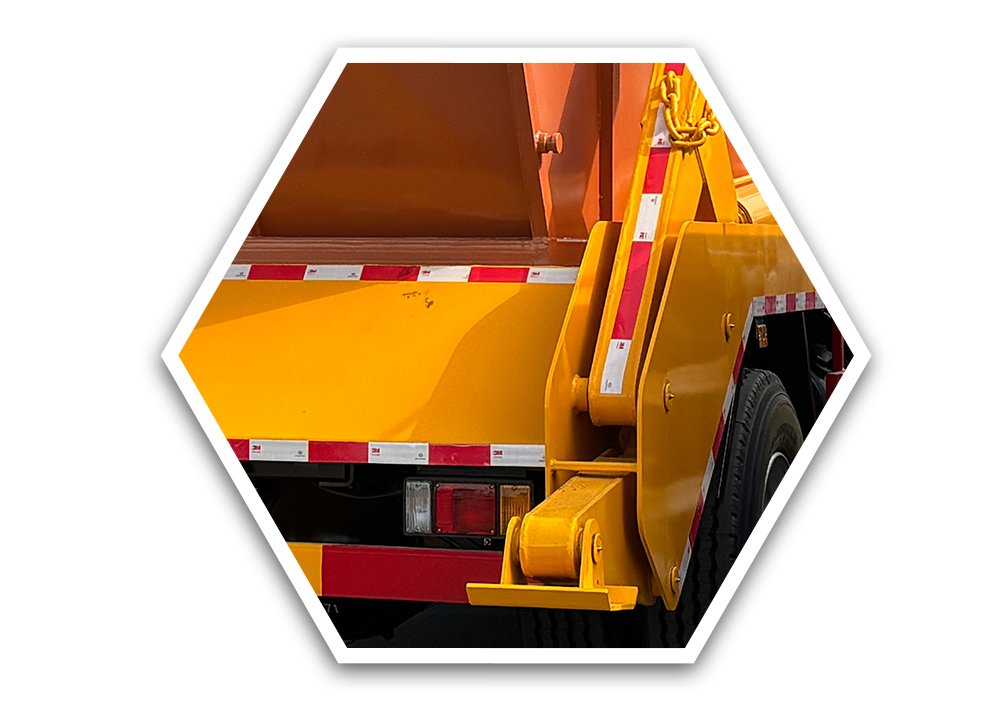

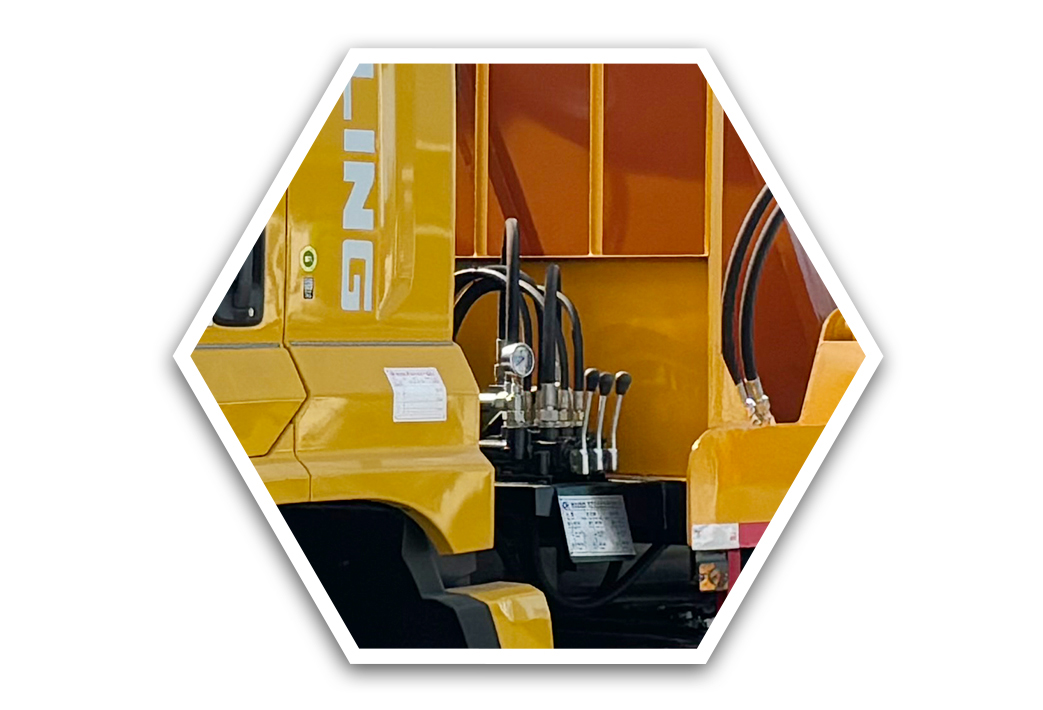

| LANDING LEGS Located at the rear of the vehicle and controlled by a hydraulic multi-way valve,they can keep the vehicle stable when lifting and lowering the garbage bin. | MULTI-WAY VALVE It can control the rear landing legs and the swing arm.The operation is simple. Optional PLC one-key control is available. | SWING ARM MECHANISM Its main function is that the multi-way valve controls the oil cylinder to drive the swing arm to move. lts rotation angle is 145 degrees. Thus, it can lift the hopper and perform a tipping action on the hopper. |

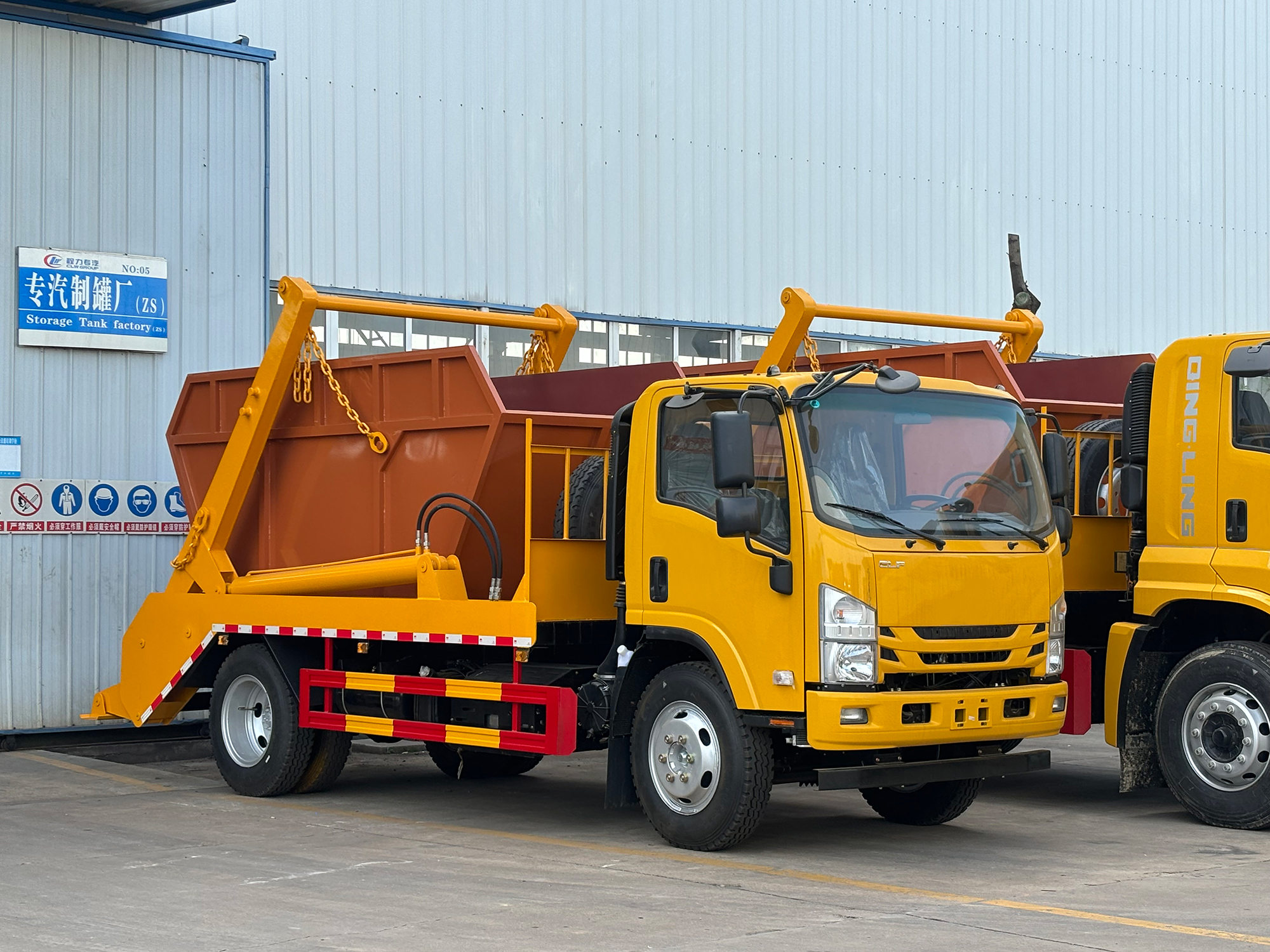

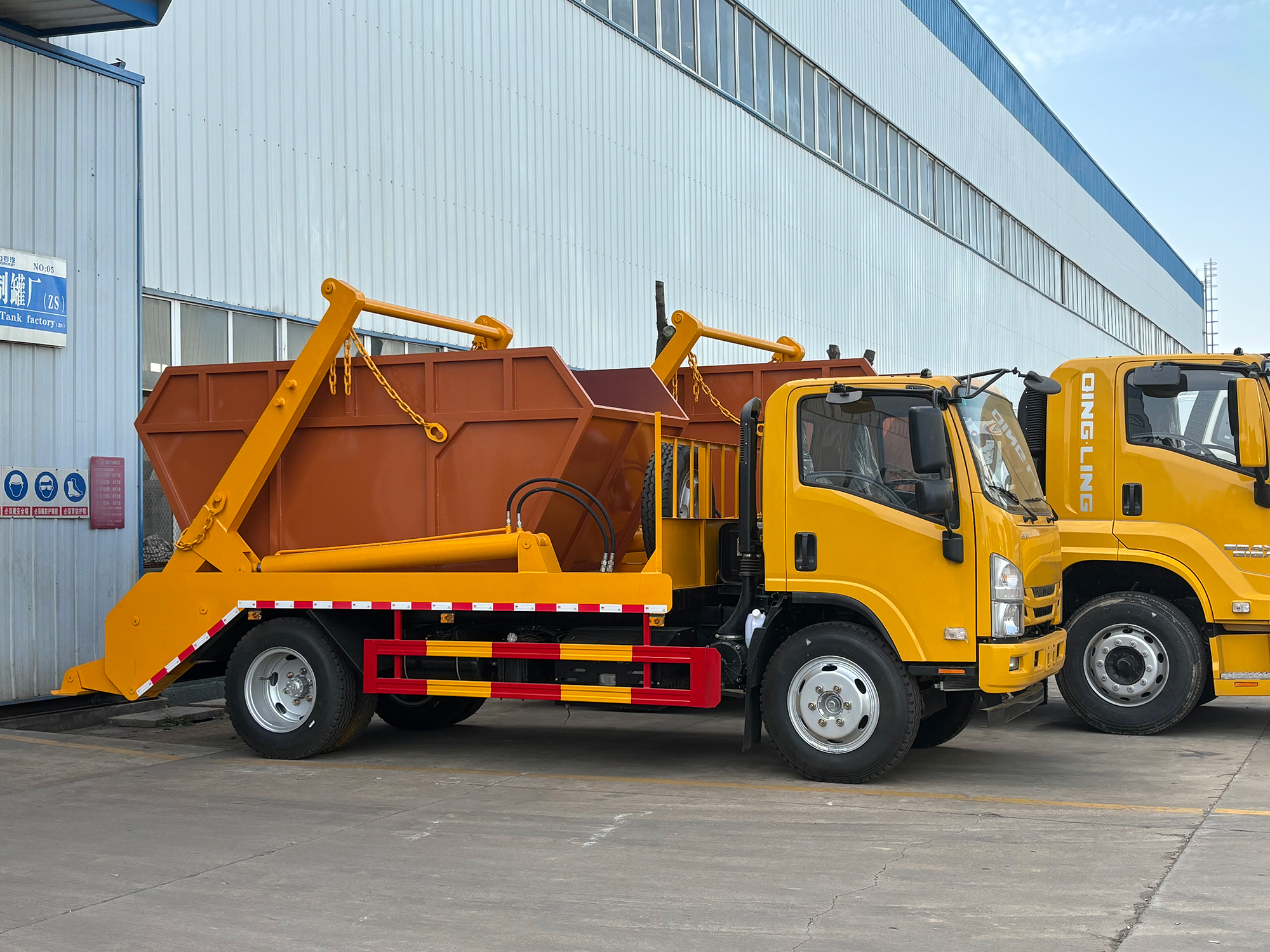

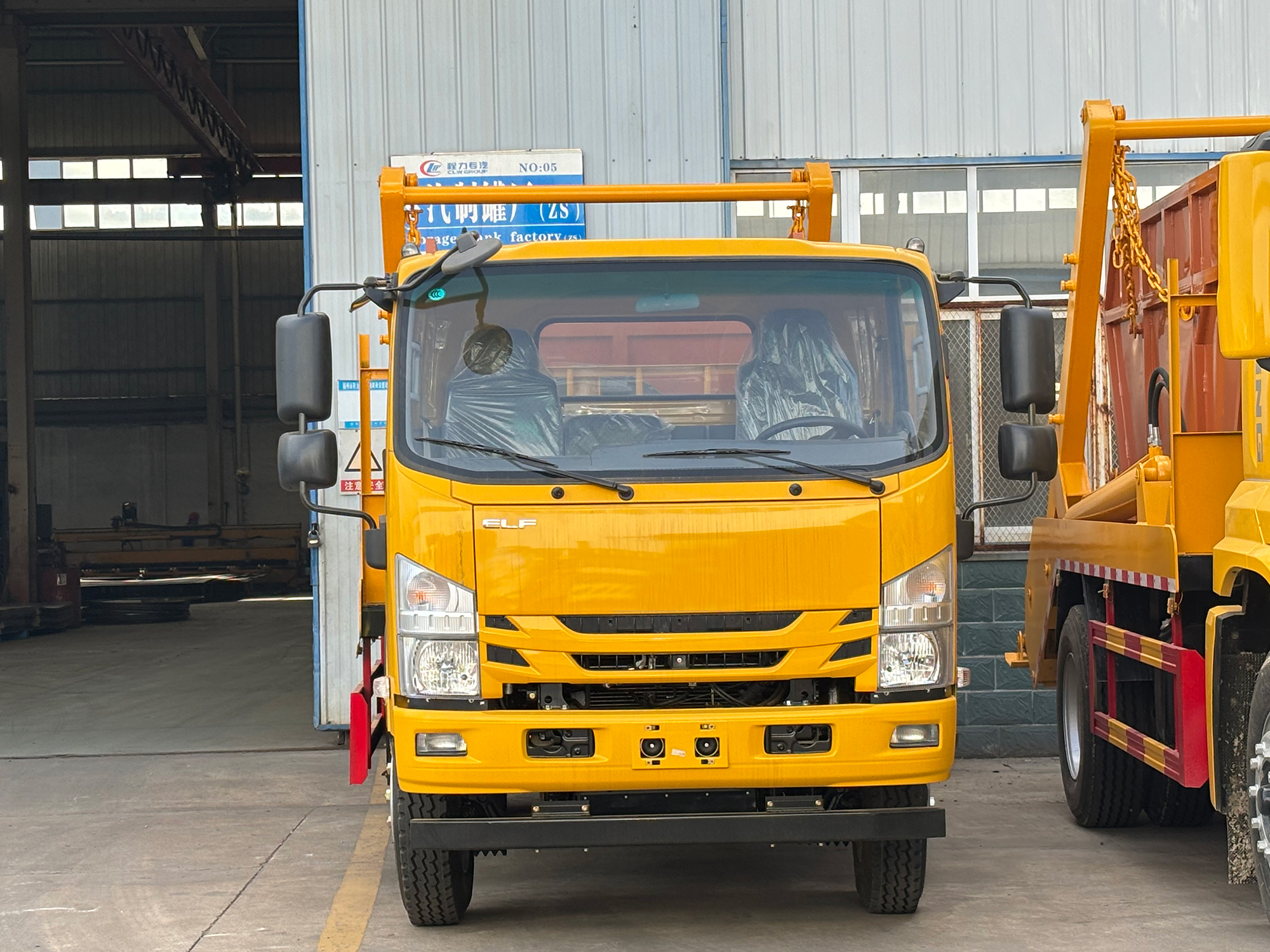

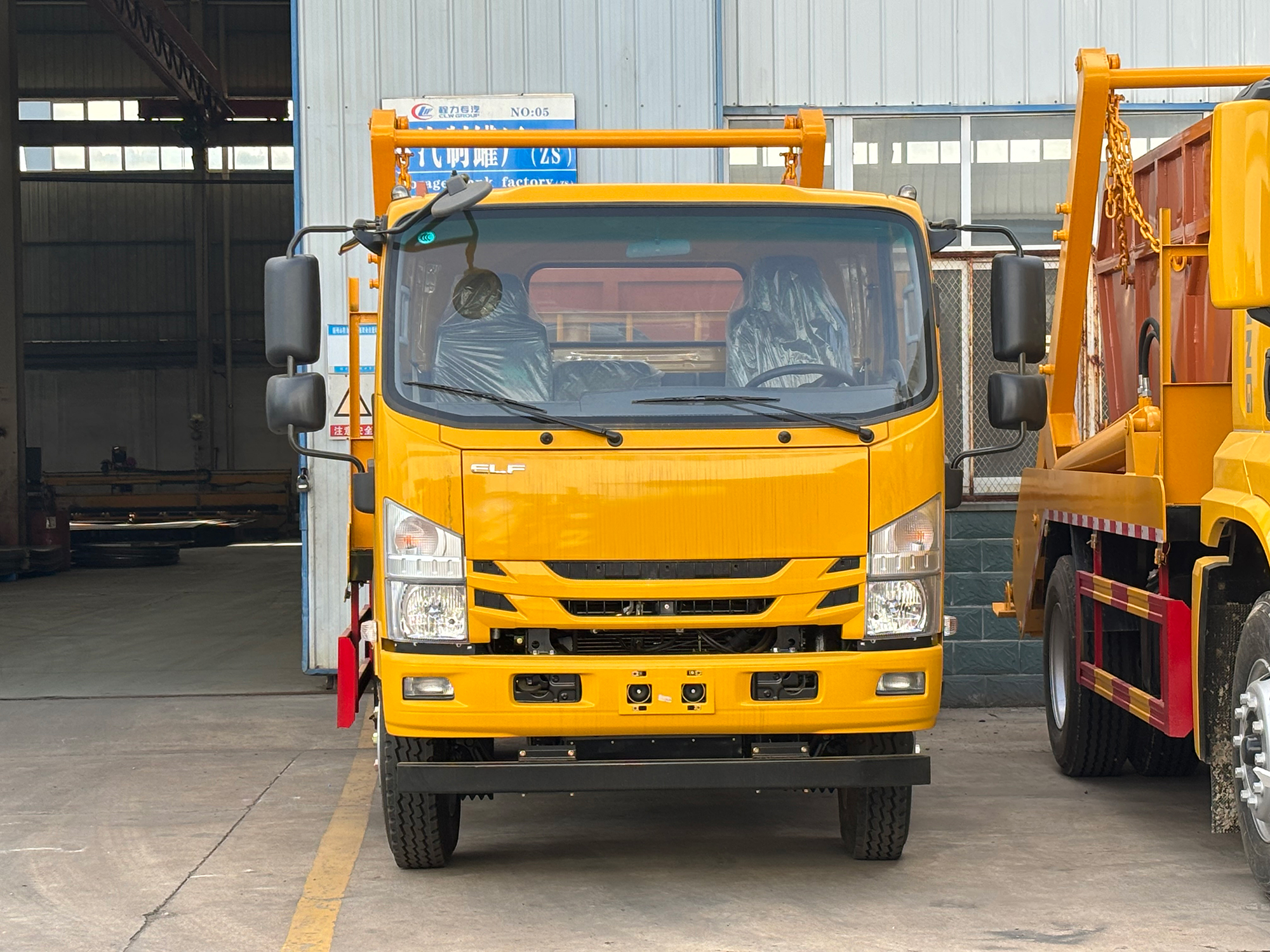

ISUZU KV100 4x2 6CBM Swing Arm Garbage Truck Gallery
How to use a Swing Arm Skip Loader Garbage Truck:
The swing arm container Waste Collection truck can be used in urban erea and suburb.
The container on the rear of the truck can be put down on the ground to gather waste at a fixed location.
When the container gathers full.the truck lift it on the flat bed on the rear of the truck.
Then dump the waste in the garbage center.
