ISUZU Kv100 4tons Flatbed Recovery Tow Truck
The ISUZU Kv100 4 Tons Flatbed Recovery Tow Truck is a reliable and efficient vehicle designed for towing, lifting, and transporting cars and light trucks. Built on the durable ISUZU Kv100 chassis, this recovery truck integrates advanced hydraulic and winch systems to provide quick and safe operations in emergency and roadside rescue scenarios. Its flatbed structure ensures smooth loading and unloading, making it ideal for transporting vehicles after breakdowns or accidents. With versatility, efficiency, and strong adaptability, the ISUZU Kv100 recovery truck is widely used on city roads, highways, and parking areas.
ISUZU Kv100 4tons Flatbed Recovery Tow Truck Advantage
1. Versatility
Multiple Functions: Combines towing, lifting, and transportation capabilities in one vehicle.
Flatbed Design: Ensures secure and stable vehicle loading for smooth transport.
Hydraulic Boom & Winch: Enables quick lifting of vehicles and handling of heavy objects.
2. Efficiency
Rapid Response: Designed for roadside rescue and accident recovery, reaching the scene quickly and completing tasks efficiently.
Easy Operation: Equipped with advanced hydraulic systems and electric winches for simple and reliable handling.
3. Adaptability
Various Application Scenarios: Suitable for city roads, highways, and parking lots.
Wide Vehicle Range: Capable of handling small passenger cars to light-duty trucks.
Flexible Configurations: Can be customized with different recovery setups to meet operational needs.
Product Specification
| Chassis Specification | |
| Chassis Model | QL108 |
| Driving Model | 4×2 |
| Dimension | 7355×2320×2750 mm |
| Cab | · Original I-SUZU KV100 wide cabin |
| · Single Row | |
| · Left Hand Driving | |
| · With AIR Conditioner | |
| · Central lock | |
| · Steer Assistance | |
| · Electric Window | |
| Wheelbase | 3815 mm |
| Gross Vehicle Weight | 9280 kg |
| Curb Weight | 5280 kg |
| Approach / Departure angle | 23°/12° |
| Axle loading (Front / Rear) | 4000 / 7000 kg |
| Axle Number | 2 |
| Tire | 235/75R17.5, 6 wheels, with one spare tire |
| Fuel Tank | 100 L / steel material |
| Engine | I-SUZU, diesel engine |
| 4 cylinders in a line, | |
| Water cooled, turbocharged, after cooled, cold start. | |
| Model: 4KH1 | |
| Horse power: 120 HP | |
| Displacement: 2999 m | |
| Emission standard: Euro 6 | |
| Transmission | Manual type, 5 forward and 1 reverse |
| Max. Speed | 105 km/h |
| Platform Parameters | |
| Platform Material | 4 mm thickness patterned one-piece board |
| Platform Size (L*W) | 5800×2300 mm |
| Max. Loading Capacity | 5000 kg |
| Winch Rating Pulling Capacity | 4000 kg |
| Under Lift Capacity | 2000 kg |
| Optional Parts | · Backstop |
| · Remote control | |
| · Valve | |
| · Warning light | |
| · Cylinder | |

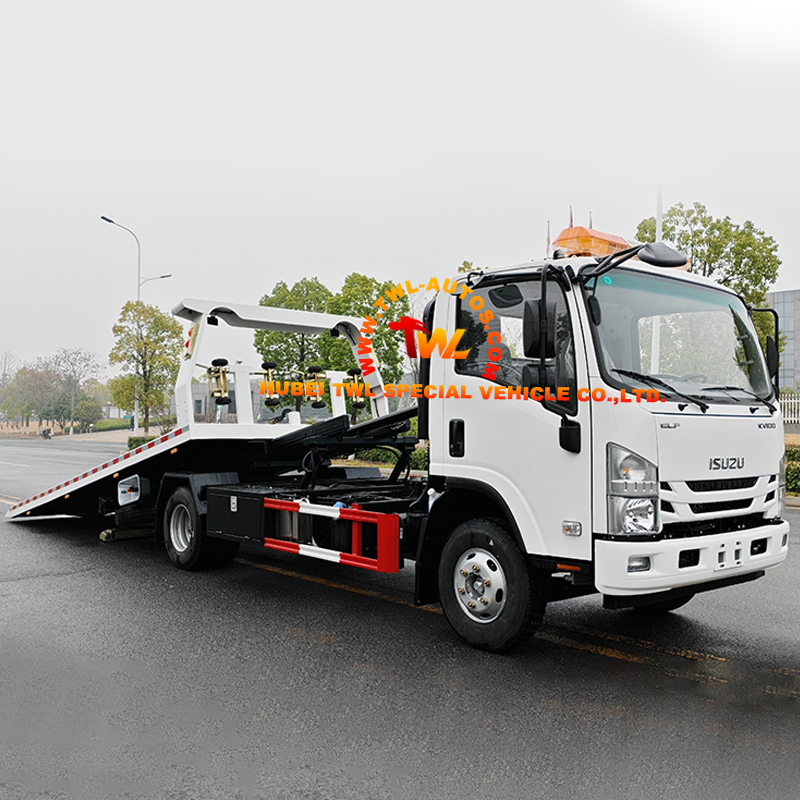

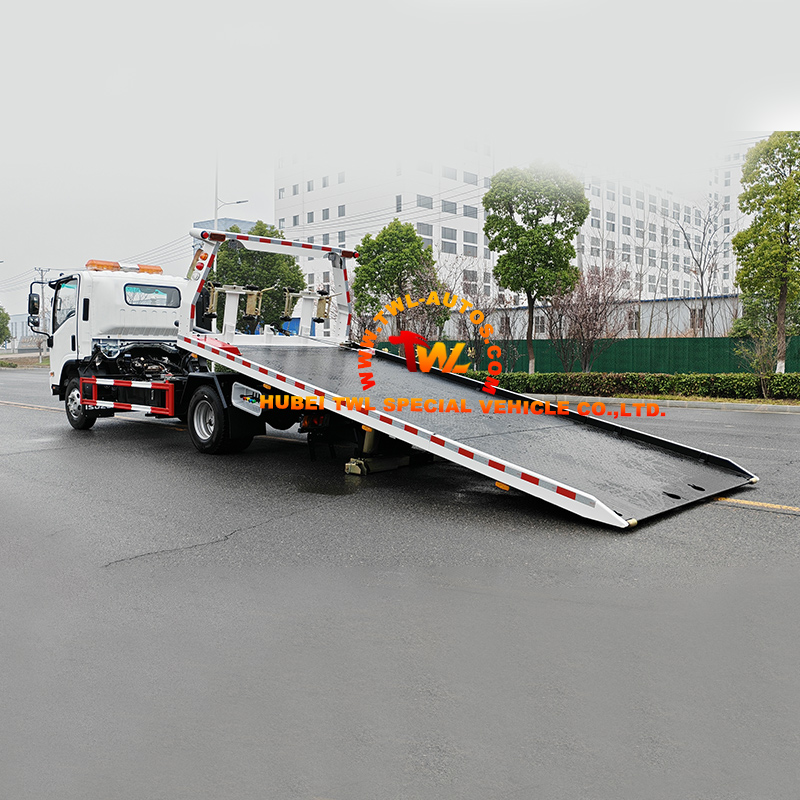

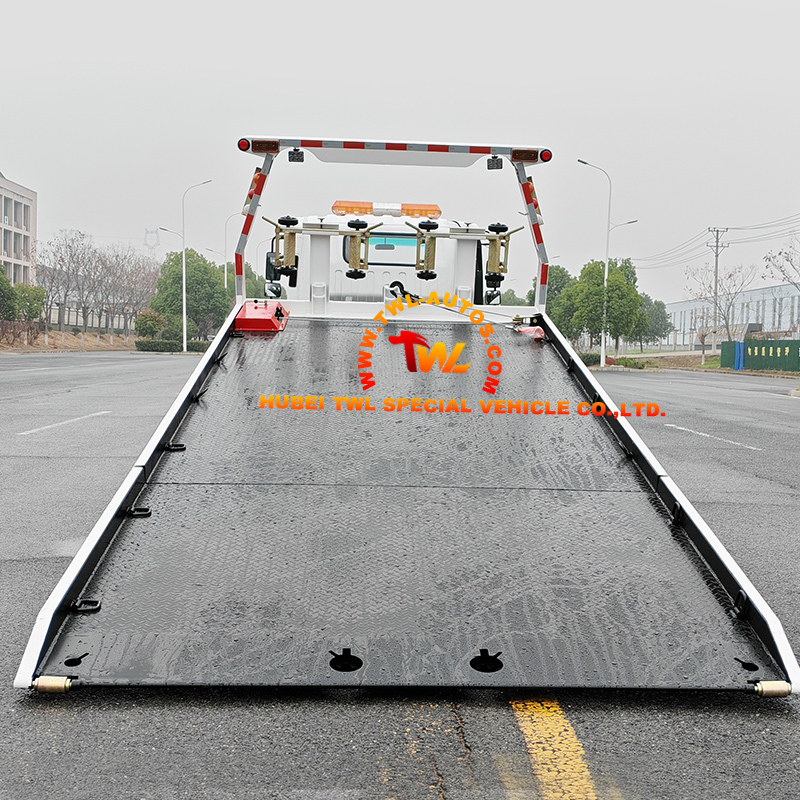

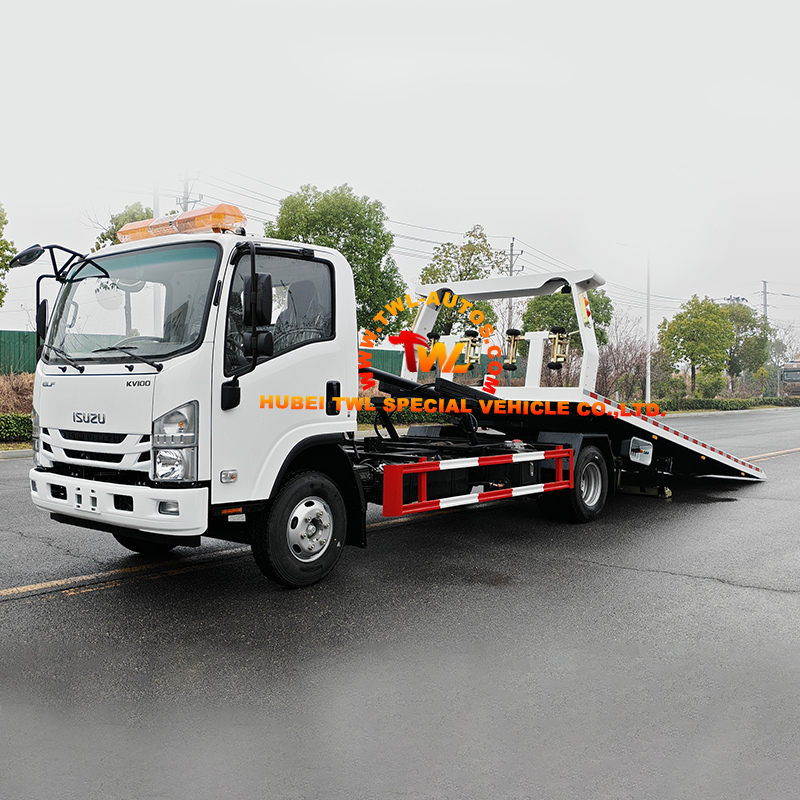

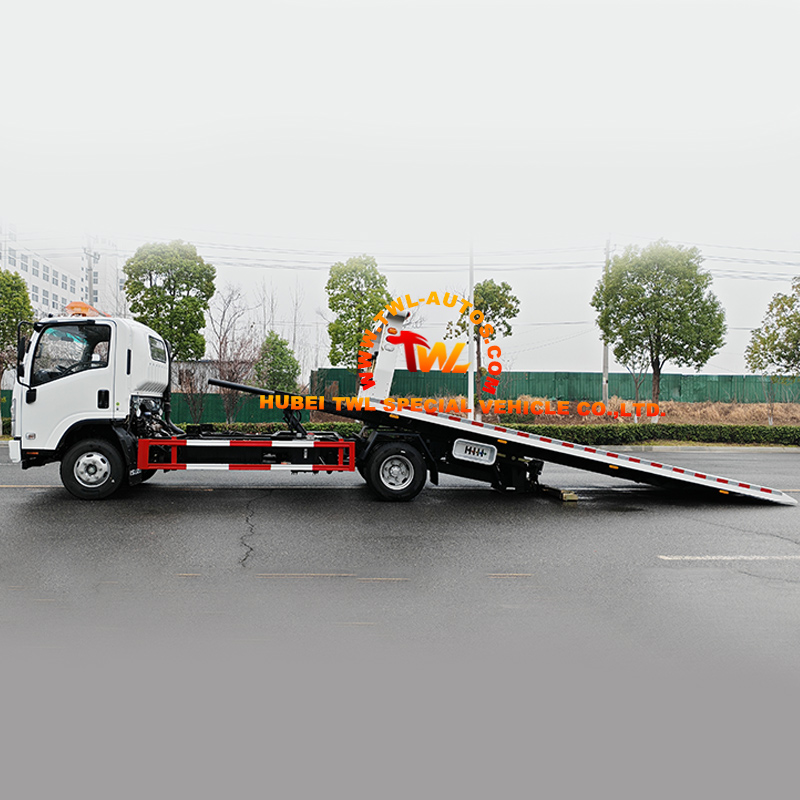

ISUZU Kv100 4tons Flatbed Recovery Tow Truck Gallery
