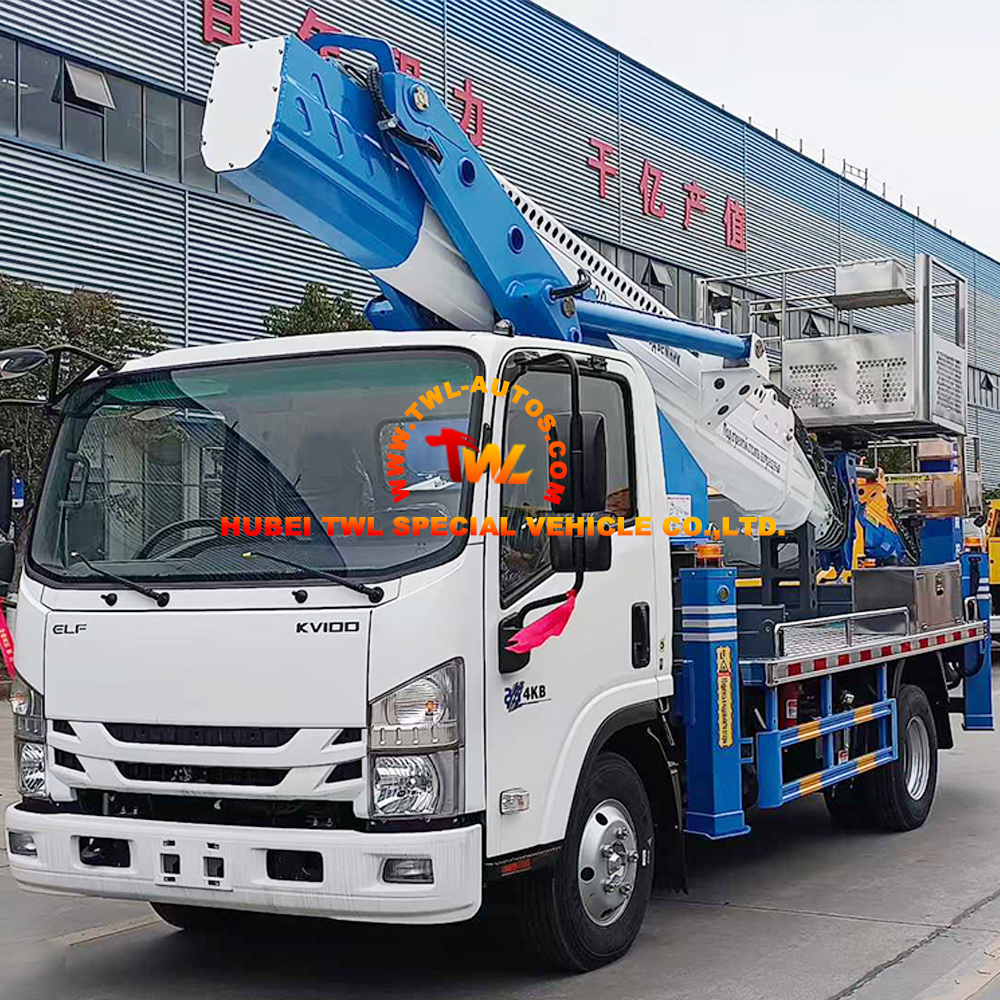

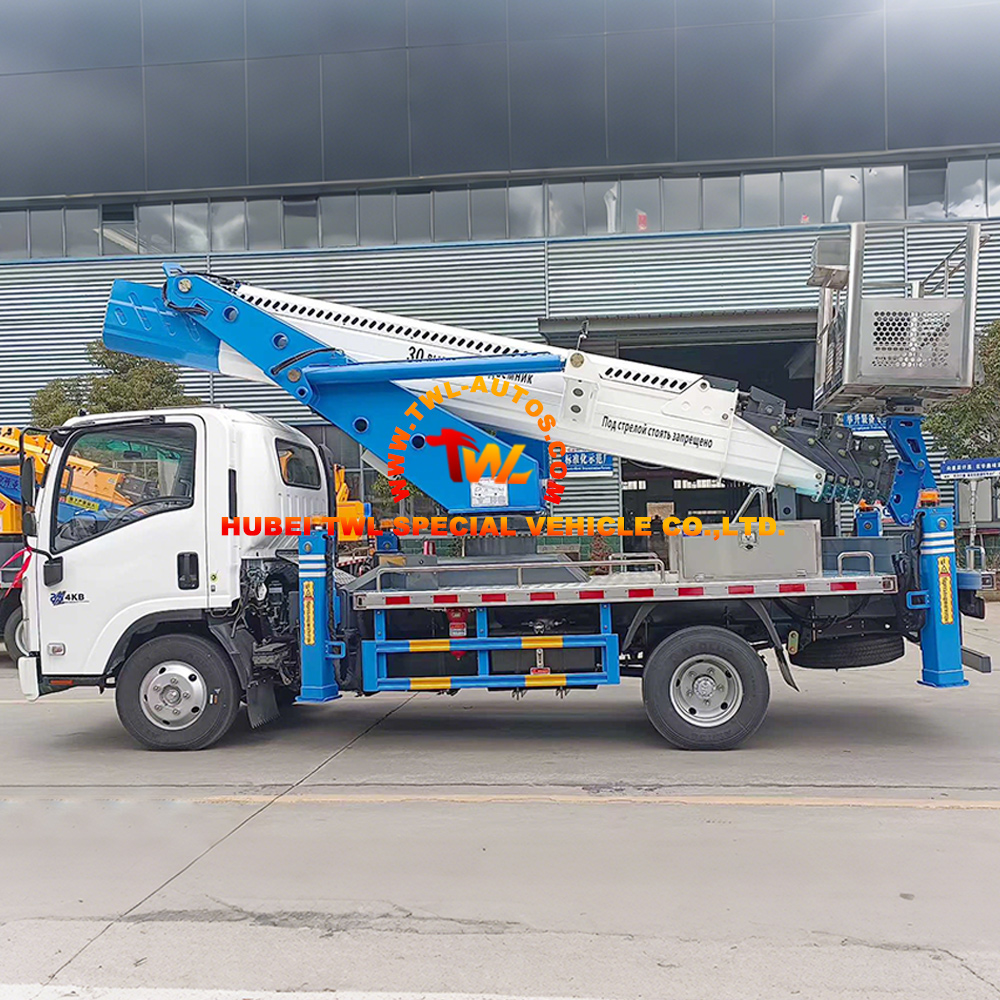

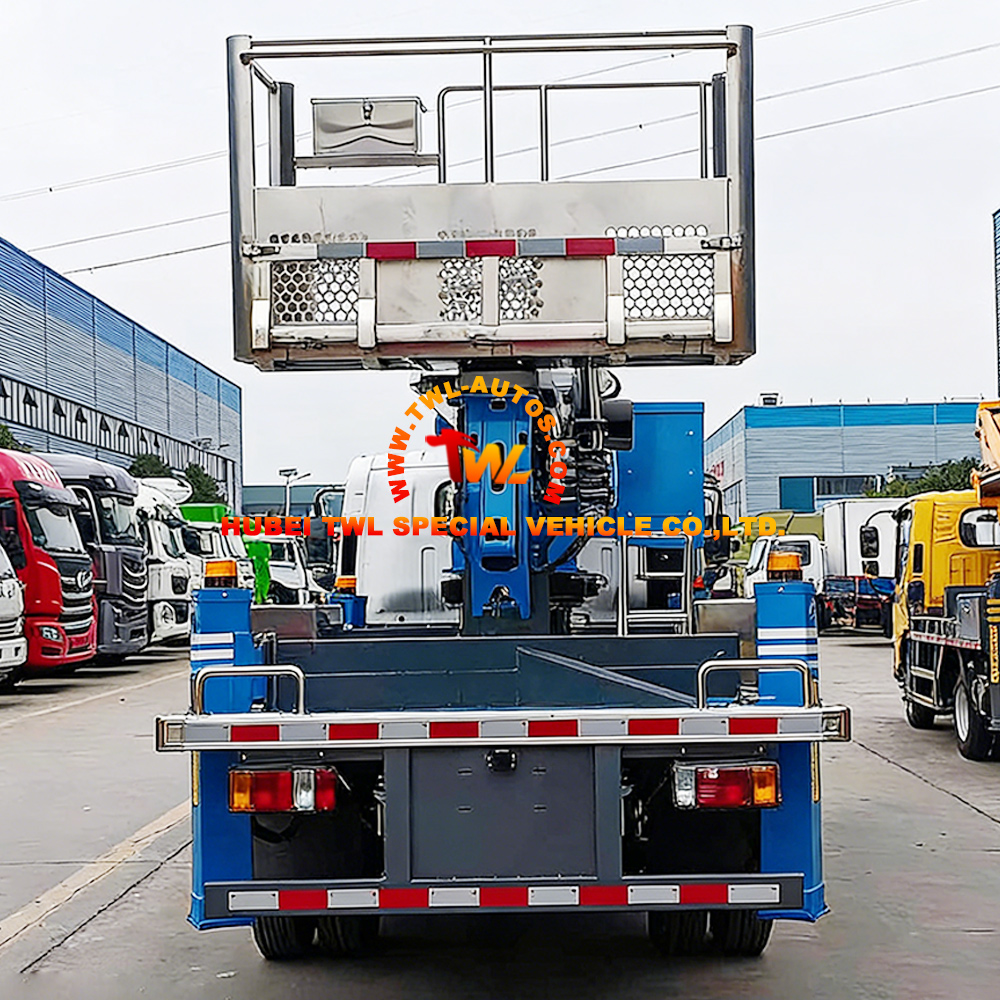

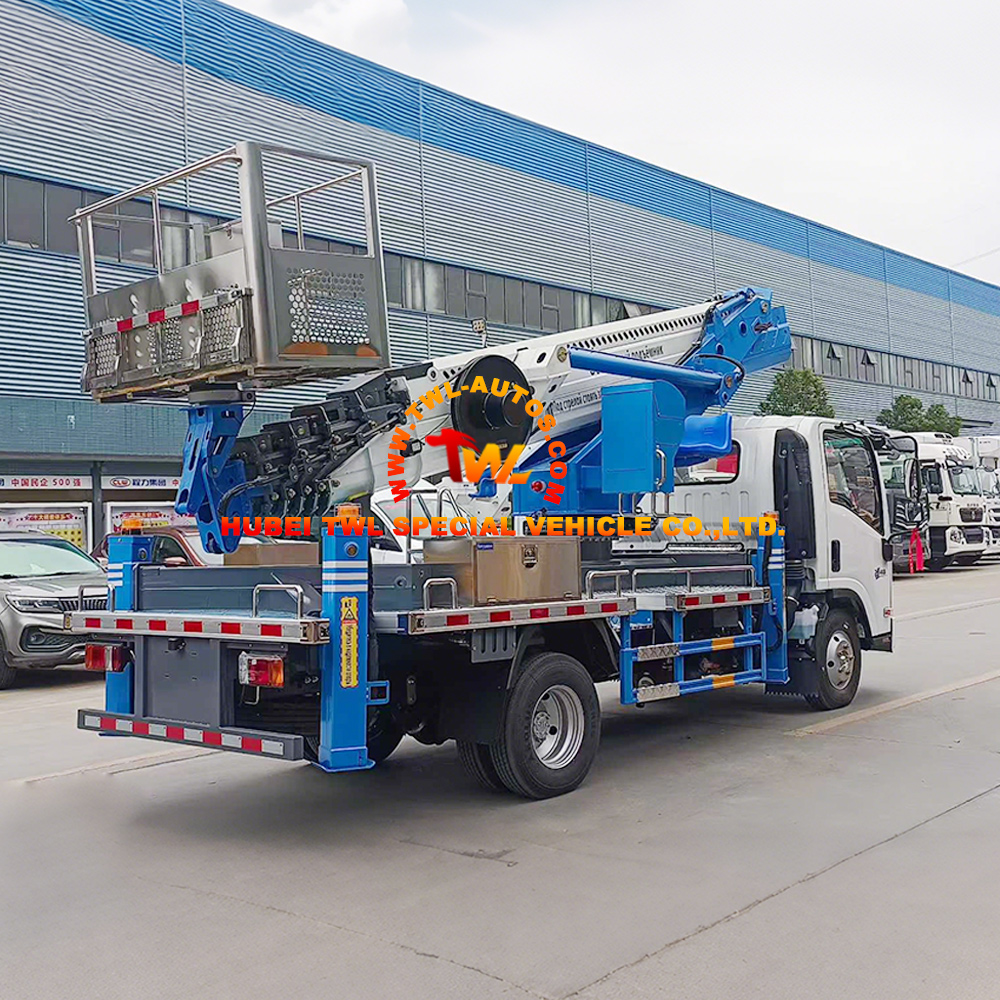

ISUZU KV100 30 Meter Mounted Aerial Platform Truck

Introducing the Isuzu KV100 30m Aerial Work Truck—the perfect fusion of Japanese engineering reliability and high-performance aerial technology. Need to work at 30 meters high or reach 24 meters sideways? This bucket truck delivers rock-solid stability, a spacious work platform, and the legendary comfort of the KV100 cabin. Get the job done safely, efficiently, and in style.

ISUZU KV100 30 Meter Mounted Aerial Platform Truck

The Isuzu KV100 30m Truck Mounted Aerial Work Platform combines the legendary reliability of the Isuzu KV100 chassis with a high-performance 30-meter telescopic boom system. Built to meet rigorous National VI emission standards, this aerial work truck delivers exceptional stability and reach for demanding high-altitude operations. Featuring a 6-section 14-sided polygonal boom and a robust Front V and Rear V outrigger configuration, it ensures operator safety and precision across a wide working range. Whether for municipal maintenance or construction, this Isuzu-based manlift is engineered for durability and efficiency.

Key Features

1. Premium Isuzu KV100 Chassis: Built on the trusted Isuzu KV100 platform with a 3815mm wheelbase and 275/80R22.5 16PR tires. Powered by the efficient 4KB1-TCG60 engine (2499ml, 96kW / 130HP), paired with an MSB five-speed transmission. The cabin is equipped with air conditioning, power steering, central locking, electric windows, and a remote control key for superior operator comfort.

2. Advanced Stability System: Features a sophisticated Front V and Rear V double-leg hydraulic outrigger system. With a massive horizontal span of 6400mm and a vertical span of 6100mm, this setup guarantees rock-solid stability even when working at maximum height or outreach.

3. Precision Engineering Boom: The upper configuration includes a 6-section, 14-sided polygonal boom with synchronous telescopic action. This multi-faceted design significantly reduces torsional deflection, providing smoother movements and increased rigidity compared to traditional round booms.

4. Optimal Working Parameters:

· Max Working Height: 30m

· Lateral Extension: 24m

· Backward Extension: 28m

· Platform Capacity: 200kg (Large basket: 3200×700×1100mm)

5. Versatile Optional Equipment: Tailor the vehicle to specific job requirements with options such as a dual-purpose oil and electric drive, a reverse camera for enhanced safety, a hydraulic winch, and an upper operation cab for better elevated visibility.

Applications

· Municipal Services: Ideal for street lighting maintenance, traffic signal installation, and urban tree trimming.

· Utility Maintenance: Power line inspection and telecommunication cable repairs.

· Construction & Renovation: Exterior cladding, painting, and high-rise building upkeep.

· Industrial Facilities: Maintenance of large warehouses, factories, and outdoor signage.

Product Specification

Vehicle parameters	Vehicle Name	35m Truck Mounted Aerial Platform / Aerial Work Truck / Bucket Truck / Manlift truck / High-Altitude Operation Truck
	External dimensions	7665×2430×3780mm(length, width, height)
	Total mass	12000kg
	curb weight	11605kg
Chassis parameters	emission standard	National VI
	rear overhang	2780
	tire	275/80R22.5 16PR
	wheelbase	3815
	MSB five speed transmission with air conditioning, steering assistance, central locking, electric doors and windows, remote control key
engine	model	4KB1-TCG60
	Displacement (ml)	2499
	Power (kW)	96
	Horsepower (ps)	130
Upper configuration	Big arm structure	6-section 14-sided large arm, synchronous telescopic
	Leg	Front v and rear v double leg support	Horizontal span	6400mm
			Vertical span	6100mm
	Hanging basket size	3200(1800)×700×1100mm(length, width, height)
	Rated load of work platform	200kg	Maximum homework height	35m
	Lateral extension	24m	Backward extension	28m
	Optional: dual-purpose oil and electric device, reverse camera, hydraulic winch, upper operation cab
