ISUZU KV100 23meters Aerial Work Platform Truck
Provided by TWL, the ISUZU KV100 23-Meter Aerial Work Platform Truck combines compact mobility, reliable performance, and a high 300kg platform load. Built on the ISUZU KV100 chassis, it is ideal for urban maintenance, industrial servicing, and emergency operations where efficiency, safety, and flexibility are essential.
ISUZU KV100 23meters Aerial Work Platform Truck
The TWL ISUZU KV100 23-Meter Aerial Work Platform Truck is a professional solution designed for high-altitude operations across municipal, industrial, and emergency sectors. Built on the trusted ISUZU KV100 chassis, this model features a 3360mm wheelbase, delivering excellent balance between load capacity and maneuverability, making it especially suitable for urban and regional environments.
Powered by a 120 HP ISUZU engine, the platform offers dependable output for daily aerial tasks while maintaining outstanding fuel efficiency, significantly reducing long-term operating and maintenance costs. Renowned ISUZU engineering ensures durability, reliability, and stable performance even under continuous operation.
With a 300kg rated platform capacity, the aerial work platform supports 2–3 operators along with tools or professional equipment, enabling true multi-person collaboration. Materials, components, and instruments can be lifted in a single operation, reducing repetitive loading cycles and dramatically improving work efficiency.
The robust boom structure, reinforced platform design, and built-in safety margin provide enhanced operational stability and reduce risks associated with overload or miscalculation. This makes the TWL ISUZU 23m aerial platform an excellent choice for complex and high-intensity aerial maintenance tasks.
Typical Application Scenarios
Building facade construction and maintenance
Municipal and public infrastructure servicing
Factory, logistics park, and warehouse operations
Power line, lighting, and cable inspection
Emergency rescue and disaster response
Filming, cinematography, and large-scale events
Key Advantages
1. High Work Efficiency
The 300kg platform capacity allows multiple workers with full tool sets to operate simultaneously. One-time lifting of personnel and materials reduces setup time and shortens the overall work cycle.
2. Strong Operational Capability
Able to carry heavier and larger equipment such as welders, hydraulic tools, and inspection devices, the platform adapts easily to demanding installation and maintenance tasks.
3. Excellent Mobility & Flexibility
The 3360mm wheelbase ensures smooth steering and compact movement, enabling reliable access to narrow urban streets, industrial sites, and confined work areas.
4. Enhanced Safety Assurance
A higher rated load reflects stronger structural design. Even at full capacity, the platform maintains stability, reducing overload risk and improving operator safety.
5. Low Operating Cost
The ISUZU 120 HP engine delivers category-appropriate power with exceptional fuel efficiency, helping users minimize lifetime ownership and operational expenses.
Product Specification
| ISUZU KV100 23meters Aerial Work Platform Truck | |
| Chassis Specification | |
| Chassis Model | QL104 |
| Driving Model | 4×2 |
| Dimension | 8000 x 2400 x 3500 mm |
| Cab | Original ISUZU KV100 cabin |
| With Air Conditioner | |
| Left Hand Drive | |
| Wheelbase | 3360mm |
| Gross vehicle Weight | 4000 kg |
| Front Axle Loading Capacity | 2500 kg |
| Rear Axle Loading Capacity | 4800 kg |
| Axle Number | 2 |
| Tire | 7.00R16 |
| 6pcs with 1 spare tire | |
| Engine | ISUZU diesel engine |
| 4 cylinders in a line, | |
| Water cooled, turbocharged, after cooled, cold start. | |
| Model: 4KH1CN6LB | |
| Horse power: 120 HP | |
| Displacement: 2999ml | |
| Emission standard: Euro 6 | |
| Transmission | Model: ISUZU |
| 5 Forward & 1 Reverse | |
| Fuel Tank Capacity | 100L |
| Upper Specifications | |
| Working Platform | Size: 1600 x 700 x 1000 mm |
| Material: Stainless Steel | |
| Rated Load: 300 kg | |
| Boom Form | Synchronization telescope |
| Max. Working Height | 23 meters |
| Outrigger Span | Landscape: 4200 mm |
| Portrait: 4000 mm | |
| Front “V” type, Rear “H” type | |
| Independently adjustable (controlled) | |
| Partition Boards & Walkway Boards | Material: Stainless Steel & Anti-slip |
| Rotator | 360 ° of continuous rotation |
| Operation | Electrically controlled operation |
| Manual emergency operation | |
| Control System | CAN control system, equipped with wireless remote control, realize stepless speed regulation |

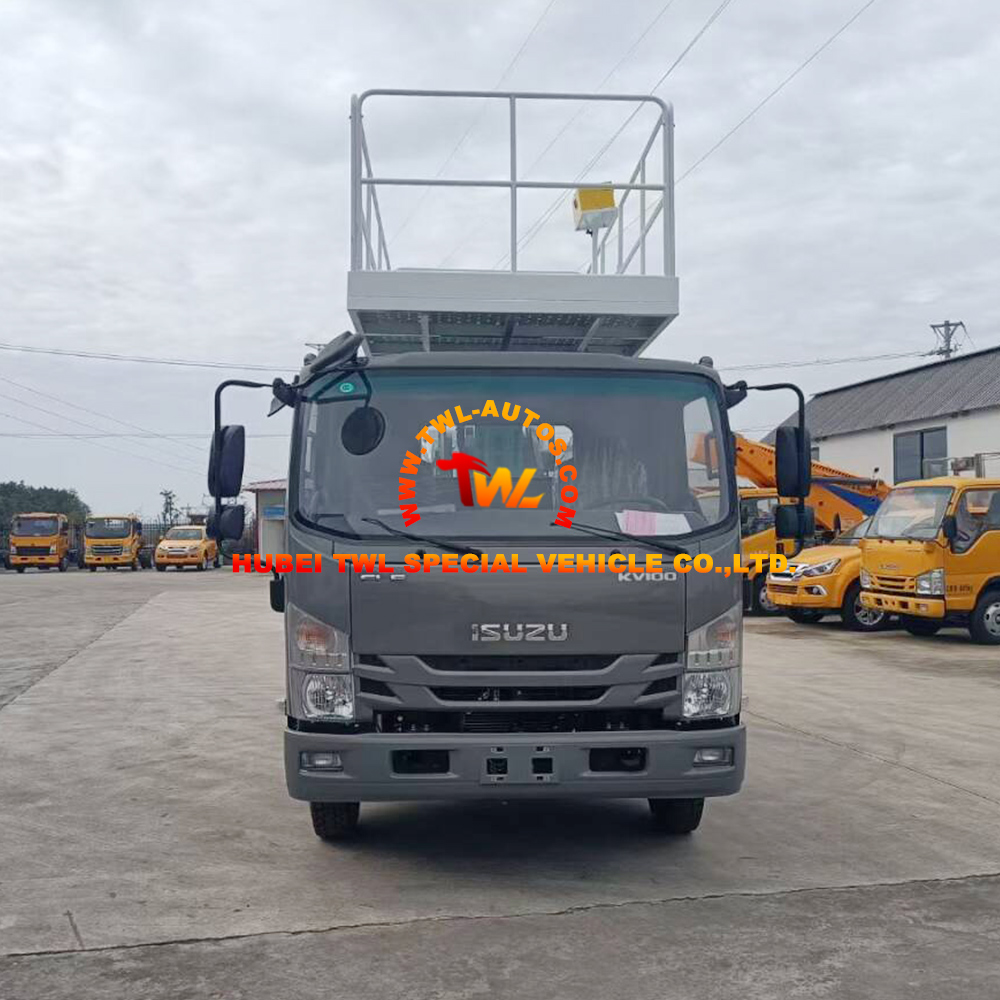

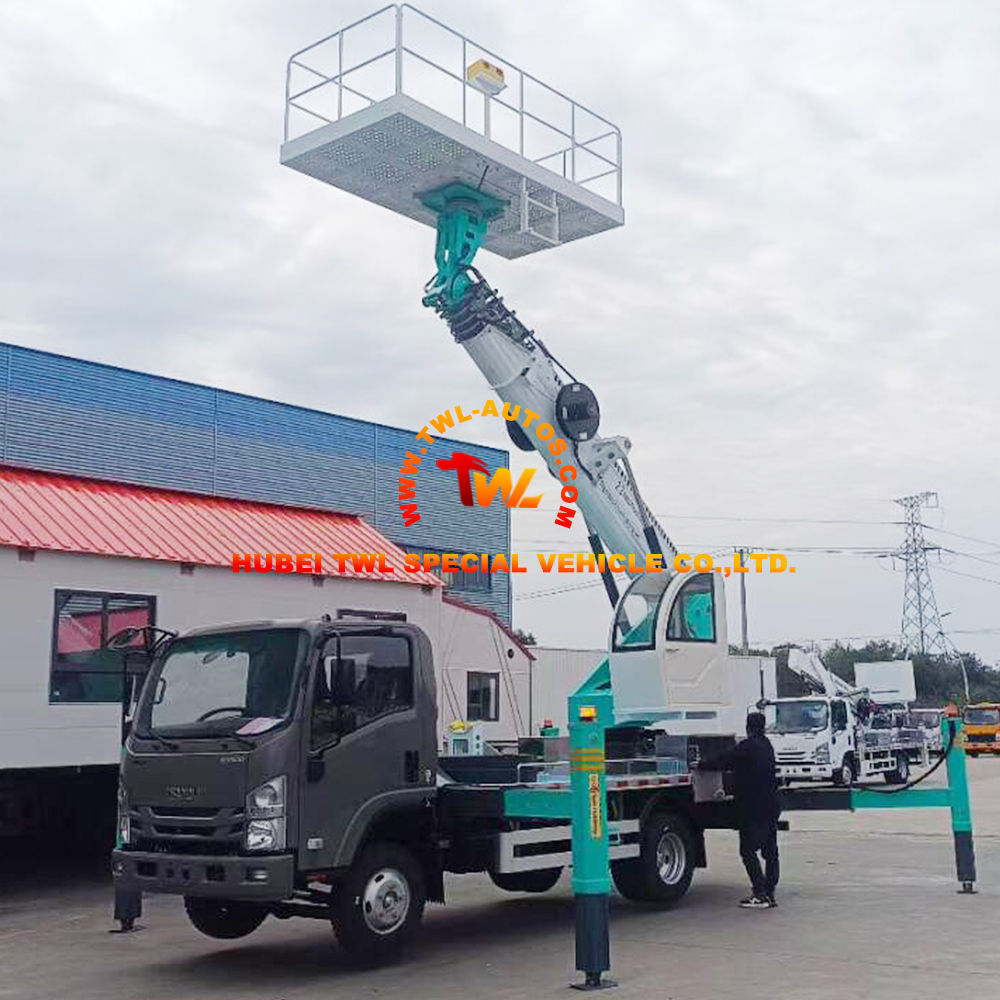

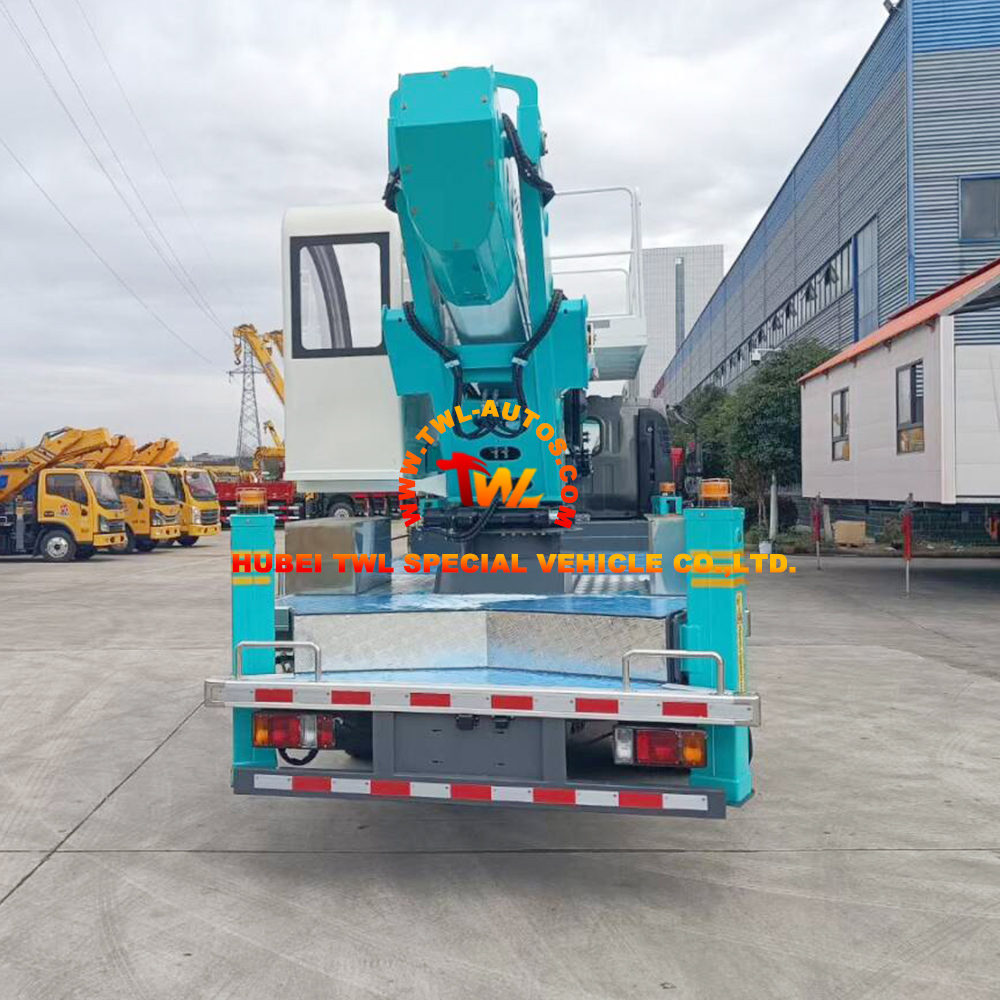

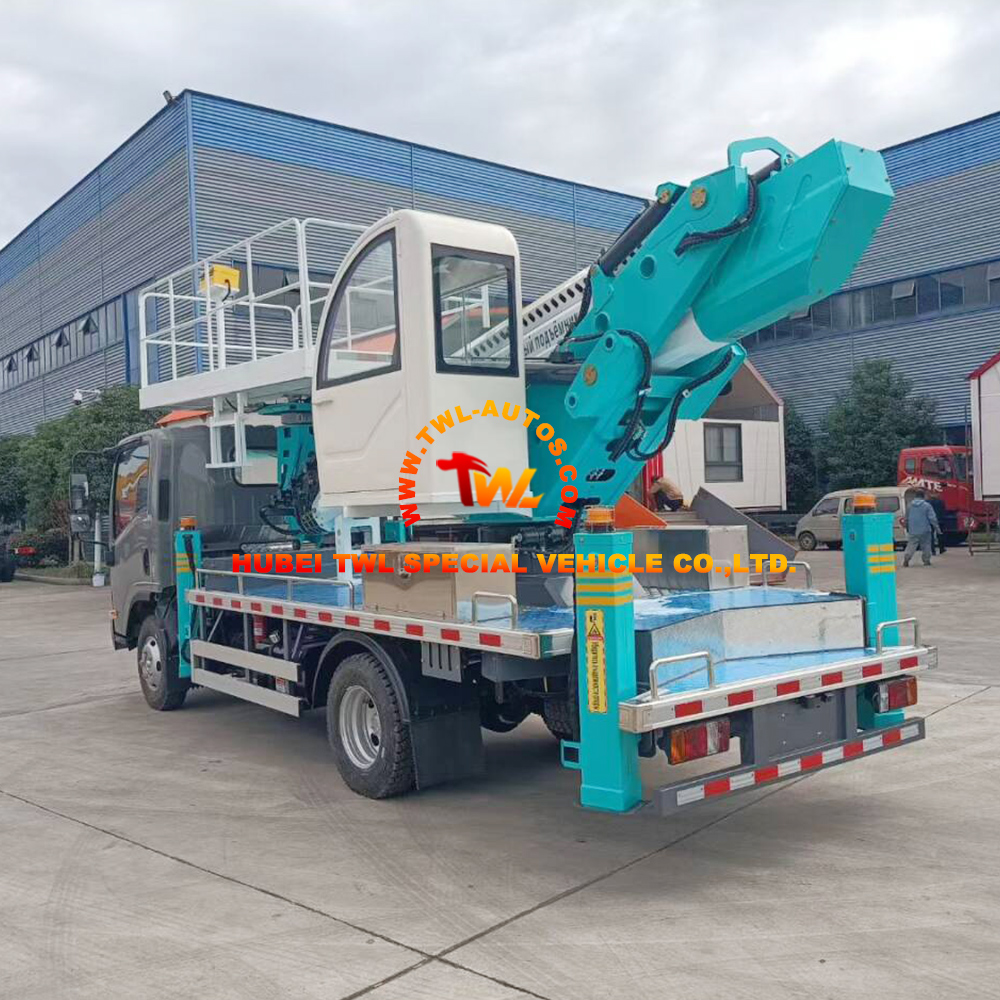

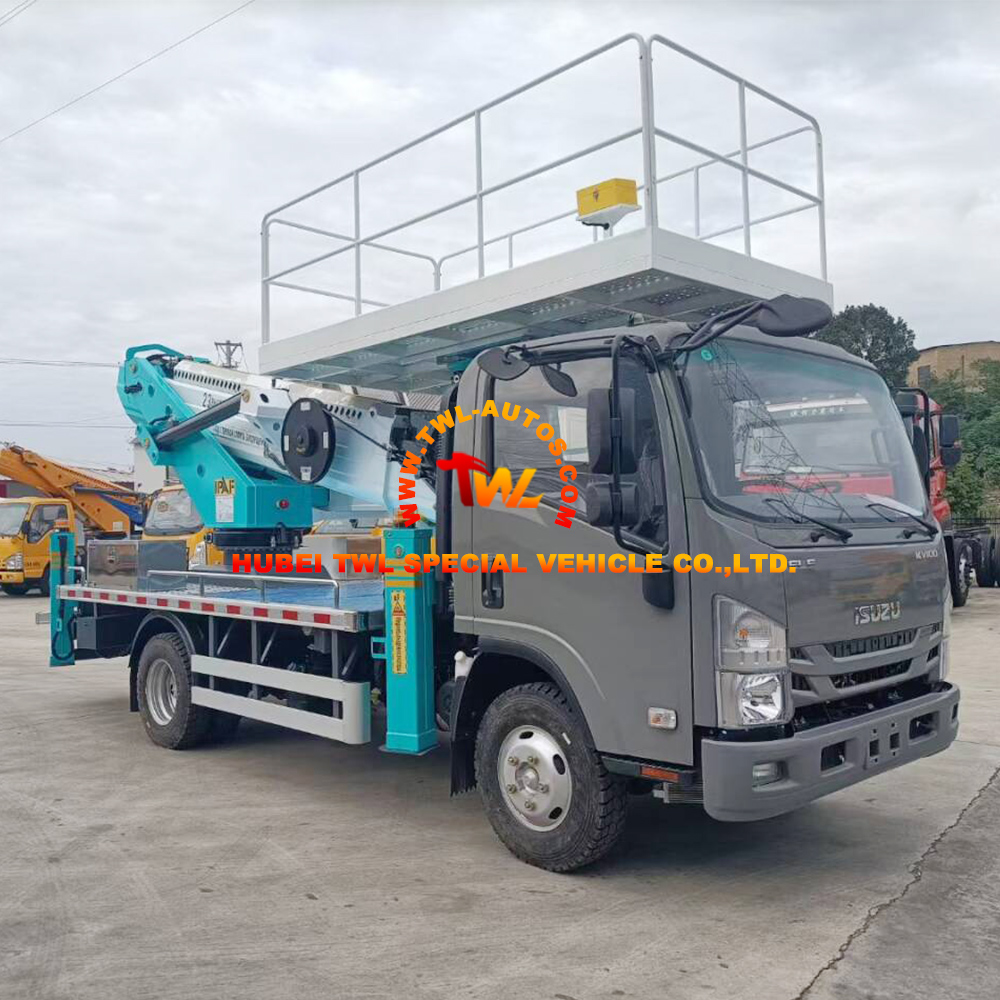

ISUZU KV100 23meters Aerial Work Platform Truck Gallery
