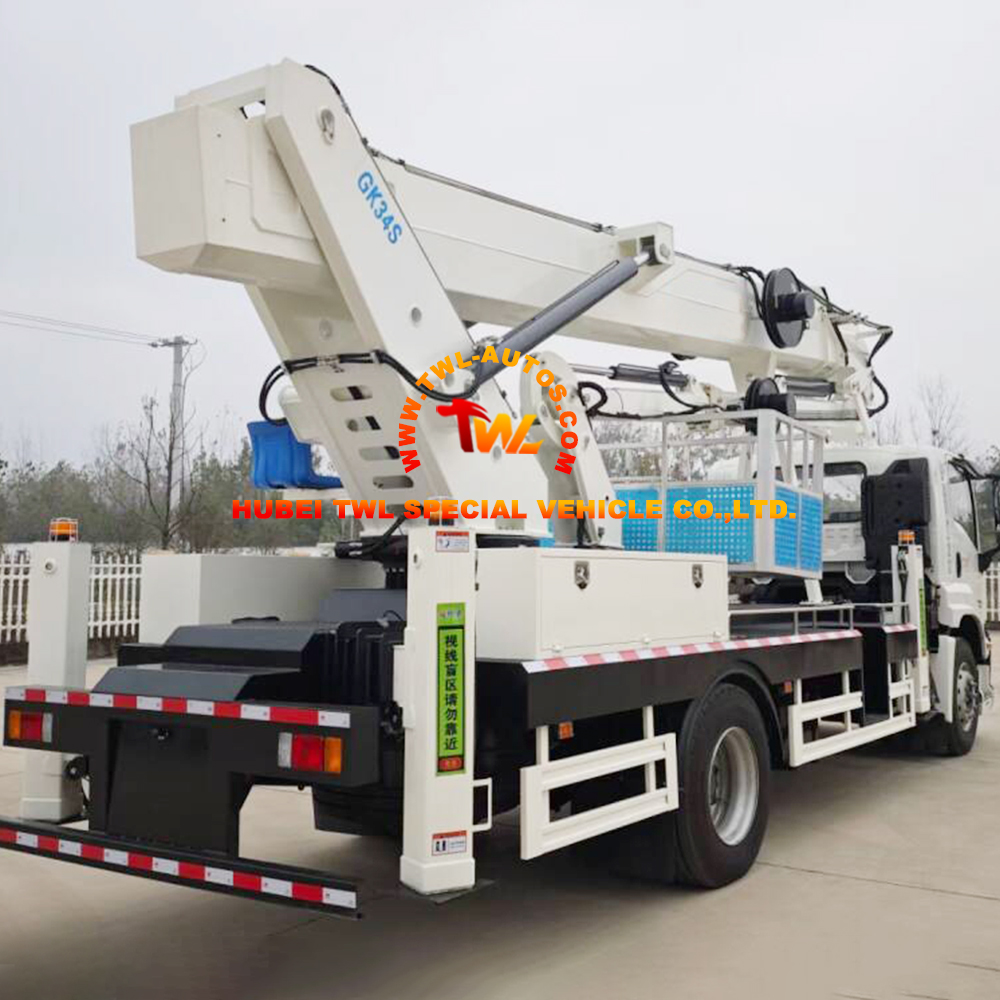

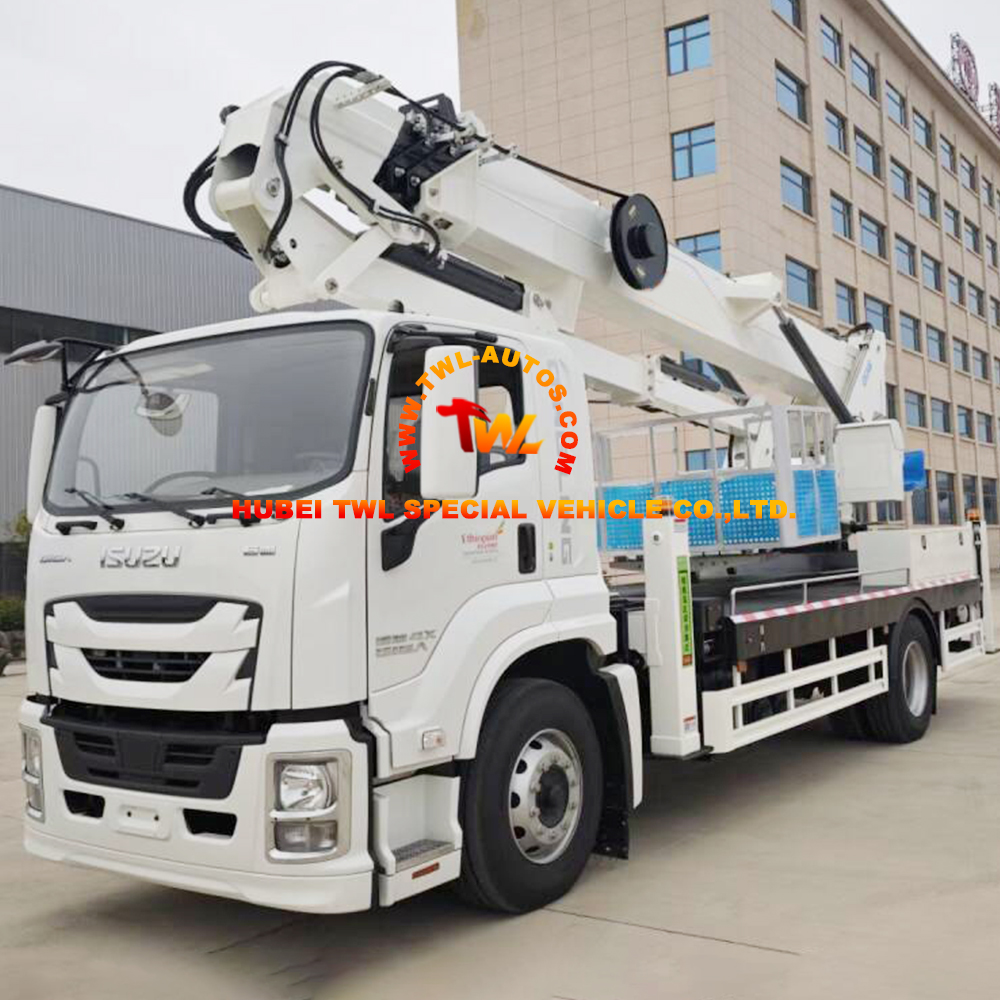

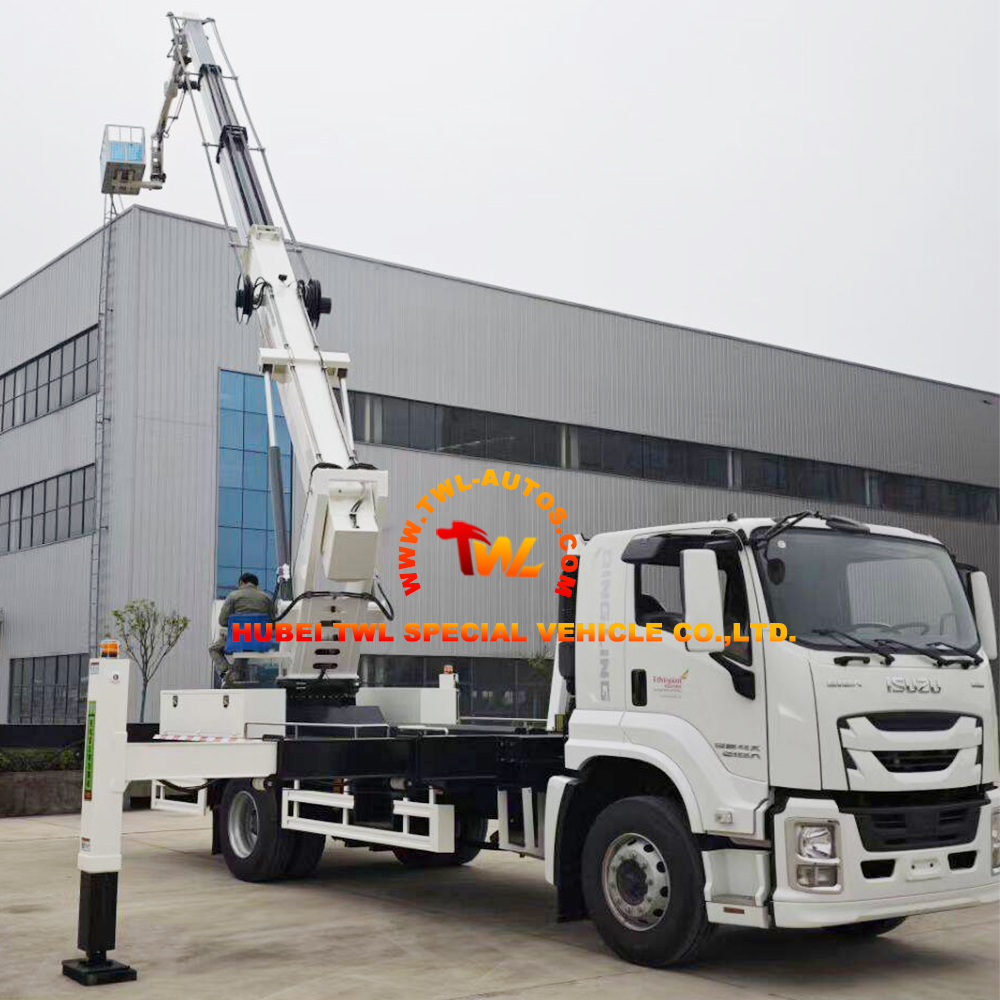

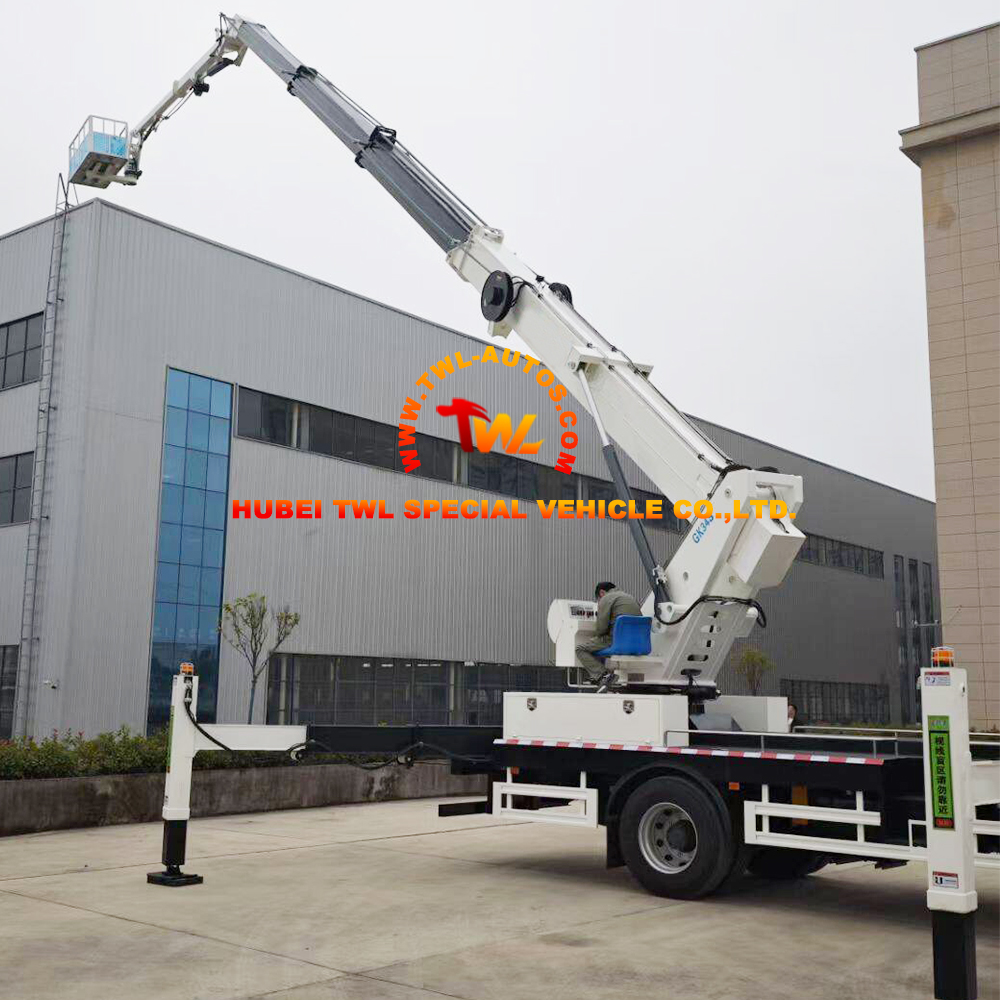

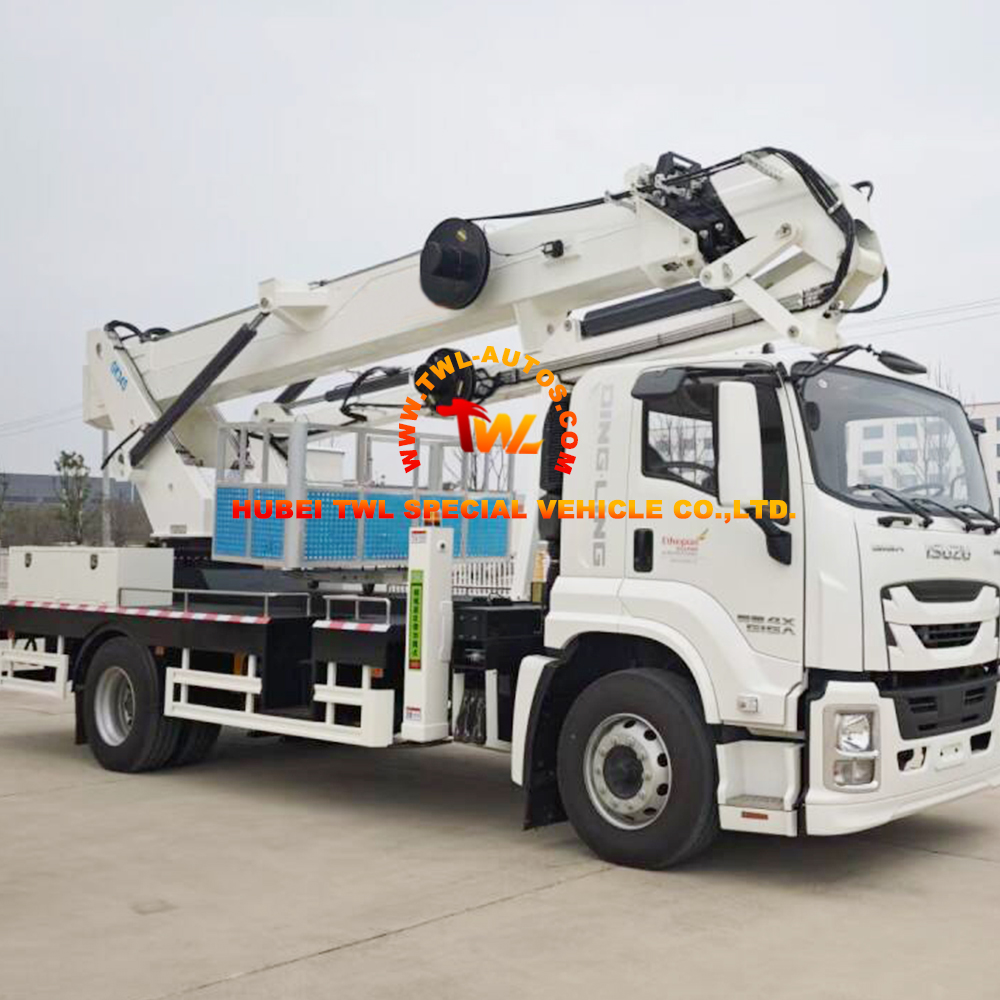

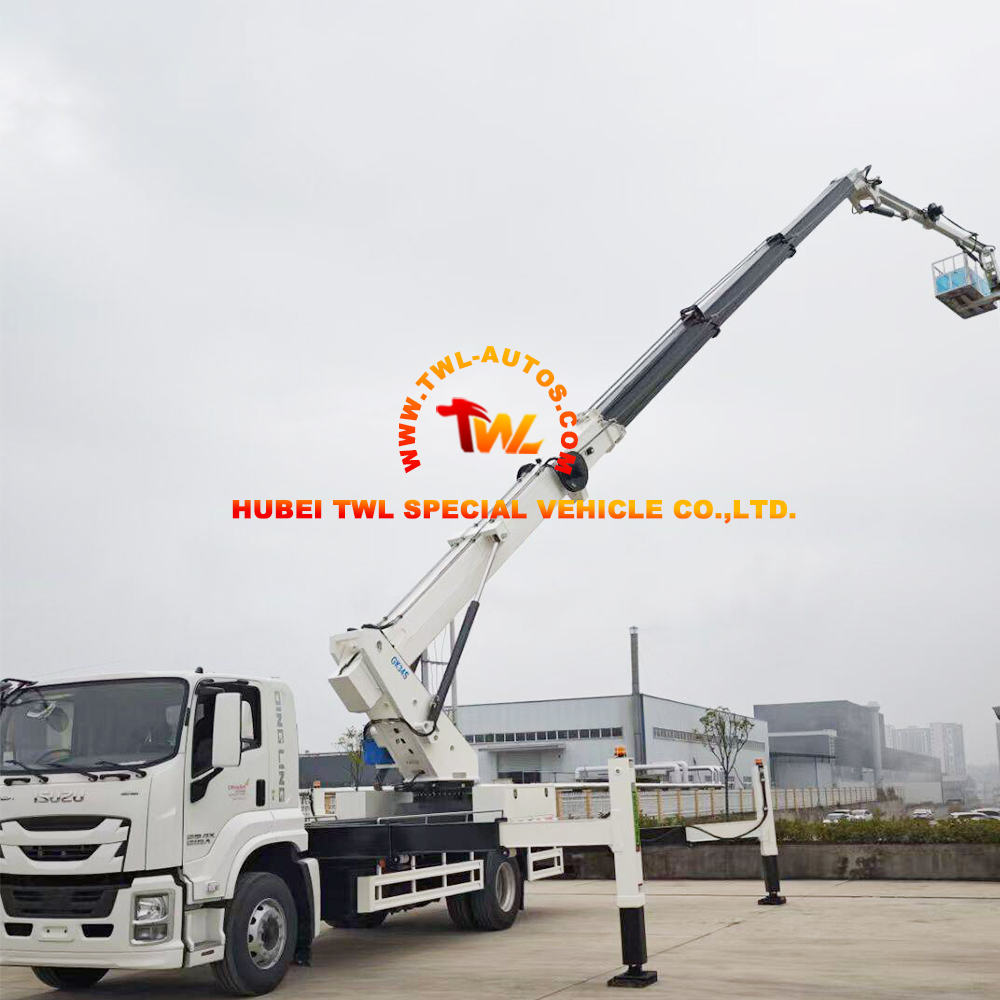

ISUZU GIGA 34-Meter Insulated Aerial Platform Truck
Reach higher and work safer with the ISUZU GIGA 34-Meter Insulated Aerial Platform – a professional-grade folding arm bucket truck featuring 34-meter working height, dielectrically insulated bucket for live-line electrical work, articulated folding arm for obstacle-overcoming maneuverability, 360° continuous rotation, and comprehensive safety systems. Built on the heavy-duty ISUZU GIGA chassis with multi-axle configuration, this vehicle delivers exceptional stability and precise positioning for transmission line maintenance, cell tower servicing, bridge inspection, and high-rise building access.
ISUZU GIGA 34-Meter Insulated Aerial Platform Truck
The ISUZU GIGA 34-Meter High-Altitude Aerial Working Truck is a professional-grade insulated aerial platform engineered for safe, efficient elevated operations at extreme heights. Built on the heavy-duty ISUZU GIGA chassis with a powerful diesel engine and multi-axle configuration, this vehicle combines superior stability, precise positioning, and comprehensive safety systems to provide workers with secure access to the most challenging elevated work sites. The 34-meter maximum working height and articulated folding arm design enable precise positioning around obstacles – essential for working around power lines, tower structures, and building features. The dielectrically insulated bucket ensures operator safety during live-line electrical maintenance on high-voltage transmission and distribution networks. The 360° continuous rotation enables full operational coverage without repositioning. The proportional hydraulic control system delivers smooth, precise platform movement. The outrigger system provides a stable foundation on uneven terrain. Safety systems include outrigger interlock, emergency manual descent, overload protection, and automatic leveling.
Key Feature:
· ISUZU GIGA Heavy-Duty Chassis: Multi-axle configuration for superior stability. Powerful diesel engine. Durable construction for utility environments.
· 34-Meter Articulated Folding Arm: Obstacle-overcoming design reaches over power lines and around structures. Greater coverage area than straight booms. Smooth proportional controls for precise positioning.
· Dielectrically Insulated Bucket: Live-line rated for electrical utility work. Complete ground isolation for operator safety. Allows maintenance without de-energizing power lines.
· 360° Continuous Rotation: Full operational coverage without repositioning.
· 4-Point Hydraulic Outriggers: Individual adjustment for uneven terrain. Wide span for maximum stability.
· Proportional Hydraulic Control: Stepless speed regulation for smooth movement. Multiple control stations (platform, ground, wireless remote).
· Comprehensive Safety Systems: Outrigger interlock (prevents operation until deployed). Emergency manual descent (fail-safe backup). Overload protection. Automatic leveling. Anti-collision system (optional).
· Applications: Live-line electrical maintenance, telecommunications tower work, bridge inspection, high-rise building access, tree care, emergency rescue.
Application:
· Electrical Utility Live-Line Maintenance: Transmission line work, distribution network servicing, substation access, high-mast lighting, insulator replacement.
· Telecommunications & Broadcast: Cell tower servicing, microwave link installation, fiber optic cable work, broadcast tower equipment maintenance.
· Industrial & Infrastructure: Bridge inspection (superstructure and under-bridge areas), high-rise building maintenance (facade inspection, window cleaning, repairs), chimney and stack work, port and shipyard crane access.
· Tree Care & Vegetation Management: High-altitude pruning, utility vegetation management (clearing growth near power lines), arborist work, emergency storm response.
· Signage & Large Structure Lighting: Billboard installation, stadium lighting, airport lighting systems, architectural lighting.
· Emergency & Special Operations: High-angle rescue, firefighting support (aerial observation and water tower positioning), disaster assessment, film and media elevated camera platforms.
Product Specification
| Chassis | ISUZU GIGA Heavy-Duty |
| Max Working Height | 34 meters |
| Max Working Radius | 18 – 22 meters |
| Platform Capacity | 300 – 400 kg |
| Boom Type | Articulated folding arm (obstacle-overcoming) |
| Bucket | Dielectrically insulated (live-line rated) |
| Rotation | 360° continuous |
| Outriggers | 4-point hydraulic, individually adjustable |
| Control | Proportional hydraulic with multiple stations |
| Safety | Outrigger interlock, emergency descent, overload protection, auto leveling |
| Applications | Electrical utility, telecommunications, bridge inspection, high-rise maintenance, tree care, emergency rescue |
