ISUZU FVR 4×2 10 Ton Flatbed Tow Truck with Three-Section Sliding Deck
ISUZU FVR 4×2 10 Ton Flatbed Tow Truck with Three-Section Deck is a heavy-duty vehicle recovery solution built on a proven ISUZU chassis. Powered by a reliable 300HP engine and featuring a three-section telescopic flatbed, it is designed for efficient loading, safe transportation, and stable towing of cars, buses, and medium-duty trucks. With strong hydraulic performance, low operating costs, and global ISUZU service support, this flatbed wrecker offers an ideal balance of power, durability, and versatility for professional towing and roadside assistance operations.
ISUZU FVR 4×2 10 Ton Flatbed Tow Truck with Three-Section Sliding Deck
Product Highlights & Key Features
1. Strong Powertrain with Proven ISUZU Chassis Reliability
· High-Efficiency ISUZU Engine: Powered by a reliable 300HP ISUZU diesel engine, this flatbed tow truck delivers strong torque output and responsive performance, making it suitable for heavy-duty towing tasks and challenging road conditions.
· 5800mm Optimized Wheelbase: The dedicated ISUZU FVR 4×2 chassis features a well-balanced wheelbase that enhances driving stability while providing sufficient space for professional wrecker body installation, ensuring long-term operational reliability.

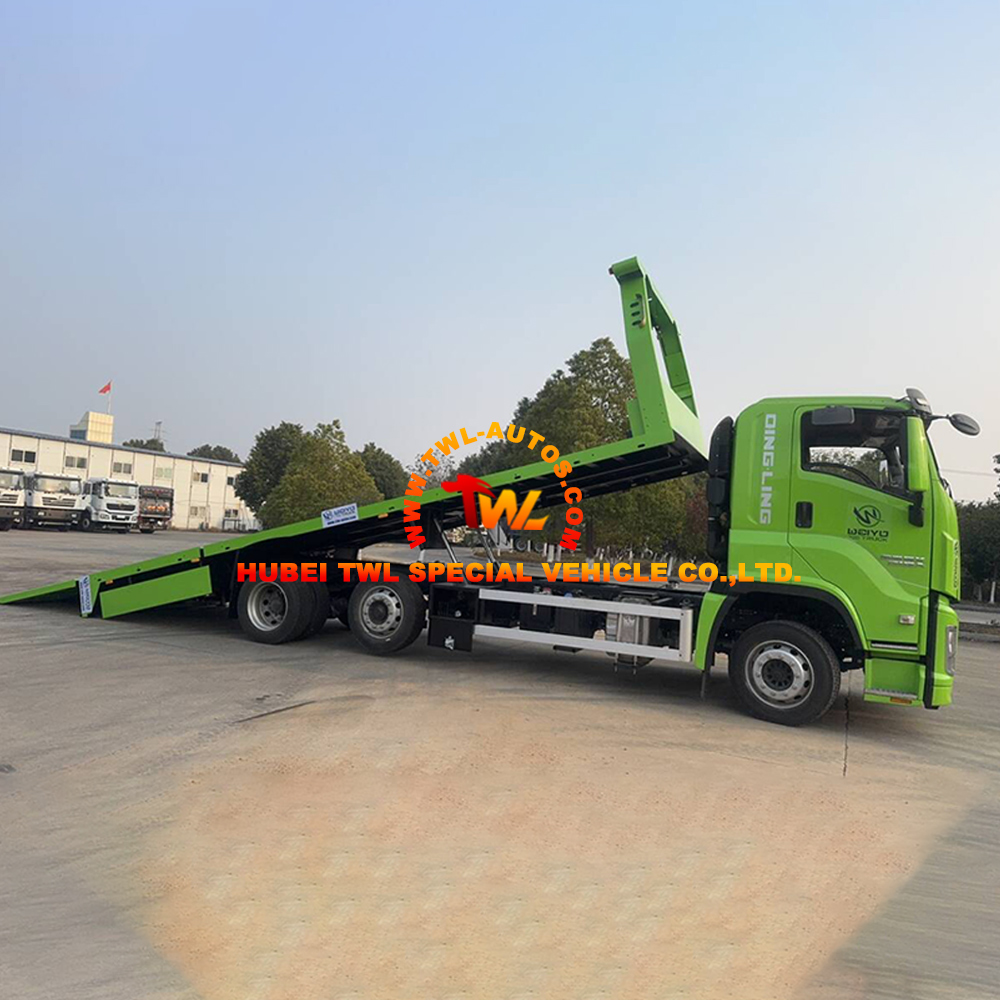

2. Advanced Three-Section Flatbed System for Versatile Recovery Operations
· Extended Working Length: The three-section telescopic flatbed significantly increases the effective loading length, allowing efficient recovery and transportation of vehicles ranging from passenger cars to buses and medium-duty trucks.
· High-Capacity Winch & Hydraulic System: Equipped with a powerful hydraulic system and heavy-duty winch, the truck ensures smooth, fast, and secure loading, lifting, and towing of disabled or accident vehicles.
· Excellent Adaptability: The adjustable flatbed angle and multi-axis design make it ideal for vehicles with different wheelbases and ground clearances, especially low-profile or luxury vehicles that require careful handling.
3. Cost-Effective Operation with Global After-Sales Support
· Fuel-Saving & Durable Design: ISUZU’s advanced engine technology helps reduce fuel consumption and minimizes maintenance costs, delivering lower total cost of ownership over time.
· Strong Resale Value: As a globally recognized commercial vehicle brand, ISUZU tow trucks maintain high residual value in international markets.
· Worldwide Service Network: Supported by ISUZU’s extensive global service and spare parts network, ensuring fast technical support and reliable parts supply in major export regions.
4. Safe, User-Friendly, and Comfortable Operation
· Enhanced Safety Configuration: Standard safety equipment includes high-visibility work lights, reflective markings, and mechanical locking systems, providing maximum safety during roadside and night-time recovery operations.
· Ergonomic Cabin Design: The spacious ISUZU cabin offers a driver-oriented layout with intuitive controls and optional comfort features, helping reduce fatigue during long working hours.
5. Flexible Customization & International Compliance
· Modular Superstructure Options: The flatbed and recovery system can be customized based on local regulations and customer requirements, including lighting systems, warning signage, tool storage, and auxiliary equipment.
· Emission Standard Compatibility: Available configurations can meet Euro 5 or Euro 6 emission standards, making the vehicle suitable for a wide range of international markets.
Product Specification
| Chassis Specification | ||
| Chassis Model | QL518 | |
| Driving Model | 4X2 | |
| Cab | ISUZU GIGA VC61 Cabin | |
| With one sleeper | ||
| Left Hand Drive | ||
| With Air Conditioner | ||
| Electric doors and Windows | ||
| With pneumatic seat | ||
| Dimension | 11000 x 2550 x 3100 mm | |
| Wheelbase | 5800 mm | |
| Gross vehicle Weight | 19,900 kg | |
| Curb Weight | 10500 kg | |
| Loading Weight | 10,000 kg | |
| Front Axle Loading Capacity | 6,500 kg | |
| Rear Axle Loading Capacity | 11,500 kg | |
| Axle Number | 2 | |
| Engine | ISUZU diesel engine | |
| 4 cylinders in a line, | ||
| Water cooled, turbocharged, after cooled, cold start. | ||
| Model: 6HK1-TCG60 | ||
| Horse power: 300 HP | ||
| Displacement: 7790 ml | ||
| Emission standard: Euro 6 | ||
| Transmission | Model: FAST Manual Type | |
| 8 Forward & 1 Reverse | ||

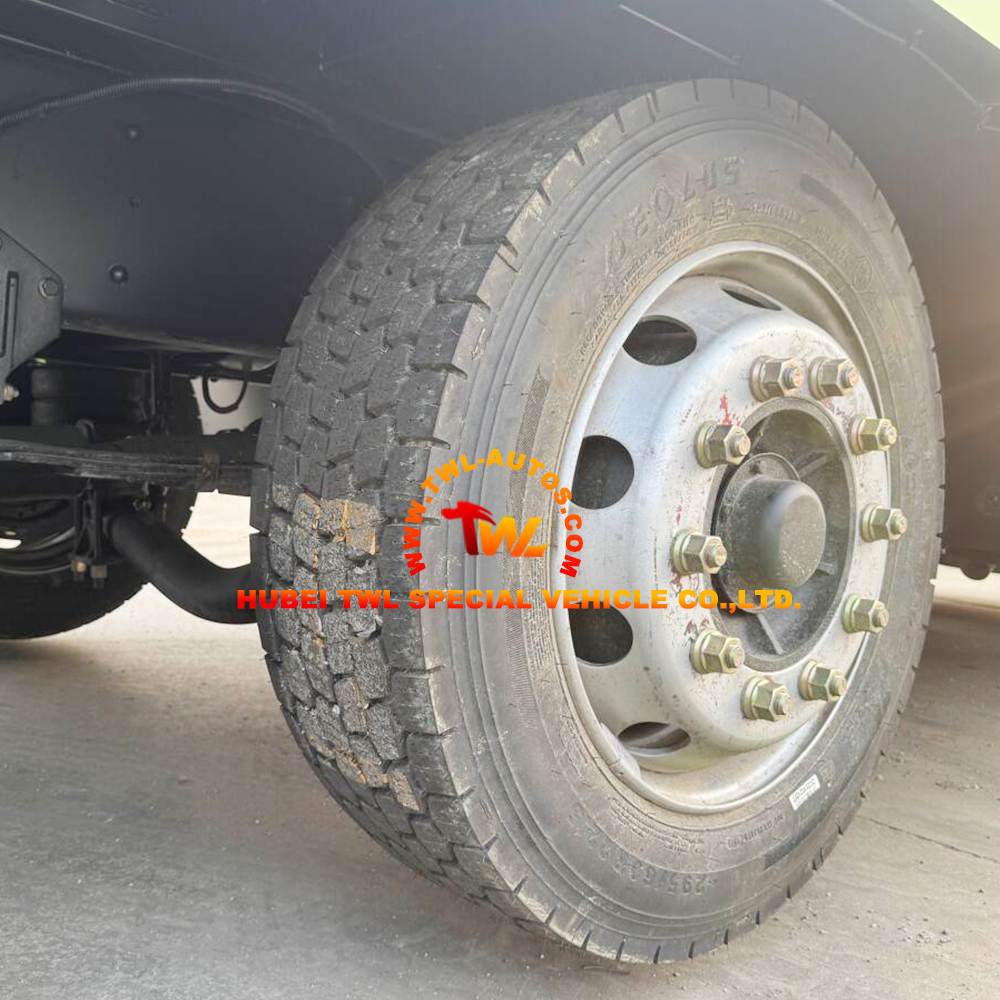

| Tire | 295/60R22.5 | |
| 8 Pcs with one spare tire | ||
| Upper Body Specifications | ||
| Flatbed Platform | Size: 9900 x 2500 mm | |
| Loading Capacity: 10~12 Ton | ||
| Flatbed: 6 mm Thick manganese plate | ||

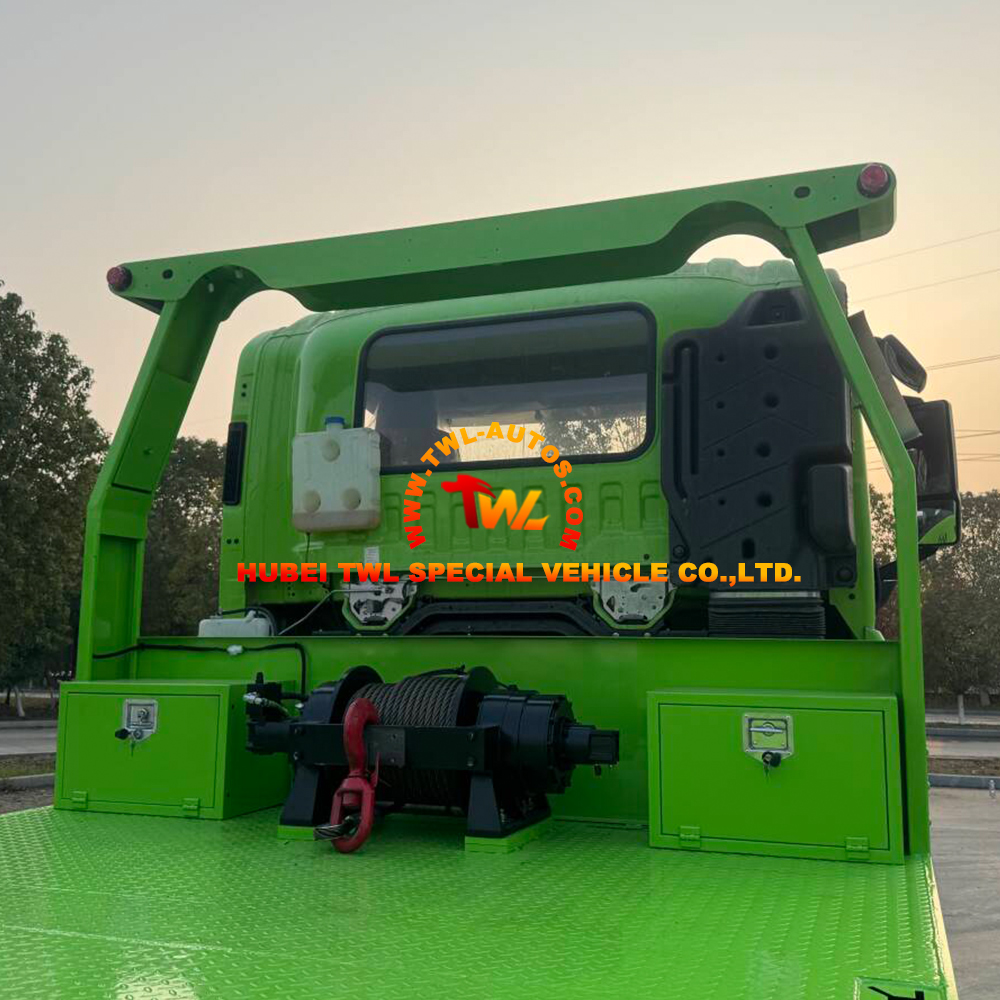

| Winch | 10 Ton | |

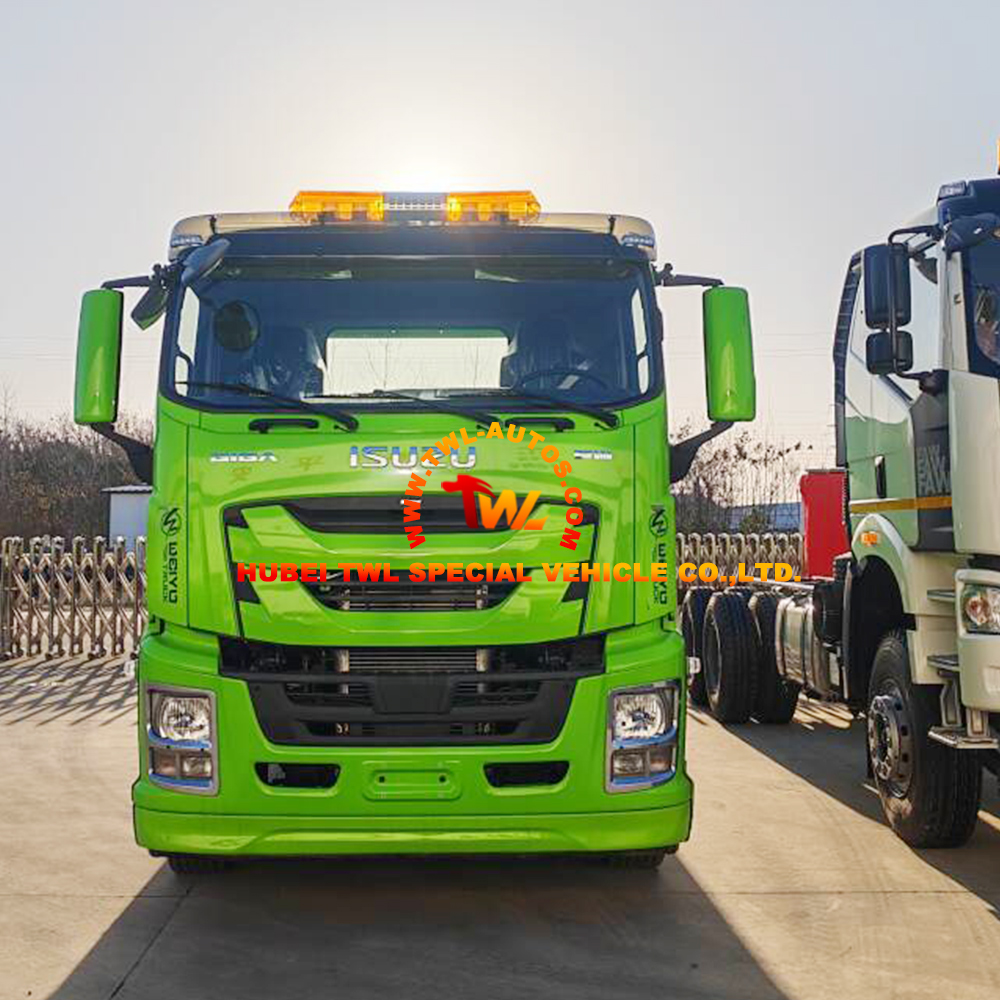

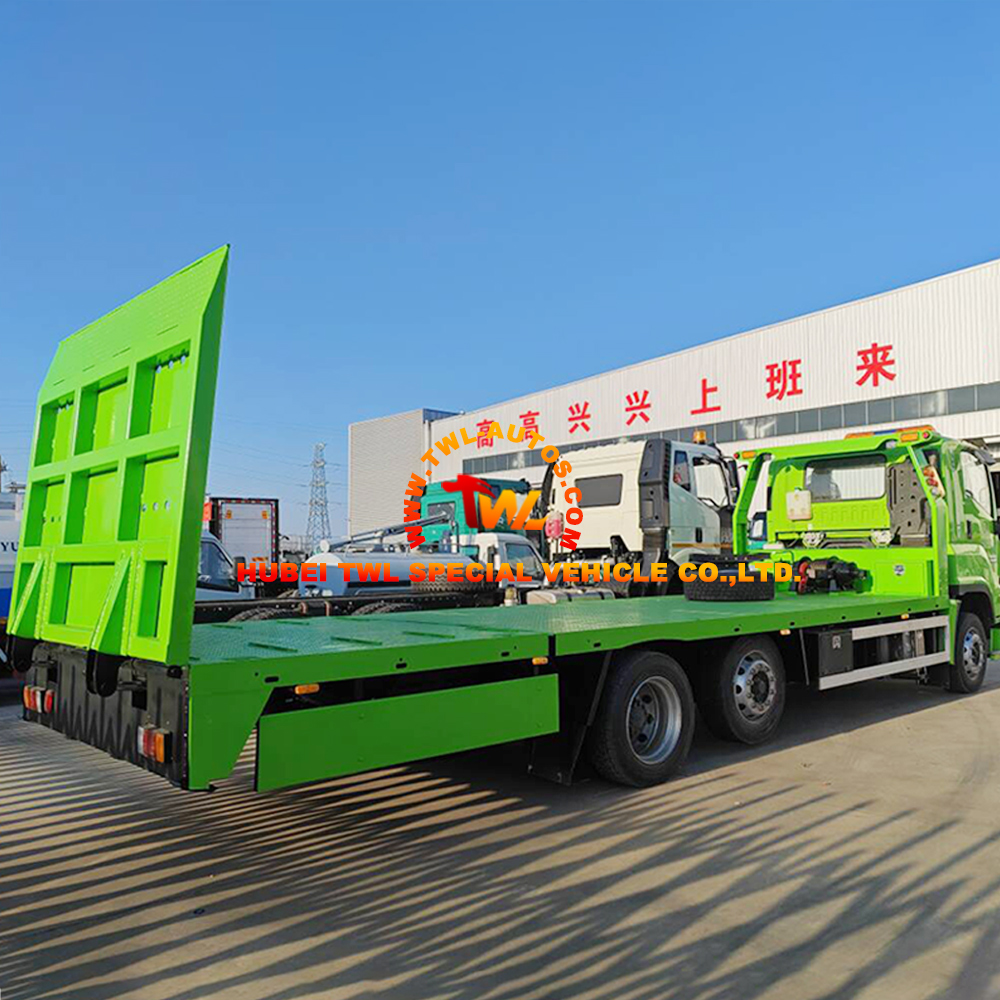

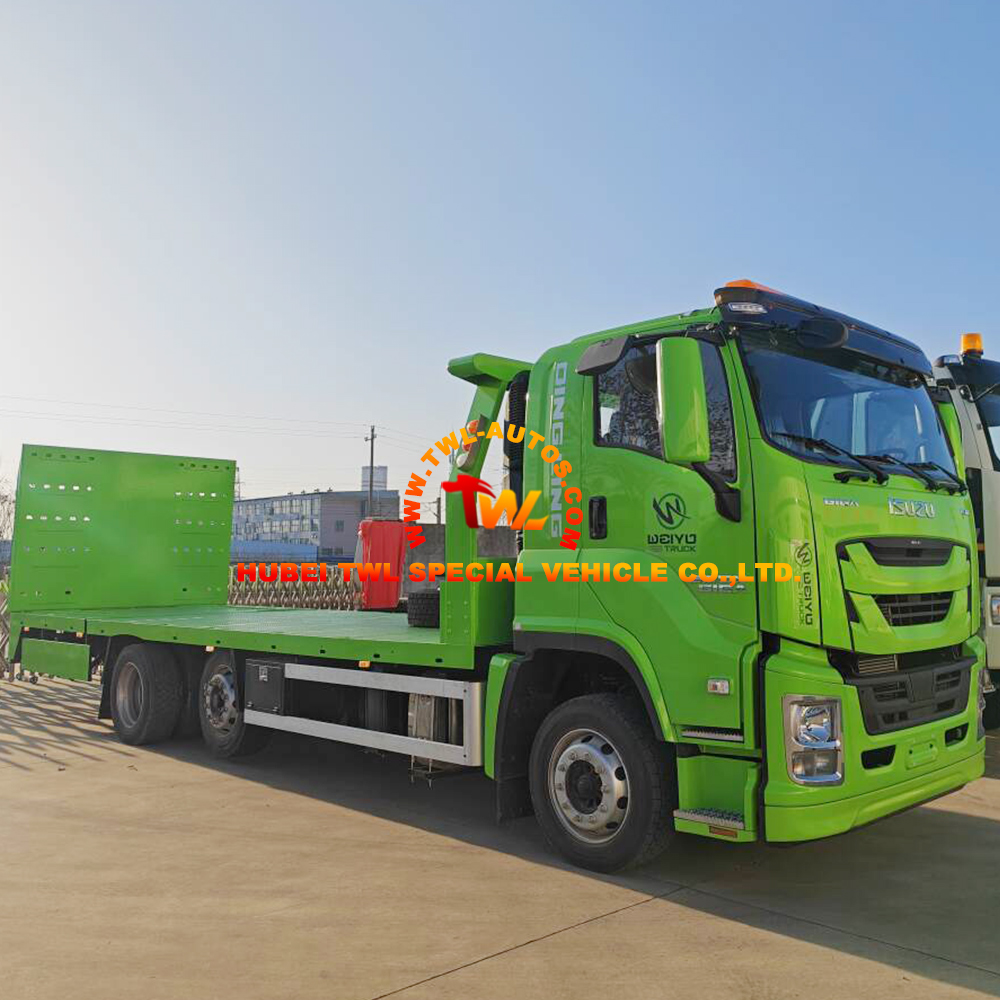

ISUZU FVR 4×2 10 Ton Flatbed Tow Truck with Three-Section Sliding Deck Gallery
