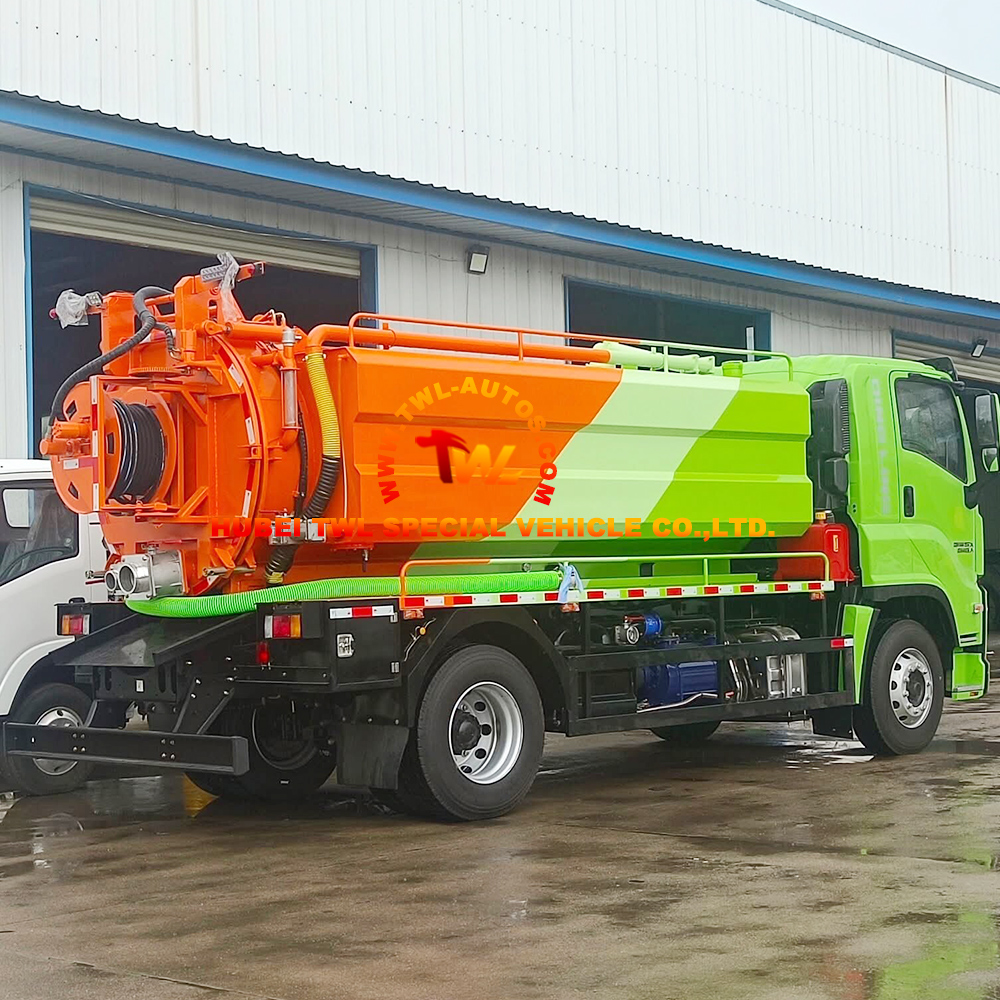

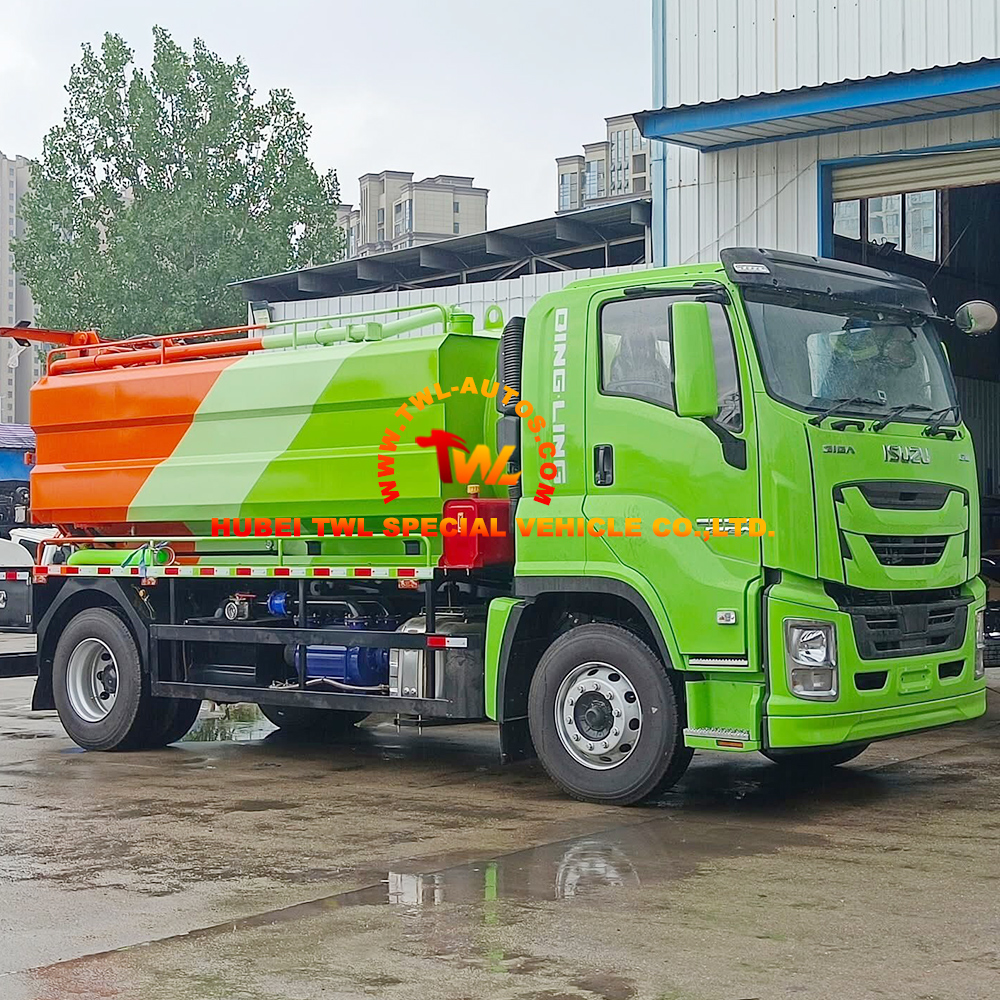

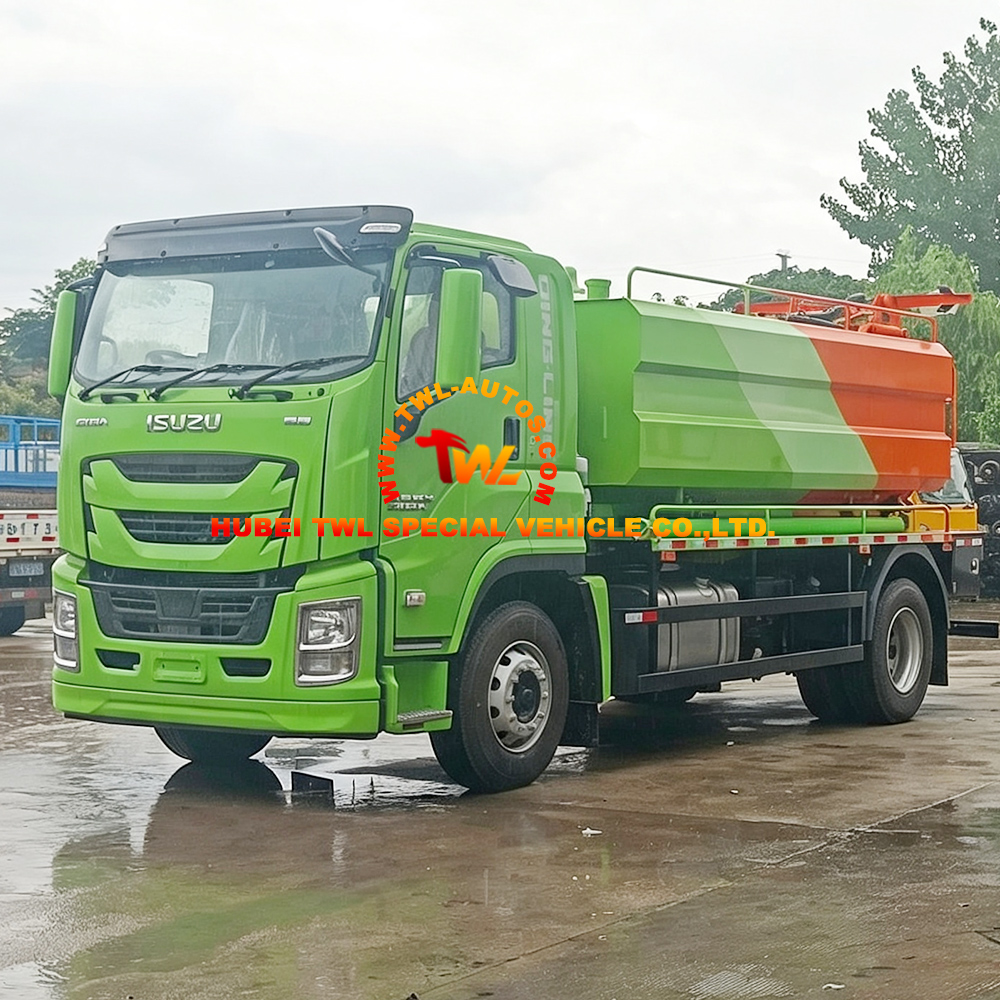

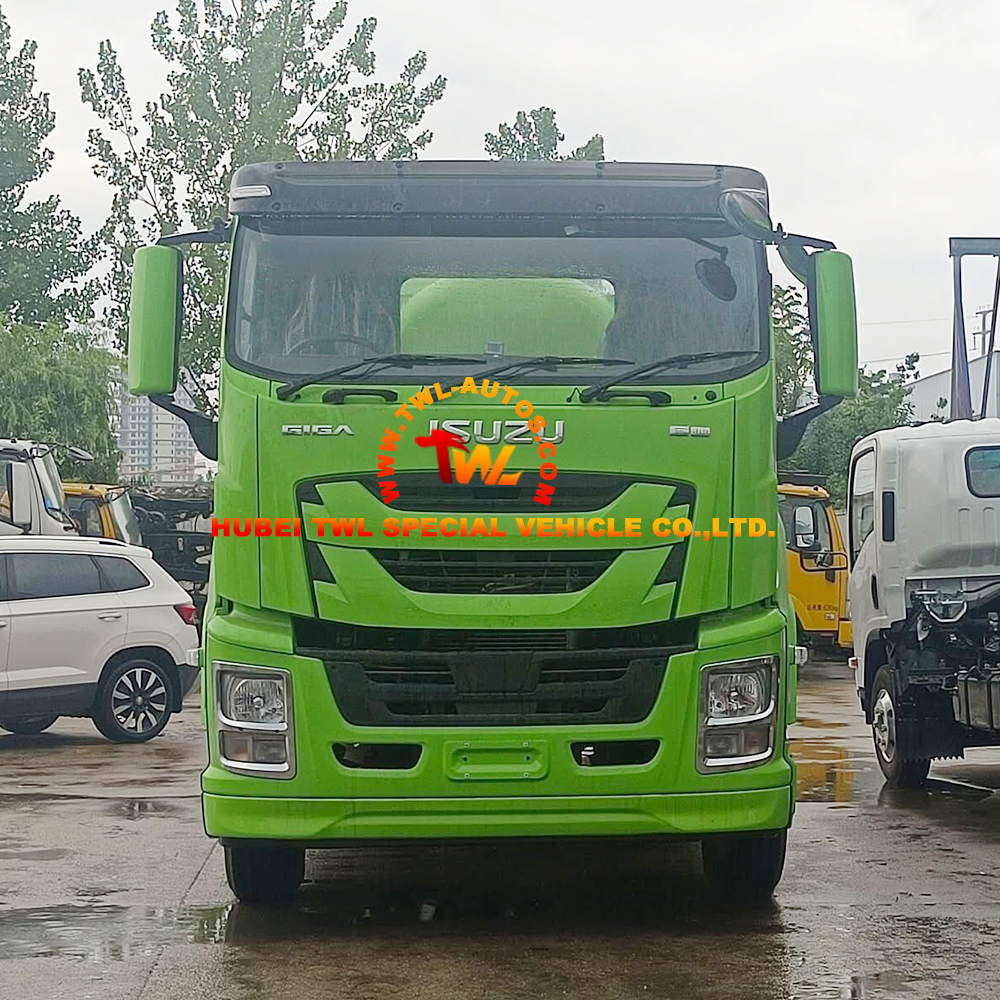

ISUZU FTR RHD 8m³ Sewer Jetting & Vacuum Truck

The ISUZU FTR Combination Sewer Cleaning & Vacuum Truck is a professional-grade dual-function sanitation vehicle that integrates high-pressure pipeline cleaning with vacuum suction. Equipped with two independent systems on a single chassis, it can both flush pipelines with high-pressure water to clear blockages and extract sludge and wastewater using negative pressure suction . Built on the proven ISUZU FTR 4×2 right-hand drive chassis with 5,000mm wheelbase and FTR cab (RHD with sleeper, A/C, 3 passengers), this vehicle features an ISUZU 4HK1-TC60 diesel engine delivering 205HP with Euro VI compliance, paired with a 6-speed manual transmission. The 8m³ total capacity is divided into a 2m³ water tank and a 6m³ sewage tank, constructed from high-strength carbon steel with 8mm thickness and anti-corrosion treatment . The SK-12 water ring vacuum pump delivers 1,200m³/h flow for rapid suction, while the high-pressure pump provides 215 L/min for effective pipeline cleaning . The water tank heating system ensures reliable operation in cold climates . The hydraulic tank lifting system enables efficient discharge, and the vehicle includes a hand-washing device, rear self-flowing outlet, viewing window, and pressure gauge.

Key Features:

· ISUZU FTR RHD Chassis – Right-Hand Drive for RHD Markets: FTR cab with sleeper, RHD, A/C, 3 passengers. 5,000mm wheelbase. GVW 18,000kg, curb 10,890kg. 295/80R22.5 tires (6 + 1 spare). 200L fuel tank. Air brakes, power steering.

· ISUZU 205HP Euro VI Engine – Clean & Efficient: 4HK1-TC60, 205HP, 5,193ml. Euro VI emission compliance. 6-speed manual transmission (6F+1R). Reliable and fuel-efficient.

· 8m³ Dual-Compartment Tank System – Durable Construction: 2m³ water tank + 6m³ sewage tank. High-strength carbon steel, 8mm thickness. Anti-corrosion interior treatment. Internal baffles ensure complete separation between clean water and waste compartments .

· SK-12 Water Ring Vacuum Pump – Powerful Suction: 1,200m³/h flow rate. High-efficiency suction for sewage, sludge, and debris. Water ring design handles moisture and impurities effectively.

· High-Pressure Pump – Effective Pipeline Cleaning: 215 L/min flow rate. Breaks up blockages and scours pipe walls. High-pressure hoses and jetting nozzles reach deep into sewers .

· Water Tank Heating System – All-Season Operation: Ensures reliable operation in cold climates. Prevents freezing in winter conditions. Essential for year-round municipal sanitation.

· Hydraulic Tank Lifting System – Efficient Discharge: Hydraulic lifting for tank discharge. Rear self-flowing outlet. 150mm drain ball valve, 100mm suction port.

· Comprehensive Monitoring & Safety: Vacuum pressure gauge for real-time system monitoring. Sewage suction and fecal viewing window for tank content visibility. Hand-washing device for operator hygiene.

· Versatile Applications: Breaking through previous cleaning and sewage suction truck products, integrates advanced technologies of domestic and foreign enterprises . Fully utilizes vacuum technology and dual anti-overflow pump devices to better avoid tank overflow and extend vacuum pump service life .

Application:

· Municipal Sewer Cleaning & Maintenance: Regular and emergency cleaning of urban sewer networks, storm drains, and pump stations. High-pressure jetting clears blockages while vacuum extracts waste .

· Industrial Pipeline Maintenance: Cleaning and unclogging industrial wastewater pipes, cooling water lines, and process piping.

· Septic Tank Servicing: Complete extraction of septic tank contents followed by tank cleaning using high-pressure jetting.

· Storm Drain & Culvert Cleaning: Removing silt, leaves, and debris from storm drainage systems.

· Cold Climate Operations: Water tank heating system enables reliable operation in winter conditions.

· Environmental Emergency Response: Rapid containment and removal of sewage spills and contamination incidents.
