ISUZU FTR 205HP Flatbed Truck With 6.3 Ton Crane
Isuzu FTR 205HP Flatbed Truck is tailored for the Russian market, featuring a 6.3-ton folding crane. With reliable quality, fuel efficiency, and a 5800mm wheelbase for optimal stability and cargo space, it delivers self-loading capability to reduce operating costs and improve efficiency—a competitive solution for small businesses and individual owners. Integrated with XCMG crane.
ISUZU FTR 205HP Flatbed Truck With 6.3 Ton Crane
Key Specifications & Features
1. Cargo platform made of aluminum alloy, finished with electro-deposition and rustproof coating.
Benefits: Reduced weight, resists rust, longer lifespan, ideal for demanding haulage jobs.
2. Truck platform fitted with an 8-ton capacity towing winch.
Benefits: Delivers strong pulling force for easy loading/unloading and recovery work, boosting work productivity.
3. Dual-stage hydraulic loading ramp.
Benefits: Angle can be modified to suit different loading heights, easy to use and safer.
4. Adjustable freight guard frame.
Benefits: Secures metal items flexibly, prevents movement during transport, guarantees safe and stable cargo.
Application
1. Self-Sufficient Loading/Unloading, Adapting to Uneven Infrastructure
The integrated crane addresses the lack of dedicated loading sites and equipment in some Russian regions. A single vehicle can operate independently, significantly reducing reliance on supporting facilities.
2. Coping with Harsh Climate and Road Conditions
Built on Isuzu’s robust chassis with anti-corrosion treatment, it better adapts to Russia’s long winters, de-icing agent corrosion, and unpaved roads, ensuring high operational availability.
3. Meeting Flexible and Economic Needs of SMEs
Combining transport and lifting functions, it helps small business owners and individual operators undertake diverse small-batch cargo transport and on-site lifting tasks with lower upfront investment and operating costs.
4. Suitable for Resource and Building Material Transport
Particularly suited for transporting and handling common Russian goods such as timber, metal profiles, prefabricated building materials, and machinery. It is an ideal tool for construction, forestry, and small-scale industries.
5. Balancing Regulations and Cost Efficiency
The 6.3-ton crane capacity and 205 HP configuration strike a balance between load capacity, road regulations (e.g., wheelbase and gross weight), and fuel economy, meeting local operational cost requirements.
Product Specification
| ISUZU Flatbed Truck With XCMG Crane | |
| Chassis Specification | |
| Chassis Model | QL5180XXYAJWHY |
| Driving Model | 4X2 |
| Cab | ISUZU GIGA VC61 Cabin |
| With one sleeper | |
| Left Hand Drive | |
| With Air Conditioner | |
| Electric doors and Windows | |
| With penumatic seat | |
| Dimension | 11000 x 2500 x 3500 mm |
| Wheelbase | 5800 mm |
| Gross vehicle Weight | 19,900 kg |
| Curb Weight | 10500 kg |
| Loading Weight | 10,000 kg |
| Front Axle Loading Capacity | 6,500 kg |
| Rear Axle Loading Capacity | 11,500 kg |
| Axle Number | 2 |
| Engine | ISUZU diesel engine |
| 4 cylinders in a line, | |
| Water cooled, turbocharged, after cooled, cold start. | |
| Model: 4HK1-TCG60 | |
| Horse power: 205 HP | |
| Displacement: 5193 ml | |
| Emission standard: Euro 6 | |
| Transmission | Model: ISUZU Manual Type |
| 6 Forward & 1 Reverse | |
| Tire | 295\60R22.5 |
| 6 Pcs with one spare tire | |
| Upper Body Specifications | |
| Flatbed Platform | Size: 7000 (6700+300) x 2500 mm |
| Thickness : 6mm checked plate | |
| Loading Capacity: 10~15 Ton | |
| Flatbed: 6 mm Thick manganese plate | |
| Winch | 8 Ton |
| Box Plate | Material: Aluminum Alloy |
| Hydraulic Ladder | Double sections ladder |
| Storage Shelf | Removable |

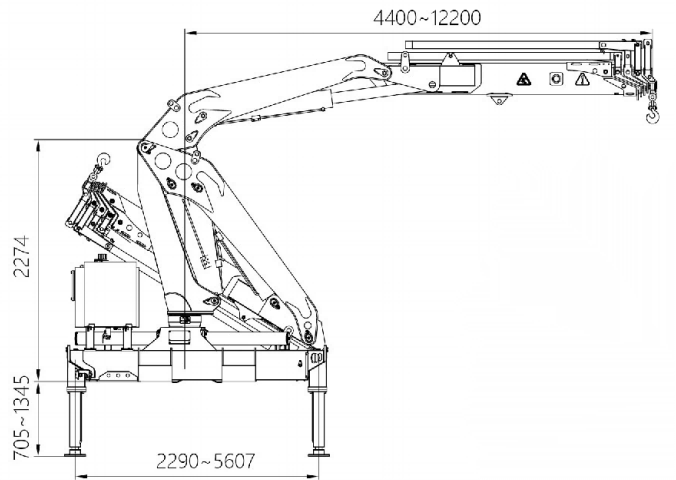

| XCMG 6.3Ton Folding Boom Crane Specifications | |
| Working Platform | 360°turning (left or right), H-shape legs 360° |
| Max. Lifting Capacity | Effectively: 6,300 kg at 2.1 meters |

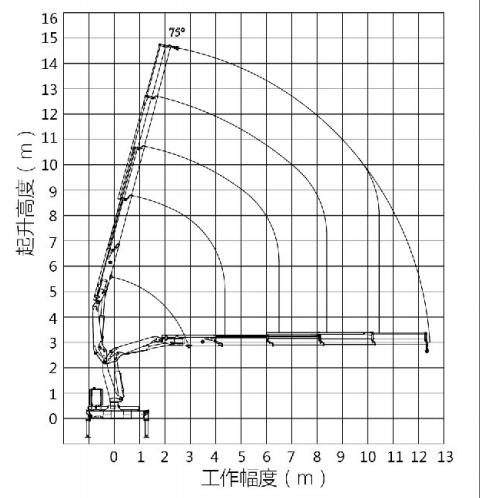

| Max. Hydraulic Outreach | 12.2 meters |
| Slewing Angle | 420° |
| Stabilizer Spread | 5607 mm |
| Max. Operating Pressure | 28 Mpa |
| Recommended Pump Capacity | 25 L\min |
| Oil Tank Capacity | 100L |
| Dead Weight | 2099 kg |
