ISUZU FTR 16m³ Compressed Garbage Truck
The TWL 10-12m³ ISUZU Garbage Compactor Truck delivers reliable performance and efficient waste management. Powered by the Isuzu 4HK1 diesel engine, it combines robust chassis strength, intelligent compression technology, and user-friendly operation. Designed and manufactured by TWL, it ensures high loading efficiency, durability, and safety for municipal and commercial waste collection.
ISUZU FTR 16m³ Compressed Garbage Truck
The TWL 10-12m³ ISUZU Garbage Compactor Truck is engineered for municipalities, sanitation departments, and large-scale waste contractors seeking powerful, efficient, and environmentally responsible waste collection solutions. Built on a durable Isuzu chassis with a 5,000mm wheelbase, it offers outstanding load-bearing capacity and maneuverability, ideal for urban environments and narrow streets.
Equipped with the Isuzu 4HK1 inline 4-cylinder diesel engine (5.2L displacement, 205 HP, 686 N·m torque), it complies with China VI emission standards, ensuring both high performance and eco-friendliness. The compactor body, made from high-strength wear-resistant steel, features a 10–12m³ capacity and an optimized compression system with dual-cycle (horizontal pre-press + vertical compaction) technology, achieving a compression ratio ≥1:3 and a waste density of 0.6–0.8t/m³.
TWL integrates advanced hydraulic and control systems, including load-sensing hydraulics for energy-saving and low-noise operation. Dual control panels in the cab and rear, plus an optional wireless remote, allow safe and convenient operation. Multi-layer safety protection systems — such as automatic alarms, mechanical support rods, and interlock features — ensure maximum safety during operation. The adaptive loading mechanism supports a range of waste bins (120L/240L plastic bins, 300L metal bins, and small dumpers), making it highly versatile for various waste collection needs.
Key Features
1. Reliable and Powerful Chassis Performance
· Equipped with an Isuzu 4HK1 diesel engine (205 HP, 686 N·m torque) for strong power and fuel efficiency.
· 5,000mm wheelbase and reinforced axles (4.5t front, 9t rear) provide superior stability and load capacity.
· Compact design (vehicle length <9m) ensures excellent maneuverability on city streets.
· Air brakes with ABS guarantee responsive and safe braking in all conditions.
2. Efficient and Intelligent Compression System
· 10–12m³ high-capacity body built from wear-resistant steel ensures long service life.
· Dual-cycle compression increases waste density (0.6–0.8t/m³) for fewer transport trips and lower costs.
· Load-sensing hydraulics deliver oil on demand, reducing noise and fuel consumption.
· International-brand hydraulic valves ensure reliability, precision, and extended durability.
3. User-Friendly & Safe Operation
· Dual control panels in the cab and rear, plus optional wireless remote, allow flexible and efficient operation.
· Multi-layer safety protection with automatic alarms and mechanical safety locks prevent accidents.
· Interlock system stops compression when the truck is moving or the parking brake is off.
· Universal loading system fits multiple bin sizes, offering flexibility across collection sites.
Product Specification
| ISUZU FTR 16m³ Compressed Garbage Truck | ||
| Chassis Model | QL518 | |
| Driving Model | 4X2 | |
| Cab | Original ISUZU FTR cabin | |
| Left Hand Driving | ||
| With air conditioner | ||
| Central lock | ||
| Steer Assistance | ||
| Electric Window | ||
| Wheel Base | 5800 mm | |
| Axle Loading (front/rear) | 6300 / 13000 kg | |
| External Dimensions (L x W x H) | 10560x2550x3280 mm | |
| Net weight (Kg) | 9870 | |
| Approach / Departure angle | 20/12° | |
| Max. driving speed | 105 km/h | |
| Engine | Model | 4HK1-TCG60 |
| Type | ISUZU diesel engine | |
| 4 cylinders in a line | ||
| Water cooled,turbocharged,after cooled, cold start. | ||
| Horse Power | 205Hp | |
| Emission standard | Euro 2 | |
| Displacement | 5193 ml | |
| Gearbox | Manual type | |
| 6 forwards & 1 reverses | ||
| Clutch | Reinforced diaphragm clutch | |
| Tire | 295/80R22.5 | |
| 6 Pcs with 1 spare tire | ||
| Fuel box | 120L /steel material | |
| Garbage Truck Body(16m³) | ||
| Tanker body material | Quality high tensile Q345 carbon steel | |
| Shape | rectangular box, arc-shaped rear | |
| Thickness | Side 5mm, Bottom 6mm | |
| Garbage Container Size | 16 CBM | |
| Filling hopper volume | 1.5 CBM | |
| Sewage box of filling hopper | 500L | |
| Working rotation speed | 1400 r/min | |
| Idle Speed | 900 rpm | |
| Compaction ratio | 0.7-0.85T/m³ | |
| Compacting cycle time | ≤35 s | |
| Loading cycle time | ≤15 s | |
| Unloading cycle time | ≤55 s | |
| Oil pump displacement | 63 ml/r | |
| Hydraulic oil box size | 120 L | |
| System pressure | 16 Mpa | |
| PTO operation method | Pneumatic | |
| Operation and Control | Both Automatic(Electrical) and Manual (hydraulic) | |
| Others | With Pneumatic cover to avoid waste flying away during driving | |
| Optional parts | Garbage Compactor whole body will be Electrophoresis treated for long time painting | |
| With remote control function | ||

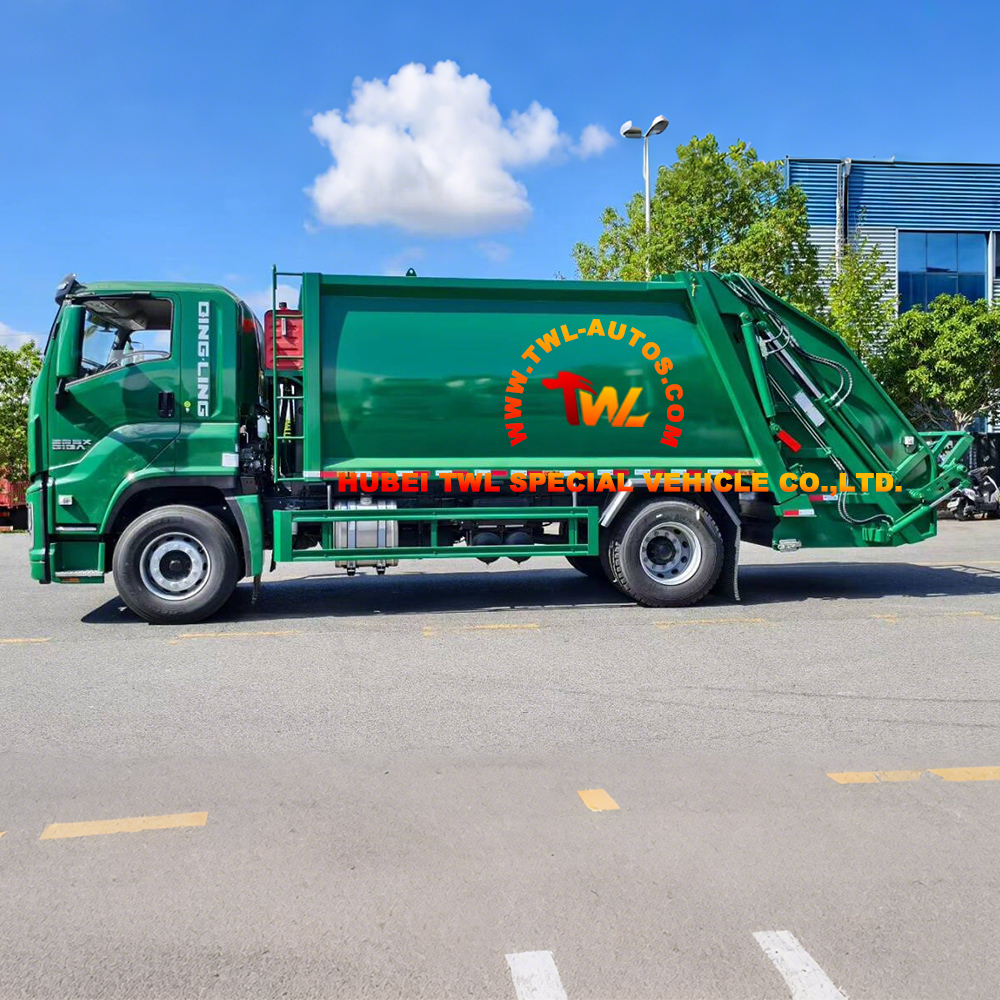

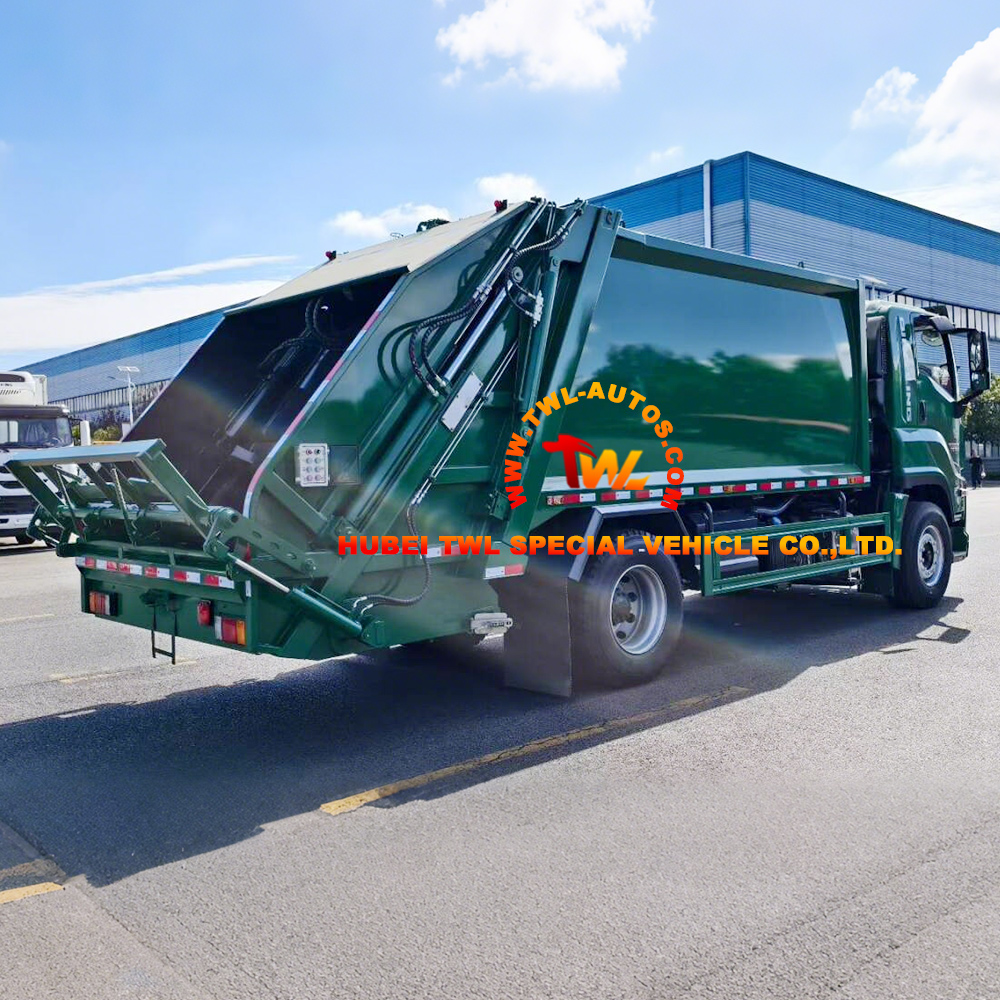

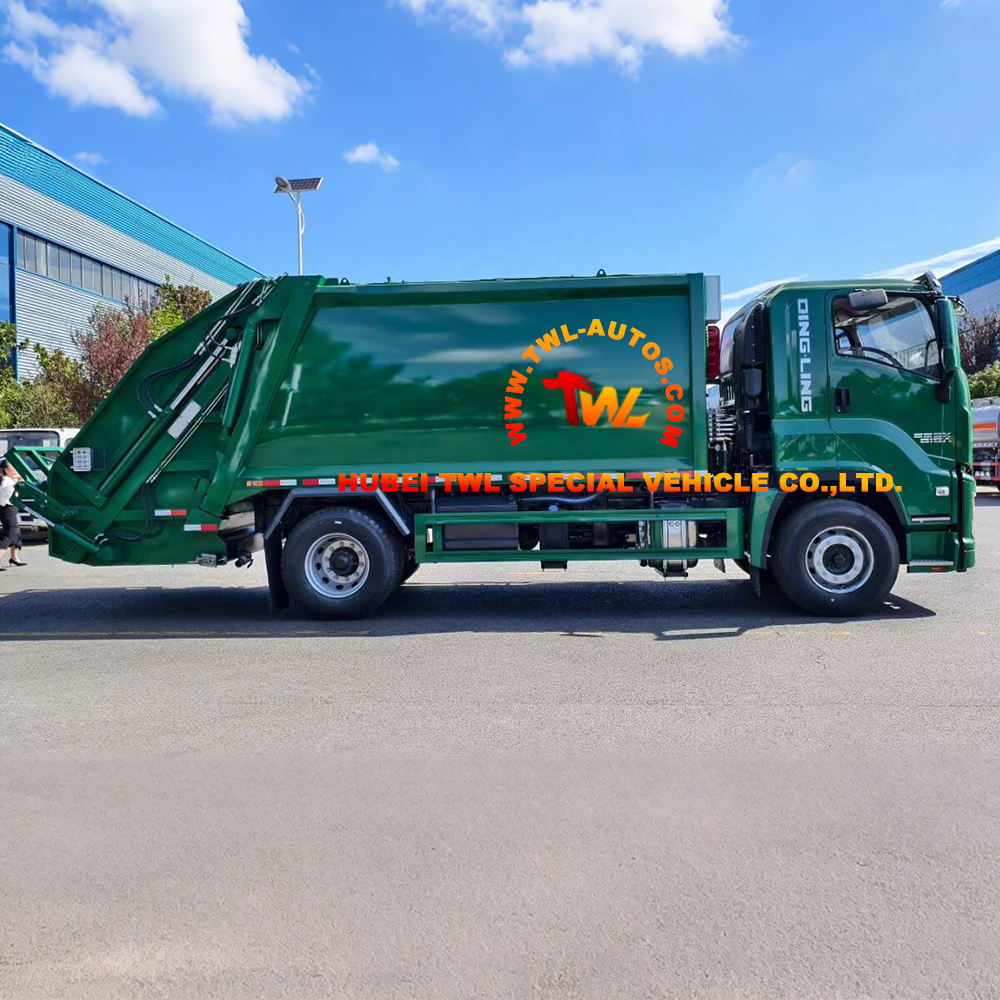

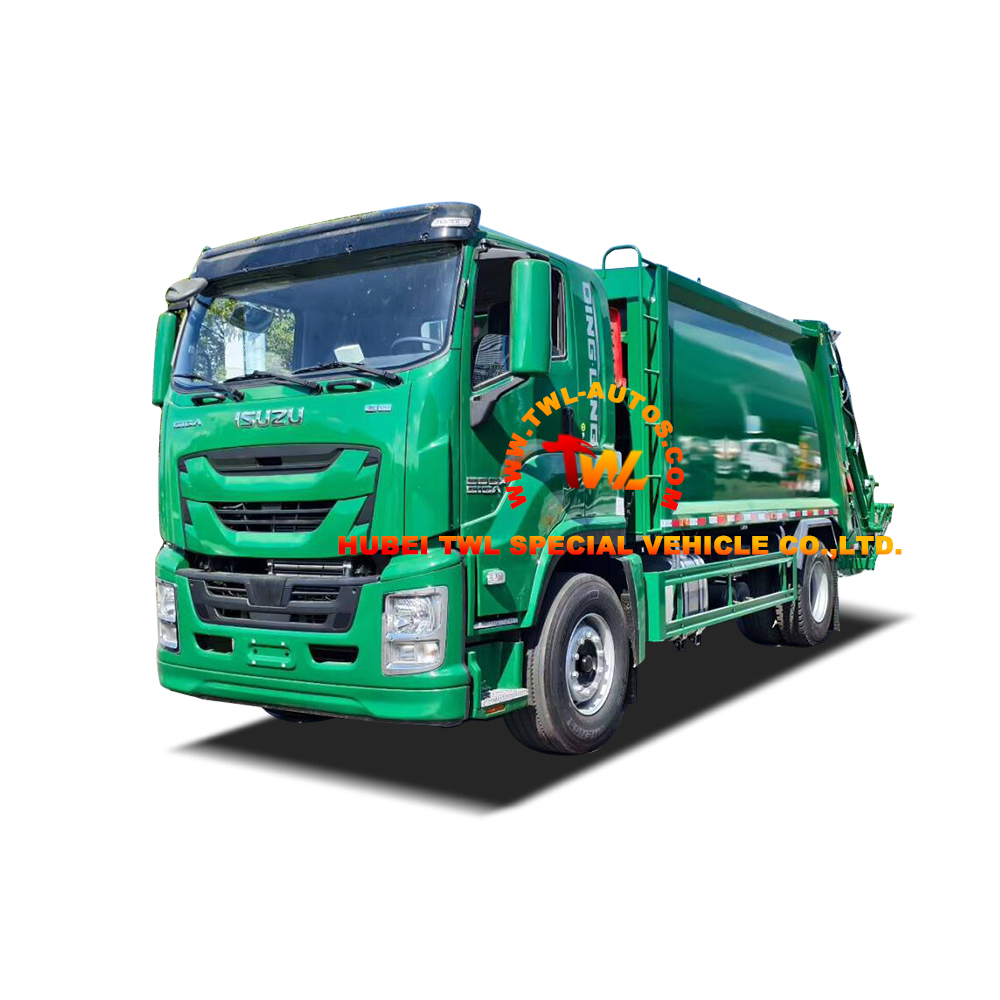

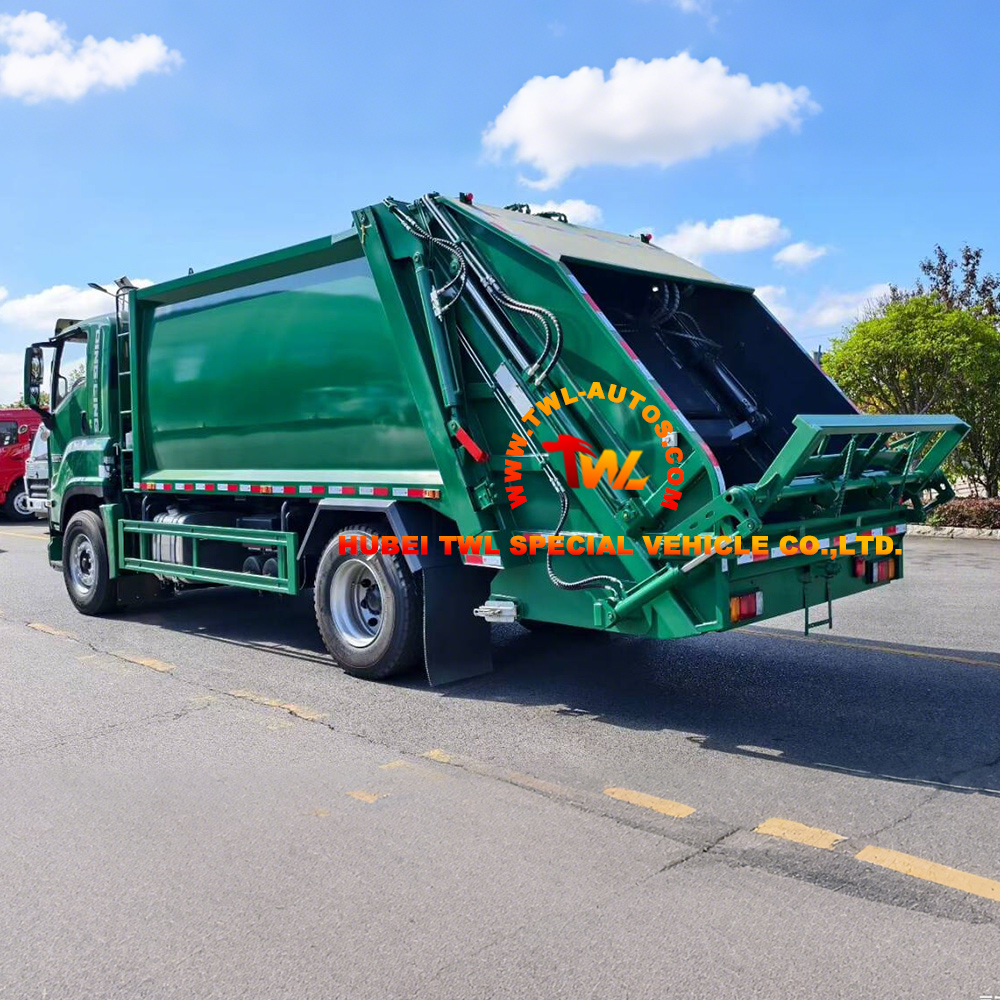

ISUZU FTR 16m³ Compressed Garbage Truck Gallery
- +86 199 4767 5585
- [email protected]
- Industry Park, Suizhou City,Hubei Province, China
Company Profile
Aout TWL
HUBEI TWL SPECIAL VEHICLE CO., LTD (hereinafter referred to as TWL), one of important member of CLW Group, is located in Suizhou City, Hubei Province, the capital of China’s Special Vehicles. TWL Truck has a first-class management, design, R&D, manufacturing, and sales professional team, as well as “special, new, high and sophisticated” facilities and equipment, complete manufacturing technology, and strict testing methods to ensure the production of high-quality and high-value-added products for the market. At present, we has strategic partnership with a number of well-known Chinese truck brand, including Dongfeng, Sinotruk, FAW, Foton, Shacman, ISUZU, JAC, JMC, Kama, etc. TWL Truck always adheres to the corporate philosophy of “people-oriented, customer-oriented, honesty and win-win”, and adheres to the business tenet of “development by innovation, survival by quality; integrity by service, and market by brand”.
After-Sales Service
Warranty
– The buyers can get a minimum warranty period of 12 months or 25000KM-50000KM, whichever comes first from the arrival date of shipment.
– During this period, we will send replacement parts and components to buyers by DHL, UPS, FEDEX or by air and by sea free of charge, easy-wearing spare parts are excluded.
– After warranty time, buyers can get all of spare parts of their truck at factory cost.
– This warranty does not cover any possible damage due to improper operaton, accident or misuse or damage due to any unauthorized services.
Technical Support
– The buyers can forever enioy technical support anytime and anywhere, overseas technical training before operaton is available at buyers cost or our cost.
Daily Mainteance Suggestion
– We strongly sugest you to buy some amount of basic spare pats along with your truck, the cost will be approximately 500 USD-800 USD/unit, no shipping cost.
