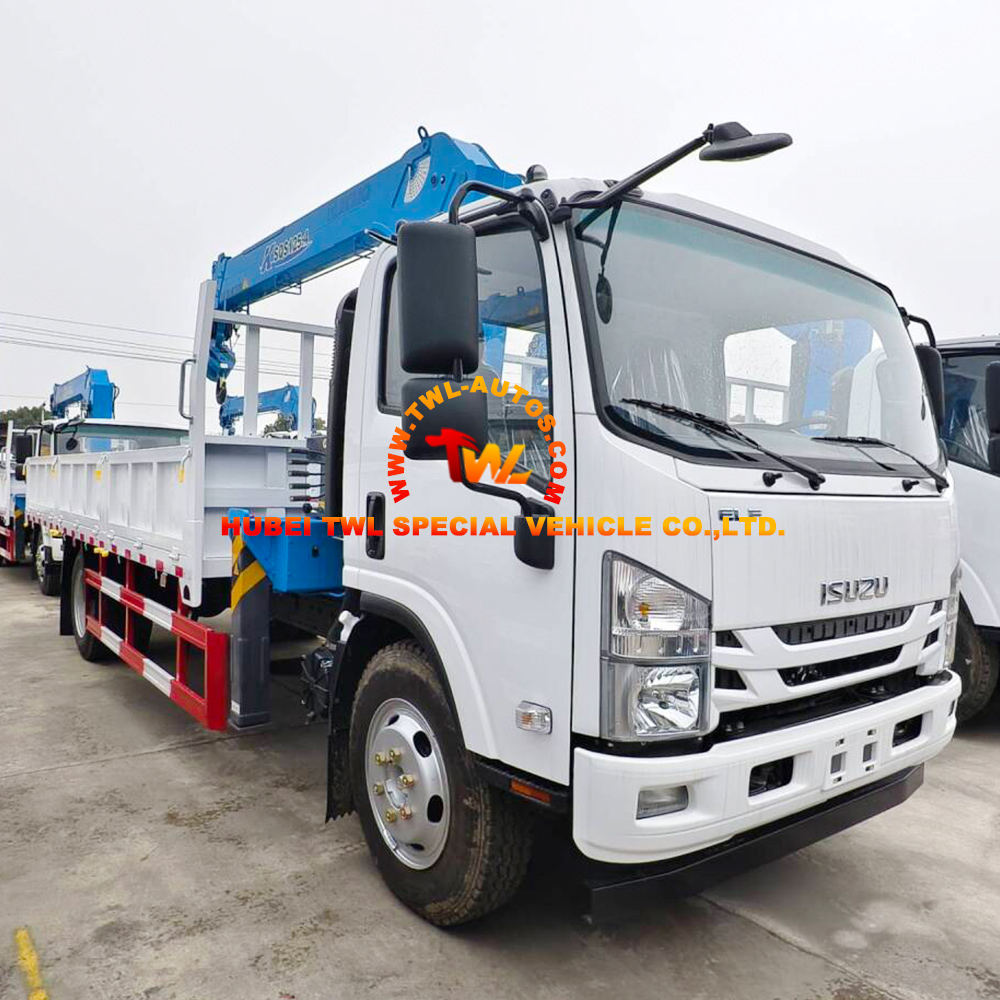

ISUZU ELF 4x2 Crane Truck with XCMG Loader Crane

For businesses that regularly move heavy materials, coordinating separate transport and lifting equipment creates logistical complexity and added costs. The ISUZU ELF Crane Truck solves this challenge by integrating a powerful loader crane directly onto a versatile truck chassis, enabling a single vehicle to carry loads and handle their loading and unloading.

The vehicle is built on the ISUZU KV100 light truck chassis, a platform renowned for its durability, fuel efficiency, and low operating costs across global markets. Power comes from the ISUZU 4KH1CN6LB diesel engine—a 2.999-liter, four-cylinder unit featuring high-pressure common rail injection, turbocharging, and intercooling. Delivering 88 kilowatts (approximately 120 horsepower) and 290 Newton-meters of torque, this Euro VI compliant powertrain provides ample performance while meeting strict emissions standards.

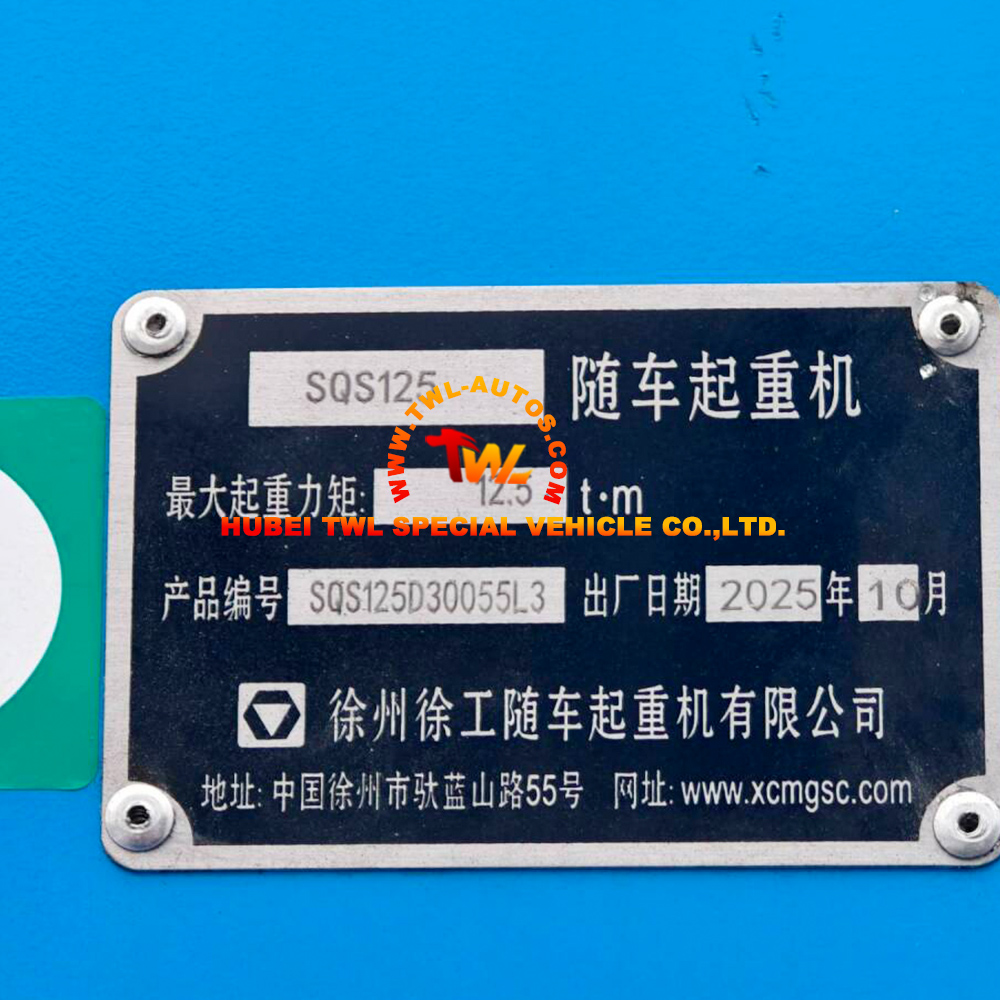

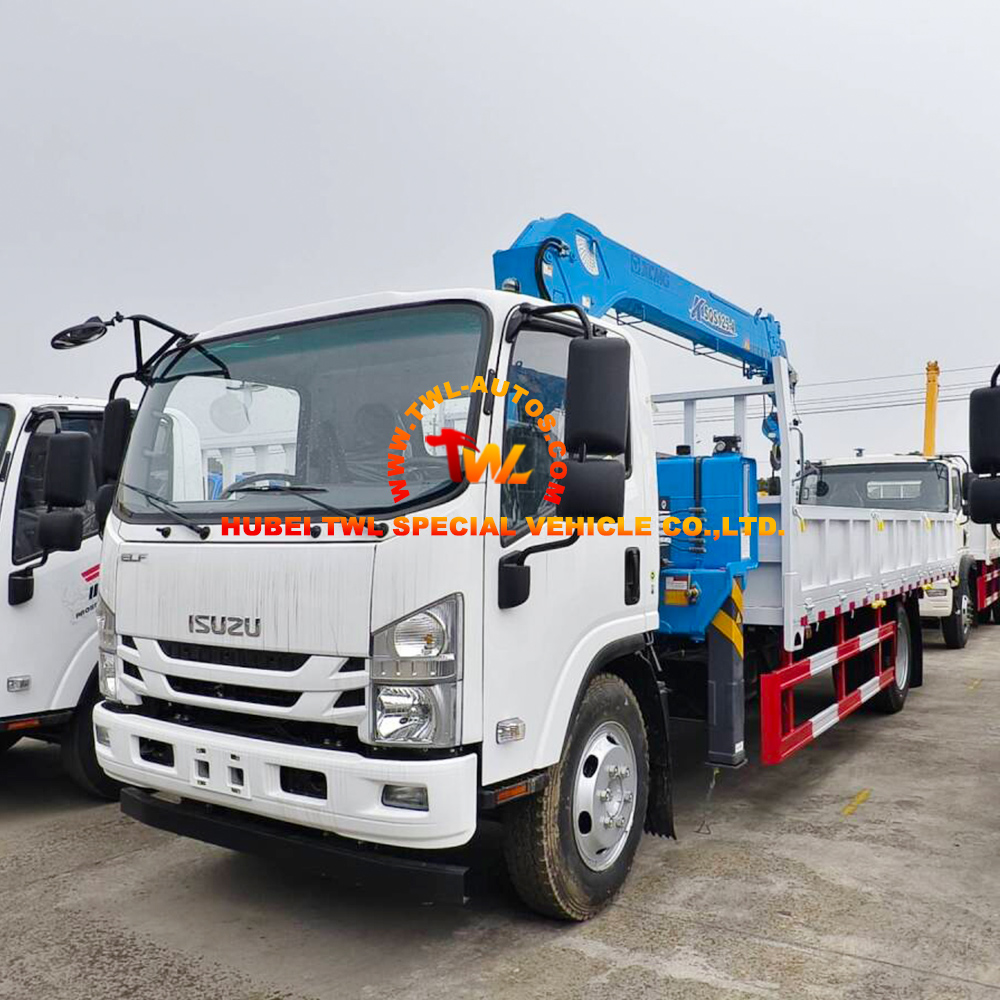

Mounted behind the cab is an XCMG loader crane, model SQS125D30055L3, with a maximum lifting capacity of 5 tons. XCMG, one of China’s premier heavy equipment manufacturers, is known worldwide for reliable construction machinery. The crane features a multi-stage telescopic boom that extends to a working radius of over 11 meters, allowing operators to reach across flatbed loads or position materials precisely at job sites.

The vehicle measures just under 6 meters in length with a wheelbase of 3,360 millimeters, making it well-suited for navigating narrow city streets, confined construction zones, and crowded industrial yards. The single-row cabin accommodates three occupants and comes equipped with standard features including air conditioning, power steering, ABS, and a tilting cab for easy engine access.

Key Features

· ISUZU Chassis with Euro VI Engine
The ISUZU KV100 chassis provides a proven foundation known for long service life and dependable operation. The 4KH1CN6LB engine combines 120 horsepower with 290 N·m of torque, delivering responsive performance for both highway travel and low-speed maneuvering. Euro VI compliance ensures the vehicle meets modern emissions requirements, making it suitable for markets with strict environmental regulations.

· XCMG 5-Ton Loader Crane
At the heart of this vehicle’s material handling capability is the XCMG SQS125D30055L3 crane. With a 5-ton lifting capacity and a multi-stage telescopic boom, this crane can handle a wide range of loads—from steel reinforcement and concrete blocks to machinery and equipment. The crane is mounted securely behind the cab, maintaining balanced weight distribution and providing excellent operator visibility during lifting operations.

· Compact Urban-Friendly Design
With an overall length of 5,995 millimeters and a width of 2,030 millimeters, this crane truck is designed to operate where larger vehicles cannot. Whether maneuvering through narrow city streets, accessing tight construction sites, or working in congested warehouse loading areas, the compact dimensions deliver practical advantages for urban and suburban operations.

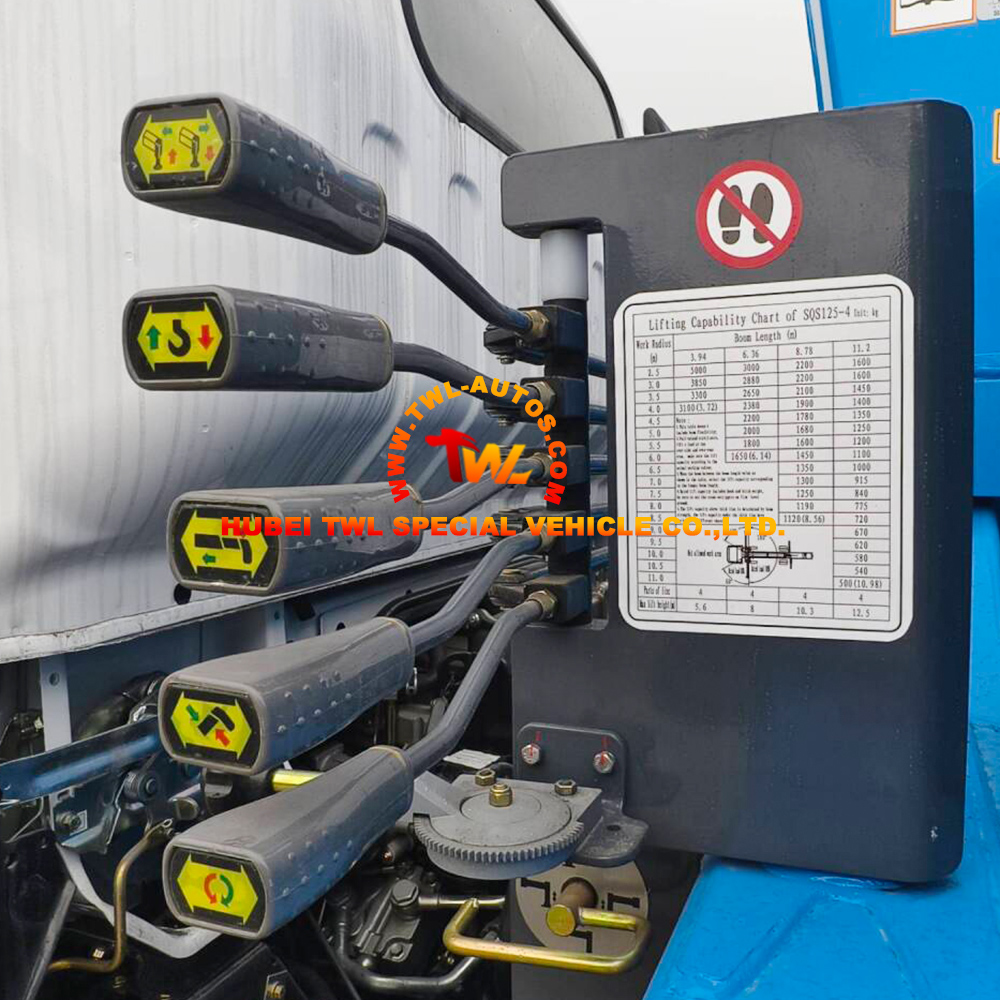

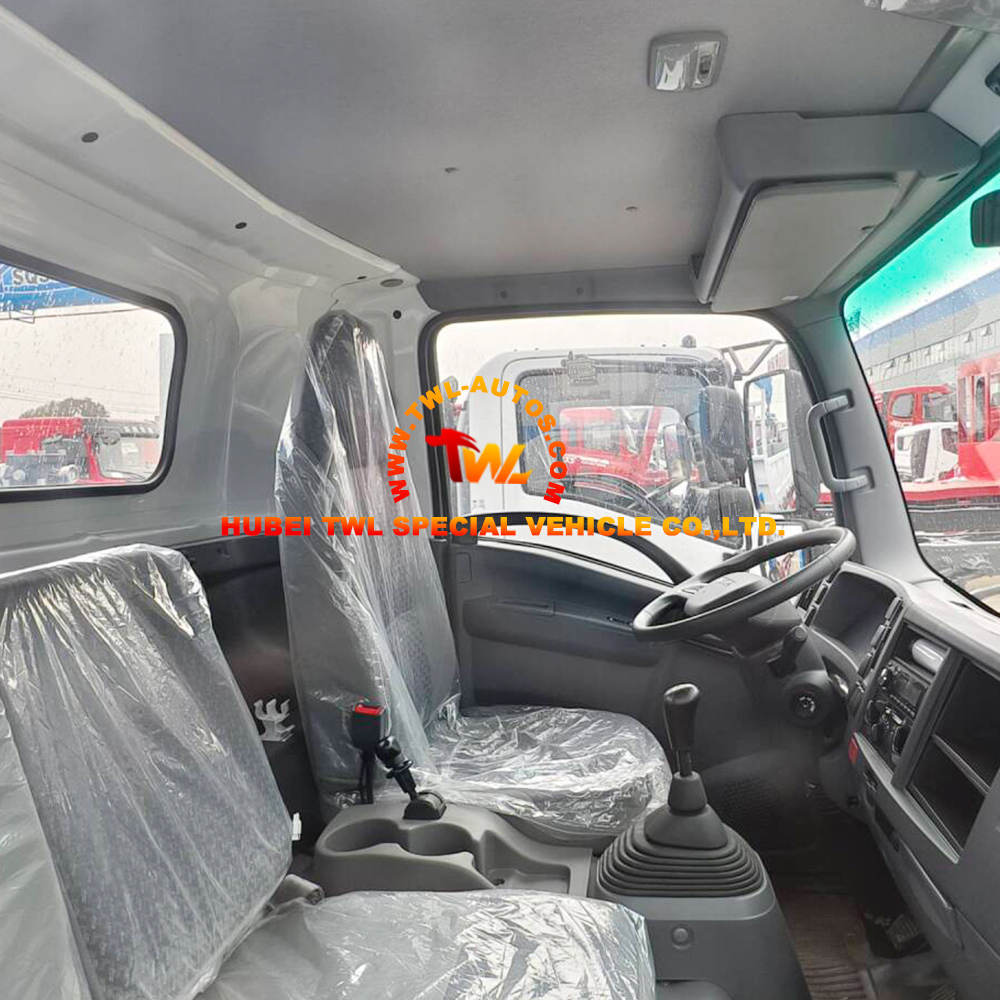

· Driver-Focused Cab and Controls
The single-row cabin is designed for comfort and convenience. Air conditioning keeps operators comfortable during long workdays, while power steering reduces driver fatigue during frequent maneuvering. The tilting cab provides straightforward access to the engine compartment for maintenance. Optional features such as central locking and electric windows are available for added convenience.

· Air Brake System for Safety
The vehicle is equipped with a dual-circuit air brake system, providing reliable stopping power even when operating at full gross vehicle weight. An exhaust brake further enhances control during descents and reduces wear on the service brakes—a valuable feature for vehicles that frequently operate on varied terrain.

· One Vehicle, Two Functions
The primary advantage of this crane truck is its ability to perform multiple roles. A single operator can drive to a job site, unload materials using the crane, and continue to the next location without requiring additional lifting equipment. This integrated approach reduces equipment costs, simplifies logistics, and improves operational efficiency.

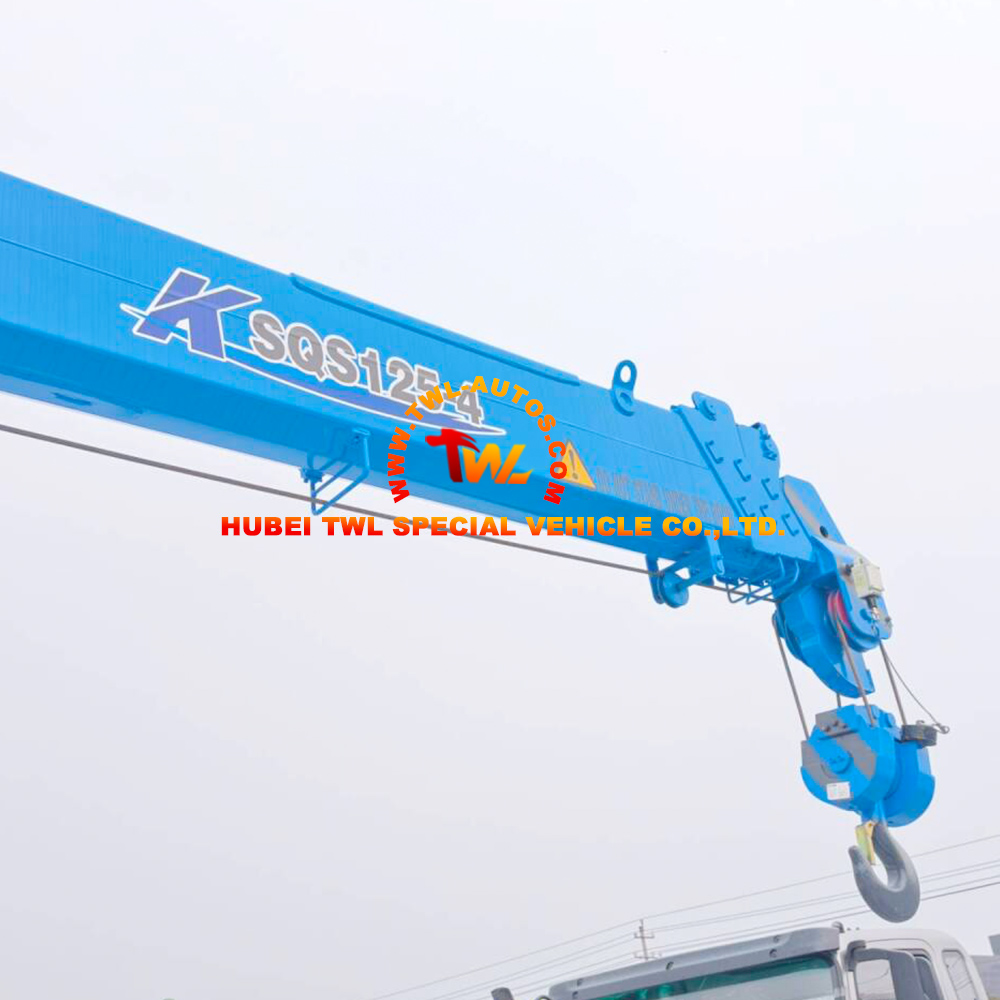

· Crane Performance

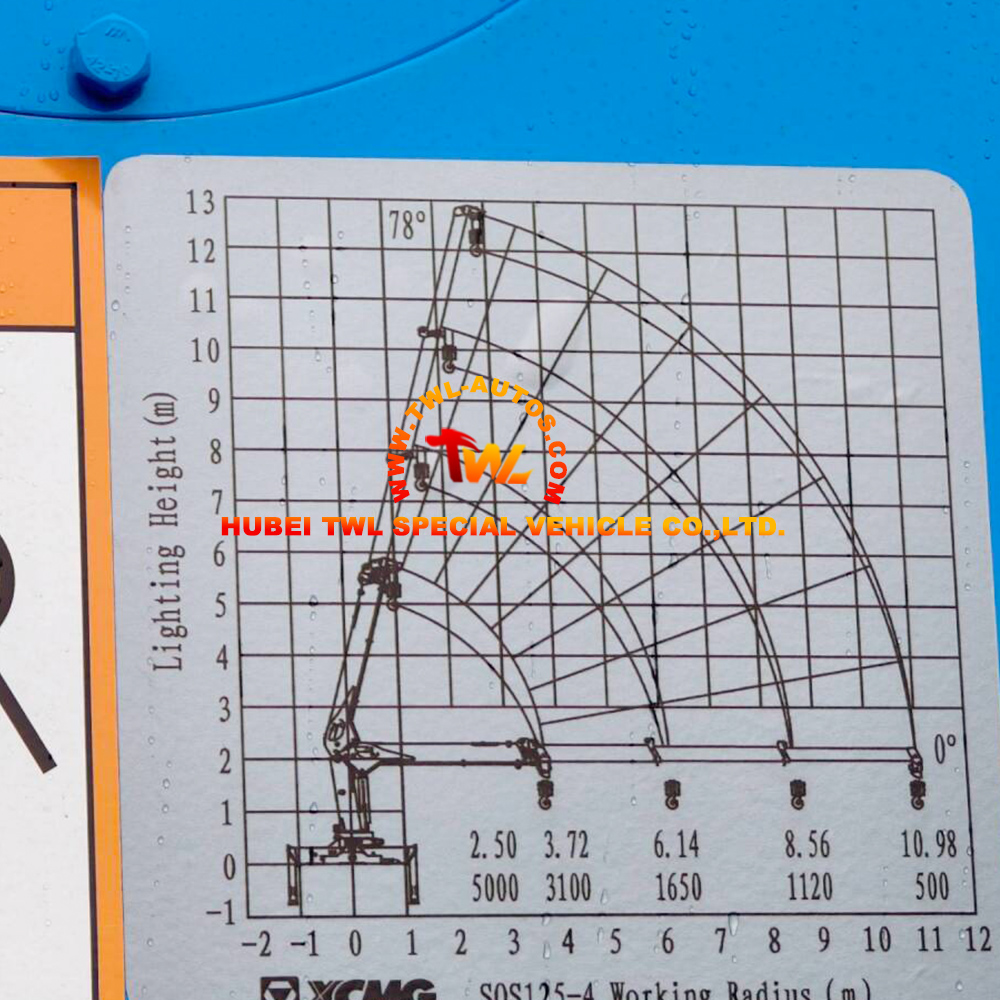

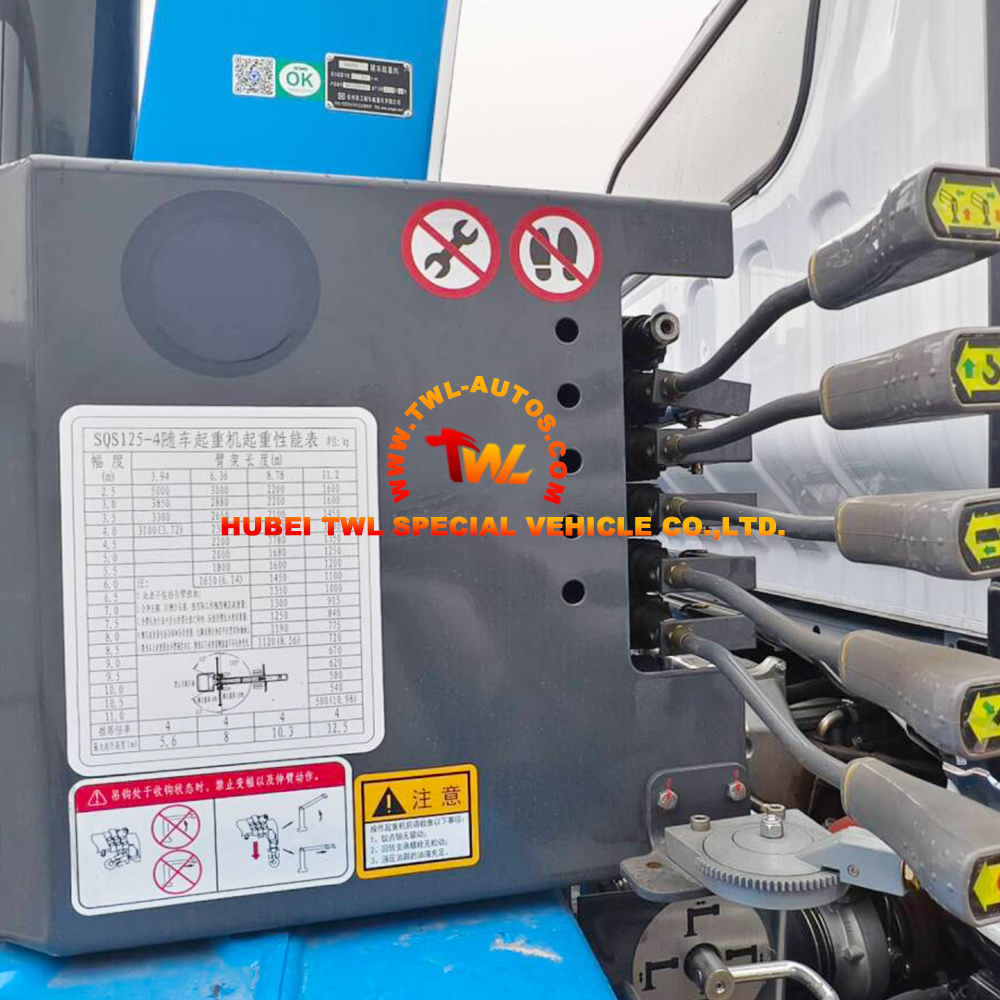

The XCMG SQS125D30055L3 loader crane is engineered for precise, reliable lifting. The multi-stage boom extends through several sections, with a maximum working radius of approximately 11.2 meters. Operators should always refer to the crane’s load chart to ensure safe operation within rated capacity limits, as lifting capacity varies with boom extensionand angle.

·The crane is manufactured by XCMG (Xuzhou Construction Machinery Group), a globally recognized leader in construction equipment. With decades of experience and a comprehensive service network, XCMG cranes are known for their durability, smooth operation, and ease of maintenance.

Applications

· Urban Construction
Transport steel reinforcement, concrete products, pipes, and building materials directly to city construction sites. The compact size allows access to job sites where larger crane trucks cannot enter.

· Municipal Maintenance
Support public works departments with lifting and placing streetlights, traffic signs, barriers, and utility equipment. The combination of transport and lifting capability streamlines maintenance operations.

· Logistics and Warehousing
Load and unload heavy cargo at distribution centers and freight terminals without relying on forklifts or mobile cranes. The crane can reach across truck beds and position materials precisely on loading docks.

· Telecommunications
Transport and erect telecommunications poles, antenna towers, and equipment cabinets. A single vehicle can carry materials to remote sites and handle installation lifting without additional equipment.

· Utilities and Power
Support power line maintenance, transformer installation, and utility pole replacement. The crane’s 5-ton capacity handles the typical loads encountered in electrical distribution work.

· Landscaping and Tree Services
Lift and transport mature trees, large boulders, and heavy landscaping materials. The crane’s reach and precision make it suitable for parks, golf courses, and commercial landscaping projects.

· Agriculture
Handle heavy equipment, irrigation components, and fencing materials across farms and rural properties. The truck’s road-legal configuration allows easy movement between locations.
