Isuzu Aircraft GSE Refueling Truck
The Isuzu Aircraft GSE Refueling Truck is designed to provide safe, efficient, and reliable Jet A1 aviation fuel supply for airports of all sizes. It is widely used in large international airports, medium-sized airports, small and branch airports, as well as military bases, thanks to its flexible operation and advanced fueling technology.
Equipped with a large-capacity fuel tank, the truck ensures multiple refueling operations without interruption. The advanced pumping and pressure regulating system guarantees fast and accurate fuel delivery, while the integrated fuel purification unit ensures that every drop of fuel meets strict aviation safety standards. In addition, a precision metering system monitors real-time fueling volume, improving both efficiency and safety during refueling operations.
Constructed with high-quality, corrosion-resistant materials such as aluminum alloy or stainless steel, the Isuzu refueler is durable, lightweight, and reliable under diverse airport environments. Powered by an Isuzu or other well-known engine brand, it offers strong performance and stability even under demanding operating conditions.
Isuzu Aircraft GSE Refueling Truck Advantage
Large-Capacity Fuel Tank
Designed with high-volume storage to support multiple refueling operations without frequent replenishment.
Efficient and Accurate Refueling
Advanced pumping and pressure regulation system ensures fast, stable, and precise fuel delivery to different types of aircraft.
Fuel Purification System
Integrated purification device filters aviation fuel during refueling, ensuring fuel quality and protecting aircraft engines.
Precision Metering Function
Equipped with a highly accurate metering system that provides real-time monitoring of fuel volume, ensuring safe and error-free refueling operations.
Durable Tank Materials
Fuel tank made from corrosion-resistant aluminum alloy or stainless steel, maintaining fuel purity and guaranteeing long service life.
Strong Power & Reliability
Powered by Isuzu or other high-performance engines, providing stable and reliable operation across different airport environments.
Flexible Application
Suitable for large international airports, regional airports, branch airports, and military bases, meeting diverse aviation fueling demands.
Product Specification
| Condition | New condition/Left hand drive/4×2 | |
| Chassis | Brand | ISUZU |
| Curb weight(kg) | 4605 kg | |
| Loading weight(kg) | 3000/4000/5000 kg | |
| Wheelbase(mm) | 3360 mm | |
| Front/Rear axle loading weight(kg) | 2500/4000 kg | |
| Front/Rear overhang(mm) | 1430/2370 mm | |
| Approach/Departure angle(°) | 18/12 | |
| Max. driving speed(km/h) | 80 km/h | |
| Clutch | Reinforced diaphragm clutch | |
| Brakes | Service brake: dual circuit compressed air brake. | |
| Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust valve brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Tire Quantity | 6pcs with one spare tire | |
| Tire Specifications | 7.00-16 | |
| Transmission | Manual type, 5 Forward and 1 reverse | |
| Steering | Power steering, hydraulic steering with power assistance | |
| Cab | It can accommodate three people, With Air conditioner | |
| Engine | Brand | ISUZU |
| Fuel type | Diesel | |
| Displacement(ml) | 2771 ml | |
| Power(kw) | 73 kw | |
| Horsepower(HP) | 98 HP | |
| Cylinder number | 4 pcs | |
| Emission standard | Euro 4 | |
| Fuel tank | Capacity(cbm) | 5.0 cbm/6 cbm |
| Tank material | Aluminium alloy | |
| Thickness(mm) | 4.0/5.0mm | |
| Compartment quantity(pcs) | 1 pcs | |
| Filling medium | Aviation kerosene | |
| Fuel pump | Quantity(pcs) | 1 pcs |
| Model | China local brand | |
| Type | Aluminium alloy | |
| Notes | 1, Aluminium alloy safety valve 1 pc | |
| 2, Mechanical type Ladder | ||
| 3, Filter system | ||
| 4, Control system | ||
| Remarks | Customized LOGO design as per customer needs! | |

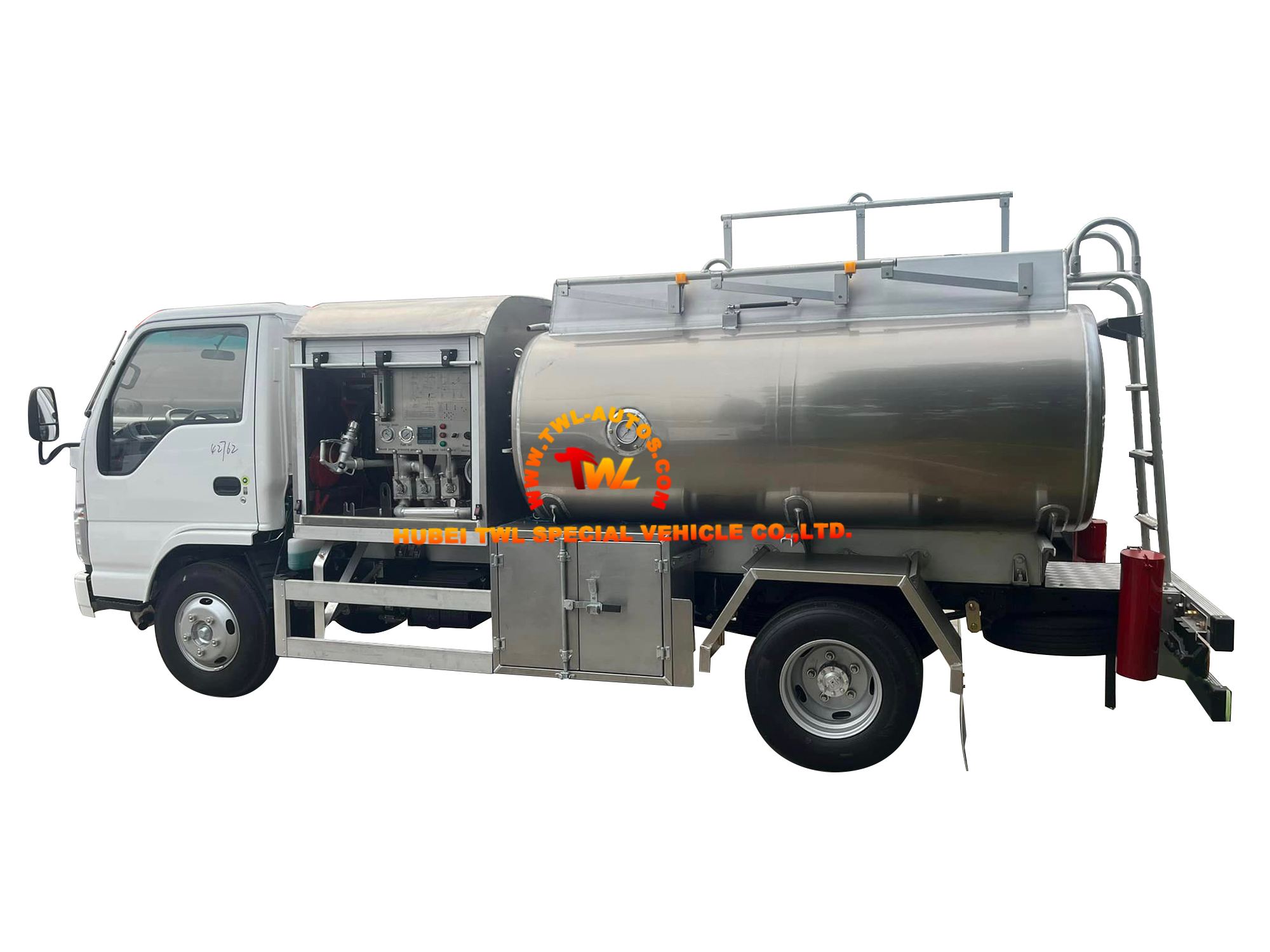

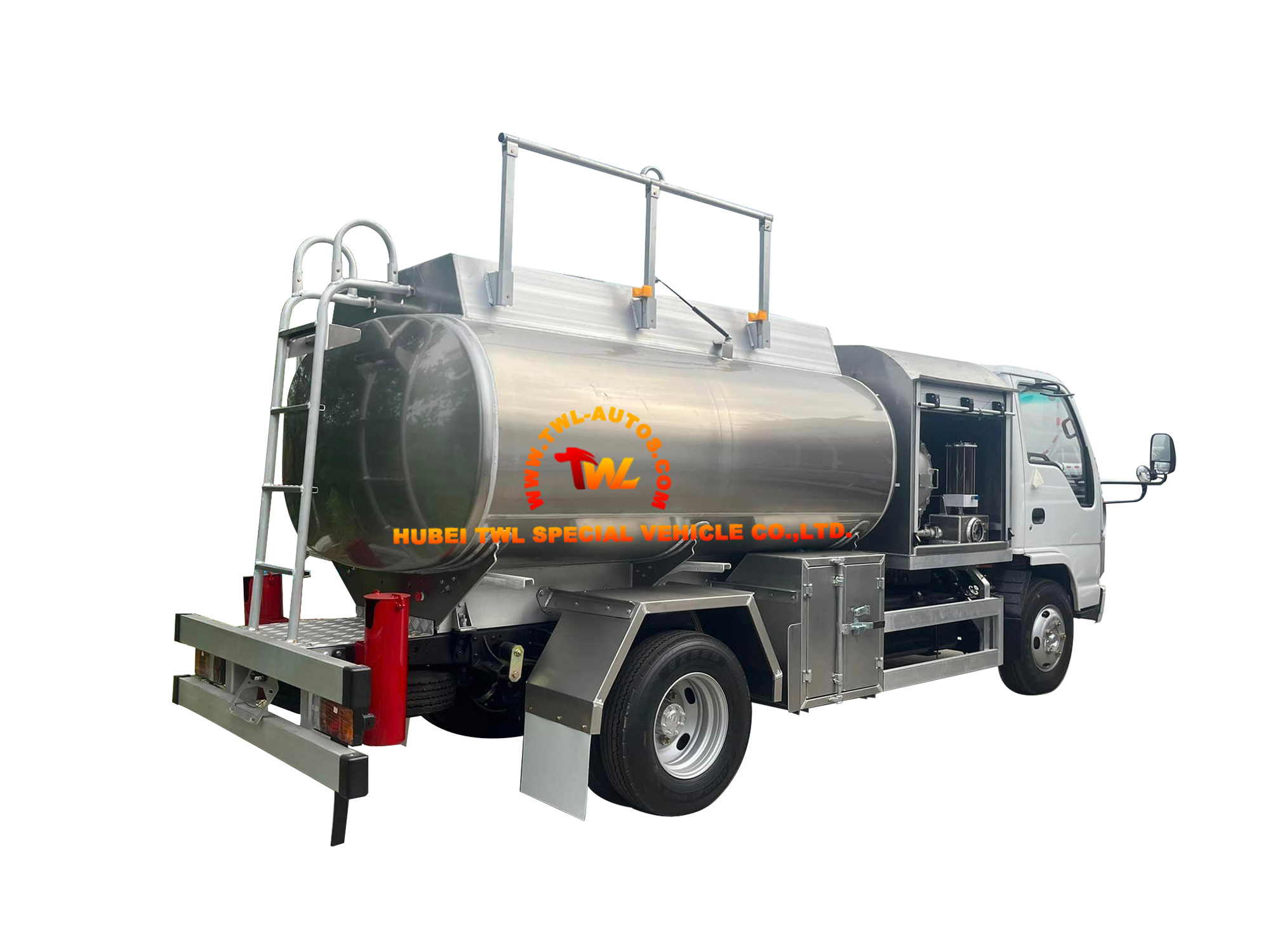

Isuzu Aircraft GSE Refueling Truck Gallery
