Isuzu 8CBM 12Tons Vacuum Suction Truck
A vacuum suction truck—also known as a vacuum tanker, sewer jet vac, or hydro-excavation truck—is a specialized vehicle designed to safely suction, transport, and dispose of liquids, sludge, and solid debris. Powered by a high-performance vacuum pump system (typically 500–3,000+ CFM), it is equipped with a durable steel or reinforced polyethylene storage tank (1,000–10,000+ gallons) often fitted with baffles for liquid stability.
These trucks serve diverse applications, including municipal sewer and storm drain cleaning, septic tank pumping, industrial hazardous waste removal, spill recovery, hydro-excavation in construction, and emergency floodwater or disaster cleanup. Flexible hoses, jet nozzles, and debris separators enhance their functionality, enabling efficient handling of both liquids and solids.
Isuzu 8CBM 12Tons Vacuum Suction Truck Advantage
1. Optimal Capacity & Compact Design
8 m³ (≈2,100 gallons) tank strikes the right balance between payload and maneuverability.
Built on the agile ISUZU chassis, ideal for narrow urban streets and crowded environments.
2. Powerful Vacuum & Jetting System
High suction capacity of 360–500 CFM for fast waste removal.
Deep vacuum level (≥25 inHg / 85 kPa) efficiently handles sludge, liquids, and solids.
Optional high-pressure jetting system (100–150 bar) for breaking blockages.
3. ISUZU Chassis Reliability
Equipped with fuel-efficient ISUZU 4HK1/6HK1 diesel engines (150–300 HP), compliant with Euro V/VI standards.
Proven durability in demanding environments like construction sites and sewer systems.
Available in both left-hand and right-hand drive configurations for global adaptability.
4. Safety & Regulatory Compliance
Explosion-proof options (ATEX-certified) for hazardous waste operations.
Anti-overflow sensors and pressure relief valves prevent tank overloading.
Meets DOT, ADR, and OSHA standards for waste transport and environmental safety.
5. Versatile Applications
Municipal: Sewer and storm drain cleaning, septic tank pumping.
Industrial: Oil sludge recovery, chemical spill cleanup.
Construction: Hydro-excavation for non-destructive digging around utilities.
6. Cost-Effectiveness
Lower operating costs due to ISUZU’s fuel efficiency and widely available parts.
High resale value supported by ISUZU’s strong global reputation.
Product Specification
| Overall Parameters | ||
| Dimensions | Approx.Overall Dimensions | 7750*2520*3600 mm |
| Wheelbase | 4475 mm | |
| Front/Rear Overhang | 1350/2840 mm | |
| Approach/Departure Angle | 17/7° | |
| Performance | Tank Capacity | 10 CBM/ 10000 Liters |
| Vacuum Pump | PN 155, Italian Jurop | |
| Max. Driving Speed | 90 | |
| Chassis Technical Specification | ||
| Condition | Factory New | |
| Brand | ISUZU | |
| Cabin | Mode1 | VC61(3X) |
| Configurations | Air Conditioner | |
| Power Windows | ||
| Multi-function Steering Wheel | ||
| Multi-function Instrument Panel | ||
| Central Lock | ||
| Engine | Model | 4HK1-TCG61 |
| Emission Standard | Euro 5 | |
| Structure | Inline-4 | |
| Displacement | 5.19 L | |
| Max.Power | 139 kW/ 189 hp | |
| Max. Torque | 507 N.m | |
| Transmission | MLD manual, 6 Forwards &l Reverse | |
| Brakes | Air Brakes | |
| Suspension | Reinforced leaf Spring | |
| Axles | Configuration | 4×2 |
| Front Axle | 4 Tons | |
| Driving Axle | 7 Tons | |
| Tire | Model | 235/75R17.5 18PR |
| Quantity | 7 nos including 1 spare | |
| Safety Features | Emergency Braking System | Electronic Stability Control |
| Lane Departure Warning System | Front Collision Warning | |
| Tire Pressure Monitoring System | Run Stability Control | |
| Superstructure & Major Equipment | ||
| Tank | Capacity | 16 CBMM/ 16000 Liters |
| Material | Q235 Carbon Steel | |
| Thickness | 6mm shell, 8mm head | |
| Vacuum Pump | Brand | Jurop, Italian Brand |
| Model | PN155 | |
| Flow | 2470m³/h | |
| Max. Vacuum | 93% | |
| Suction Depth | ≥18m | |
| Baffles | 2 nos, to keep balance while driving under heavy load | |
| Manhole | 1 nos, DN500 with cover | |
| Ladder | 1 nos, access to the manhole | |
| Maintenance Platform | On either side of both chassis and tank top, made of anti-slip perforated metal | |
| Suction Hose | 2 nos, 8m, DN100 with quick-release joint, at either side of tank | |
| Tank Attachment to Chassis | Rubber damper fixed with tie traps | |
| Other Accessories | 1. Water-gas separator 2. 0il-gas separator 3. Four way valve 4. Safety valve 5. Anti overflow valve 6. Anti overflow warning device 7. Tube Flow Meter | |
| Remarks | The color and LOGO is optional | |

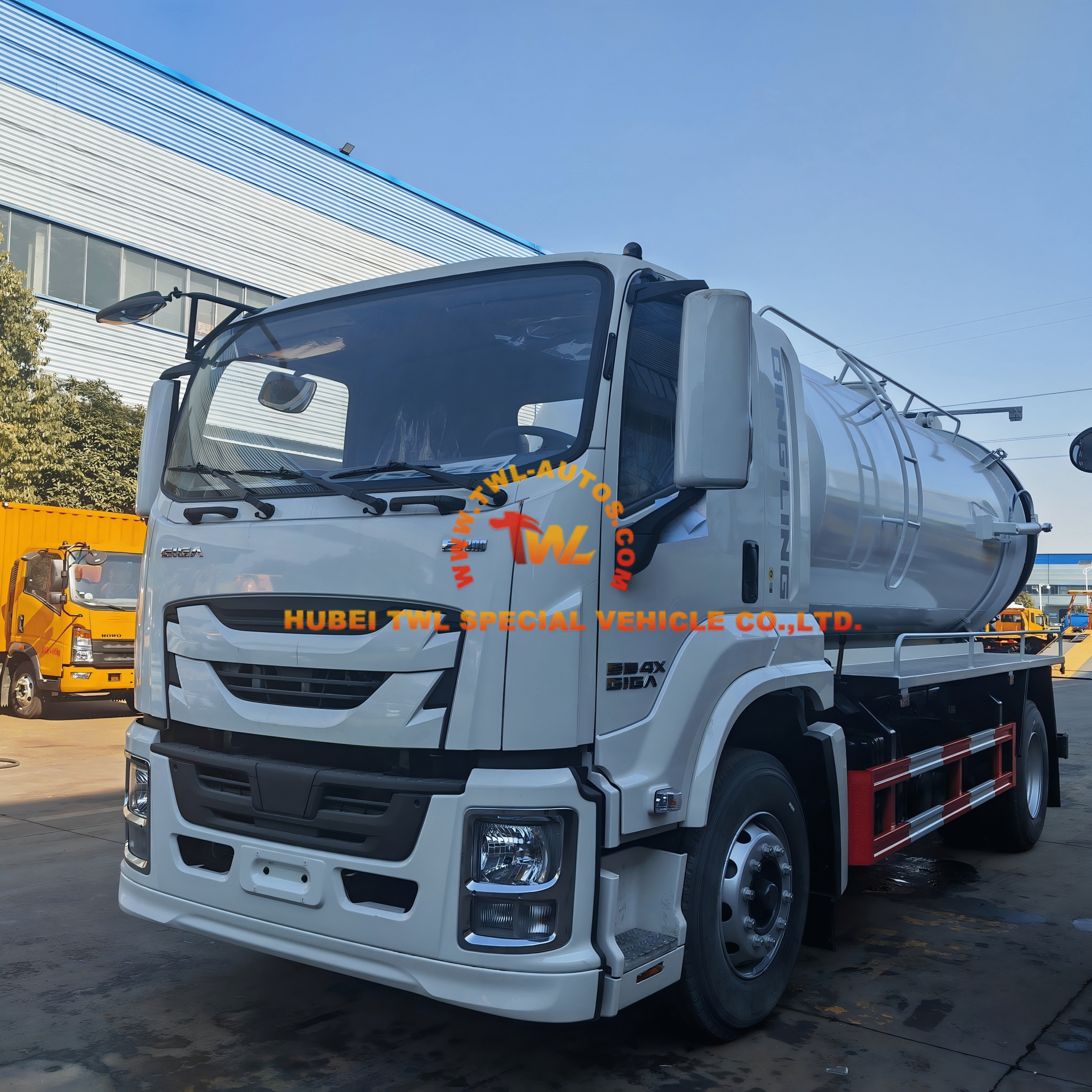

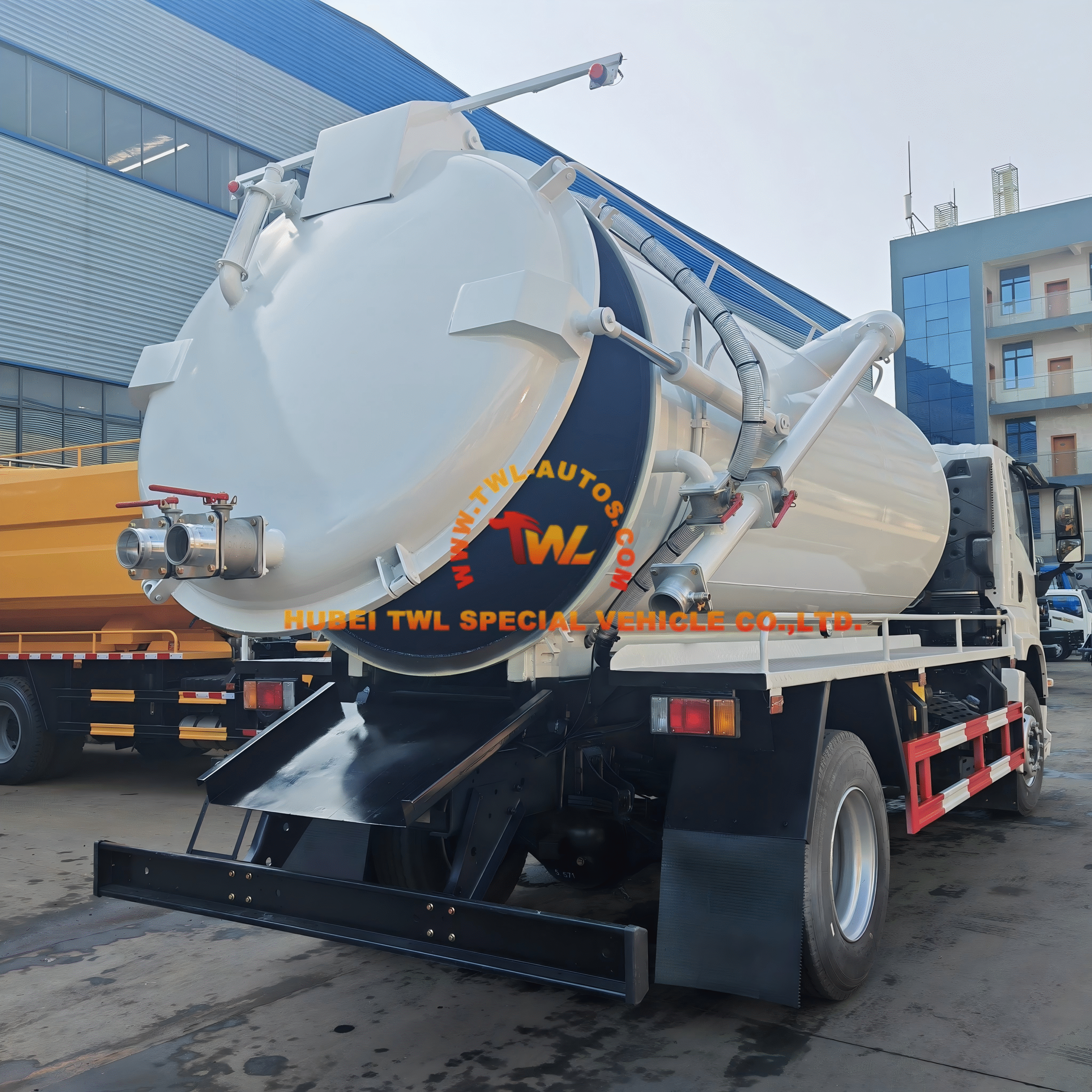

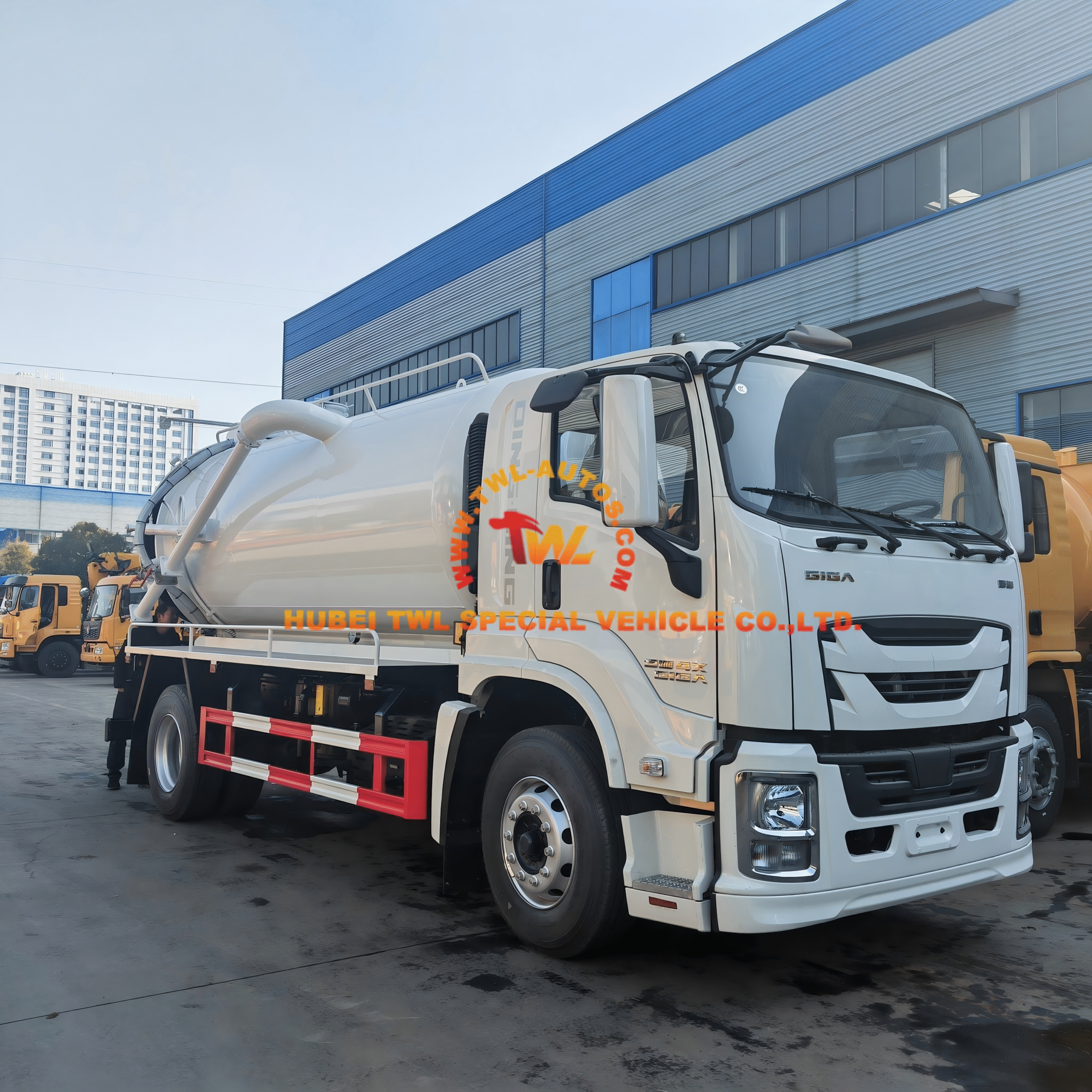

Isuzu 8CBM 12Tons Vacuum Suction Truck Gallery
