ISUZU 700P 6m³ Asphalt Distributor Truck
The ISUZU 700P 6m³ Asphalt Distributor Truck is a specialized road maintenance vehicle designed for the precise and efficient spraying of bitumen in a wide range of construction environments. With a capacity of 6–8 cubic meters, it is widely used for tack coat, prime coat, surface dressing, road repair, and airport runway treatment.
Equipped with advanced spraying technology, this truck ensures uniform asphalt distribution, improving paving quality and extending the service life of road surfaces. It supports both hot and cold bitumen, making it versatile for different projects such as highways, city roads, rural routes, and airports.
Built on the reliable ISUZU 700P chassis, the truck guarantees stable performance, low maintenance, and adaptability to diverse terrains and climates. It is the ideal choice for contractors, municipal authorities, and road maintenance teams seeking a durable and cost-effective asphalt spraying solution.
ISUZU 700P 6m³ Asphalt Distributor Truck Advantage
1. Efficient Asphalt Spraying
Equipped with a precise spraying system to ensure uniform coverage and improve road bonding strength.
Adjustable spray width for different road sizes and project requirements.
2. Multi-Functional Applications
Supports tack coat, prime coat, surface dressing, crack sealing, road repairs, airport runway treatment, dust suppression, and waterproofing.
Suitable for both hot and cold bitumen spraying.
3. High Durability & Reliability
Built on the ISUZU 700P chassis, known for strong power, fuel efficiency, and dependable operation.
Robust tank and spraying components designed for long service life under heavy-duty conditions.
4. Improved Road Quality & Safety
Enhances adhesion between old and new asphalt layers, preventing slippage and delamination.
Surface dressing improves skid resistance and extends pavement lifespan.
5. Adaptability to Different Environments
Performs consistently in high-temperature regions, rugged mountain roads, or cold climates.
Flexible design to meet the needs of municipal, highway, and airport projects.
6. Low Maintenance & Cost Efficiency
Easy-to-use controls reduce operator workload.
Low fuel consumption and minimal maintenance ensure lower operating costs over the vehicle’s lifetime.
Product Specification
| Chassis Model | ISUZU 4×2 190HP | |
| Overall Dimensions | mm | 6980*2170*2410 |
| Wheelbase | 3815 | |
| Track width | 1680/1650 | |
| Tank Capacity | m3 | 6m3 |
| Curb Weight | kg | 6,350 kg |
| Gross Vehicle Weight (GVW) | 12,000 kg | |
| Engine | Model | ISUZU 4HK1 |
| Power | 139 kW / 190 HP | |
| Displacement | 5,193 mL | |
| Max Torque | 507 N.m | |
| Max speed | km/h | 90 km/h |
| Tire specification | 235/75R17.5,6 tires with 1 spare | |
| Steering Position | LHD / RHD | |
| Transmission | ISUZU MLD, 6 Speed Manual | |
| Color | Customized | |
| Tanker Interior | Carbon steel | |
| Insulation Material | 50 mm rock wool insulation | |
| Tank Exterior | 1 mm stainless steel | |
| Hydraulic Motor | 05-130-BD31 | |
| Hydraulic pump | CBQ550-L | |
| Bitumen Pump | QGB680, Flow Rate: 680 L/min | |
| Proportional Valve | EFBG-03-160-HF | |
| Control System | PLC Control | |
| Asphalt Nozzles | 34 pcs | |
| Burner | Riello G10 (ltaly),100,000 kcal/h | |
| Thermal Oil Pump | RY40-25-160 | |
| Spray Width | 4.5 m | |
| Asphalt Spraying Rate | 0.25 to 3 L/㎡ | |
| Spraying Medium | Hot emulsified asphalt (including SBs and rubber-modified types) | |
| Optimum Construction Speed | 3-6 km/h | |
| Speed Sensor | GTS211B-N016 | |
| Temperature Controller | WZP-230 | |

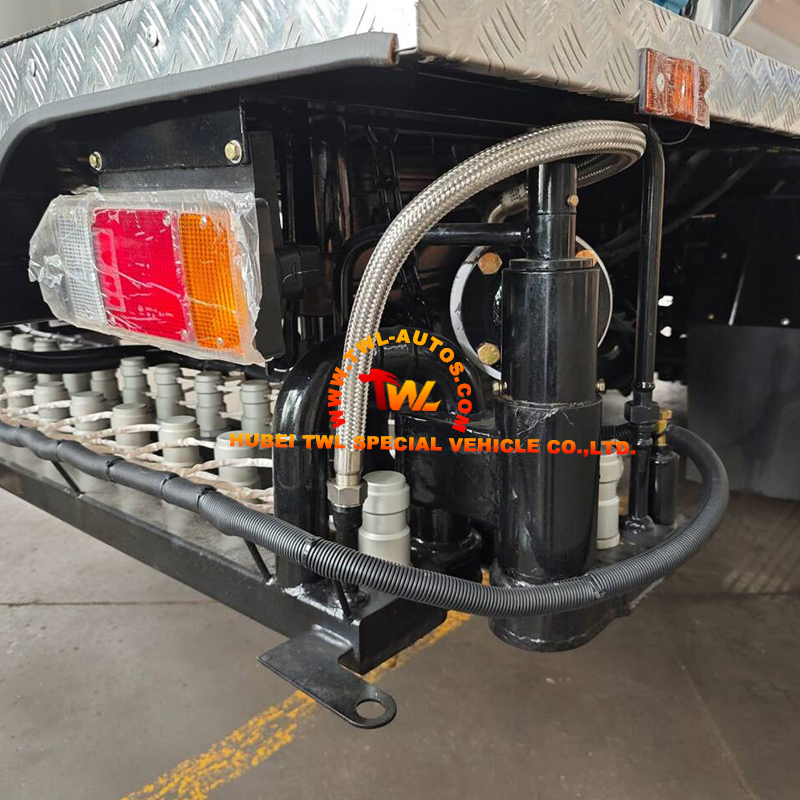

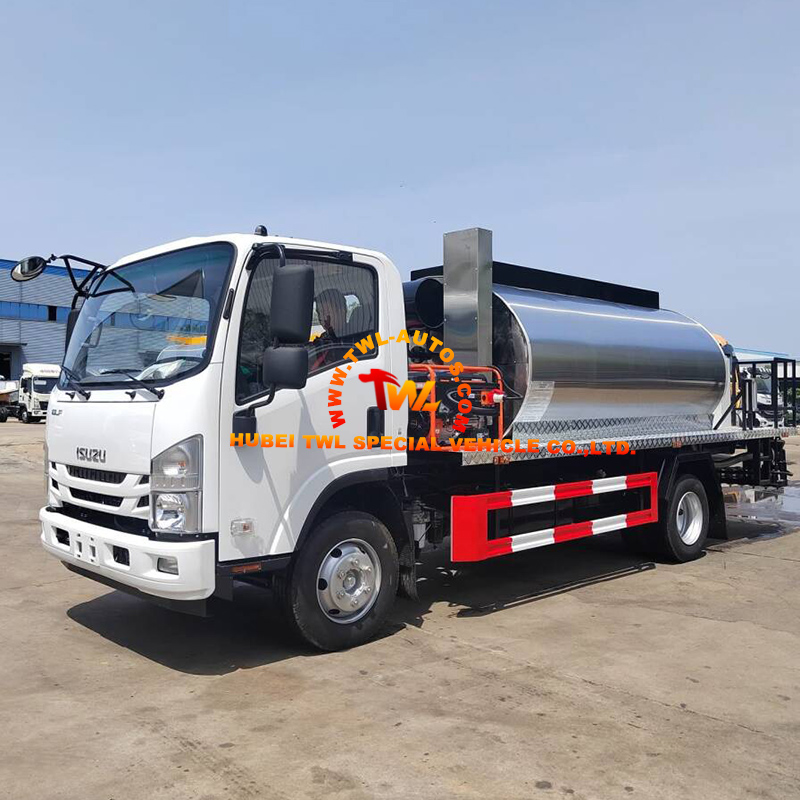

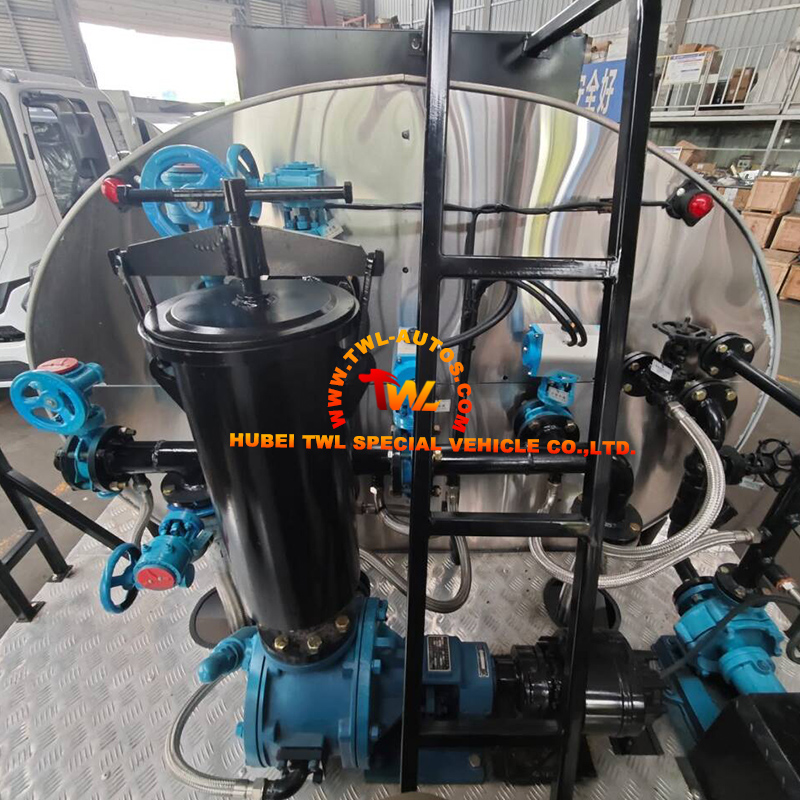

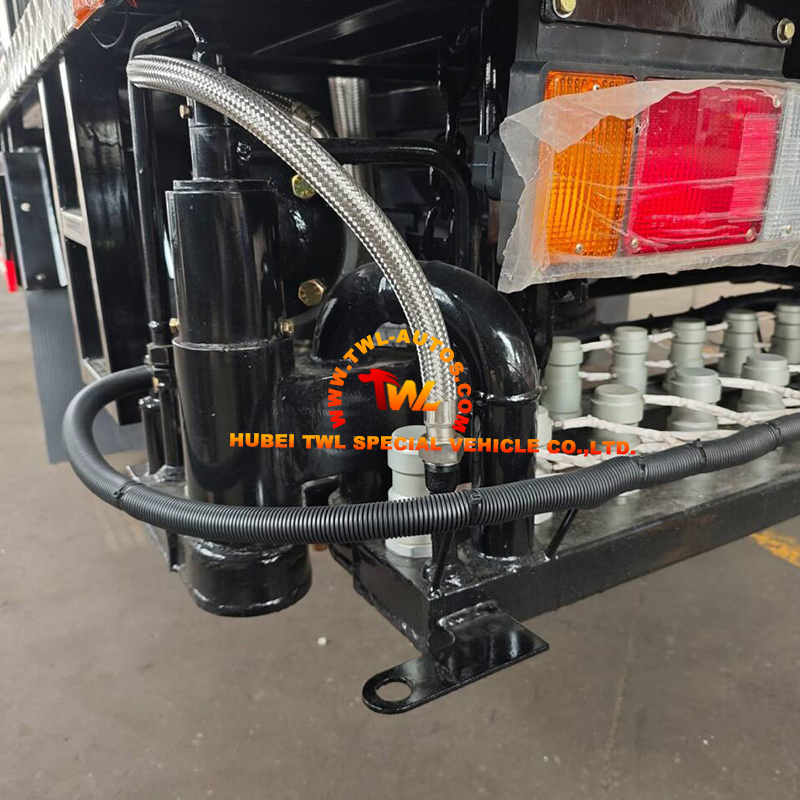

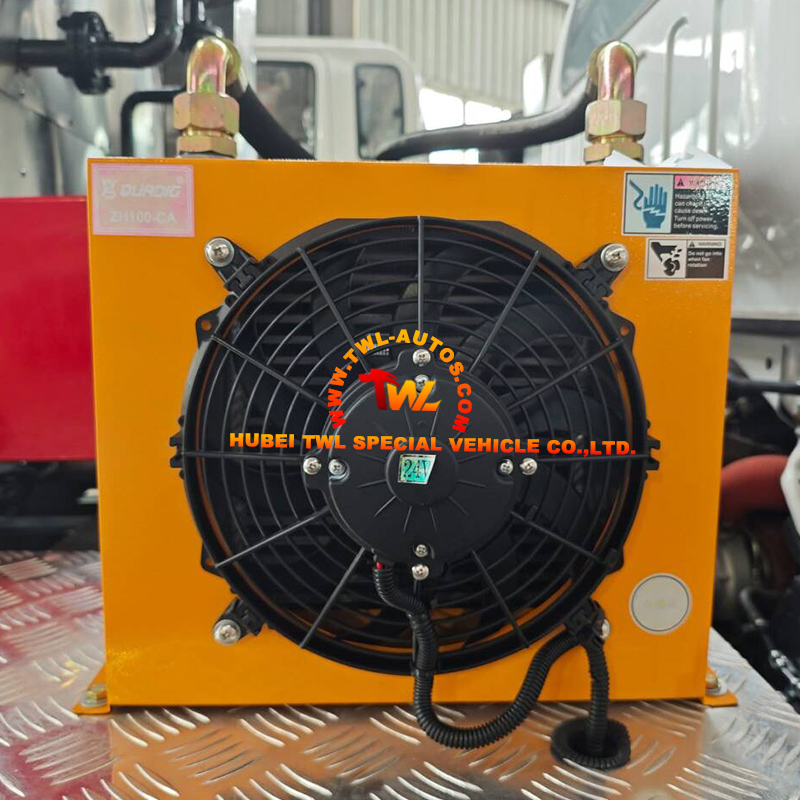

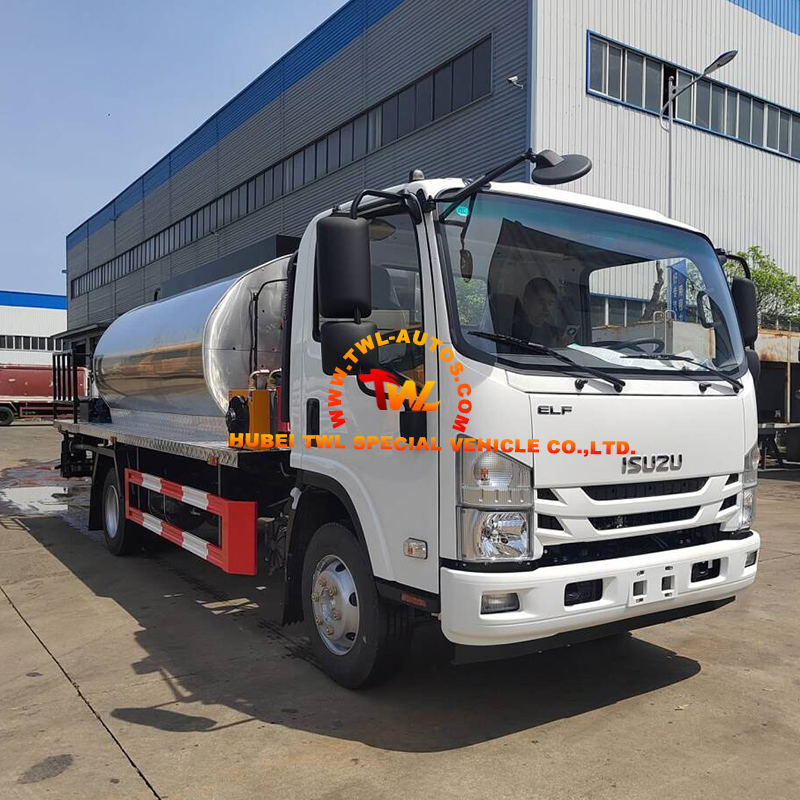

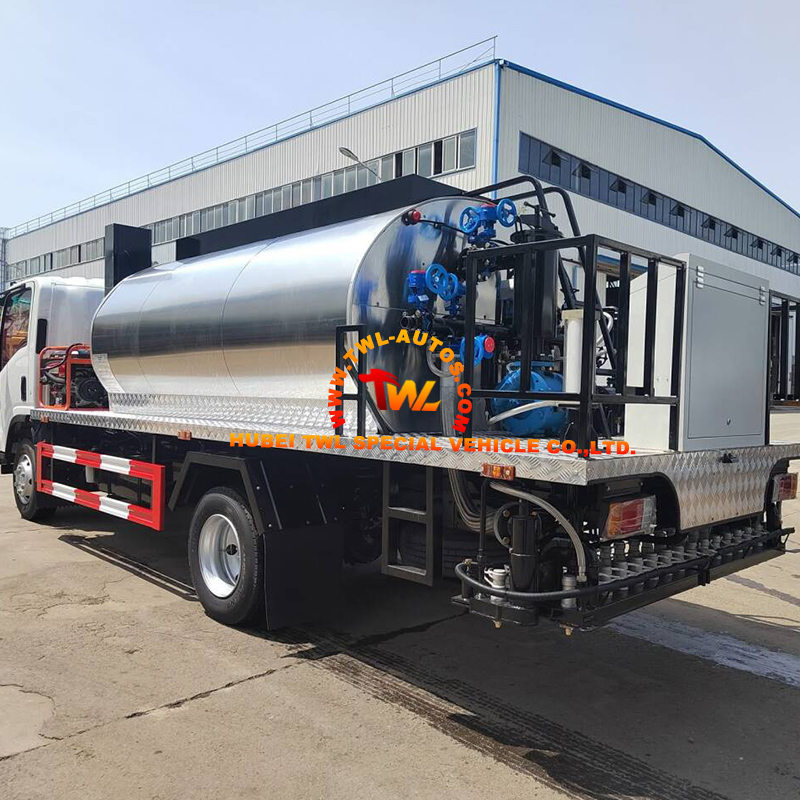

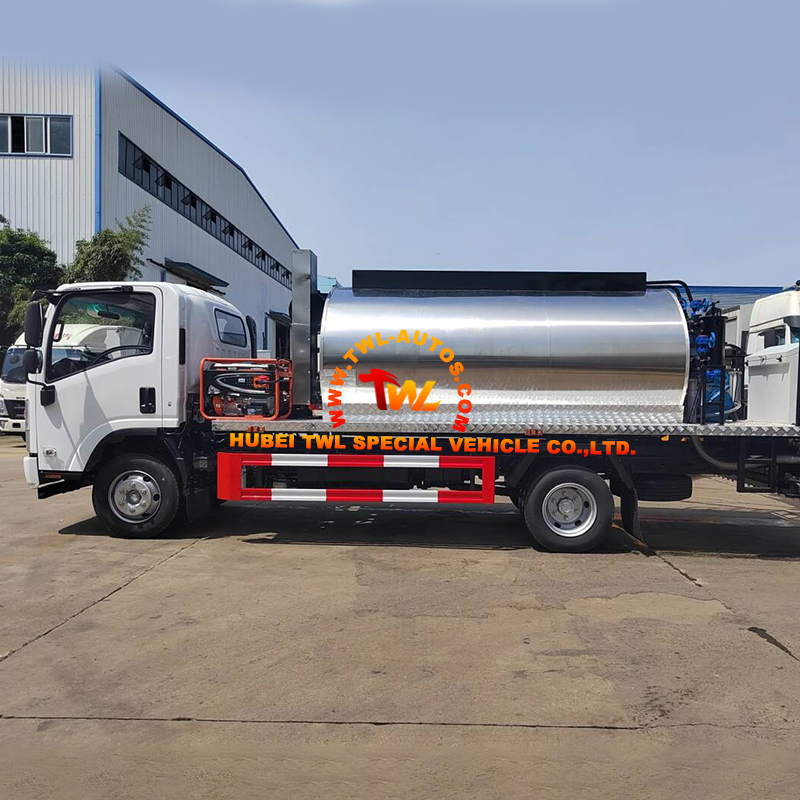

ISUZU 700P 6m³ Asphalt Distributor Truck Gallery
