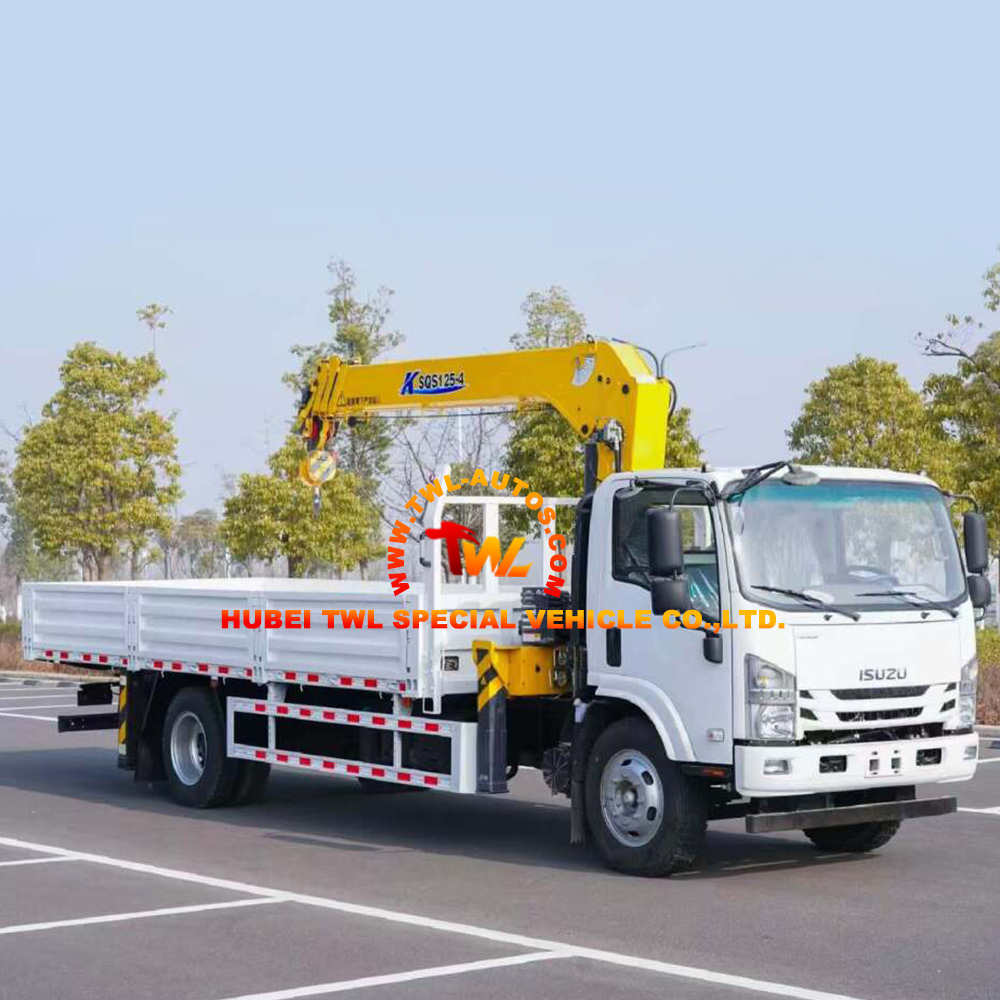

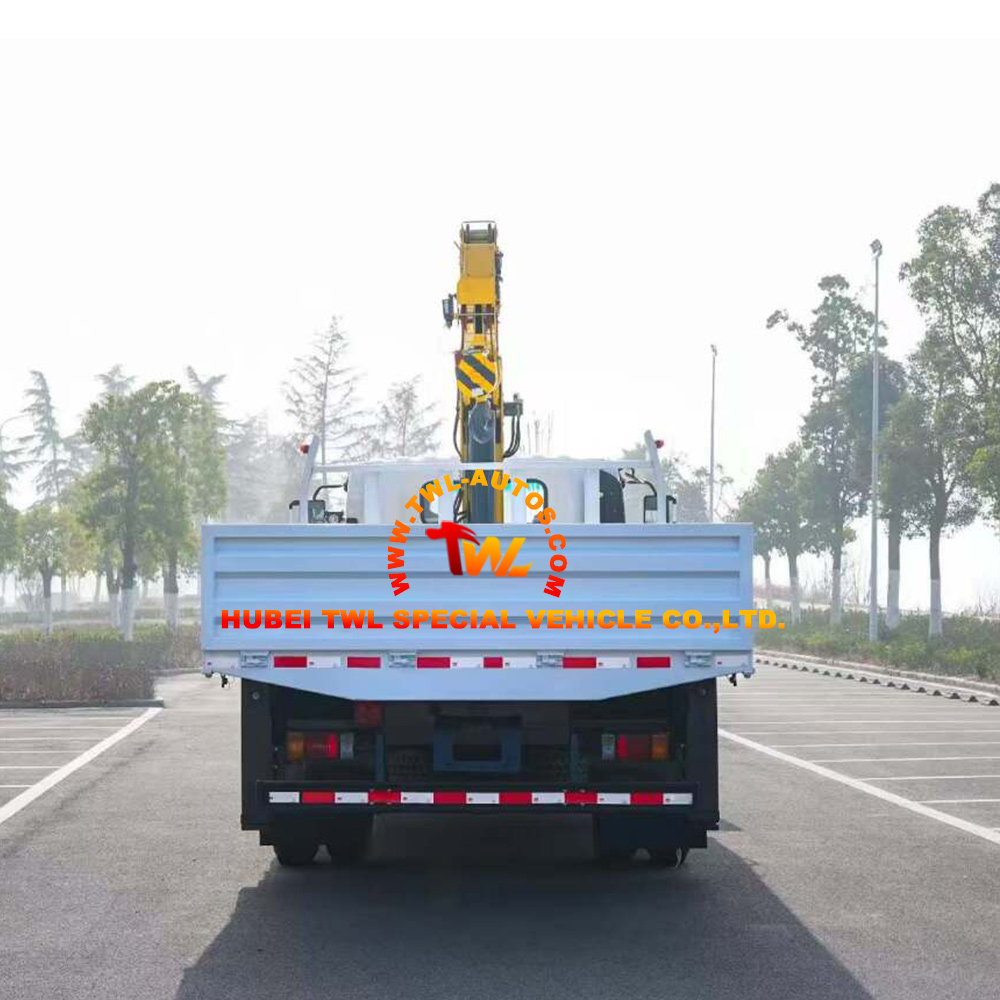

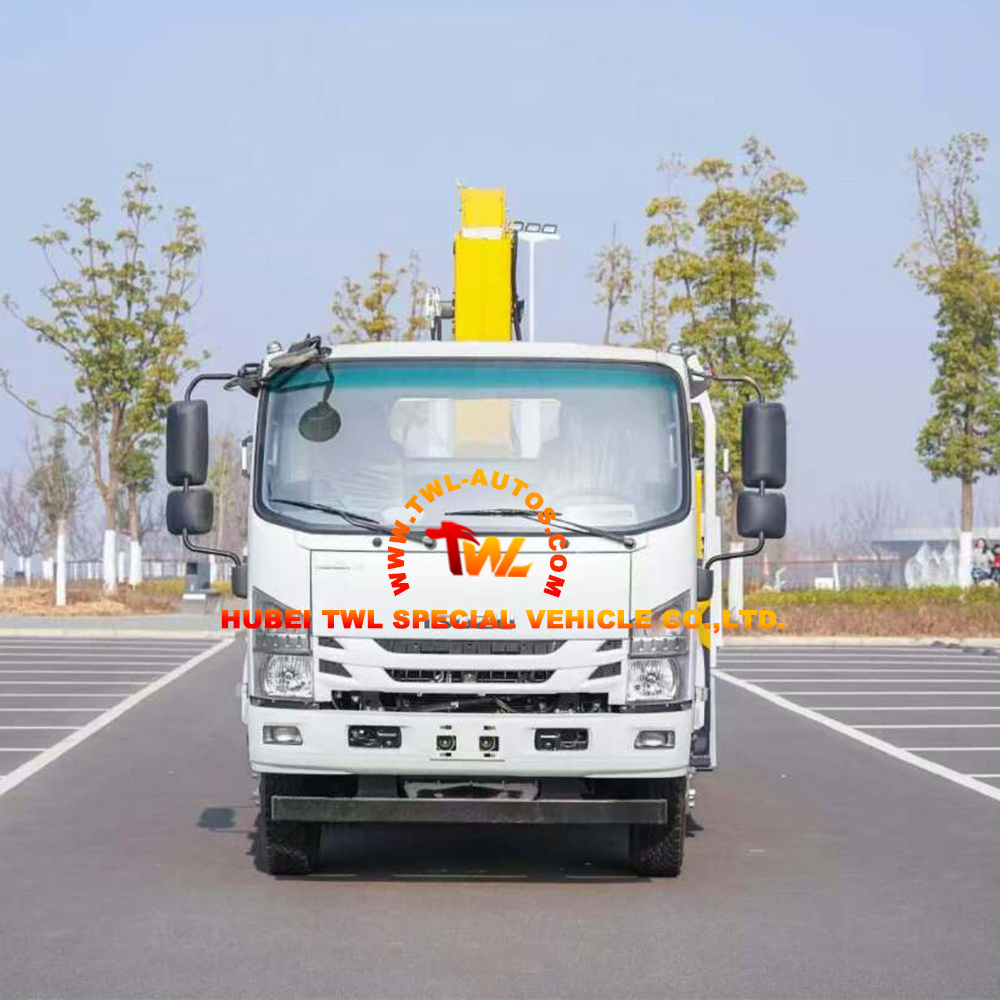

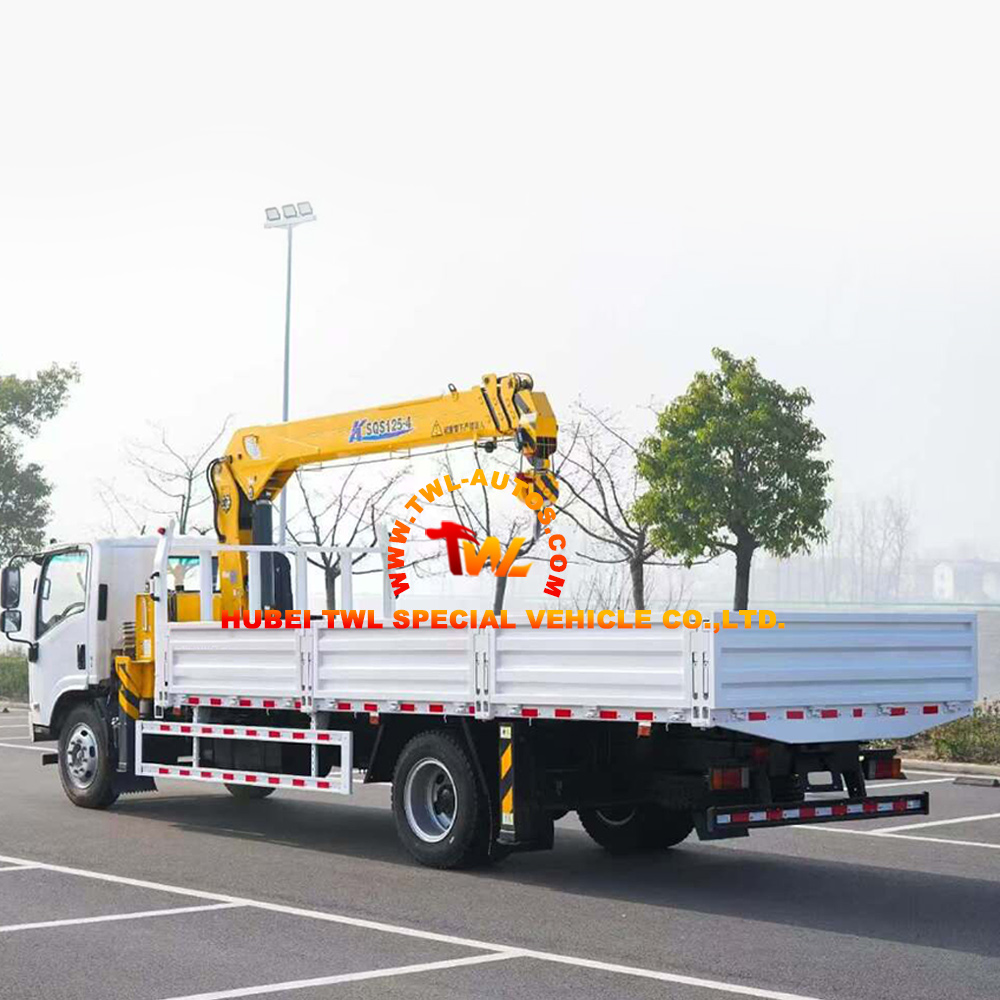

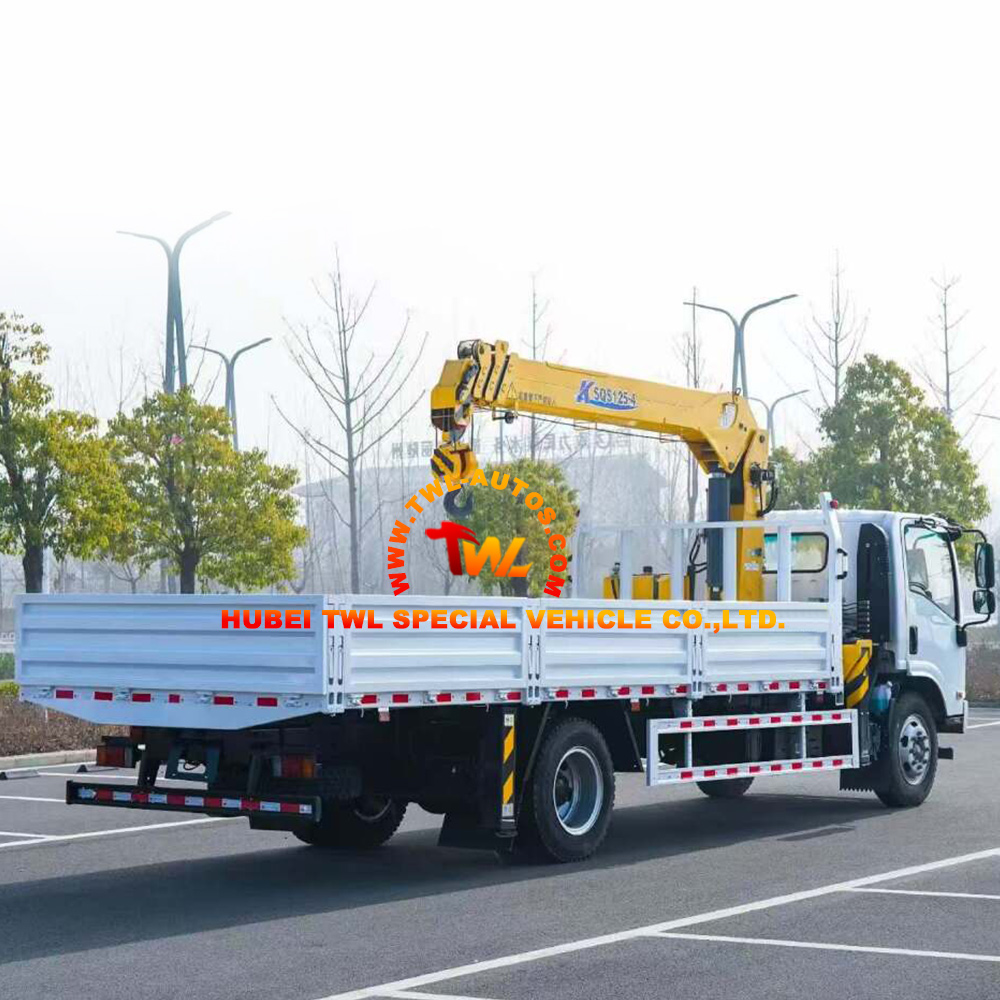

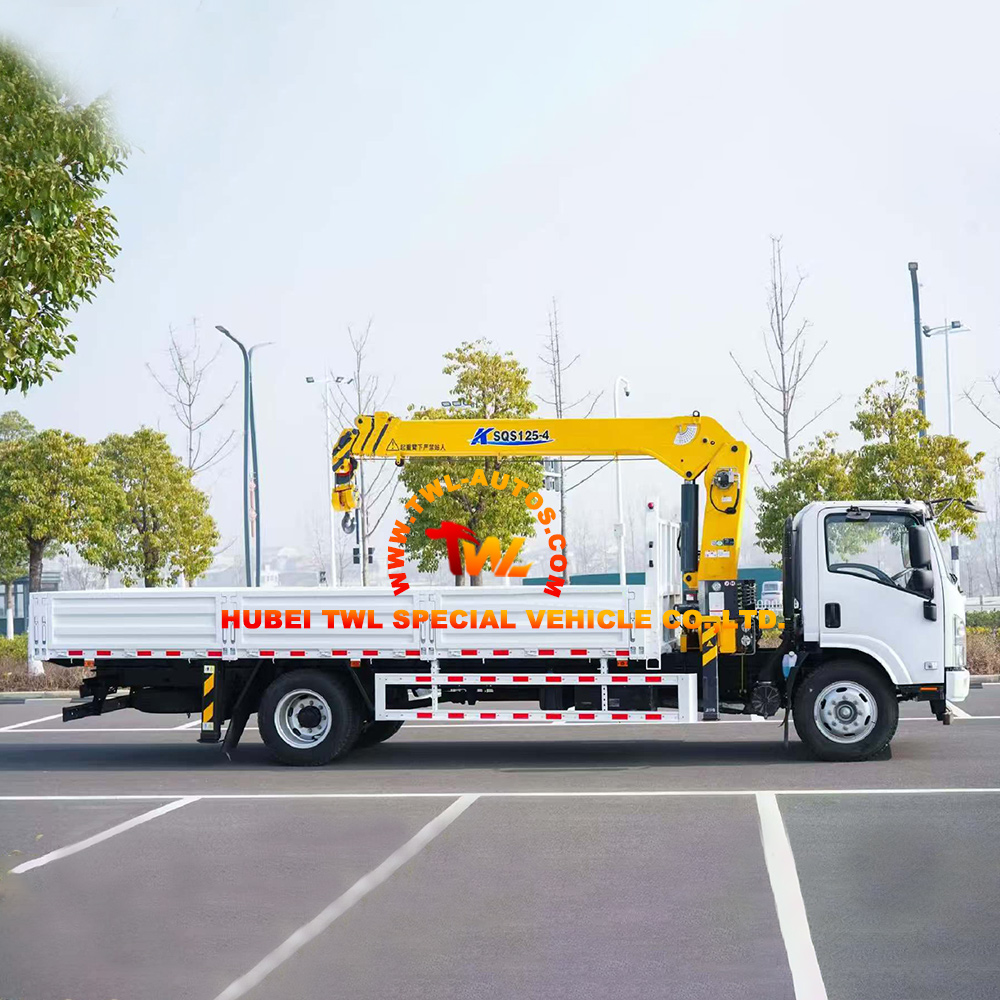

Isuzu 700P 5-Ton Crane Truck with 360° Hydraulic Crane
Enhance your material handling capabilities with the Isuzu 700P 5-Ton Crane Truck, a versatile vehicle that combines reliable cargo transport with powerful on-site lifting. Featuring a 5,000kg hydraulic crane with 360° rotation, 8.5m extension, and 10.5m lifting height, this truck is ideal for construction sites, logistics centers, and industrial facilities. Powered by a 190hp Euro 5 Isuzu engine, it delivers efficient, reliable performance.
Isuzu 700P 5-Ton Crane Truck with 360° Hydraulic Crane
The Isuzu 700P Crane Truck is a comprehensive material handling solution designed for businesses that require both transport and lifting capabilities. Built on the durable Isuzu 700P 4×2 chassis, this vehicle features a 190hp Euro 5 diesel engine that provides clean, efficient power for both driving and crane operation. The 5,000kg hydraulic crane is mounted behind the cab, offering 360° continuous rotation for flexible positioning around the vehicle. With an 8.5-meter maximum extension and 10.5-meter lifting height, the crane can reach over obstacles and into confined spaces. The 6-forward, 1-reverse transmission ensures smooth power delivery, while the 235/75R17.5 tires provide stable road handling. Whether loading construction materials, positioning industrial equipment, or handling warehouse cargo, this crane truck delivers the performance and reliability that professionals demand.
Key Features:
· Isuzu 700P Durable Chassis: The 700P platform is renowned for its reliability, fuel efficiency, and low maintenance costs. The 4×2 configuration with 4,175mm wheelbase provides excellent stability for crane operations. The cab features air conditioning and left-hand drive for operator comfort.
· 190hp Euro 5 Engine: The 4HK1-TC51 diesel engine delivers 190 horsepower with 5,190ml displacement. Euro 5 emission compliance ensures suitability for markets with strict environmental regulations. The 6-forward, 1-reverse transmission provides smooth power delivery.

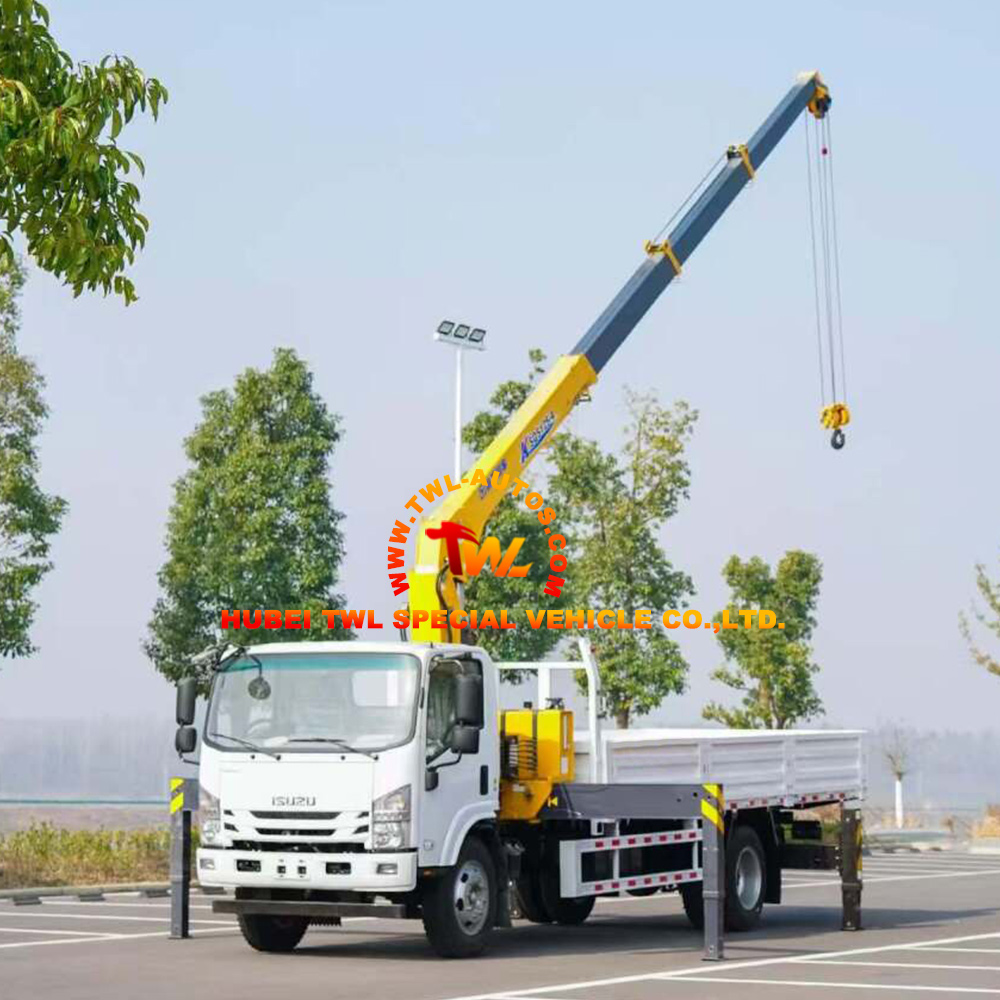

· 5,000kg Hydraulic Crane: The truck-mounted crane has a maximum lifting capacity of 5,000kg (5 tons) and a lifting moment of 12.5 t·m. The 360° continuous rotation allows operators to position loads precisely without repositioning the vehicle.
· Extended Reach Capability: With a maximum extension length of 8,500mm (8.5m) and lifting height of 10,500mm (10.5m), the crane can reach over obstacles and into elevated positions. The maximum elevation angle of 75° provides additional flexibility for challenging lift points.
· Efficient Hydraulic System: The crane is powered by a hydraulic system with 18kW recommended power, 32 L/min maximum oil flow, and 20 MPa maximum pressure. The 90L oil tank ensures adequate fluid capacity for extended operations.
· Robust Crane Construction: The crane weighs 2,074kg and requires 900mm of installation space. This robust construction ensures long-term reliability and consistent performance in demanding applications.
· Complete Tire Package: The vehicle is equipped with 235/75R17.5 tires, with 6 mounted and 1 spare. This tire specification provides excellent load support and road stability.
Application:
· Construction material loading, unloading, and placement
· Logistics center cargo handling and container loading
· Industrial equipment installation and maintenance
· Warehouse and distribution center operations
· Utility and infrastructure project support
· Scrap yard and recycling center material handling
Product Specification
| Feature | Specification |
| Chassis | Isuzu 700P 4×2 |
| Cab | 2 seats, A/C, LHD |
| Overall Size | 7,370 × 2,420 × 3,360 mm |
| Wheelbase | 4,175 mm |
| GVW / Tare | 10,500 kg / 6,500 kg |
| Engine | 4HK1-TC51, 190 HP, 5,190 ml, Euro 5 |
| Transmission | 6 forward + 1 reverse |
| Tires | 235/75R17.5 (6 + 1 spare) |
| Max Lifting | 5,000 kg |
| Lifting Moment | 12.5 t·m |
| Rotation | 360° |
| Max Extension | 8,500 mm |
| Max Height | 10,500 mm |
| Max Elevation | 75° |
| Oil Flow | 32 L/min |
| Pressure | 20 MPa |
| Oil Tank | 90 L |
| Crane Weight | 2,074 kg |
