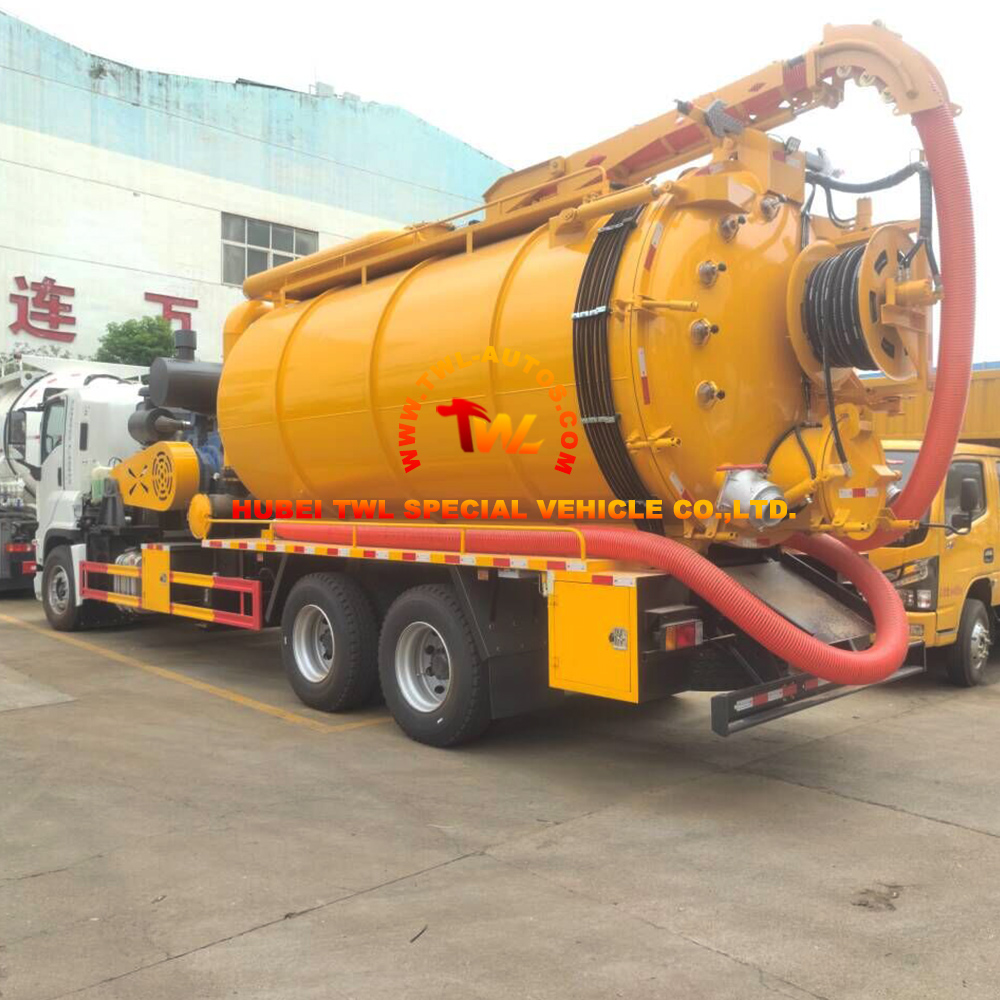

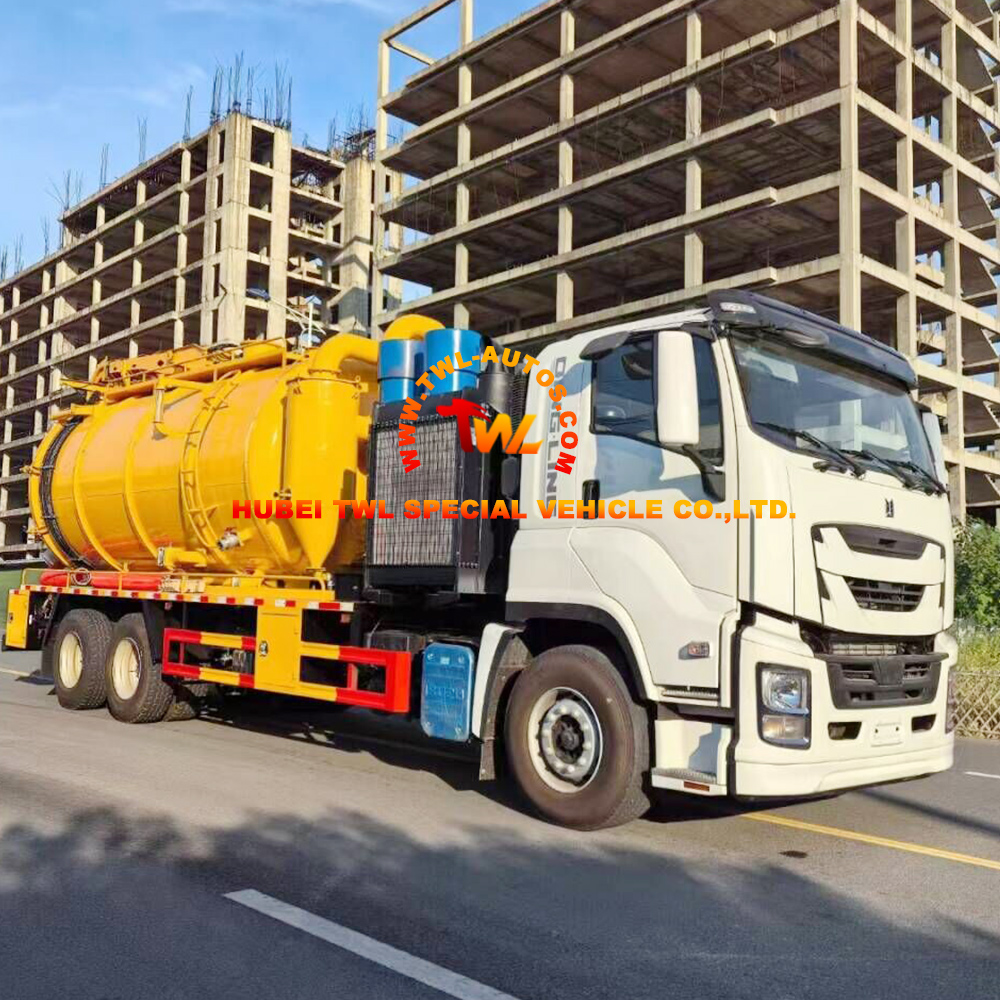

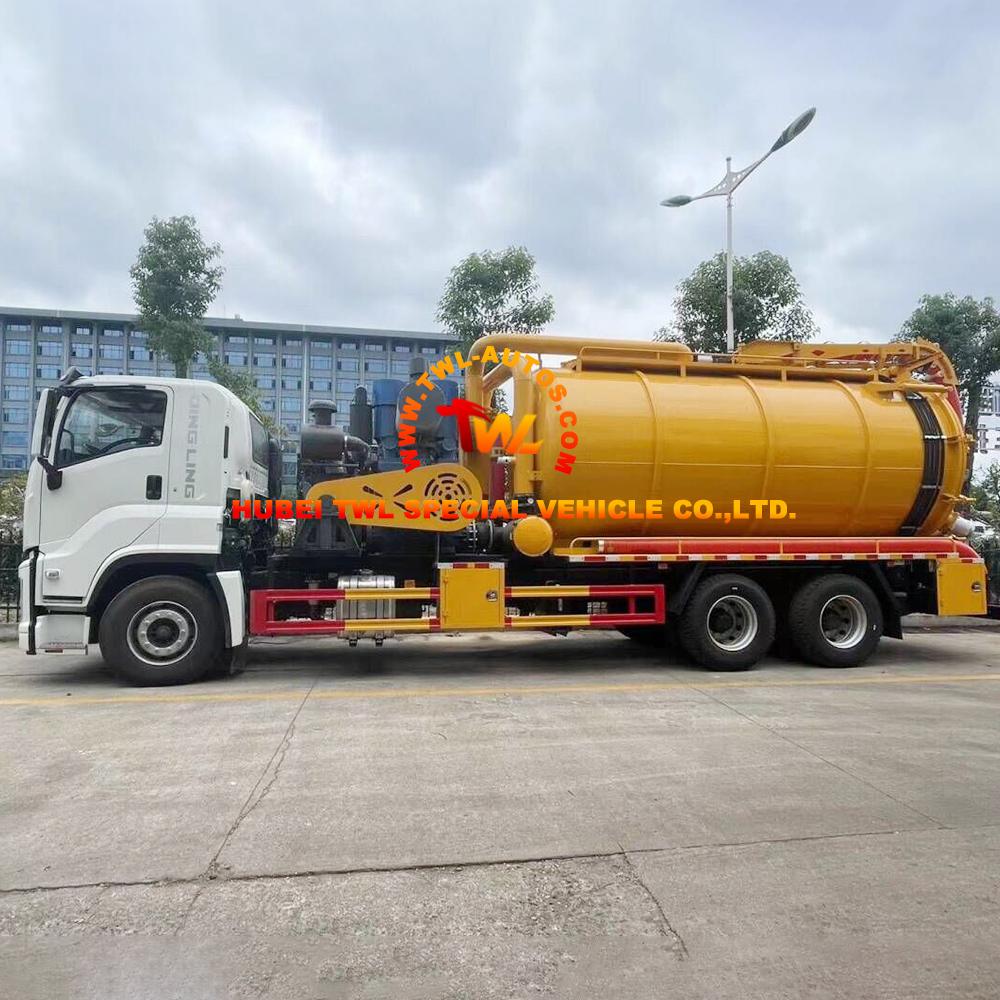

Isuzu 6x4 Sewer Cleaning and Vacuum Truck

The Isuzu 6×4 Sewer Cleaning and Vacuum Truck is a purpose-engineered specialized vehicle designed to address the unique challenges of municipal sewer maintenance and industrial waste handling in extreme climate conditions. Recognizing that standard sanitation equipment often fails in sub-zero temperatures, this vehicle incorporates comprehensive cold-weather adaptations that ensure reliable operation throughout the harsh Russian winter. Built on the proven Isuzu rear double-bridge chassis with 6×4 drive configuration, this truck delivers exceptional stability and traction on snow-covered and icy roads, ensuring that sanitation crews can maintain essential services even in the most challenging weather conditions.

The vehicle’s foundation is the Isuzu chassis, powered by the 6HK1-TCG60 engine, renowned for its reliability, fuel efficiency, and durability in demanding commercial applications. The rear double-bridge configuration with 6×4 drive provides superior traction and load distribution, essential for navigating snow-covered urban streets and accessing remote industrial sites. The chassis is specifically engineered to accommodate the substantial weight of the tank system and specialized equipment, with reinforced mounting points and a robust suspension system that maintains stability even when fully loaded.

Key Features:

· Isuzu 6×4 Rear Double-Bridge Chassis with 6HK1-TCG60 Engine: Built on the proven Isuzu chassis platform, the vehicle features a rear double-bridge configuration with 6×4 drive, providing exceptional traction and stability in snow-covered and icy conditions. The 6HK1-TCG60 engine delivers reliable power and fuel efficiency, while the chassis is engineered to accommodate the substantial weight of the tank system and specialized equipment. This configuration ensures that sanitation crews can maintain essential services even in the most challenging winter weather.

· Substantial 20 m³ Total Tank Capacity: The tank system comprises a 6 m³ clean water tank and a 14 m³ sewage tank, both constructed from 8mm thick carbon steel for exceptional durability. This substantial capacity enables extended operations without frequent refilling or disposal, significantly improving operational efficiency. The clean water tank supports extended high-pressure cleaning operations, while the sewage tank provides ample storage for extracted waste.

· Powerful Pinfu High-Pressure Cleaning System: The high-pressure pump delivers 350 liters per minute flow rate at 180 bar pressure, providing exceptional cleaning power for urban sewer networks, industrial pipelines, and storm drainage systems. This system effectively breaks up blockages, removes debris, and scours pipe walls to restore flow capacity, addressing the challenging conditions of aging infrastructure.

· Integrated Air-Blow Anti-Freeze Protection: The cold-weather optimized system features an air-blow anti-freeze function that prevents water residue from freezing in pipelines during winter operations. This critical innovation ensures uninterrupted service throughout the Russian winter, eliminating the downtime that affects conventional equipment in sub-zero temperatures and enabling year-round operational capability.

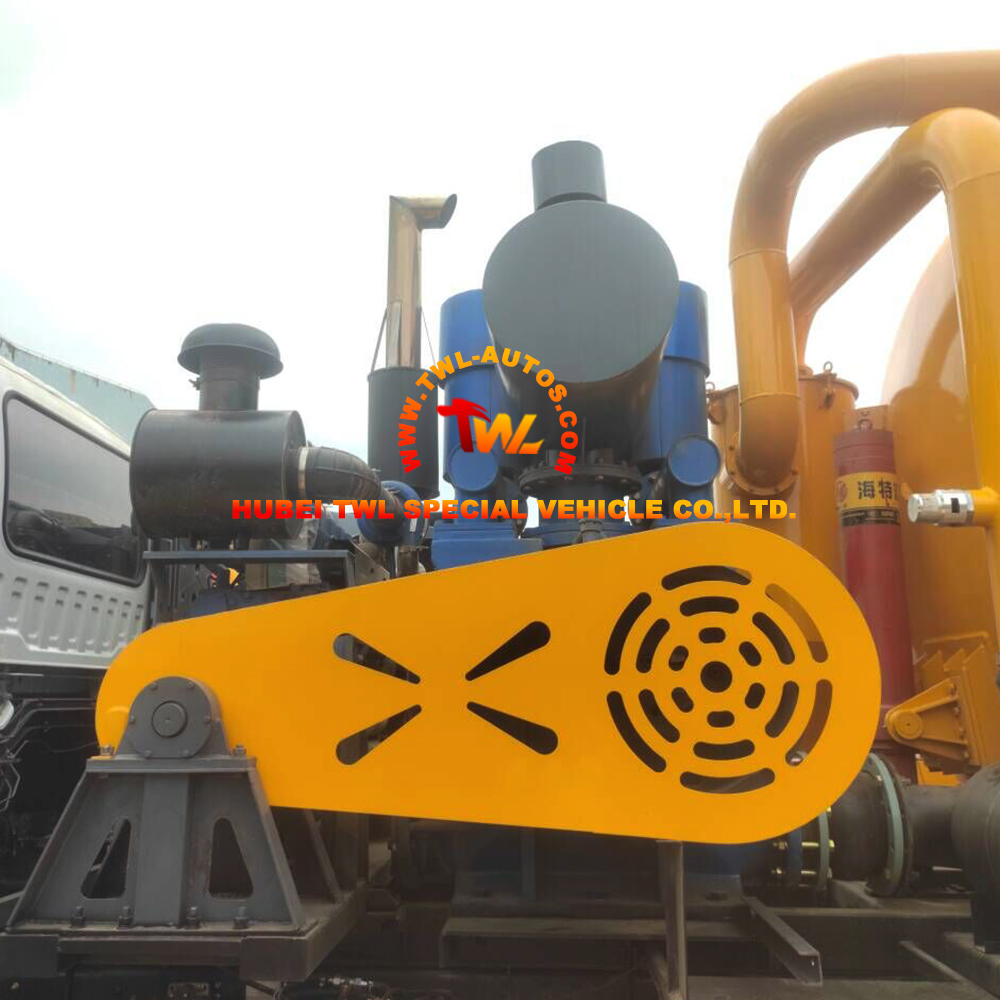

· High-Efficiency Vacuum System with Dedicated Weifang 420 HP Auxiliary Engine: The vacuum system is powered by a dedicated Weifang 420 HP auxiliary engine driving a 6000 L/H Roots blower, delivering exceptional suction capability for sludge, gravel, and viscous wastes. The system achieves a suction depth of 8 meters or more, enabling effective extraction from deep manholes and underground structures. The DN200 inlet and outlet pipes and DN150 oblique suction port facilitate handling of large-particle waste.

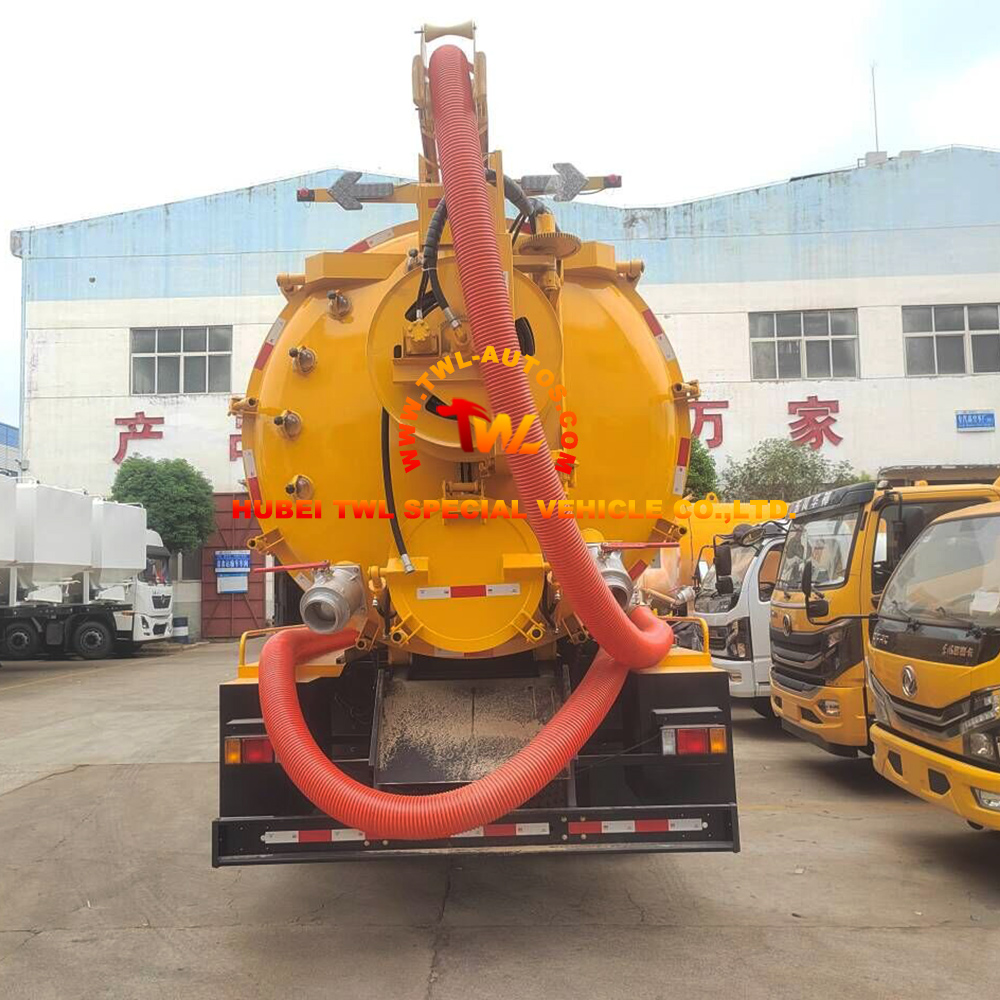

· Hydraulic Liftable Tank with Rear-Opening Door: The sewage tank features hydraulic lift capability and a rear-opening door, enabling efficient waste discharge at disposal sites. A 600mm small access panel minimizes wear on main seals while simplifying maintenance and inspection. This design reduces maintenance costs and extends component life.

· Operator-Friendly Control and Monitoring Systems: The vehicle is equipped with a rear night working lights and arrow indicator lights that improve visibility for safe night operations. A hydraulic crane with remote control enables precise positioning of the 8-meter DN150 suction hose, reducing physical effort and improving accuracy. A transparent inspection window and pressure gauge provide real-time monitoring of system status.

· Durable Construction for Long-Term Use: The sewage tank interior features anti-corrosion treatment and polished surfaces that extend service life and simplify cleaning. The dual-purpose water-sewage interconnection and DN150 self-draining outlet enable flexible waste discharge options, while the 8mm carbon steel construction provides exceptional durability and resistance to physical stresses.

Application:

· Municipal Sewer Maintenance: Cleaning storm drains, sewage pipelines, and pump stations in Russian cities. The vehicle’s cold-weather capabilities ensure year-round functionality for essential municipal sanitation services.

· Industrial Waste Management: Handling toxic liquids, oil sludge, and chemical residues from factories, mines, and industrial facilities. The powerful vacuum system and durable tank construction enable safe extraction and transport of hazardous materials.

· Emergency Response: Addressing floodwater, spill contamination, and accidental blockages in harsh climates. The vehicle’s rapid deployment capability and robust performance enable effective response to environmental emergencies.

· Public Sanitation: River sludge removal and road cleaning in sub-zero temperatures. The high-pressure cleaning system and vacuum extraction capability support comprehensive public sanitation operations.
