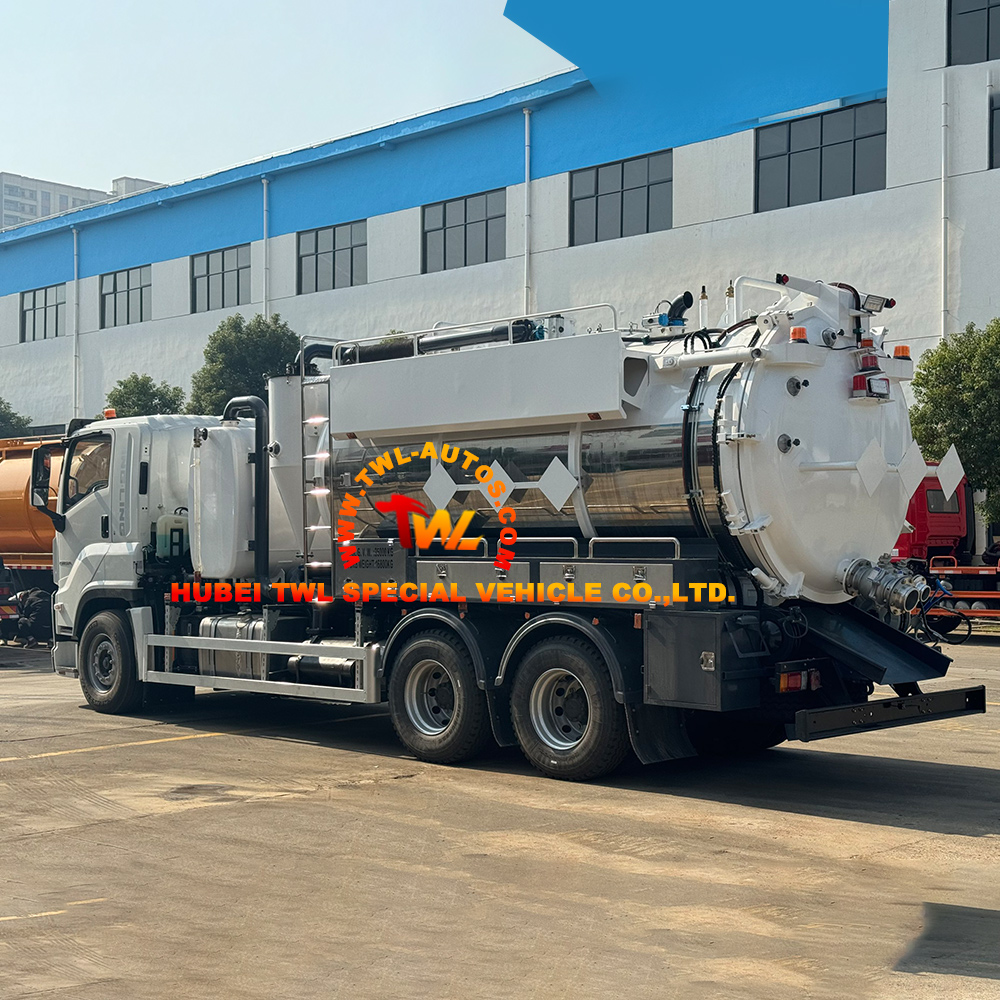

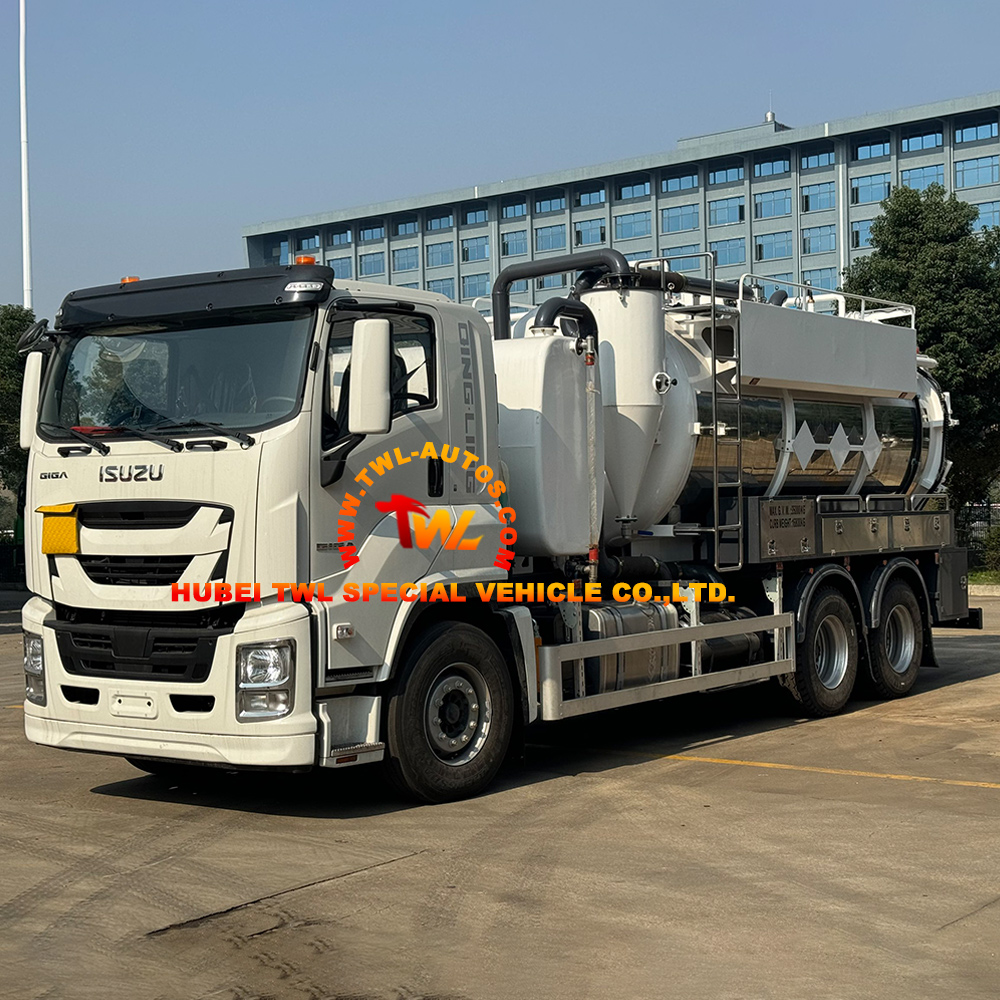

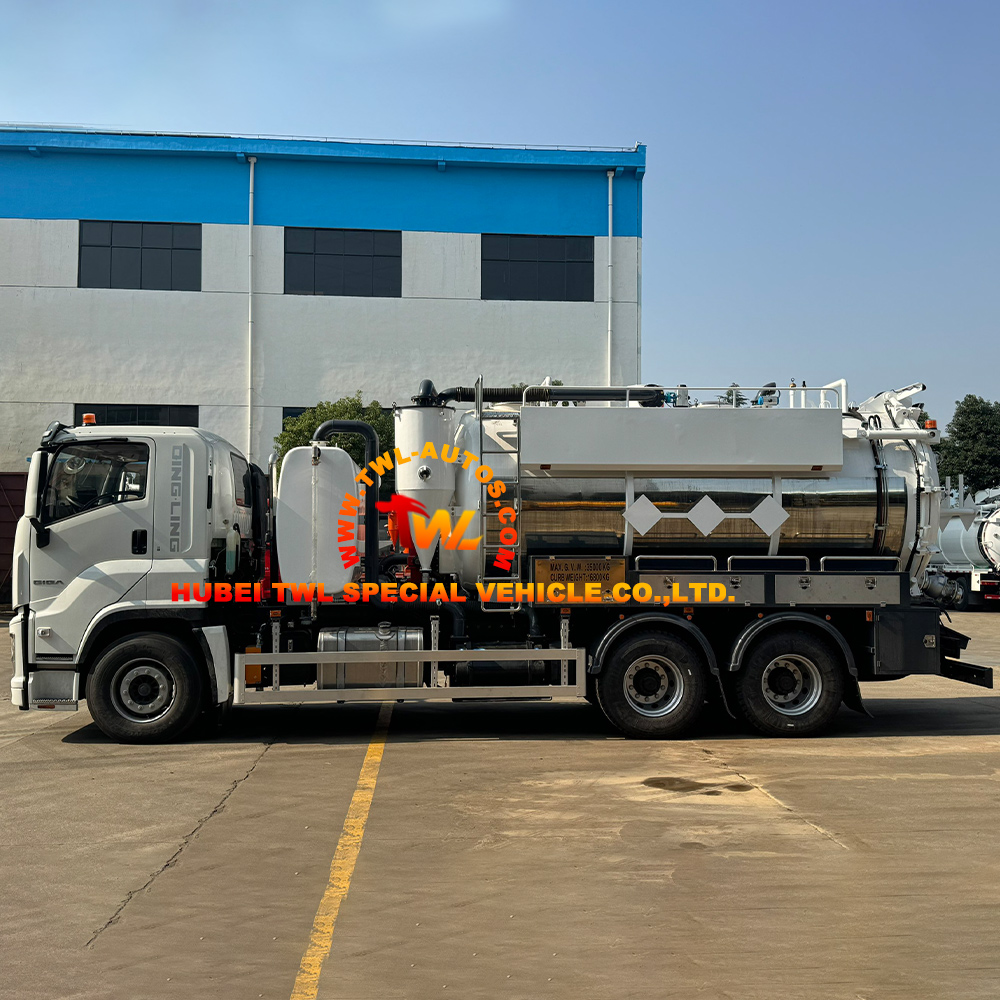

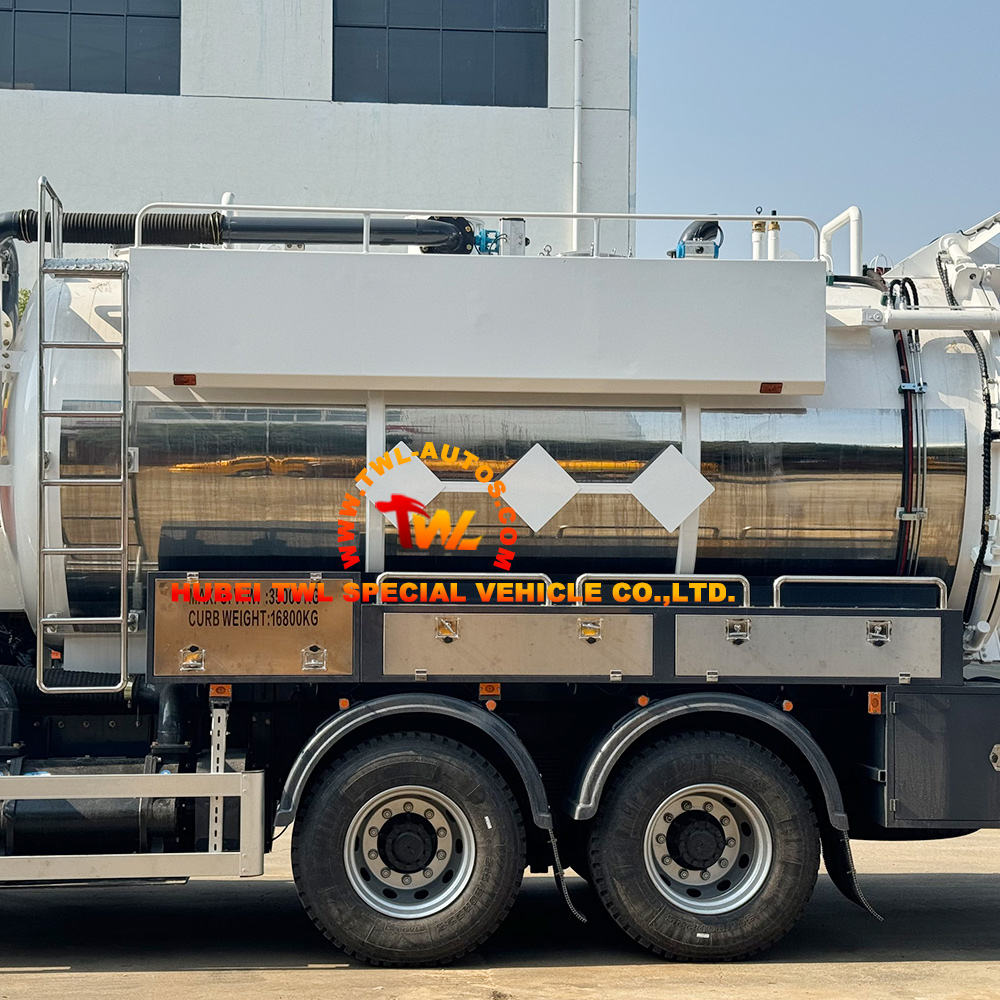

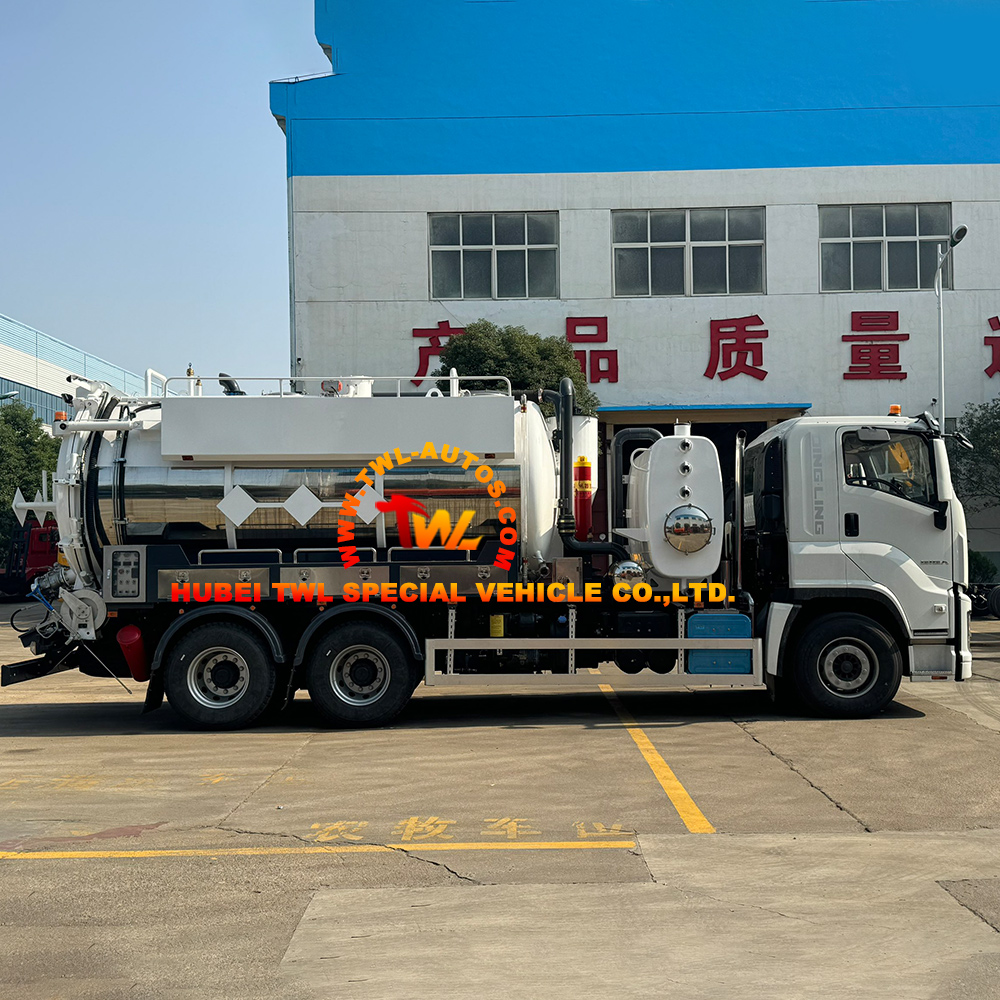

ISUZU 6X4 15m³ Stainless Steel Vacuum Sewage Jetting Truck
The ISUZU 6X4 Stainless Steel Vacuum Sewage Jetting Truck is a high-performance, multi-functional vehicle designed for municipal sanitation and industrial sewage cleaning. It features a genuine ISUZU chassis, an Italian SAMSON vacuum pump, a Chinese GTM high-pressure jetting pump, and a 15m³ dual-tank stainless steel structure (12m³ sewage tank + 3m³ water tank). Built to withstand harsh tropical conditions, it is ideally suited for intensive operations in regions such as Saudi Arabia.
ISUZU 6X4 15m³ Stainless Steel Vacuum Sewage Jetting Truck
Key Features
· Durable Stainless Steel Construction:
Sewage tank made of 316L and water tank of 304L stainless steel, polished to a mirror finish. Reinforced with external ribs for long-term corrosion resistance.
· High-Efficiency Dual-Pump System:
Italian SAMSON vacuum pump provides 94% max vacuum for rapid suction. Chinese GTM high-pressure jetting pump delivers 270 bar for powerful cleaning.
· ISUZU Reliable Chassis:
Euro VI compliant 380 HP engine, reinforced clutch, ABS braking, and air suspension seat ensure stability and comfort in tough environments.
· User-Friendly Design:
Hydraulically operated 100% rear opening, pneumatic controls, multiple sight glasses, stainless steel ladder, and organized hose reel for easy operation.
· Comprehensive Safety:
Includes positive/negative pressure safety valves, full and low-level alarms, rotating warning lamp, arrow sign lamp, and anti-slip platform.
· Adapted for Tropical Use:
All components selected for high-temperature, high-humidity operation, suitable for Middle Eastern and tropical climates.
Applications
· Municipal sewer cleaning and maintenance
· Industrial wastewater and sludge extraction
· Drainage system cleaning and desilting
· Emergency spill response and liquid waste transport
· Road cleaning and high-pressure washing operations
· Airport, port, and plant sanitation services
Additional Equipment & Notes
· Standard Accessories:
Tool kit, mud flaps, seat belts, 4 standard nozzles + 1 bottom cleaning nozzle, handheld spray gun, quick-connect suction hose.
· Customization Options:
Tank capacity, pump brands, control systems, and additional safety or monitoring devices can be tailored upon request.
· Certification & Compliance:
Manufactured by HUBEI TW SPECIAL VEHICLE CO., LTD., adhering to international quality standards. Suitable for export to Saudi Arabia and similar markets.
Product Specification
| Chassis parameters | ||
| General | Brand new truck,tanker body and parts; | |
| Suitable for Saudi Arabia/tropical condition | ||
| Chassis Model | QL5350TZZWUTDZY | |
| Cabin | Left hand drive | |
| 6X4/3 axles in total | ||
| ISUZU VC61 cabin,one and a half row cab | ||
| Power steering | ||
| Air conditioner(warm&cold model) | ||
| Audio System | ||
| Central lock | ||
| Electric door window | ||
| Multi functional steering | ||
| Air suspension Seat | ||
| Main details | Brand | ISUZU |
| GVW (kg) | 35000 | |
| Net weight(kg) | 16800 | |
| Wheelbase(mm) | 4600+1370 mm | |
| Dimensions(mm) | 9960*2550*3850mm | |
| Front/Rear Axle loading(kg) | 9000 kg | |
| 13000X2 kg | ||
| Max. driving speed(km/h) | 95 km/h | |
| Clutch | Reinforced diaphragm clutch; | |
| Brakes | With ABS, Air brake | |
| Tire | Quantity | 10 pcs with one spare tire |
| Specifications | 385/65R22.5 in front axle | |
| 315/80R22.5 for rear axle | ||
| Transmission | Manual type, | |
| FAST,12 forward gears & 2 reverse | ||
| With PTO | ||
| Engine | Brand | ISUZU BRAND |
| Model | 6UZ1-TCG61 | |
| Fuel type | Diesel | |
| Displacement(ml) | 9839ml | |
| Power(kw) | 279 kw | |
| Horsepower(HP) | 380HP | |
| Cylinder number | 6 | |
| Emission standard | Euro VI | |
| Oil box | 400L | |
| Power Supply | With PTO,PTO control mounted in cabin. | |
| Accessories | Standard tool kit | |
| Mud flaps | ||
| Safety belts | ||
| Tank Body | ||
| Sewage tank | Capacity(cbm/liters) | 12cbm/12,000 liters |
| Tank material | 316L Stainless Steel | |
| Thickness(mm) | 6mm for shell and end plate | |
| Opening of Rear Cover | 100% open by hydraulic control | |
| Working pressure | 93% Vacuum | |
| Sewer Discharging outlet(mm):6 inch/DN150,stainless steel material | ||
| Water Tanker | Capacity(cbm/liters) | 3 cbm/3000 liters |
| Tank material | 304L Stainless Steel | |
| Thickness(mm) | 6mm | |
| Others | The top features a manhole, a 4-inch stainless steel ball valve, and a 1/2-inch water pump for drawing water and supplying water to the vacuum pump tank. | |
| Tank is front tipping under function of oil cylinder; | ||
| a platform on top | ||
| external reinforcing ribs | ||
| a manhole (304 stainless steel holes) on the top | ||
| 304 stainless steel flange | ||
| Safety valve on top of tank | ||
| Positive and negative pressure safety valve | ||
| Painting | The tank body is mirror-polished stainless steel, | |
| the back cover and reinforcing ribs are painted, | ||
| other accessories are disassembled and electrophoretically painted. | ||

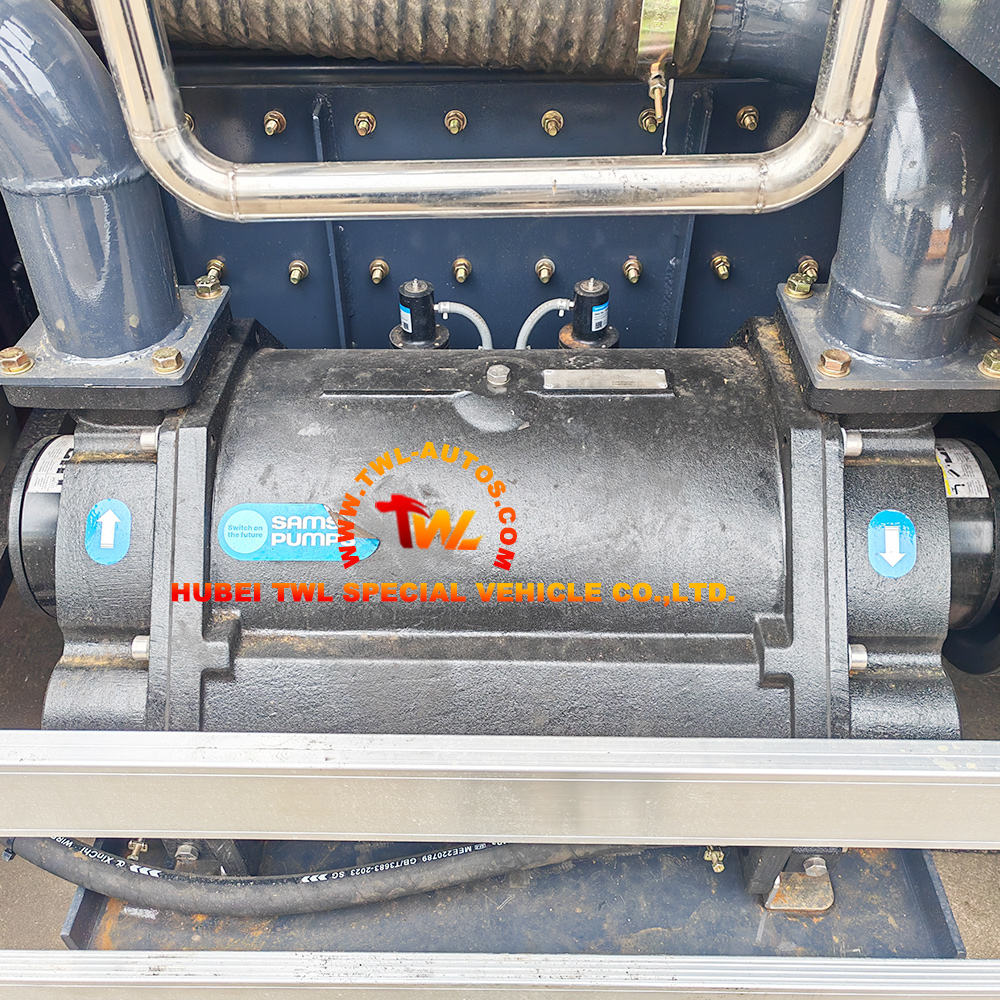

| Sewage pump | Brand | Italy brand SAMSON PUMPS |
| Model | 3400 | |
| Max. Speed | 1150 rpm | |
| Air flow | 774 m3/h | |
| Air flow 60% vacuum rate | 684 m3/h | |
| Max. Vacuum | 94% | |
| Continuous duty vacuum | 60% | |
| Max. Pressure in continuous duty | 1(2) bar | |
| Suction depth | 6~8 meters | |
| High Pressure Jetting Pump | Driven by a split shaft from PTO | |
| Brand | Chinese brand | |
| Model | GTM | |
| Scavenging Capacity | 70~90 L/min | |
| Pressure Drive | 270 bar/27 MPA | |

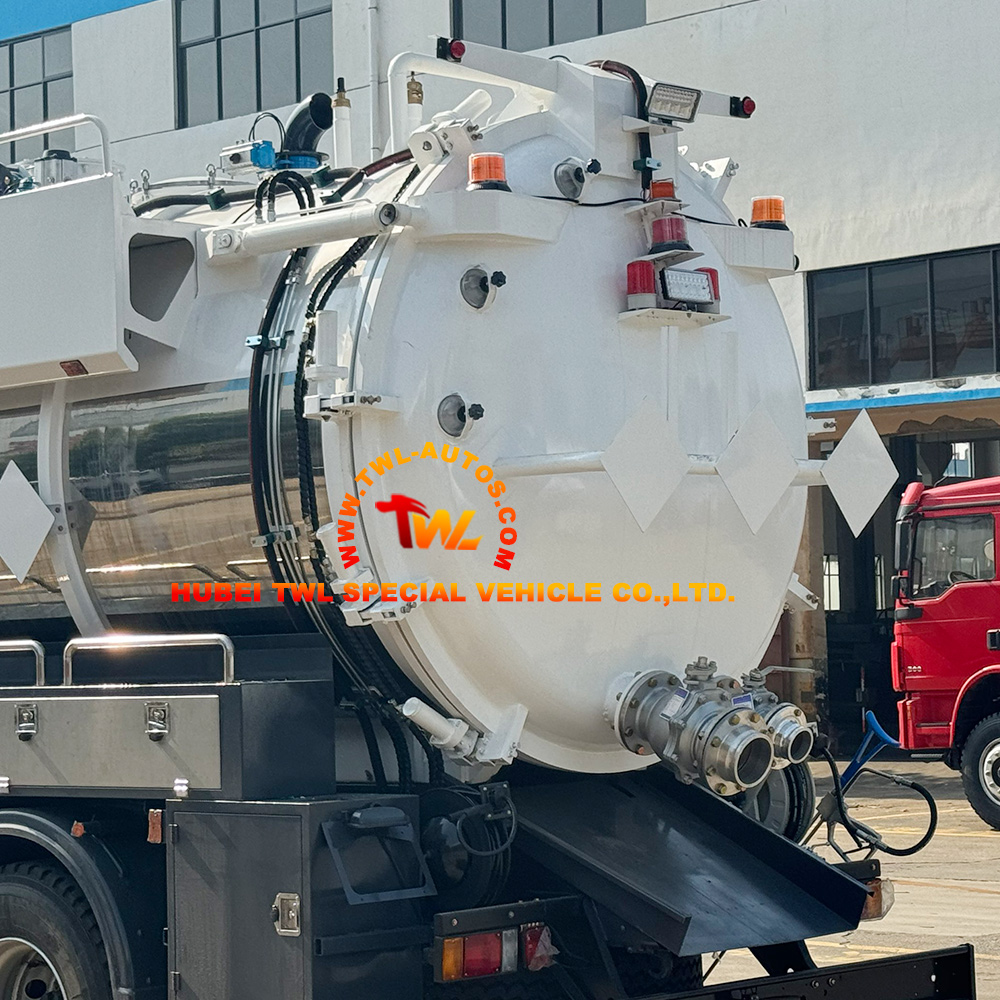

| Rear door | liquid tight by means of a self-compensating seal; | |
| locked by means of at least four (4) manual latches; | ||
| 3 nos of sight glass located at the end dish of the tank,sight glass is tempered-proof and easily replaced; | ||
| Hose Reel | 20 meters sewer jetting hoseΦ13 diameter; | |
| Equipped with a nozzle and hand-held spray gun, the nozzle diameter for cleaning pipes is 1-1.2 meters. | ||
| Working pressure ≥170 bar; | ||
| Bursting Pressure 400 bar; | ||
| Retracting speed 0~25 m/min | ||
| High Pressure Jetting Nozzle | 4 standard nozzles, 1 bottom pipe cleaning nozzle (nozzle replaceable), | |
| 1 hand spray gun. | ||
| Suction Pipe | Φ102 Suction hose 10 meters long with aluminum or galvanized steel and PVC hose with quick-connection fitting | |

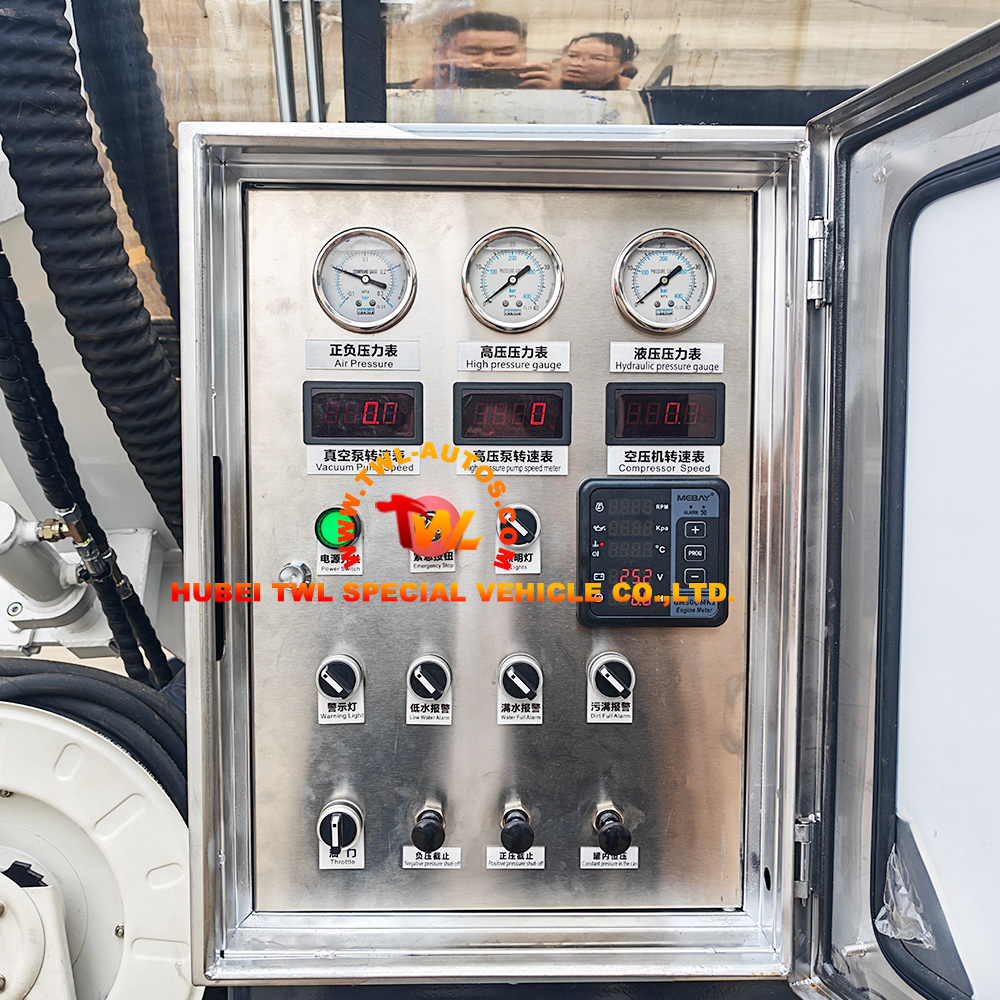

| Control | 304 stainless steel control box | |
| Pneumatic control button | ||
| Safety device | Full tank alarm, | |
| low water level alarm, | ||
| constant pressure tank | ||
| Other Accessories | Stainless steel ladder at side | |
| Stainless | ||
| Lamps | Rotating warning lamp at rear | |
| Rear arrow sign lamp | ||
| Rear/Side working lamp | ||
| Reversing warning lamp | ||
