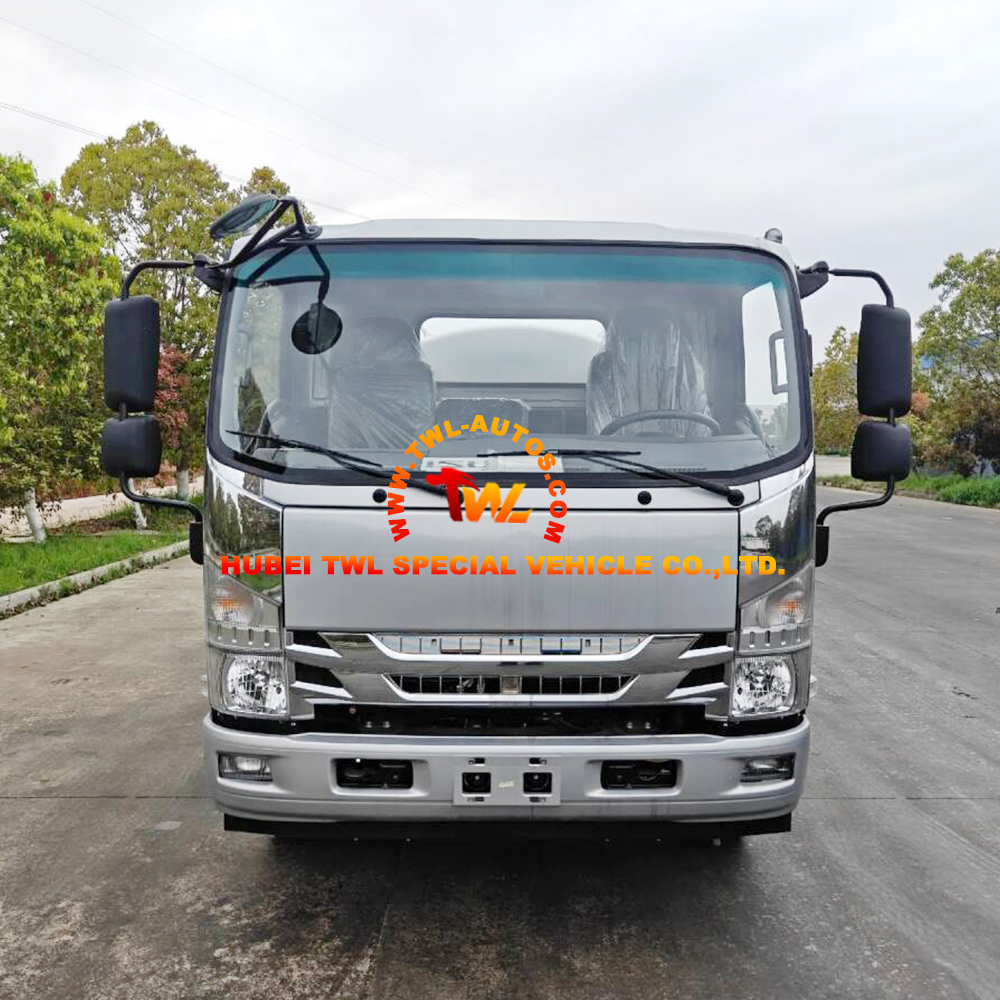

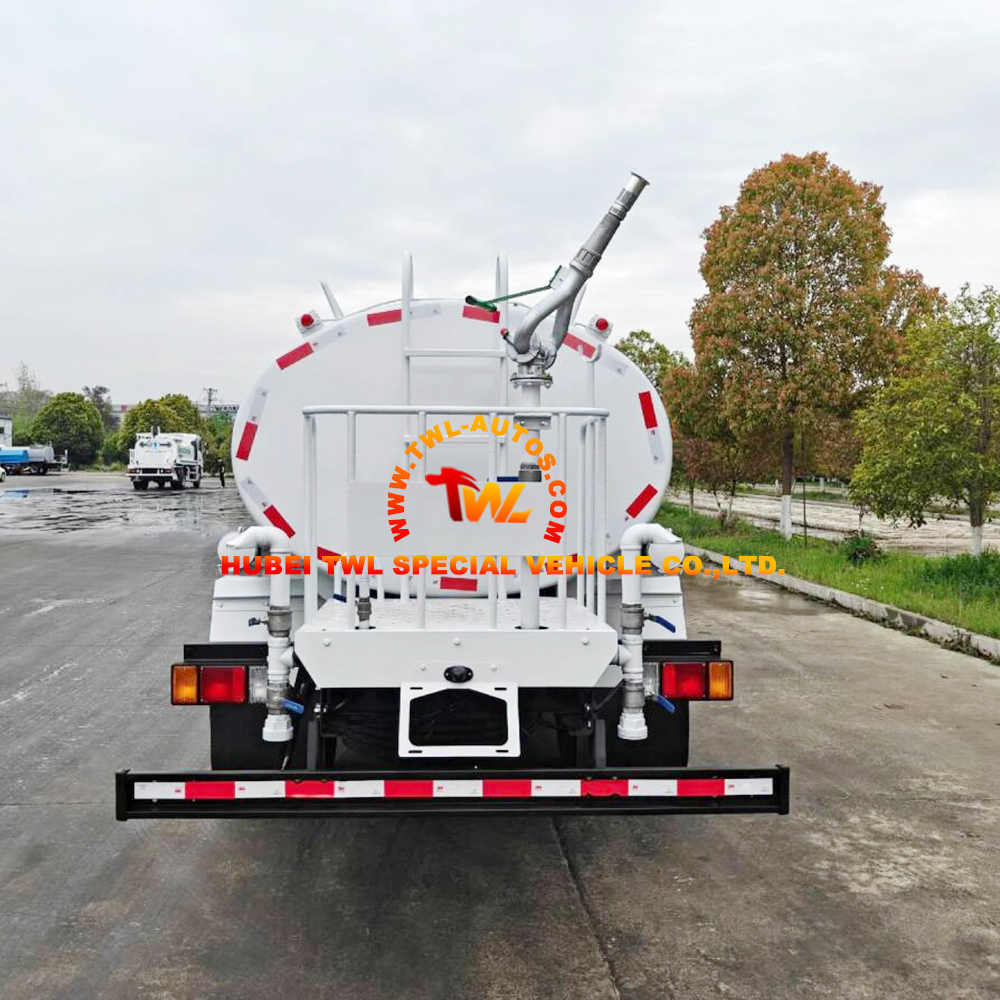

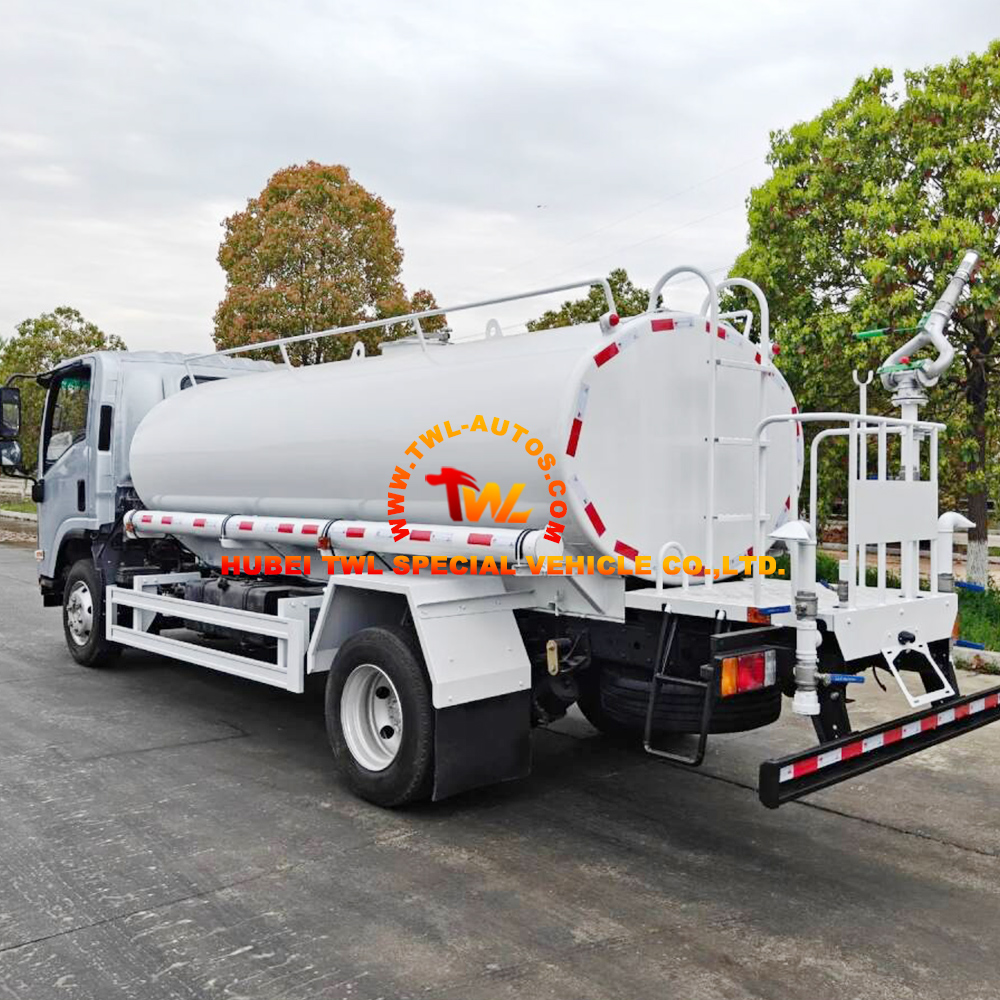

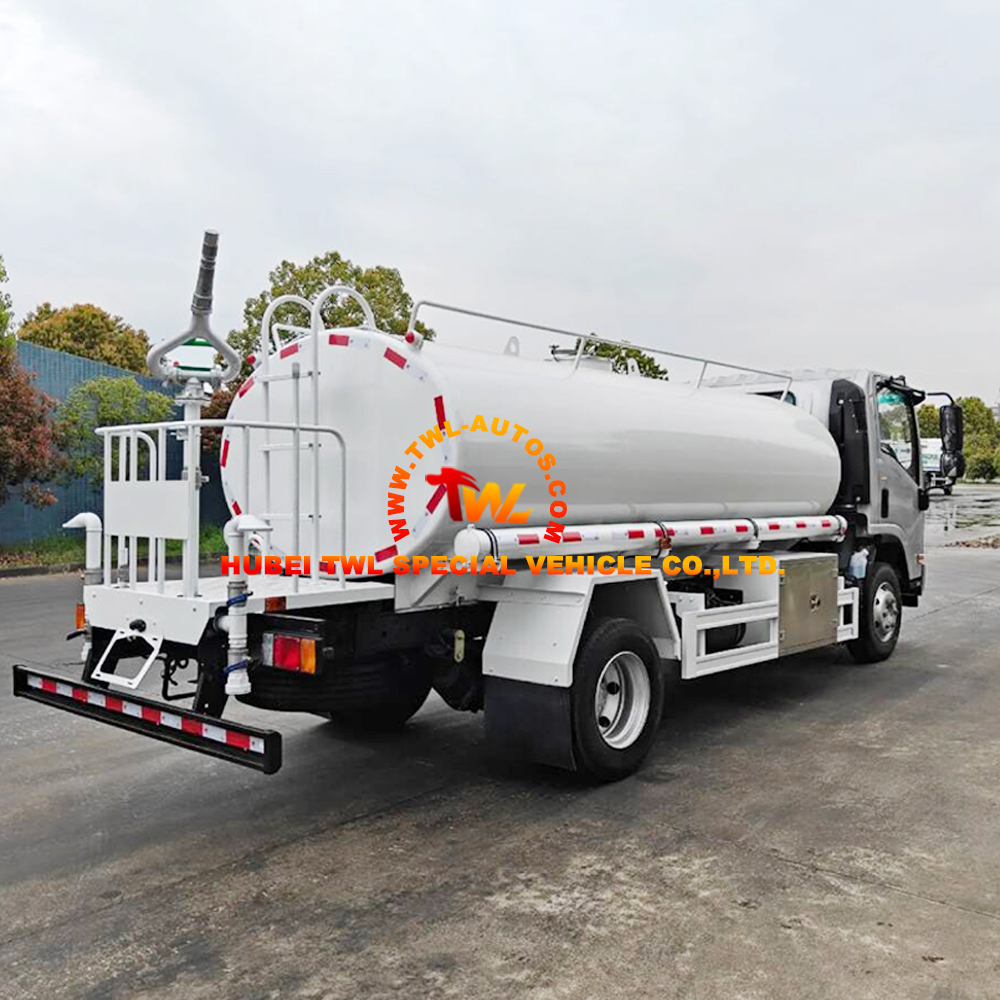

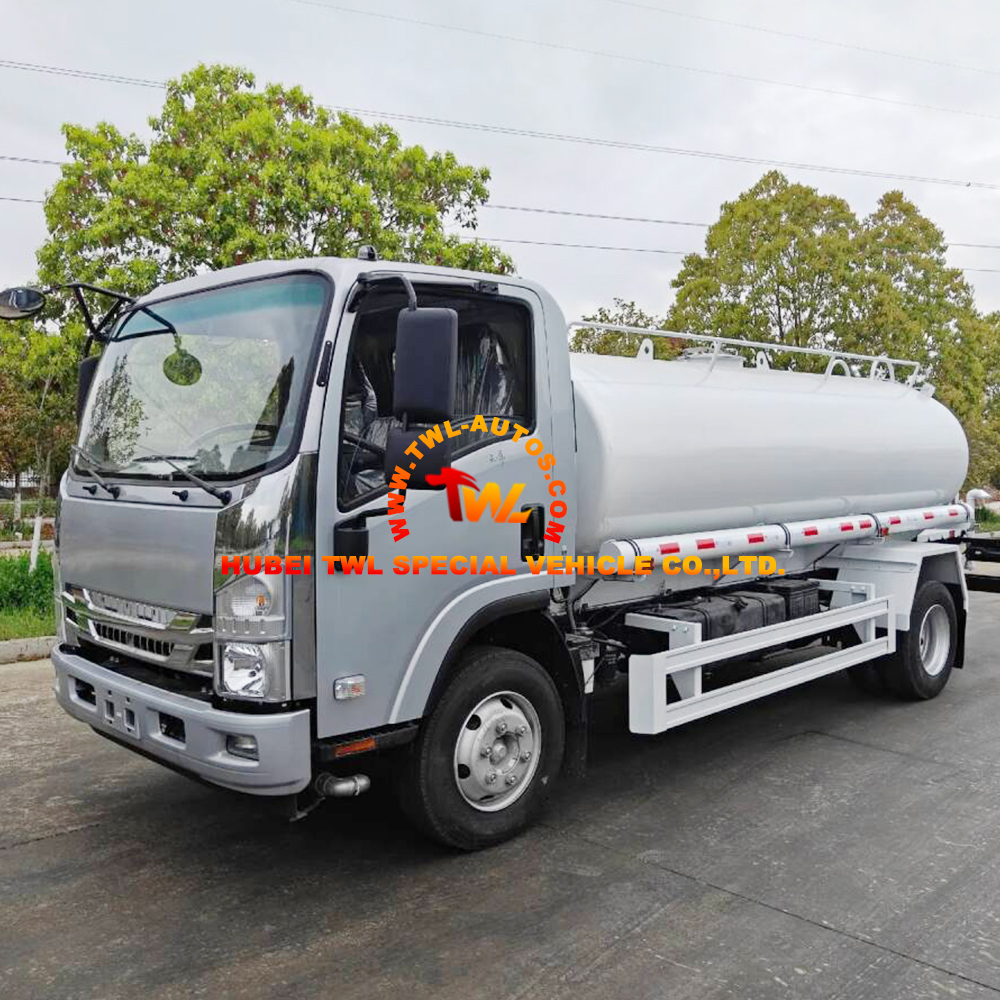

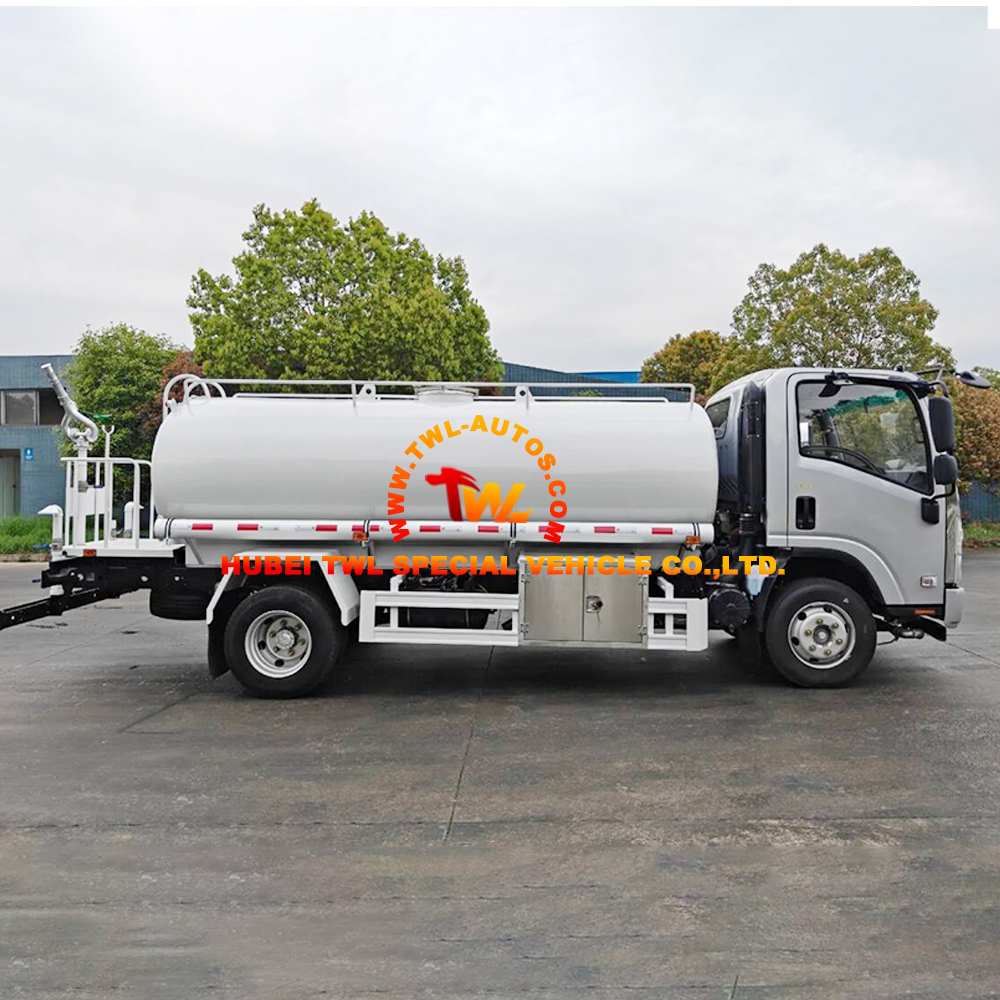

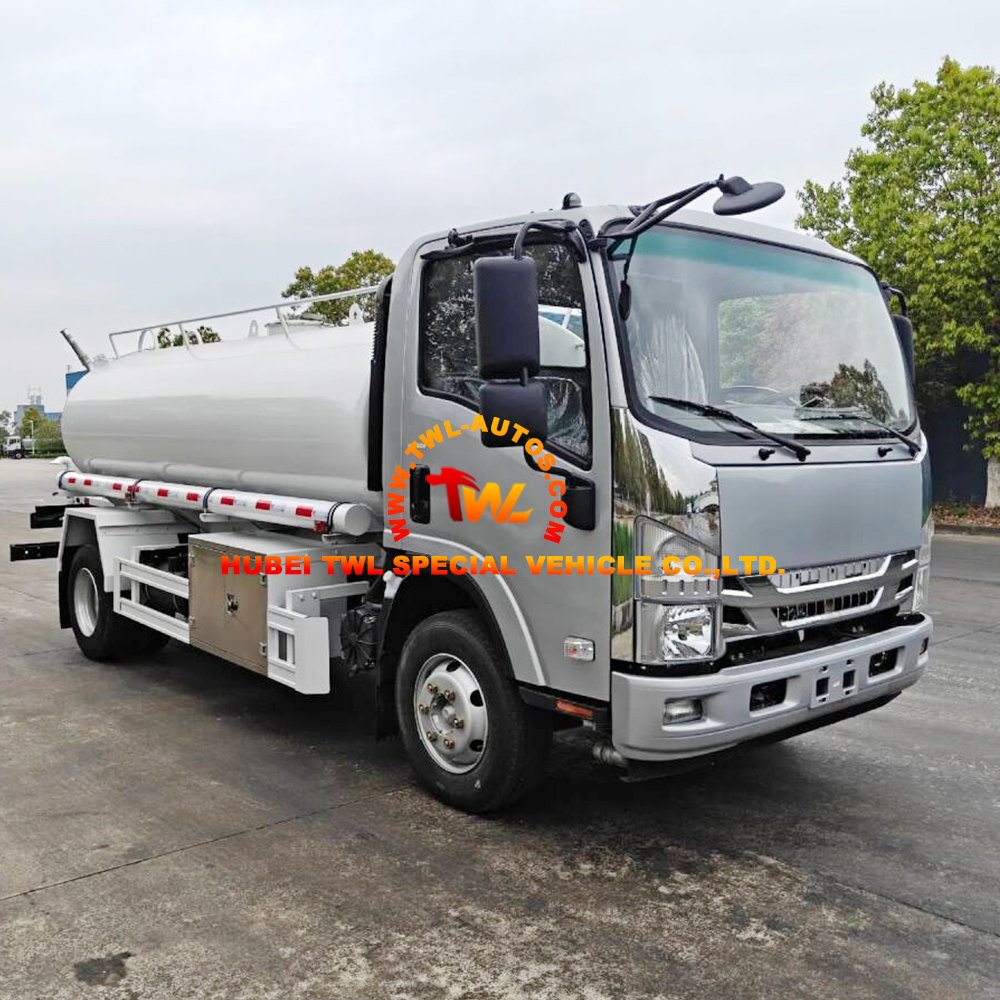

ISUZU 600P 4x2 5,000L Stainless Steel Water Bowser Truck

The ISUZU 600P Stainless Steel Water Bowser is a versatile multi-functional municipal vehicle designed for potable water transportation, road dust suppression, landscaping irrigation, and construction site water supply. Built on the proven ISUZU 600P 4×2 chassis with a 3,360mm wheelbase and compact dimensions of 5,975×1,980×2,430mm, this vehicle features an ISUZU 4KH1CN6LB diesel engine delivering 130HP with Euro V emission compliance, paired with an MSB 5-speed manual transmission. The 5,000-liter tank is constructed from 304-2B food-grade stainless steel with 4mm thickness, providing exceptional corrosion resistance and ensuring water purity for drinking water applications – a critical advantage over carbon steel tanks which can rust and contaminate water. The elliptical tank design with internal anti-wave baffles ensures driving stability by minimizing water surge during acceleration, braking, and cornering. The high-performance stainless steel water pump delivers 40-60m³/h flow with 6.5m self-priming height for efficient loading from ponds, rivers, or hydrants. The complete sprinkler system includes front flush for road washing, rear sprinkler for even water distribution across wide areas, side spray for curb and gutter cleaning, and a high-pressure water cannon with 360° rotation and adjustable columnar/fog pattern for long-range watering (30-35m) and emergency firefighting. The intelligent control system features PTO protection with one-key switch control, water level warning system that prevents pump burnout, and voice prompts in cab for comprehensive operation guidance. The one-time rolling tank body with robot automatic welding and large diameter ball valves ensure excellent sealing performance and larger water flow.

Key Features:

1. ISUZU 600P 4×2 Reliable Chassis – Proven Durability: The ISUZU 600P chassis is renowned worldwide for its durability, reliability, and low operating costs. The 3,360mm wheelbase provides excellent urban maneuverability for navigating narrow city streets and residential neighborhoods. GVW 7,300kg, curb weight 4,800kg. 7.00R16 tires (6 + 1 spare) ensure reliable traction. Power steering and oil brakes provide comfortable, safe operation.

2. ISUZU 130HP Euro V Engine – Clean & Fuel-Efficient: The ISUZU 4KH1CN6LB diesel engine delivers 130HP with 2,999ml displacement and Euro V emission compliance. This powerplant provides strong torque for fully loaded water transport while maintaining excellent fuel efficiency and meeting strict environmental standards.

3. 5,000L 304-2B Food-Grade Stainless Steel Tank – Superior Corrosion Resistance: The 5m³ elliptical tank is constructed from 304-2B stainless steel with 4mm thickness – the same material used in food processing equipment. This provides:

· Superior Corrosion Resistance: Outlasts carbon steel tanks in humid and coastal environments

· Water Purity: No rust contamination – safe for drinking water transport

· Low Maintenance: No rust repairs or anti-corrosion coating reapplications

· Long Service Life: 2-3 times longer than carbon steel tanks

· Food-Grade Certification: 304-2B is approved for potable water contact

4. High-Performance Stainless Steel Water Pump – Efficient & Reliable: The 65QZ40/50 stainless steel water pump delivers 40-60m³/h flow with 50m delivery head and 6.5m self-priming height. Stainless steel construction ensures corrosion resistance and long service life. PTO-driven for reliable operation without external power.

5. Complete Multi-Function Sprinkler System – Versatile Operations:

· Front Flush: High-pressure front nozzles for washing road surfaces and removing debris

· Rear Sprinkler: Wide coverage even water distribution for green belts and roads

· Side Spray: Curb and gutter cleaning for thorough street sanitation

· High-Pressure Water Cannon: 360° rotation with adjustable columnar or fog pattern for long-range watering (30-35m) and emergency firefighting support

6. Intelligent Sprinkler Control System – Safe & Easy Operation: PTO protection system with one-key switch control ensures safe engagement and disengagement. Water level warning system monitors internal water level and prevents pump burnout from dry running. Voice prompts in cab provide comprehensive operation guidance for operators.

7. Durable Construction & Smart Design: One-time rolling tank body with robot automatic welding ensures consistent quality and sealing. Large diameter ball valves provide larger water flow for faster filling and discharge. Multiple layers of anti-rust and decorative paint finish protect the tank and extend service life.

8. Complete Standard Equipment: Anti-wave baffles (driving stability), DN450 manhole (easy access), safety ladder (safe climbing), level gauge at rear (content monitoring), self-flow valve, fire joint, and discharging pipes.

Application:

· Potable Water Delivery: Supplying clean drinking water to neighborhoods, communities, housing estates, construction camps, and remote areas without piped water infrastructure.

· Road Cleaning & Dust Suppression: High-pressure water removes dirt, oil stains, and debris from urban roads, highways, and industrial areas, improving air quality and road safety.

· Landscaping Irrigation: Watering green belts, parks, gardens, golf courses, and agricultural fields. The rear sprinkler provides gentle, even water distribution.

· Construction Site Water Supply: Essential water for worker hydration, equipment cooling, concrete mixing, and dust control on construction sites.

· Emergency Water Supply: Serving as a crucial mobile water reserve during droughts, infrastructure failures, or temporary disruptions.

· Building Exterior Washing: Washing exterior walls, windows, and building surfaces using the high-pressure water cannon.

· Temporary Firefighting Support: The high-pressure water cannon with 30-35m range can assist in emergency firefighting, providing immediate water supply until fire crews arrive.
