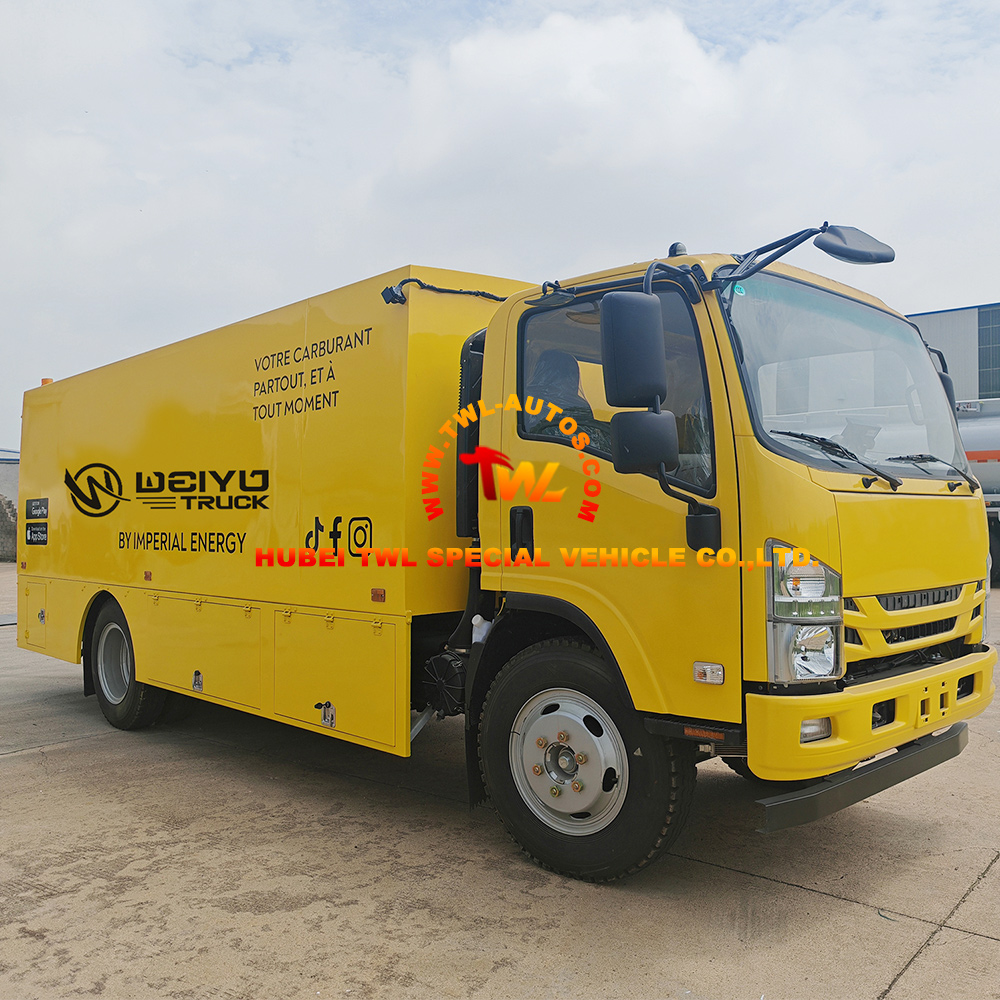

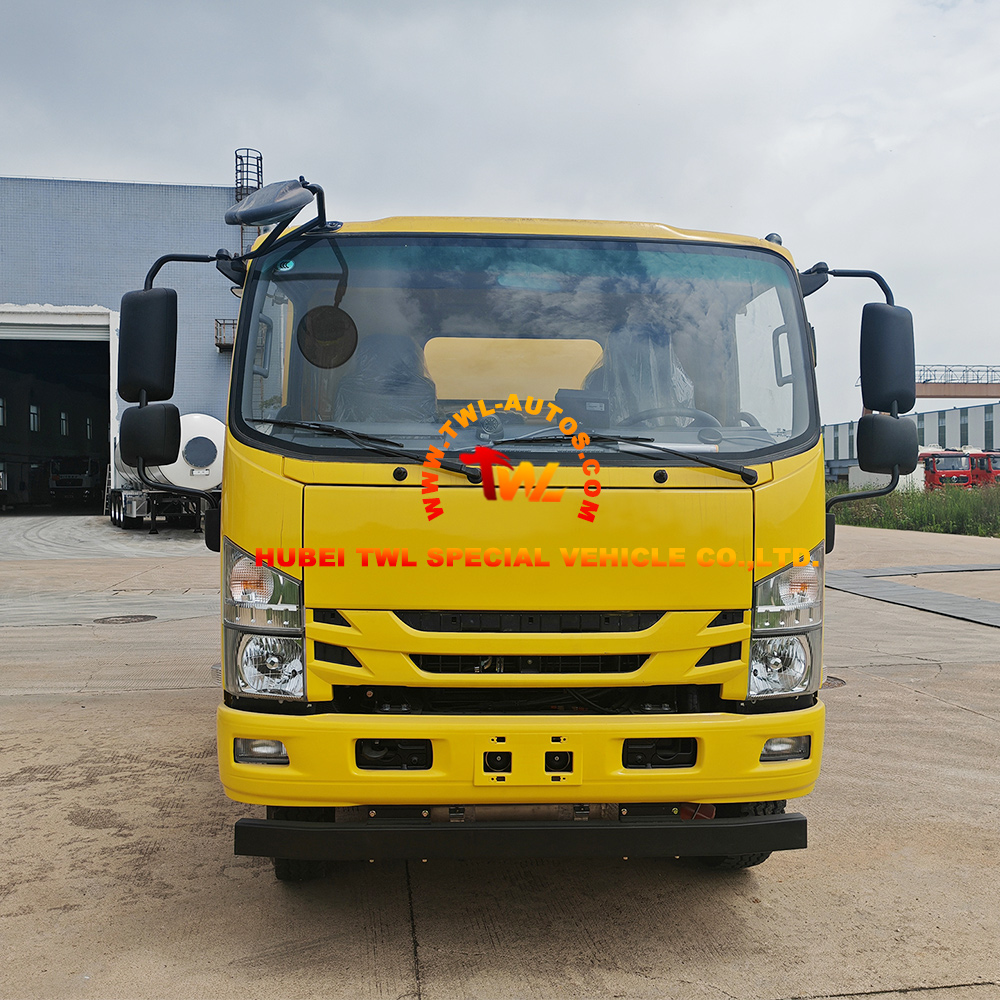

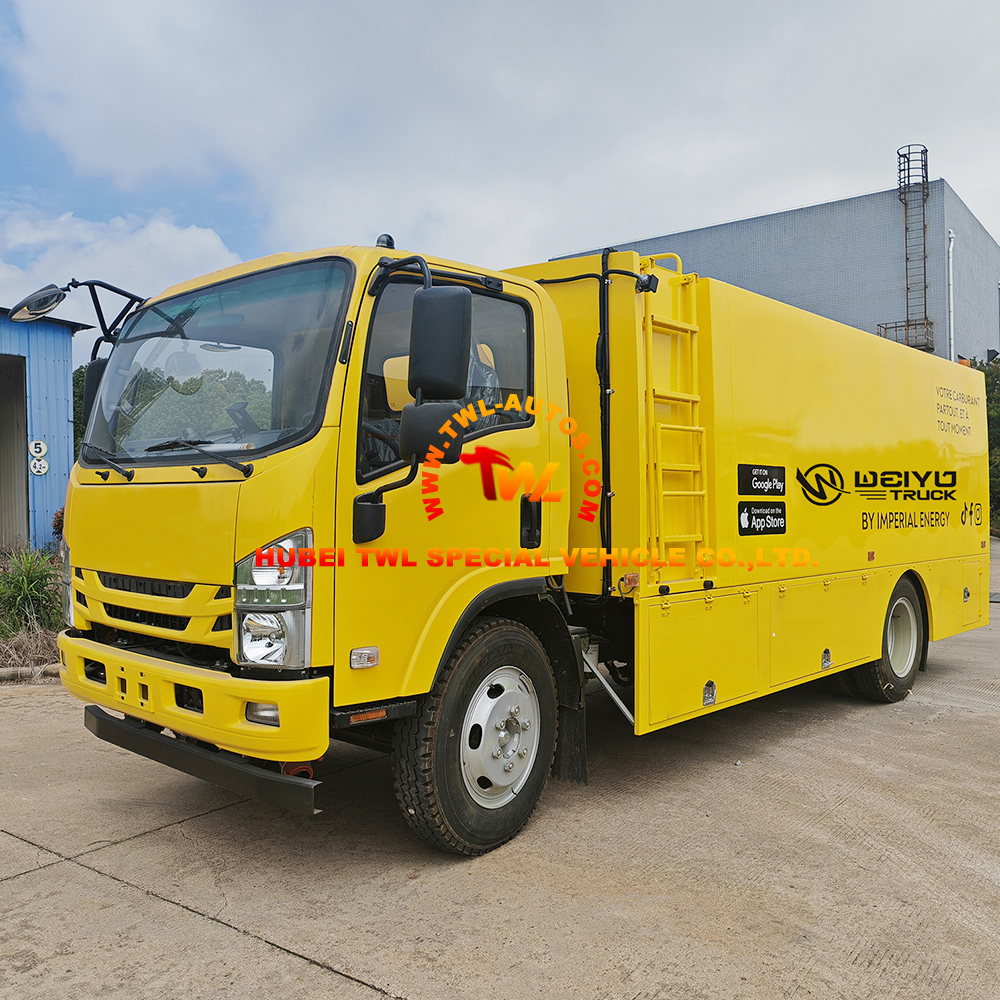

ISUZU 6000L CAFU Mobile Fuel Refueling Truck
The ISUZU 6000-liter CAFU-style fuel refueling truck is a smart mobile fueling solution designed for on-demand fuel delivery, fleet refueling, and off-grid energy supply. Supplied by TWL, this vehicle integrates fuel storage, precision dispensing, intelligent control, and advanced safety systems into one compact and efficient platform.
ISUZU 6000L CAFU Mobile Fuel Refueling Truck
The ISUZU 6000-liter CAFU-style fuel refueling truck is a smart mobile fueling solution designed for on-demand fuel delivery, fleet refueling, and off-grid energy supply. Supplied by TWL, this vehicle integrates fuel storage, precision dispensing, intelligent control, and advanced safety systems into one compact and efficient platform.
Inspired by successful mobile fueling models such as CAFU (UAE) and Booster Fuels (USA), this system helps operators reduce operating costs by up to 20% and improve refueling efficiency by over 30% compared with traditional fueling methods.
Its dual-compartment configuration allows simultaneous transportation and dispensing of diesel and gasoline, making it ideal for modern, flexible fuel logistics.
Integrated Fuel Storage & Dispensing System
The vehicle is equipped with sealed, compartmentalized fuel tanks designed to prevent leakage and cross-contamination while meeting international fuel safety standards. Two independent Censtar fuel dispensers allow the truck to refuel two vehicles at the same time, making it ideal for fleet operations and high-frequency refueling scenarios.

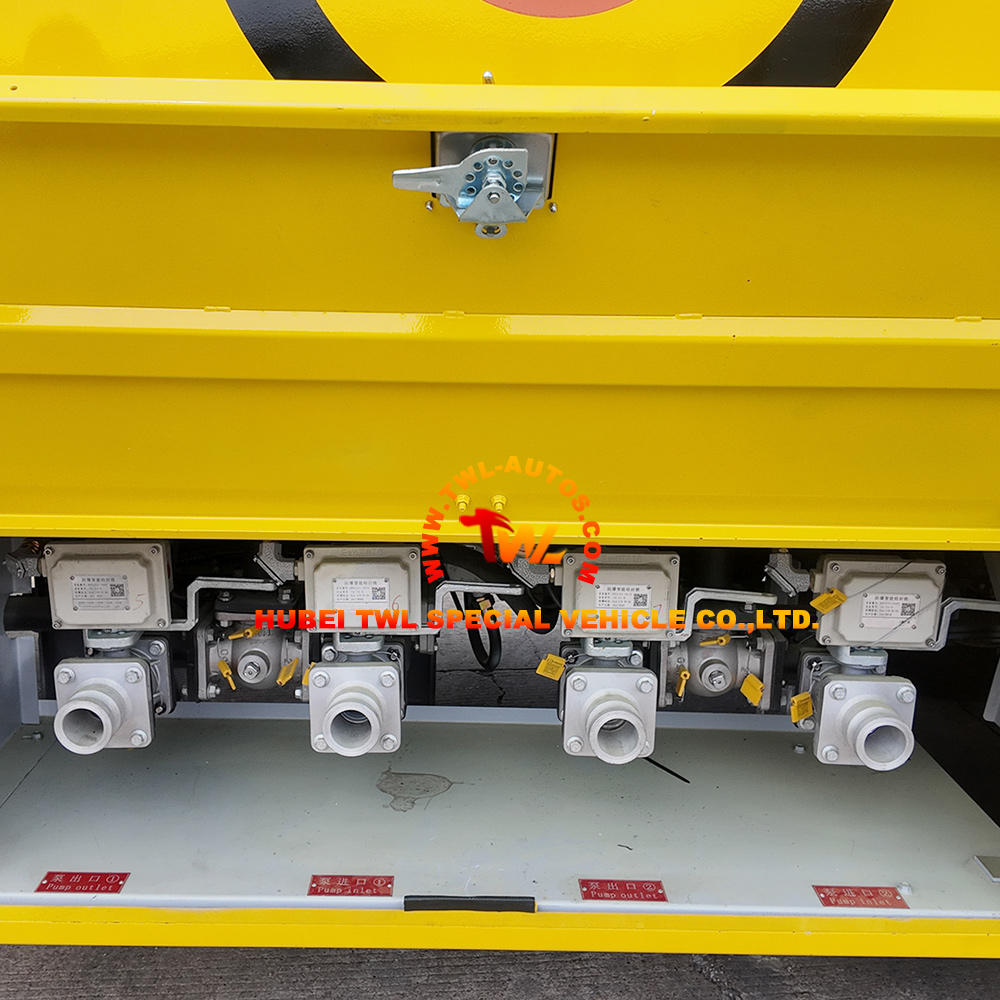

High-accuracy flow meters combined with IoT sensors ensure precise fuel measurement and real-time data tracking. The dual oil pump system supports both pump-in (loading fuel from depot storage) and pump-out (discharging fuel to ground tanks or equipment), providing flexibility for daily operations, emergency drainage, and maintenance.
Smart Operation, Safety & Control
All functions are managed through a centralized operation control panel that enables single-person operation with minimal training. TWL can also provide operation guidance and training videos to support smooth onboarding for new users.

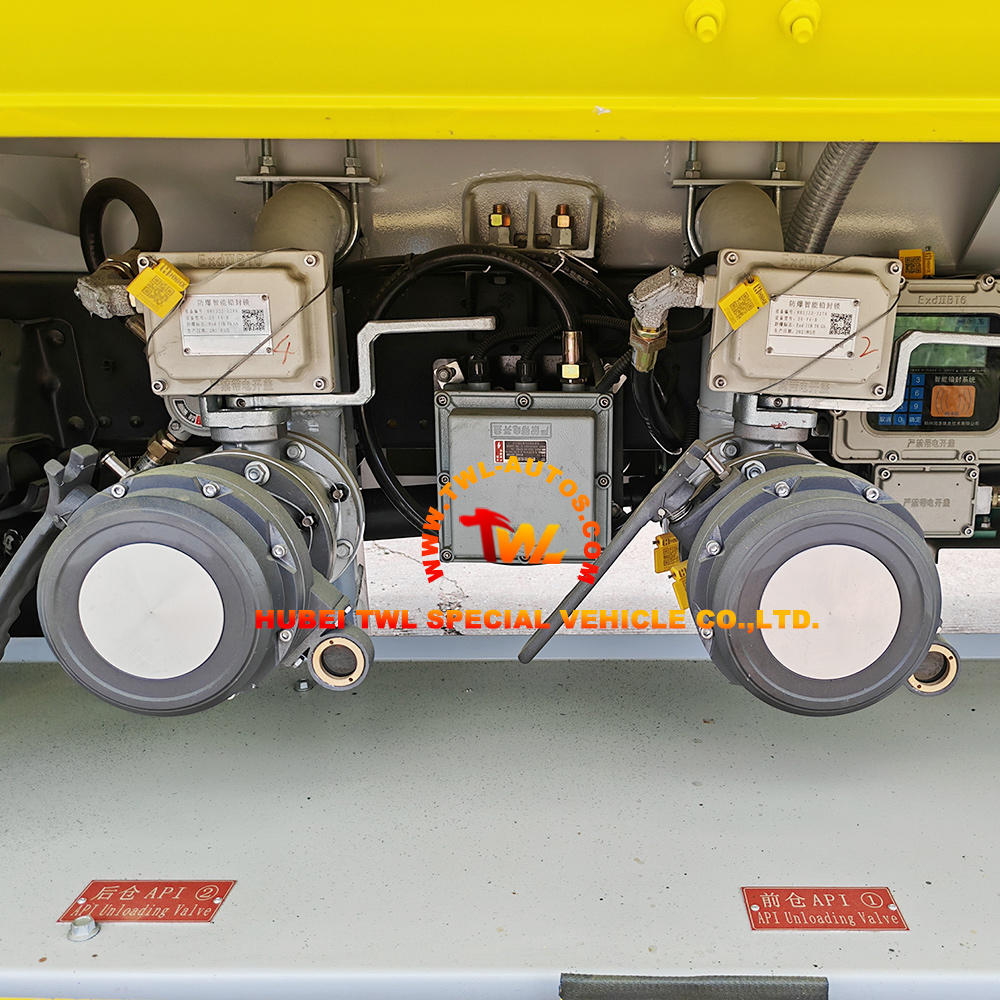

The truck features explosion-proof electrical components, emergency shutoff valves for each fuel compartment, vapor recovery systems to reduce emissions, and smart electronic seals to detect unauthorized access. An API-compliant discharging port ensures secure and regulated fuel transfer during all operations.
Core Functions & Applications
This mobile fuel refueling truck supports a wide range of fueling scenarios, including on-demand doorstep refueling for private vehicles, bulk fuel delivery for taxi fleets, logistics companies, and rental car operators, and emergency fuel supply for hospitals or disaster response teams. It is also well-suited for construction sites, mining operations, agricultural fields, and other off-grid locations where fixed fuel stations are unavailable.
Additionally, the truck is commonly used for temporary fuel supply at outdoor events, film sets, exhibitions, and mobile facilities requiring reliable generator power.
Key Advantages
By combining multi-fuel delivery, simultaneous refueling, smart monitoring, and comprehensive safety protection, the ISUZU 6000L mobile refueling truck helps operators reduce fuel logistics costs, shorten refueling time, and improve overall service efficiency. Its compact design, intelligent control system, and compliance with international standards make it a practical solution for modern mobile fueling businesses.
Product Specification
| Overall Dimension | 6800 x 2400 x 2550 mm |
| Gross Vehicle Weight | 11000 kg |
| Curb weight | 5500 kg |
| Loading Weight | 6510 kg |
| Wheel Base | 3815mm |
| Front overhang | 1110mm |
| Rear overhang | 2022mm |
| Front wheel track | 1680mm |
| Rear wheel track | 1650mm |

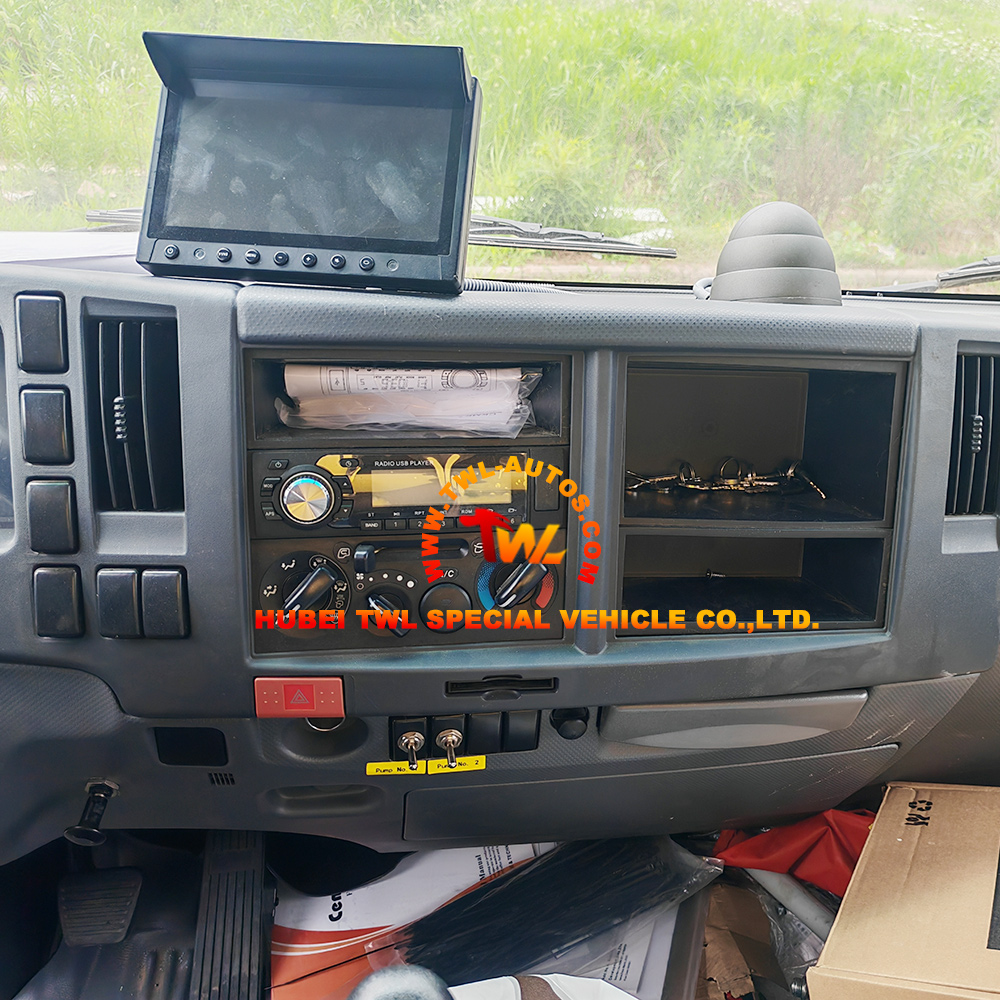

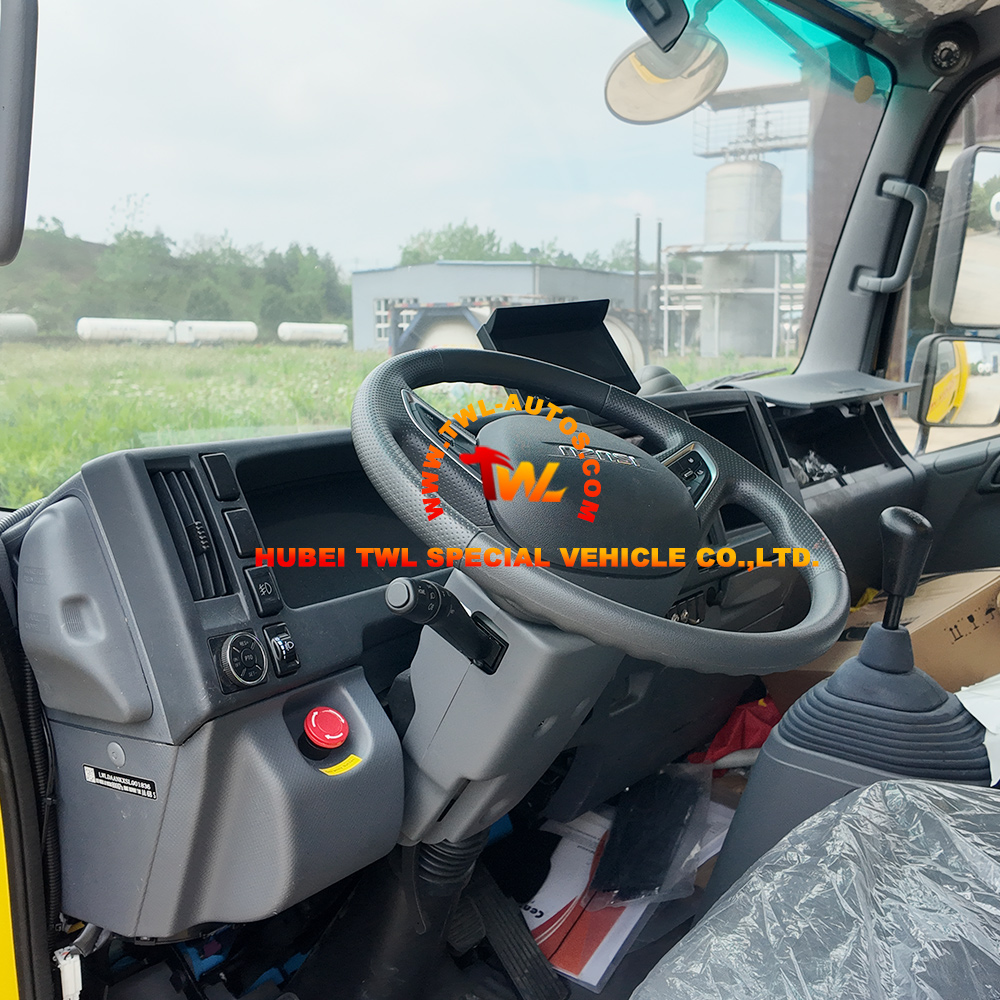

| Cabin | 2 or 3 Passenger Allowed, with A/C, centrl locking, electric windows and multi-function steering wheel. |
| Engine | Diesel Engine |
| 4HK1-TCG61 | |
| Watering Cooling, Four Stroke, 4 Cylinder in Line, Direct Injection | |
| Horse Power/Emission | 190HP/Euro 6 |
| Gearbox | Manual, MLD,6 Forward & 1 Reverse Gear |
| Axle | 4000kg Front Axle, 7000kg Rear Axle |
| Max Driving Speed | 90 km/h |
| Tire | 235/75R17.5, 6 pieces with 1 spare tire |
| Tank Capacity | 6,000 Liters with 2 compartments |
| Tank Material | Q235 carbon steel, 5mm thickness |
| Tank color and design can be customized | |

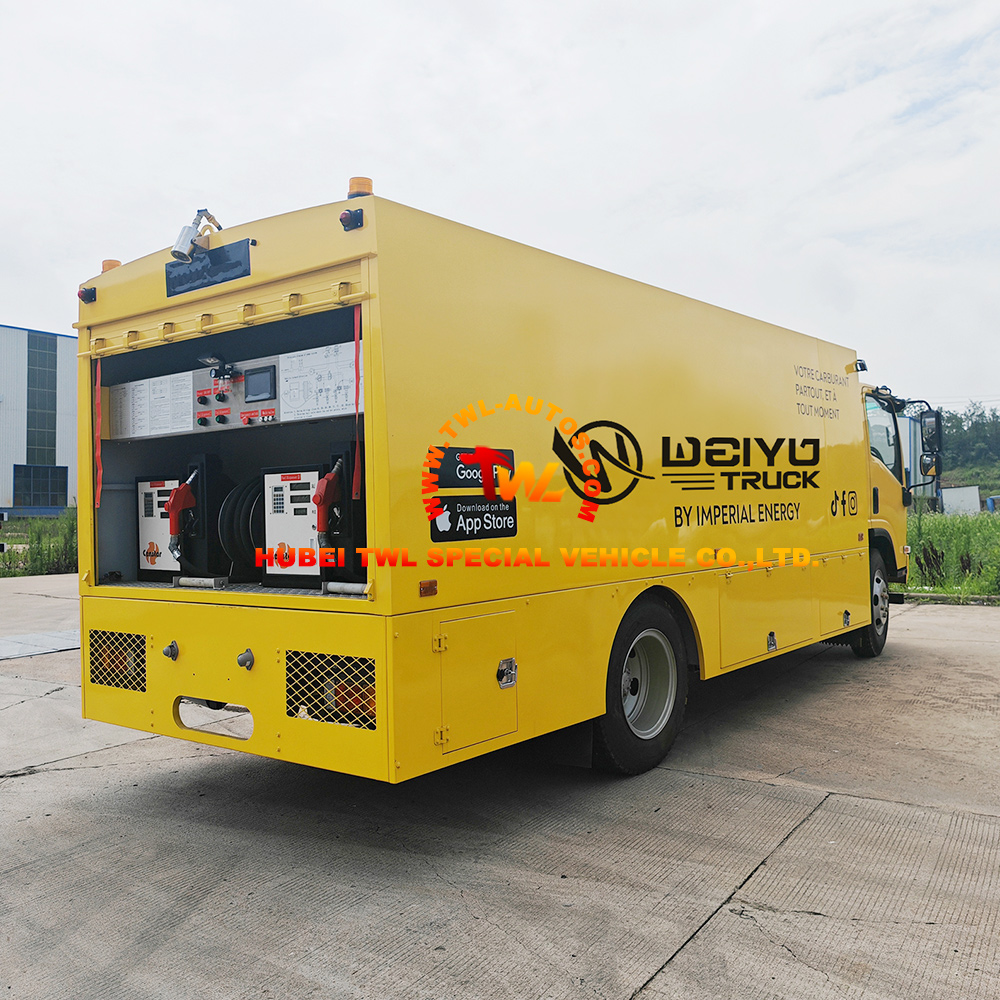

| External box structure | Rear operation room equipped with aluminum alloy rolling shutter door and 2 pull straps |
| Manhole cover | 2 sets API manhole cover |

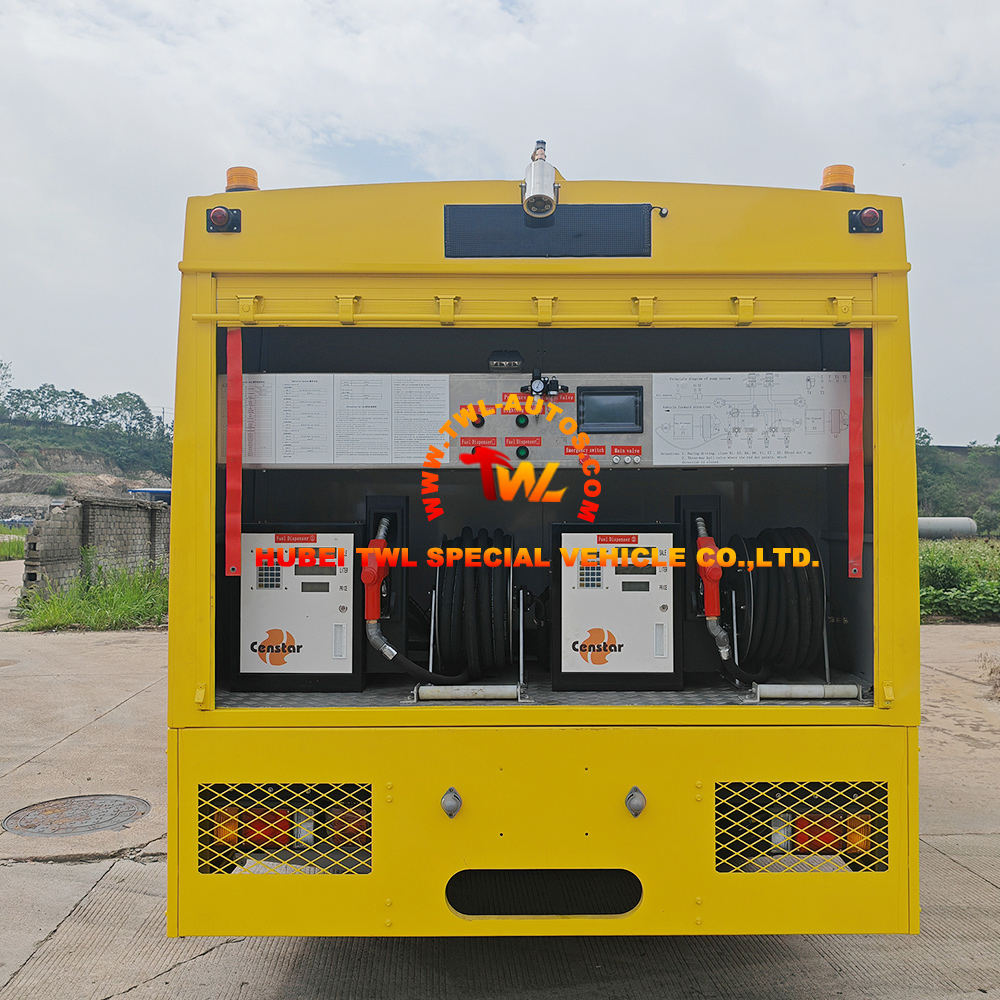

| Truck mounted dispenser | Dispenser with receipt printer, 2 sets mounted in the rear operation room |
| Oil Filling System | Bottom gravity discharge |
| Oil Flow Meter,1 Unit | |
| Oil filling pump, 1 Unit | |
| Standard tool box 1 Unit |
