ISUZU 4x4 100P Off Road Dump Truck
Dump trucks play a crucial role in civil engineering and construction projects. They are often used in combination with excavators, loaders, belt conveyors, and other construction machinery to create an efficient loading–transportation–unloading production line. This coordinated workflow enables the smooth handling of earth, sand, gravel, aggregates, and other bulk materials, significantly improving productivity on site.
As one of the most commonly used specialized vehicles for material transportation, dump trucks are valued for their large load capacity, high efficiency, and adaptability to different terrain and working conditions. Whether in road construction, building foundations, mining operations, or large-scale infrastructure projects, dump trucks serve as an indispensable link in the material supply chain, ensuring timely and reliable delivery of essential construction materials.
ISUZU 4x4 100P Off Road Dump Truck Advantage
1. High Transport Efficiency
Works seamlessly with excavators, loaders, and conveyors to create a continuous loading–hauling–unloading cycle, greatly improving project efficiency.
2. Large Load Capacity
Designed to handle earth, sand, gravel, and other bulk materials, reducing the number of trips and overall transportation costs.
3. Strong Adaptability
Performs reliably in diverse working conditions, from urban construction sites to mines and large-scale infrastructure projects.
4. Durable & Reliable Structure
Heavy-duty body and reinforced chassis ensure long service life, even under harsh environments.
5. Flexible Operation
Hydraulic lifting system allows fast unloading, saving both time and labor.
6. Versatile Application
Widely used in civil engineering, mining, road construction, and bulk material transport, making it an indispensable vehicle in the construction industry.
Product Specification
| Chassis Technical Specification | |
| Chassis Model | QL104 |
| Driving Model | 4×4 |
| Dimension | 5900x1980x2200 mm |
| Cab | Original 100P 1X cabin with air conditioner |
| Wheelbase | 3360 mm |
| Gross vehicle Weight | 4000 kg |
| Curb Weight | 2050 kg |
| Front Axle Loading Capacity | 2000 kg |
| Rear Axle Loading Capacity | 4000 kg |
| Axle Number | 2 |
| Tire | 7.00R16 |
| 4 pcs with 1 spare tire | |
| Engine | ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
| Model: 4KH1CN6LB | |
| Horse power: 120 HP, 88KW | |
| Displacement: 2500 ml | |
| Emission standard: Euro 6 | |
| Transmission | Model: ISUZU |
| 5 Forwards & 1 Reverse | |
| Upper Specification | |
| Cargo Box | |
| Size(L*W*H) | 3800x2300x800mm |
| Loading Capacity | 5 Tons |
| Bottom Thickness | 4 mm |
| Side Thickness | 3 mm |
| Shape | Tofu block, tailgate folio with locking level, center double top cylinder |
| Material | High quality Q235 carbon steel |

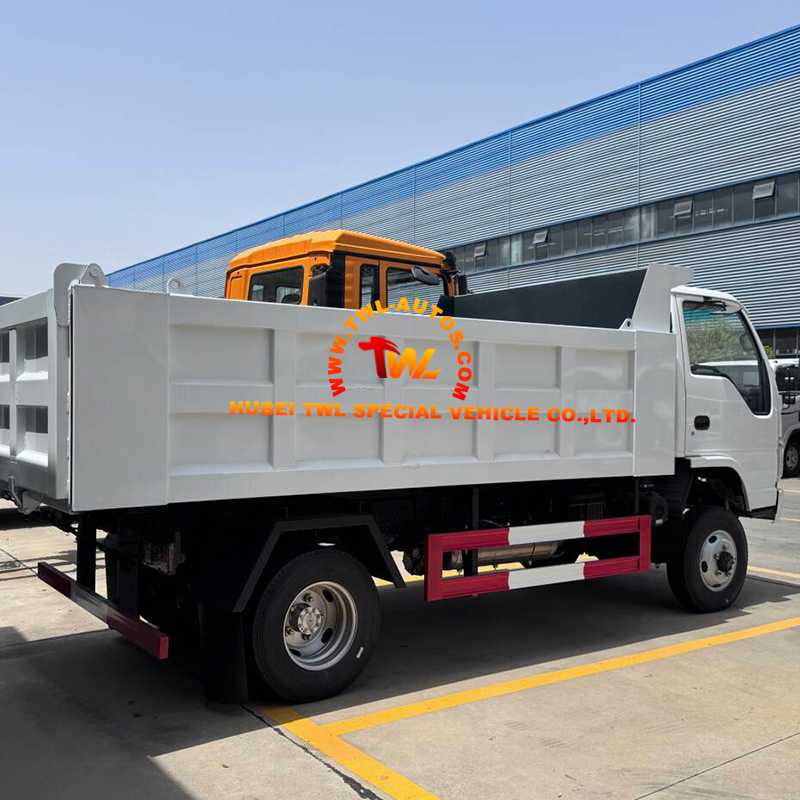

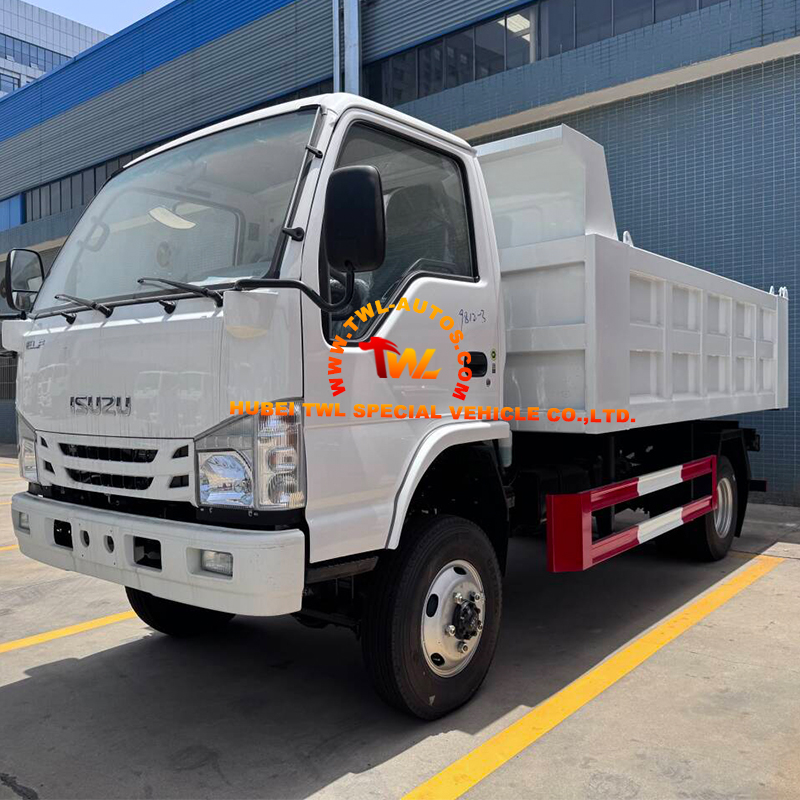

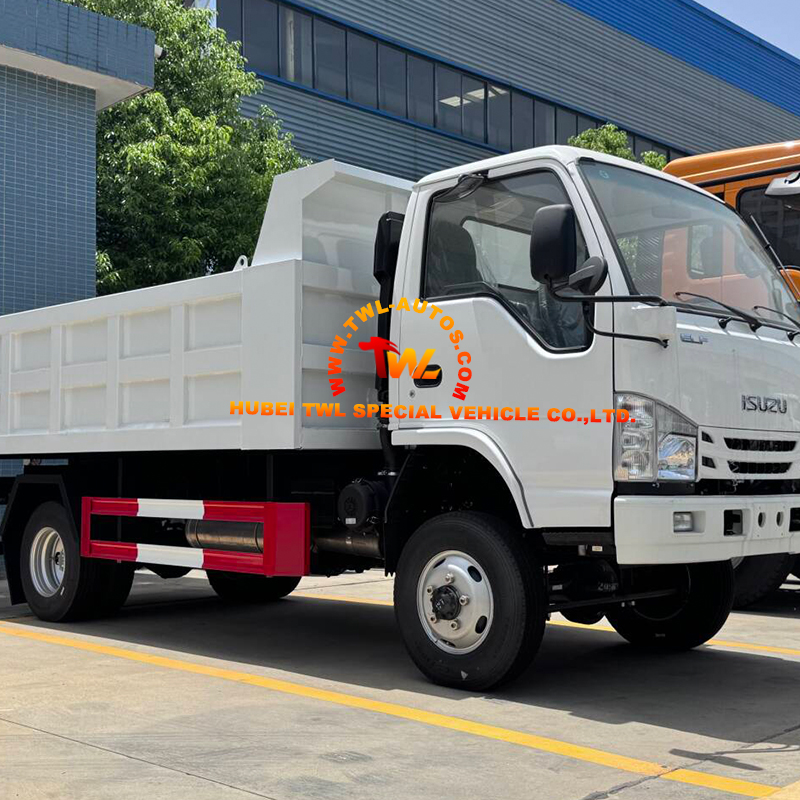

ISUZU 4x4 100P Off Road Dump Truck Gallery
