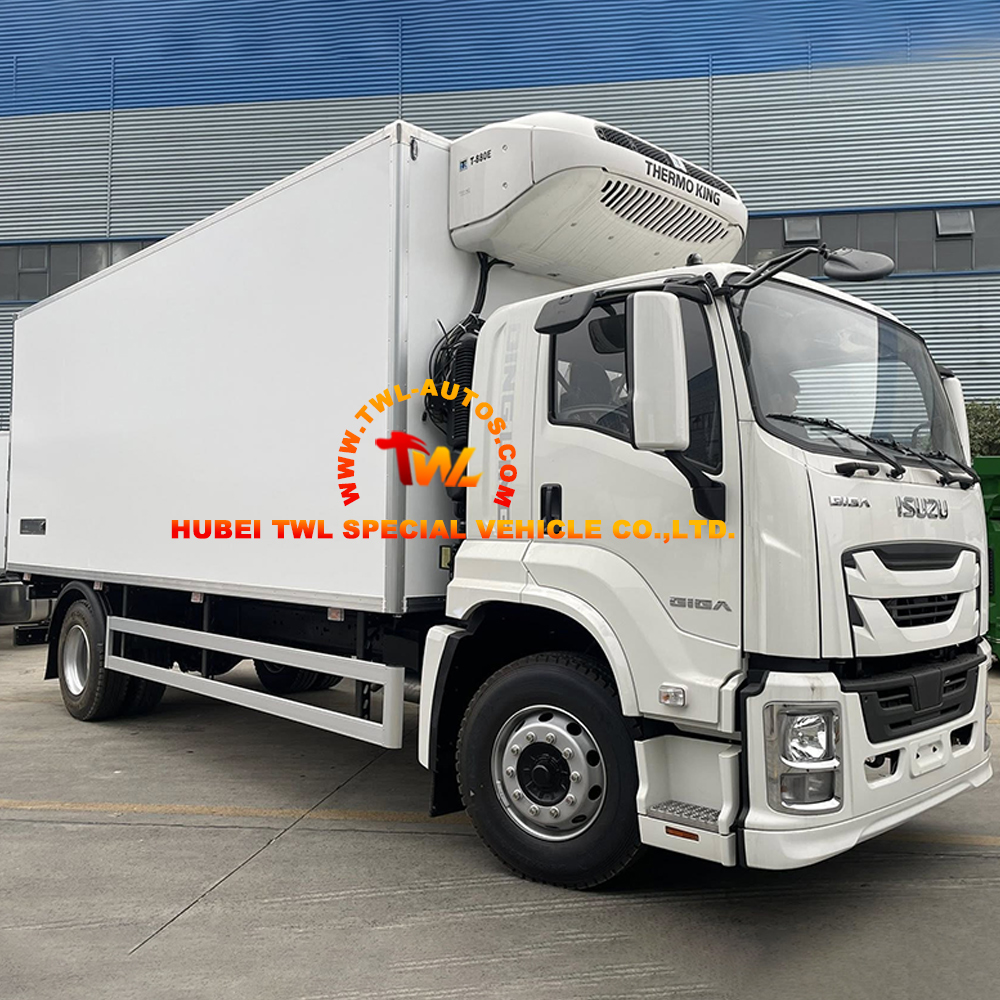

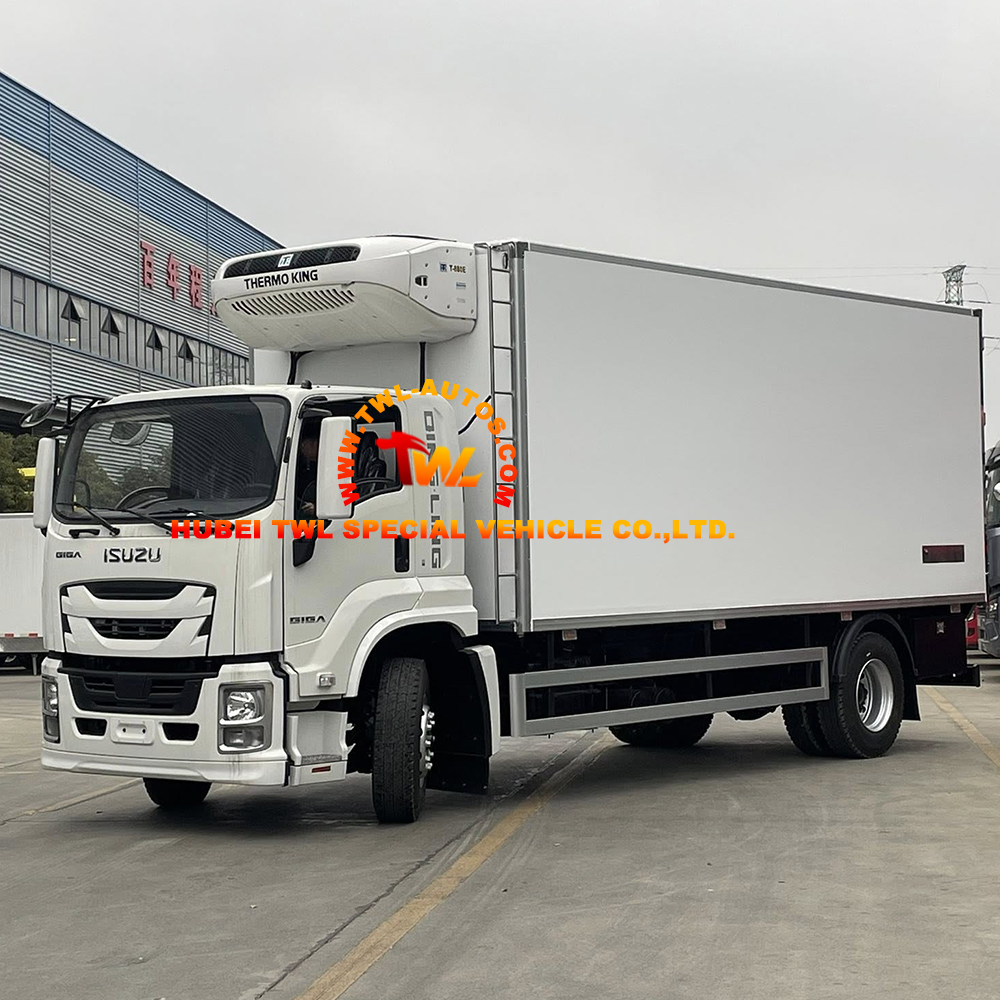

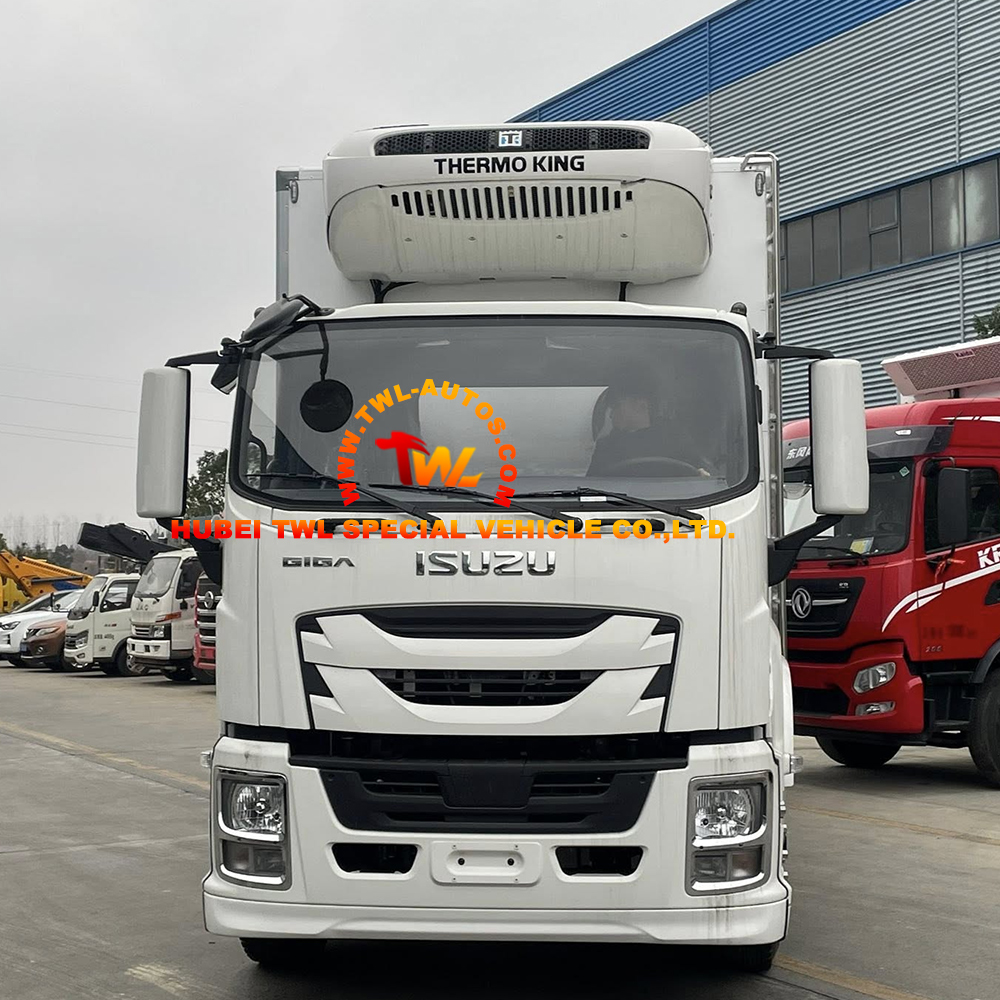

ISUZU 4x2 FVR 240HP Refrigerated Truck
The ISUZU FVR 4x2 Refrigerated Van is a premium cold chain solution engineered for superior performance and reliability. Combining ISUZU's robust 240HP Euro VI chassis with a high-capacity, precision-controlled THERMO KING refrigeration unit, it guarantees the safe, efficient, and intact delivery of temperature-sensitive goods across any distance.
ISUZU 4x2 FVR 240HP Refrigerated Truck
Engineered for excellence in demanding cold chain transportation, the ISUZU FVR 4×2 Refrigerated Van is built to deliver perfection. It merges the legendary durability and efficiency of an ISUZU truck with advanced refrigeration technology. This vehicle ensures your perishable cargo—from deep-frozen goods to fresh produce—arrives in optimal condition, every time, making it an indispensable asset for professional logistics operations.
Key Features
1. Powerful & Efficient Powertrain:
· Powered by the reliable ISUZU 6HK1-TCG61 Euro VI diesel engine, delivering 240 HP for strong performance and excellent fuel economy.
· Features an 8-speed manual transmission and a reinforced chassis for reliable, cost-effective operation, even under full load.
2. Precision Temperature Control:
· Fitted with a high-performance THERMO KING T-800 refrigeration unit.
· Maintains a precise and versatile internal temperature range from -18°C to +20°C, suitable for both deep-frozen and chilled goods.
3. Optimized & Insulated Cargo Box:
· Offers substantial capacity with internal dimensions of 6800L x 2440W x 2500H mm (approx. 41.5 cubic meters).
· Constructed with a lightweight, strong FRP outer shell and 8cm thick polyurethane foam insulation for maximum thermal efficiency, minimal cold loss, and lower operating costs.
4. Driver-Focused Cabin Design:
· Spacious one-and-a-half-row FVR cabin enhances comfort and productivity on long hauls.
· Equipped with power steering, air conditioning, an adjustable driver’s seat, and central locking for a controlled, less fatiguing driving experience.
5. Built for Safety & Durability:
· Key safety components include air brakes, a reinforced clutch, and large 295/80R22.5 tires for stability.
· High-quality construction features seamless, corrosion-resistant walls and stainless-steel door fittings, ensuring long service life and easy maintenance.
Primary Applications
This truck is a core asset for temperature-controlled logistics, serving critical sectors:
1. Food Distribution & Logistics:
· Frozen Foods: Ice cream, frozen meat/seafood, prepared meals (at or below -18°C).
· Chilled/Perishable Foods: Fresh fruits & vegetables, dairy products, eggs, cut flowers (typically 0°C to +10°C).
· Foodservice & Retail Supply: Delivering goods from distributors to supermarkets, restaurants, and hotels.
2. Pharmaceutical & Healthcare Logistics:
· Temperature-Sensitive Pharmaceuticals: Vaccines, insulin, biologics, clinical samples (requiring precise 2°C to 8°C control).
· Medical Supplies: Certain reagents, diagnostic kits, and medical supplies.
3. Specialty Cargo:
· High-Value Goods: Temperature-sensitive electronic components or specialty chemicals.
· Floral Industry: Long-distance transport of premium cut flowers to preserve freshness.
Product Specification
| ISUZU 4X2 240HP refrigerated van truck | |||
| Chassis parameters | |||
| Condition | New condition/Left hand drive/4X2 | ||
| Main details | Brand | ISUZU | |
| Wheelbase(mm) | 5550 mm | ||
| Overall Dimensions(mm) | 10000×2550×3850 mm | ||
| Gross Weight(kg) | 18,000 | ||
| Front/Rear Axle loading(kg) | 6300/13000 kg | ||
| Max. driving speed(km/h) | 105 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Air brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 295/80R22.5 | ||
| Transmission | Manual type , MLD 8 forward gears & 1 reverse | ||
| Cabin | Left Hand Driving | ||
| FVR spacious cabin | |||
| one row and a half cab | |||
| adjustable driver seat | |||
| central lock | |||
| with Air condition | |||
| Engine | Brand | ISUZU engine | |
| Model | 6HK1-TCG61 | ||
| Fuel type | Diesel | ||
| Displacement(ml) | 7790ml | ||
| Power(kw) | 175w at 2600 rpm | ||
| Horsepower(HP) | 240 HP | ||
| Cylinder number | 6 | ||
| Emission standard | Euro VI | ||
| Power Supply | With PTO | ||
| Up-parts Description | |||
| Van box dimensions | 6800×2440×2500 mm | ||
| material of the van | FRP, 8 cm thick PU inside | ||
| Temperature | -18°C to +20°C (customizable based on requirements) | ||
| Refrigeration Unit | THERMO KING T-800 | ||
| Rear Door Type | Full Size Double Opening Rear Door | ||
| painting | Custom’s Requirement | ||
| Box Introduction | light weight, high strength, seamless, corrosion-resistant benefits; The van around the aluminum alloy decoration, door lock stainless steel standard parts. | ||
| Optional equipment | 1, Refrigeration brand: Carrier, Thermoking, DAlKlN (with any brand) | ||
| 2. Rear vision camera | |||
| 3. Aluminum flooring, hanging system | |||
| 4.Optional Dual temperature, multi compartment | |||
