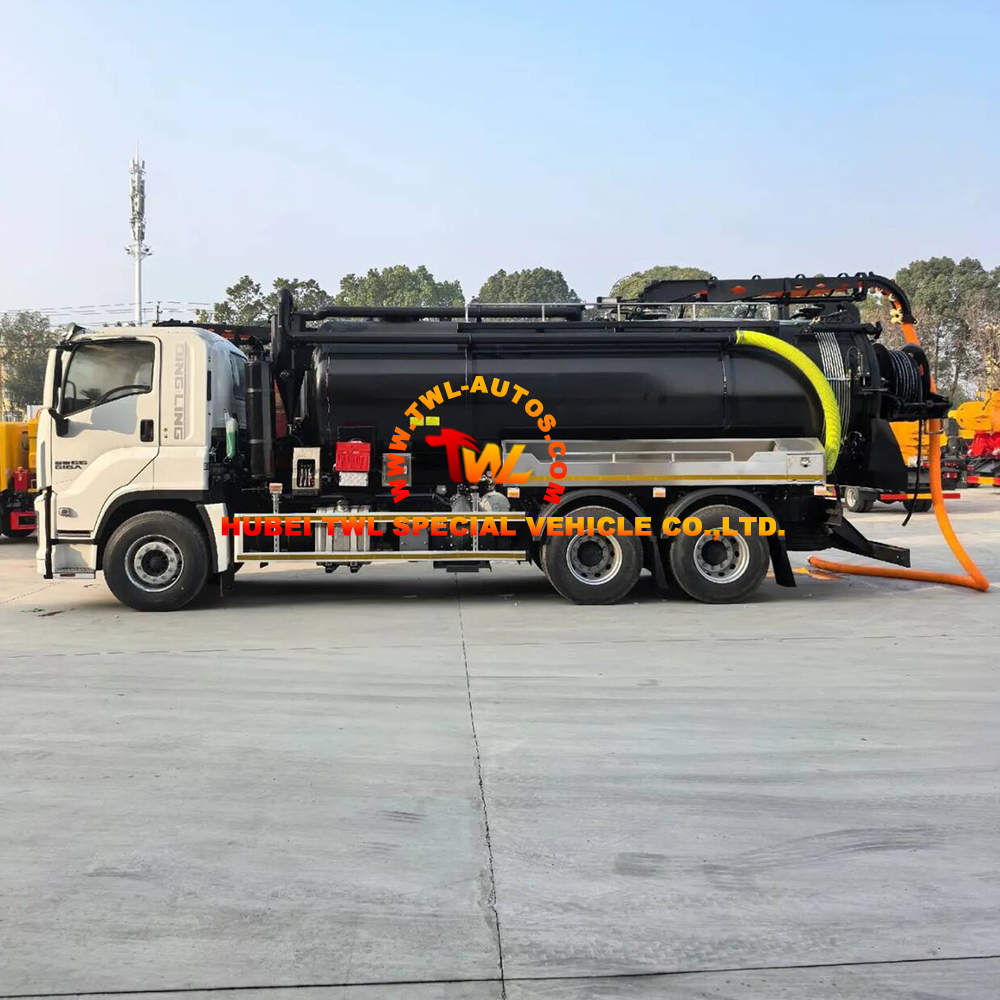

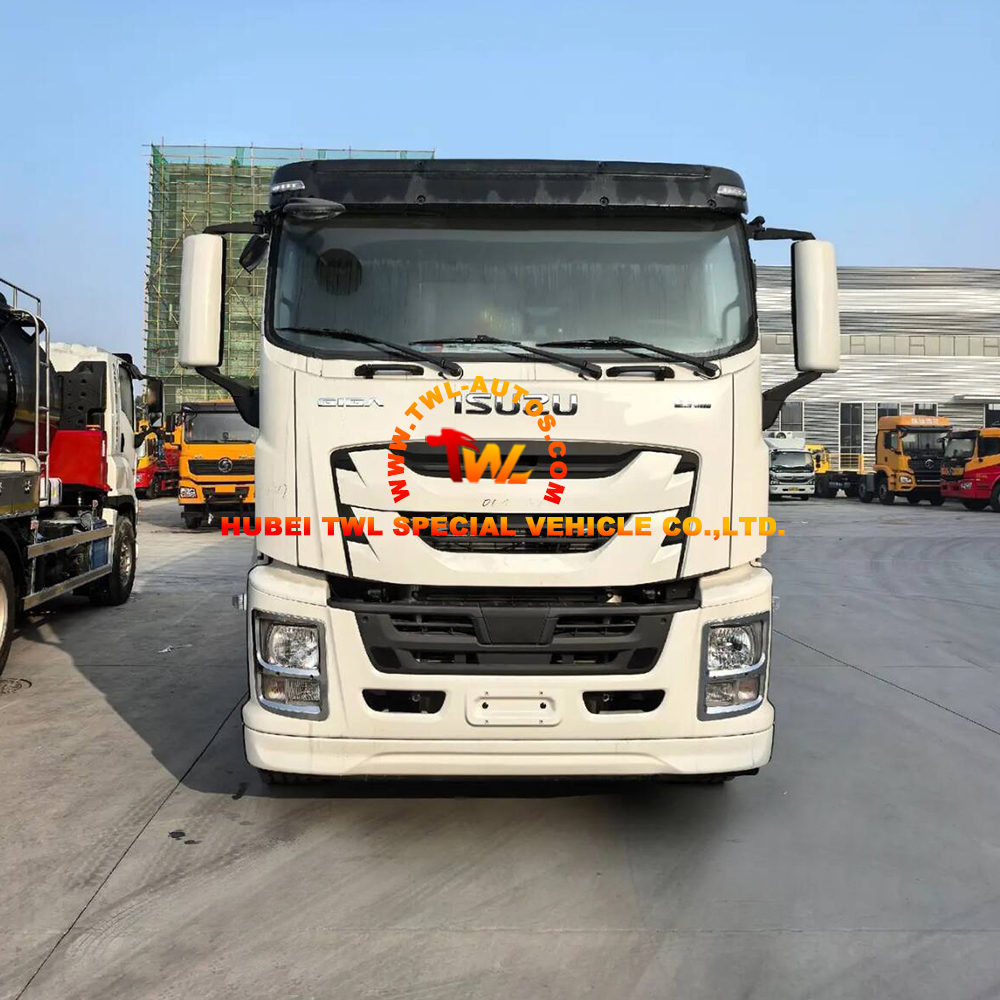

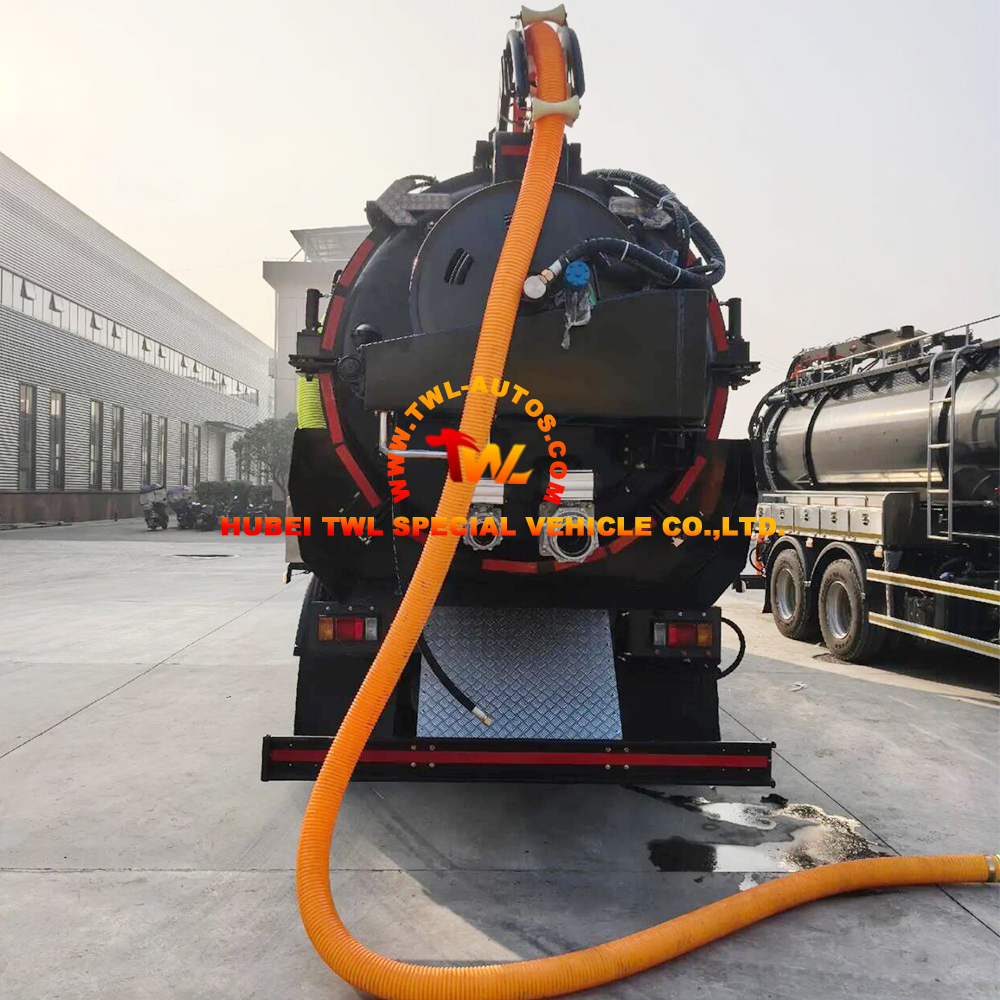

ISUZU 380HP 6x4 17CBM High-Pressure Jetting & Vacuum Sewer Truck
This ISUZU GIGA 6x4 truck-mounted combination unit integrates high-pressure water jetting and powerful vacuum suction for efficient sewer cleaning and waste collection. Equipped with a 380HP Euro 6 engine, a 7CBM clean water tank, and a 10CBM sewage tank, it delivers superior performance for municipal and industrial applications. The integrated hydraulic boom enhances operational flexibility.
ISUZU 380HP 6x4 17CBM High-Pressure Jetting & Vacuum Sewer Truck
Built on the reliable ISUZU GIGA chassis, this vehicle is designed for heavy-duty cleaning tasks. It features a 6×4 drive configuration for enhanced traction on various terrains. The unit combines a high-pressure jetting system for pipe unclogging with a robust vacuum system for sludge and debris extraction, all operable remotely for operator safety and convenience.
Key Features:
· Powerful Engine & Chassis: Powered by an ISUZU 6UZ1-TC6G1 380HP engine (Euro 6), paired with a 10-forward & 2-reverse gearbox with PTO. Features a tilting cab, air conditioning, ABS, and air brakes for comfort and safety.
· High-Pressure Jetting System: Equipped with a 126KW pump delivering 180 Mpa pressure at 350 L/min. The 7CBM clean water tank is constructed from 6mm premium steel with butt-joint welding for durability.
· Efficient Vacuum System: The 10CBM sewage tank features a stainless steel lining, asphalt coating, and electrostatic painting. Powered by a JUROP PVT 400 Roots Pump, it offers a pumping speed of 2470 m³/h with vertical suction up to 12 meters.
· User-Friendly Operation: Includes remote control operation, a hydraulic lifting tank for rear-dump discharge (75° opening), and pneumatic ball valves. Safety features include a full-tank alarm and auto pressure relief.
· Complete Accessories: Comes with 10 specialized nozzles, 100m of high-pressure hose, 2x10m suction hoses, a stainless steel toolbox, and a coil hose reel.
Application:
Municipal sewer and drainage pipe cleaning
Industrial waste and sludge removal
Stormwater drain maintenance
Septic tank emptying and cleaning
Construction site water and waste management
Factory floor cleaning and waste collection
Product Specification
| Category | Parameter | Specification |
| Vehicle Information | Drive Type | 6×4 |
| Gross Vehicle Weight | 25000 kg | |
| Curb Weight | 11360 kg | |
| Max. Speed | 100 km/h | |
| Dimensions (L x W x H) | 10350 x 2550 x 3550 mm | |
| Engine | Engine Model | 6UZ1-TC6G1 |
| Fuel Type | Diesel | |
| Power | 380 HP (279 KW) | |
| Emission Standard | Euro 6 | |
| Displacement | 9839 ml | |
| Engine Type | 6 Cylinders in line, Water cooling, Turbo-charged, Inter-cooling | |
| Chassis | Chassis Brand | ISUZU |
| Tires | 12R22.5 18PR (10+1) | |
| Wheelbase | 4600+1370 mm | |
| Gearbox | 10 Forward & 2 Reverse (with PTO) | |
| Cab | Tilting Cab with A/C, Steering assist, Central lock, ABS, Air brake | |
| Jetting System | Clean Water Tank | 7 CBM |
| Tank Material | 6mm premium steel plate (WISCO) | |
| Pump Power | 126 KW | |
| Pump Pressure | 180 Mpa | |
| Flow Rate | 350 L/min | |
| Vacuum System | Sewage Tank | 10 CBM |
| Tank Features | Fully sealed, Stainless steel lining, Asphalt coating, Electrostatic painting | |
| Vacuum Pump | JUROP PVT 400 Roots Pump | |
| Pumping Speed | 2470 m³/h | |
| Max. Vertical Suction | 10-12 m | |
| Max. Horizontal Reach | 50-100 m | |
| Operational Features | Drive System | PTO-driven, simultaneous operation |
| Discharge Type | Hydraulic tank lifting (75° rear-door opening) | |
| Control | Remote control operation | |
| Safety | Full-tank alarm, Auto pressure relief, Secondary anti-overflow | |
| Accessories | Standard Kit | 10x Nozzles, 100m High-pressure hose, 2x10m Suction hoses, Stainless steel toolbox, Coil hose reel |
