ISUZU 36m Telescopic & Articulated Boom Lift Truck
TWL offers the Isuzu 36m Telescopic & Articulated Boom Lift Truck, a professional high/low aerial work platform engineered for outstanding performance in elevated and below-ground operations. Built on a reliable Isuzu chassis with advanced hydraulic control, it delivers safe, stable, and highly flexible access for maintenance, construction, inspection, and emergency tasks across multiple industries.
ISUZU 36m Telescopic & Articulated Boom Lift Truck
The Isuzu 36m telescopic and articulated boom lift truck is a specialized aerial work platform vehicle designed to handle demanding operations at both extreme heights and negative working depths. By integrating advanced hydraulic lifting technology with a precision-engineered articulated boom, this unit ensures smooth, secure elevation and exceptional maneuverability in complex work environments.
Developed for versatile application, the boom lift truck is widely used in power grid and telecommunication maintenance, building and municipal works, transportation infrastructure upkeep, and landscaping or tree-care operations. Whether for installation, repair, cleaning, inspection, or emergency duty, this platform provides operators with a safe, steady, and efficient workspace.
Its compact structure and folding boom design reduce transport footprint while allowing quick movement between different job sites. Combined with the durability of the Isuzu chassis and the extended 35–36 meter working height, this aerial platform becomes an indispensable tool for enterprises requiring reliable high-altitude and below-ground access.
Key Features
1. Extended Working Height with Below-Ground Capability
The boom lift reaches up to 35–36 meters, enabling operators to access high elevations with ease. Its ability to operate at negative heights below ground level makes it suitable for slope maintenance, excavation areas, and inspection of underground structures.
2. Articulated Boom for Superior Flexibility
A multi-section articulated boom provides wide motion ranges, allowing operators to work over obstacles, around tight corners, and in confined urban spaces. This flexibility ensures precise positioning for complex job scenarios.
3. High Operational Efficiency and Faster Workflow
The system enables rapid platform deployment, reducing setup time and boosting on-site productivity. Smooth, responsive boom movements allow quick repositioning, improving task completion time and overall efficiency.
4. Compact, Mobile, and Easy to Maneuver
Thanks to its folding boom structure and well-balanced Isuzu truck chassis, the vehicle maintains a compact footprint during transport and parking. Its strong mobility allows effortless transfer between different work environments, enhancing daily operational convenience.
Product Specification
| Parameters Of Truck Chassis | ||
| Overall Dimension | 9000x2520x4200mm | |
| Cab | ISUZU VC61 Cab | |
| Left hand driving | ||
| 3 seats | ||
| One sleeper | ||
| Air conditioned | ||
| Central locking | ||
| Power steering | ||
| Electrical window | ||
| Engine | Diesel Engine, ISUZU 4HK1-TC60, 205HP/151kW, Euro VI | |
| 4 Cylinder in Line, Watering Cooling, Four Stroke, Direct Injection | ||
| Gearbox | Manual transmission | |
| ISUZU MLD 6 Forward & 1 Reverse Speed | ||
| Axle Loading | Front axle: 6,300kg | |
| Rear axle: 13,000kg | ||
| Tire | 295/80R22.5 | |
| 7 pieces including 1 spare tire | ||
| Parameters Of Upper Structure | ||
| Main technical parameters of the operation | Max. working height | 36 m |
| Maximum operating range behind the platform | 16 m | |
| Maximum operating range on the side of the platform | 14 m | |
| Maximum boom tilt angle of the platform | 75° | |
| Rated load of bucket | 200 kg | |
| Bucket size | 2000x1000x1000mm | |
| Outrigger | Method: Front H and rear V, can adjustable independently | |
| Control: Individually adjustable or linked | ||
| Front span: 8350mm, Rear span: 7680mm | ||
| Left span: 7680mm, Right span: 7260mm | ||
| Main boom | Six section hexagonal boom, with synchronous telescopic design | |
| Made of Baosteel BS960 high-strength steel | ||
| Rotation | Platform can 360° continuous rotate in both directions | |
| Bucket can 360° rotate | ||
| Operation method | Remote controller with monitor showing display arm length, working height, working radius, tilt angle in English | |
| Manual control on the platform with monitor showing display arm length, working height, working radius, tilt angle in English | ||
| Manual control in the operator’s cabin | ||
| Hoarding&walking platform | Stainless steel fence and anti-slip walking platform | |
| Automatic interlock device for getting on and off the vehicle | Used for interlocking when getting on and off the vehicle to prevent accidents caused by misoperation. | |

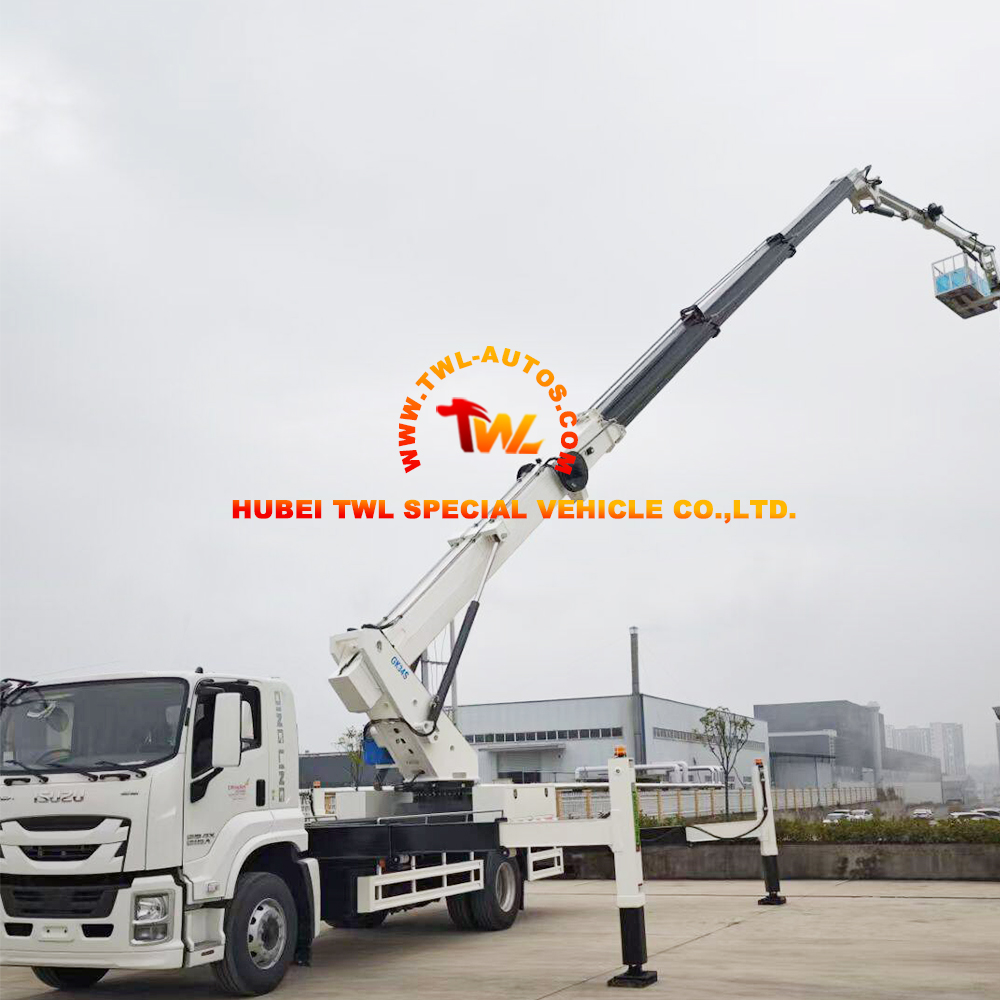

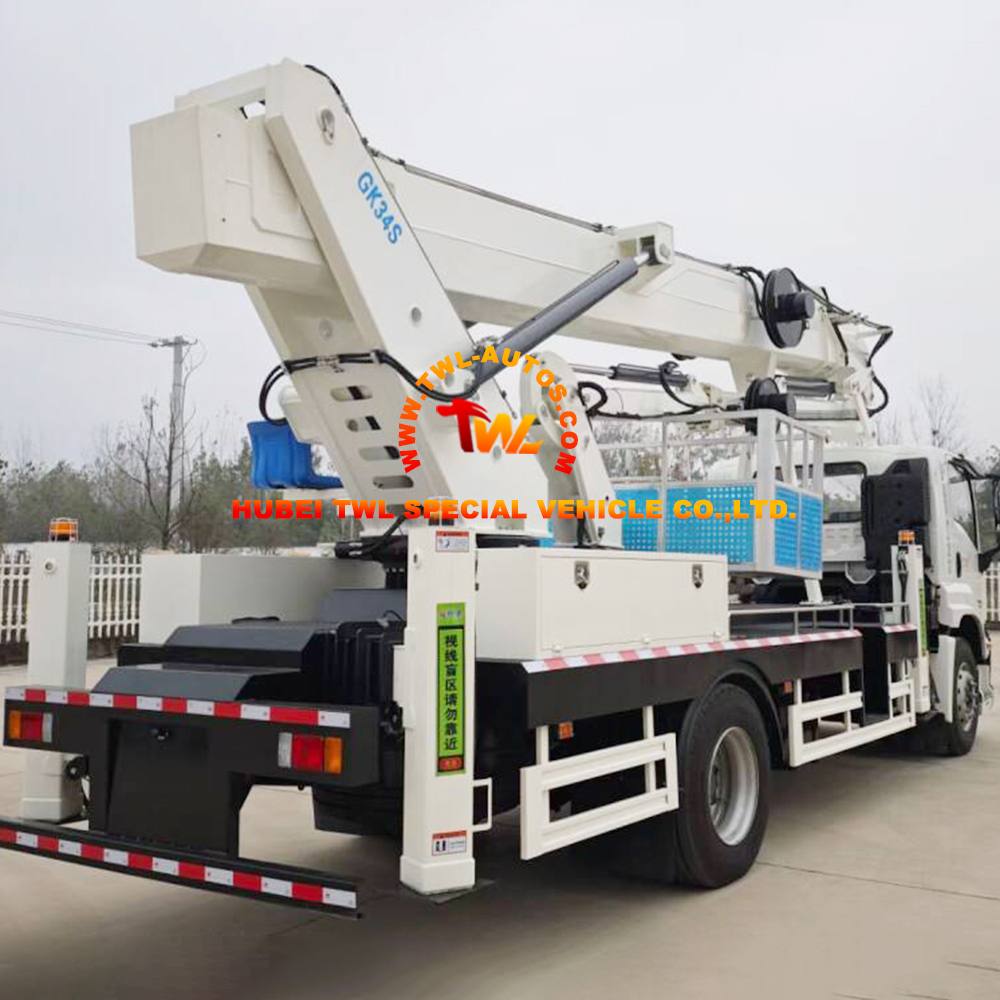

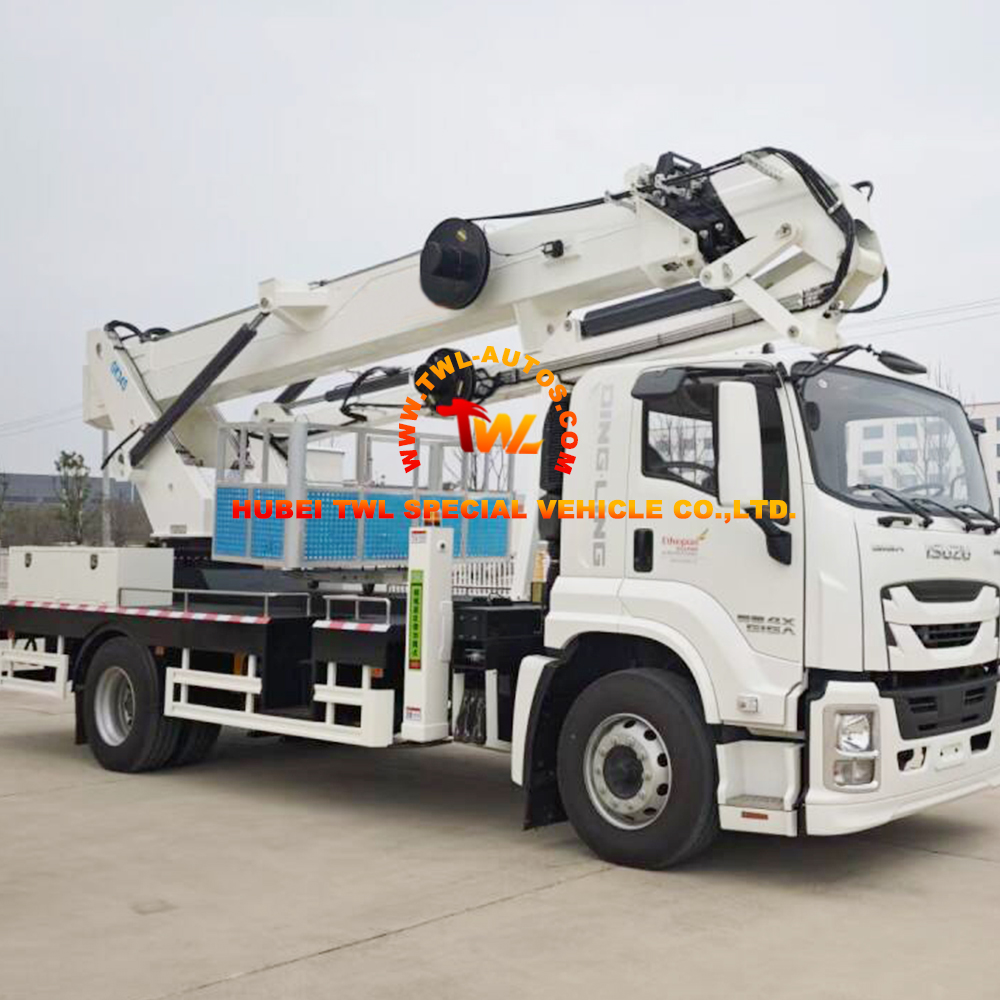

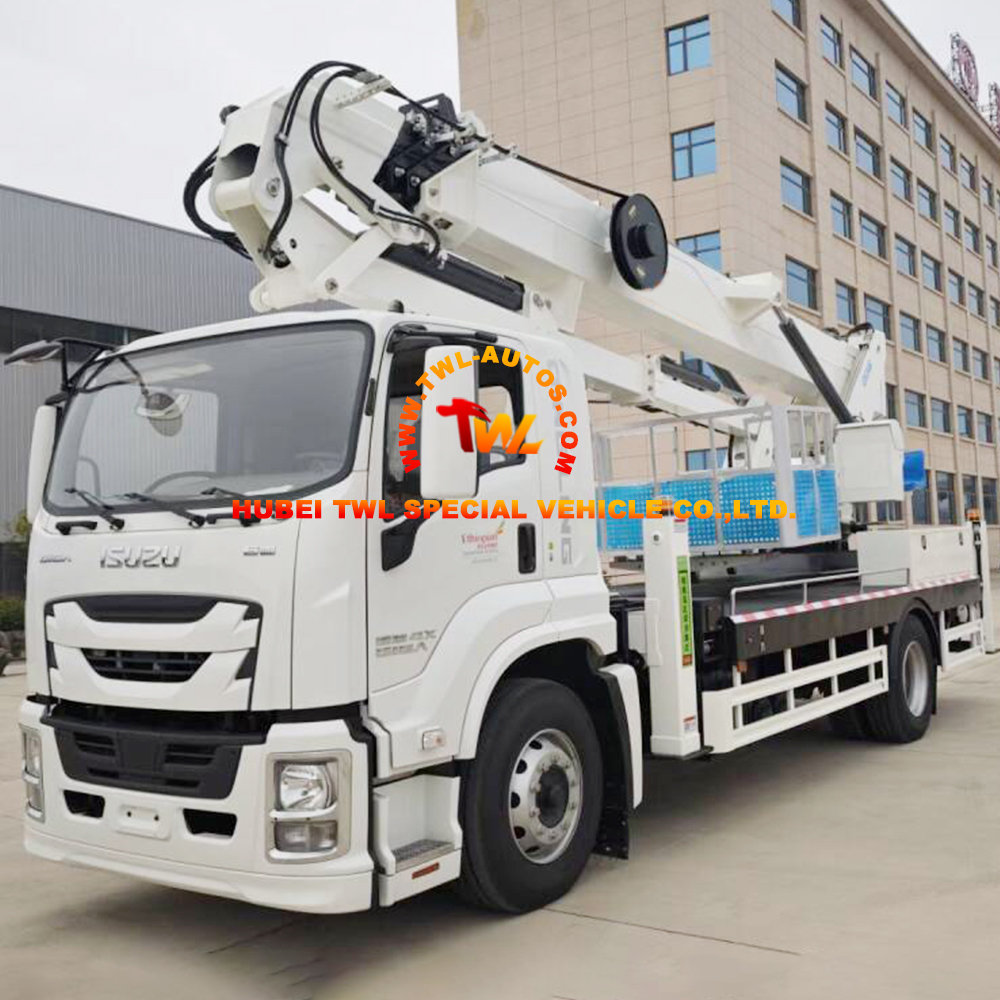

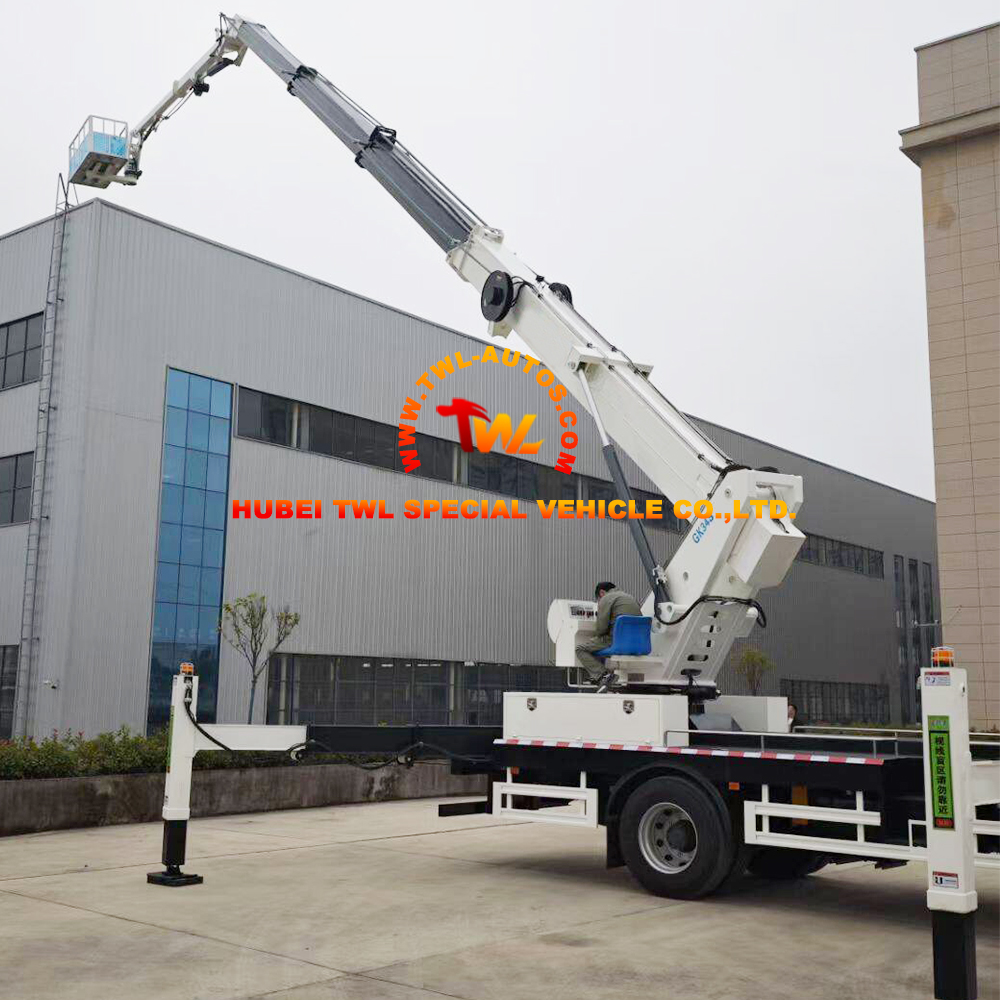

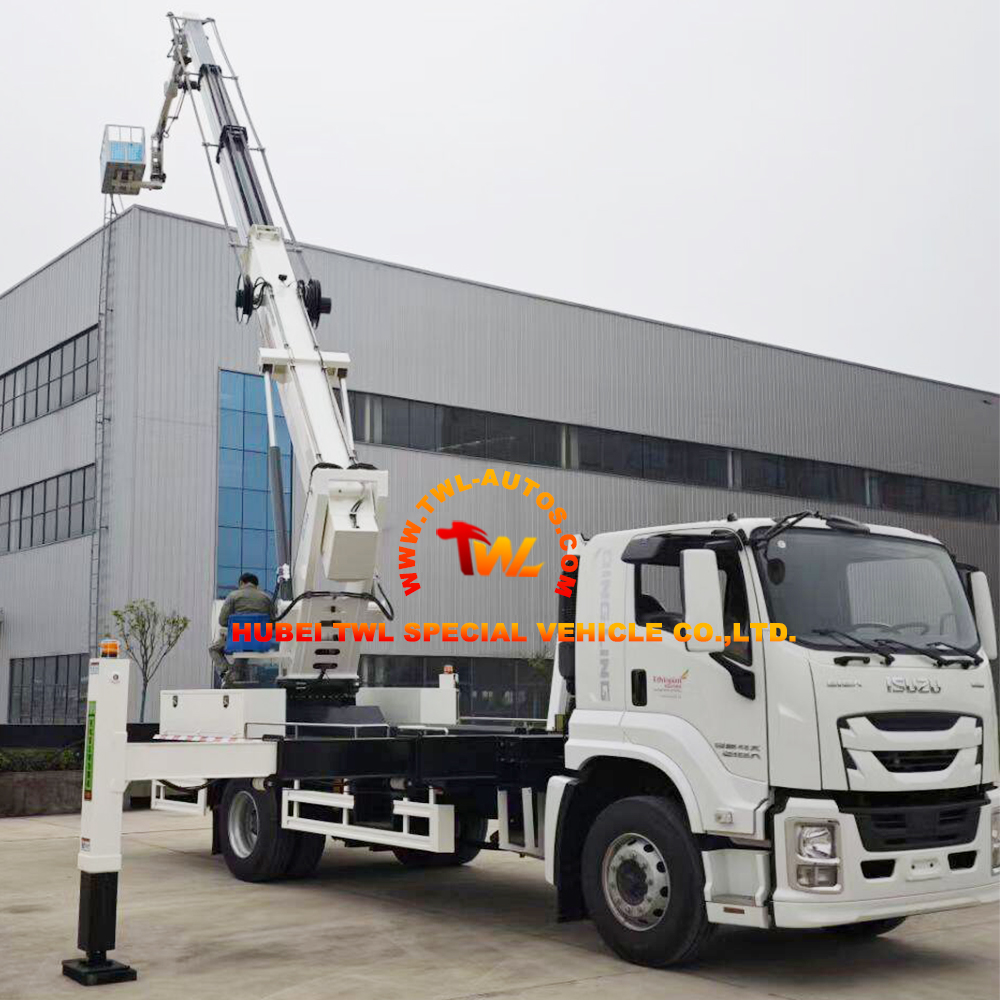

ISUZU 36m Telescopic & Articulated Boom Lift Truck Gallery
