ISUZU 10CBM Water Sprinkler Truck with Fire Cannon
Maximize your municipal and emergency response capabilities with the ISUZU FTR 10CBM Fire Cannon Water Sprinkler Truck – a dual-purpose vehicle featuring a 205HP Euro 4/6 engine, a 10,000-liter carbon steel tank, a roof-mounted fire monitor for long-range firefighting, and a chassis PTO-driven self-priming sprinkler pump. The optional independent diesel high-pressure washing unit provides ultra-high-pressure cleaning power, making this truck ideal for urban sanitation, mountain township fire suppression, and construction site dust control in Albania and beyond.
ISUZU 10CBM Water Sprinkler Truck with Fire Cannon

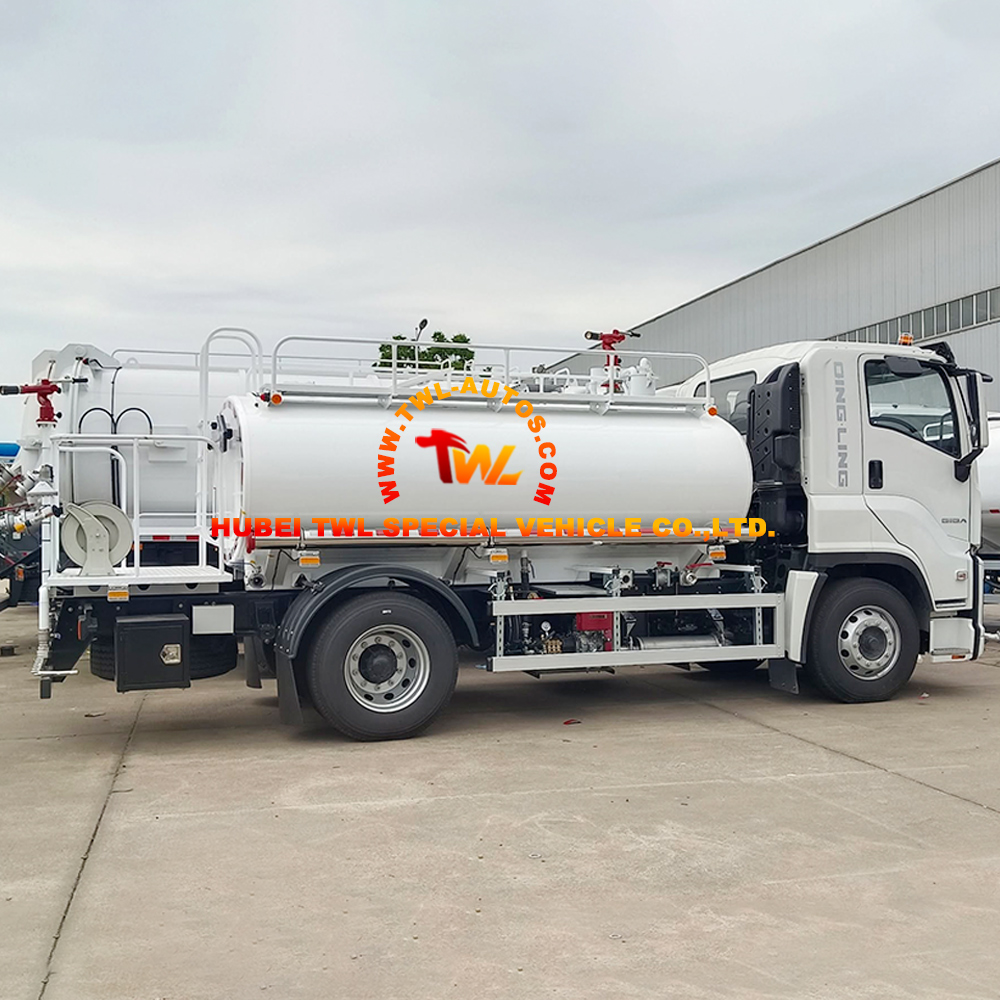

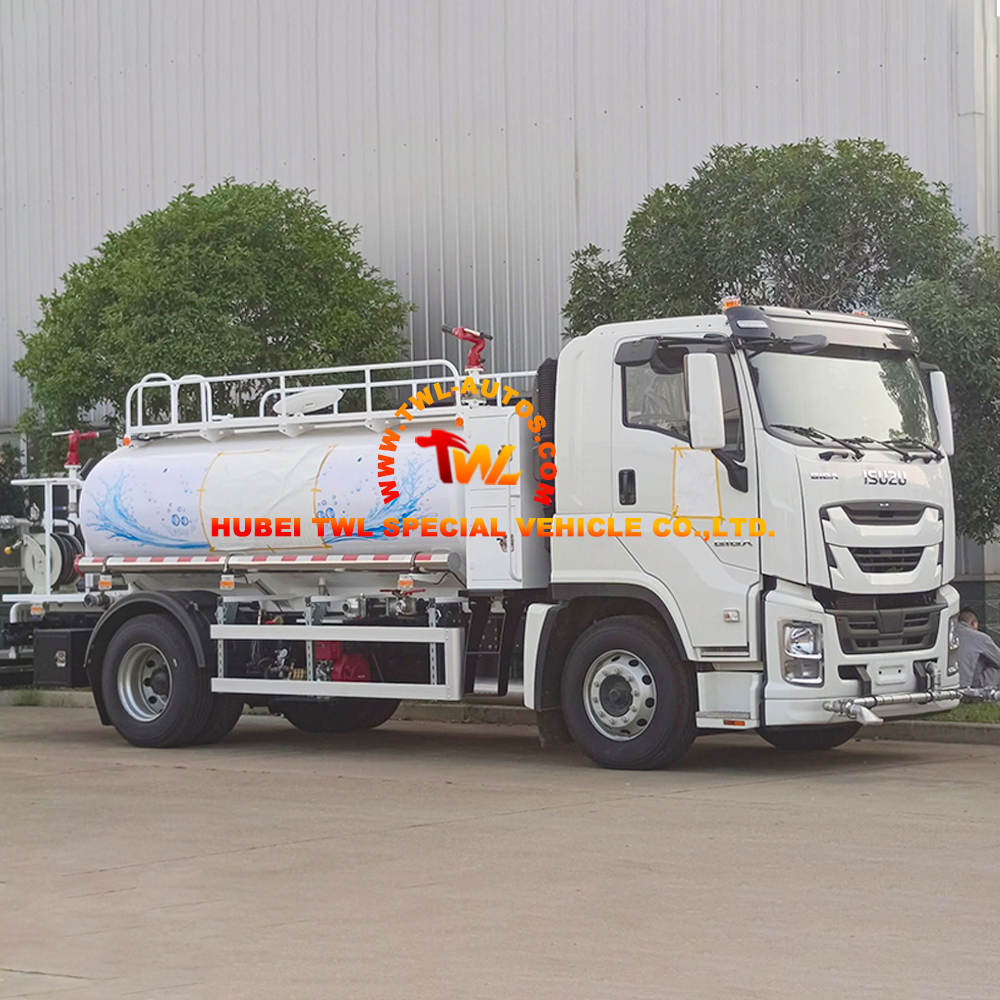

The ISUZU FTR 10CBM Fire Cannon Water Sprinkler Truck is a specialized vehicle designed to serve both municipal sanitation and emergency firefighting needs. Built on the highly recognized ISUZU original 4×2 chassis (QL118), it is powered by a reliable and fuel-efficient ISUZU 4HK1-TC60 diesel engine (205HP, Euro 4/6). The chassis drives the original green self-priming sprinkler pump via PTO, handling routine sprinkling and fire monitor operations, while the chassis frame reserves side mounting space for an optional side enclosed lockable toolbox or an independent high-pressure washing unit. The 10-cubic meter carbon steel tank is equipped with a quick-opening manhole on top for inspection and pressure balancing, and features a working platform with safety guardrails. A roof-mounted fire monitor is installed for long-range high-pressure firefighting, capable of suppressing initial mountain fires. The main water system includes a self-priming function to draw water from ponds and rivers on-site, a side large-diameter quick coupling for rapid filling and supplying other fire trucks, and a built-in drain valve to prevent winter freezing. The standard sprinkler functions include front flushing, rear spraying, and side spraying for road maintenance and irrigation. For stubborn stains, the optional independent single-cylinder diesel high-pressure washing unit features a brass three-cylinder plunger pump, pressure gauge, and self-retracting hose reel, operating independently even when the vehicle is shut off. The vehicle’s dual-power water system (chassis PTO main pump + independent diesel auxiliary pump) ensures it can handle both high-flow sprinkling and high-pressure washing with ease.
Key Features:

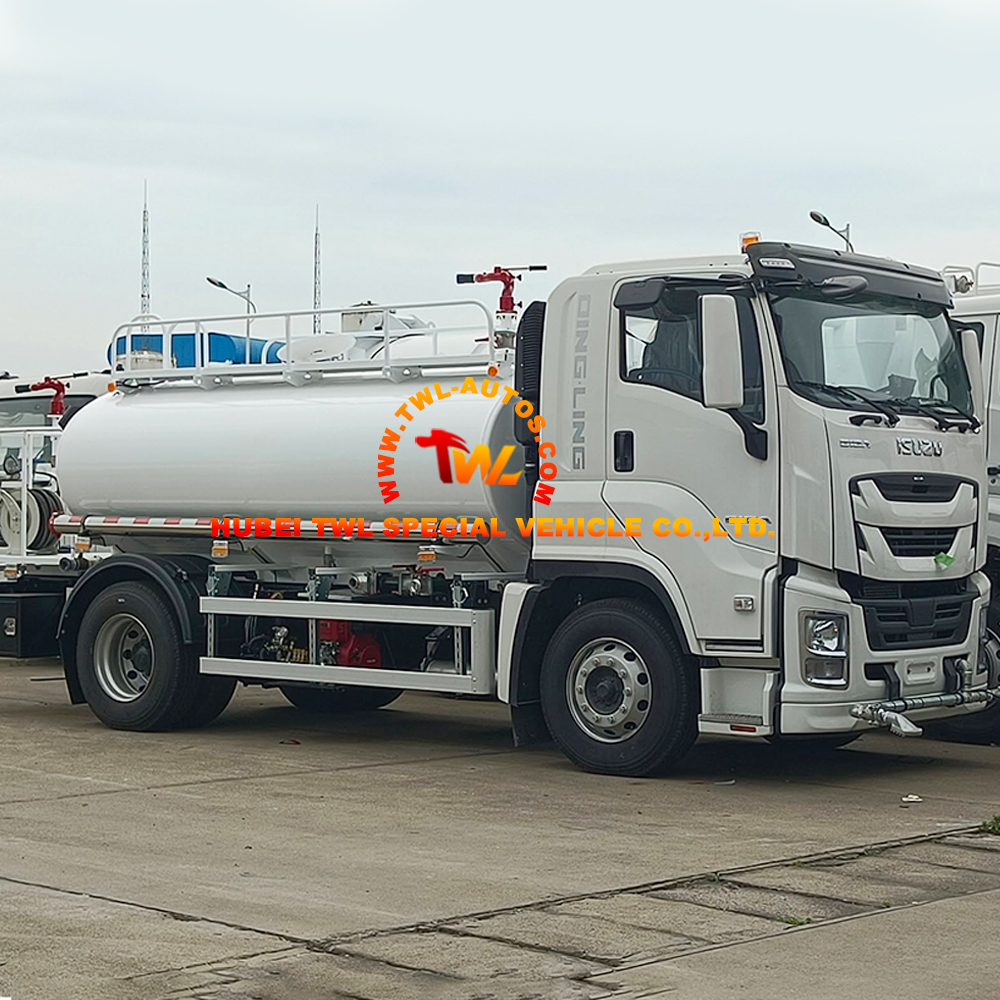

1. ISUZU FTR 4×2 Chassis – Reliable & Stable: ISUZU original chassis (QL118), 4×2 LHD. ISUZU FTR cabin with one sleeper, accommodates three people, with A/C. 4,500mm wheelbase. Overall dimensions 8,000×2,500×3,000 mm. 200L oil box. Max driving speed 95 km/h.
2. 205HP Euro 4/6 Engine: Model 4HK1-TC60, 5,193ml displacement. 4-stroke direct injection, 4-cylinder in-line, water cooling, turbo-charging, inter-cooling. ISUZU 6-speed manual transmission. Power steering, hydraulic steering with power assistance.

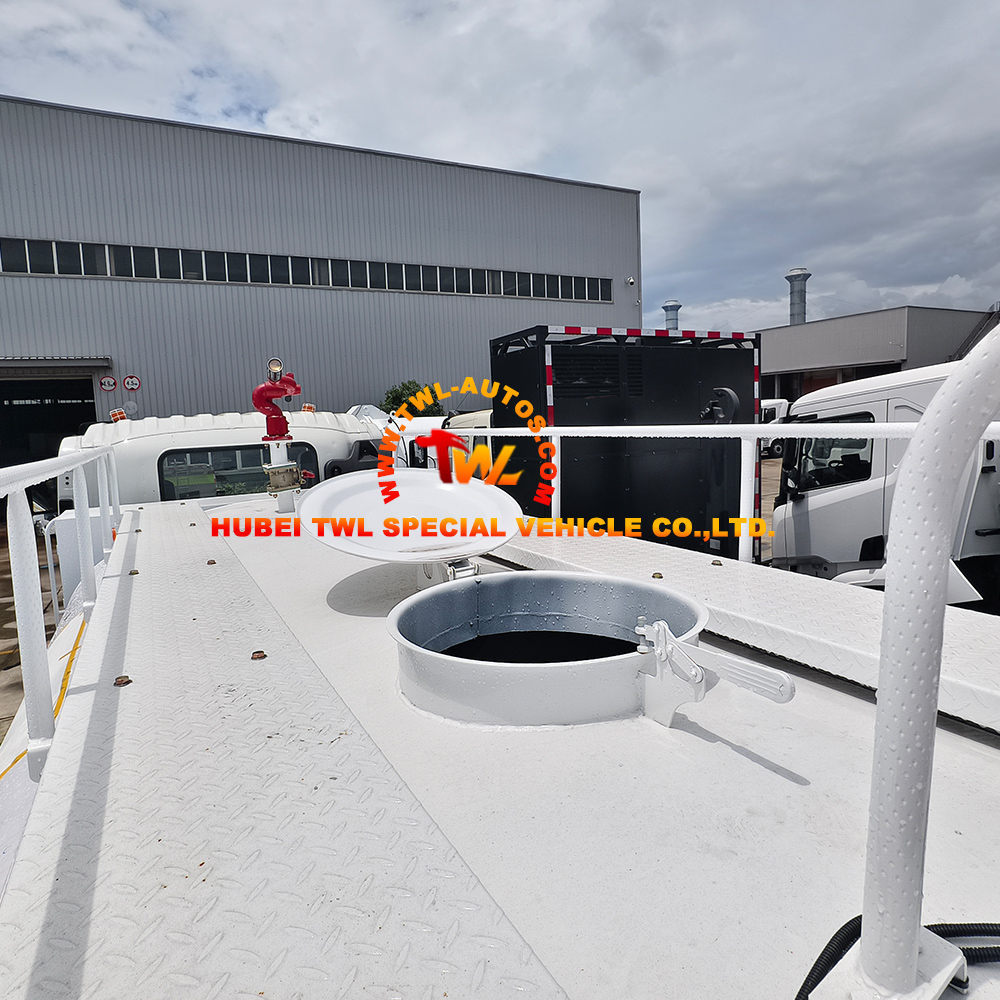

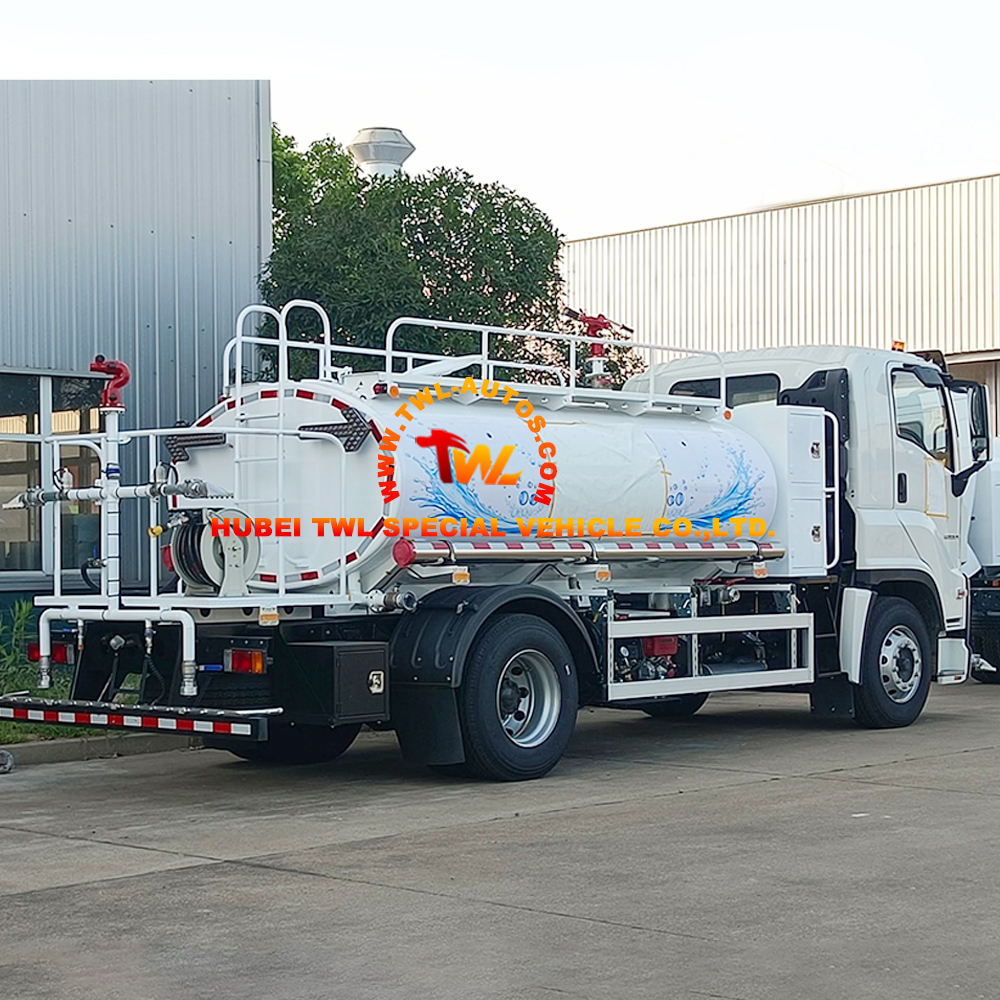

3. 10CBM Carbon Steel Sprinkler Tank: 10 cubic meter capacity. Carbon steel material. Tank top with quick-opening manhole for internal tank inspection and cleaning. Working platform on top with safety guardrails.

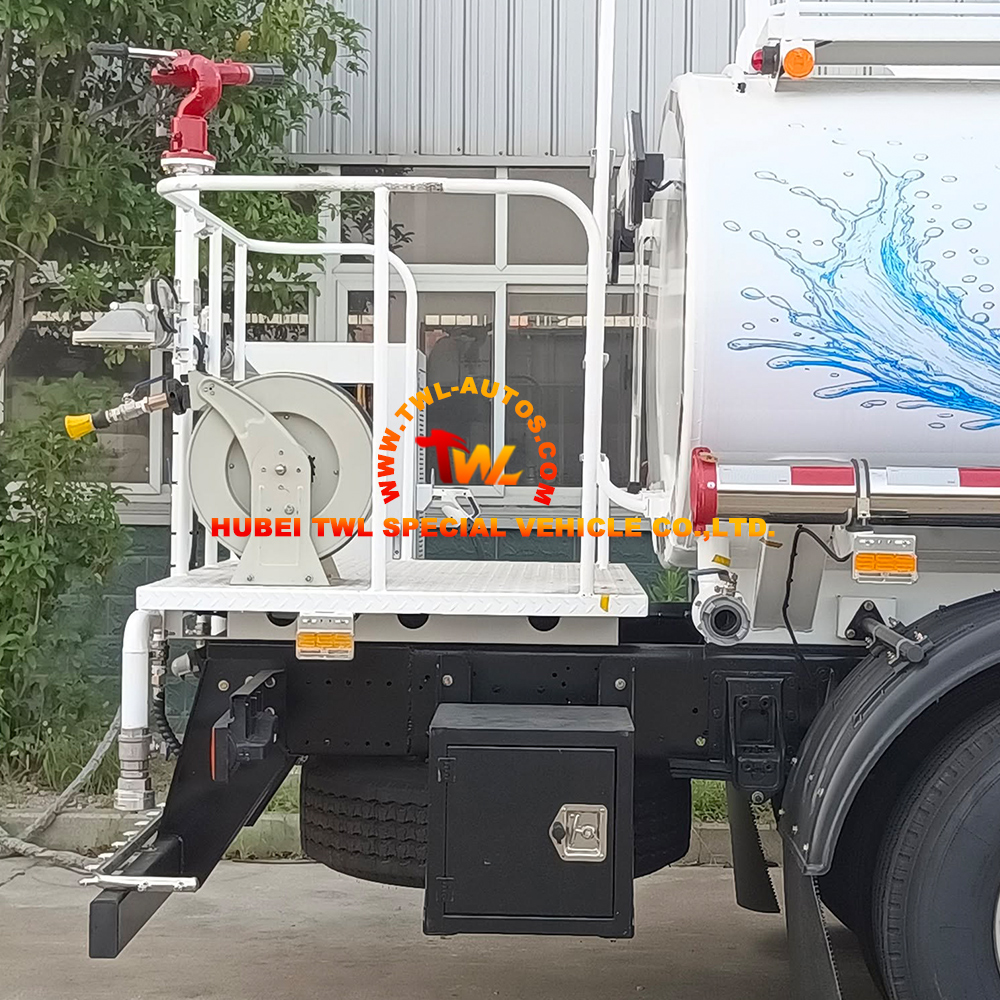

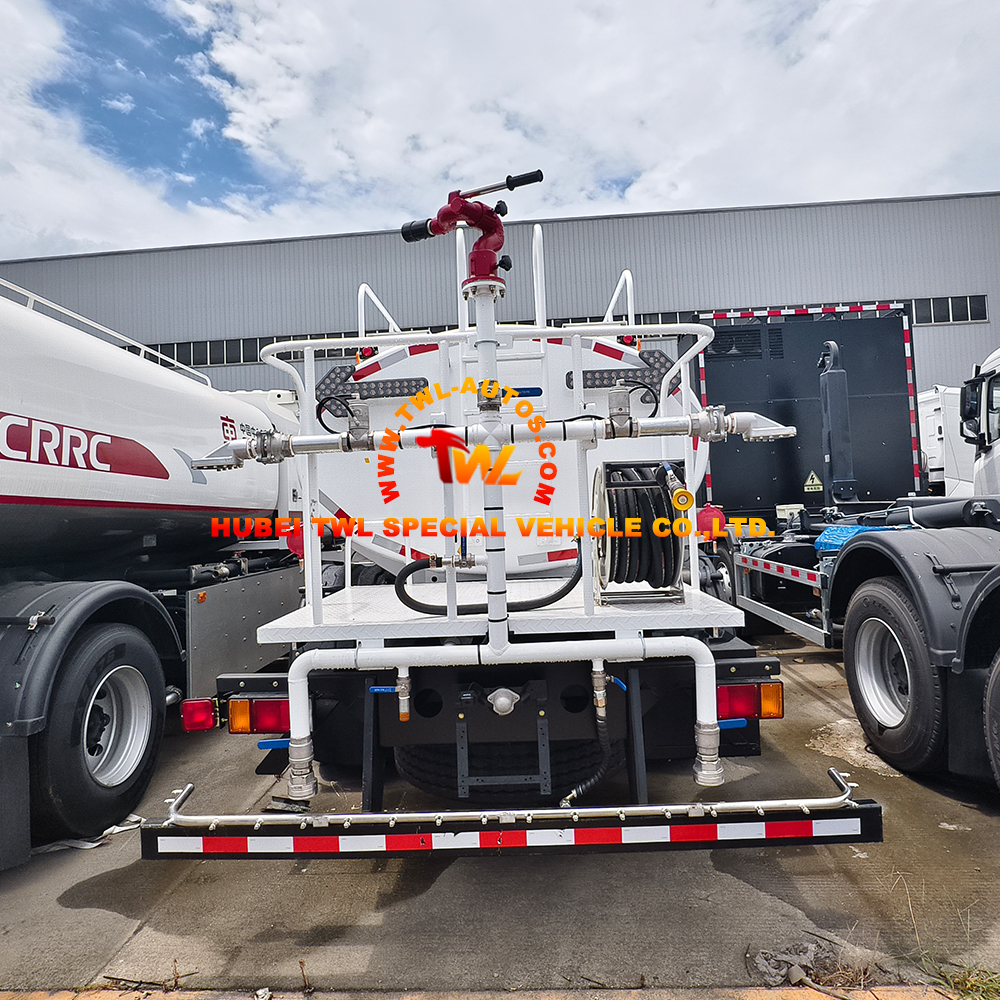

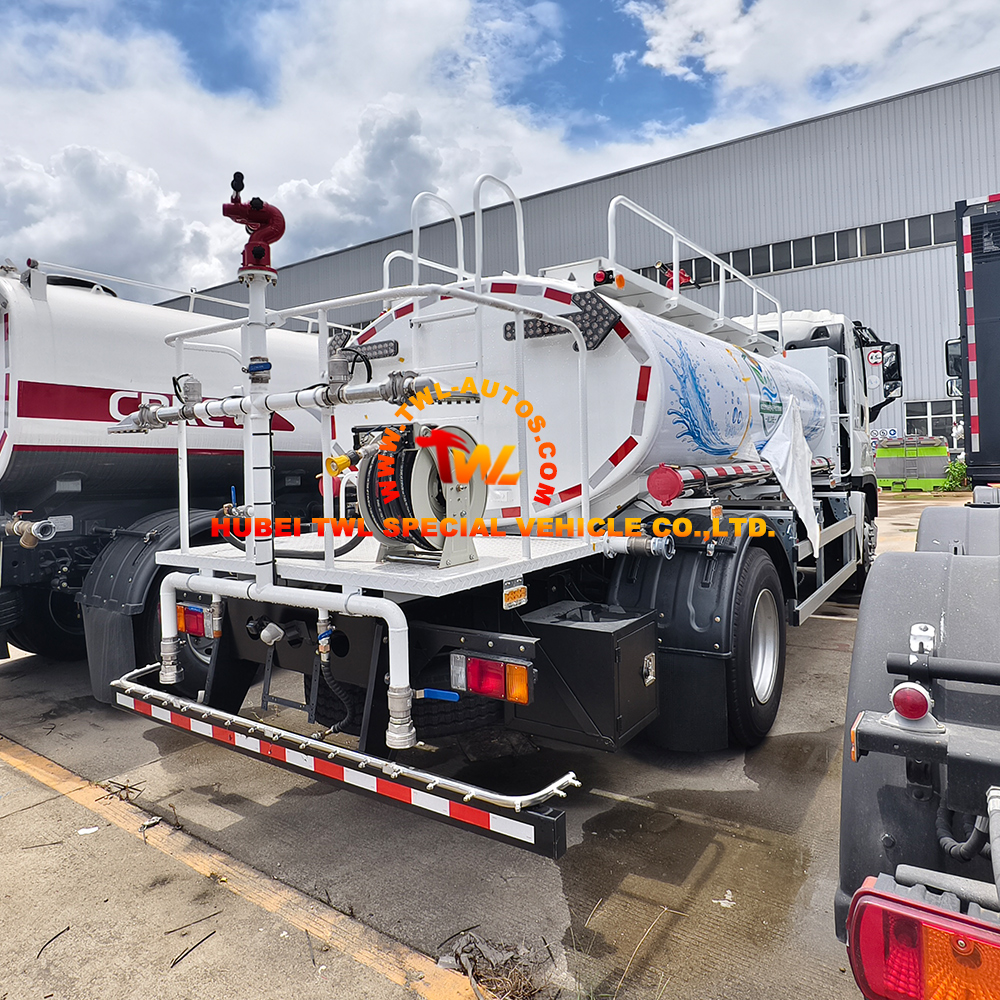

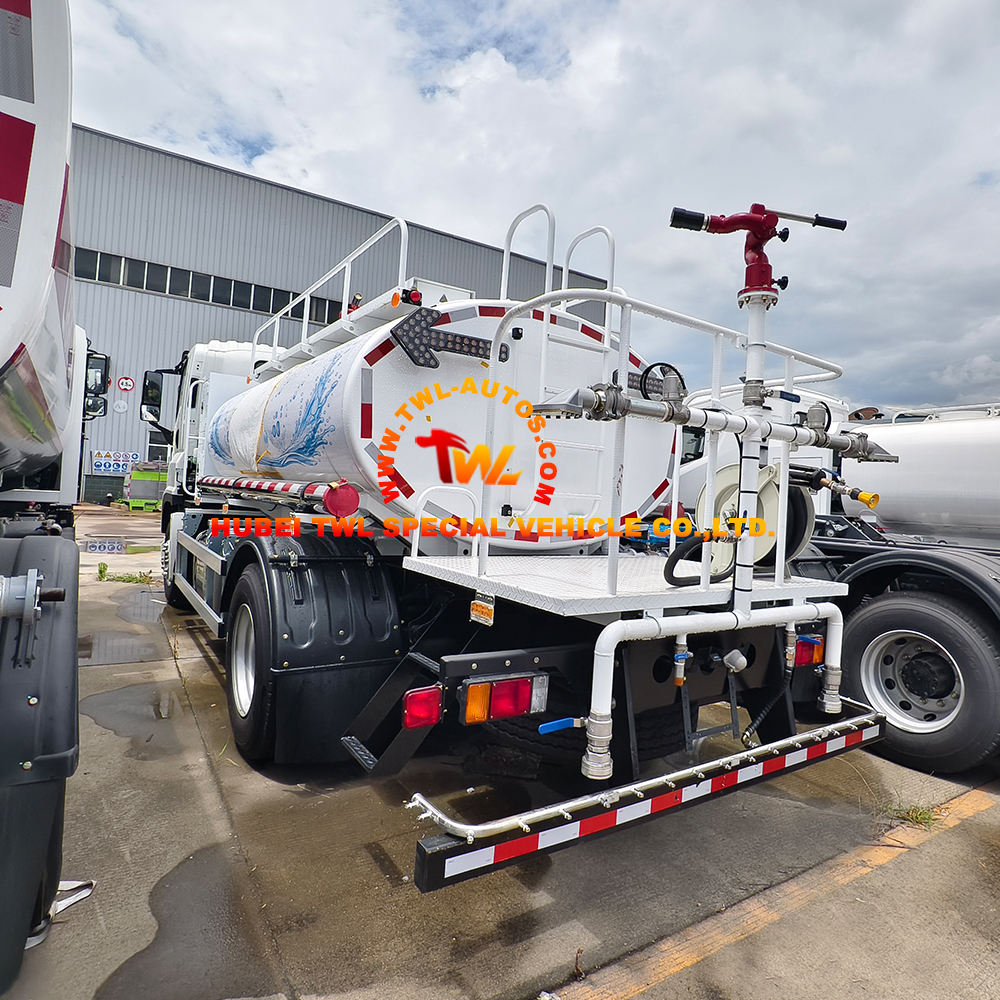

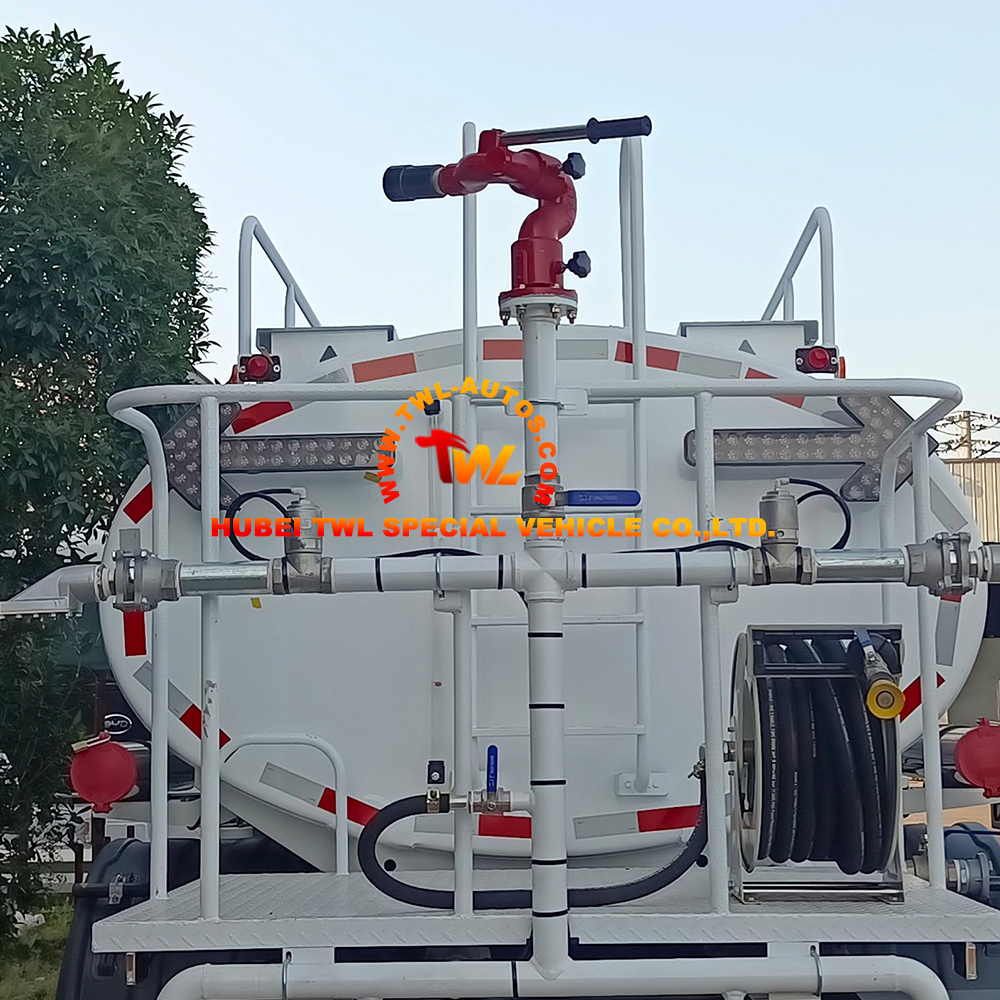

4. Roof-Mounted Fire Monitor: Installed on the tank top platform for long-range high-pressure firefighting. Can be used for high-point water spraying and initial mountain fire suppression.

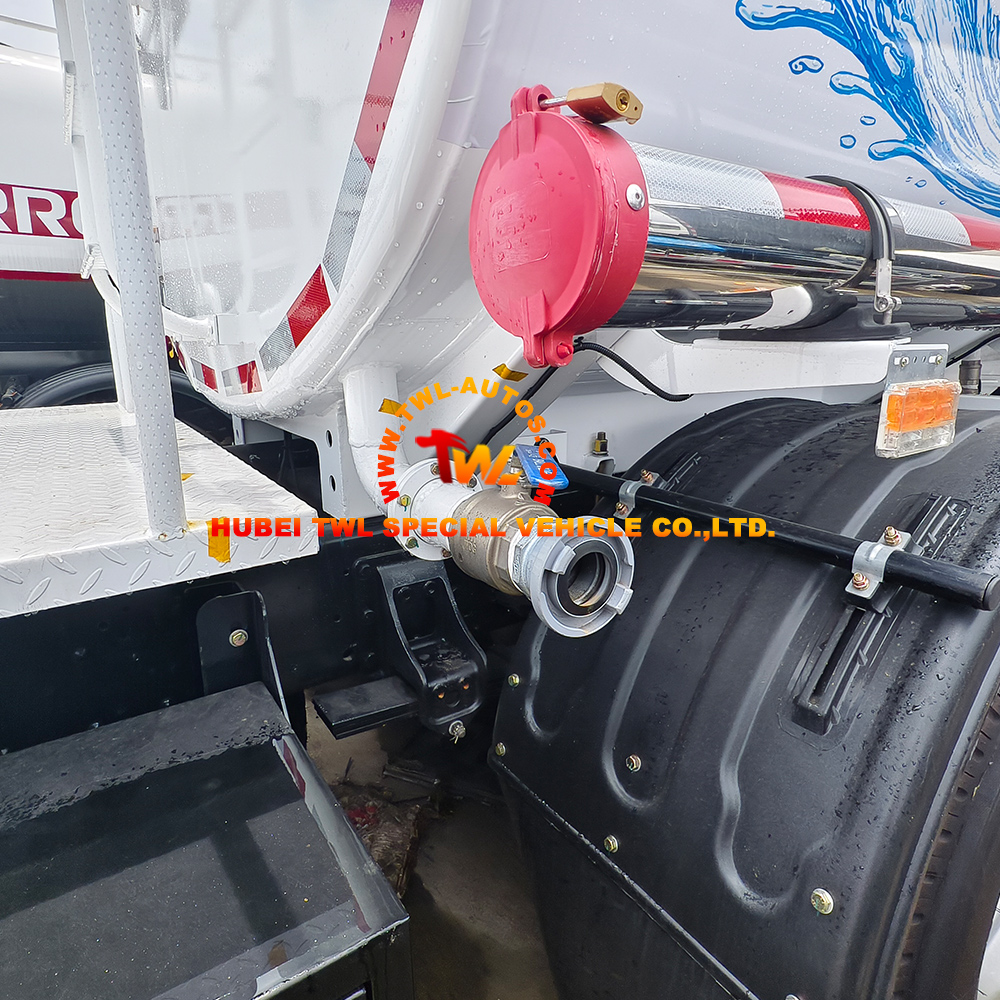

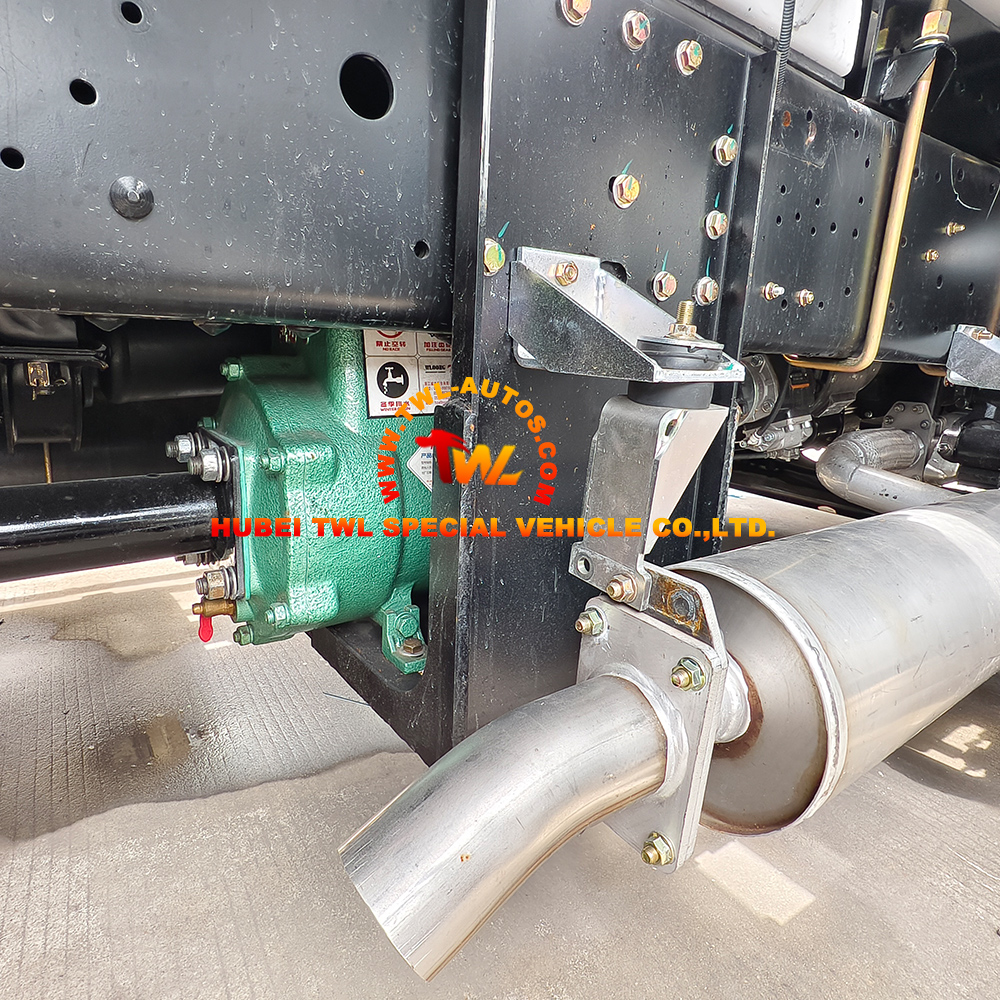

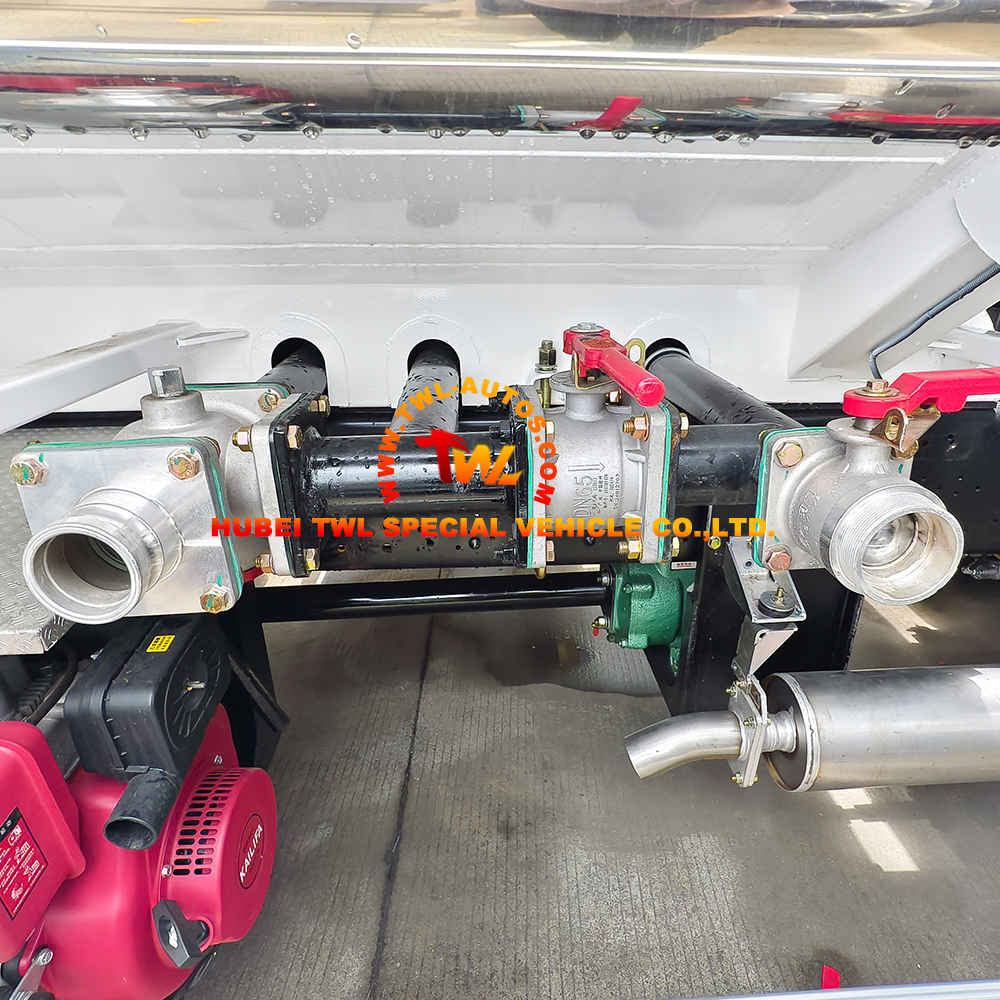

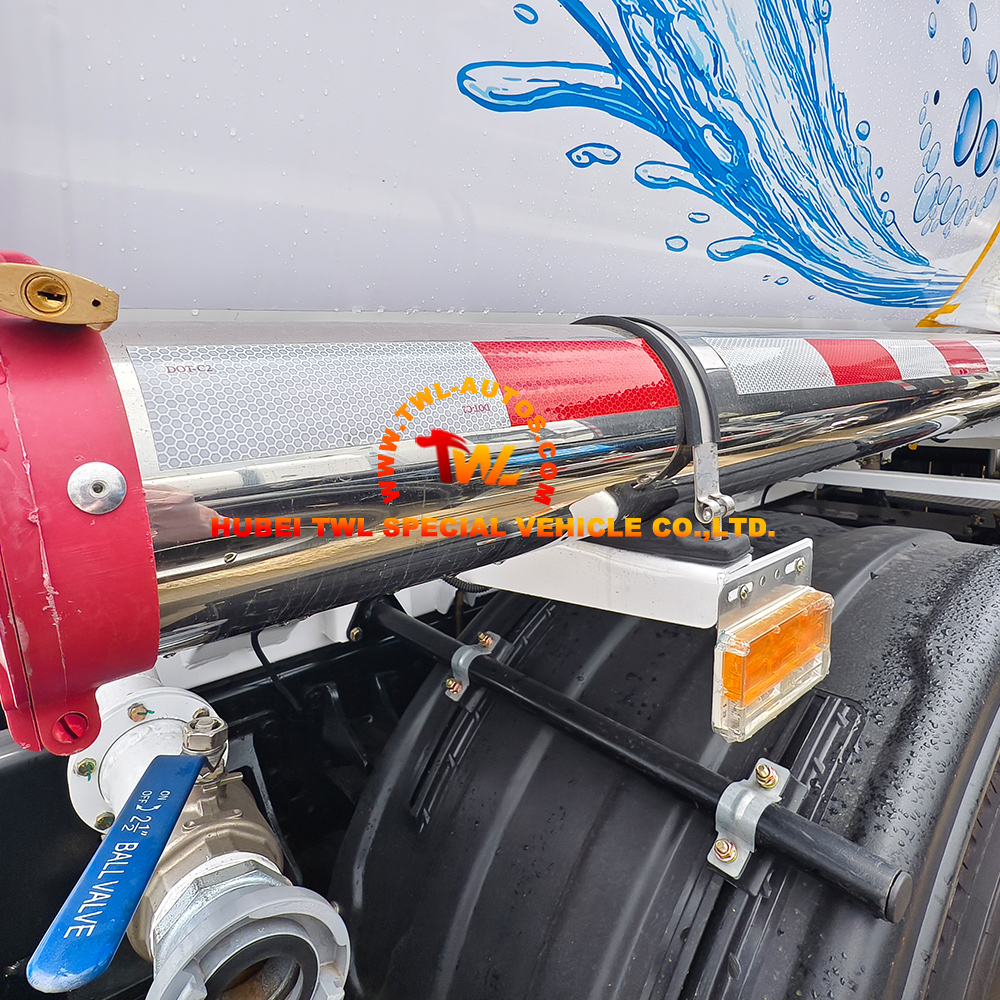

5. Main Water System – Chassis PTO-Driven Green Self-Priming Pump: Self-priming function draws water from ponds and rivers on-site without relying on municipal water sources. Side large-diameter quick coupling supports rapid filling and can deliver water outward to supply other fire trucks. Built-in drain valve to drain accumulated water in winter to prevent freezing.

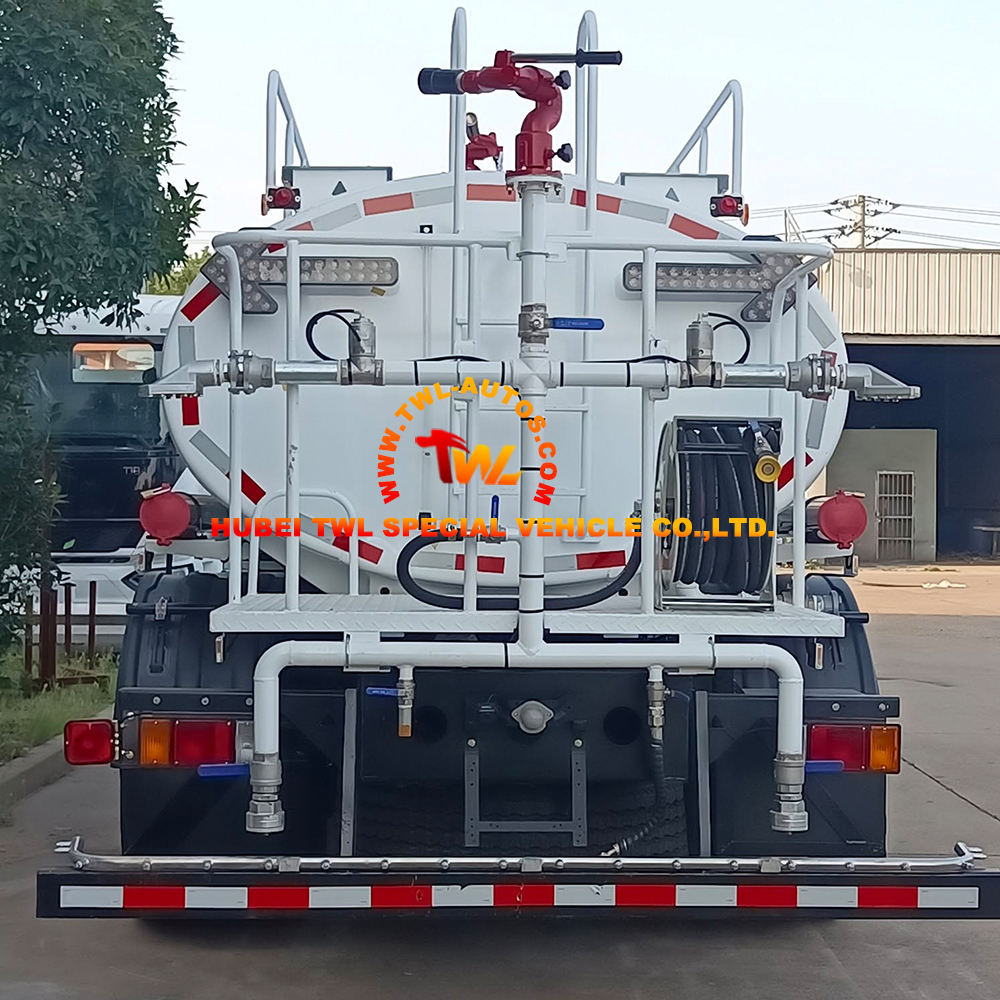

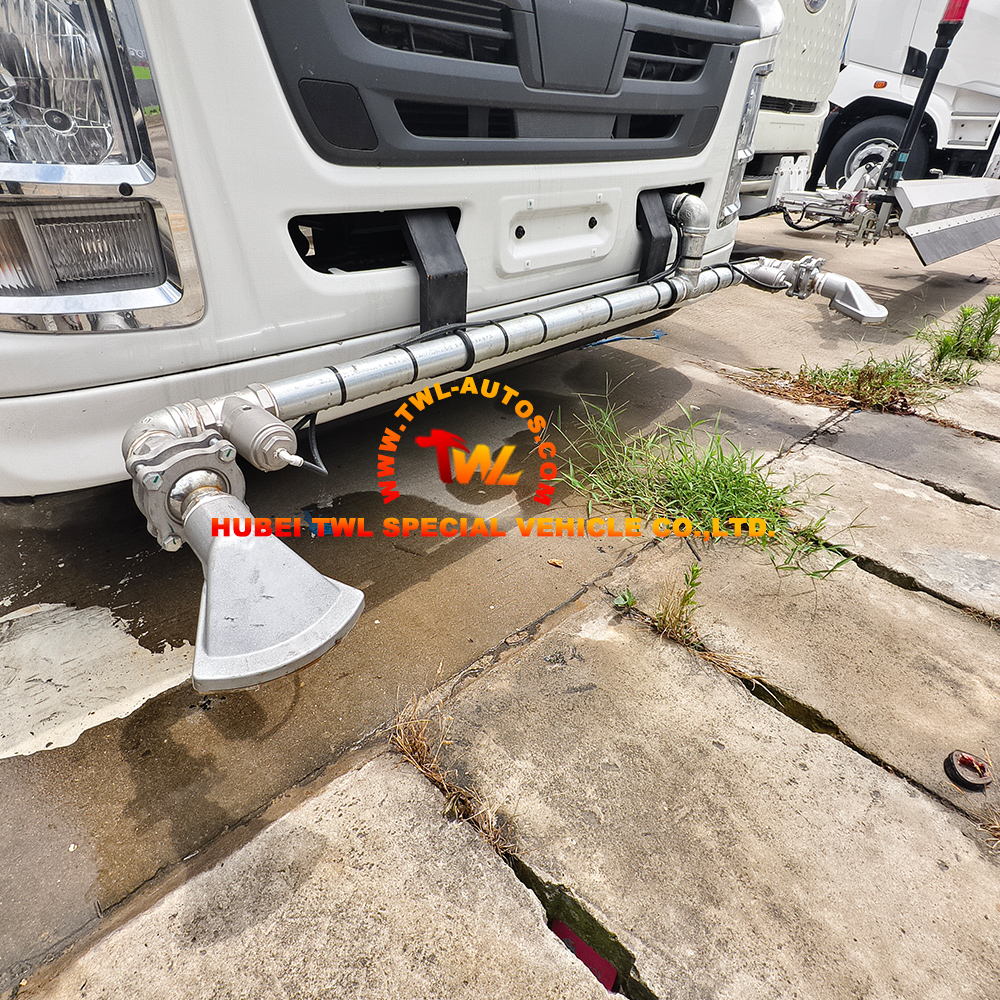

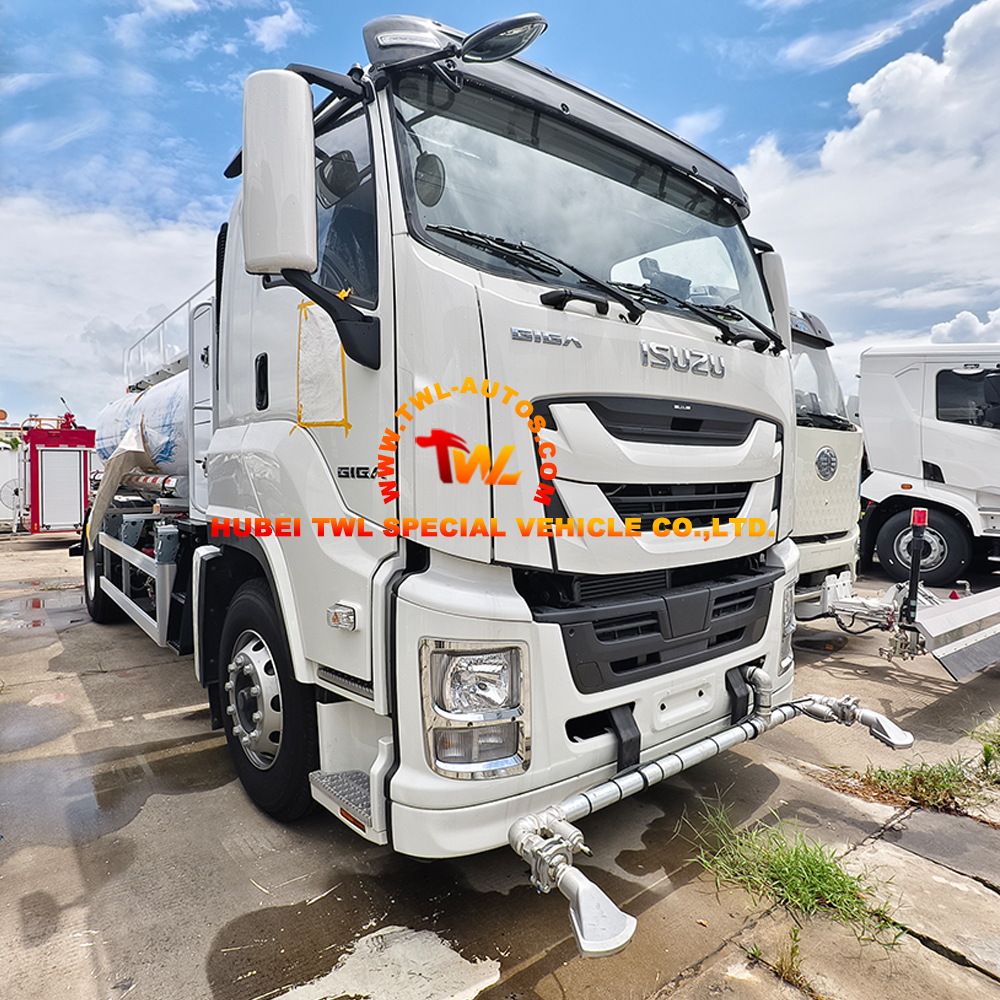

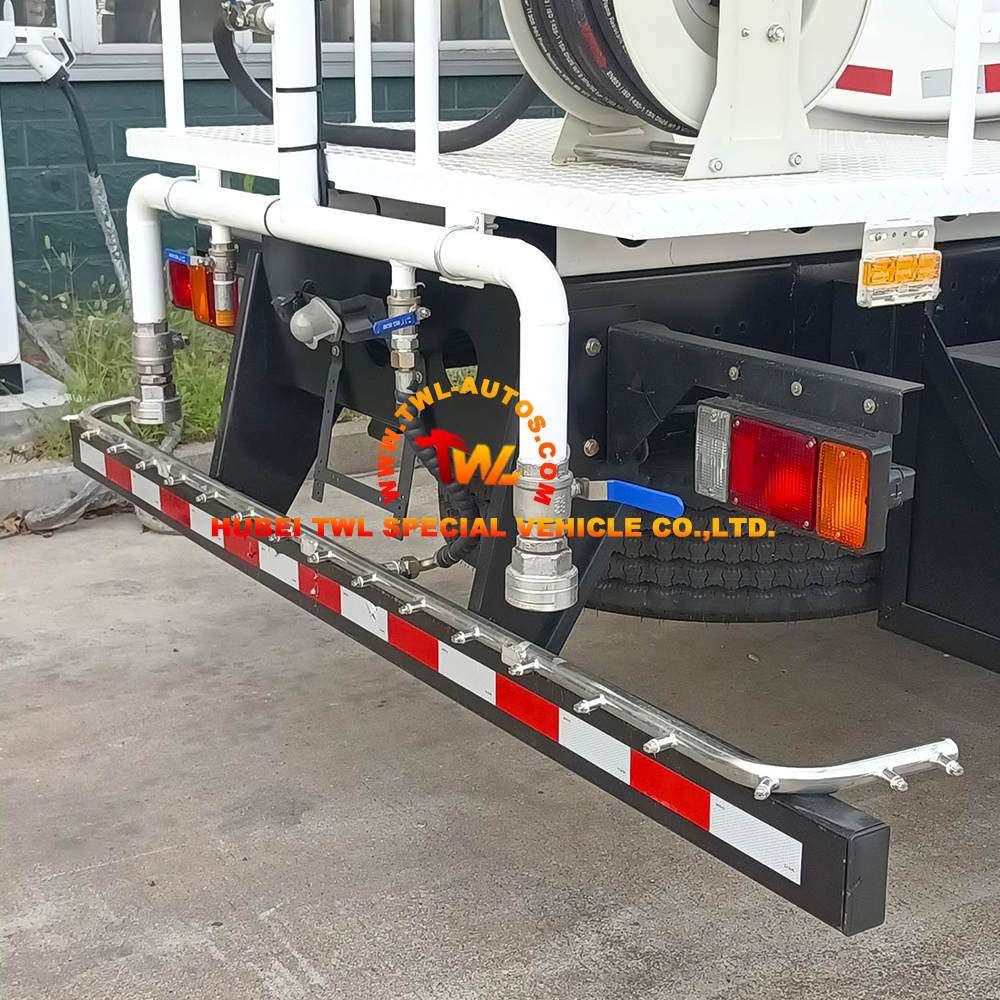

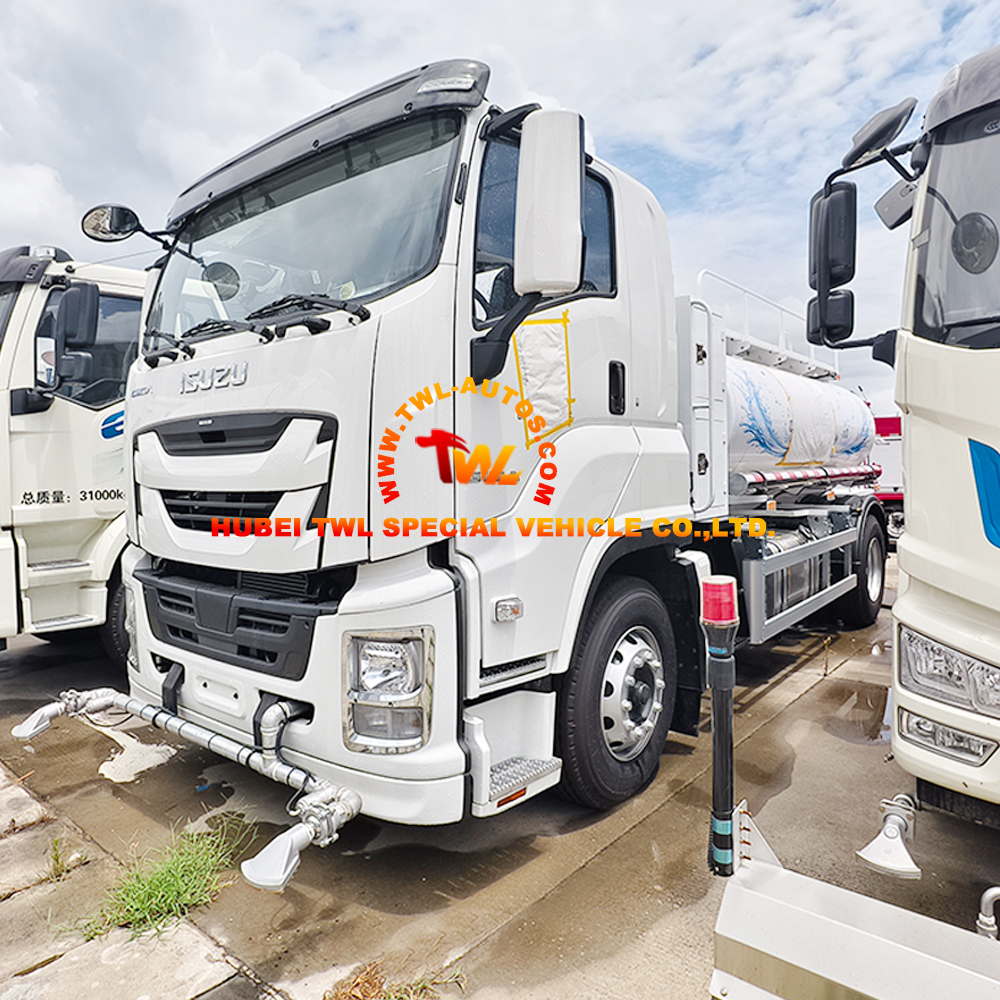

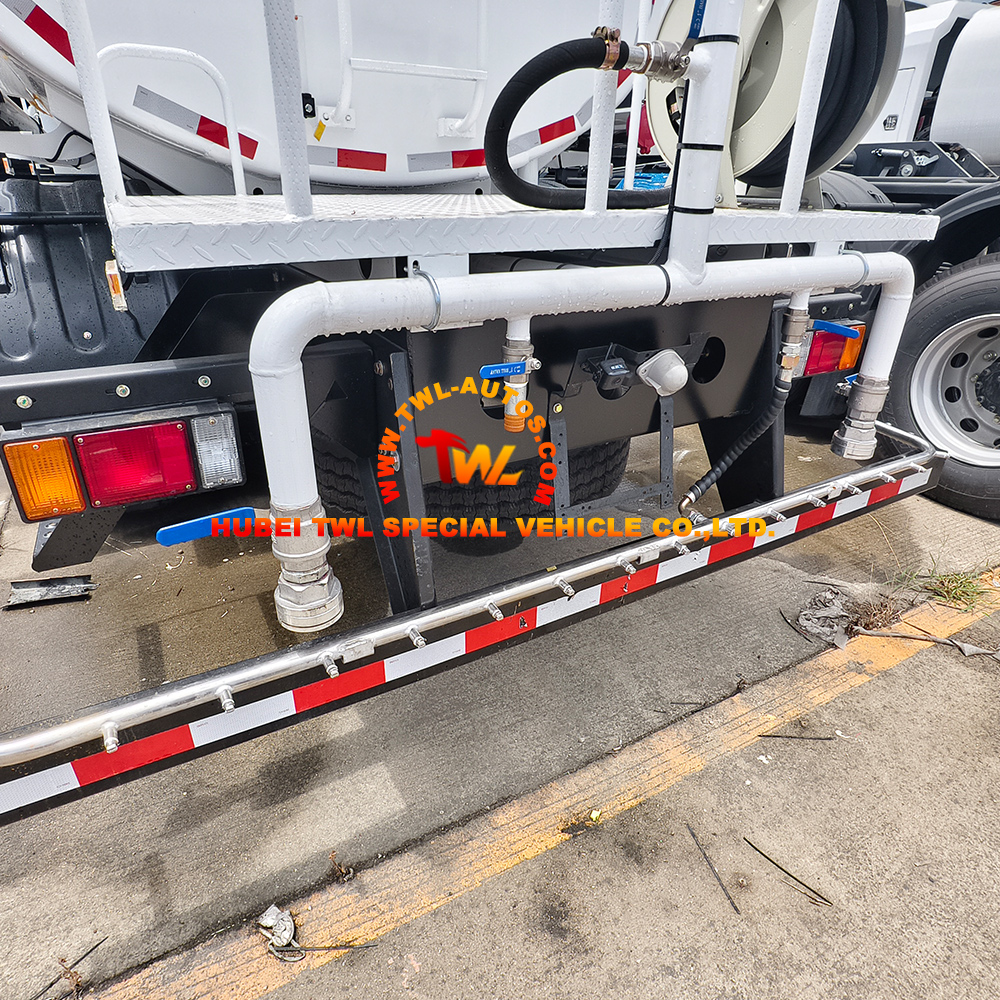

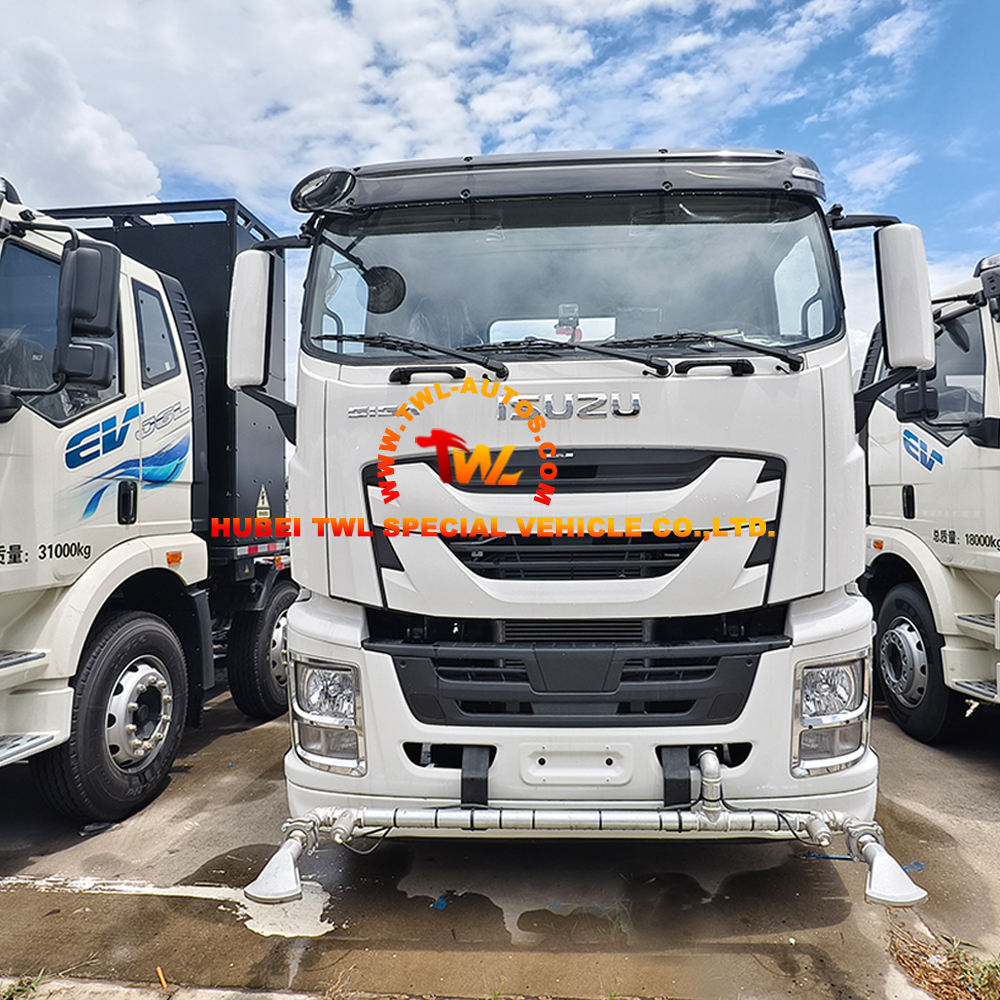

6. Routine Sprinkler Functions: Standard front flushing, rear spraying, and side spraying for road sprinkling, dust suppression, and greenery irrigation.

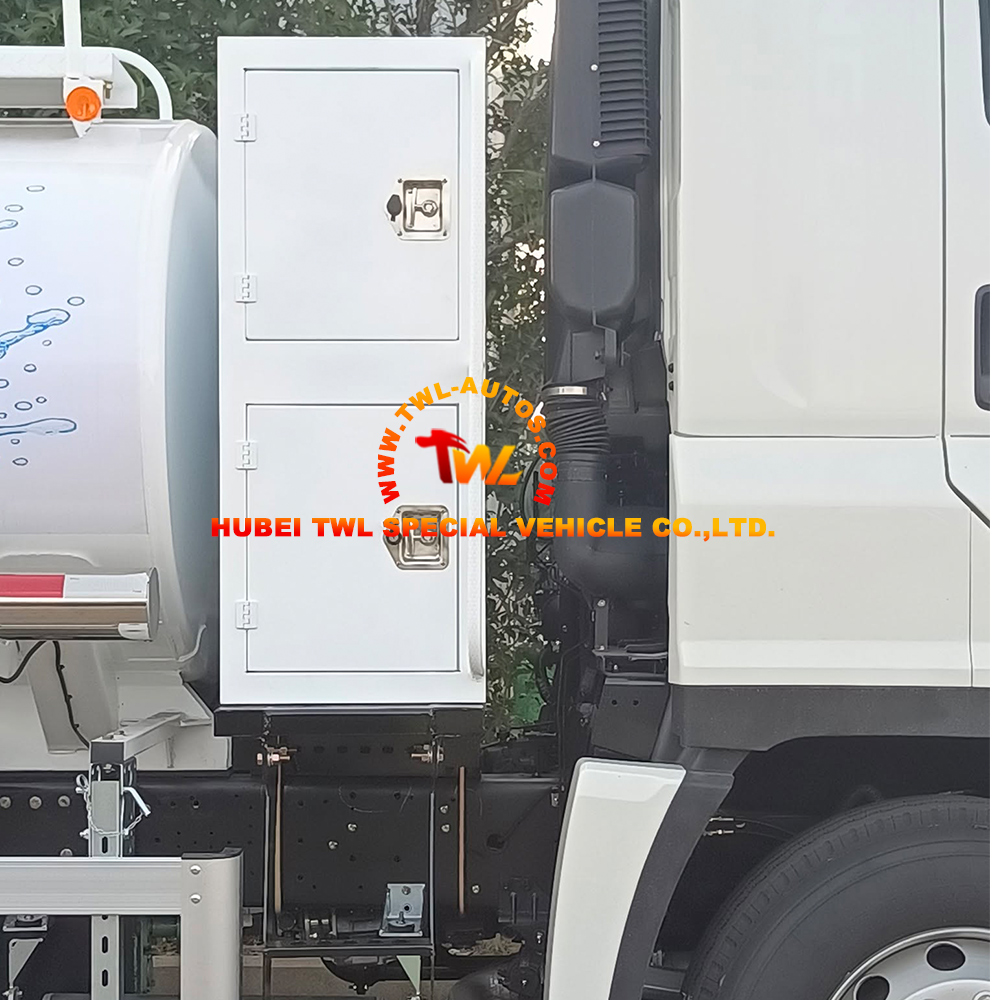

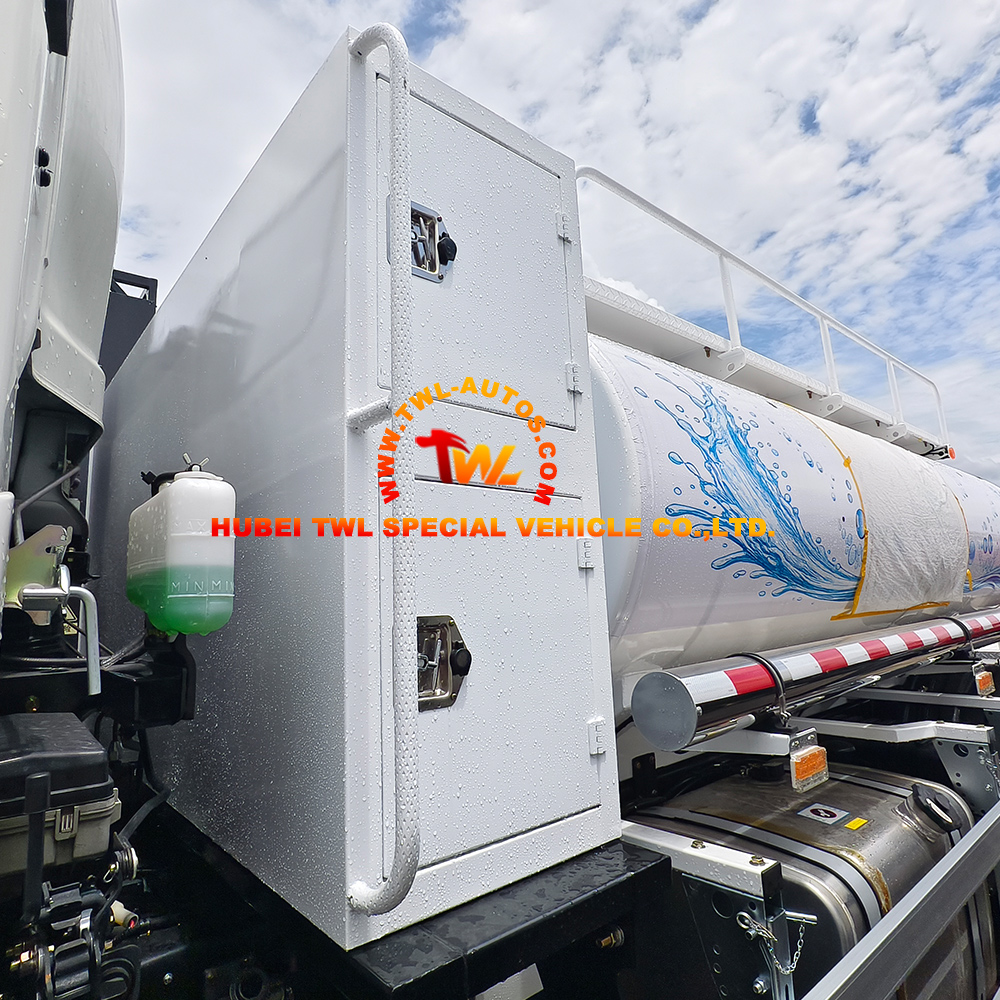

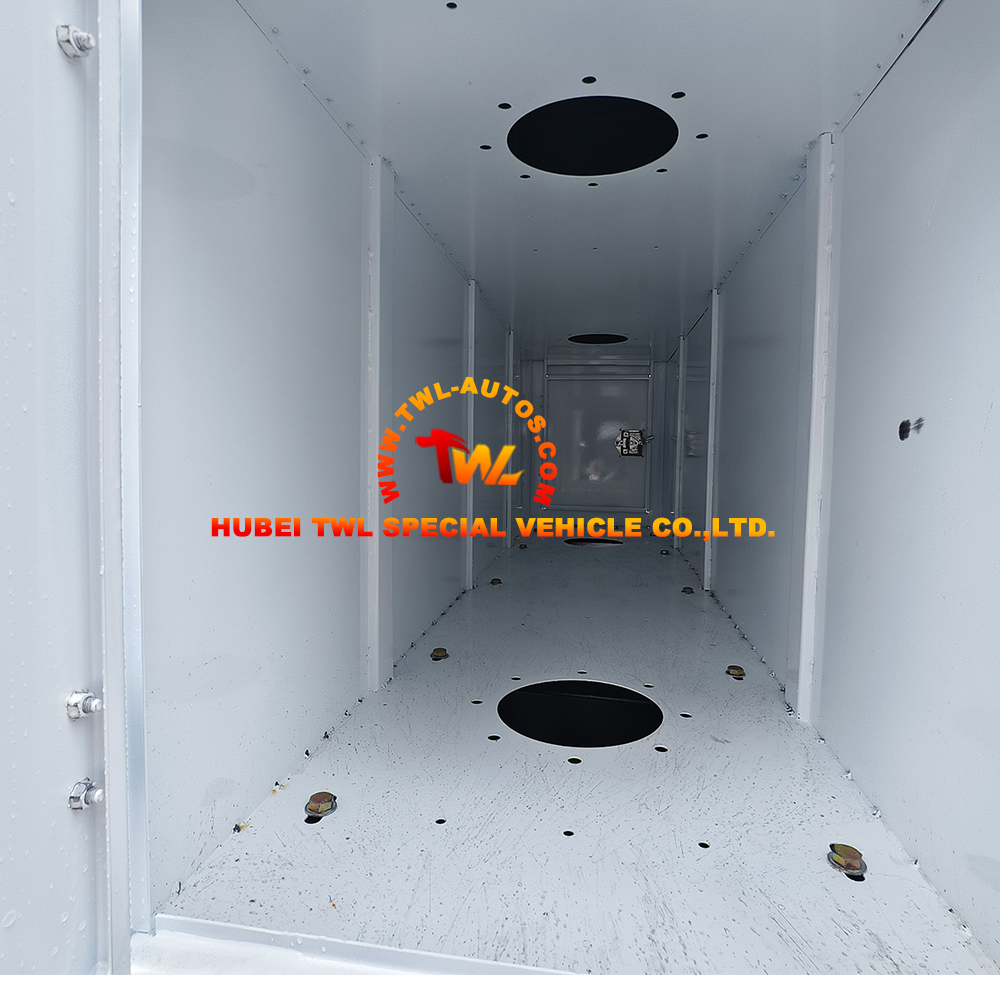

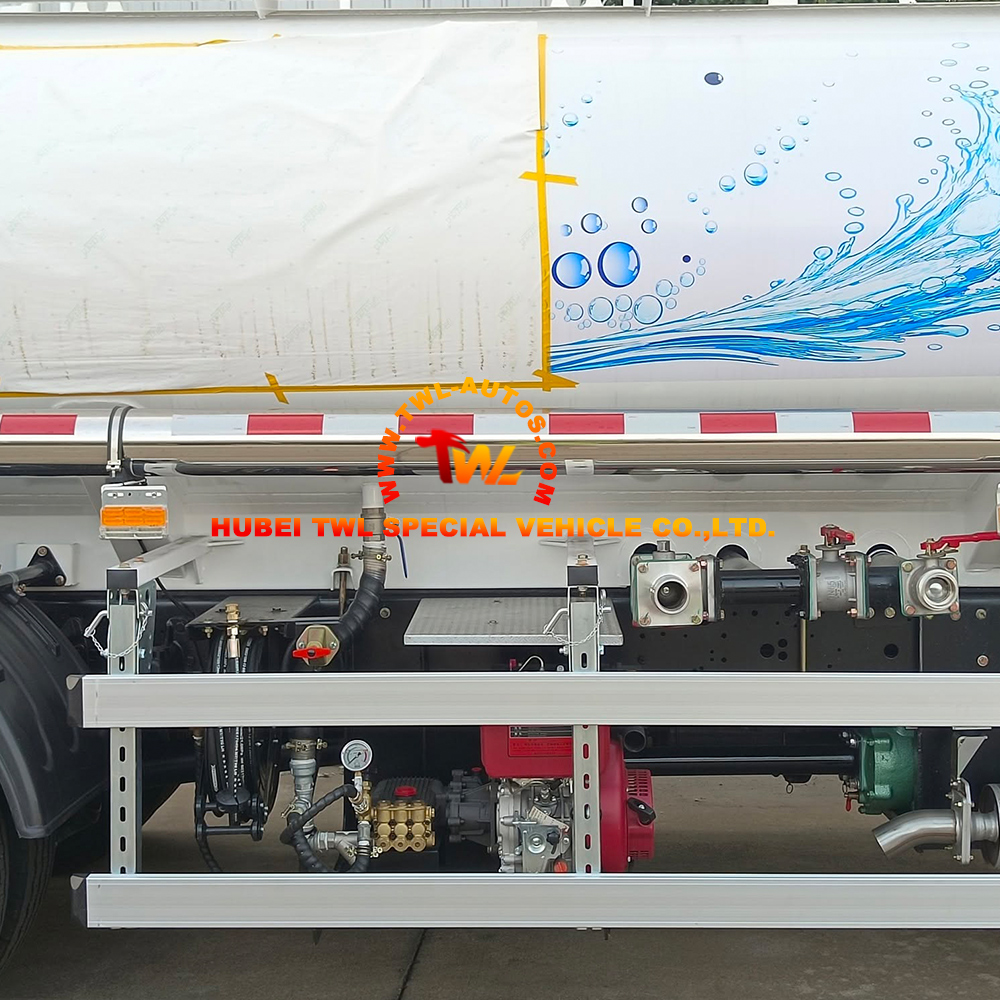

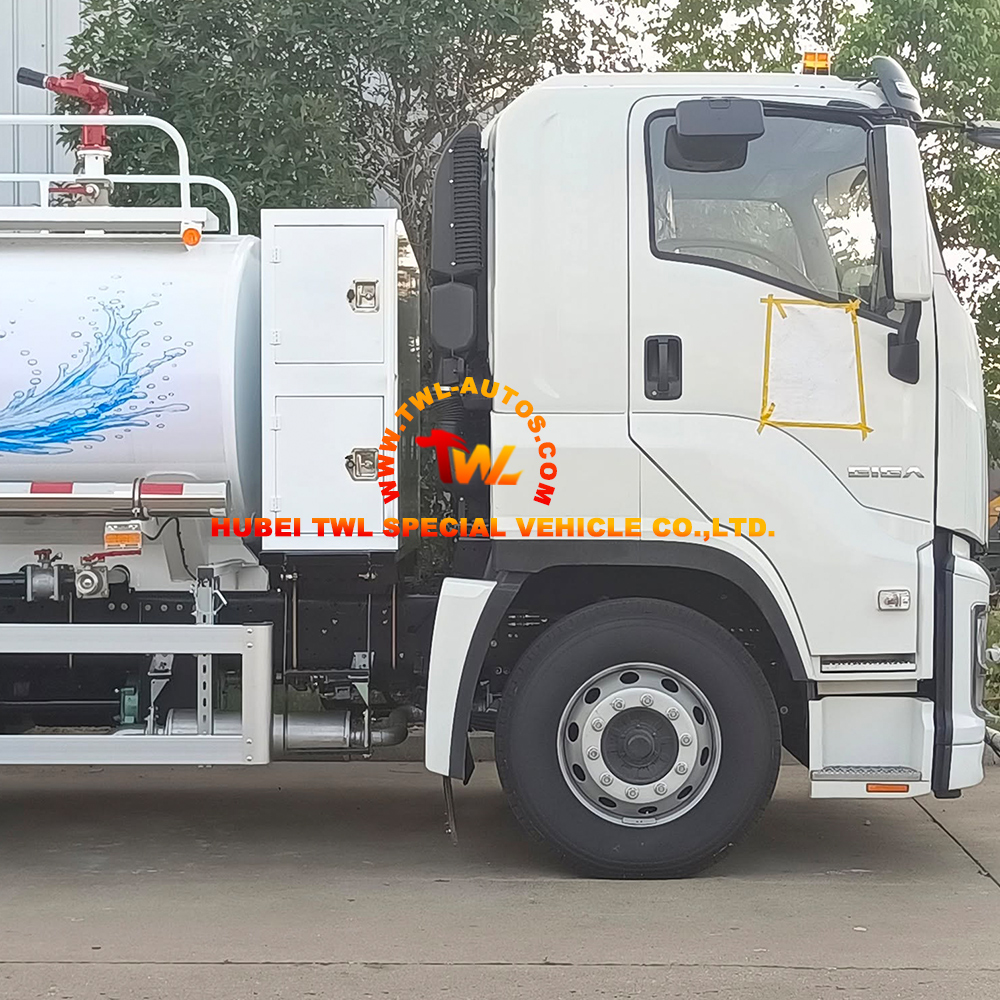

7. Side Enclosed Lockable Toolbox (Equipment Compartment): Stores fire hoses and repair accessories. Cabinet floor has reserved openings for installing an independent high-pressure washing unit. Accessories are stored under lock, protected from loss and rain.

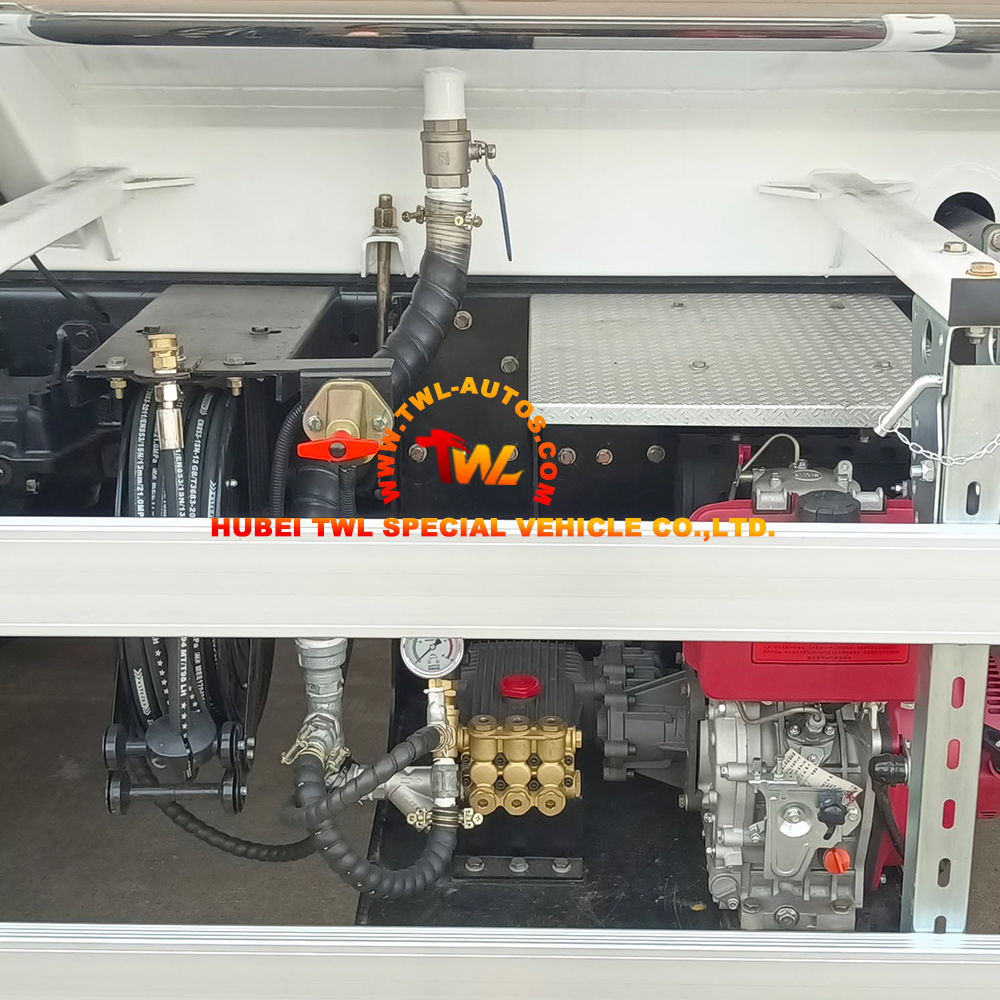

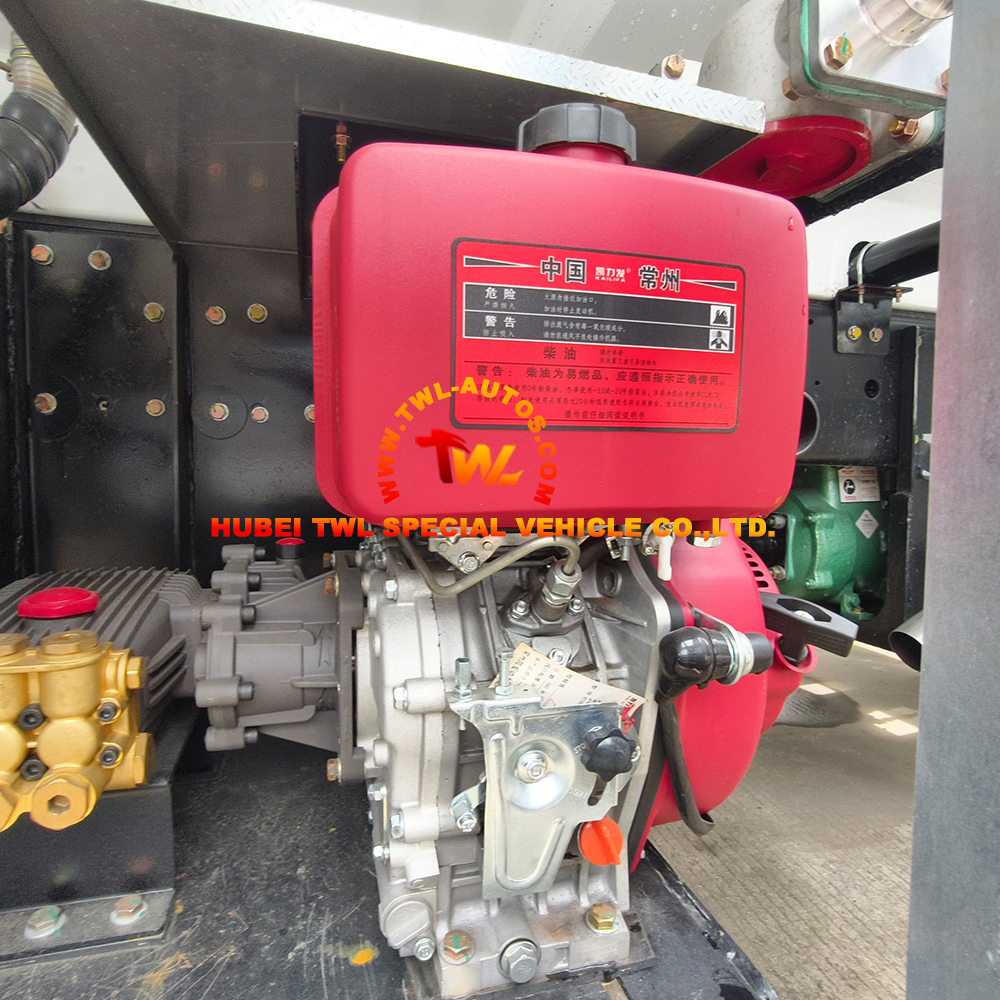

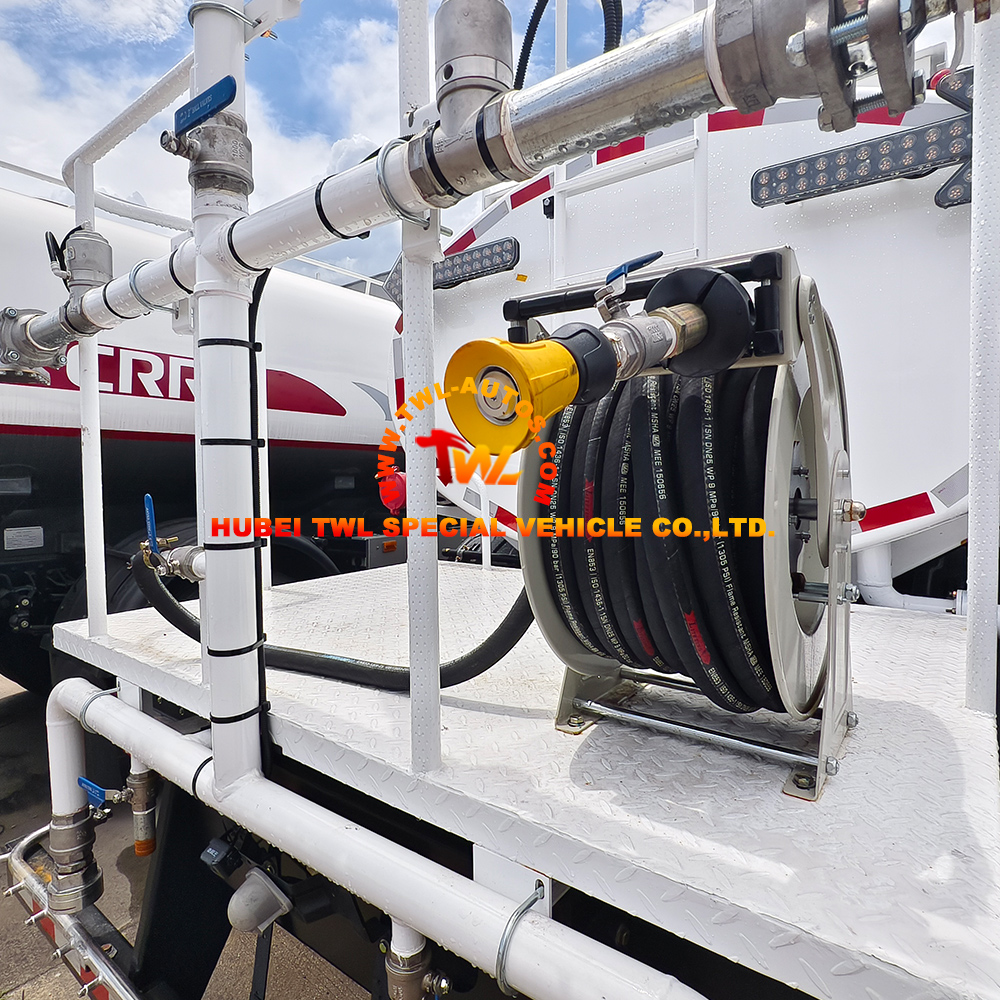

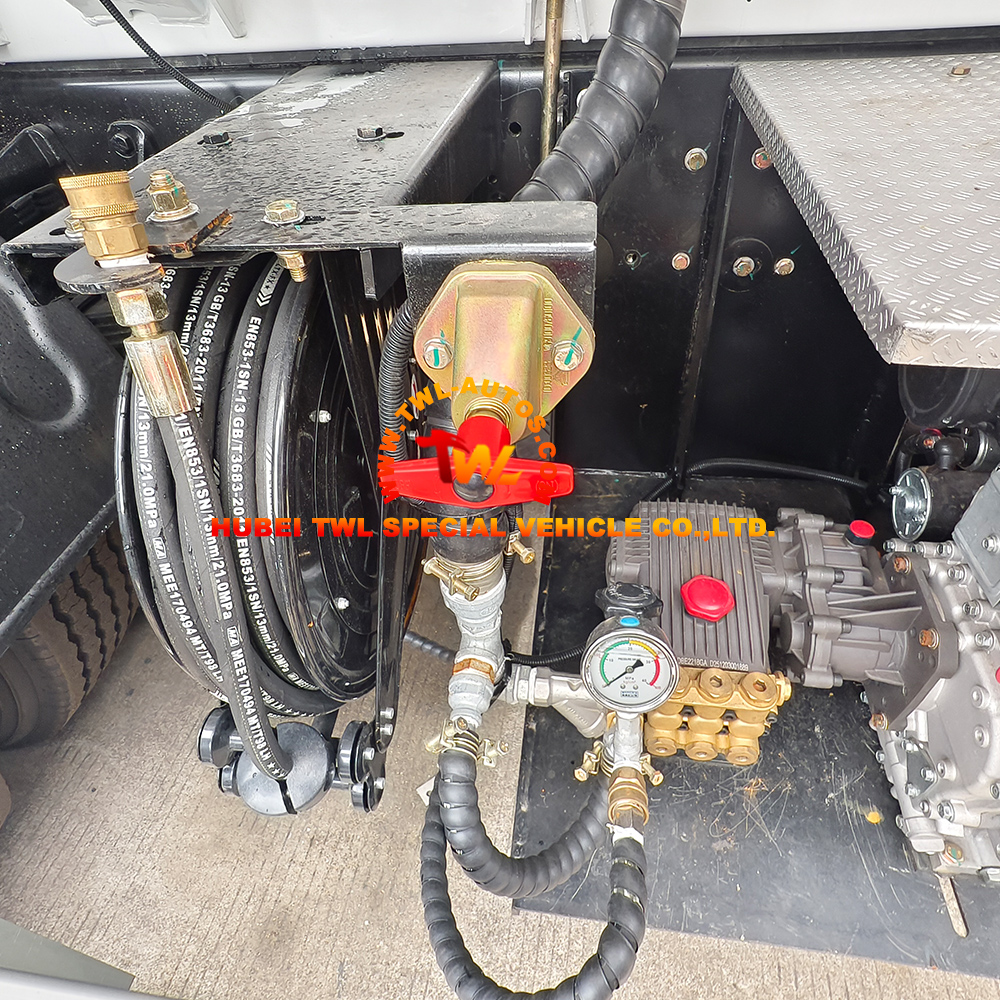

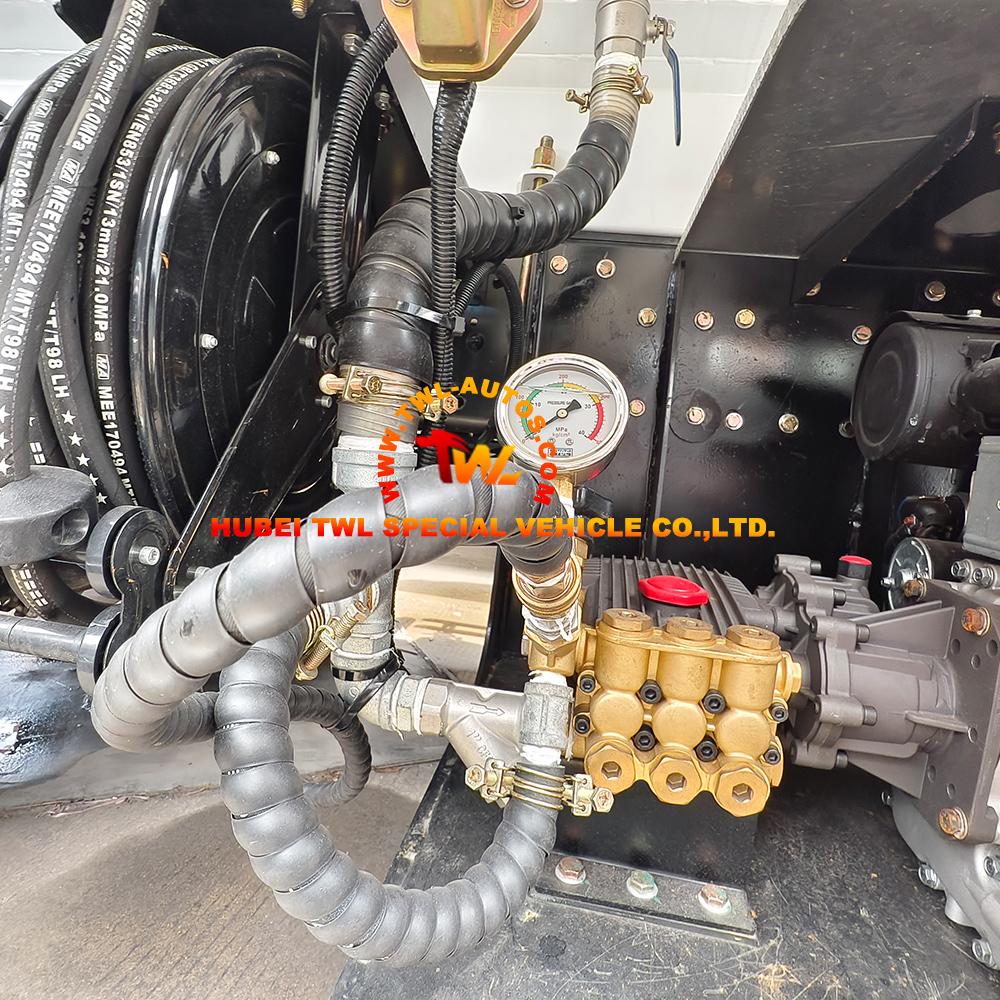

8. Key Optional – Independent Single-Cylinder Diesel High-Pressure Washing Unit: Does not rely on the chassis engine – still works independently when the vehicle is shut off. Equipped with a brass three-cylinder high-pressure plunger pump, pressure gauge, and self-retracting high-pressure hose reel. Low-flow, ultra-high-pressure design for powerful washing of stubborn stains.
9. Dual-Power Water System: Chassis PTO main pump + independent diesel engine auxiliary high-pressure washing pump, balancing high-flow sprinkling/firefighting + high-pressure washing/cleaning.
10. Tires: 295/80R22.5 tire, 6 + 1 spare tire.
Application:
· Municipal Sanitation: Urban road sprinkling and dust removal, high-pressure washing of street guardrails and plaza floors, road greenery watering.
· Mountain Township Emergency Firefighting: Early-stage mountain fire suppression in remote villages and forest areas, on-site water drawing from wild rivers and lakes, water transfer and supply for other fire trucks. Adapted to Balkan mountain road conditions.
· Construction Sites and Factory Areas: Construction site dust suppression, washing of engineering vehicles and factory floor stains.
· Township Emergency Rescue: Emergency water transport and supply during droughts.
Product Specification
| Technical Parameters | ||
| Chassis | ||
| Chassis model | QL118 | |
| Drive Model | 4×2/LHD | |
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 8000X2500X3000mm |
| Wheelbase (mm) | 4500 | |
| Weight in KGS | Overall Weight (kg) | 7,000 kg |
| Front/Rear axle loading(kg) | 13,000 kg | |
| Max. driving speed(km/h) | 95 | |
| Engine | Model | 4HK1-TC60 |
| Type | 4-stroke direct injection , | |
| 4-cylinder in-line with water cooling, | ||
| turbo-charging andinter-cooling | ||
| Horse Power(HP/KW) | 205HP | |
| Emission standard | Euro 4/6 | |
| Displacement(ml) | 5193 | |
| Cabin | · ISUZU FTR cabin, with one sleeper | |
| · Left Hand Drive | ||
| · Accommodate three people | ||
| · With Air conditioner | ||
| Gearbox | · ISUZU | |
| · 6 forwards & 1 reverse | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Tire | 295/80R22.5 tire , 6 + 1(spare tire) | |
| Oil Box | 200L | |
| Color | White | |
| Upper & Equipment | ||
| Water Tank Capacity | 10CBM | |
| Material | Carbon steel | |
| Functions | Front flush, side spray, rear spray, water gun | |
| Painting | Color as request and optional | |
