ISUZU 10cbm Clean Water Tank Sweeper Vacuum Truck
With the aim of providing efficient solutions for industrial and urban cleaning, WEIYU has developed a range of street sweeper trucks that stand out for their maneuverability, compact design, and high cleaning efficiency. These sweepers integrate road cleaning, garbage collection, and transportation into one vehicle, greatly saving time and labor while reducing dust and CO₂ emissions. They are widely used in urban streets, municipal squares, airports, residential areas, and parks, ensuring clean and tidy roads, purifying the air, and extending road service life.
The ISUZU 10cbm road sweeper truck is a representative model in this series. It is equipped with a 7.5cbm stainless steel garbage tank and a 2.5cbm carbon steel water tank, powered by a 120HP ISUZU diesel engine for high fuel efficiency, along with an 87HP JMC auxiliary engine. The vehicle measures 6700×2200×2710mm and adopts a sweeping system with four centrally installed brushes, delivering excellent cleaning performance. Multiple chassis options are available, including ISUZU, FOTON, SHACMAN, FAW, DONGFENG, SINOTRUK HOWO, BEIBEN, JAC, and JMC, offering customers flexible choices to meet diverse operational needs.
ISUZU 10cbm Clean Water Tank Sweeper Vacuum Truck Advantage
High Cleaning Efficiency – Four centrally mounted brushes and combined sweeping, water spraying, and suction functions ensure thorough cleaning of roads, streets, and public areas.
Large Capacity – 7.5cbm stainless steel garbage tank and 2.5cbm water tank reduce unloading frequency, improving operational efficiency.
Reliable Power – 120HP ISUZU diesel engine with high fuel efficiency, plus an 87HP auxiliary engine for consistent performance during heavy-duty cleaning.
Durable Construction – Garbage tank made of 3mm stainless steel and water tank of 3mm carbon steel for long-lasting durability and corrosion resistance.
Flexible Chassis Options – Supports multiple chassis brands including ISUZU, FOTON, SHACMAN, FAW, DONGFENG, SINOTRUK HOWO, BEIBEN, JAC, and JMC to meet diverse operational needs.
Compact and Maneuverable – Optimized dimensions (6700×2200×2710mm) allow easy operation in urban streets, residential areas, and confined spaces.
Environmentally Friendly – Efficient dust control and water spraying system reduce airborne dust and minimize environmental impact.
Time and Labor Saving – Integrates cleaning, garbage collection, and transportation, reducing manual labor and improving work efficiency.
Product Specification
| Chassis Specification | ||
| Chassis Brand | I SUZU KV100 | |
| Cabin | Left Hand Driving, with A/C | |
| Engine | Model | 4KH1CN6LB |
| Power | 85 kw/120 HP | |
| Emission standard | EURO 3 | |
| Displacement | 2999L | |
| Fuel type | Diesel | |
| Gearbox | Manual type, 5 Forwards & 1 Reverse | |
| Overall dimension | 7100*2300*3000mm | |
| Front/ Rear Axle Load | 3T/6T | |
| Wheel base | 3815mm | |
| Brake System | Air Brake | |
| Steering Gear | Power Assistant | |
| Tire | 7.00R16, 6 Pieces with 1 Spare Tire | |
| Maximum speed | 90(km/h) | |
| Superstructure | ||
| Tank body | Capacity | 7m3 sewage tank, 2.5m3 water tank, customizable |
| Tank material | Stainless steel | |
| Auxiliary Engine | Chinese famous brand | Brand: JMC |
| Power: 87HP | ||
| Fuel type: diesel | ||
| Rated suction speed: 1070m3/h | ||

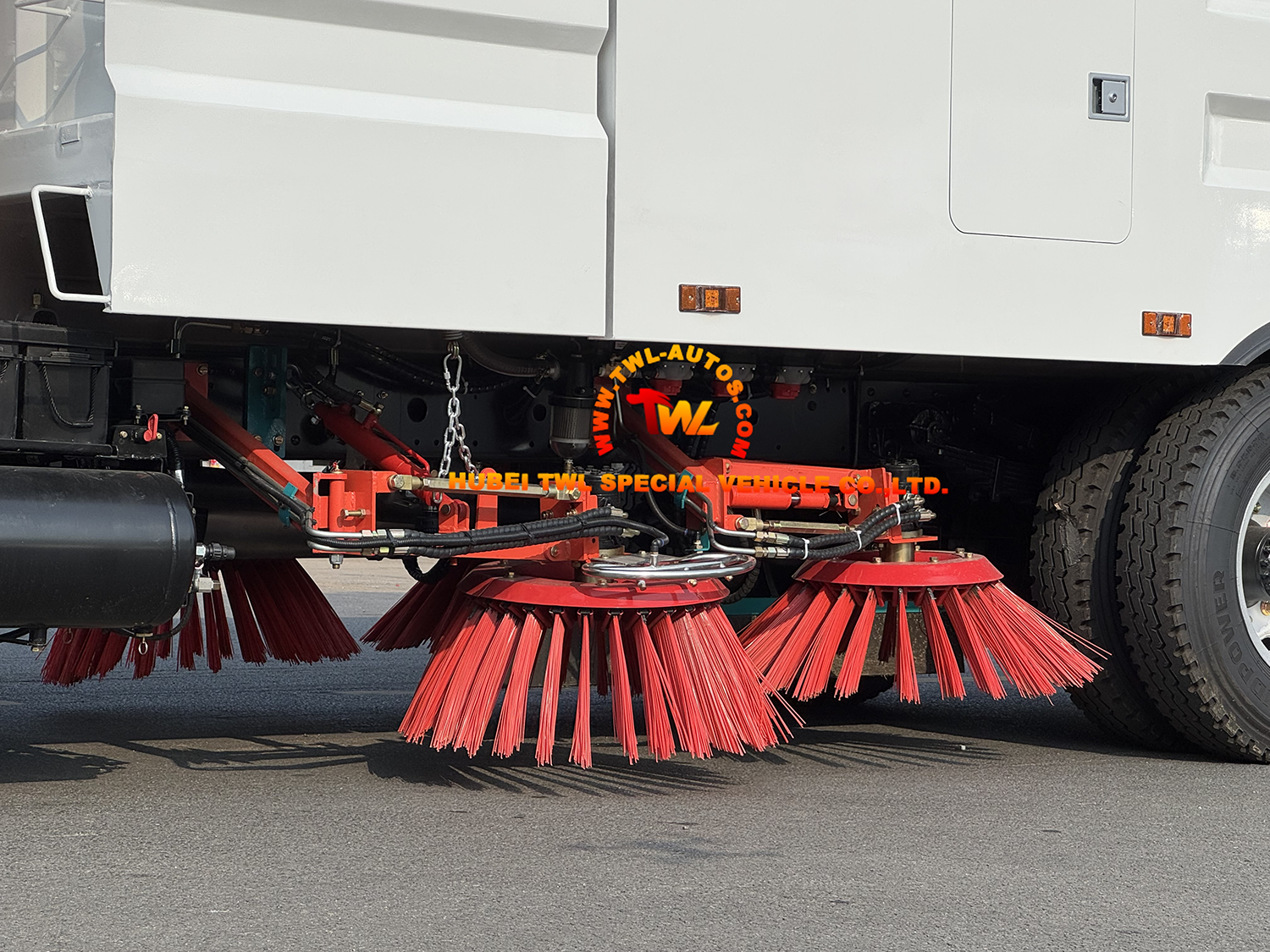

| Sweeping system | Type | Fours brushes installed between front and rear axle,driven by gerotor motor. Left and right brushes are controlled to lift up and down separately.Rear brushes and suction nozzle are integrated controlled for up and down. |
| Sweeper Diameter(mm) | 900 mm | |
| Working area(m) | 3 m | |
| Cleaning Speed | 8-20km/h | |
| Sweeper angle adjustment | Forerake 4°-6°and extroversion 2°-4° | |
| Remarks | corrosion resistant paint with customized logo | |
| 5 meter suction hose at rear door | ||
| Paniting | Customized logo painting | |

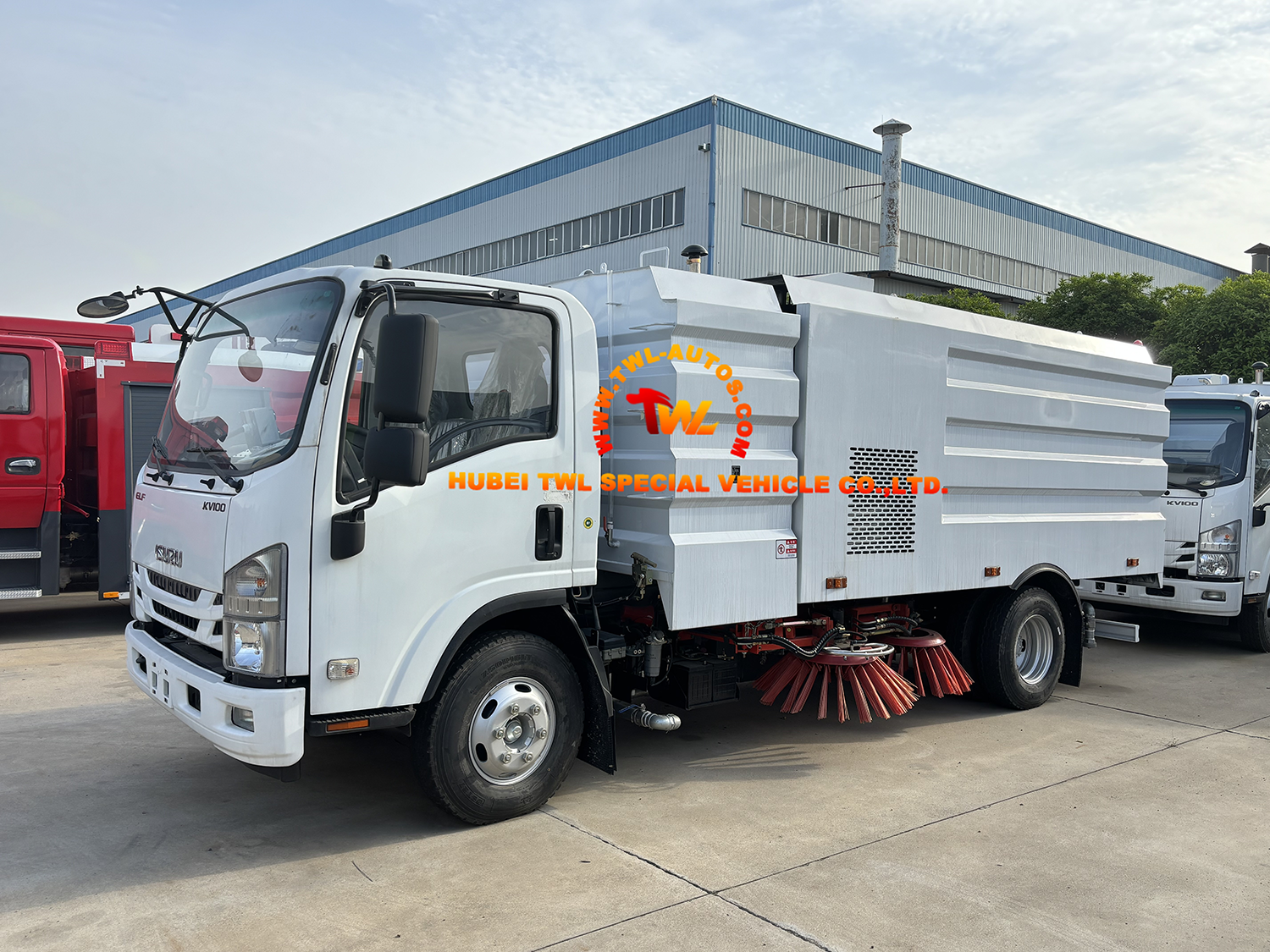

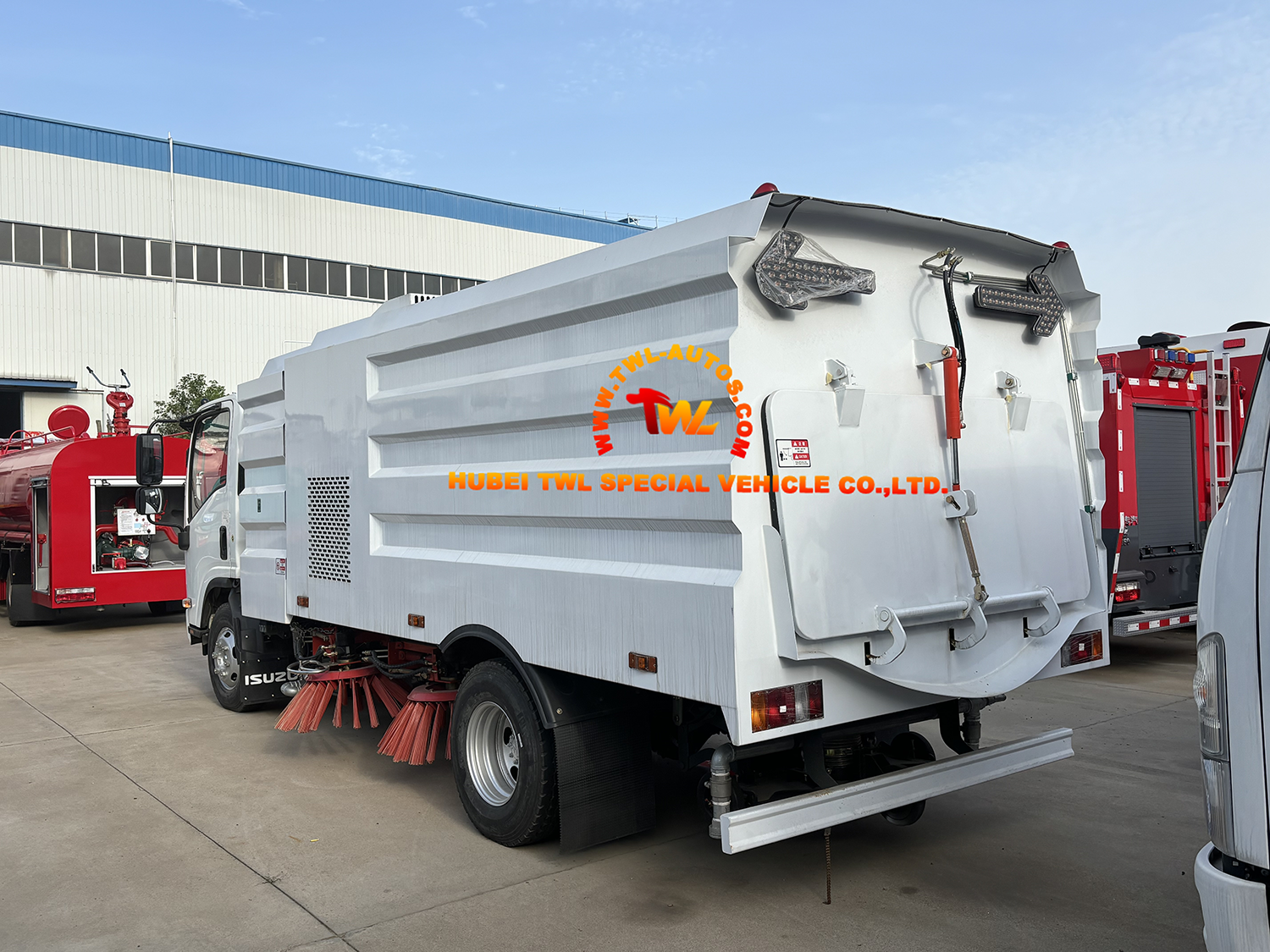

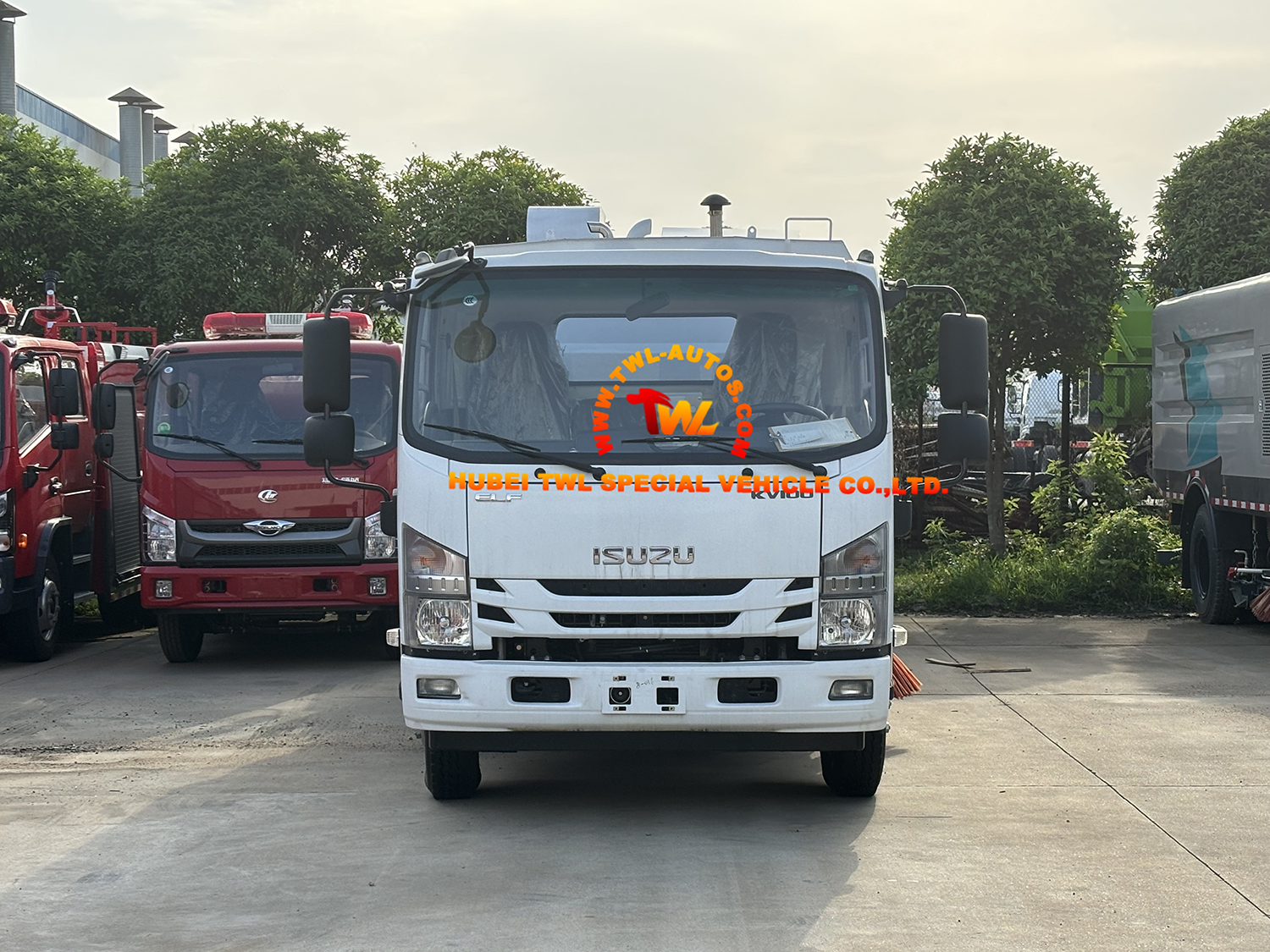

ISUZU 10cbm Clean Water Tank Sweeper Vacuum Truck Gallery
