ISUZU 100P 7m³ Garbage Compactor Truck With Sealed Cover
A refuse compactor truck is a purpose-built waste management vehicle that collects, compresses, and transports municipal solid waste (MSW). Equipped with a heavy-duty chassis and advanced hydraulic compaction systems, it boosts payload capacity and reduces the frequency of waste collection runs.
This 7-cubic-meter ISUZU refuse compactor truck is designed for high efficiency, reliability, and compliance with environmental standards. Built on the sturdy ISUZU 100P cab chassis, it blends renowned Japanese engineering with specialized compaction technology, delivering a powerful solution for both urban and suburban waste collection. Ideal for handling daily residential, commercial, and institutional waste, it offers municipalities and waste management companies an effective, long-lasting sanitation vehicle.
ISUZU 100P 7m³ Garbage Compactor Truck With Sealed Cover Advantage
1. Automated Waste Loading Efficiency
Equipped with a hydraulic compaction system that compresses loose waste within its 7 m³ body, significantly increasing payload capacity per trip. This minimizes the number of disposal site visits, boosting operational productivity.
2. Leak-Proof & Corrosion-Resistant Design
A sealed body with a rubber-edged tailgate prevents liquid leakage during transport, while SUS304 stainless steel cladding provides superior resistance against acidic and organic waste.
3. Robust Chassis & Powertrain
Built on the durable ISUZU 100P cab chassis with a 3,815 mm wheelbase for urban maneuverability. Powered by the ISUZU 4KH1CN6LB diesel engine (120 HP) meeting China VI (GB6) emissions, paired with an ISUZU MSB 5-speed manual transmission for reliable performance and fuel efficiency.
4. Enhanced Safety & Running Gear
Features Anti-lock Braking System (ABS) for improved braking stability on wet or fully loaded conditions, complemented by heavy-duty 7.00R16 tyres designed for varied road surfaces.
Product Specification
| Chassis Technical Specification | ||
| Driving model | 4X2 ISUZU 100P | |
| Cab | 100P single row 700 cabin Left hand driving With 2-3 passengers | |
| Wheelbase | 3815mm | |
| Engine | Model | 4KH1CN6LB |
| Model | Type | Diesel, 4 stroke, 4 cylinders in line |
| Type | Horsepower | 120hp |
| Horsepower | Max output power | 88kw |
| Max output power | Emission standard | Euro VI |
| Gear box | Manual type, 5 forward gears and 1 reverse | |
| Axle loading (front and rear) | 2-2.5T;4-4.8T | |
| Tyre | 7.00R15 | |
| Garbage truck body | ||
| Garbage Container Size | 7m³ | |
| Tanker body material | Quality high tensile Q345 carbon steel | |
| Shape | Rectangular box, arc-shaped rear | |
| Thickness | Side 3mm, bottom 4mm | |
| Filling hopper volume | 0.7m³ | |
| ldle speed | 750 rpm | |
| Compaction ratio | 0.7-0.85T/m³ | |
| Compacting cycle time | ≤23s | |
| Loading cycle time | ≤10s | |
| Unloading cycle time | ≤45s | |
| Oil pump displacement | 40 ml/r | |
| Hydraulic oil box size | 60L | |
| System pressure | 16 Mpa | |
| PTO operation method | Pneumatic | |
| Operation and Control | Both Automatic(Electrical) and Manual (hydraulic) | |
| Remarks | ·Rear-mounted wastewater tank ·Photoelectric sensors ·Hyva cylinders ·Zhongmei multi-way valve ·Wanye gear oil pump ·CFW seals ·Dual-mode PLC or Can control system ·With cabin operation ·Rear standard equipped with triangualr hopper or cradle-type bin tipper | |
| Optional device | 1. Electrophoresis treatment for whole garbage compactor body 2. Remote control function 3. Optional all sealing waste collection hopper 4. Pneumatic cover to avoid waste flying away during driving 5. Rear swing arm bucket | |

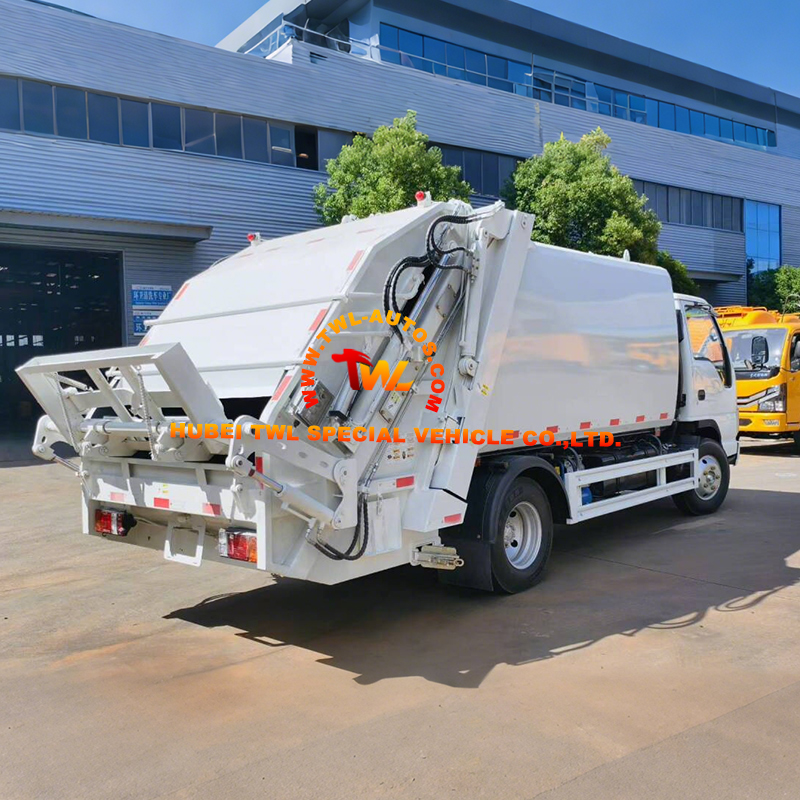

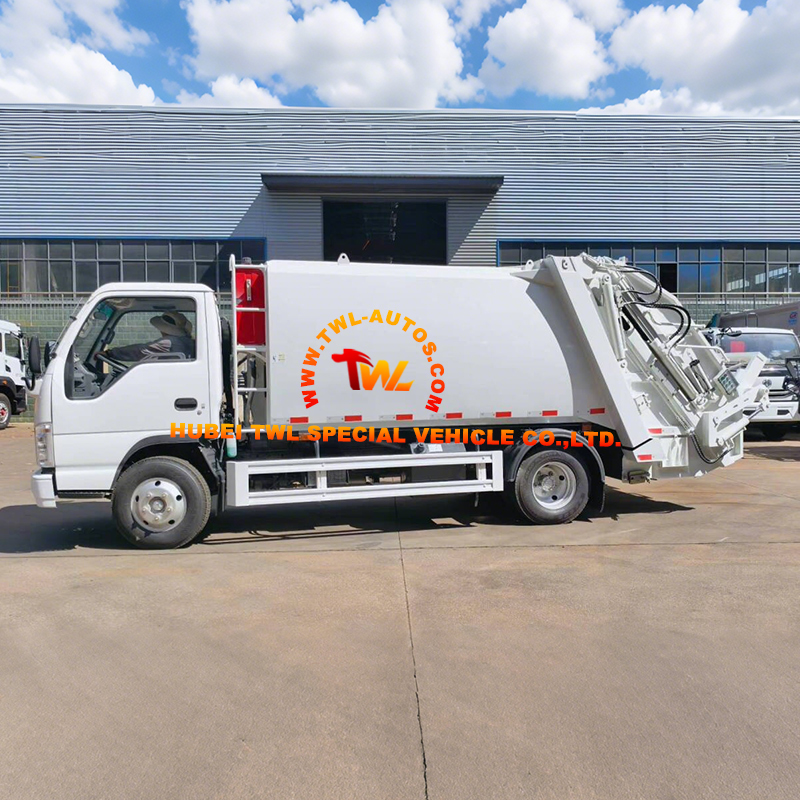

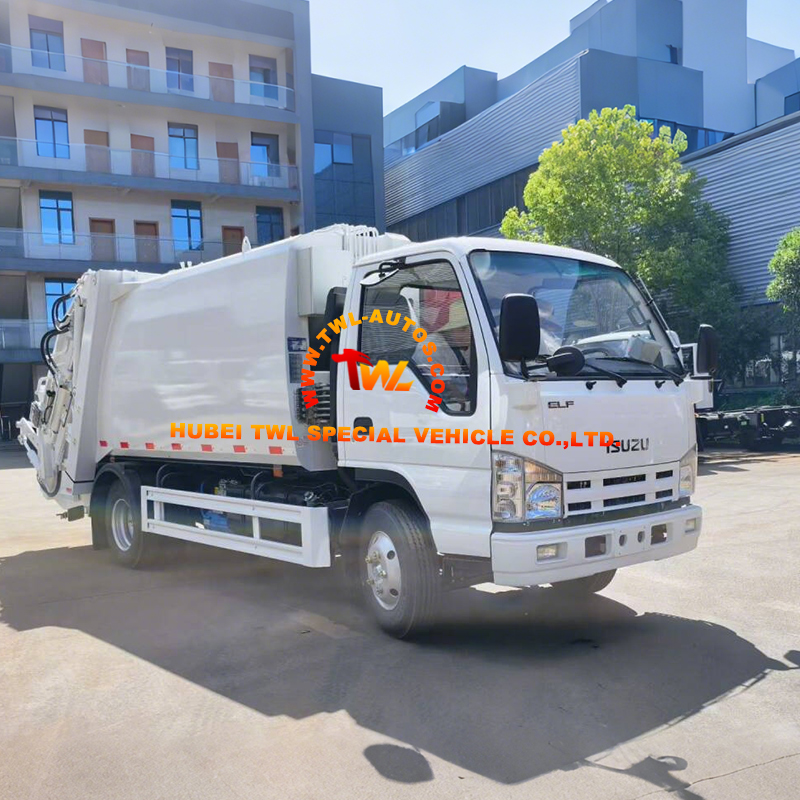

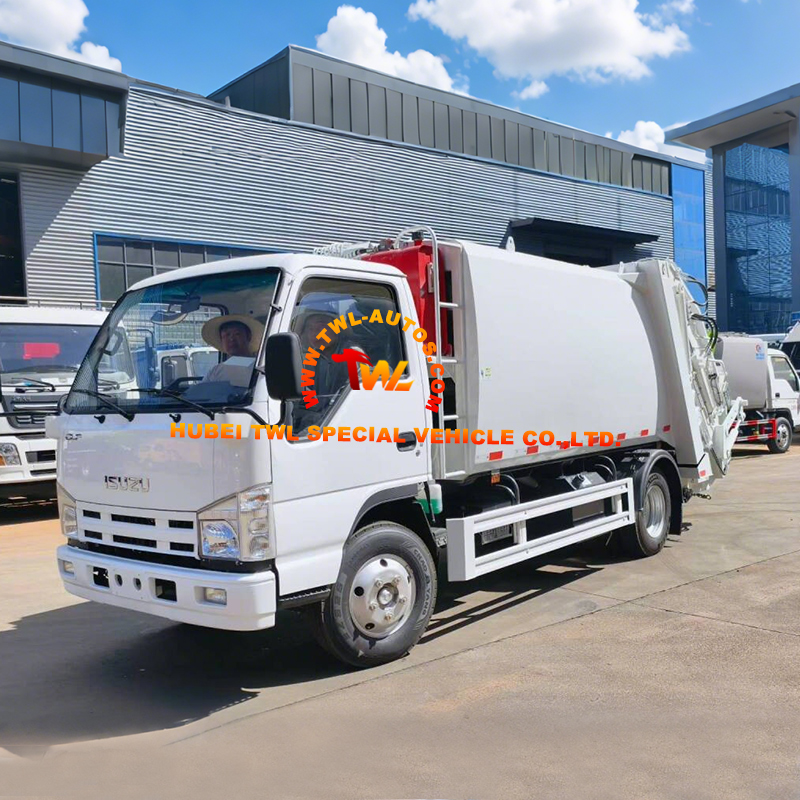

ISUZU 100P 7m³ Garbage Compactor Truck With Sealed Cover Gallery
