ISUZU 10 Ton Refrigerated Truck for Meat Transport

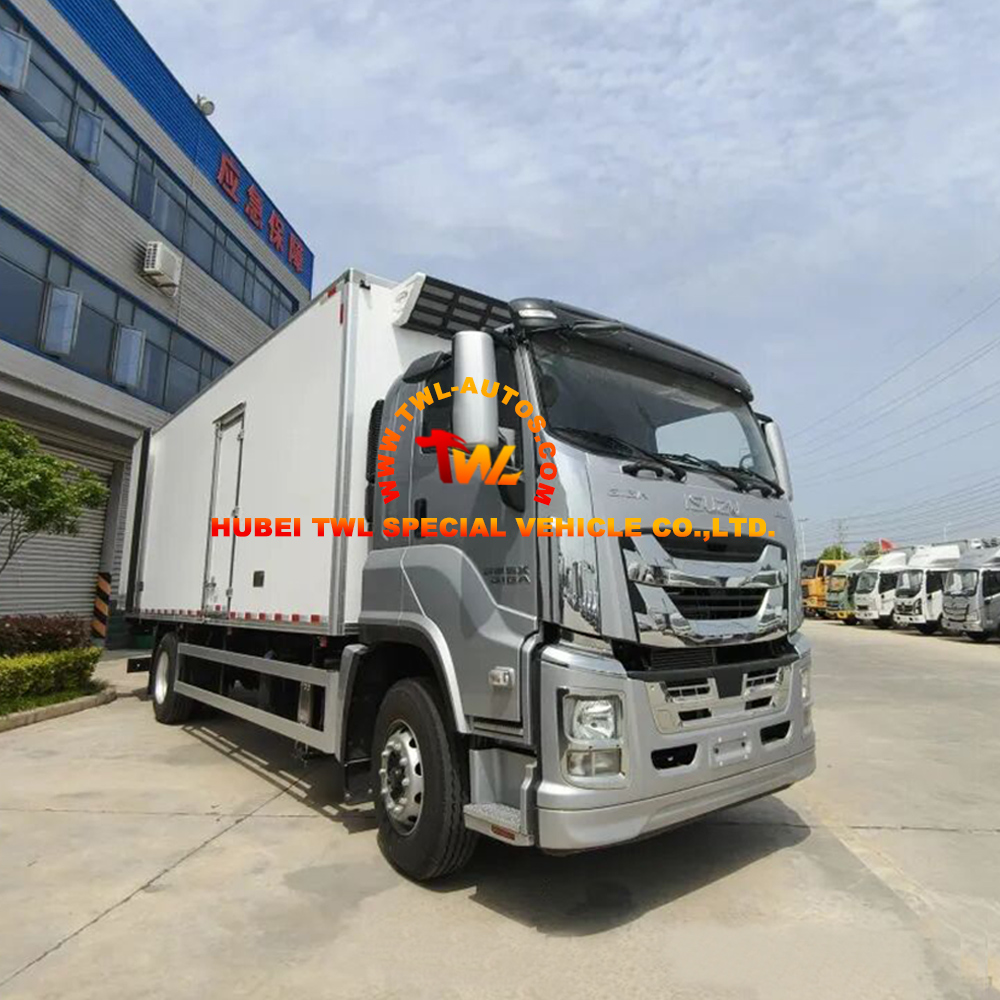

Engineered for heavy-duty frozen meat cold chain logistics, the ISUZU 10-Ton Refrigerated Truck is a specialized reefer vehicle built on the reliable ISUZU 4x2 chassis (QL5180XXYEQFRY). Featuring a 240HP ISUZU 6HK1-TCG61 Euro VI diesel engine (175kW @ 2,400 rpm), 7,100×2,350×2,500mm high-density XPS insulated cargo box (80mm walls/roof/floor, 2.0mm FRP skins), Carrier Citimax 1100 non-independent refrigeration unit (10,200W @ 0°C / 5,100W @ -20°C, -29°C to +30°C range), and stainless steel meat hanging rail system (2×6.8m + 3×6.0m rails), this vehicle delivers superior thermal performance and payload capacity for meat processing plants and cold chain logistics companies.
ISUZU 10 Ton Refrigerated Truck for Meat Transport

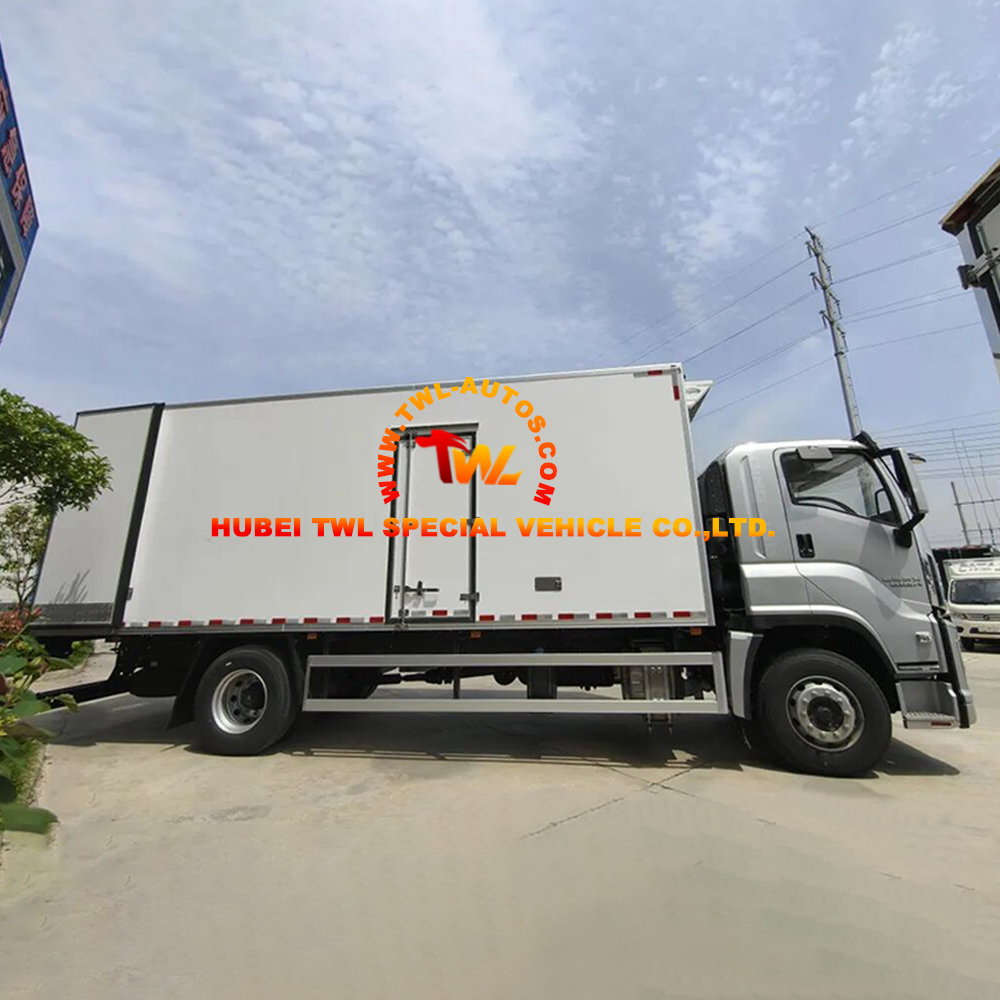

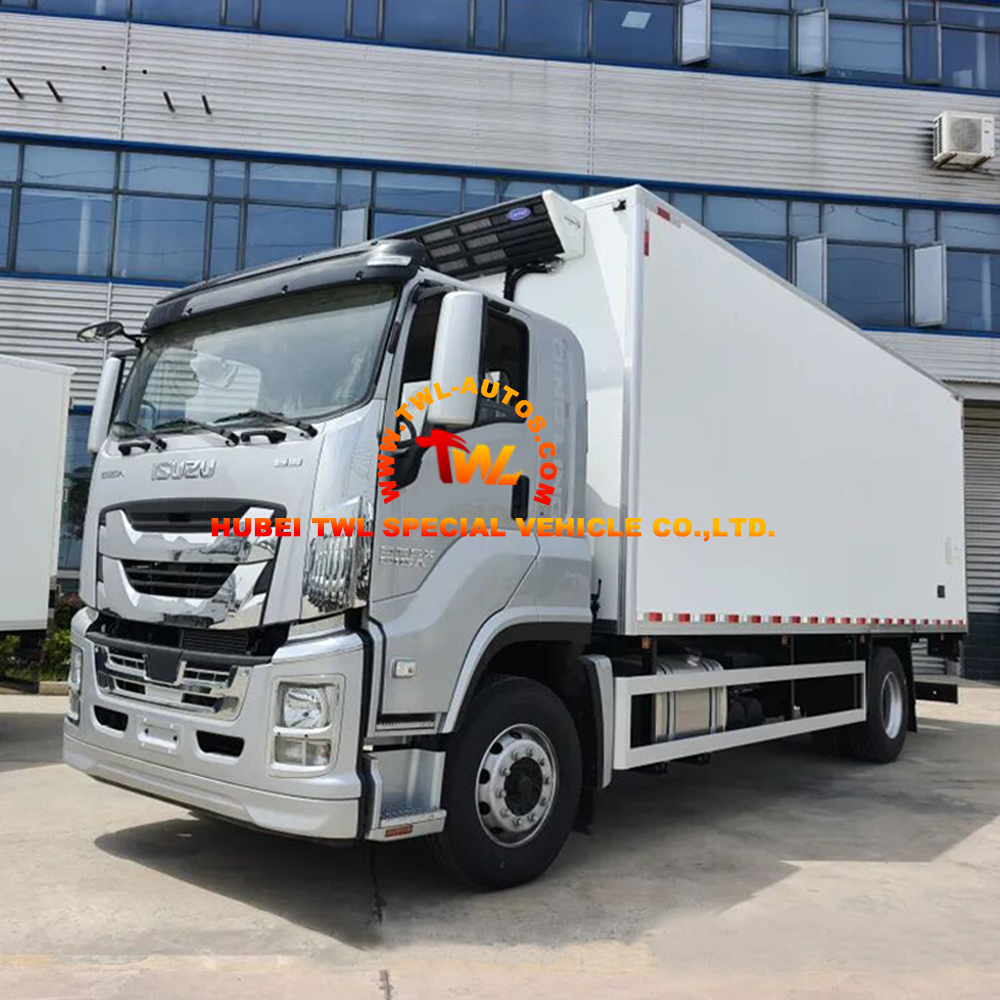

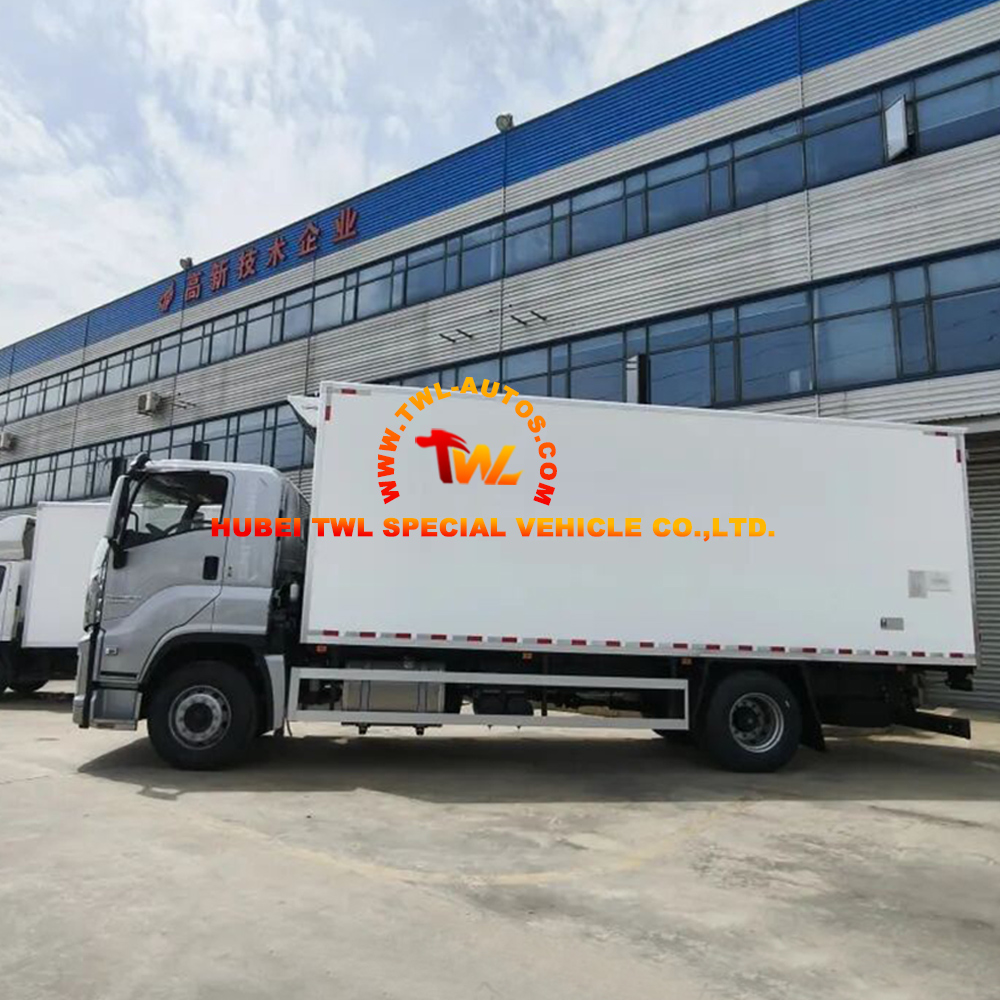

The ISUZU 10-Ton Refrigerated Truck (Chassis Model: QL5180XXYEQFRY) is a heavy-duty cold chain solution purpose-built for the transport of frozen meat, poultry, and seafood. Built on ISUZU‘s proven heavy-duty chassis and powered by the 6HK1-TCG61 240HP diesel engine – delivering 175 kW net power at 2,400 rpm – this reefer truck combines reliable performance with exceptional thermal efficiency for demanding refrigerated logistics operations.
At the heart of this vehicle is a 7,100 × 2,350 × 2,500 mm refrigerated box constructed with high-density XPS (Extruded Polystyrene) insulation panels – 80mm thick on walls, roof, and floor – sandwiched between 2.0mm glossy FRP (Fiber-Reinforced Plastic) inner and outer skins. This composite structure delivers superior thermal performance, impact resistance, and durability while maintaining a lightweight profile. The floor features an aluminum checker plate surface for heavy-duty loading and easy sanitation – critical for meat transport hygiene.
The refrigeration system is powered by a Carrier Citimax 1100 non-independent direct-drive unit, delivering 10,200 W cooling capacity at 0°C and 5,100 W at -20°C (2,400 rpm). This ensures rapid pulldown and precise temperature maintenance for frozen meat cargo, with a temperature range from -29°C to +30°C.

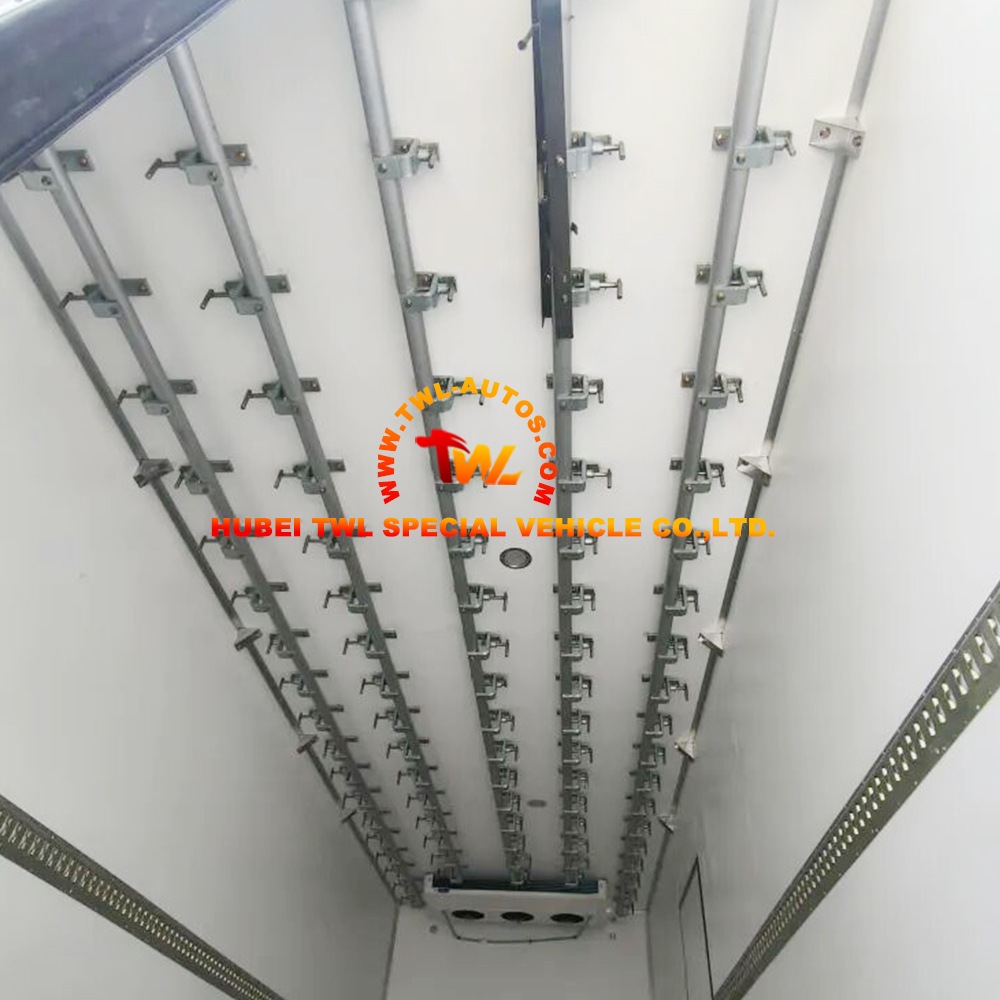

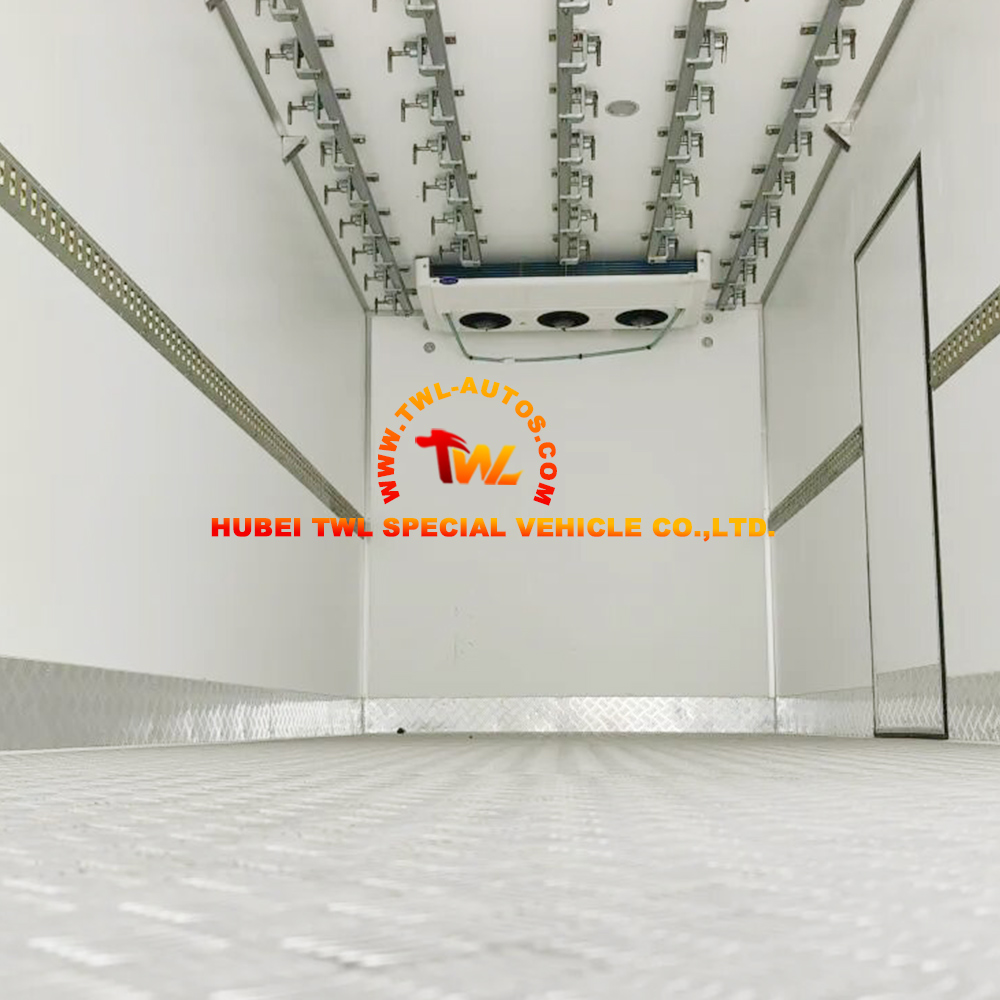

Designed specifically for meat transport, the box is equipped with two 6.8-meter and three 6-meter stainless steel meat hanging rails, along with corresponding hooks and fittings. Additional features include a side access door, stainless steel 304 door frames and locking hardware, EPDM rubber seals, aluminum alloy corner trims, and reinforced subframe construction with 4.5mm high-strength steel (510L/Q345B).
Whether you‘re operating a meat processing plant, cold chain logistics company, or food distribution business, the ISUZU 10-Ton Refrigerated Truck delivers the reliability, thermal performance, and payload capacity you need for frozen meat transportation.
Product Specification
| Category | Parameter | Specification |
| CHASSIS | Brand | ISUZU |
| Chassis Model | QL5180XXYEQFRY | |
| VIN | LWLYUAEK9SL003764 | |
| Gross Vehicle Weight (GVW) | 18,000 kg | |
| Curb Weight (Chassis) | 6,370 kg | |
| Payload Capacity | ~10,000 kg (10 tons) | |

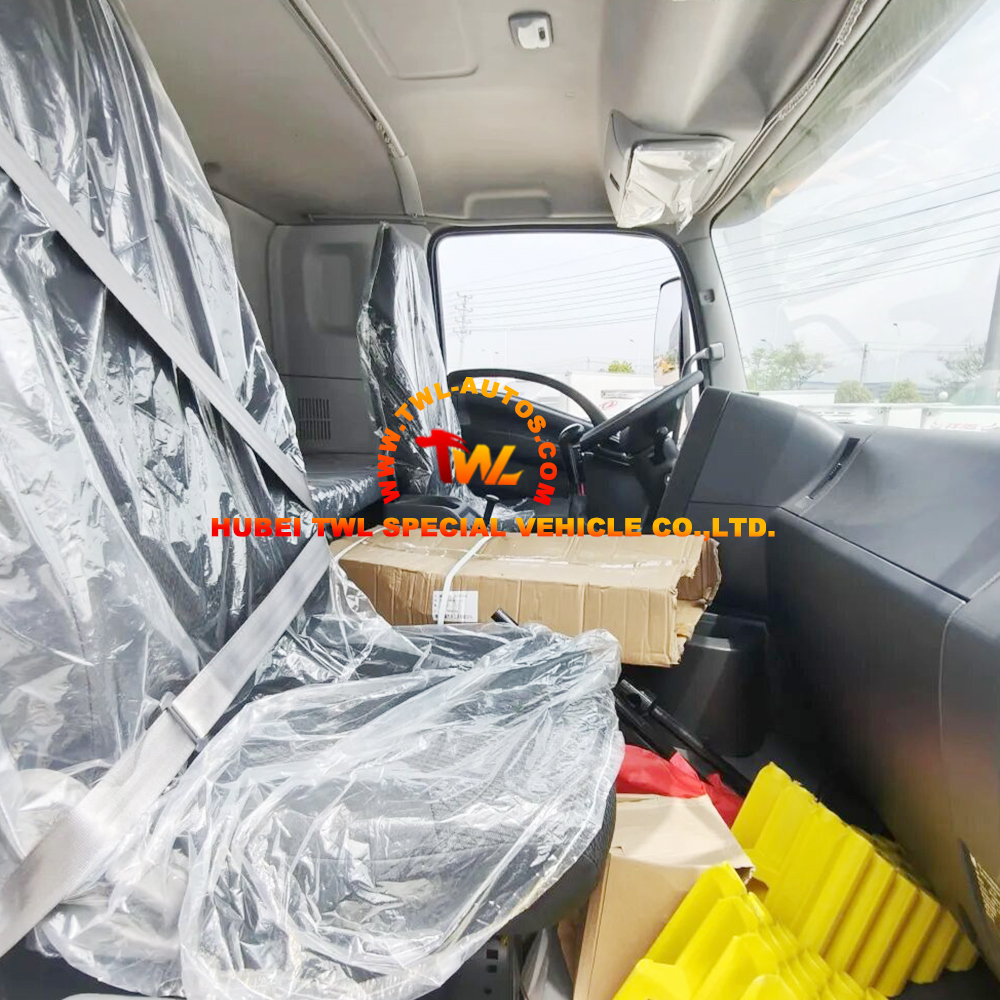

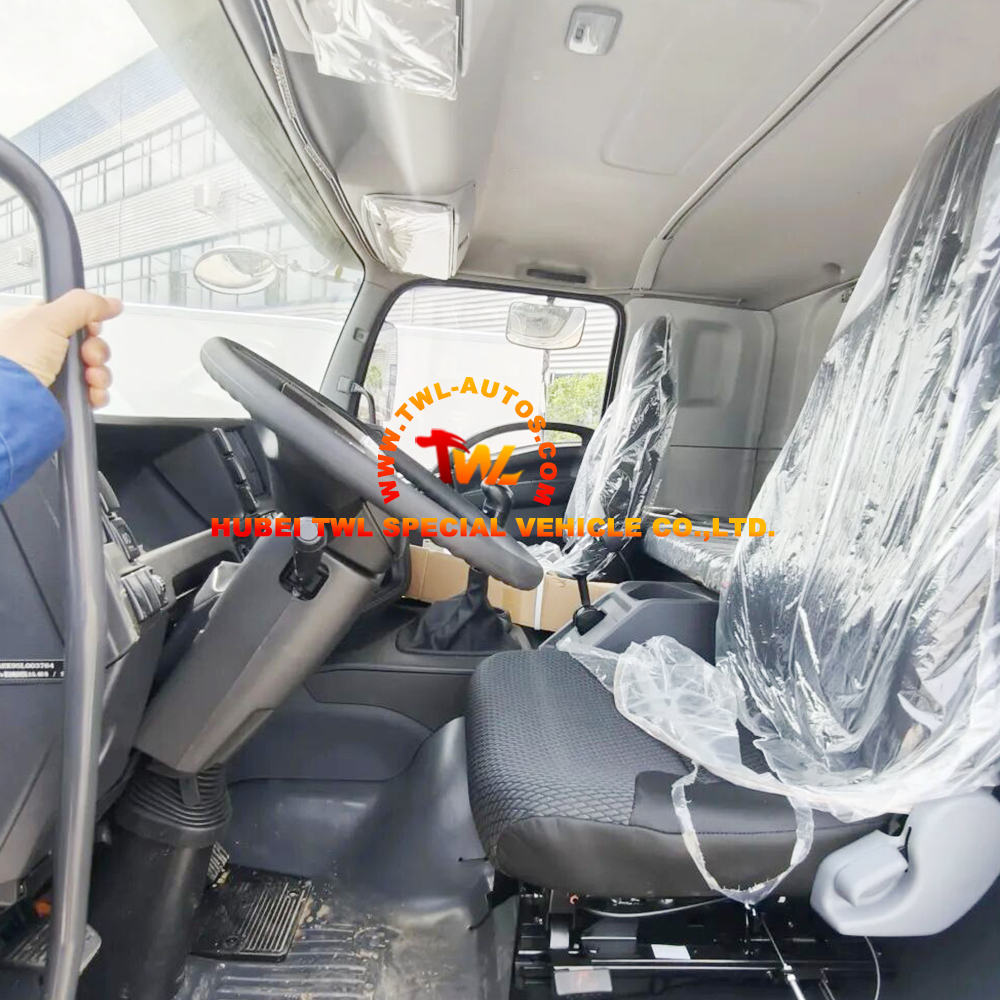

| Cab Seating | 2 persons | |
| Drive Type | 4×2 | |
| ENGINE | Engine Model | ISUZU 6HK1-TCG61 |
| Displacement | 7.79 L | |
| Max Net Power | 175 kW / 2,400 rpm | |
| Horsepower | 240 HP | |
| Cylinders | In-line 6-cylinder, turbocharged intercooler | |
| Fuel Type | Diesel | |
| Emission Standard | Euro 6 / China VI | |
| REFRIGERATED BOX | Box Internal Dimensions (L×W×H) | 7,100 × 2,350 × 2,500 mm |
| Box External Color | White | |
| Wall / Roof / Floor Thickness | 80 mm | |
| Insulation Material | High-density XPS (Extruded Polystyrene) foam | |
| Insulation Density | 35 kg/m³ | |
| Inner & Outer Skin Material | 2.0mm glossy FRP (Glass Fiber Reinforced Plastic) | |
| Floor Surface | Aluminum checker plate | |
| Corner Trim | 6061 anodized aluminum alloy | |
| Door Frame & Hardware | 304 stainless steel | |
| Door Seals | EPDM black rubber gaskets | |

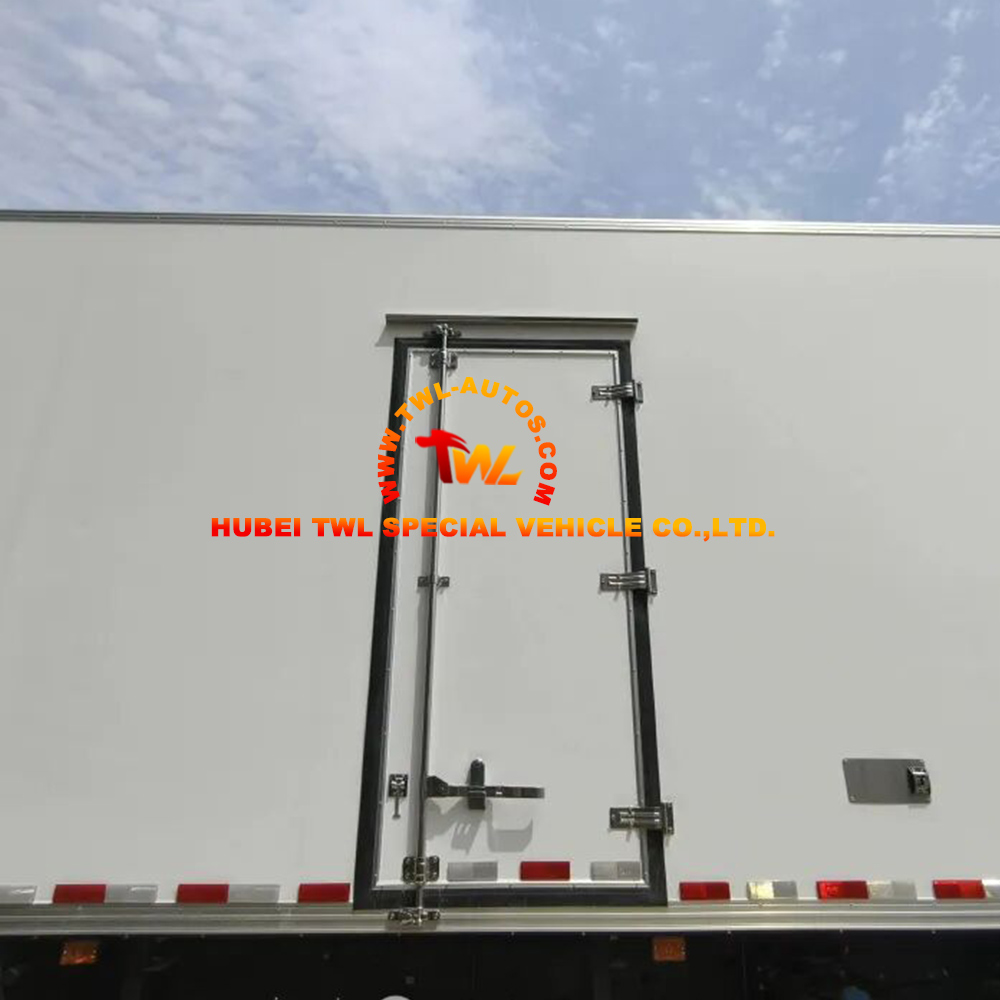

| Side Door | 1 side access door (insulated) | |

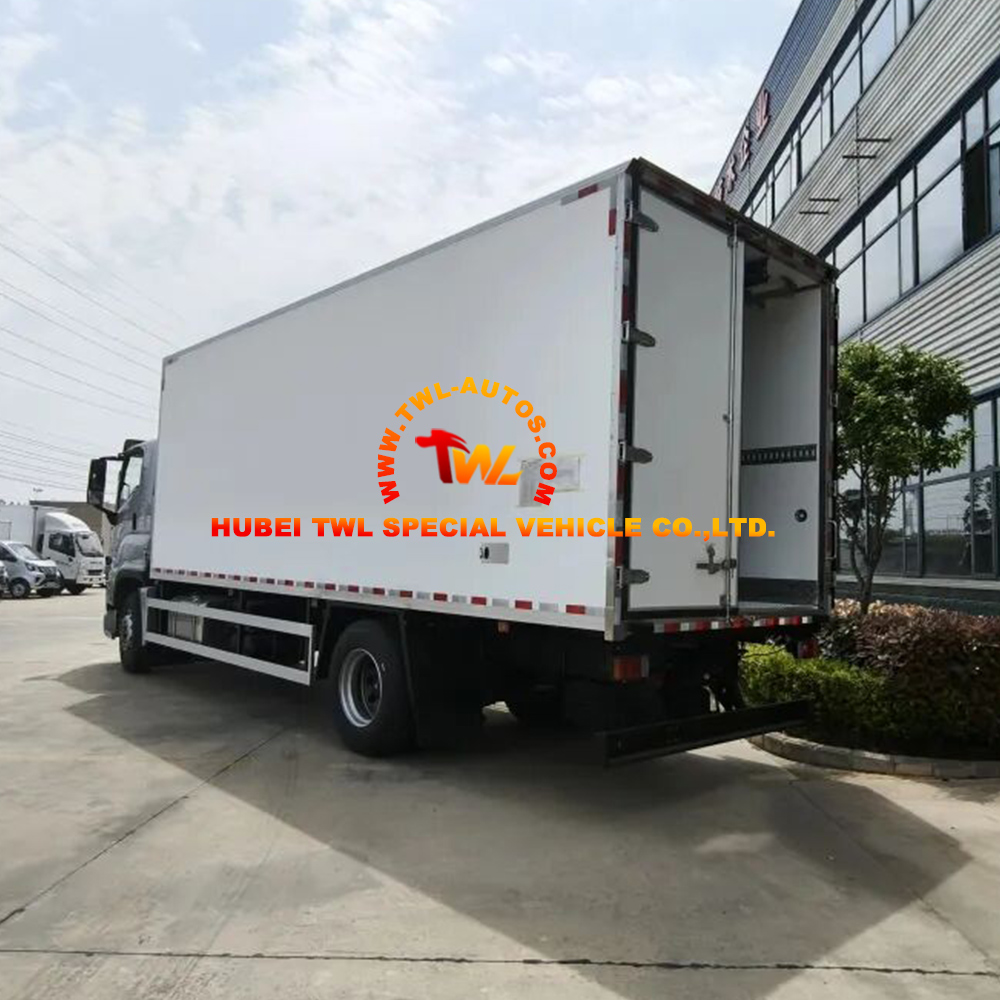

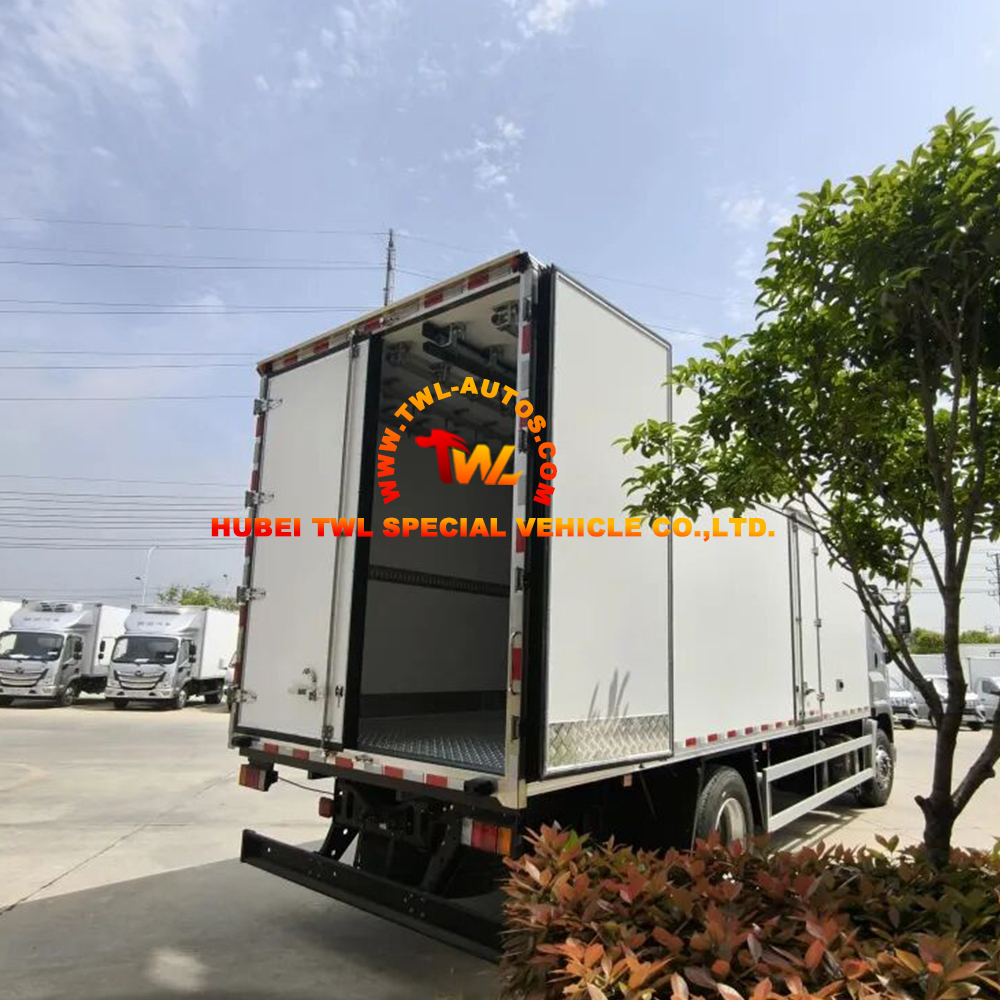

| Rear Doors | Double-leaf swing doors | |
| Subframe Material | 4.5mm 510L/Q345B high-strength steel (press-formed) | |
| Chassis-to-Box Mounting | 14mm high-strength bolts (box to subframe); 14mm U-bolts (subframe to chassis); 16mm rubber-steel pads | |
| Rivet-Free Exterior | Surface assembled with adhesive bonding – no exposed screws or rivets | |
| MEAT RAIL SYSTEM | Meat Hanging Rails | 2 × 6.8m + 3 × 6.0m stainless steel rails |
| Rail Mounting | Pre-installed rail channels on side walls; accessories shipped from overseas and installed at body plant | |
| Side Wall Reinforcements | Reinforced box frame with rail mounting channels | |
| REFRIGERATION UNIT | Brand & Model | Carrier Citimax 1100 (Non-Independent) |
| Type | Direct-drive (powered by vehicle engine) | |
| Cooling Capacity (0°C / 2,400 rpm) | 10,200 W | |
| Cooling Capacity (-20°C / 2,400 rpm) | 5,100 W | |
| Airflow | 3,300 m³/hr | |
| Refrigerant | R-404A (3.6 kg charge) | |
| Compressor Model | Carrier 310 (10 cylinders, 313 cm³ displacement) | |
| Unit Weight | 99 kg | |
| Unit Dimensions (W×H×D) | 1,780 × 304 × 388 mm | |
| Temperature Range | -29°C to +30°C | |
| ADDITIONAL FEATURES | Fender / Mud Flaps | Included |
| Side Rails / Guardrails | Aluminum alloy guardrails | |
| Locking System | Stainless steel locks with white stainless steel frame | |
| Door Hinges | Stainless steel hinges | |
| Adhesive System | Polyurethane two-component adhesive, machine-applied with pressure lamination |
