HOWO RHD 4x2 Refrigerated Truck
Deliver temperature-sensitive cargo with confidence using the HOWO RHD Refrigerated Truck – a 3-ton light-duty cold chain vehicle featuring a 116HP diesel engine, 4.02m insulated cargo box (14.5m³, 80mm XPS), Carrier Supra 550 independent refrigeration unit (-20°C to +30°C), and dual power supply (diesel + mains). Built on the HOWO 4x2 RHD chassis with half-row sleeper cab and A/C, this vehicle provides stable cooling performance even when the truck engine is shut down, making it ideal for long-distance transport of frozen meat, seafood, fresh produce, dairy, and vaccines.
HOWO RHD 4x2 Refrigerated Truck

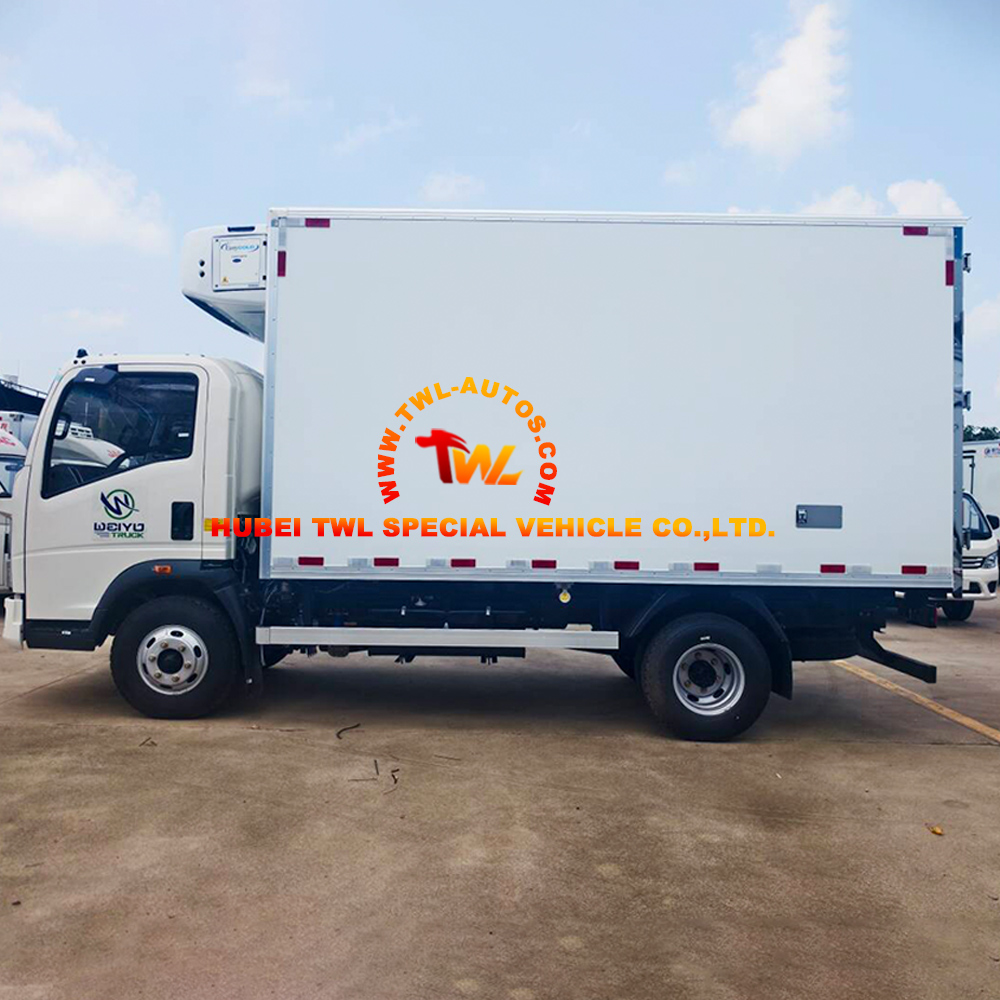

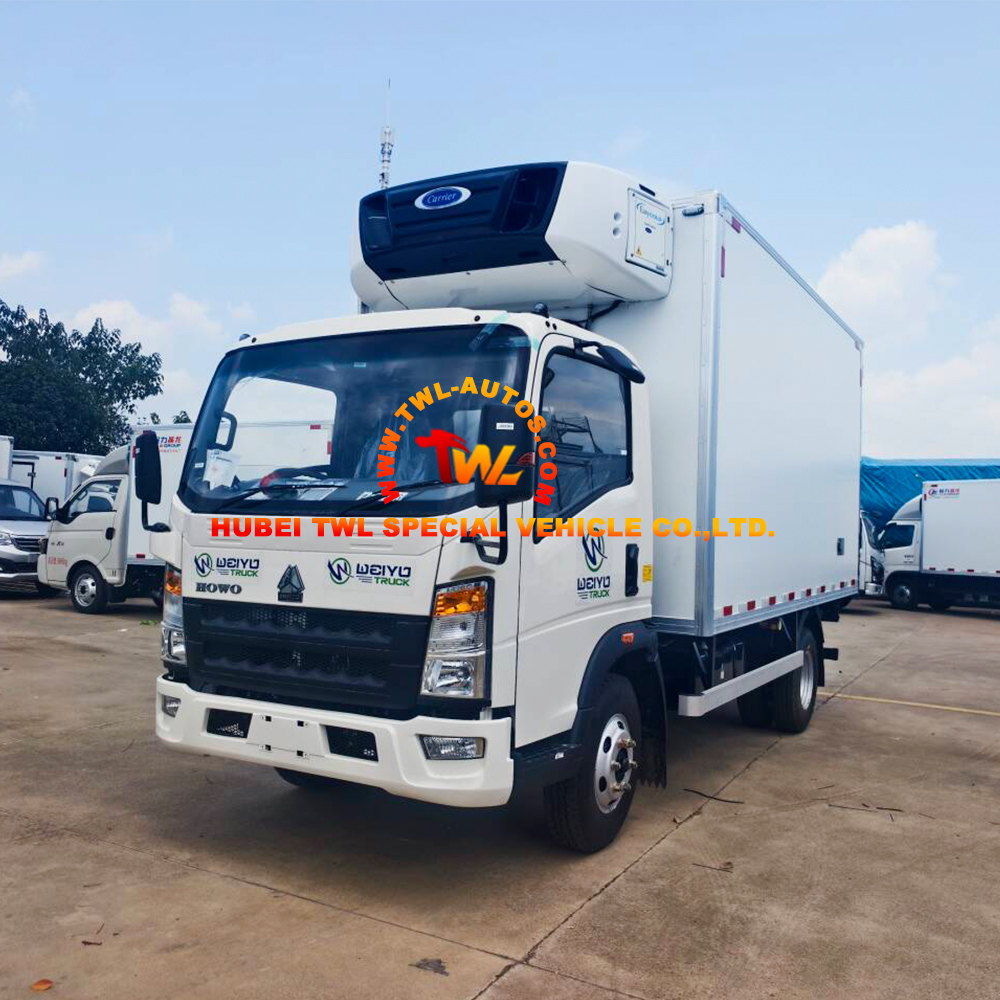

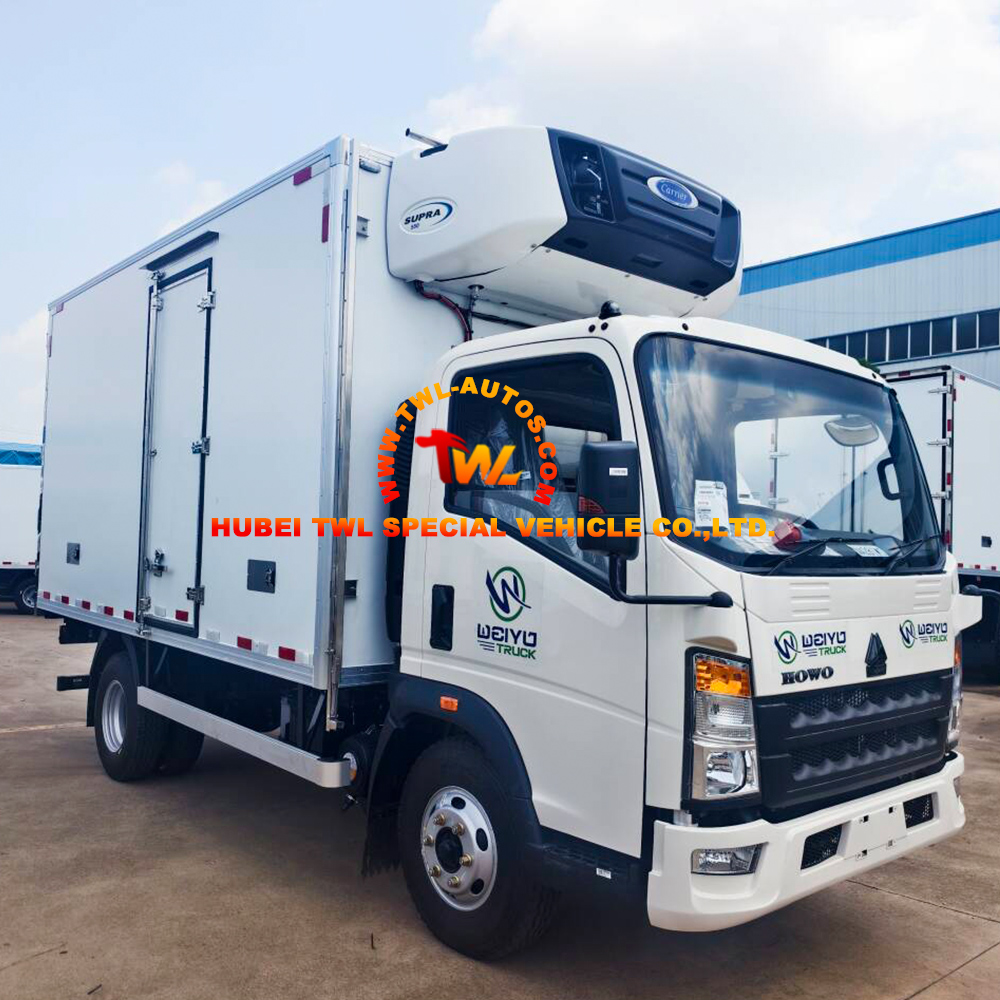

The HOWO RHD Refrigerated Truck is a professional-grade cold chain vehicle specially customized for overseas left-traffic markets, equipped with a top-mounted Carrier Supra 550 fully independent refrigeration unit . Built on the proven HOWO 4×2 light-duty chassis with a half-row cab with sleeper (RHD with A/C), this vehicle features a 116HP diesel engine with Euro III compliance, paired with a 6-speed manual transmission. The 4.02m insulated cargo box (4,020×2,100×2,100mm, 14.5m³) adopts high-density XPS polyurethane sandwich panels (80mm thickness) with FRP fiberglass inner and outer skin for superior thermal insulation . The Carrier Supra 550 independent refrigeration unit provides continuous cooling even when the truck engine is shut down – a critical advantage for multi-stop delivery routes where the engine is frequently turned off . Standby cooling function: The unit can keep cooling continuously even when the vehicle engine is turned off . External power socket pre-installed: Connect mains power to run the cold unit without consuming vehicle diesel fuel, cutting operation costs . Adjustable temperature from -20°C to +30°C, suitable for fresh and frozen goods transport . Insulated cargo box: 80mm thick XPS polyurethane insulated cargo box, fiberglass inner & outer skin, anti-slip aluminum floor, rear thermal curtain to reduce cold loss . Fully customizable interior: Additional fittings like cargo rails, hooks and aluminum floors can be installed inside the box as clients’ specific demands .
Key Features:
1. HOWO RHD 4×2 Chassis – Right-Hand Drive for African Markets: 1880 half-row cab with sleeper, RHD, A/C. RHD export chassis complies with traffic rules of African right-hand drive countries . Stable power for short & medium cold chain delivery . GVW 5,500kg, payload 3,000-4,000kg. 7.00R16 14PR tires (6 + 1 spare).
2. 116HP Diesel Engine – Stable & Fuel-Efficient: YN4102QBZL, 116HP, Euro III. 6-speed manual transmission (6F+1R). Reliable for cold chain logistics .

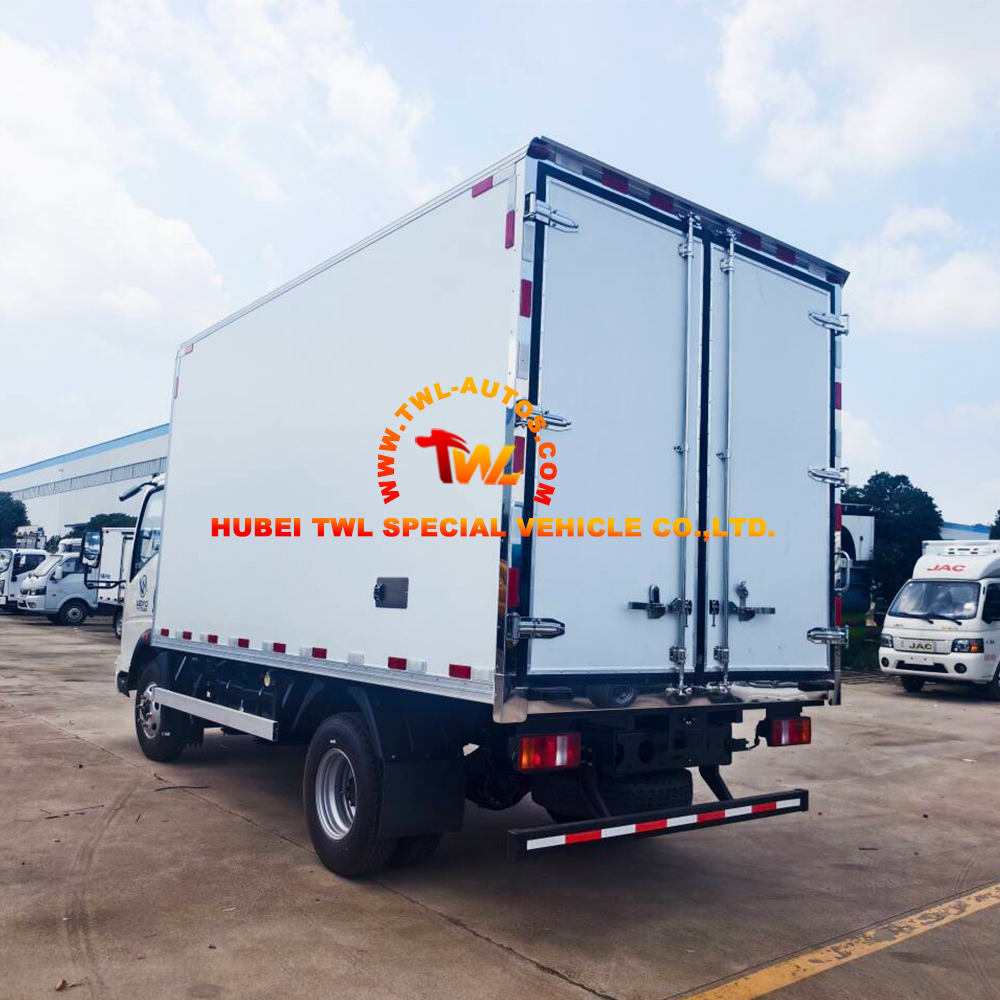

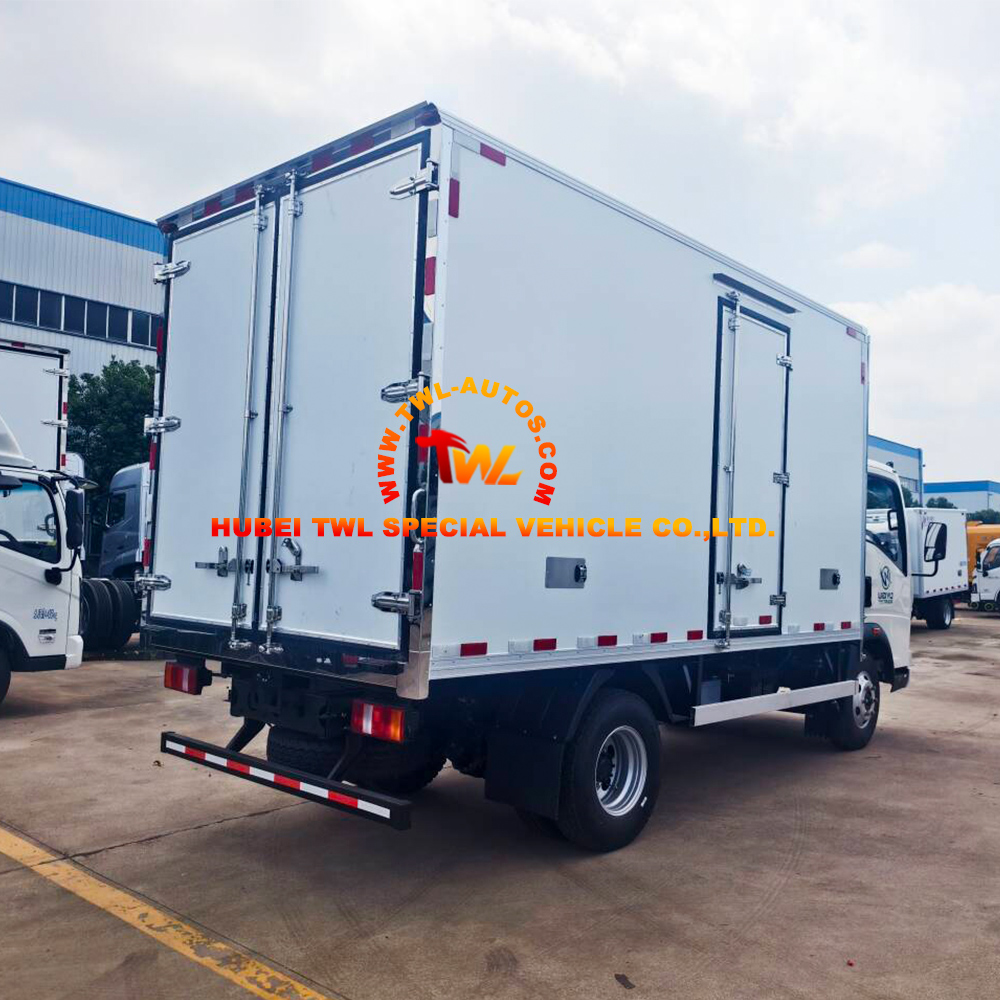

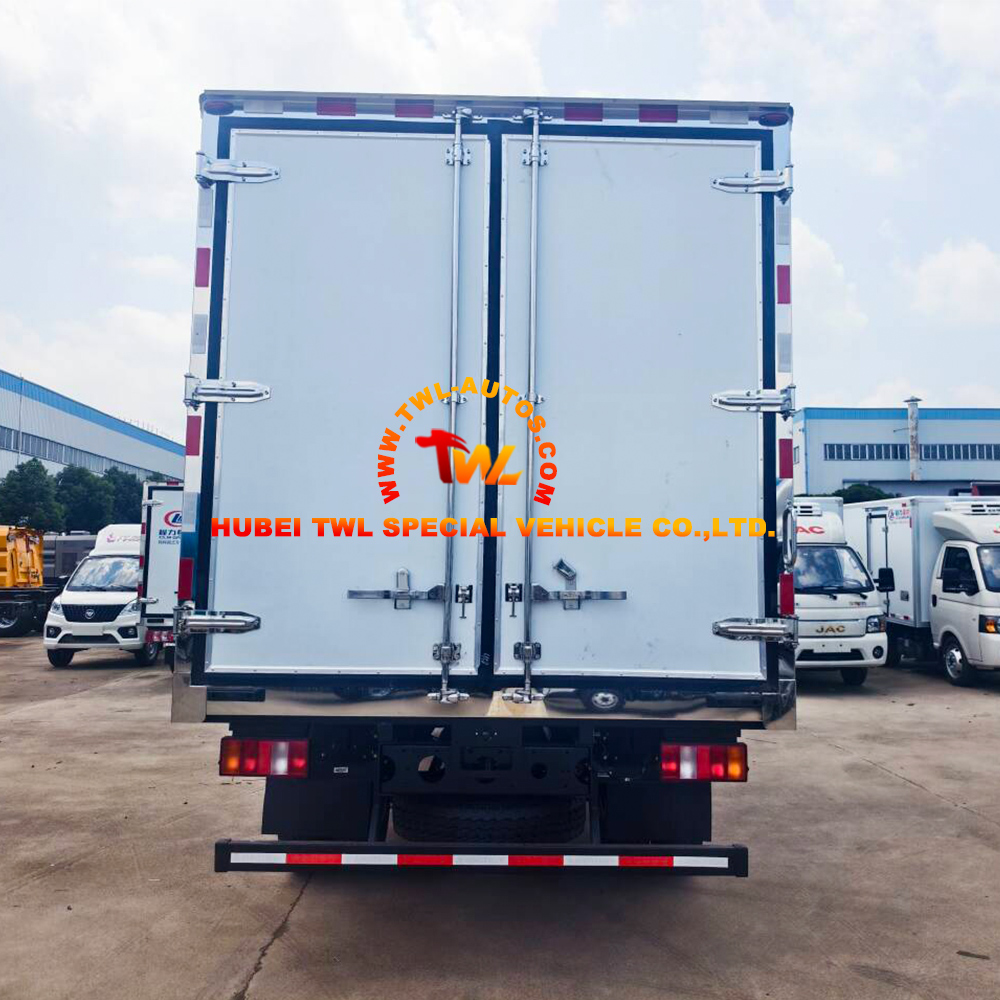

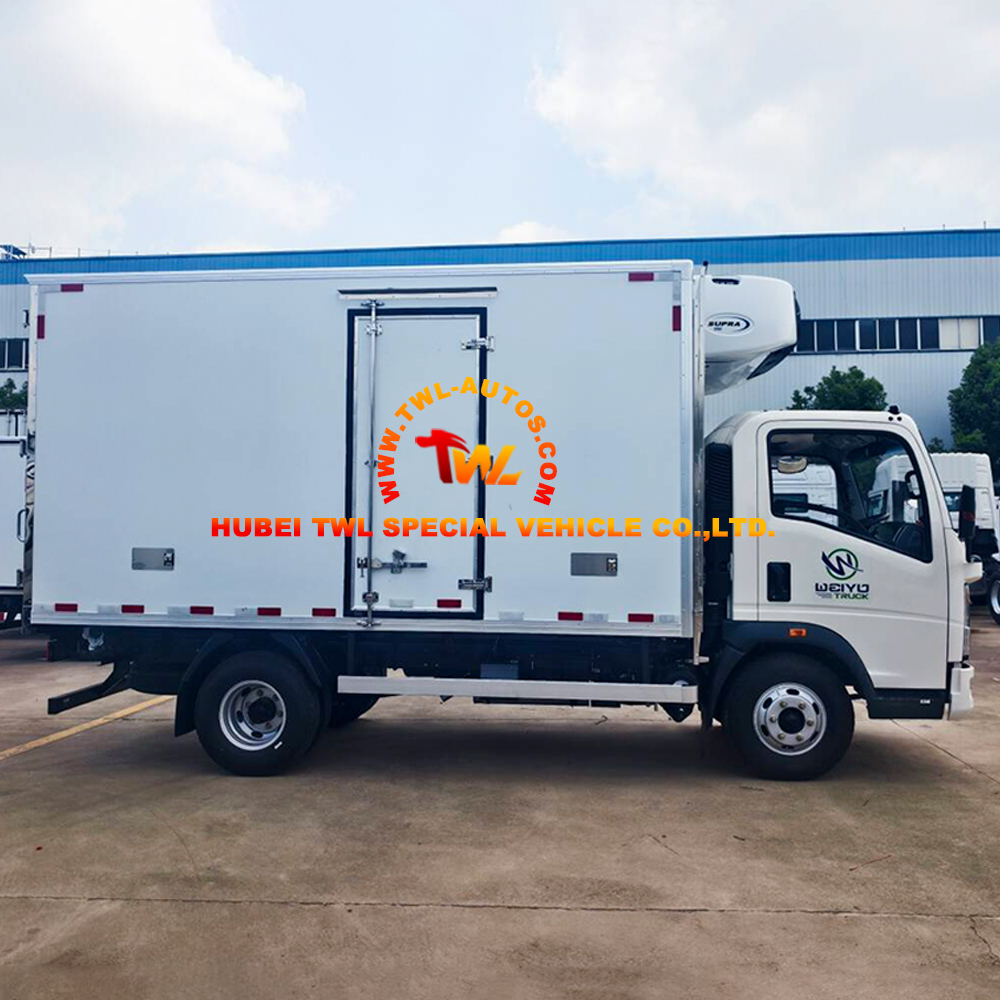

3. 4.02m FRP Insulated Cargo Box – Superior Thermal Performance: Outer dimensions 4,020×2,100×2,100mm, 14.5m³ internal volume . FRP fiberglass inner & outer skin . 80mm XPS polyurethane foam insulation core . Anti-slip patterned aluminum plate floor . Rear double swing door + side service door . Multi-layer EPDM rubber sealing strips . Transparent PVC thermal curtains fitted on all doors to reduce cold air loss .
4. Carrier Supra 550 Independent Refrigeration Unit – Standby Cooling: Top-mounted fully independent diesel refrigeration unit . Dual power: self-contained diesel engine + external mains power socket . Continuous cooling operation even when truck engine is shut down . Adjustable temperature range: -20°C ~ +30°C . Refrigerant: R404A . Circulating air volume: 2,150 m³/h . Cooling capacity: 5,455W (0°C); 3,165W (-20°C) . External power socket pre-installed to run the cold unit without consuming vehicle diesel fuel, cutting operation costs .
5. High-Sealed Insulated Cargo Box: Full stainless steel locks, hinges & edge wrapping . Galvanized anti-rust box frame . Rear thermal curtain to reduce cold loss . Side guardrail of the road section .
6. Fully Customizable Interior: Cargo rails, hooks, aluminum floors and other fittings available per customer’s requirements .
Application:
· Frozen Meat & Seafood Transport: Long-distance transport of frozen meat, seafood, and fish products. The -20°C capability ensures product integrity.
· Fresh Fruits & Vegetables: Temperature-controlled transport of fresh produce at +5°C to +15°C.
· Dairy Products Distribution: Milk, cheese, yogurt, and other dairy products requiring stable refrigeration.
· Vaccine & Pharmaceutical Transport: Temperature-controlled vaccines and medicines requiring precise temperature control.
· Tropical High-Temperature Conditions: Stable cooling performance even under high ambient temperature conditions.
· Multi-Stop Delivery Routes: Independent refrigeration unit continues cooling when engine is shut off – ideal for multi-stop cold chain delivery.
Product Specification
| Refrigerated Superstructure Technical Parameters | |
| Insulated Cargo Box | |
| Outer Dimension (L×W×H) | 4020mm × 2100mm × 2100mm |
| Estimated Internal Volume | 14.5 m³ |
| Panel Material | FRP fiberglass inner & outer skin, 80mm XPS polyurethane foam insulation core |
| Floor Material | Anti-slip patterned aluminum plate, wear & corrosion resistant |
| Door Configuration | Rear double swing door + side service door |
| Sealing & Heat Preservation | Multi-layer EPDM rubber sealing strips for excellent airtightness; transparent PVC thermal curtains fitted on all doors to reduce cold air loss |
| Hardware Accessories | Full stainless steel locks, hinges & edge wrapping; galvanized anti-rust box frame |
| Custom Options | Cargo rails, hanging hooks, stainless steel liners and other fittings available per customer’s requirements |
| Carrier Independent Refrigeration Unit | |
| Model | Carrier Supra 550 fully independent diesel refrigeration unit |
| Adjustable Temperature Range | -20℃ ~ +30℃ |
| Power Supply Mode | Dual power: self-contained diesel engine + external mains power socket; run on electricity without consuming truck fuel |
| Core Advantage | Continuous cooling operation even when the truck engine is shut down |
| Refrigerant Type | R404A |
| Circulating Air Volume | 2150 m³/h |
| Cooling Capacity (30℃ Ambient) | 5455W (0℃ cargo temp); 3165W (-20℃ cargo temp) |
