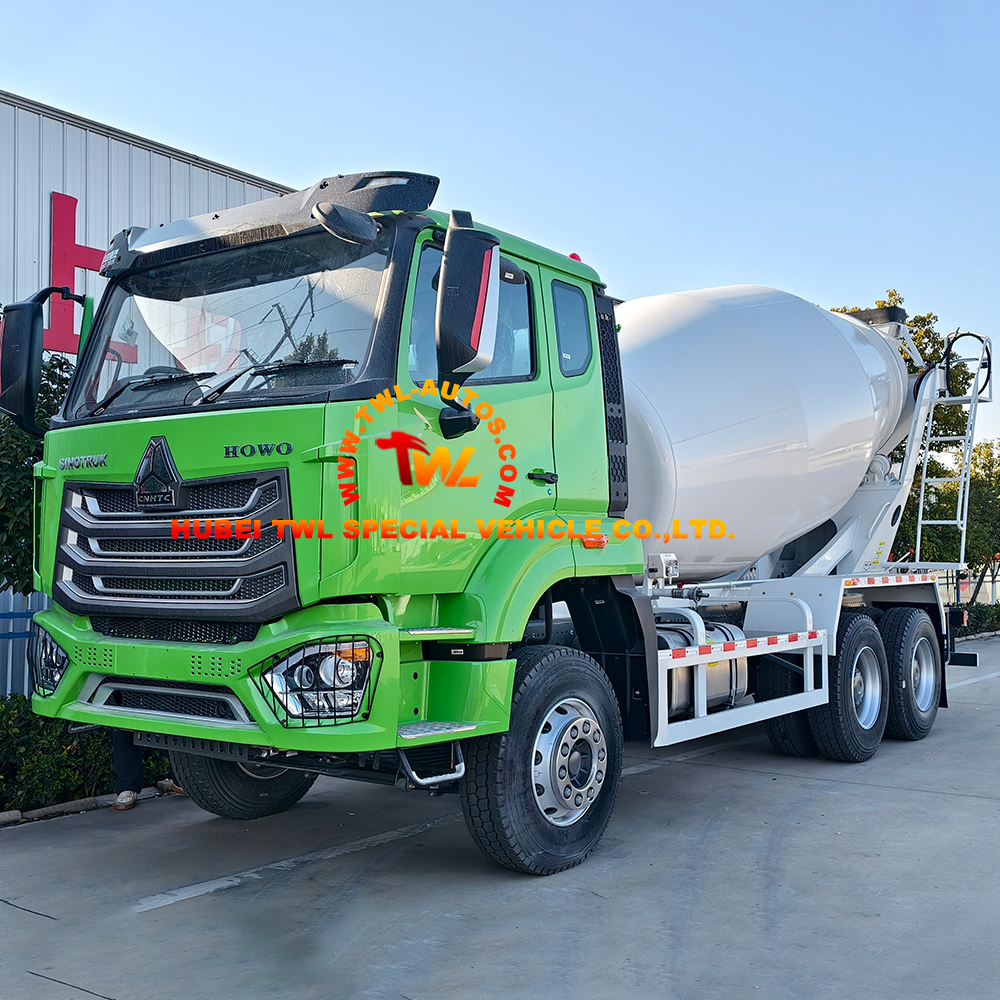

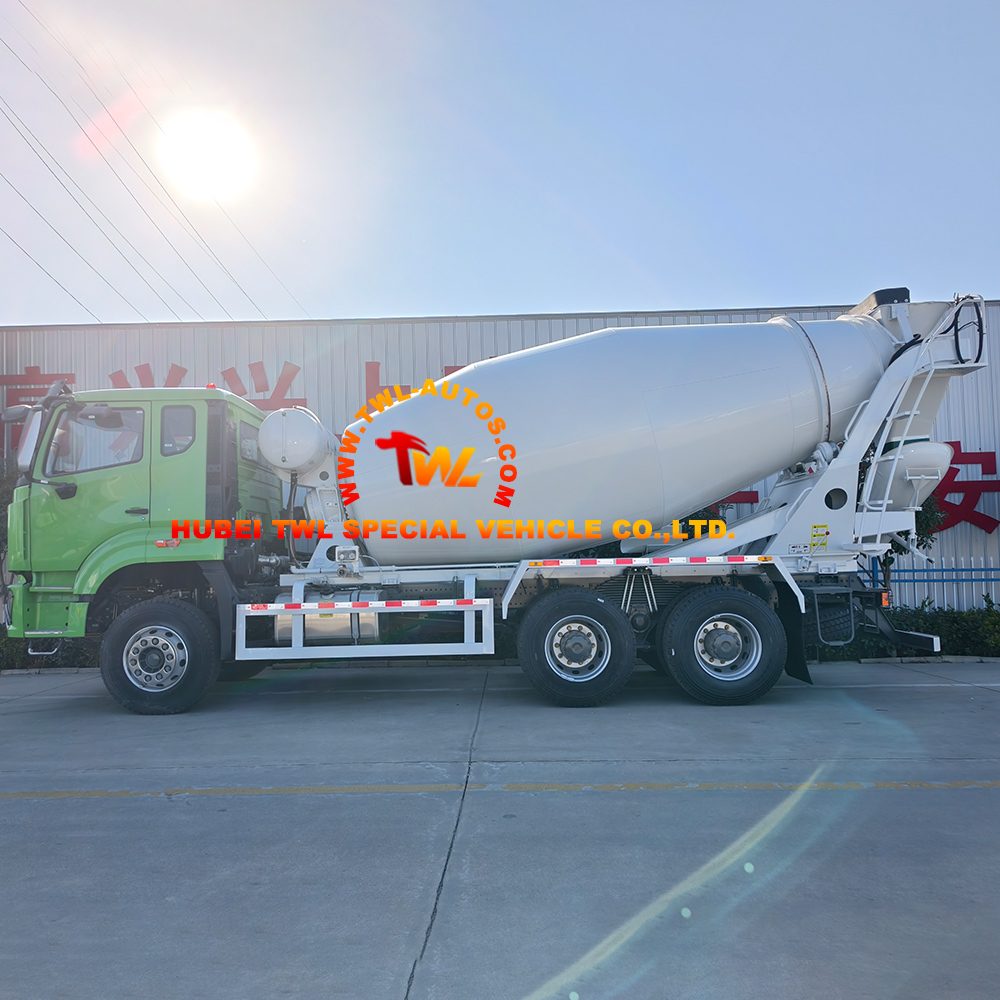

HOWO Heavy-Duty 6X4 12m³ Concrete Mixer Truck
Engineered for the most demanding job sites, this Heavy Duty 12-cubic-meter concrete mixer truck combines brute strength, exceptional reliability, and operator-centric design. Built on the renowned SINOTRUK HOWO chassis and featuring premium imported components, it delivers unparalleled performance for heavy-duty transit and precise concrete placement.
HOWO Heavy-Duty 6X4 12m³ Concrete Mixer Truck
The Heavy-Duty HOWO 6X4 Concrete Mixer Truck is a powerhouse built to tackle the toughest construction challenges. From its robust chassis and high-torque powertrain to its wear-resistant mixing drum and imported hydraulic system, every component is designed for maximum durability, payload capacity, and operational efficiency. It ensures consistent, high-quality concrete delivery while prioritizing driver comfort and on-site practicality.
Key Features & Specifications
1. Robust Chassis & Powertrain

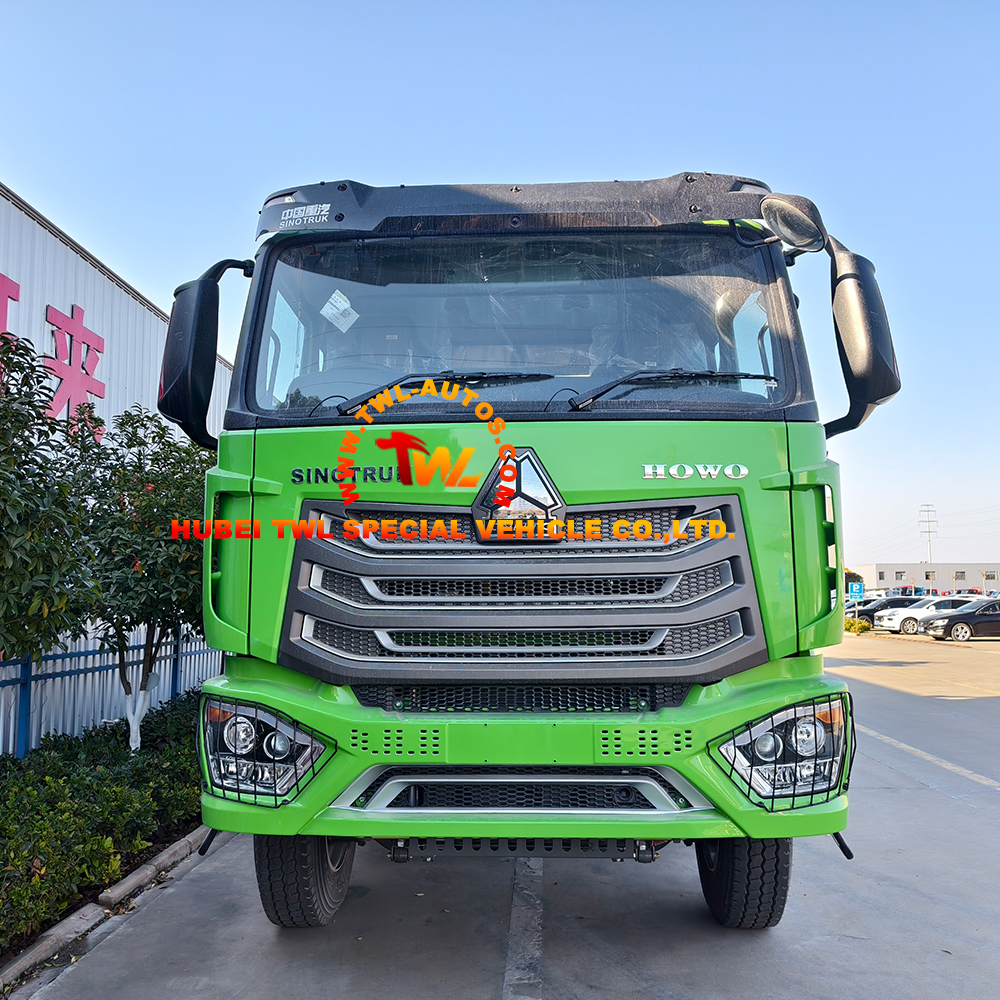

· Reliable Platform: Built on a proven SINOTRUK HOWO 6×4 heavy-duty chassis.
· Powerful Engine: Equipped with a WD615.47 engine delivering 371 HP, ensuring strong performance under full load.
· Durable Drivetrain: Features a 10-forward, 2-reverse gearbox and high-capacity axles (Front 9.5T / Rear 2x16T) for excellent site mobility and load-bearing.

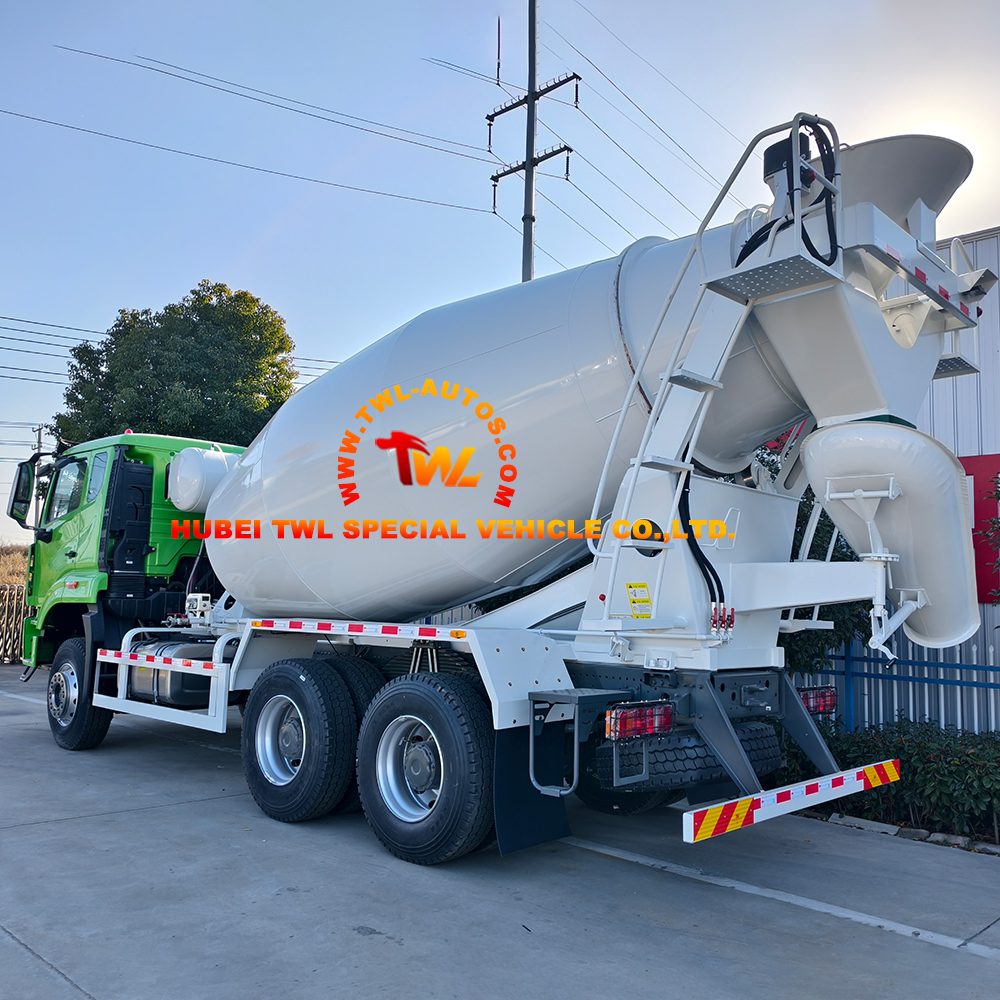

2. High-Strength Mixing Drum
· Material & Capacity: 12m³ capacity drum constructed from wear-resistant Q345 manganese steel.
· Reinforced Design: High-thickness walls and blades with reinforced wear-protection knives for a long service life.
· Stability & Safety: Integrated drum anti-rebound device ensures stable mixing and transit.
3. Premium Hydraulic & Drive System
· Imported Core Components: Utilizes fully imported Italian-brand hydraulic pump, hydraulic motor, and gear reducer for exceptional reliability and smooth operation.
· High Torque & Efficiency: Heavy-duty high-torque reducer and adjustable pump mount ensure optimal power transmission and easy maintenance.
4. Practical On-Board Systems

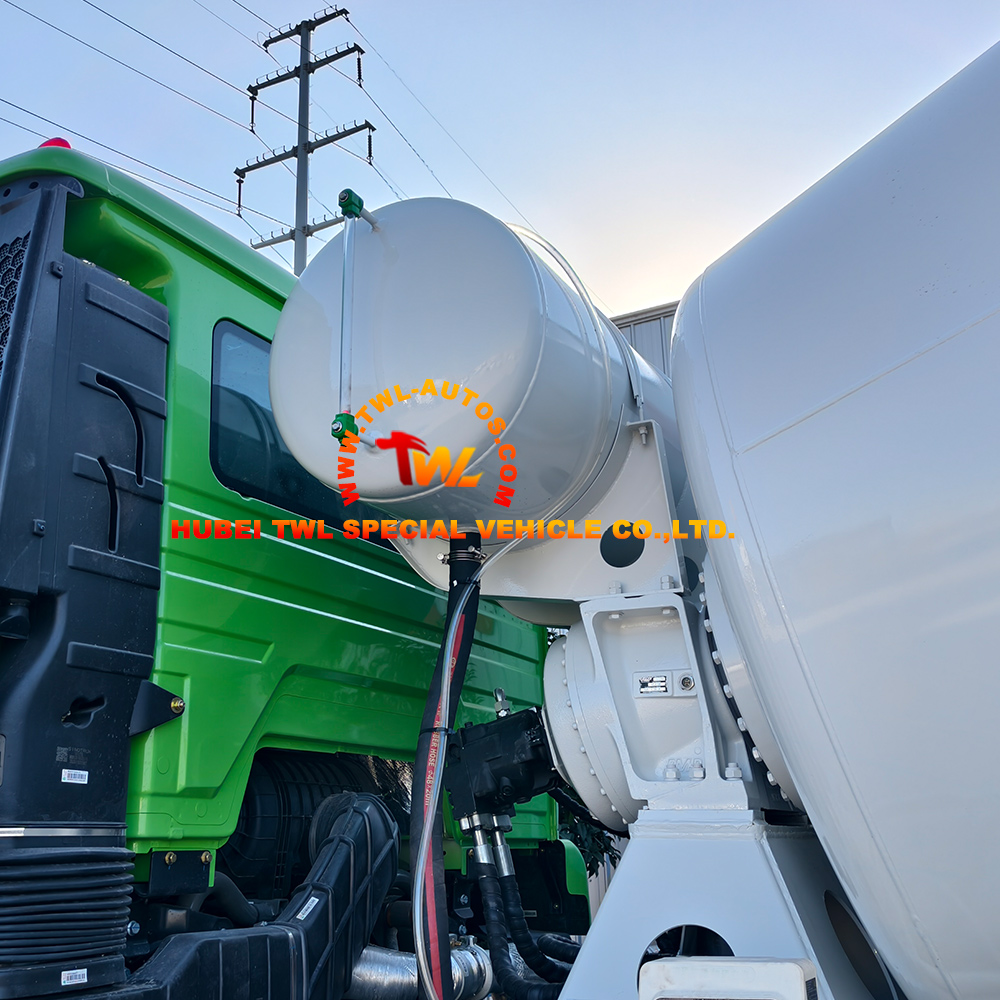

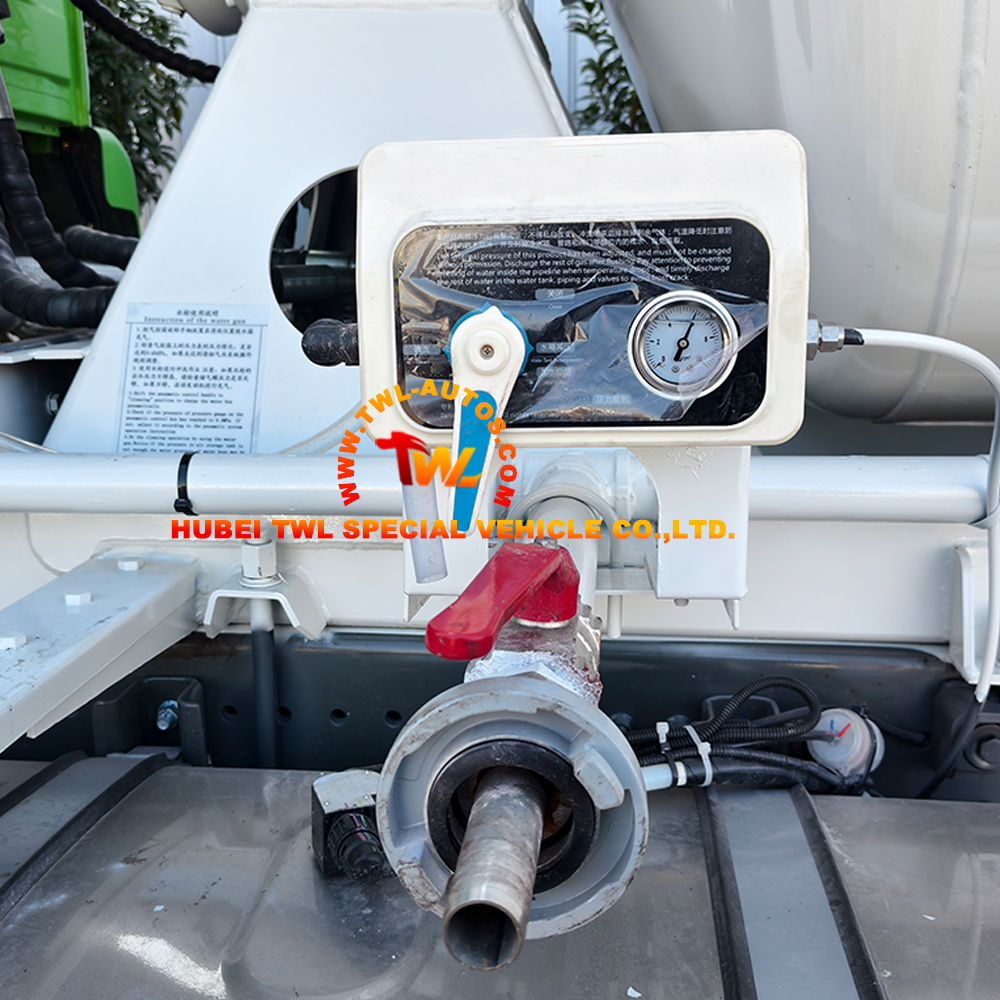

· Water System: Includes a 400L stainless steel water tank with a gear-driven pump, hose, and pipe connectors.
· Efficient Cleaning: Two washing nozzles (ground-level quick-connect and platform-mounted) enable fast and thorough drum cleaning.
· Spillage Prevention: Rear feed hopper minimizes concrete spillage during transit.
5. Operator-Focused Design & Controls
· Comfortable Cab: Spacious sleeper cab with air conditioning and an air-suspension driver’s seat.

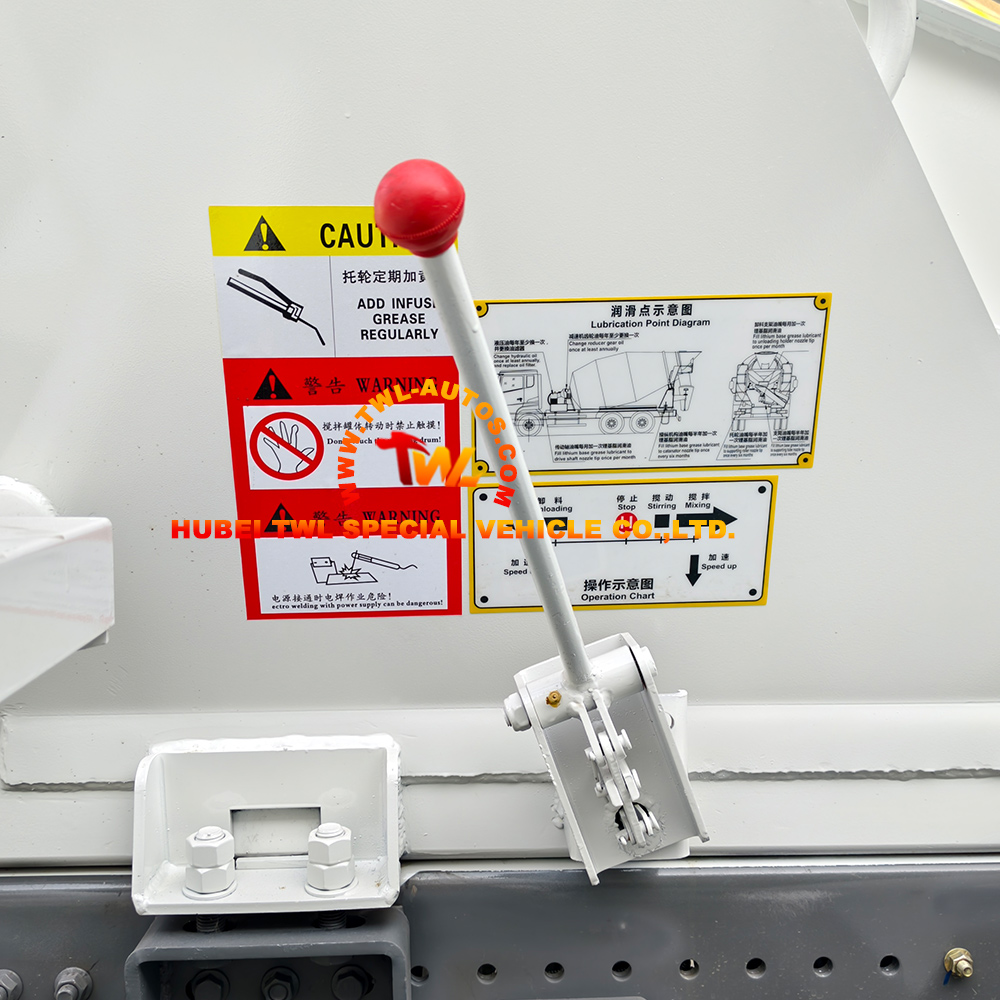

· Intuitive & Safe Control: Mixing drum is controlled via a convenient rear dual-control lever system located next to the driver’s seat, allowing precise management of rotation direction and speed.
· Safe Access: Optimized ladder structure with an outward-tilted upper ladder and internal handrail provides safe, convenient access to the drum.
Applications
The HOWO 12m³ Concrete Mixer Truck has a wide range of critical applications in construction:
· Construction Site Delivery: Reliable transport of ready-mix concrete to various building projects.
· Road Construction Support: Essential for supplying concrete during road paving and highway projects.
· Bridge Construction Application: Delivers concrete for piers, abutments, and bridge decks.
· High-Rise Building Project: Provides a steady supply of concrete for skyscraper and large structure construction.
Truck Details
 |  |  |  |

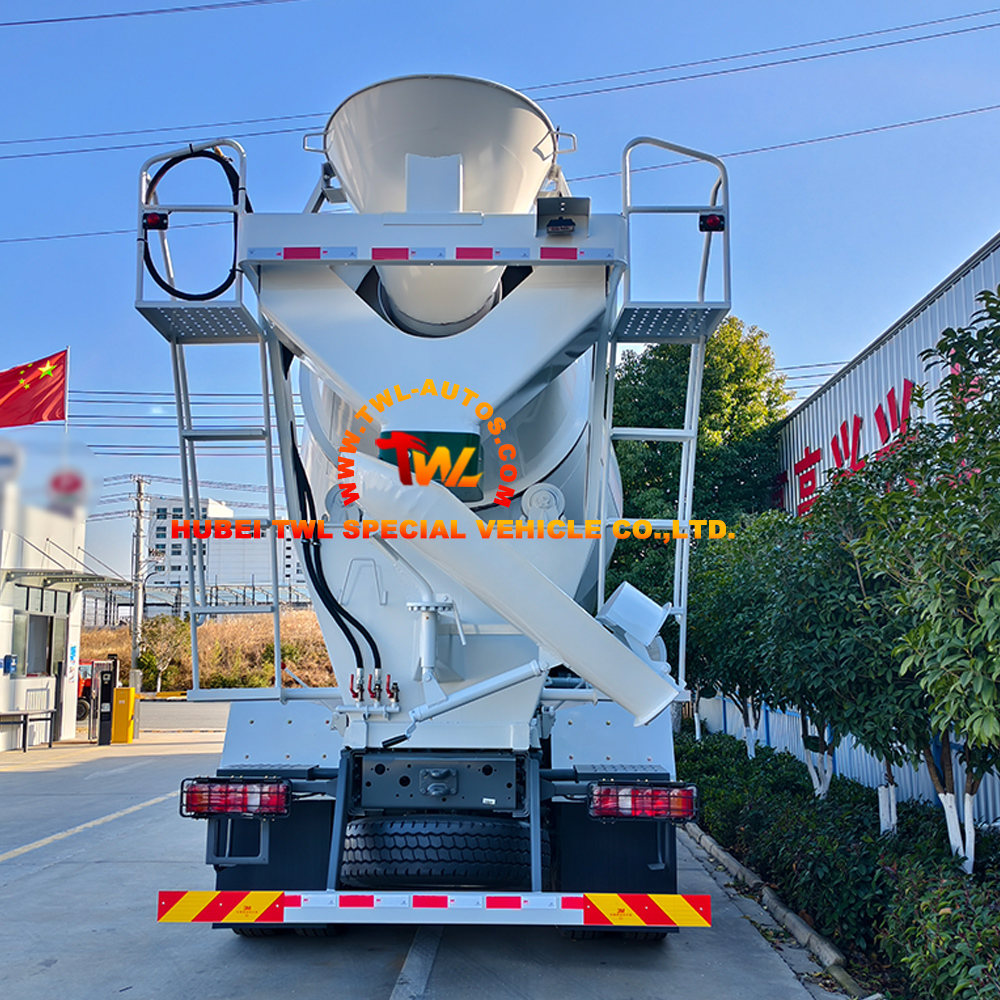

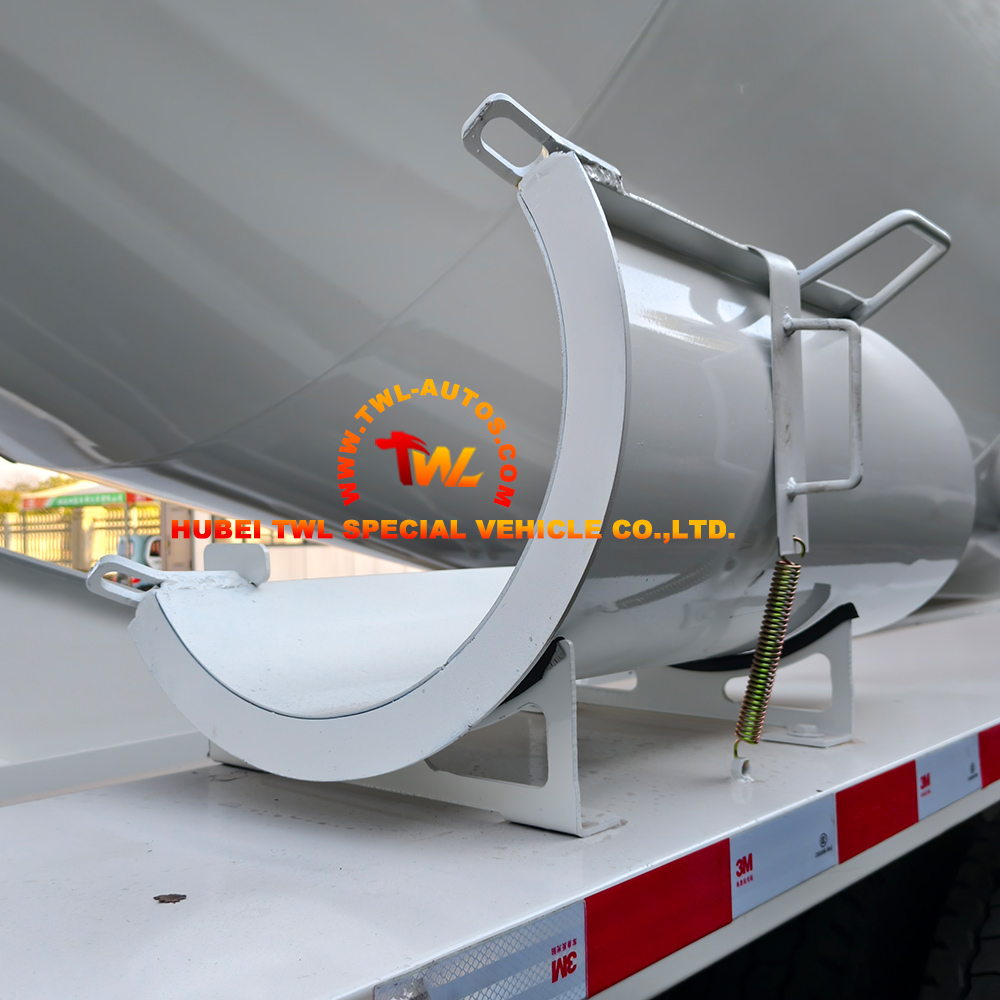

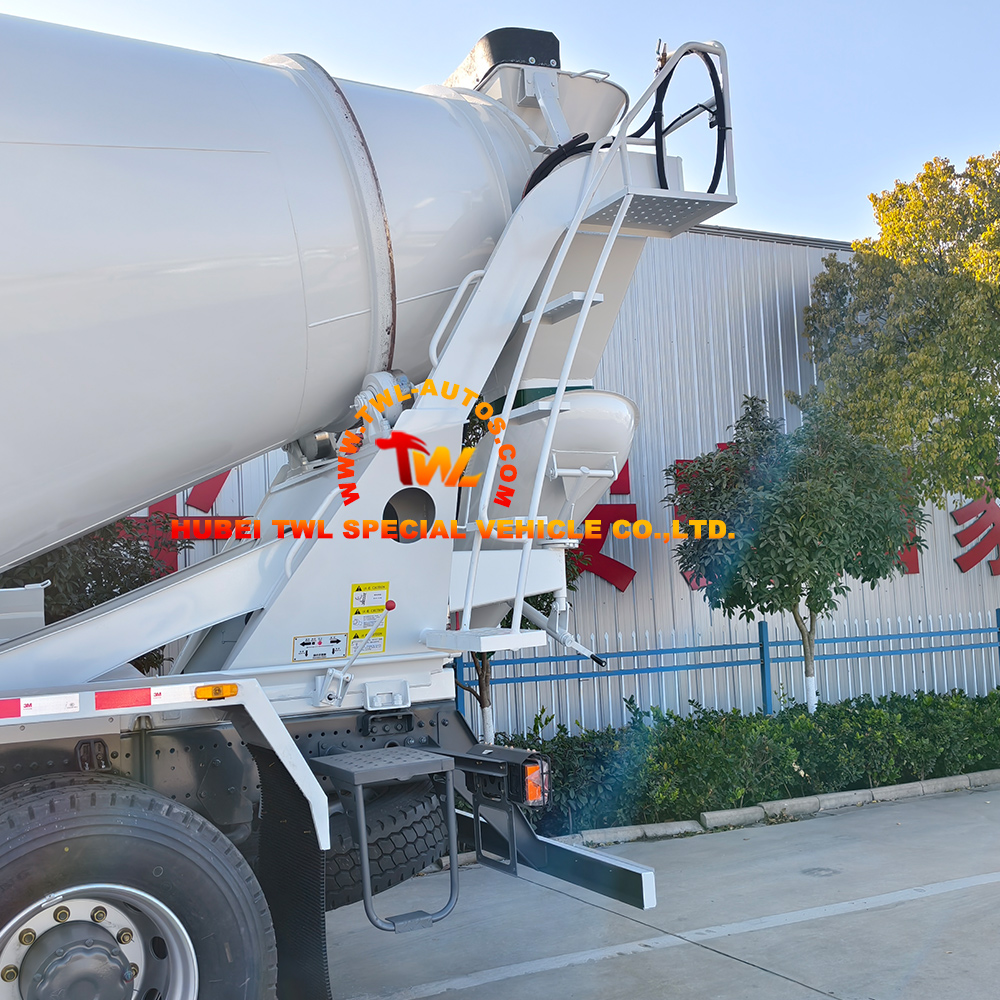

| Water Tank The 400L stainless steel water tank is equipped with a built-in handwashing facility and a standard water pipe connection. It includes two washing nozzles: one ground-level nozzle with a quick-connect joint, and one nozzle positioned on the ladder platform for convenient access. | Control Lever The control lever system adopts a rear dual-lever and triple-point control layout, enabling drum rotation operation from multiple positions. It allows precise control of rotation direction and speed, ensuring smooth, efficient, and accurate loading operations. | New Type Of Ladder Structure The newly designed ladder structure features a direct connection between the chassis and the upper ladder, eliminating mudguard transitions for easier access. The outward-tilted upper ladder and internal handrail ensure safe clearance and prevent interference with the roller track. | Extension Slot The extension slot design integrates a rear feed hopper to effectively prevent concrete spillage during transportation. An extendable discharge chute is included, enabling accurate concrete placement in narrow spaces or restricted parking conditions. |
Product Specification
| Mixing Drum | |
| Drum Full Capacity | 12 CBM |
| Drum Size | Diameter: ⌀2300mm Length: 4730mm |
| Material | Q345 High quality wear-resistance steel |
| Thickness | Drum body is 5mm, shell head is:6mm |
| Feeding Speed (m³/min) | ≥2.8 m³/min |
| Discharging Speed (m³/min) | ≥2 m³/min |
| Discharging Residual(%) | ≤0.5 % |
| Mixing Tank Rotating Speed (r/min) | 0-17 r/min |
| Discharging Chute | Add an 40cm extended auxiliary chute , and rotate 180°in the horizontal direction |
| Color & Logo | Customized according to customer requirements |
| Driving system | |
| Hydraulic Pump | Interpump, Italian Brand |
| Hydraulic Motor | Interpump, Italian Brand |
| Reducer | PMP Reducer, Italian Brand |
| Radiator | KLMAKE 18L, China local brand |
| Water supply system | |
| Water Tank Capacity (liters) | 400L |
| Water supply type | Pneumatic water supply |
| Key Features & Advantages | 1.Fast feeding: Streamlined hopper body, conical expansion technology, new structure for fast loading |
| 2.Two washing nozzles (one at ground level by quick joint and one on ladder platform) | |
| 3.Two manholes on the drum and two safety drum locking systems | |
| 4.The three-stage blades can provide an efficient discharge angle | |
| 5.Lightweight and high loading capacity: Without a sub-frame structure, reduci | |
