HOWO 8x4 Truck Mounted with 10 Ton XCMG Knuckle Crane & Hydraulic Ladder
Provided by TWL, this HOWO 8x4 heavy-duty truck is equipped with a 10-ton XCMG knuckle boom crane and a hydraulic ladder, offering an all-in-one solution for heavy lifting, transportation, and on-site operations with high efficiency and reliability.
HOWO 8x4 Truck Mounted with 10 Ton XCMG Knuckle Crane & Hydraulic Ladder
The HOWO 8×4 Truck with 10 Ton XCMG Knuckle Crane and Hydraulic Ladder, supplied by TWL, is a multi-functional heavy-duty vehicle designed to combine material transport, lifting, and on-site service into a single, efficient platform.
Built on a robust HOWO 8×4 chassis, the truck delivers excellent load capacity and road stability for transporting heavy machinery, construction materials, and industrial equipment. The integrated XCMG folding boom crane enables independent loading and unloading, reducing reliance on external lifting equipment and significantly improving operational flexibility, especially in remote or infrastructure-limited areas.
The knuckle boom crane provides precise control and flexible reach, allowing operators to place loads accurately in tight spaces or over obstacles, while its compact folded design ensures safer transport and optimized cargo space. A hydraulic access ladder further enhances safety and efficiency by offering secure access to the crane operation area, cargo deck, and elevated working points.
This configuration makes the vehicle a reliable and cost-effective solution for industries that require mobility, lifting capability, and operational independence.
Key Advantages
All-in-One Operation: Integrates lifting, transport, and service functions into one vehicle, reducing equipment and labor costs.
Powerful & Stable Chassis: HOWO 8×4 configuration ensures high payload capacity and excellent driving stability.
XCMG 10 Ton Knuckle Crane: Delivers strong lifting performance with flexible articulation for precise load placement.
Compact Folding Design: Crane folds neatly to save space and improve road safety during transportation.
Hydraulic Ladder for Safety: Provides safe and convenient access for operators during lifting, inspection, and maintenance tasks.
Designed for Harsh Conditions: Suitable for demanding job sites and long-term industrial use.
Applications
Construction & Infrastructure: Transporting and installing steel structures, pipes, and building materials.
Power & Utility Projects: Handling transformers, cable reels, and power equipment.
Industrial Logistics & Maintenance: Moving heavy machines, generators, and industrial components.
Emergency & Recovery Operations: Assisting in equipment recovery and disaster response scenarios.
Product Specification
| Main Dimensions | ||
| Overall Length | Approx. 14000 mm | |
| Overall Width | 3000 mm | |
| Overall Height | Approx.3900 mm | |
| Tare Weight | Approximate 22800 KGS | |
| XCMG Knuckle Crane | ||
| Brand | XCMG | |
| Model number | SQSZ200-4 | |
| Extendable boom section | 5 | |
| Boom Type | Knuckle type | |
| Max. Lifting Moment | 210 kN.m | |
| Max. Lifting capacity | 1000kg | |
| Max. Hydraulic outreach | 12.75 m | |
| Slewing angle | 410°/360° continuous | |
| Stabilizer spread | 5608mm | |
| Max.operating pressure | 30Mpa | |
| Oil tank capacity | 160 | |
| Bare weight | 3169 | |
| Cargo Body | ||
| Front fence | 3 mm Checkered Plate | |
| Dimension | 9500x3000x550mm | |
| Material | Manganese steel, Anti-slip pattern plate. | |
| Material Thickness | bottom : 8 mm | |
| Hydraulic ladder | ||
| Hydraulic cylinder | 1 unit per ladder, | |
| Dimension | Length 3800 mm, width 800mm | |
| Chassis | ||
| Condition | New condition/Left hand drive/8×4 | |
| Brand | SINOTRUK | |
| Model | HOWO | |
| Front/Rear Axle loading(kg) | 9500/9500/16000/16000 kg | |
| Wheelbase(mm) | 1800+4600+1350 mm | |
| Max. driving speed(km/h) | 95 km/h | |
| Clutch | Reinforced diaphragm clutch | |
| Brakes | Service brake: dual circuit compressed air brake | |
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | ||
| Auxiliary brake: engine exhaust brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Tire | Quantity | 12 pcs with one spare tire |
| Specifications | 12.00R20 18PR | |
| Transmission | Manual type, HW19710, 10 Forwards and 2 reverses | |
| Cab | Cabin, with one sleeper (berth), Air-conditioner, safety belts etc. | |
| Fuel Tank | 1 unit 400L with 1 unit 600L, | |
| Engine | Model | WP12S400E201 |
| Fuel type | Diesel | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Displacement(ml) | 12L | |
| Power(kw) | 294 kw | |
| Horsepower(HP) | 400 HP | |
| Cylinder number | 6 | |
| Emission standard | Euro 2 | |
| Other details | ||
| Remark | 1. Mudguards | |
| 2. Spare tire carrier | ||
| 3. One unit truck chassis tool | ||
| 4.Anti-rust metallic paint, Color is optional | ||

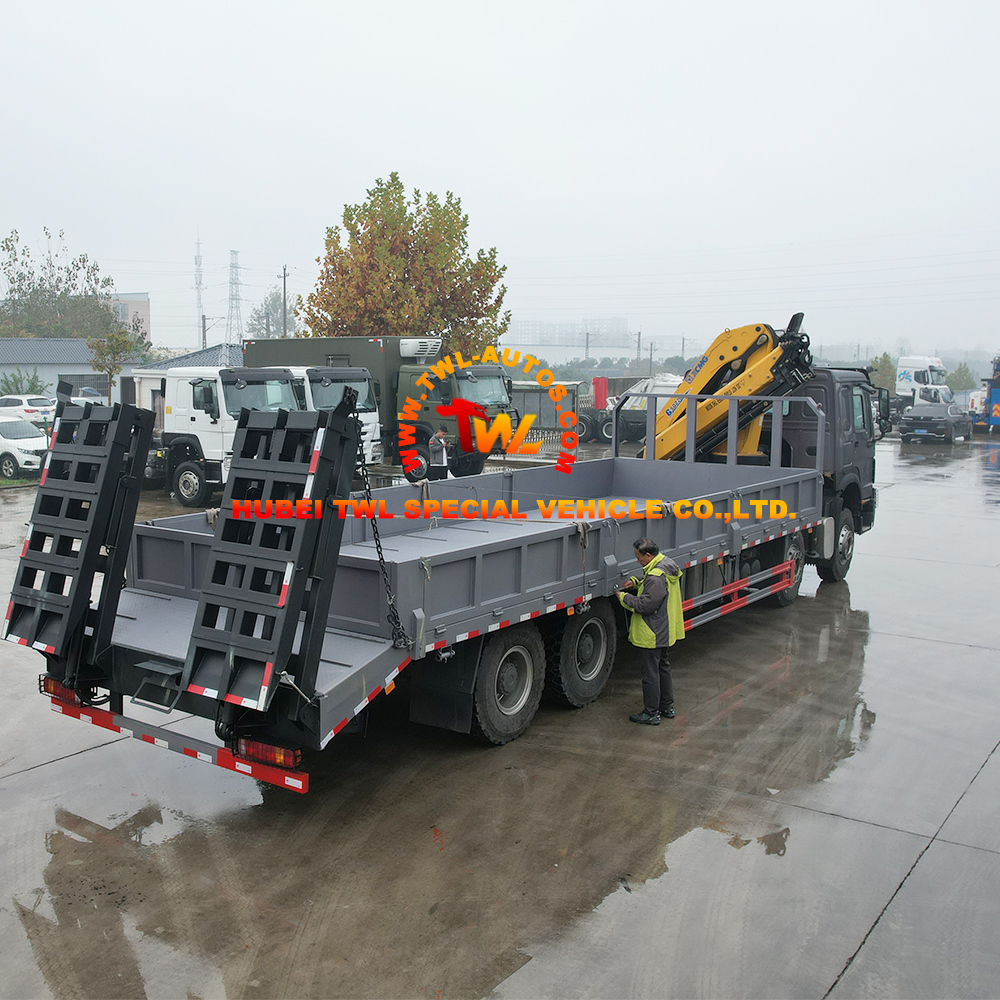

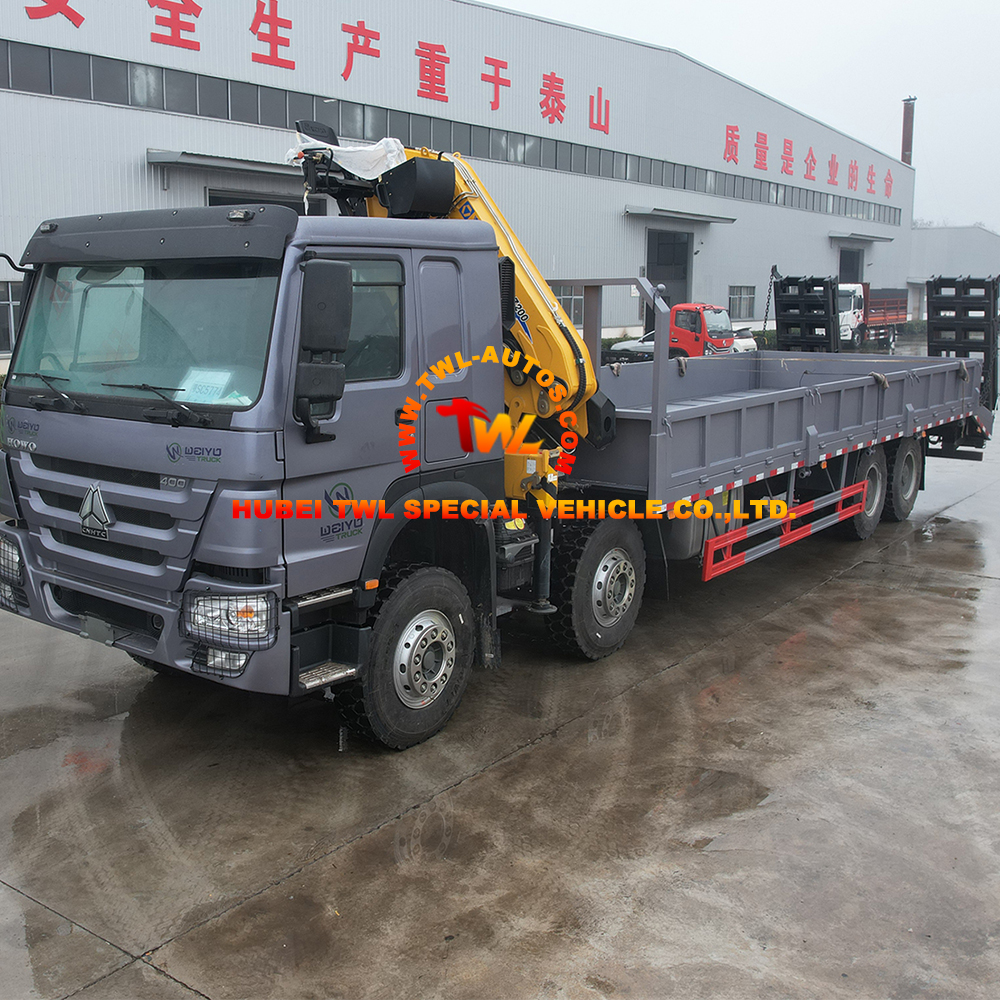

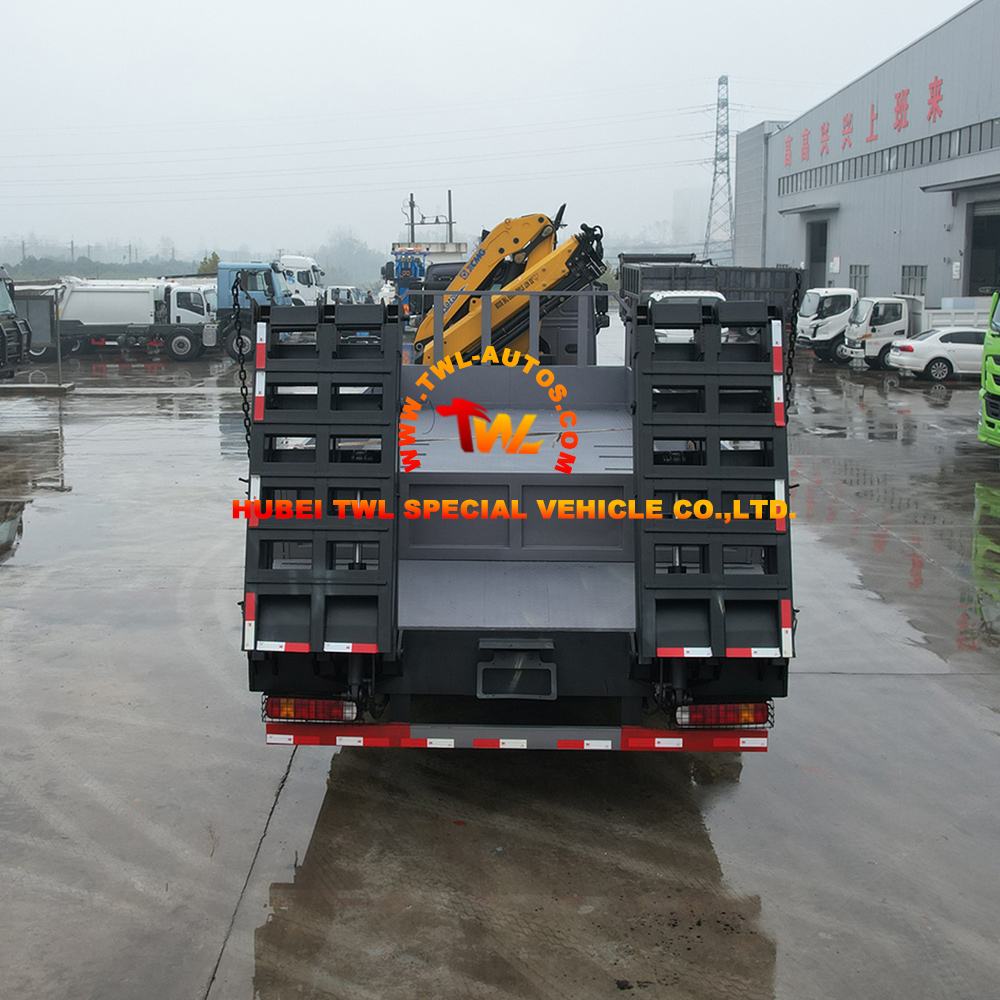

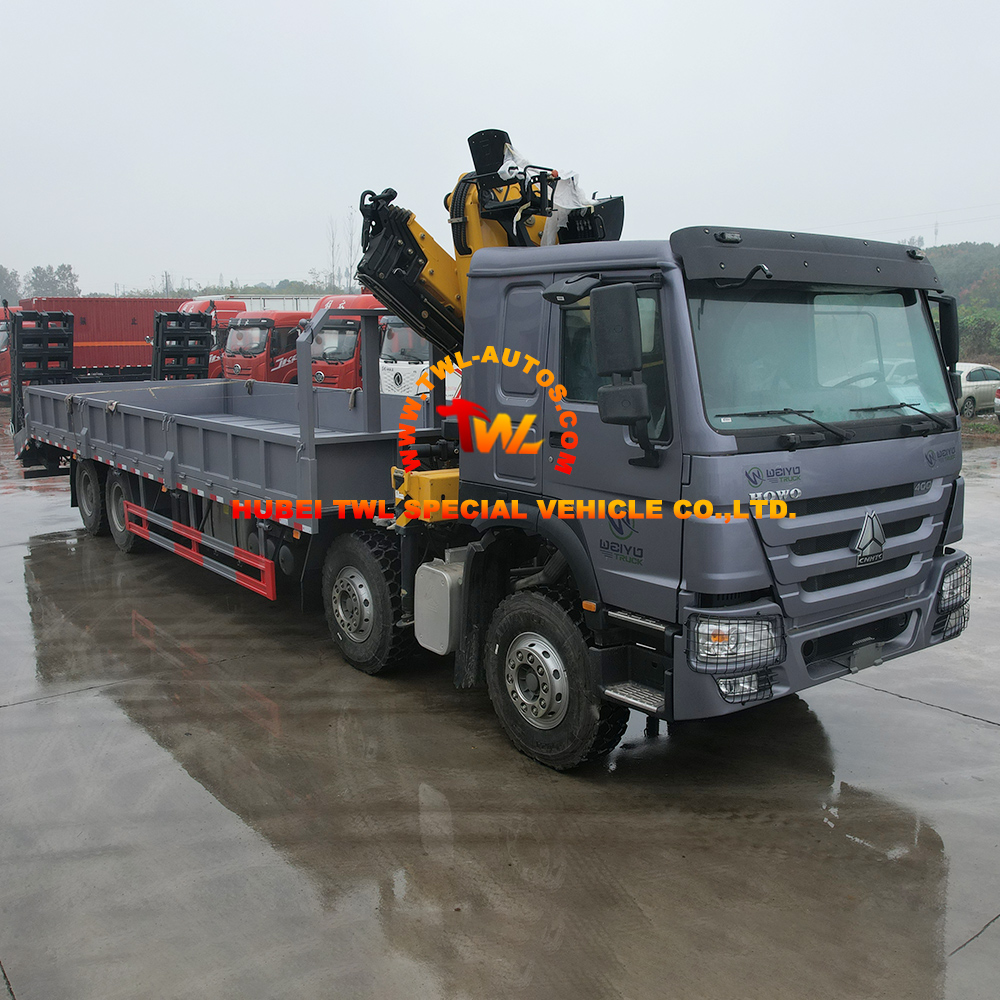

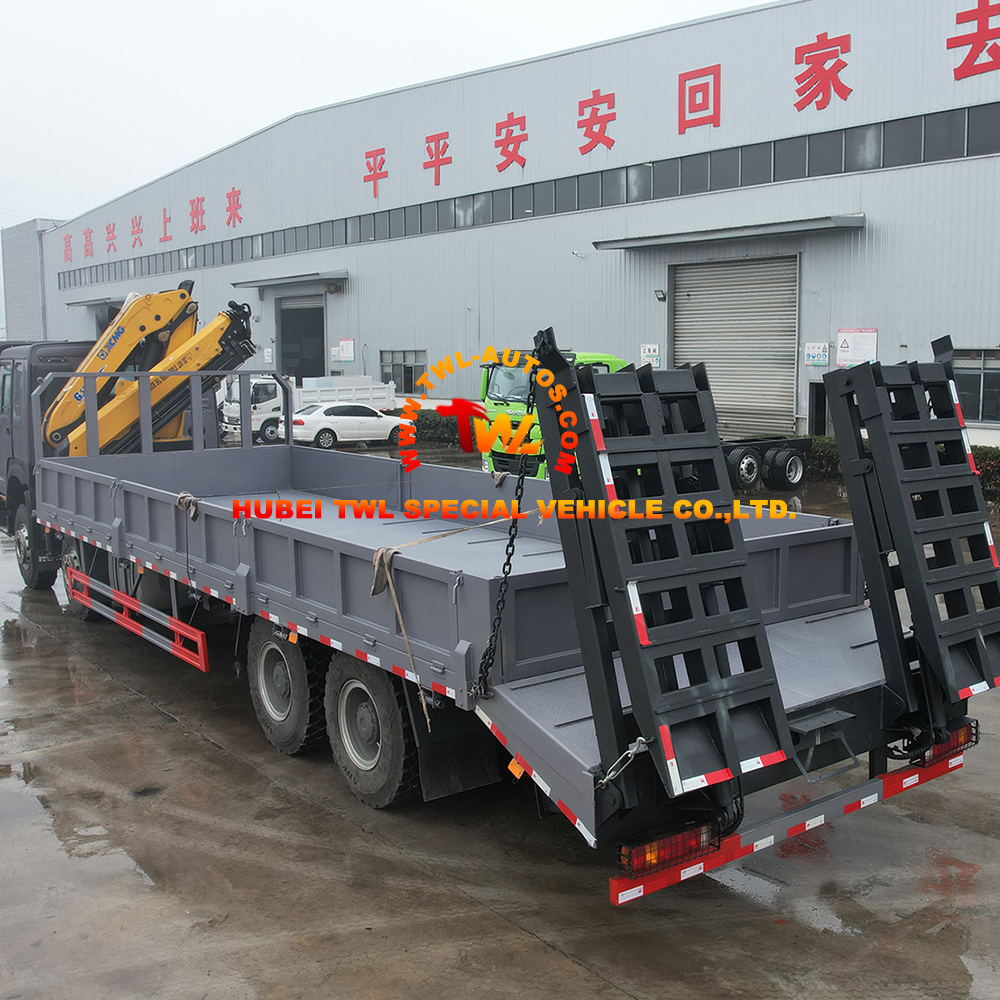

HOWO 8x4 Truck Mounted with 10 Ton XCMG Knuckle Crane & Hydraulic Ladder Gallery
- +86 199 4767 5585
- [email protected]
- Industry Park, Suizhou City,Hubei Province, China
Company Profile
Aout TWL
HUBEI TWL SPECIAL VEHICLE CO., LTD (hereinafter referred to as TWL), one of important member of CLW Group, is located in Suizhou City, Hubei Province, the capital of China’s Special Vehicles. TWL Truck has a first-class management, design, R&D, manufacturing, and sales professional team, as well as “special, new, high and sophisticated” facilities and equipment, complete manufacturing technology, and strict testing methods to ensure the production of high-quality and high-value-added products for the market. At present, we has strategic partnership with a number of well-known Chinese truck brand, including Dongfeng, Sinotruk, FAW, Foton, Shacman, ISUZU, JAC, JMC, Kama, etc. TWL Truck always adheres to the corporate philosophy of “people-oriented, customer-oriented, honesty and win-win”, and adheres to the business tenet of “development by innovation, survival by quality; integrity by service, and market by brand”.
After-Sales Service
Warranty
– The buyers can get a minimum warranty period of 12 months or 25000KM-50000KM, whichever comes first from the arrival date of shipment.
– During this period, we will send replacement parts and components to buyers by DHL, UPS, FEDEX or by air and by sea free of charge, easy-wearing spare parts are excluded.
– After warranty time, buyers can get all of spare parts of their truck at factory cost.
– This warranty does not cover any possible damage due to improper operaton, accident or misuse or damage due to any unauthorized services.
Technical Support
– The buyers can forever enioy technical support anytime and anywhere, overseas technical training before operaton is available at buyers cost or our cost.
Daily Mainteance Suggestion
– We strongly sugest you to buy some amount of basic spare pats along with your truck, the cost will be approximately 500 USD-800 USD/unit, no shipping cost.
