HOWO 4x2 Fuel Dispenser Truck
A versatile and compliant light-duty refueling solution built on the trusted HOWO 4x2 chassis. This compact fuel dispenser truck is engineered for efficient on-site refueling of construction equipment, agricultural machinery, and fleet vehicles. Equipped with a certified explosion-proof fuel dispenser and supported by a robust manual transmission and diesel powertrain, it delivers safe, precise, and mobile fuel delivery for industrial, commercial, and municipal operations.
HOWO 4x2 Fuel Dispenser Truck

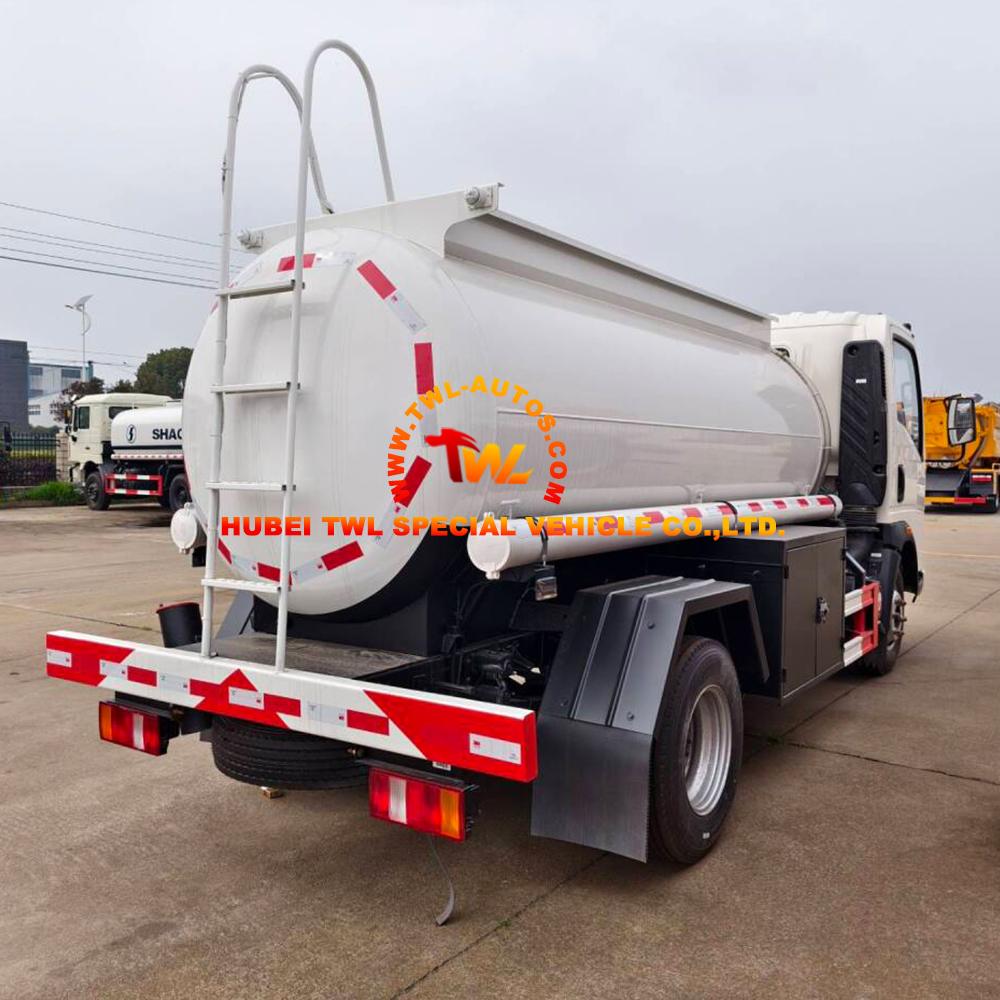

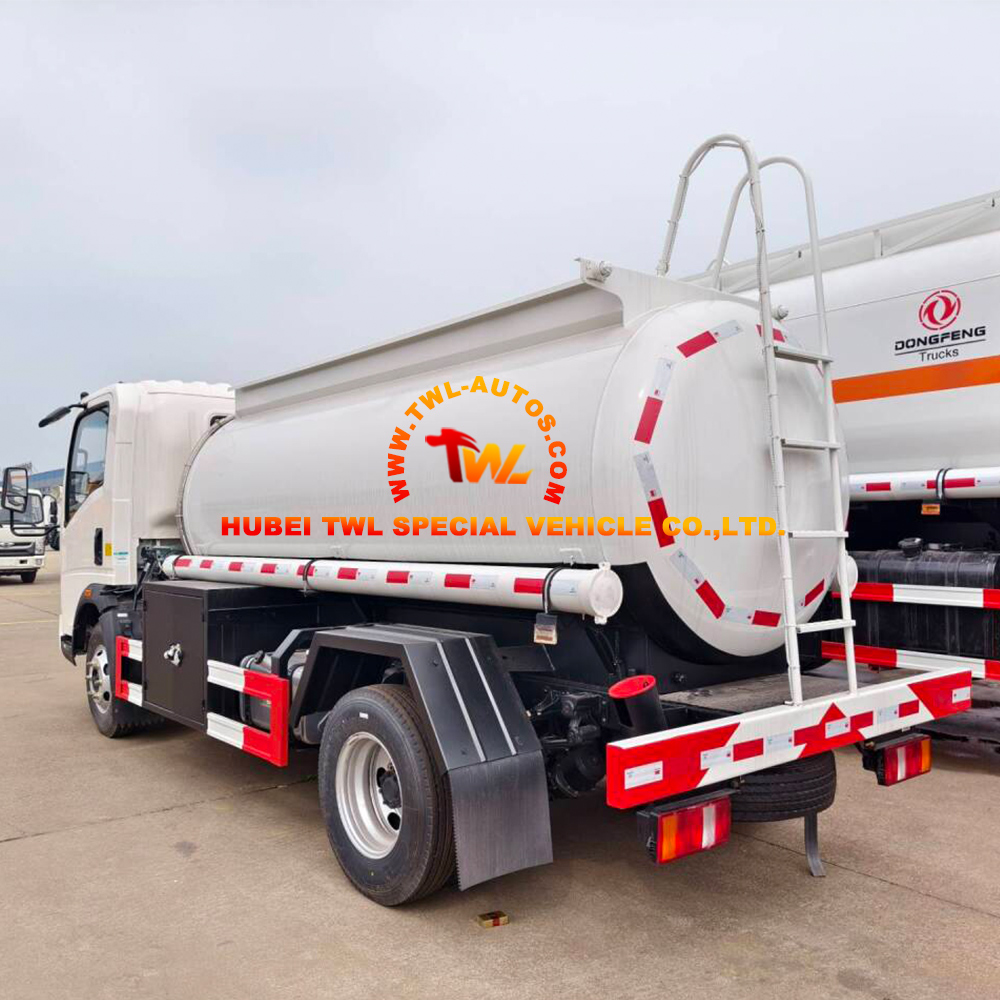

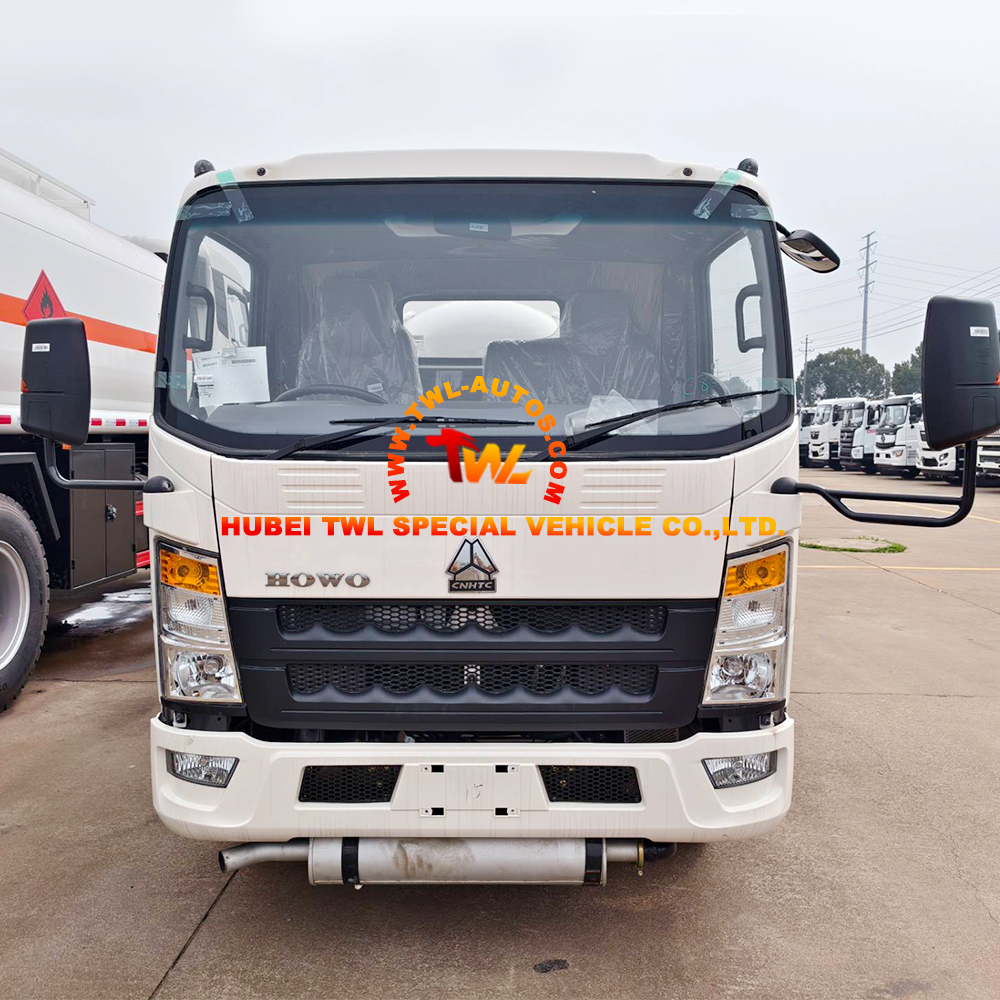

The HOWO 4×2 Fuel Dispenser Truck combines the proven durability of the SINOTRUCK HOWO platform with specialized fluid-handling equipment to create a mobile refueling station. Designed with operational flexibility in mind, this vehicle is ideal for environments where bringing machinery to a fixed fuel point is impractical. The integrated fuel dispenser provides controlled, metered fueling with explosion-proof safety certification, while the compact dimensions and 4×2 configuration allow easy maneuverability in confined job sites, warehouses, and agricultural settings. Backed by a comprehensive after-sales support package—including video technical support, online assistance, and onsite repair services—this unit is built to minimize downtime and maximize productivity.
Key Features:

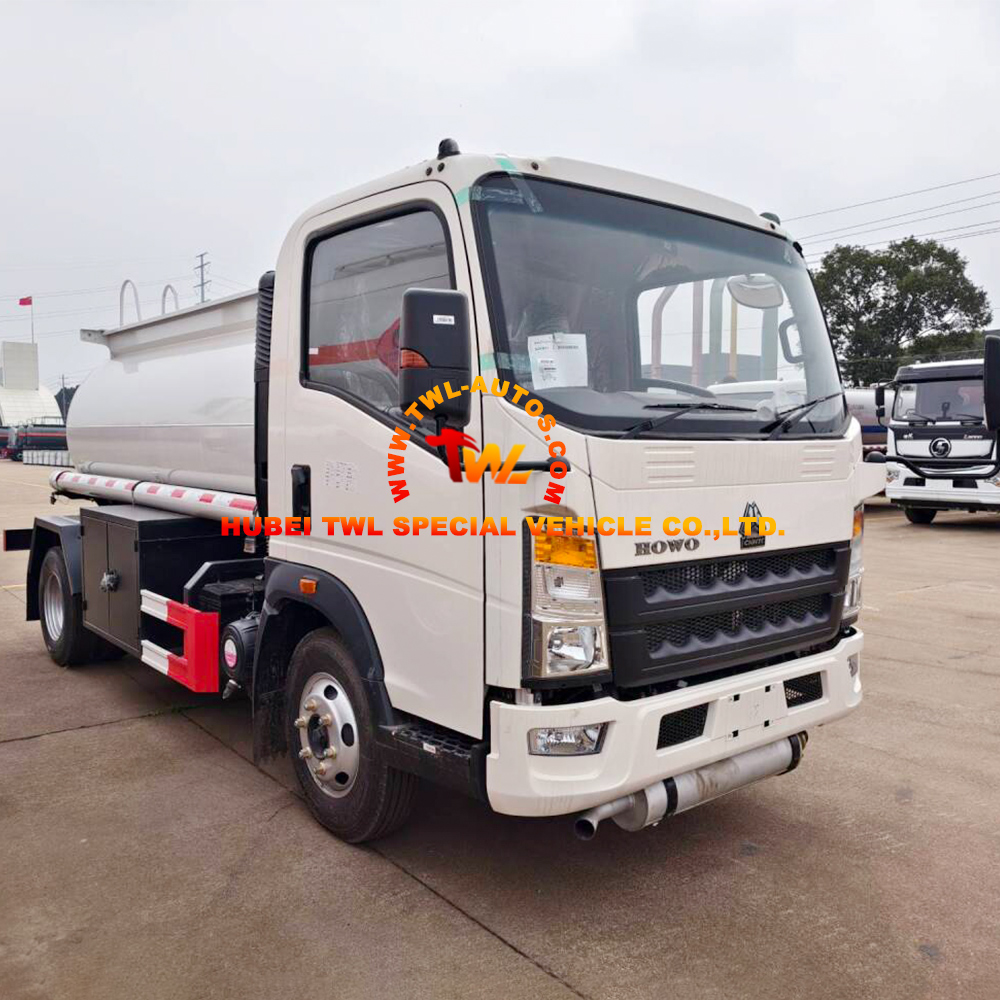

· Trusted HOWO 4×2 Chassis: Built on the widely recognized SINOTRUCK HOWO platform, this vehicle offers a proven balance of durability and maneuverability. The 4×2 configuration delivers excellent turning radius and road stability for both urban and off-road applications.

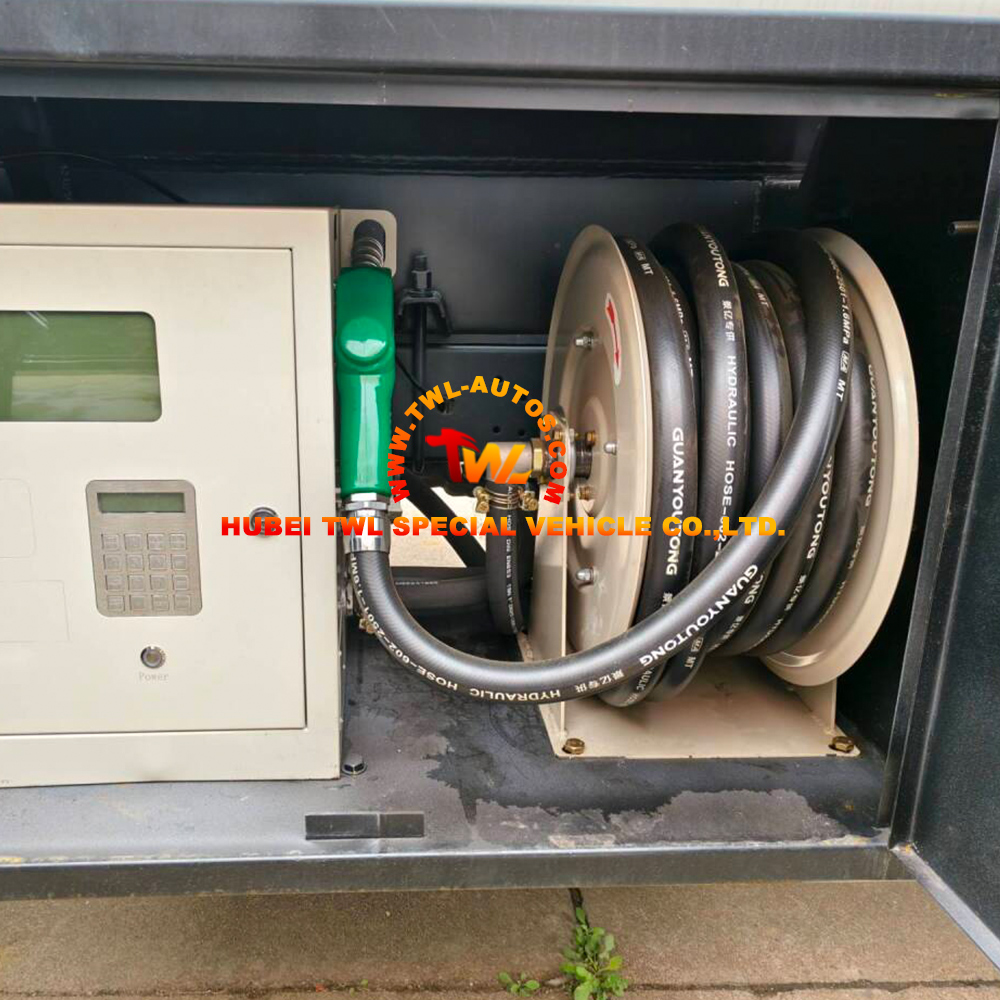

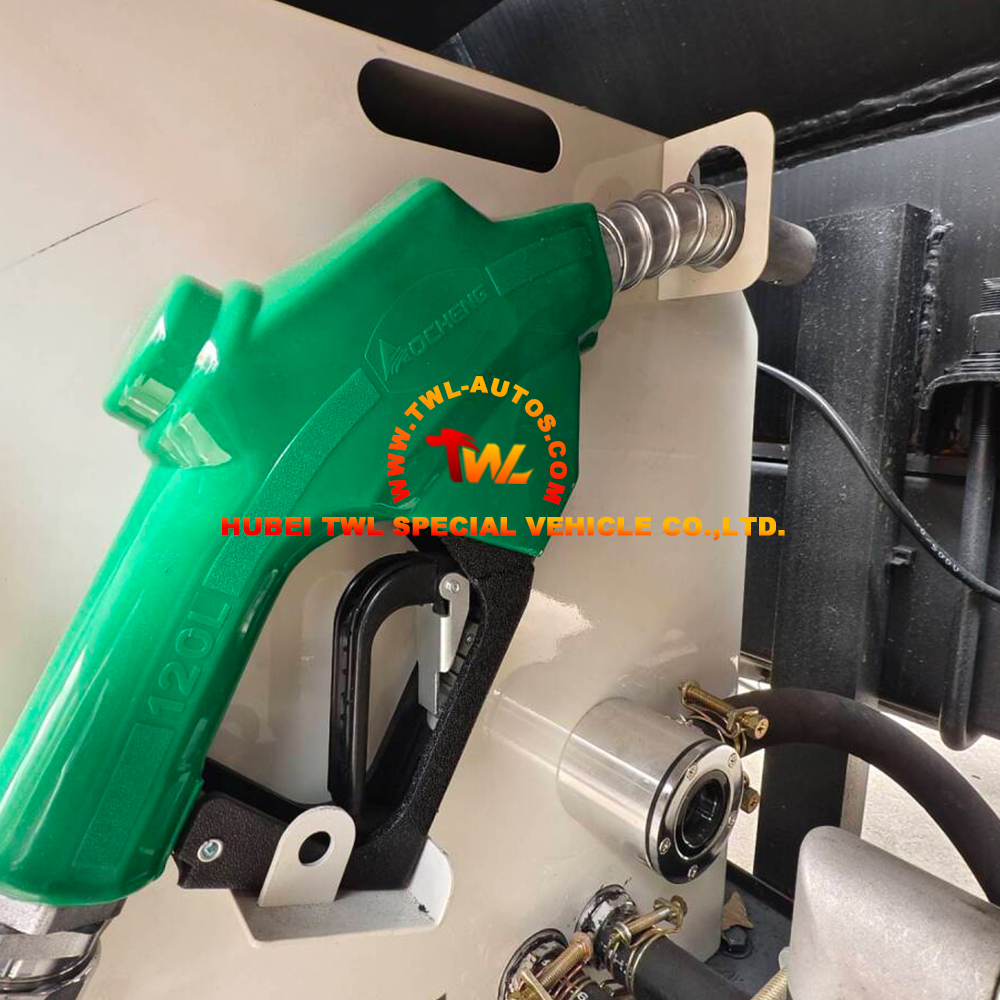

· Certified Explosion-Proof Fuel Dispenser: The unit is equipped with a model ACZS-1112 fuel dispenser, certified under explosion-proof standards (EX d ib mb IIA T3 Gb). It delivers a flow range of 5–60 L/min with ±0.30% metering accuracy, ensuring safe, precise fuel transfer for diesel and other compatible fuels.
· Efficient Diesel Powertrain: Powered by a Yunnei 116hp diesel engine paired with a manual transmission, this truck provides reliable performance for fully loaded operation while maintaining fuel economy suitable for daily refueling routes.
Applications:
· Construction Sites: Provide on-demand refueling for excavators, loaders, and other heavy machinery without requiring equipment to travel to a central fuel depot.
· Agricultural Operations: Deliver diesel directly to tractors, harvesters, and irrigation pumps in remote fields, reducing downtime during critical planting and harvest seasons.
· Mining & Quarrying: Support mobile equipment fleets with safe, metered fueling in rugged terrain where fixed infrastructure is limited.
· Municipal & Public Works: Serve as a mobile refueling asset for street sweepers, garbage trucks, and utility vehicles across city maintenance yards and remote work sites.
· Fleet Maintenance Yards: Enable efficient refueling of commercial truck fleets, buses, and service vehicles directly within depot yards, eliminating travel time to public fueling stations.
· Industrial Facilities: Provide dedicated fueling for forklifts, generators, and other diesel-powered equipment in manufacturing plants, warehouses, and logistics centers.
· Compact & Maneuverable Dimensions: With overall dimensions of 5,995 x 1,960 x 2,500 mm and a GVWR of 2,705 kg, this truck is designed to navigate narrow job sites, tight warehouse aisles, and rural agricultural roads with ease.

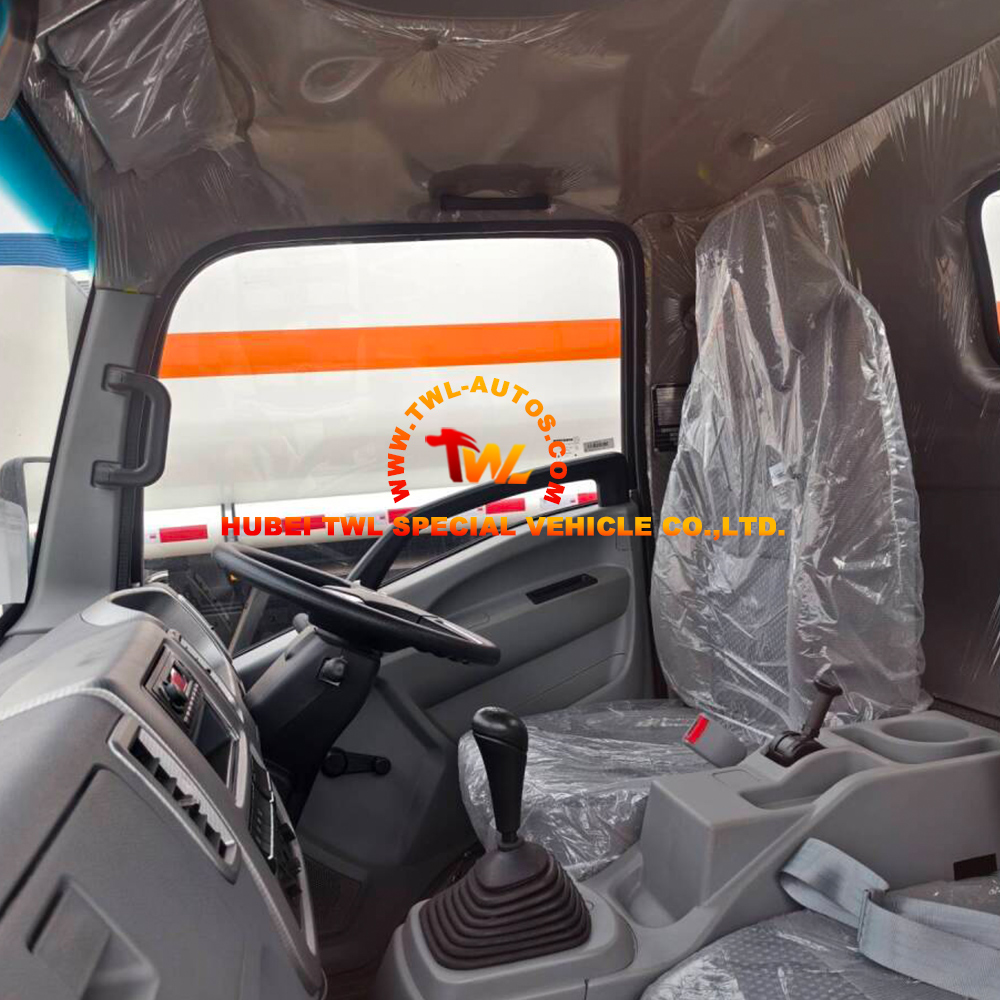

· Operator-Focused Design: The left-hand drive configuration (right-hand drive available on request) provides clear visibility for the driver, while the reinforced 430mm diaphragm clutch ensures smooth engagement during frequent stop-start fueling operations.
· Comprehensive After-Sales Support: Backed by a robust service system including video technical guidance, online troubleshooting, return and exchange policies, free spare parts provision, and onsite repair services—ensuring operational continuity and minimal downtime.
Product Specification
| Parameter | Details |
| Brand / Model | SINOTRUCK HOWO / ZZ1047D3414C1R45 |
| Drive Type | 4×2 |
| Overall Dimensions (L×W×H) | 5,995 × 1,960 × 2,500 mm |
| GVWR | 2,705 kg |
| Engine Model | YN4102QBZL (Yunnei) |
| Horsepower | 116 hp |
| Fuel Type | Diesel |
| Emission Standard | Euro 2 |
| Transmission | Manual |
| Clutch | Reinforced diaphragm clutch, 430 mm diameter |
| Tire Design | Tubeless |
| Steering | Left-hand drive (Right-hand drive available on request) |
| Color | Customizable |

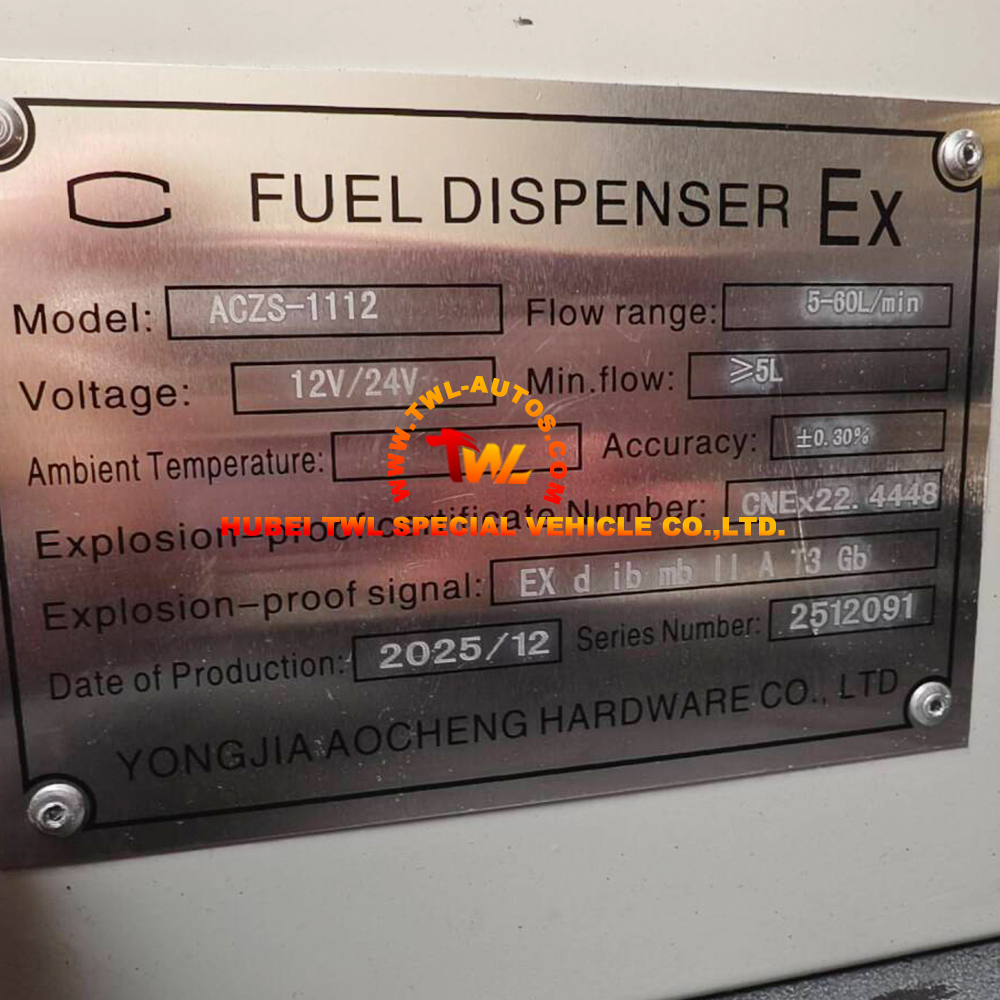

| Fuel Dispenser Model | ACZS-1112 |
| Dispenser Flow Range | 5 – 60 L/min |
| Dispenser Voltage | 12V / 24V |
| Dispenser Accuracy | ±0.30% |
| Explosion-Proof Certification | EX d ib mb IIA T3 Gb (CNEX22.4448) |
| After-Sales Support | Video support, online support, returns/exchanges, free spare parts, onsite repair |
