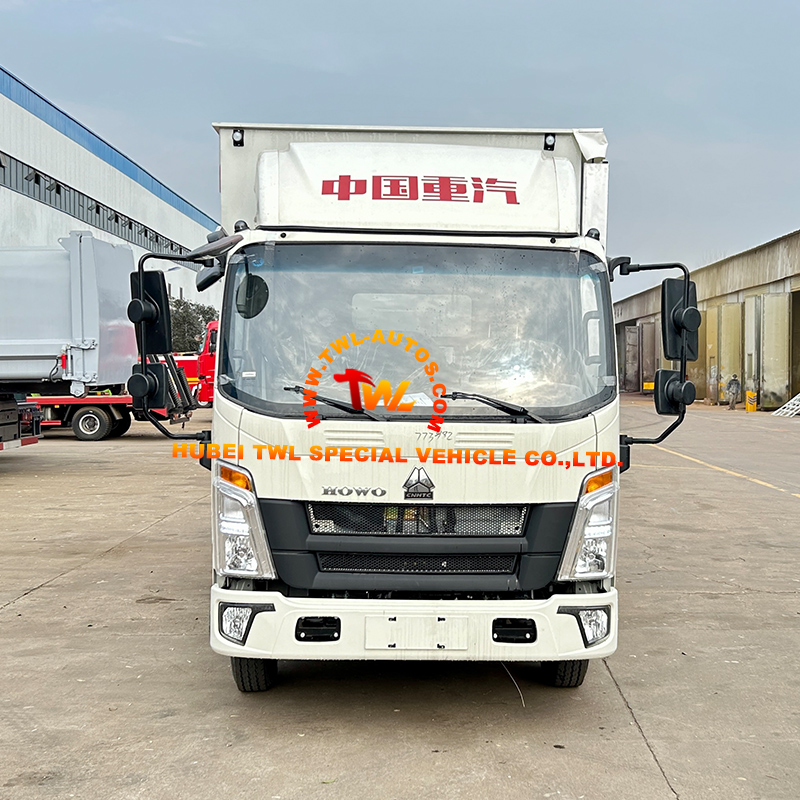

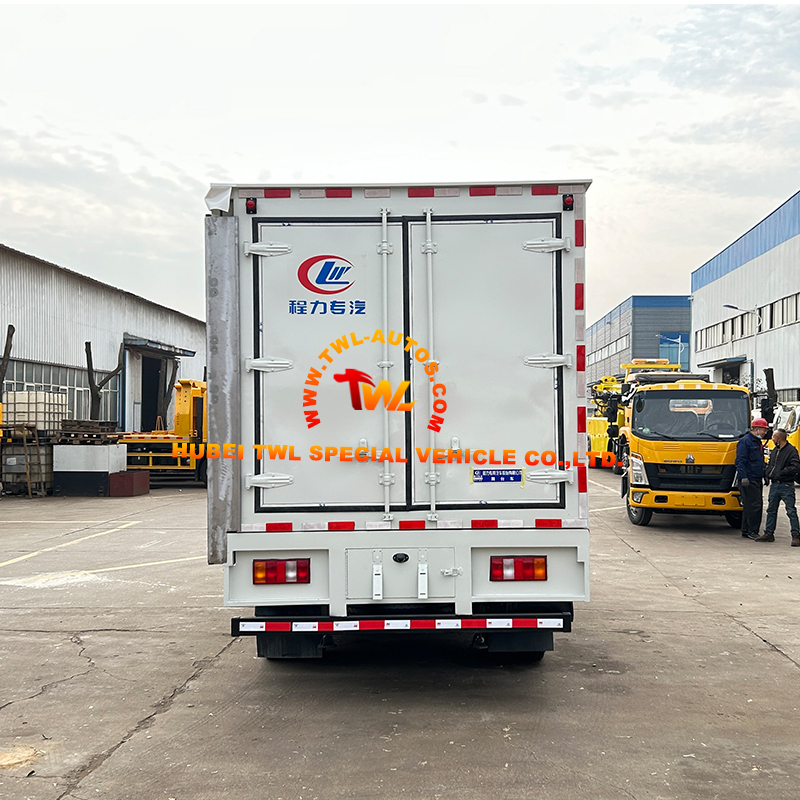

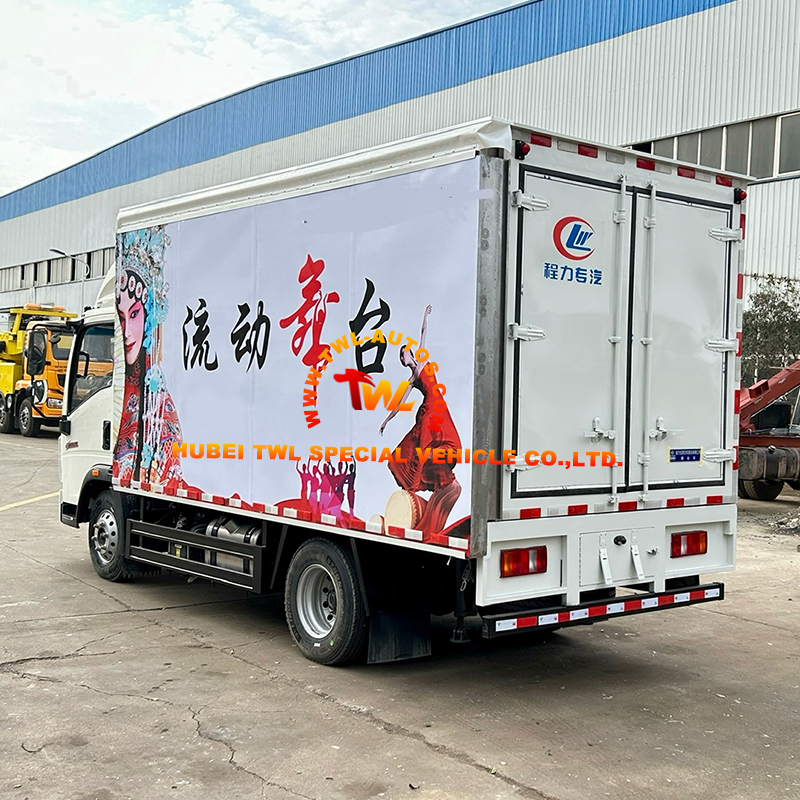

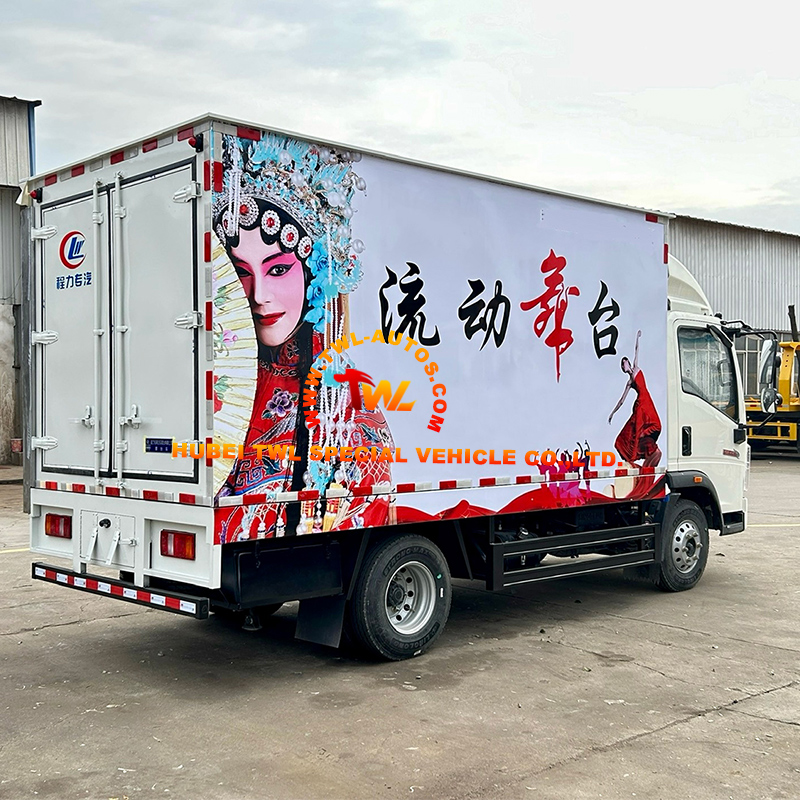

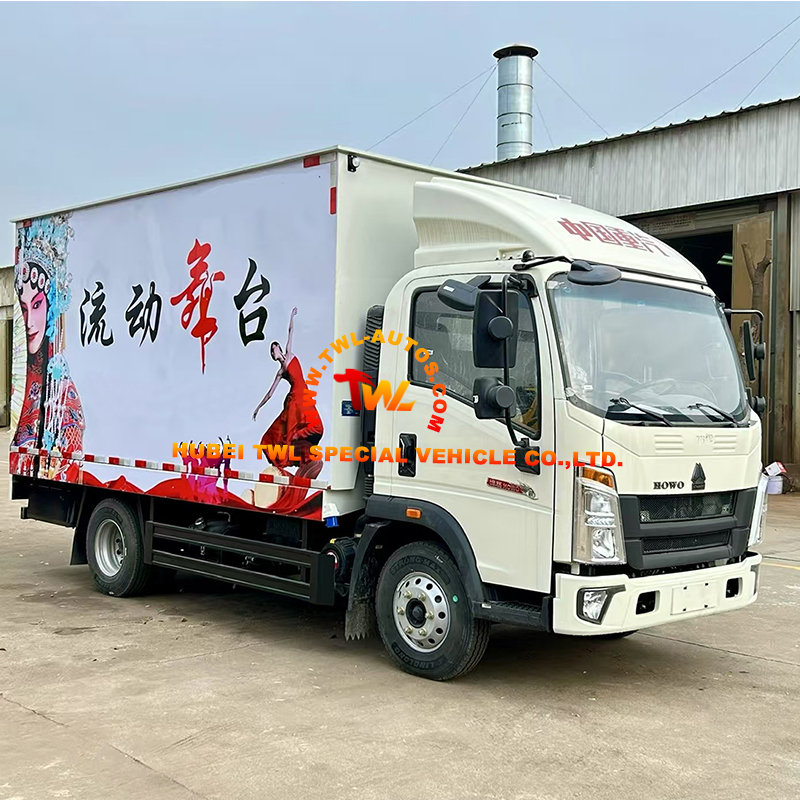

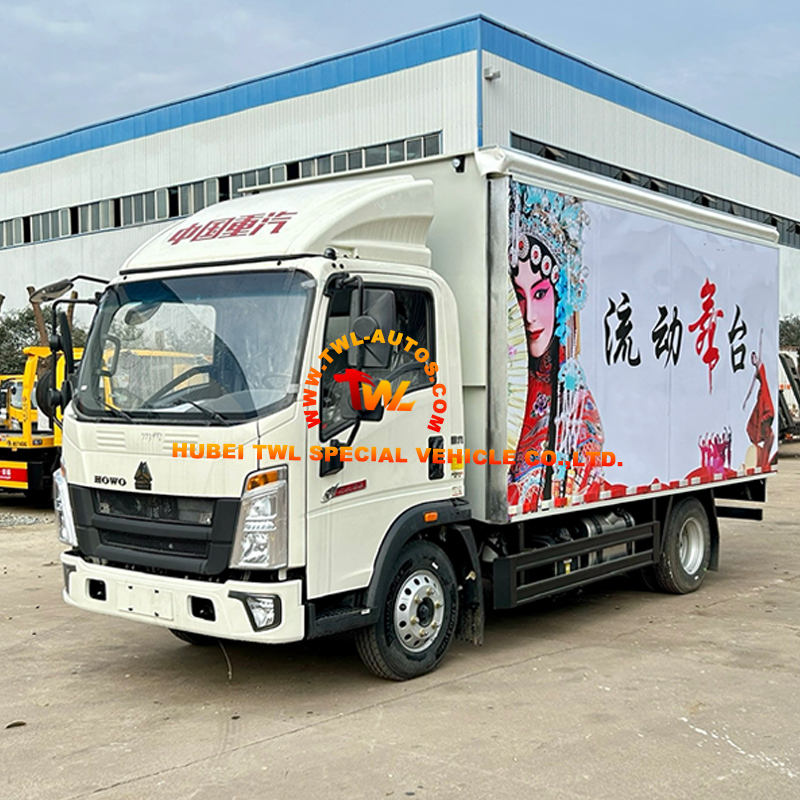

HOWO 4.2m Hydraulic LED Stage Truck
The 4.2m Hydraulic Stage Truck is a fully integrated mobile stage solution designed for versatile outdoor applications. Featuring a quick-deploy hydraulic system, professional LED display, high-power audio equipment, and customizable lighting, it provides a complete turnkey platform for events, advertising, cultural performances, and mobile entertainment.
HOWO 4.2m Hydraulic LED Stage Truck
This 4.2m stage truck combines robust engineering with professional performance capabilities in a compact, mobile format. Constructed with a durable rectangular tube frame and 1.2mm cold-rolled steel cladding, it offers both strength and reliability. The hydraulic deployment system enables rapid transformation from transport mode to fully functional stage within minutes. With integrated multimedia systems and flexible configuration options, it delivers professional-grade performance capabilities in any location.
Key Advantages
1. Complete Integrated Mobile Stage System
The truck combines stage structure, LED display, professional audio, and intelligent lighting into a single cohesive unit, eliminating the need for multiple vehicles and complex setup procedures. This integration significantly reduces transportation costs, setup time, and operational complexity while ensuring all components work together seamlessly for optimal performance.
2. Rapid Deployment with Hydraulic Operation
Featuring dual-side hydraulic expansion, roof lifting system, and four independent hydraulic outriggers, the stage can be fully deployed in minutes. The power take-off (PTO) driven hydraulic system requires minimal manual effort, allowing a small crew to efficiently manage setup and teardown, making it ideal for multi-location events and tight schedules.
3. Professional-Grade Performance Capabilities
Equipped with a high-resolution 11.79㎡ LED display, powerful 1300W AES-rated audio system, versatile beam lights, and programmable lighting controls, this platform delivers theater-quality audiovisual experiences. The modular design allows for customizable configurations to match specific event requirements, from intimate gatherings to larger audience presentations.
4. Durable Construction with Smart Design
Built with industrial-grade materials including 1.5mm anti-slip stage flooring and weather-resistant finishes, the truck withstands rigorous use and diverse weather conditions. The intelligent layout includes separate performance and backstage areas, integrated storage compartments, and accessible control points, enhancing both functionality and user experience.
Application Scenarios
1. Commercial & Promotional Events
Perfect for mobile product launches, brand activations, and shopping mall promotions. The high-visibility LED display delivers dynamic advertising content while the stage platform accommodates live demonstrations, spokesperson presentations, and interactive audience engagement. The complete audiovisual system ensures professional presentation quality that enhances brand perception and maximizes promotional impact.
2. Cultural & Community Performances
Ideal for government-sponsored cultural events, community festivals, and public entertainment programs. The mobile nature allows performances to reach diverse neighborhoods, rural areas, and public spaces that lack permanent stage facilities. The integrated technical systems support traditional and contemporary performances alike, from theatrical productions and musical concerts to dance performances and public speeches.
3. Corporate & Institutional Functions
Well-suited for corporate roadshows, employee events, and educational outreach programs. The self-contained nature eliminates venue dependency, allowing companies and institutions to bring professional presentations directly to target audiences. The flexible configuration supports various formats including seminars, training sessions, award ceremonies, and team-building activities with full technical support.
4. Tour & Temporary Installations
Excellent for traveling shows, festival circuits, and seasonal installations. The robust construction withstands frequent transport while the rapid deployment system enables efficient multi-location operations. The comprehensive equipment package reduces dependency on local technical infrastructure, ensuring consistent performance quality across different venues and locations.
Why Choose This Stage Truck?
This 4.2m Hydraulic Stage Truck represents the optimal balance between professional capability and operational efficiency. It transforms any accessible location into an instant performance venue without compromising on technical quality or audience experience. Whether for commercial promotion, cultural dissemination, corporate communication, or entertainment delivery, it provides a reliable, versatile, and professionally equipped platform that maximizes impact while minimizing logistical complexity.
Product Specification
| Item | Specifications |
| Manufacturer’s Standard Superstructure | |
| Body Dimensions | 4200 × 2200 × 2300 mm |

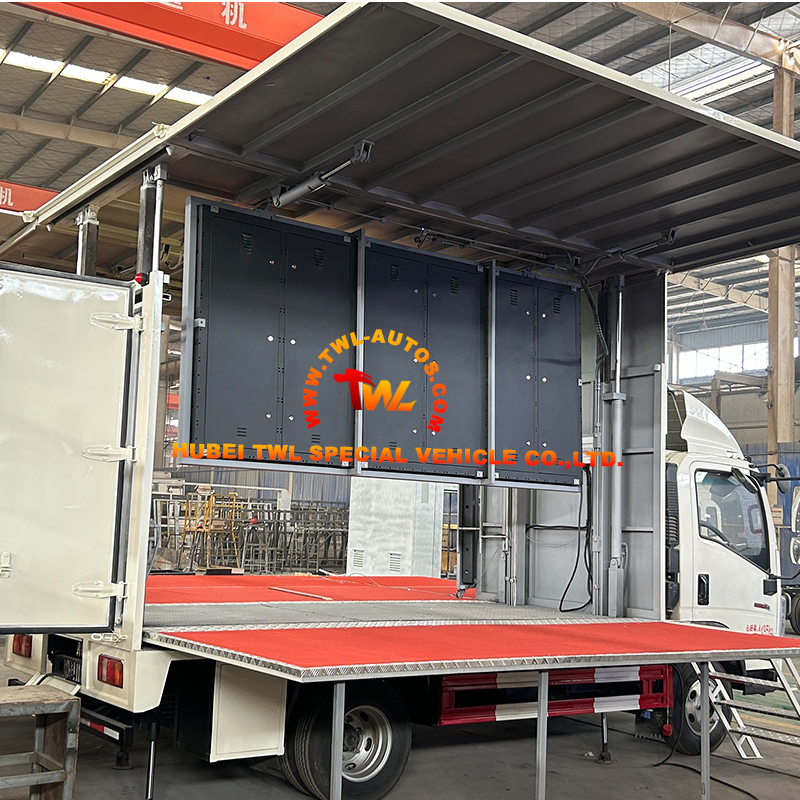

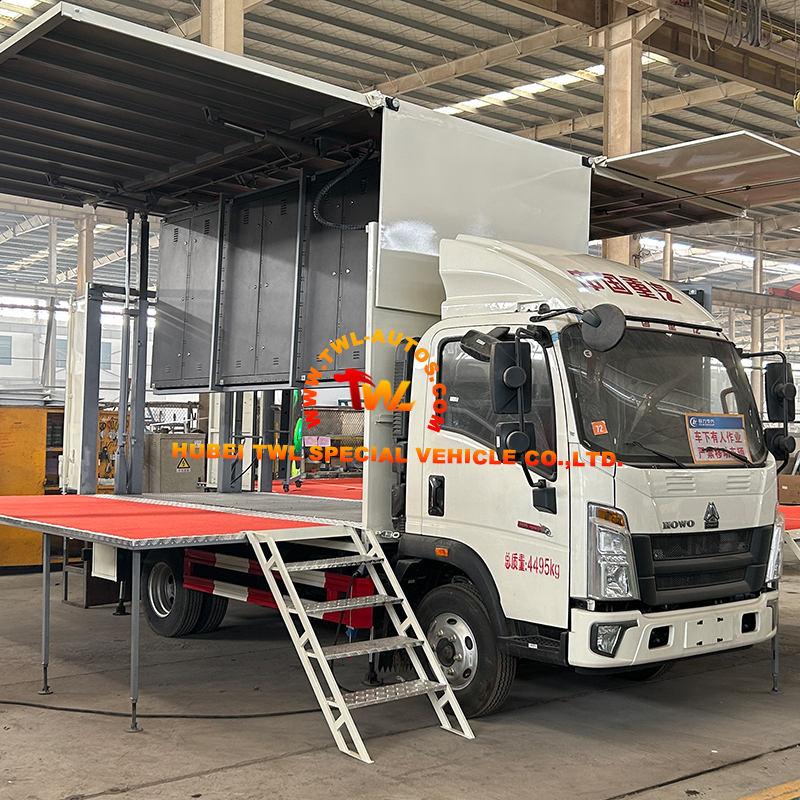

| Deployment Method | Hydraulic unfolding on both sides; hydraulic lifting roof; rear double doors |
| Body Material | Rectangular tube frame; outer cladding with 1.2mm cold-rolled steel sheet; floor with 1.5mm anti-slip patterned plate; base anti-rust paint; exterior white special vehicle paint; body gray paint |
| Stage Material | Rectangular tube grid structure; 1.2mm bamboo plywood base; covered with red carpet |
| Stage Dimensions | Main stage: 4000 × 3000 mm; front/rear manually foldable extensions: 1700mm; total stage width: 7400mm |
| Backstage: 4000 × 1700 mm (for dressing, makeup, equipment operation) | |
| Ladders | Iron ladders, quantity: 2 |
| Toolbox | Iron toolbox, quantity: 1 |
| Hydraulic Outriggers | Hydraulic outriggers at four corners, independently controlled |
| Hydraulic Operation | Power take-off (PTO) driven; manual hydraulic lever control |
| LED Display Screen | Brand: Haijia Cailiang Pixel pitch: 4mm Type: Indoor full-color Module size: 256 × 256mm |
| Configuration: One main screen + two side screens; top 768mm section manually foldable | |
| Main screen: 3072 × 2304 mm; Side screens: 1024 × 2304 mm (2 pcs); Total screen area: 11.79 m² | |
| Vehicle Decals | Outdoor adhesive decals on both sides (design provided by customer) |
| External Electrical Equipment (Optional) | |
| Control Equipment | Laptop, Lenovo I5 |
| Audio System | Main speakers: 2 pcs; Brand: FONY (USA); Dual 15″; Front-ported; AES rated power: 1300W; peak power: 5200W |
| Main amplifier: 1 pc; Brand: FONY; Rated bridged power (8Ω): 2700W; | |
| Monitor speakers: 2 pcs; Brand: FONY; Single 12″; Rated bridged power (8Ω): 2700W | |
| Monitor amplifier: 1 pc; Brand: FONY; Rated bridged power (8Ω): 1300W | |
| Mixer: 1 pc; Brand: FONY; 12 channels; USB/Bluetooth; 32 effect modes; ≤40W power | |
| Feedback suppressor: 1 pc; Brand: FONY; Auto feedback suppression; Input: 220V±10%, 50Hz | |
| Wireless microphones: 2 pcs; Brand: FONY; Battery: 2×AA alkaline | |
| Power Sequencer | 1 pc Brand: FONY; 8 outputs; standard 3-pin sockets; Input: AC220V/50Hz; Total output: 6600W; Single output: 2200W |
| Lighting Equipment | Beam lights: 4 pcs; Voltage: AC90V-240V; Power: 260W; Source: 260W; Dimming: 0-100%; Zoom: electronic; Strobe: dual-blade; Optics: high-precision lens; Pattern: 1 fixed pattern wheel (13 patterns + white); Color: 1 fixed color wheel (13 colors + white); Prism: two prism effects combinable; Pan: 540°; Tilt: 270°; Control: DMX512/auto/sound; Par lights: 24 pcs; 54×3W LED; Voltage: AC110-240V; Power: 200W; Beam angle: 45°/60°; LED work lights: 4 pcs; 100W; White light Lighting console: 1 pc; 256 channels |
| Flight Cases | Control console case: 1 pc (custom); Main speaker cases: 2 pcs (custom); Monitor speaker cases: 2 pcs (custom) |
